1. VMware
Cloud Application Platform
Alexandre Vasseur, Staff Systems Engineer, VMware
March 2012
© 2009 VMware Inc. All rights reserved

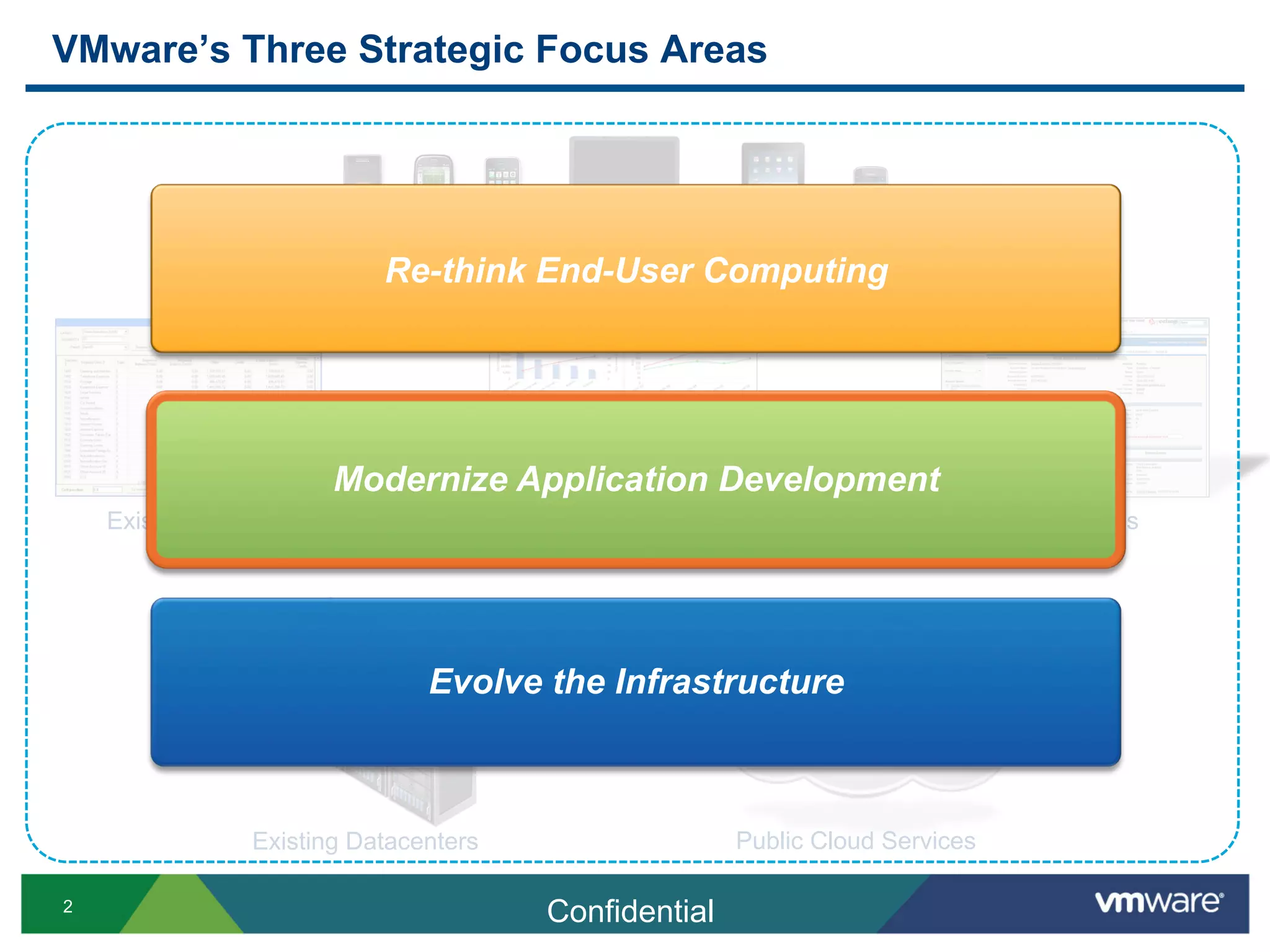

2. VMware’s Three Strategic Focus Areas
Re-think End-User Computing
Modernize Application Development
Existing Apps New Enterprise Apps SaaS Apps
Evolve the Infrastructure
Existing Datacenters Public Cloud Services
2
Confidential

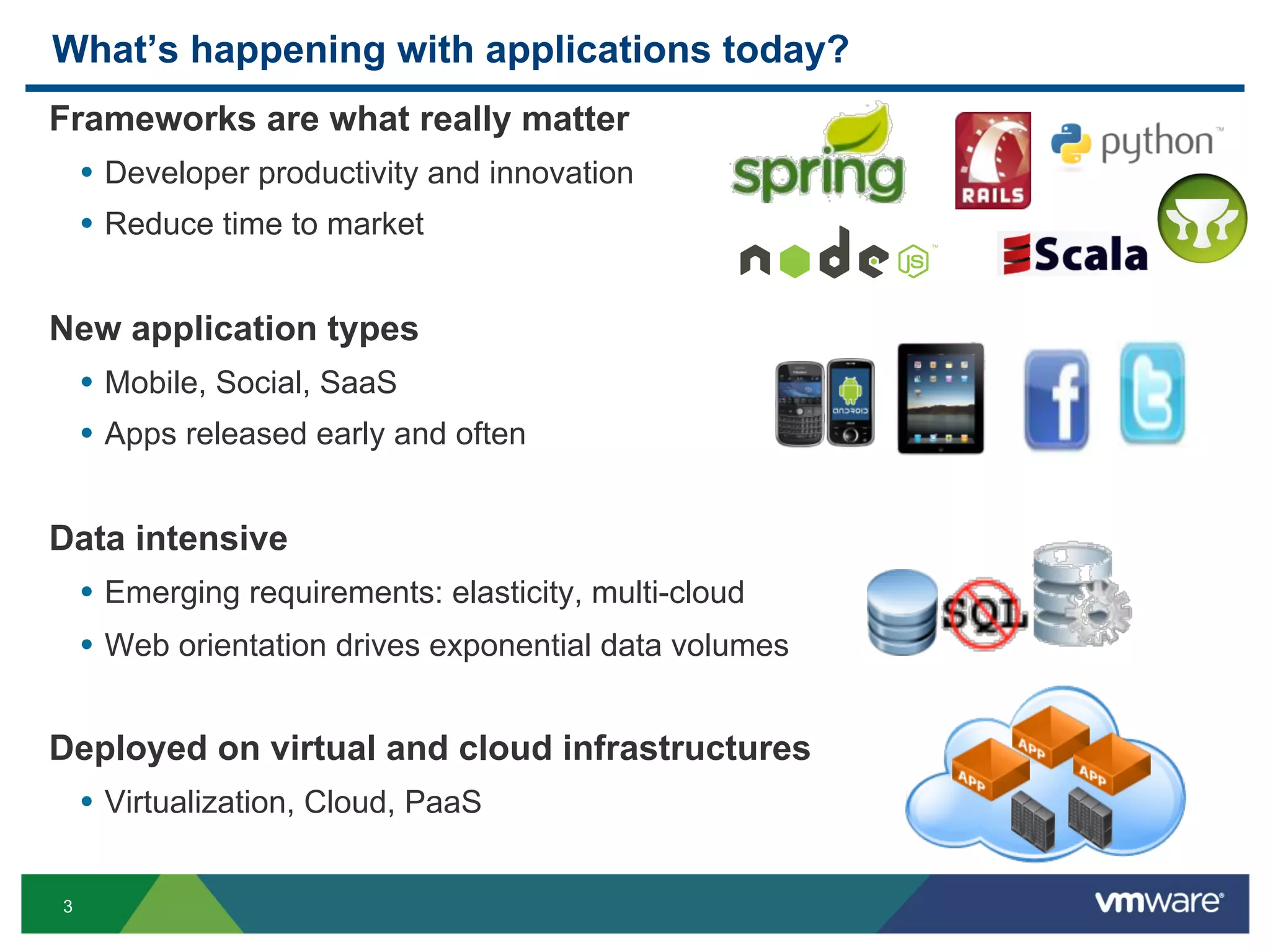

3. What’s happening with applications today?
Frameworks are what really matter
• Developer productivity and innovation
• Reduce time to market
New application types
• Mobile, Social, SaaS
• Apps released early and often
Data intensive
• Emerging requirements: elasticity, multi-cloud
• Web orientation drives exponential data volumes
Deployed on virtual and cloud infrastructures
• Virtualization, Cloud, PaaS
3

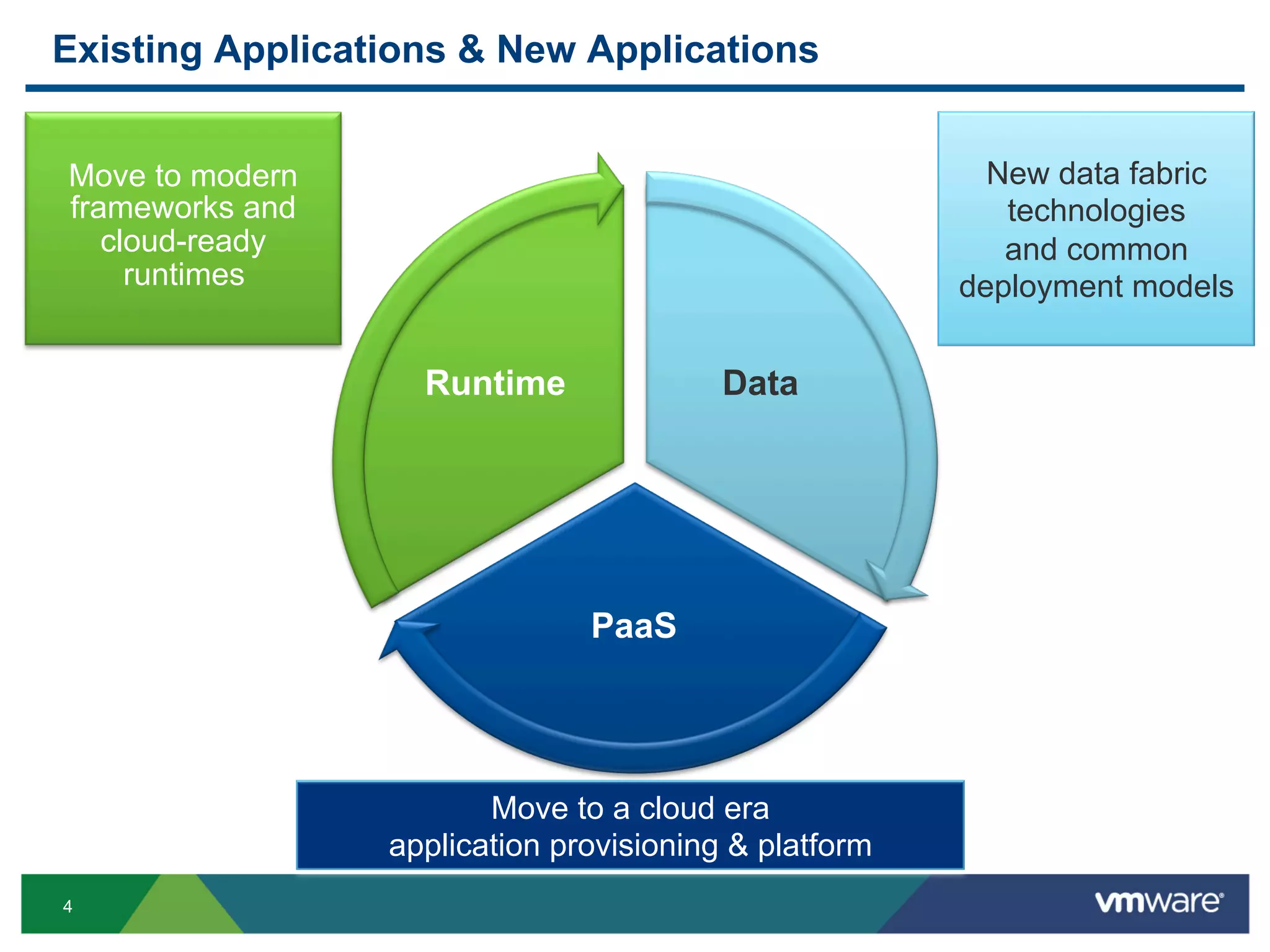

4. Existing Applications & New Applications
Move to modern New data fabric
frameworks and technologies
cloud-ready and common
runtimes deployment models
Runtime Data
PaaS
Move to a cloud era
application provisioning & platform
4

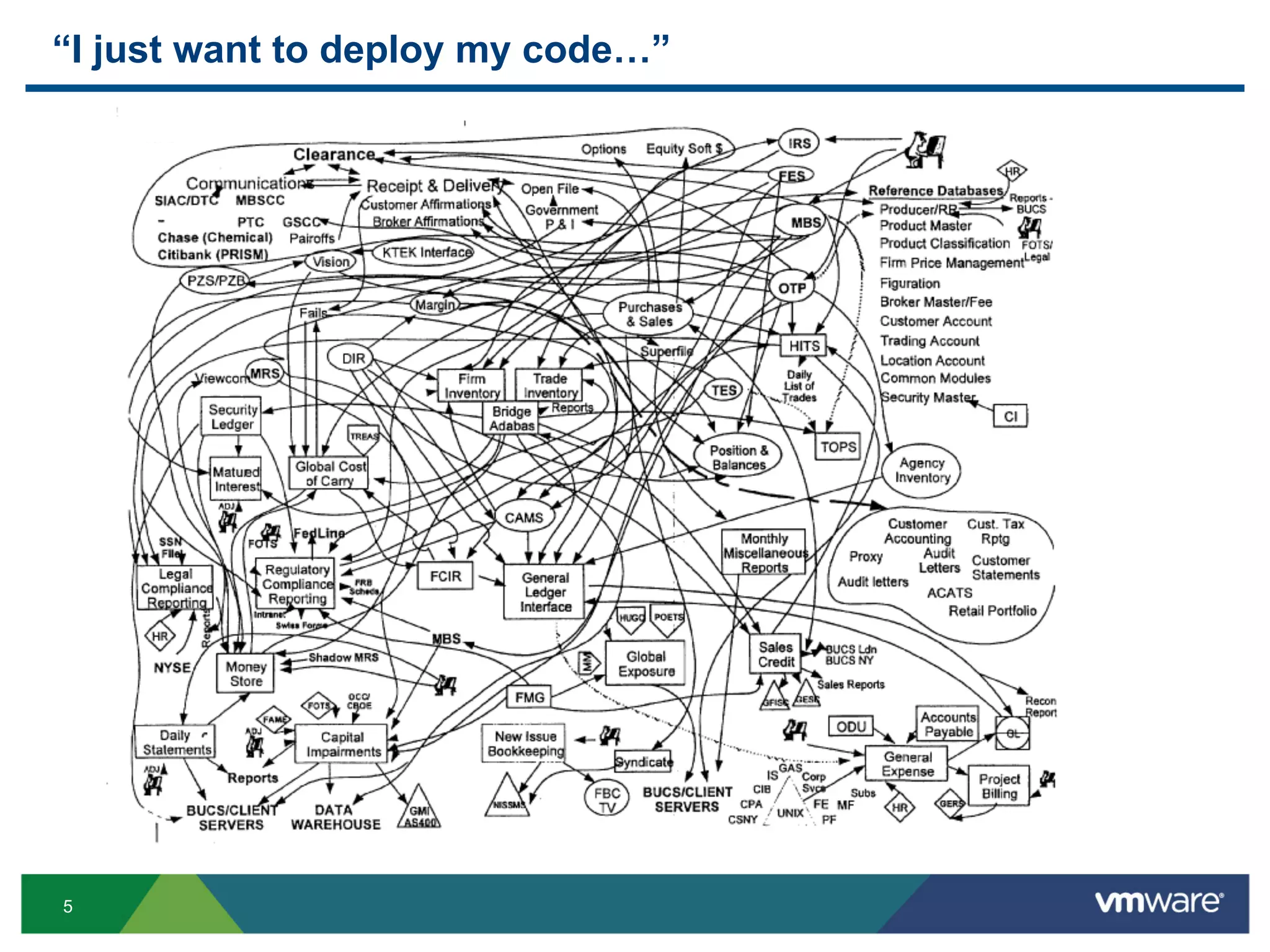

5. “I just want to deploy my code…”
5

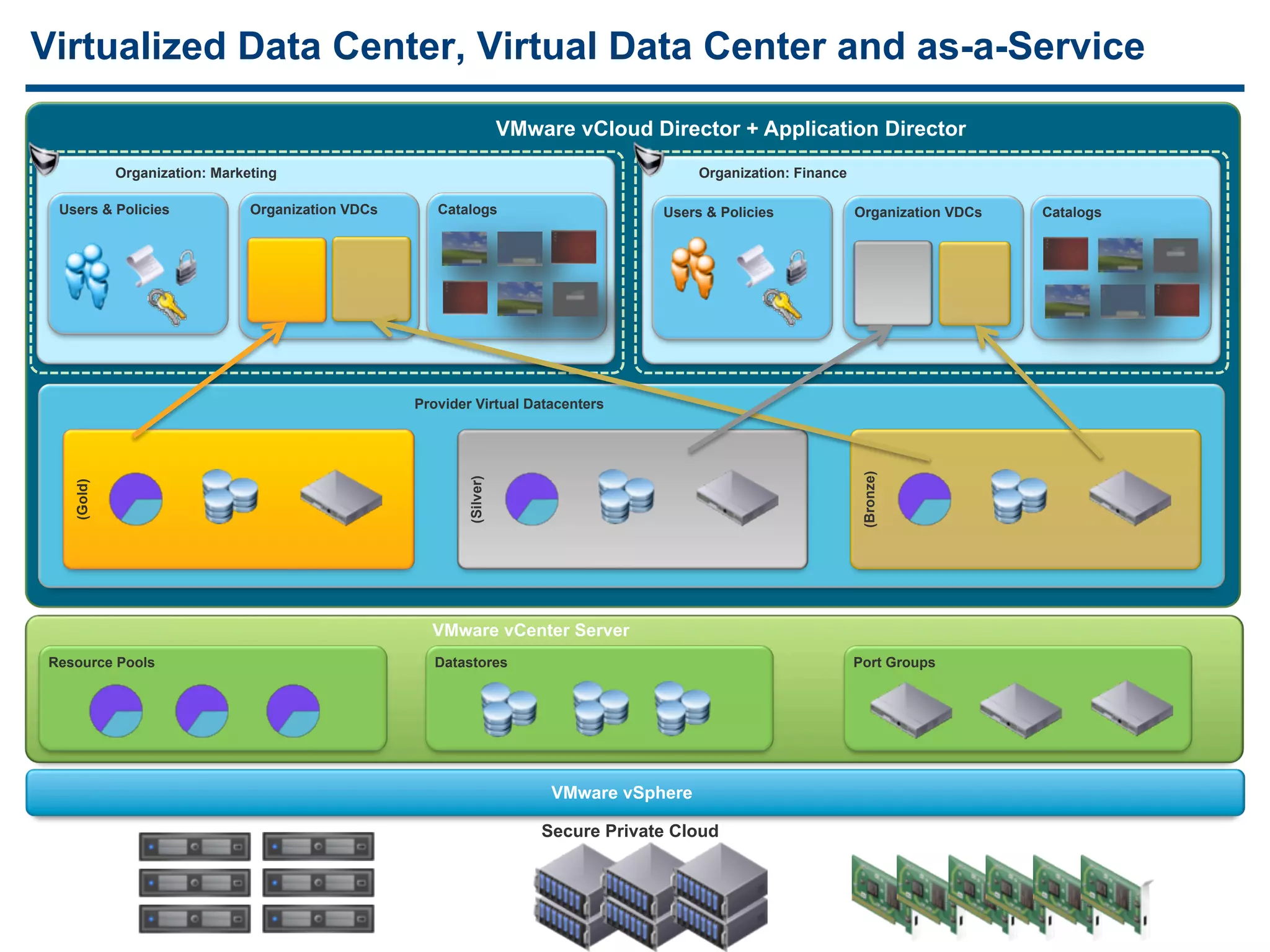

6. Virtualized Data Center, Virtual Data Center and as-a-Service
VMware vCloud Director + Application Director
Organization: Marketing Organization: Finance
Users & Policies Organization VDCs Catalogs Users & Policies Organization VDCs Catalogs
Provider Virtual Datacenters
(Bronze)
(Silver)
(Gold)
VMware vCenter Server
Resource Pools Datastores Port Groups
VMware vSphere
Secure Private Cloud
6

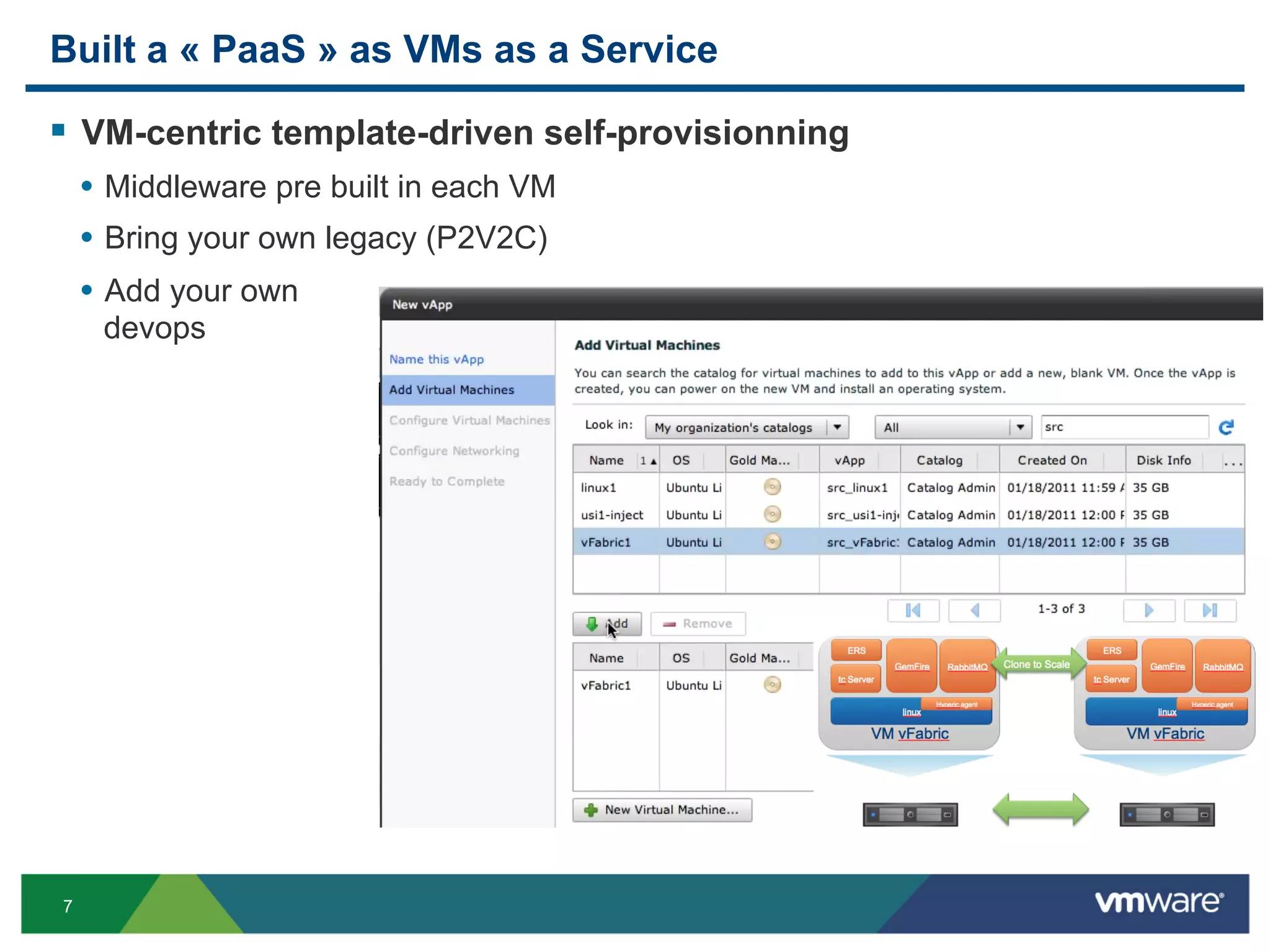

7. Built a « PaaS » as VMs as a Service
§ VM-centric template-driven self-provisionning
• Middleware pre built in each VM
• Bring your own legacy (P2V2C)
• Add your own
devops
7

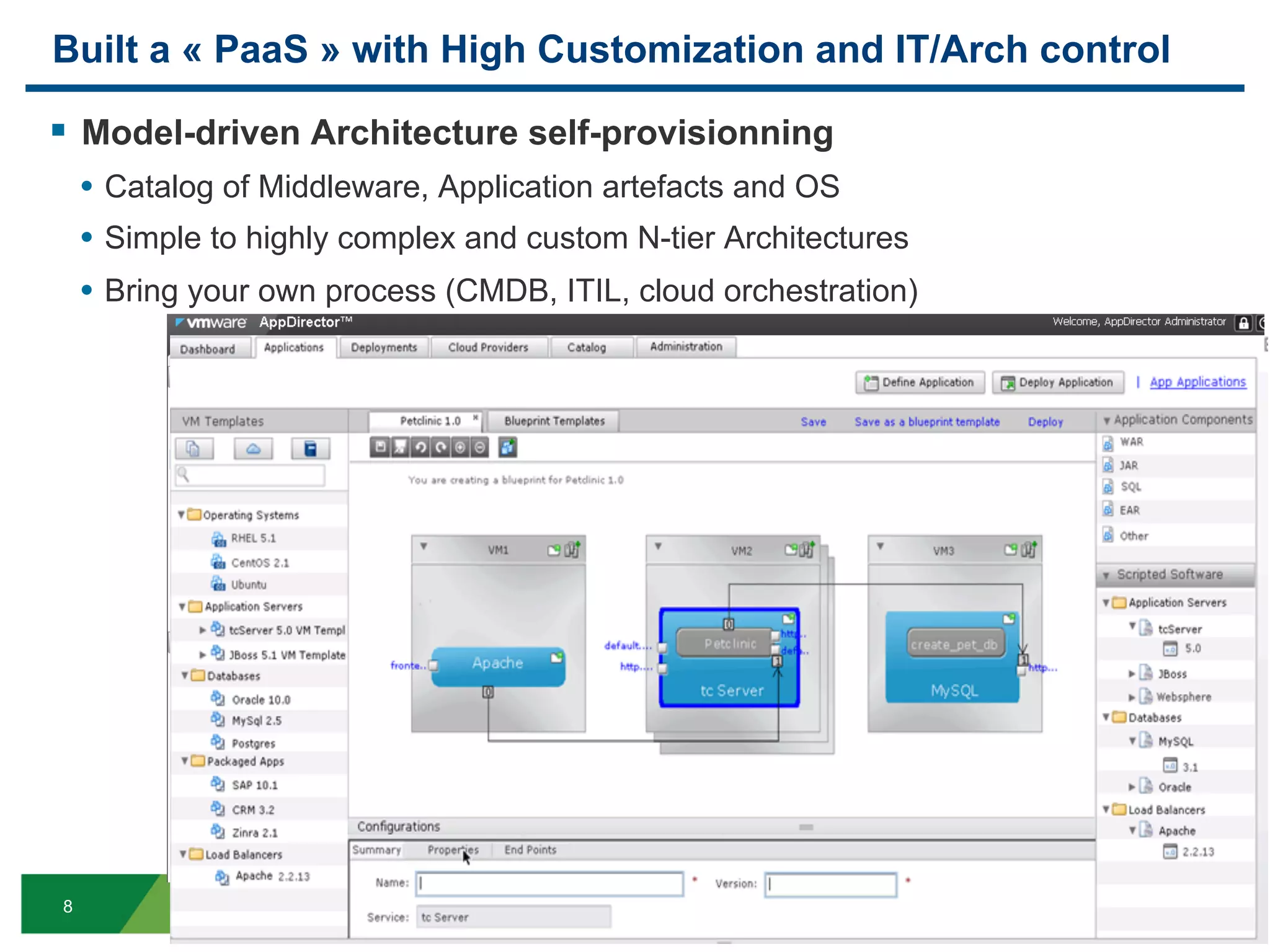

8. Built a « PaaS » with High Customization and IT/Arch control
§ Model-driven Architecture self-provisionning
• Catalog of Middleware, Application artefacts and OS
• Simple to highly complex and custom N-tier Architectures
• Bring your own process (CMDB, ITIL, cloud orchestration)
8

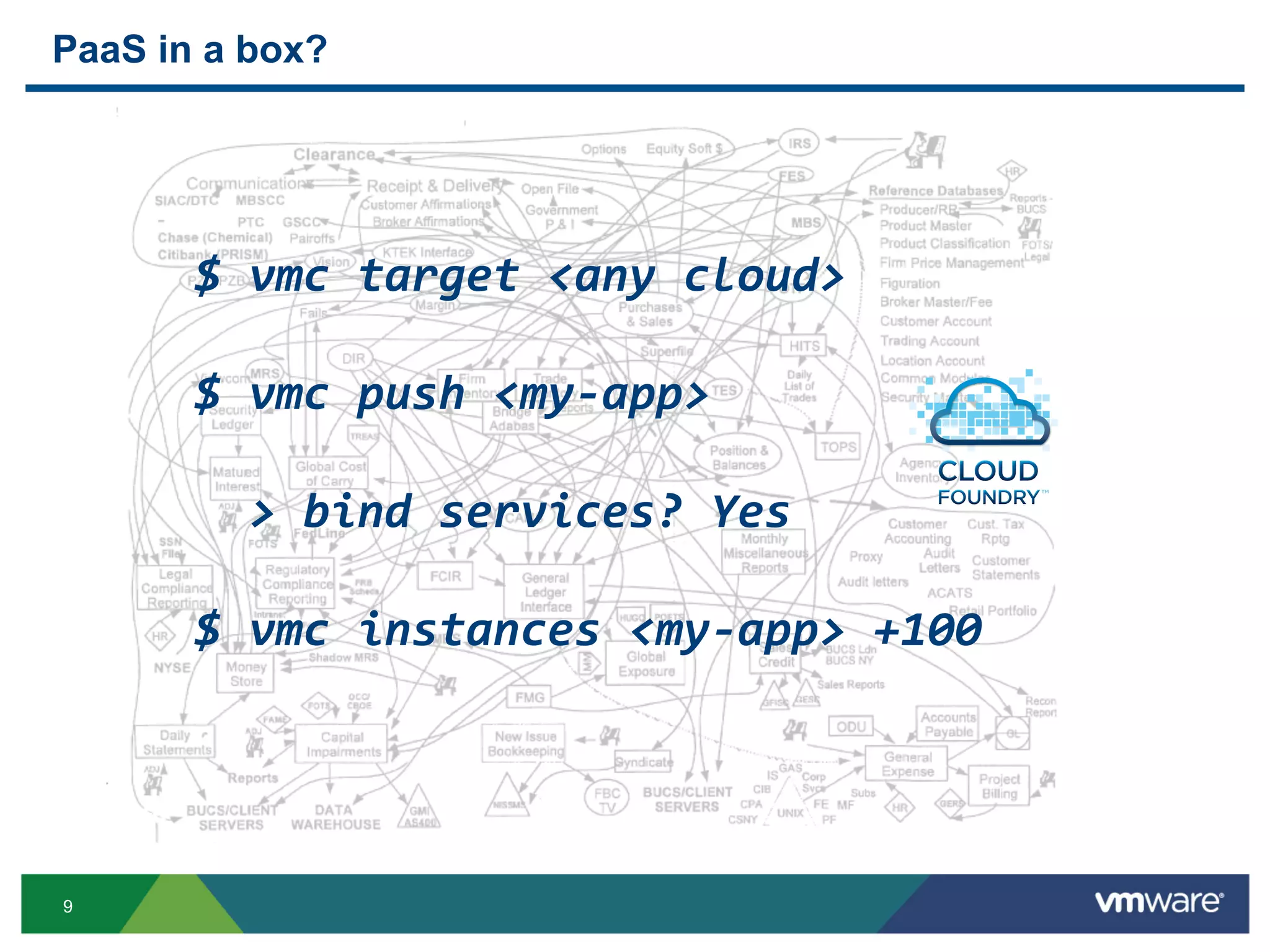

9. PaaS in a box?
$
vmc
target
<any
cloud>
$
vmc
push
<my-­‐app>
>
bind
services?
Yes
$
vmc
instances
<my-­‐app>
+100
9

10. The Open
Platform as a Service
Deploy and scale applications in
seconds, without locking yourself
into a single cloud
pen,
le, O lable
Simp , Sca
Fle xible
10

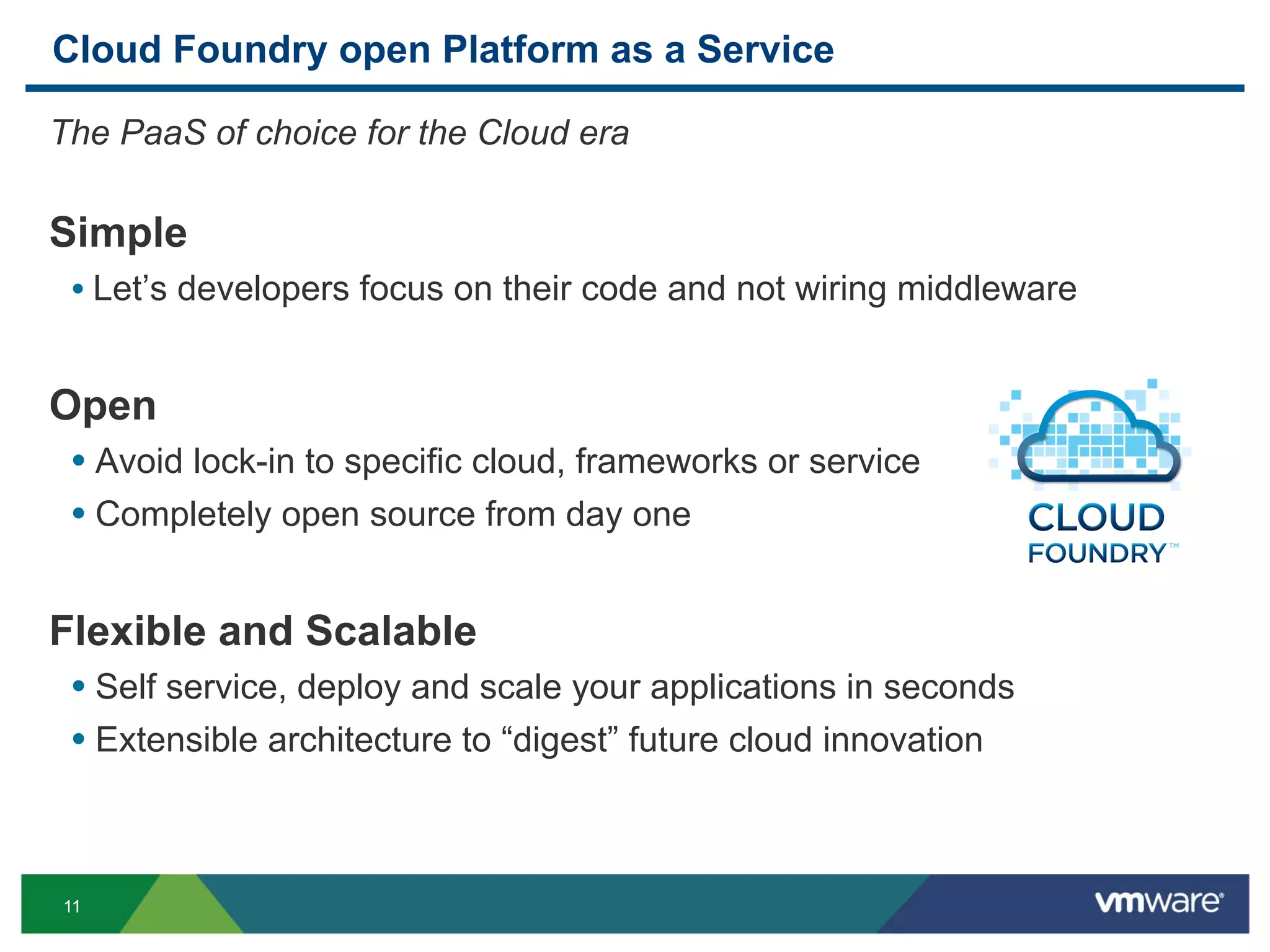

11. Cloud Foundry open Platform as a Service
The PaaS of choice for the Cloud era
Simple
• Let’s developers focus on their code and not wiring middleware
Open
• Avoid lock-in to specific cloud, frameworks or service
• Completely open source from day one
Flexible and Scalable
• Self service, deploy and scale your applications in seconds
• Extensible architecture to “digest” future cloud innovation
11

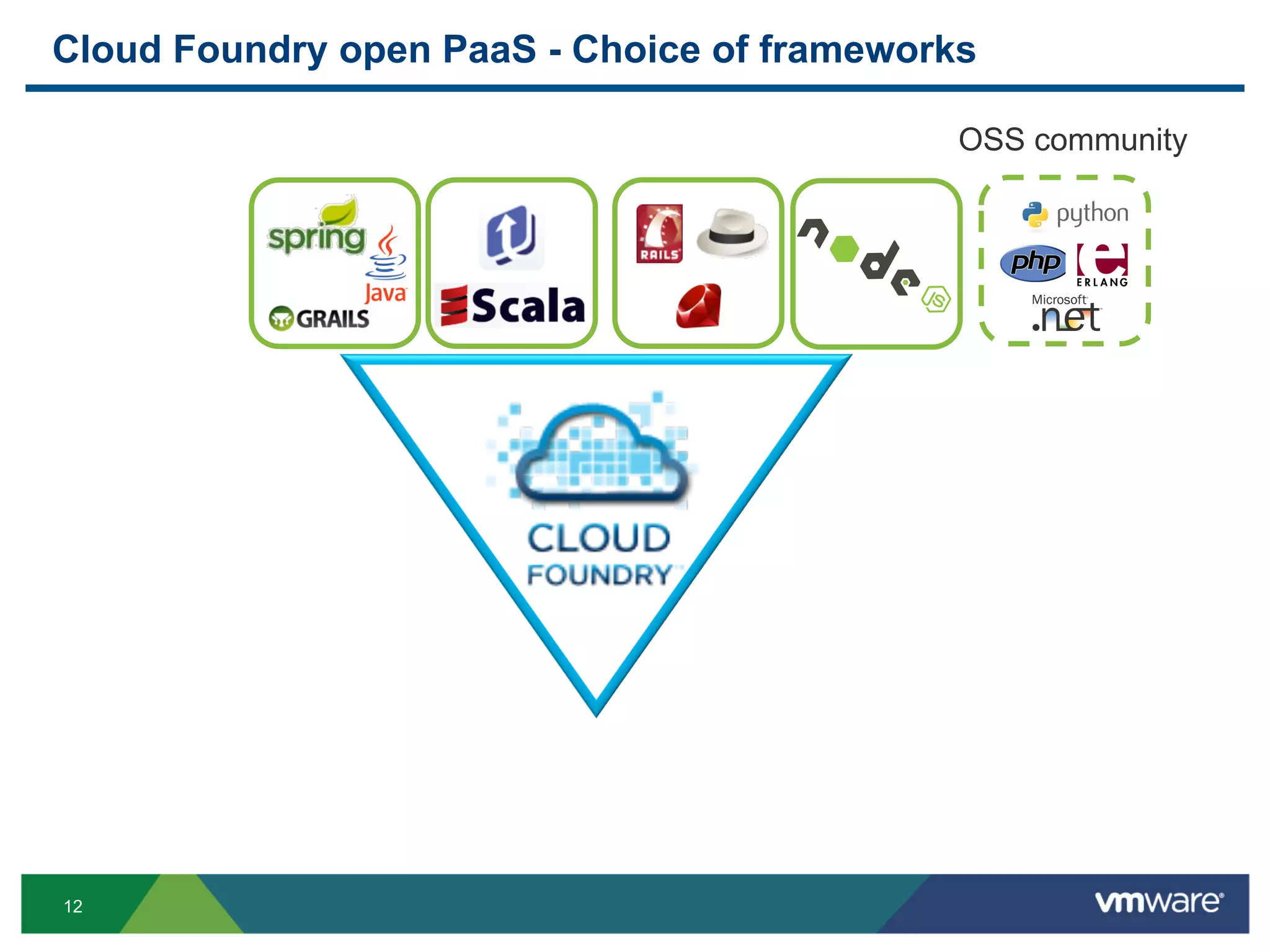

12. Cloud Foundry open PaaS - Choice of frameworks
OSS community
12

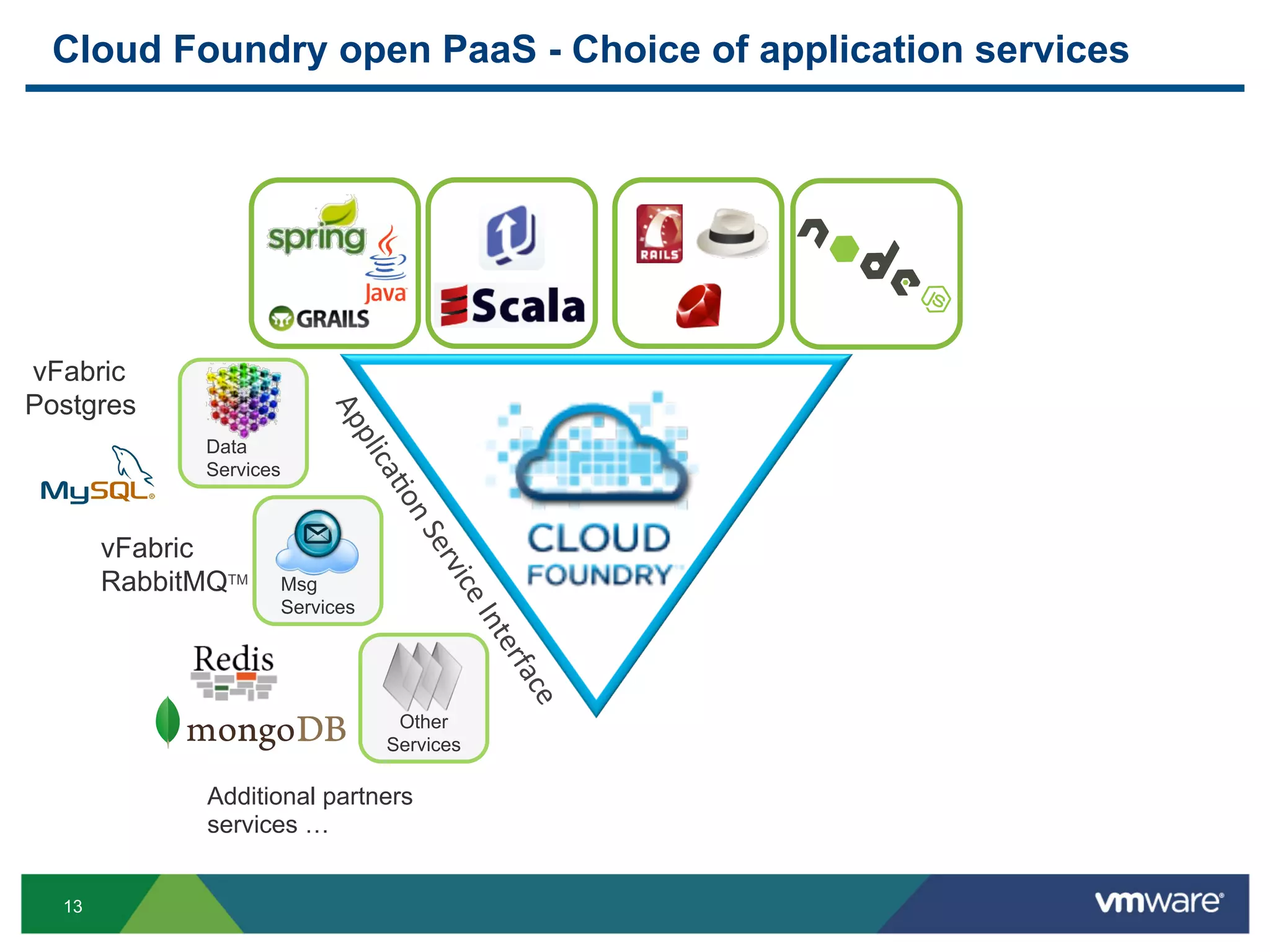

13. Cloud Foundry open PaaS - Choice of application services
vFabric
Postgres
Data
Services
vFabric
RabbitMQTM Msg
Services
Other
Services
Additional partners
services …
13

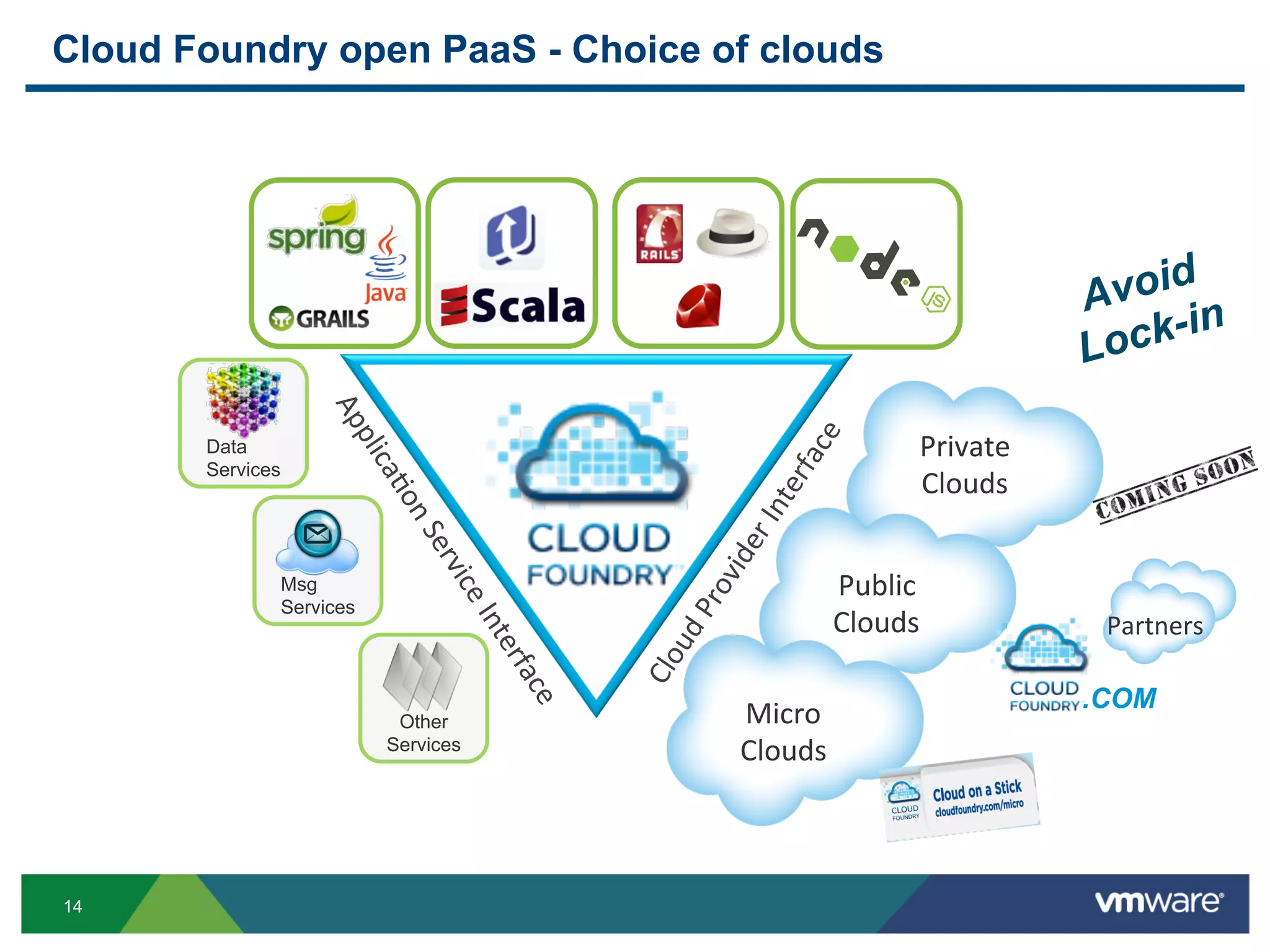

14. Cloud Foundry open PaaS - Choice of clouds
A void
Lo ck-in
Data Private
Services
Clouds
Msg Public
Services
Clouds
Partners
.COM
Other Micro
Services Clouds
14

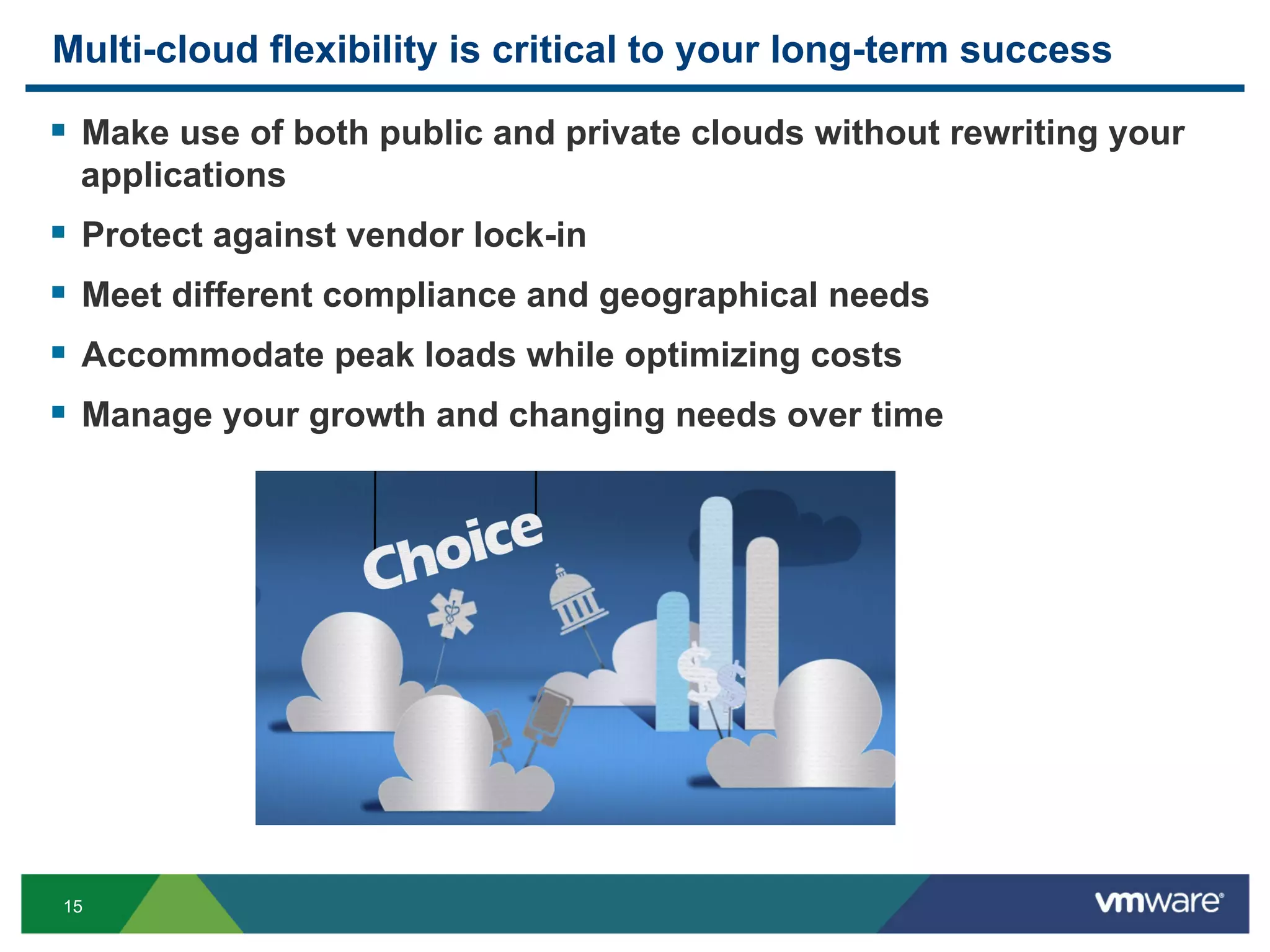

15. Multi-cloud flexibility is critical to your long-term success
§ Make use of both public and private clouds without rewriting your
applications
§ Protect against vendor lock-in
§ Meet different compliance and geographical needs
§ Accommodate peak loads while optimizing costs
§ Manage your growth and changing needs over time
15

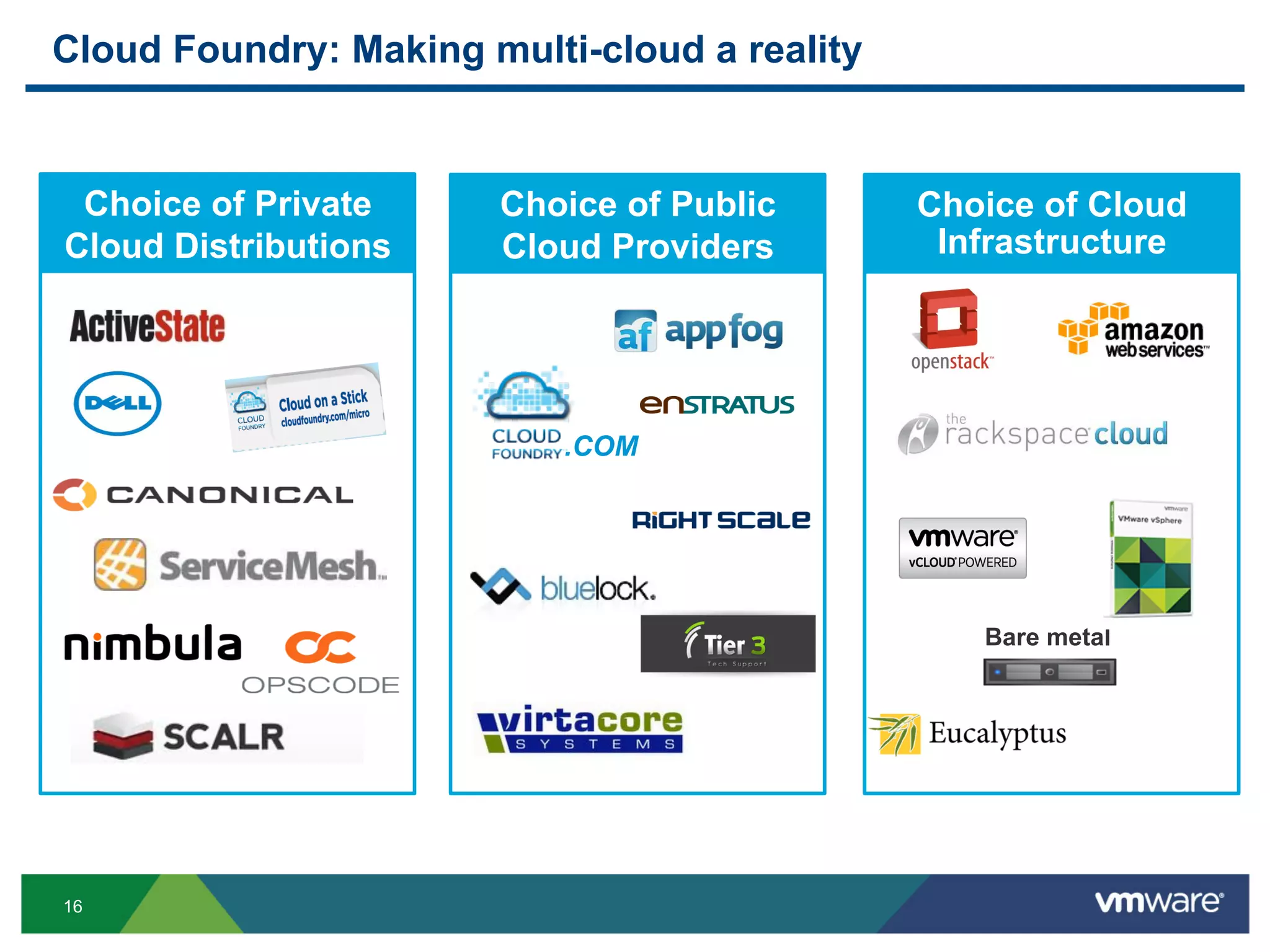

16. Cloud Foundry: Making multi-cloud a reality
Choice of Private Choice of Public Choice of Cloud
Cloud Distributions Cloud Providers Infrastructure
.COM
Bare metal
16

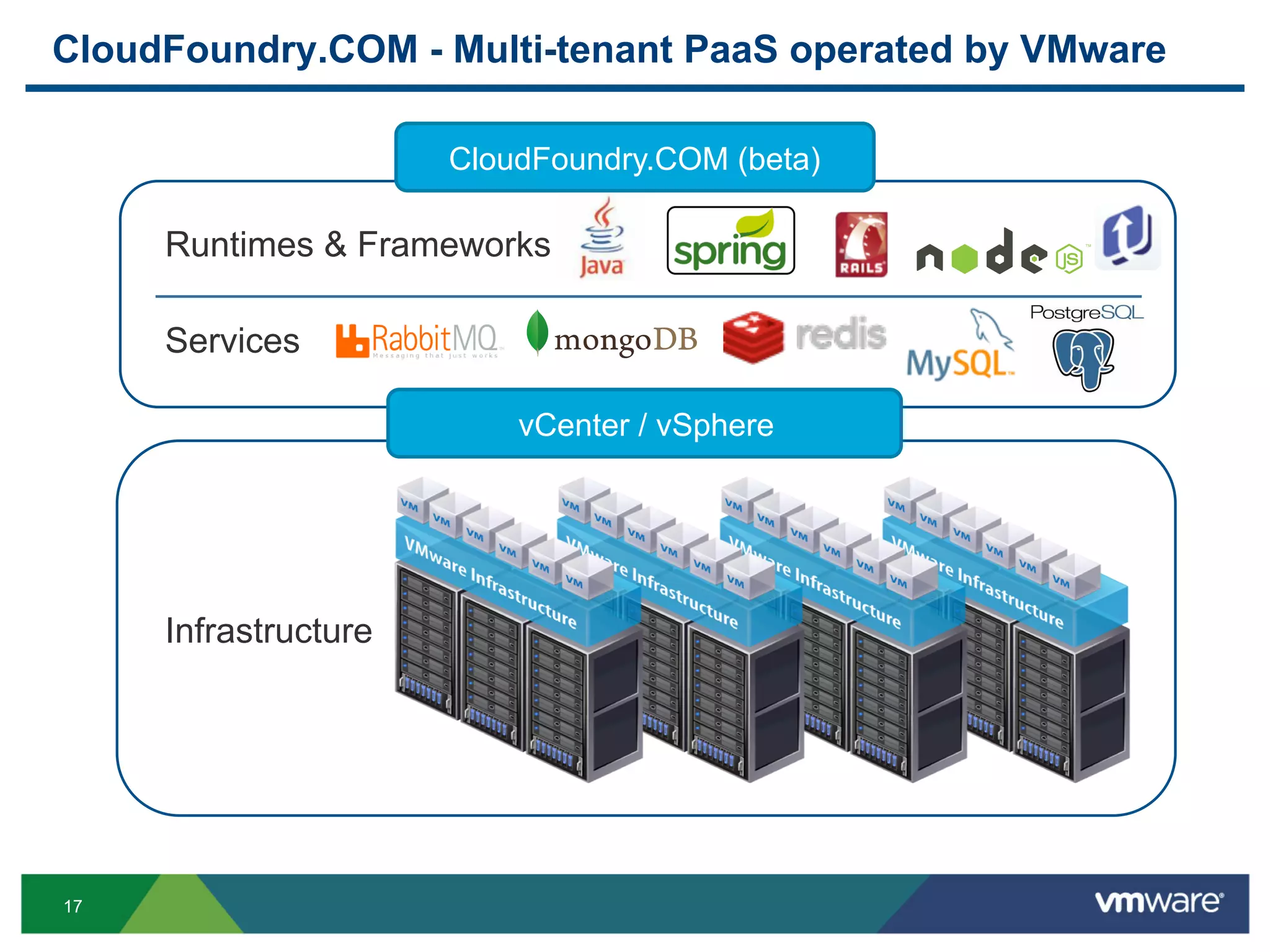

17. CloudFoundry.COM - Multi-tenant PaaS operated by VMware
CloudFoundry.COM (beta)
Runtimes & Frameworks
Services
vCenter / vSphere
Infrastructure
17

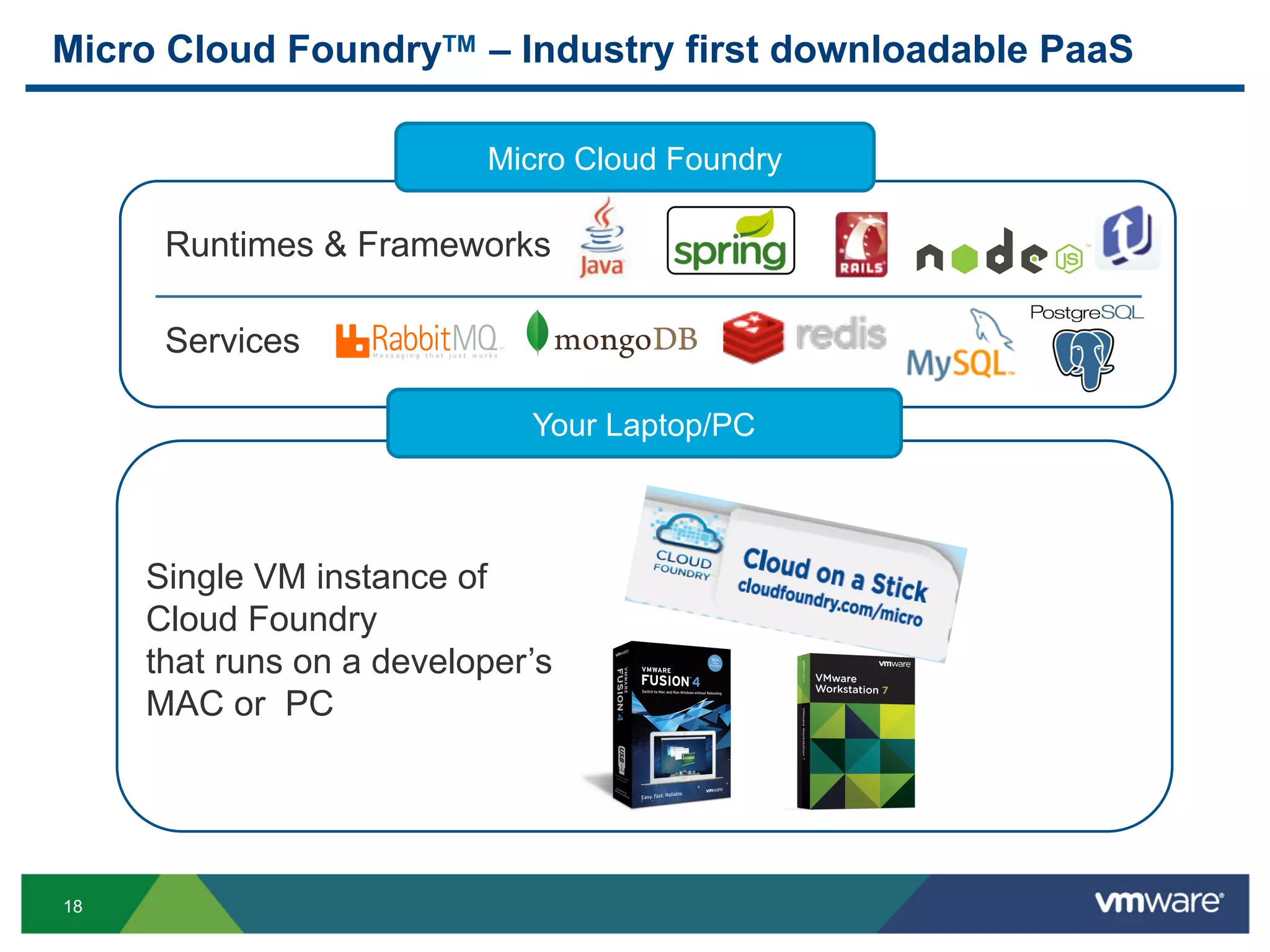

18. Micro Cloud FoundryTM – Industry first downloadable PaaS
Micro Cloud Foundry
Runtimes & Frameworks
Services
Your Laptop/PC
Single VM instance of
Cloud Foundry
that runs on a developer’s
MAC or PC
18

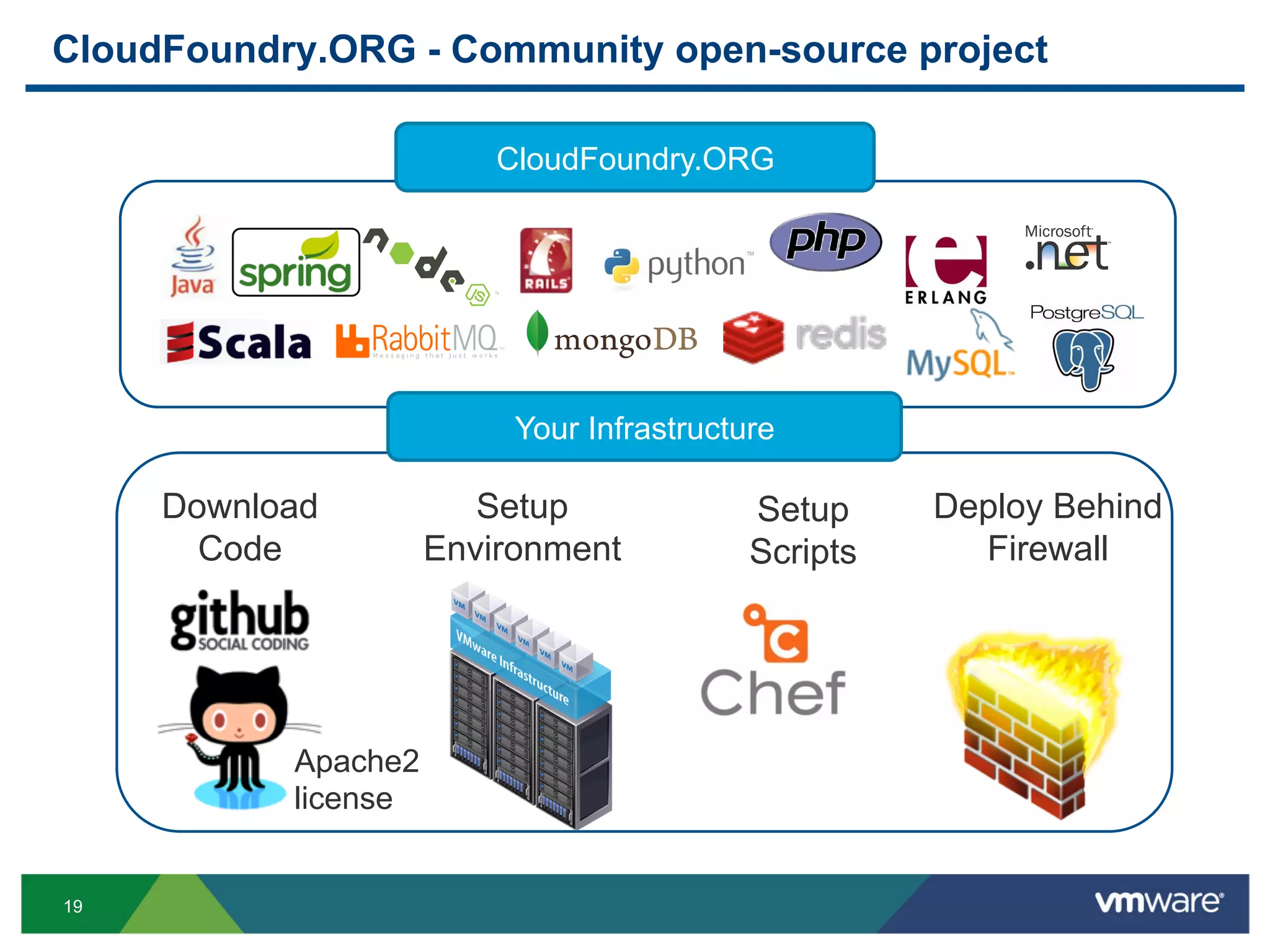

19. CloudFoundry.ORG - Community open-source project
CloudFoundry.ORG
Your Infrastructure
Download Setup Setup Deploy Behind
Code Environment Scripts Firewall
Apache2
license
19

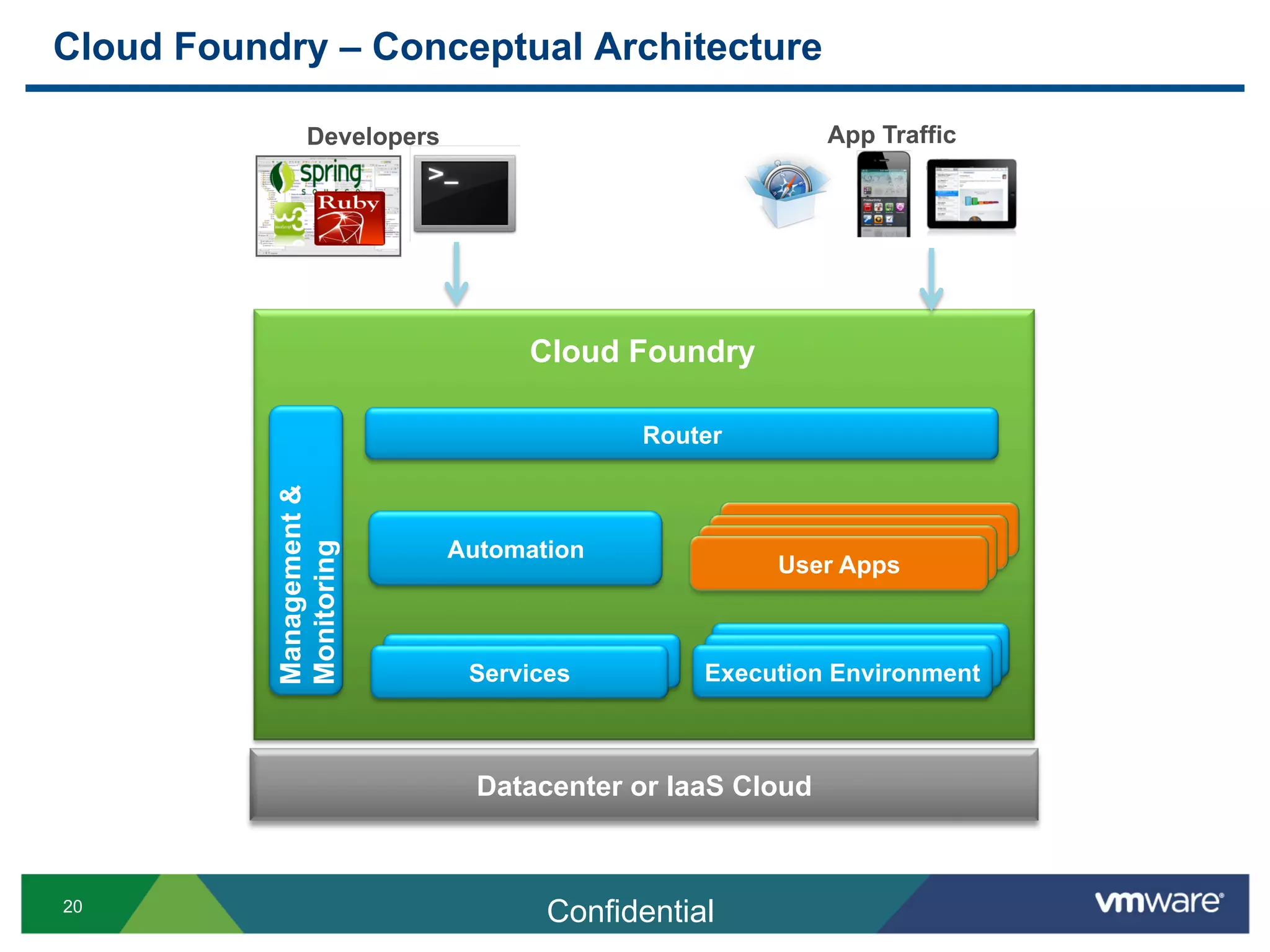

20. Cloud Foundry – Conceptual Architecture
Developers App Traffic
Cloud Foundry
Router
Management &
Automation Application Instance cv
Monitoring
Application Instance
User Apps
Application Instance
Services Execution Environment
Datacenter or IaaS Cloud
20
Confidential

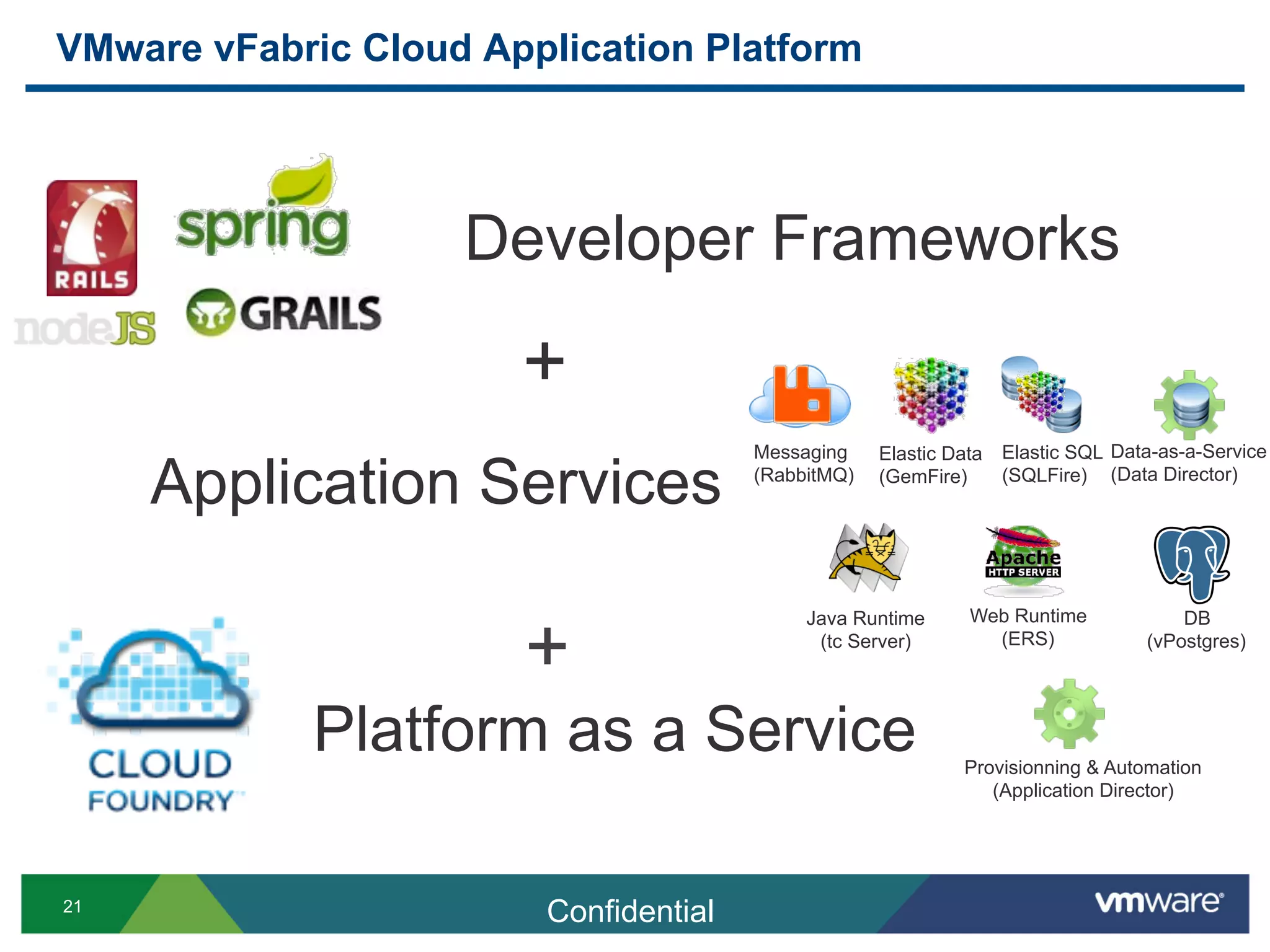

21. VMware vFabric Cloud Application Platform
Developer Frameworks
+
Messaging Elastic Data Elastic SQL Data-as-a-Service
Application Services (RabbitMQ) (GemFire) (SQLFire) (Data Director)
+
Java Runtime Web Runtime DB
(tc Server) (ERS) (vPostgres)
Platform as a Service Provisionning & Automation
(Application Director)
21
Confidential

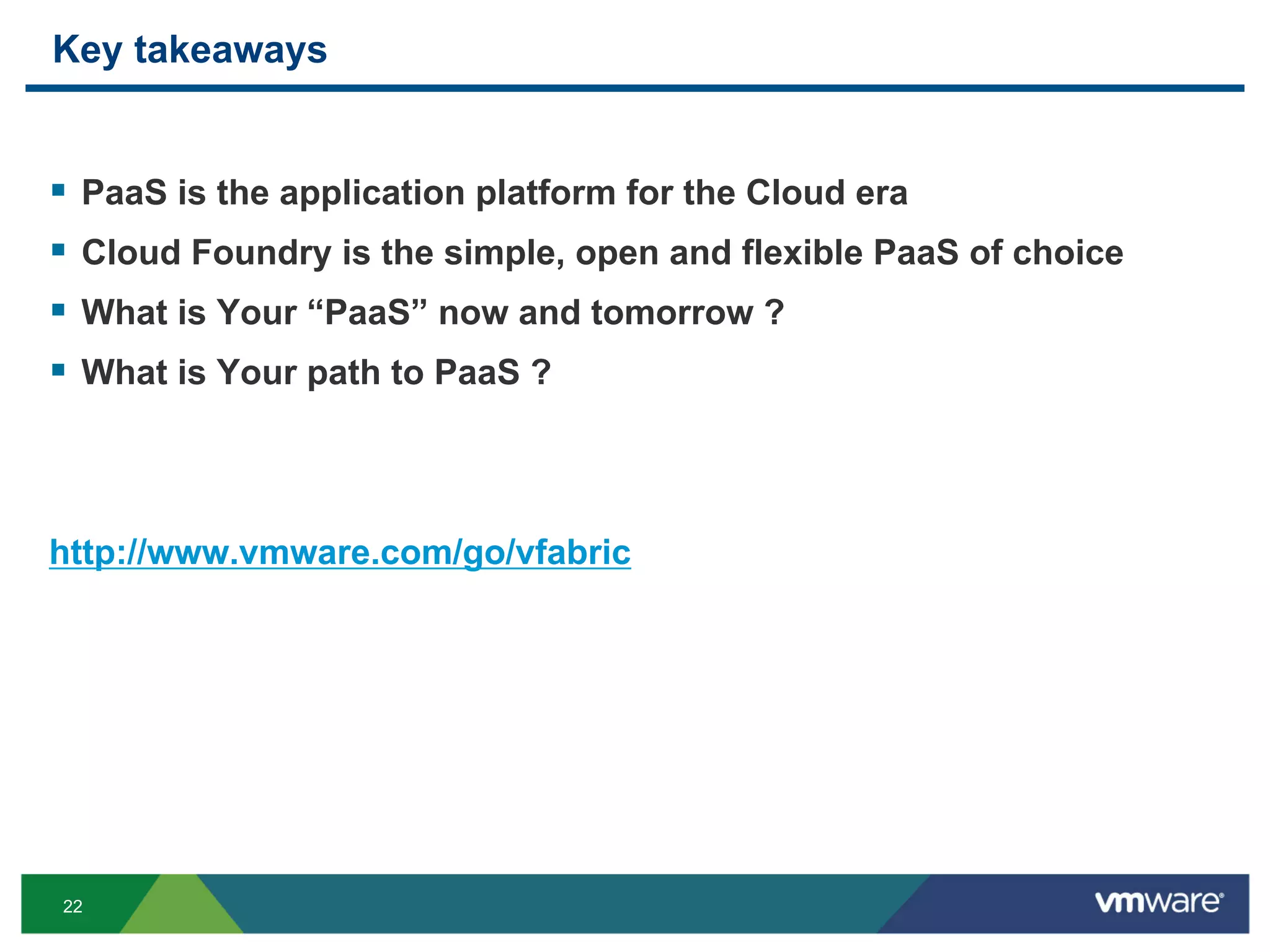

22. Key takeaways
§ PaaS is the application platform for the Cloud era
§ Cloud Foundry is the simple, open and flexible PaaS of choice
§ What is Your “PaaS” now and tomorrow ?
§ What is Your path to PaaS ?
http://www.vmware.com/go/vfabric
