AMOLED (Active Matrix Organic Light Emitting Diode) is an advanced display technology that uses organic light emitting diodes. Each pixel is made up of red, green, and blue subpixels. The design of AMOLED displays is simpler than LCDs, containing only three layers - a backplane, OLED layer, and electroluminescent layer. AMOLED displays offer better saturation, sharpness, and do not require backlighting like LCDs. However, images may not look as natural. Major companies like LG saw large increases in AMOLED production and sales between 2015-2019. AMOLED displays are categorized into types like Super AMOLED, Super AMOLED Plus,

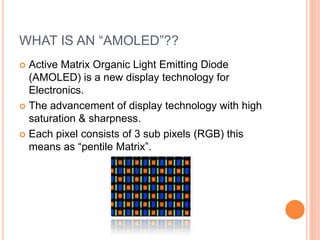

2. WHAT IS AN “AMOLED”??
 Active Matrix Organic Light Emitting Diode
(AMOLED) is a new display technology for
Electronics.
 The advancement of display technology with high
saturation & sharpness.
 Each pixel consists of 3 sub pixels (RGB) this
means as “pentile Matrix”.

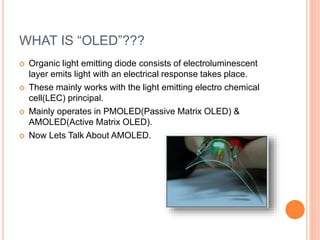

3. WHAT IS “OLED”???
 Organic light emitting diode consists of electroluminescent
layer emits light with an electrical response takes place.
 These mainly works with the light emitting electro chemical
cell(LEC) principal.
 Mainly operates in PMOLED(Passive Matrix OLED) &
AMOLED(Active Matrix OLED).
 Now Lets Talk About AMOLED.

4. DESIGN OF LCD!!!!
 Before fetching the AMOLED let’s see the design of
LCD.
 This design resembles as AMLCD(Active Matrix LCD).

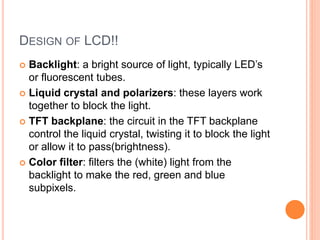

5. DESIGN OF LCD!!
 Backlight: a bright source of light, typically LED’s
or fluorescent tubes.
 Liquid crystal and polarizers: these layers work
together to block the light.
 TFT backplane: the circuit in the TFT backplane
control the liquid crystal, twisting it to block the light
or allow it to pass(brightness).
 Color filter: filters the (white) light from the
backlight to make the red, green and blue
subpixels.

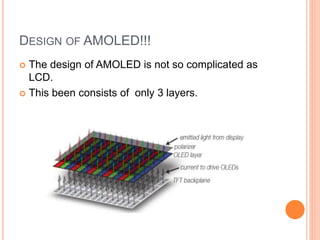

6. DESIGN OF AMOLED!!!
 The design of AMOLED is not so complicated as
LCD.
 This been consists of only 3 layers.

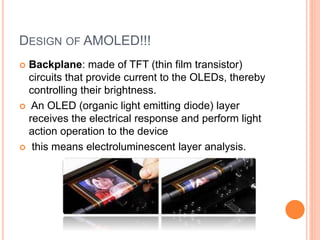

7. DESIGN OF AMOLED!!!
 Backplane: made of TFT (thin film transistor)
circuits that provide current to the OLEDs, thereby
controlling their brightness.
 An OLED (organic light emitting diode) layer
receives the electrical response and perform light
action operation to the device
 this means electroluminescent layer analysis.

8. AMLCD (VS) AMOLED
 AMLCD corresponds the wastage of backlight energy
 Colour filter conversion response was not so good and
provides the accurate image quality
 Pixel adjustment and conversion is good.
Analysis of AMLCD Display

9. AMLCD (VS) AMOLED
 AMOLED display exhibits more over the saturation , hue &
sharpness of the picture as fine as possible
 This didn’t contain any external light ofcourse OLED itself act
as light source.
 But only one, that image exhibit by the AMOLED is not so
natural compared with AMLCD.
Analysis of AMOLED Display

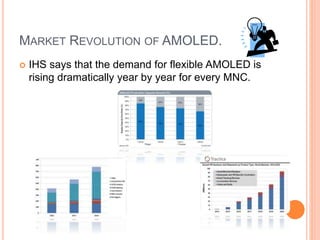

10. MARKET REVOLUTION OF AMOLED.
 IHS says that the demand for flexible AMOLED is
rising dramatically year by year for every MNC.

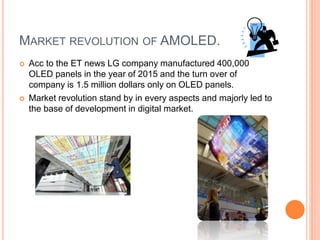

11. MARKET REVOLUTION OF AMOLED.
 Acc to the ET news LG company manufactured 400,000
OLED panels in the year of 2015 and the turn over of
company is 1.5 million dollars only on OLED panels.
 Market revolution stand by in every aspects and majorly led to
the base of development in digital market.

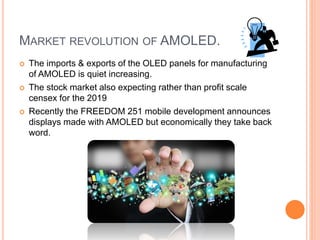

12. MARKET REVOLUTION OF AMOLED.
 The imports & exports of the OLED panels for manufacturing
of AMOLED is quiet increasing.
 The stock market also expecting rather than profit scale
censex for the 2019
 Recently the FREEDOM 251 mobile development announces
displays made with AMOLED but economically they take back
word.

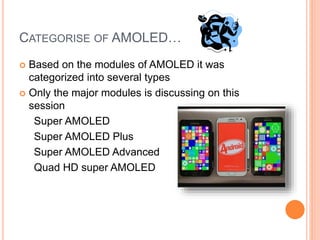

13. CATEGORISE OF AMOLED…
 Based on the modules of AMOLED it was
categorized into several types
 Only the major modules is discussing on this
session
Super AMOLED
Super AMOLED Plus
Super AMOLED Advanced
Quad HD super AMOLED

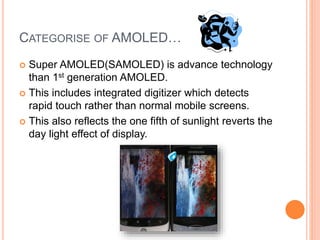

14. CATEGORISE OF AMOLED…
 Super AMOLED(SAMOLED) is advance technology
than 1st generation AMOLED.
 This includes integrated digitizer which detects
rapid touch rather than normal mobile screens.
 This also reflects the one fifth of sunlight reverts the
day light effect of display.

15. CATEGORISE OF AMOLED…
 Super AMOLED plus, the drawbacks of Super
AMOLED is fixed in this version.
 The pentile pixel matrix is been replaced by Double
RGB Pixels.
 Which gives more light reflection &
better resolution than SAMOLED.

16. CATEGORISE OF AMOLED…
 Super AMOLED Advance this is more brighter
display than previous version displays
 This will efforts more than 960*540 QHD video
quality pixel stream
 The energy efficient 25% of total power.

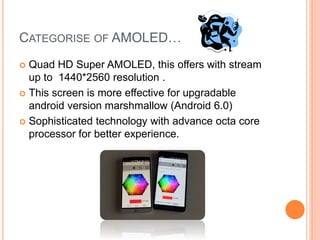

17. CATEGORISE OF AMOLED…
 Quad HD Super AMOLED, this offers with stream
up to 1440*2560 resolution .
 This screen is more effective for upgradable
android version marshmallow (Android 6.0)
 Sophisticated technology with advance octa core
processor for better experience.

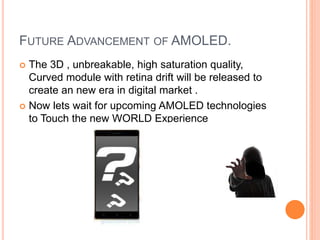

18. FUTURE ADVANCEMENT OF AMOLED.
 The 3D , unbreakable, high saturation quality,
Curved module with retina drift will be released to
create an new era in digital market .
 Now lets wait for upcoming AMOLED technologies
to Touch the new WORLD Experience
