Carriers face challenges in meeting network demand growth, reducing costs, and increasing revenue. The Wind River Carrier Grade Communications Server (CGCS) uses open source components to virtualize network functions on commodity servers. It enhances KVM with real-time extensions and adds an accelerated virtual switch. CGCS also enhances OpenStack for carrier-grade reliability and manageability. This allows networks to deploy new services faster while reducing costs through virtualization and multi-core platforms.

1. 1 | © 2014 Wind River. All Rights Reserved.
2
Virtualize products and networks
to reduce total cost of ownership
(TCO)
Challenge #2:
Reduce network
TCO to increase
profitability
TCO
Traffic
ARPU

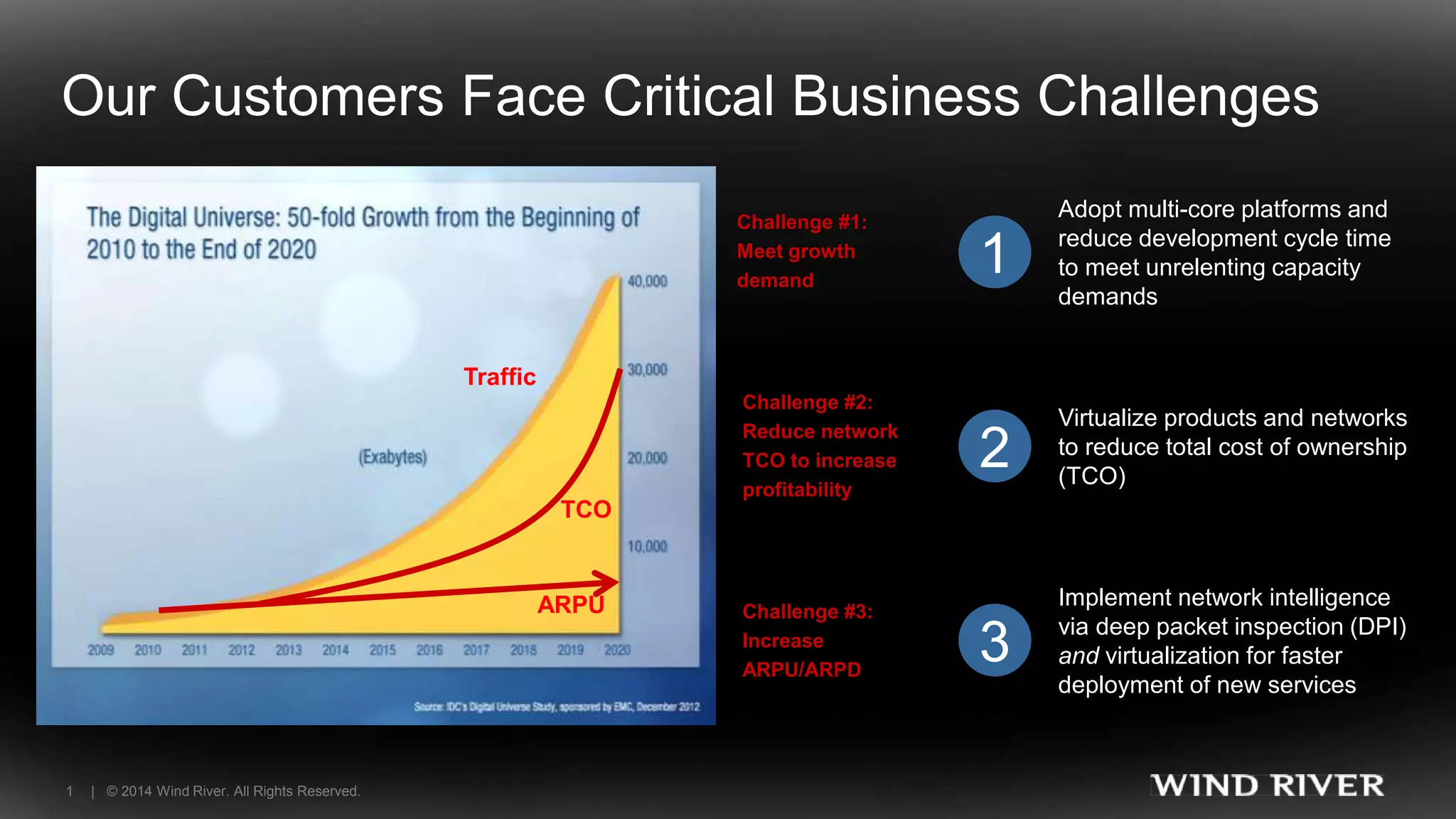

Our Customers Face Critical Business Challenges
Adopt multi-core platforms and
reduce development cycle time
to meet unrelenting capacity
demands
Challenge #1:
Meet growth
demand
1
Implement network intelligence
via deep packet inspection (DPI)
and virtualization for faster
deployment of new services
Challenge #3:
Increase
ARPU/ARPD
3

2. 2 | © 2014 Wind River. All Rights Reserved.

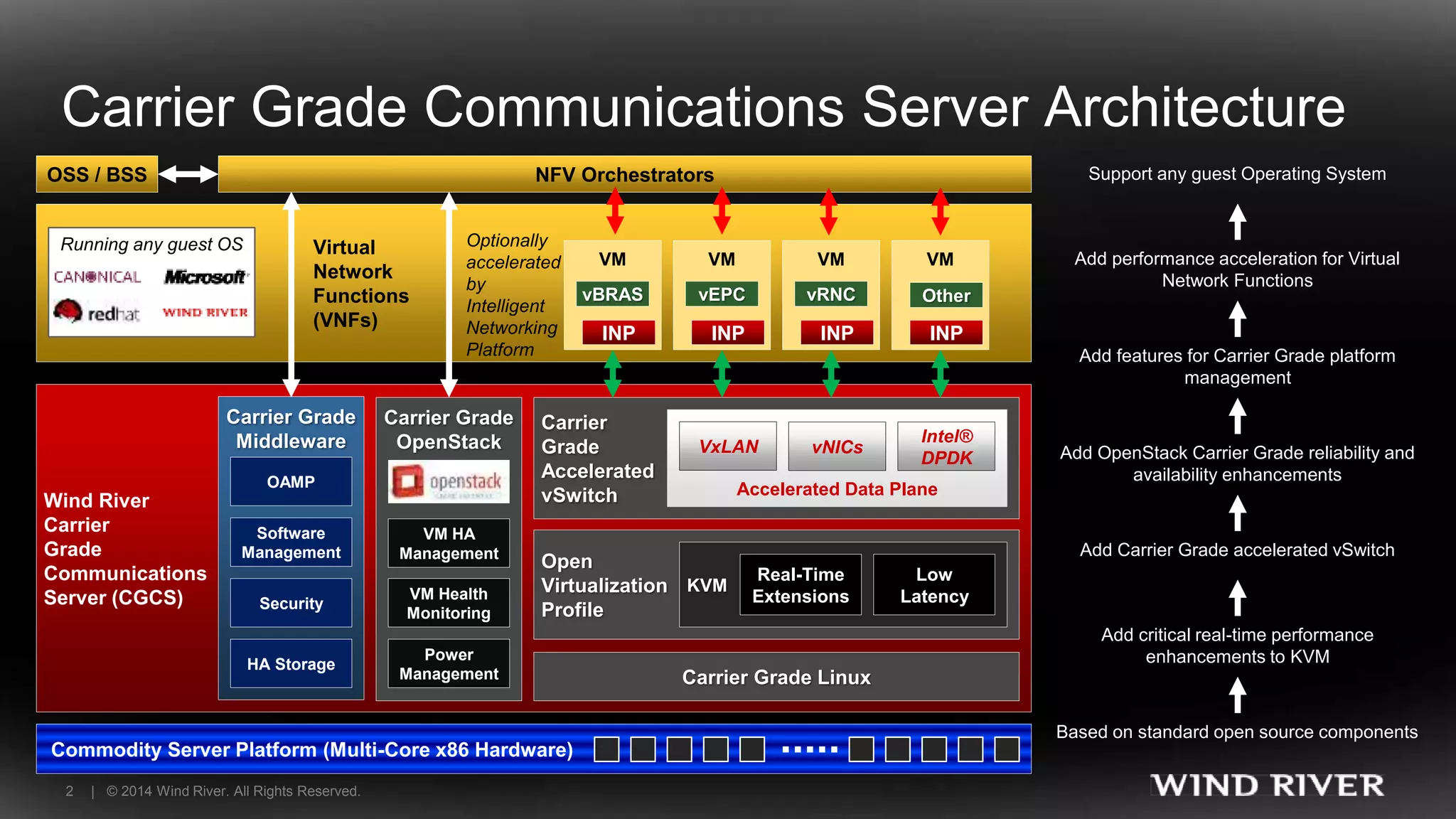

Carrier Grade Communications Server Architecture
Wind River
Carrier
Grade
Communications
Server (CGCS)
Carrier Grade Linux
Open
Virtualization
Profile
Carrier
Grade
Accelerated
vSwitch Accelerated Data Plane
VxLAN vNICs
Intel®
DPDK
KVM
Real-Time
Extensions
Low
Latency
Carrier Grade
Middleware
OAMP
Software
Management
Security
HA Storage
Carrier Grade
OpenStack
Commodity Server Platform (Multi-Core x86 Hardware)
Based on standard open source components
Add critical real-time performance
enhancements to KVM
Add Carrier Grade accelerated vSwitch
Add OpenStack Carrier Grade reliability and
availability enhancements
Add features for Carrier Grade platform
management
Add performance acceleration for Virtual
Network Functions
Support any guest Operating System
VM HA
Management
VM Health
Monitoring
Power
Management
Virtual
Network
Functions
(VNFs)
VMVM VM VM
OthervEPCvBRAS vRNC
Running any guest OS
NFV OrchestratorsOSS / BSS
INPINP INP INP
Optionally
accelerated
by
Intelligent
Networking
Platform

3. 3 | © 2014 Wind River. All Rights Reserved.
Carrier Grade
Communication
Server
OAM&P management
Carrier Grade
OpenStack
Data plane acceleration
and inter-VM
communication
Open virtualization
Carrier Grade Linux
Wind River Linux
Carrier Grade OS
Open
Virtualization
Advanced KVM
INP
Packet acceleration
Content inspection
Flow analysis
Wind River Linux
Carrier Grade OS
Wind River Linux
Carrier Grade OS
Open
Virtualization
Advanced KVM
Commercial
OpenStack
Distribution
INP
Packet acceleration
Content inspection
Flow analysis
Wind River Linux
Carrier Grade OS
Simics Hardware Simulation
Open
Virtualization
Advanced KVM
Engage at any Step on the Staircase
