- 1. Copyright © PLUMgrid,Inc. 2011-2016 what, why and how? Service Discovery and Registration in a Microservices Architecture
- 2. Copyright © PLUMgrid,Inc. 2011-2016 About us 2 PLUMgrid Khaliq Fawad @fawadkhaliq Mesosphere Sanchez Fernando @fernandosanchez

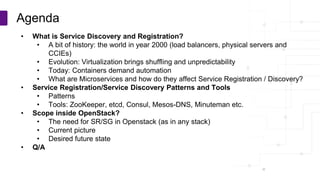

- 3. Copyright © PLUMgrid,Inc. 2011-2016 • What is Service Discovery and Registration? • A bit of history: the world in year 2000 (load balancers, physical servers and CCIEs) • Evolution: Virtualization brings shuffling and unpredictability • Today: Containers demand automation • What are Microservices and how do they affect Service Registration / Discovery? • Service Registration/Service Discovery Patterns and Tools • Patterns • Tools: ZooKeeper, etcd, Consul, Mesos-DNS, Minuteman etc. • Scope inside OpenStack? • The need for SR/SG in Openstack (as in any stack) • Current picture • Desired future state • Q/A Agenda
- 4. Part 1 -A bit of history - DISCLAIMER - Trying to provide context about the “what” and the “why”. - Historically inaccurate - Obviously and shamelessly biased - A bit blurry… - DISCLAIMER (2) - This goes WAY BACK to provide context. I felt a bit OLD making this presentation - If you know what a v92 modem is, you probably will also feel old listening to it.

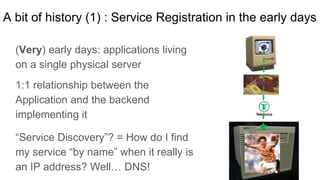

- 5. A bit ofhistory (1) : Service Registration in the early days (Very) early days: applications living on a single physical server “Service Discovery”? = How do I find my service “by name” when it really is an IP address? Well… DNS! 1:1 relationship between the Application and the backend implementing it
- 6. A bit ofhistory (2) : Service Registration in the early days Early days: applications living on MANY physical servers 1:N relationship between Service IPs and backend Servers Physical App Server “churn” was still “manageable” “Service Discovery”?: DNS + Virtual IPs + Virtual Hosts Need a Load Balancer! “Service Registration” = When I add a new server to my service, how does it get added to the list of available ”Service Backends”? ** Add a new backend to the Service IP/ Virtual IP in the load balancer (“Service Access Point”) ** Many times, added manually by a guy who has a vendor certification. ** Including “healthchecks” for each backend

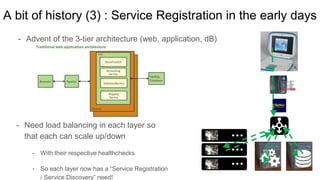

- 7. A bit ofhistory (3) : Service Registration in the early days - Advent of the 3-tier architecture (web, application, dB) - Need load balancing in each layer so that each can scale up/down - With their respective healthchecks - So each layer now has a “Service Registration / Service Discovery” need!
- 8. A bit ofhistory (4) : Virtualization FTW - Enter server virtualization: Web/App/dB Servers can be created and destroyed in minutes. - “Automated” Service Registration becomes an evident need and options start to appear (we’ll discuss each in the 2nd part): - “Sidecar process” in workloads to register into centralized “backend database”? - “External Orchestrator” registers backends upon creation? - “API Gateways” with client or server-side discovery? - Applications can scale up and down more dynamically, even automatically depending on load

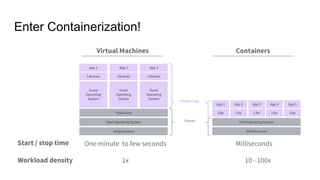

- 9. Enter Containerization! Private Copy Shared App3 Libraries Guest Operating System Infrastructure App 1 Libs Host Operating System Start / stop time One minute to few seconds Milliseconds Workload density 10 - 100x1x App 2 Libraries Guest Operating System App 1 Libraries Guest Operating System App 2 Libs App 3 Libs Virtual Machines Containers Host Operating System Hypervisor Infrastructure App 4 Libs App 5 Libs

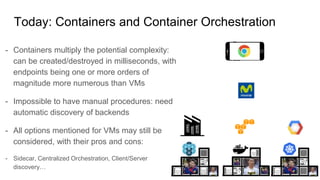

- 10. Today: Containers andContainer Orchestration - Containers multiply the potential complexity: can be created/destroyed in milliseconds, with endpoints being one or more orders of magnitude more numerous than VMs - Impossible to have manual procedures: need automatic discovery of backends - All options mentioned for VMs may still be considered, with their pros and cons: - Sidecar, Centralized Orchestration, Client/Server discovery…
- 11. From Containers toMicroservices: What and Why? “The Monolith” and its issues - Traditional applications were typically developed as a single unified codebase - Which tends to grow along time - Making it harder to maintain, troubleshoot, evolve Microservices: divide and conquer! - Divide applications into independent pieces (typically functional areas) - Interconnect the pieces with networking and (REST) APIs

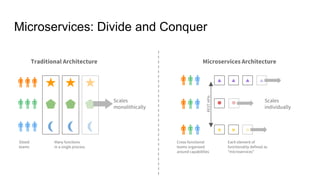

- 12. Microservices: Divide andConquer Traditional Architecture Many functions in a single process Siloed teams RESTAPIs Microservices Architecture Cross-functional teams organized around capabilities Scales individually Each element of functionality defined as “microservices” Scales monolithically
- 13. Microservices Challenge: SD/SRon steroids! RESTAPIs Dependencies Between Microservices Running Multiple Microservices-based Apps

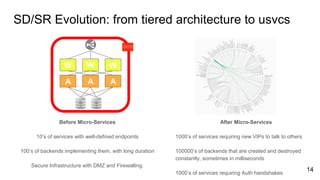

- 14. SD/SR Evolution: fromtiered architecture to usvcs 14 Before Micro-Services 10’s of services with well-defined endpoints 100’s of backends implementing them, with long duration Secure Infrastructure with DMZ and Firewalling. After Micro-Services 1000’s of services requiring new VIPs to talk to others 100000’s of backends that are created and destroyed constantly, sometimes in milliseconds 1000’s of services requiring Auth handshakes W W W A AA
- 15. Copyright © PLUMgrid,Inc. 2011-2016 Service Registration/Service Patterns and Tools
- 16. Copyright © PLUMgrid,Inc. 2011-2016
- 17. Copyright © PLUMgrid,Inc. 2011-2016 Let’s talk about some terminologies that will help us better classify the tools ● Self registration ● Third-party registration ● Client-side discovery ● Service-side discovery Service Registration/Service Discovery Patterns

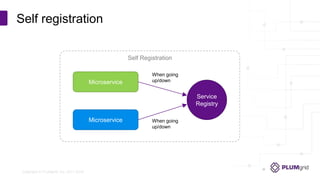

- 18. Copyright © PLUMgrid,Inc. 2011-2016 Self registration Self Registration Microservice Microservice Service Registry When going up/down When going up/down

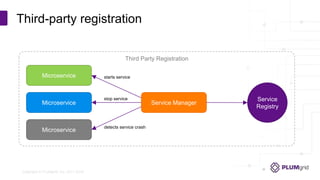

- 19. Copyright © PLUMgrid,Inc. 2011-2016 Third-party registration Third Party Registration Microservice Microservice Service Registry starts service detects service crash Microservice Service Manager stop service

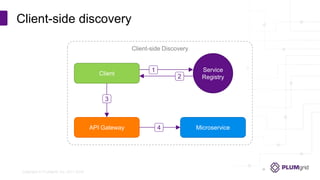

- 20. Copyright © PLUMgrid,Inc. 2011-2016 Client-side discovery Client-side Discovery Client Service Registry MicroserviceAPI Gateway 1 2 3 4

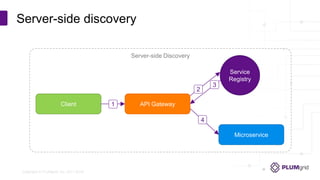

- 21. Copyright © PLUMgrid,Inc. 2011-2016 Server-side discovery Server-side Discovery Client Service Registry Microservice API Gateway1 2 3 4
- 22. Copyright © PLUMgrid,Inc. 2011-2016 Service Discovery Tools

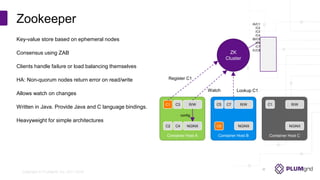

- 23. Copyright © PLUMgrid,Inc. 2011-2016 Key-value store based on ephemeral nodes Consensus using ZAB Clients handle failure or load balancing themselves HA: Non-quorum nodes return error on read/write Allows watch on changes Written in Java. Provide Java and C language bindings. Heavyweight for simple architectures Zookeeper /A/C1 /C2 /C3 /C4 /B/C5 /C6 /C7 /C/C8 ZK Cluster Container Host A config C1 C3 R/W C2 C4 NGINX Container Host B C6 C7 R/WC5 NGINX Container Host C R/WC1 NGINX Register C1 Watch Lookup C1

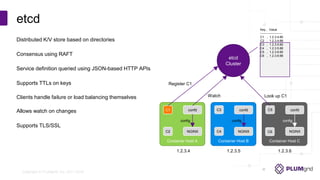

- 24. Copyright © PLUMgrid,Inc. 2011-2016 Distributed K/V store based on directories Consensus using RAFT Service definition queried using JSON-based HTTP APIs Supports TTLs on keys Clients handle failure or load balancing themselves Allows watch on changes Supports TLS/SSL etcd Key , Value --------------------- C1 , 1.2.3.4:80 C2 , 1.2.3.4:88 C3 , 1.2.3.5:80 C4 , 1.2.3.5:88 C5 , 1.2.3.6:80 C6 , 1.2.3.6:88 etcd Cluster Register C1 Look up C1 Container Host A config C1 confd C2 NGINX 1.2.3.4 Container Host B C4 confdC3 NGINX config 1.2.3.5 Container Host C confdC5 NGINXC6 config 1.2.3.6 Watch

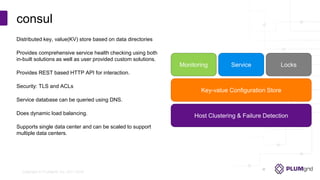

- 25. Copyright © PLUMgrid,Inc. 2011-2016 Distributed key, value(KV) store based on data directories Provides comprehensive service health checking using both in-built solutions as well as user provided custom solutions. Provides REST based HTTP API for interaction. Security: TLS and ACLs Service database can be queried using DNS. Does dynamic load balancing. Supports single data center and can be scaled to support multiple data centers. consul Monitoring Service Locks Key-value Configuration Store Host Clustering & Failure Detection

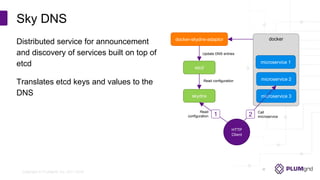

- 26. Copyright © PLUMgrid,Inc. 2011-2016 Distributed service for announcement and discovery of services built on top of etcd Translates etcd keys and values to the DNS Sky DNS dockerdocker-skydns-adaptor etcd skydns microservice 1 microservice 2 microservice 3 Update DNS entries Read configuration HTTP Client Read configuration 1 2 Call microservice

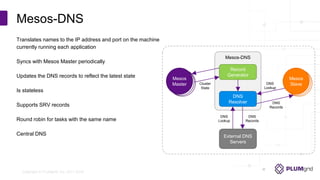

- 27. Copyright © PLUMgrid,Inc. 2011-2016 Translates names to the IP address and port on the machine currently running each application Syncs with Mesos Master periodically Updates the DNS records to reflect the latest state Is stateless Supports SRV records Round robin for tasks with the same name Central DNS Mesos-DNS Mesos-DNS Record Generator Mesos Master Cluster State DNS Resolver External DNS Servers Mesos Slave DNS Lookup DNS Records DNS Lookup DNS Records

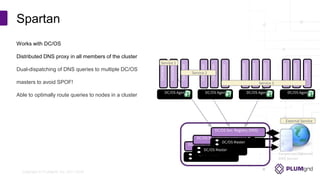

- 28. Copyright © PLUMgrid,Inc. 2011-2016 Works with DC/OS Distributed DNS proxy in all members of the cluster Dual-dispatching of DNS queries to multiple DC/OS masters to avoid SPOF! Able to optimally route queries to nodes in a cluster Spartan DC/OS Master DC/OS Svc. Registry (DNS) DC/OS Master DC/OS Svc. Registry (DNS) DC/OS Master DC/OS Svc. Registry (DNS) Corporate/External DNS Server DC/OS Agent Container Container Container DC/OS Agent Container Container Container DC/OS Agent Container Container Container DC/OS Agent Container Container Container Service 1 Service 2 Service 3 External Service

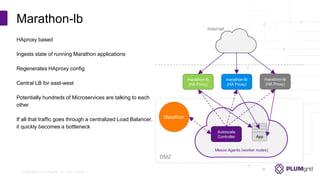

- 29. Copyright © PLUMgrid,Inc. 2011-2016 HAproxy based Ingests state of running Marathon applications Regenerates HAproxy config Central LB for east-west Potentially hundreds of Microservices are talking to each other If all that traffic goes through a centralized Load Balancer, it quickly becomes a bottleneck Marathon-lb DMZ marathon-lb (HA Proxy) marathon-lb (HA Proxy) marathon-lb (HA Proxy) Internet Autoscale Controller App App App App Marathon Mesos Agents (worker nodes)

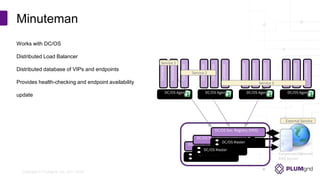

- 30. Copyright © PLUMgrid,Inc. 2011-2016 Works with DC/OS Distributed Load Balancer Distributed database of VIPs and endpoints Provides health-checking and endpoint availability update Minuteman DC/OS Master DC/OS Svc. Registry (DNS) DC/OS Master DC/OS Svc. Registry (DNS) DC/OS Master DC/OS Svc. Registry (DNS) Corporate/External DNS Server DC/OS Agent Container Container Container DC/OS Agent Container Container Container DC/OS Agent Container Container Container DC/OS Agent Container Container Container Service 1 Service 2 Service 3 External Service

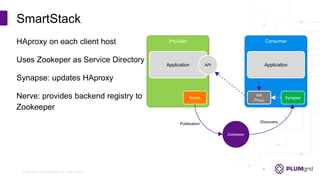

- 31. Copyright © PLUMgrid,Inc. 2011-2016 HAproxy on each client host Uses Zookeper as Service Directory Synapse: updates HAproxy Nerve: provides backend registry to Zookeeper SmartStack Provider Application Zookeeper Publication Consumer Application HA Proxy SynapseNerve API Discovery
- 32. Copyright © PLUMgrid,Inc. 2011-2016 Service Registration/Service In OpenStack

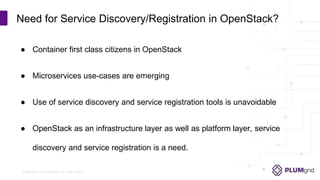

- 33. Copyright © PLUMgrid,Inc. 2011-2016 ● Container first class citizens in OpenStack ● Microservices use-cases are emerging ● Use of service discovery and service registration tools is unavoidable ● OpenStack as an infrastructure layer as well as platform layer, service discovery and service registration is a need. Need for Service Discovery/Registration in OpenStack?

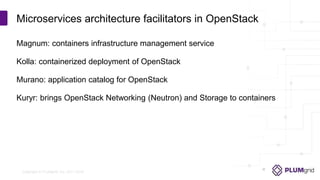

- 34. Copyright © PLUMgrid,Inc. 2011-2016 Magnum: containers infrastructure management service Kolla: containerized deployment of OpenStack Murano: application catalog for OpenStack Kuryr: brings OpenStack Networking (Neutron) and Storage to containers Microservices architecture facilitators in OpenStack
- 35. Copyright © PLUMgrid,Inc. 2011-2016 Approach-1: Containers and ecosystem entirely managed by container technologies like Docker, Kubernetes, Mesos running atop OpenStack infrastructure Approach-2: Containers and ecosystem is partly managed by container technologies and partly/completely managed/supported by OpenStack components: Neutron, Nova, Keystone etc. Two approaches in OpenStack

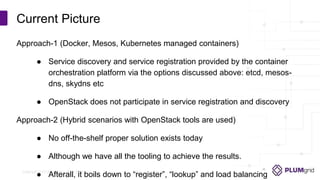

- 36. Copyright © PLUMgrid,Inc. 2011-2016 Approach-1 (Docker, Mesos, Kubernetes managed containers) ● Service discovery and service registration provided by the container orchestration platform via the options discussed above: etcd, mesos- dns, skydns etc ● OpenStack does not participate in service registration and discovery Approach-2 (Hybrid scenarios with OpenStack tools are used) ● No off-the-shelf proper solution exists today ● Although we have all the tooling to achieve the results. ● Afterall, it boils down to “register”, “lookup” and load balancing Current Picture

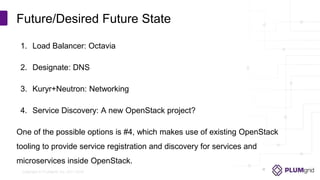

- 37. Copyright © PLUMgrid,Inc. 2011-2016 1. Load Balancer: Octavia 2. Designate: DNS 3. Kuryr+Neutron: Networking 4. Service Discovery: A new OpenStack project? One of the possible options is #4, which makes use of existing OpenStack tooling to provide service registration and discovery for services and microservices inside OpenStack. Future/Desired Future State
- 38. Copyright © PLUMgrid,Inc. 2011-2016 Questions? Thank you!
