This document discusses application modernization and provides an overview of Docker containers, WebSphere Application Server (WAS) lift-and-shift, and next steps. It introduces modernization stages like lift-and-shift, refactor, and rebuild. It then covers Docker containers for WAS Liberty and traditional WAS. IBM Cloud Private (ICP) and Helm charts for automating deployments on Kubernetes are also discussed. The document concludes with a brief discussion of WAS lift-and-shift to IBM Cloud and potential next steps involving OpenShift and ICP.

1. Application Modernization
Arthur De Magalhaes
API, Containers and Cloud Architect
arthurdm@ca.ibm.com
1

2. 2
Agenda
• Modernization intro
• Docker containers
• WAS lift-and-shift
• What’s next

3. Modernization Intro

4. 4
Digital Transformation

5. 5
Modernization starts with planning

6. 6

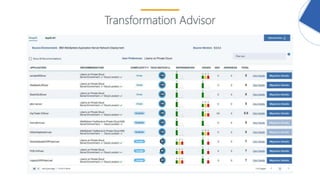

Transformation Advisor

7. Modernization Stages

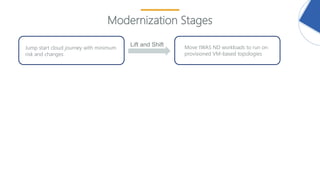

8. Modernization Stages
Jump start cloud journey with minimum
risk and changes
Move tWAS ND workloads to run on
provisioned VM-based topologies
Lift and Shift

9. 9

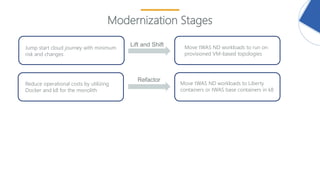

Modernization Stages
Jump start cloud journey with minimum
risk and changes
Reduce operational costs by utilizing
Docker and k8 for the monolith
Move tWAS ND workloads to run on
provisioned VM-based topologies
Move tWAS ND workloads to Liberty
containers or tWAS base containers in k8
Lift and Shift
Refactor

10. 10
Modernization Stages
Jump start cloud journey with minimum
risk and changes
Reduce operational costs by utilizing
Docker and k8 for the monolith
Improve time to market with devOps
and microservices
Move tWAS ND workloads to run on
provisioned VM-based topologies
Move tWAS ND workloads to Liberty
containers or tWAS base containers in k8
Move tWAS ND workloads to Liberty
containers and Microclimate in k8
Lift and Shift
Refactor
Rebuild

11. 11

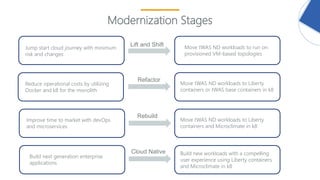

Modernization Stages
Jump start cloud journey with minimum
risk and changes
Reduce operational costs by utilizing
Docker and k8 for the monolith
Improve time to market with devOps
and microservices
Build next generation enterprise
applications
Move tWAS ND workloads to run on
provisioned VM-based topologies
Move tWAS ND workloads to Liberty
containers or tWAS base containers in k8
Move tWAS ND workloads to Liberty
containers and Microclimate in k8
Build new workloads with a compelling
user experience using Liberty containers
and Microclimate in k8
Lift and Shift
Refactor
Rebuild
Cloud Native

12. Docker containers

13. 13
WebSphere Liberty Containers
 Support for WebSphere Application Server Liberty running under Docker
 WAS Liberty images on Docker Hub for Development use
• Latest WAS Liberty driver
o kernel, webProfile6, webProfile7, javaee7, microprofile
• WAS Liberty Beta
• Can upgrade with license from PPA
Dockerfile
github.com/WASdev/ci.docker

14. 14
WebSphere Liberty Containers
 Support for WebSphere Application Server Liberty running under Docker
 WAS Liberty images on Docker Hub for Development use
• Latest WAS Liberty driver
o kernel, webProfile6, webProfile7, javaee7, microprofile
• WAS Liberty Beta
• Can upgrade with license from PPA
Dockerfile
github.com/WASdev/ci.docker
7 million
downloads

15. 15
..more Liberty containers!
IBM Cloud Container Registry Docker HubDocker Store
WebSphere Liberty Open Liberty

16. 16
traditional WebSphere Containers
 Support for traditional WebSphere Application Server base running under Docker
 tWAS images on Docker Hub for Development use
• Install and Profile flavors
• Tag for every version from 8.5.5.9 until latest 9.0.0.7
• Instructions on how to build production image
github.com/WASdev/ci.docker.websphere-traditional
https://hub.docker.com/r/ibmcom/websphere-traditional
/base - production tWAS base container
/developer - docker hub dev image

17. 17

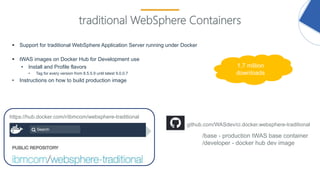

traditional WebSphere Containers
 Support for traditional WebSphere Application Server running under Docker
 tWAS images on Docker Hub for Development use
• Install and Profile flavors
• Tag for every version from 8.5.5.9 until latest 9.0.0.7
• Instructions on how to build production image
github.com/WASdev/ci.docker.websphere-traditional
https://hub.docker.com/r/ibmcom/websphere-traditional
/base - production tWAS base container
/developer - docker hub dev image
1.7 million
downloads

18. 18
IBM Cloud Private (Kubernetes)

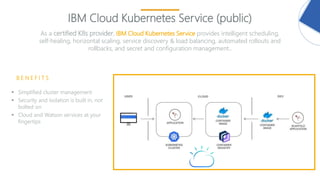

19. IBM Cloud Kubernetes Service (public)
As a certified K8s provider, IBM Cloud Kubernetes Service provides intelligent scheduling,
self-healing, horizontal scaling, service discovery & load balancing, automated rollouts and
rollbacks, and secret and configuration management..
 Simplified cluster management
 Security and isolation is built in, not
bolted on
 Cloud and Watson services at your
fingertips
B E N E F I T S

20. 20
Helm Charts
• Helm is the open standard for Application Packaging and Deployment for
Kubernetes
• Helm charts automate the deployment of resources and prereqs including
locations of Docker images

21. 21

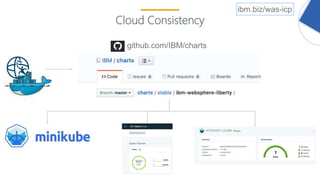

Cloud Consistency
github.com/IBM/charts
ibm.biz/was-icp

22. ICP
Microclimate Local or
ICP
Option for 3rd Party
LEGEND:
IBM Microclimate
Applications are run in containers from day one and can be delivered into production on
Kubernetes through an automated DevOps pipeline using Jenkins. Microclimate can be
installed locally or on IBM Cloud Private.

23. WAS lift-and-shift

24. 24

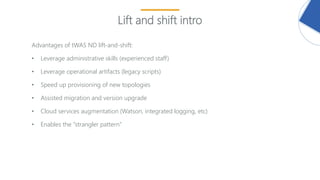

Lift and shift intro
Advantages of tWAS ND lift-and-shift:
• Leverage administrative skills (experienced staff)
• Leverage operational artifacts (legacy scripts)
• Speed up provisioning of new topologies
• Assisted migration and version upgrade
• Cloud services augmentation (Watson, integrated logging, etc)
• Enables the “strangler pattern”

25. 25

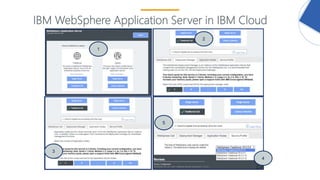

IBM WebSphere Application Server in IBM Cloud
1
2
3
4
5

26. 26
Multi Tenant or Single Tenant
Deploy WAS for IBM Cloud VM on
private bare-metal hardware in which
the physical cores, memory, and
storage is isolated to one customer Intelligent workload placement, VPN,
firewall, DirectLink high speed
connection up to 10Gps, & Softlayer
VLAN spanning to expand to
additional customer solutions

27. Location
Containers • Service container (BE, FE, Broker)
• Service UI (application to call broker)
• Content and installation scripts
• Templates
• Customer configuration
• skeleton YAML file
• Network customization file
• Mustgather
• devops scripts
• MSD lite
• scripts
• Yaml to hook up logging (maybe)
Github Helm Chart
Location
ICP PPA Bundle • ICP Production license Update
• Containers & Helm charts for disconnected
install
IBM WebSphere Application Server for IBM Cloud Private VM Quickstarter

28. IBM Cloud Private
Core Services
LoggingIAM
Encryption & Key
Management
API & Data
Connect
Usage
Metering
Monitoring
Event
Audit
Data & Analytics Services
Databases Analytics
Tenant Svcs
Kubernetes
Infrastructure Service
catalog
Multi-cloud
Services
CAM
Public, Private & Hybrid Clouds
Deployment & Process Orchestration
Flow Engine
3rd Party
Integrations
Service
Composer
Template Management
Template API
Terraform
Instance Management
Workload
Service
IaaS Management
Helm
Service&Template
Library
IBM Cloud Automation Manager is a multi-cloud,
self-service management platform running on
Cloud Private that empowers developers and
administrators to meet business demands.
Built on Terraform templates.
IBM Cloud Automation Manager - ICP

29. What’s next

30. 30
OpenShift + ICP
Kubernetes
RHEL
