The document discusses the role of Istio service mesh in managing microservices within a hybrid cloud environment, highlighting its ability to facilitate communication, security, and observability across services. It outlines the emerging trends in containerization, especially with Kubernetes as a leading orchestration platform, and emphasizes the challenges of multicloud architectures. The overall focus is on how these technologies are evolving application architecture and service management, enabling more efficient deployment and operation of services in diverse environments.

1. Istio Service Mesh
(networking for microservices)
Lew Tucker, Ph.D.
VP/CTO Cloud Computing
Cisco Systems, Inc.
@lewtucker

2. © 2 0 1 8 C is c o a n d / o r it s a f f ilia t e s . A ll r ig h t s r e s e r v e d .

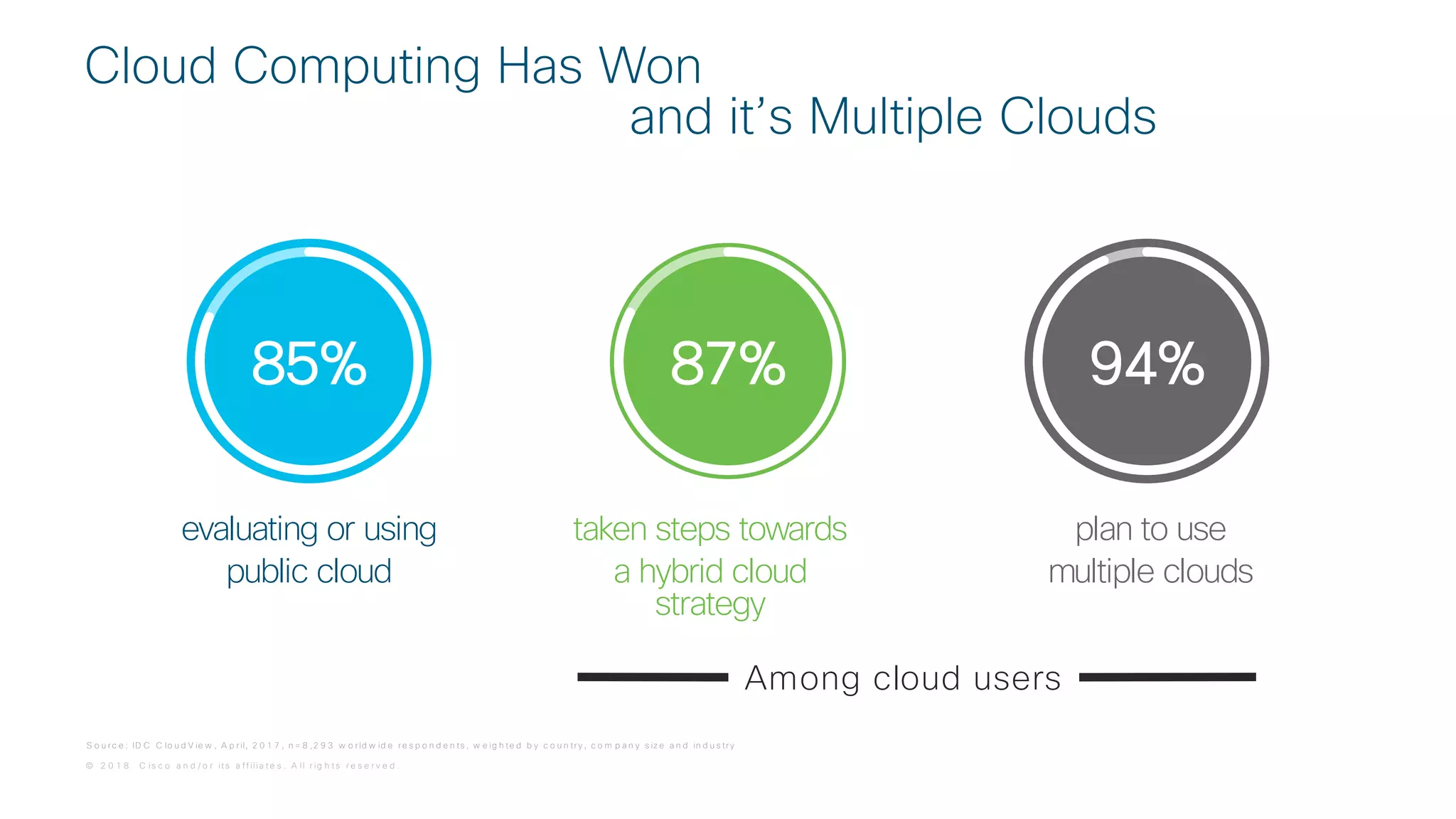

Cloud Computing Has Won
and it’s Multiple Clouds
plan to use
multiple clouds
evaluating or using
public cloud
85% 94%
taken steps towards
a hybrid cloud
strategy
87%
S o u rc e : ID C C lo u d V ie w , A p ril, 2 0 1 7 , n = 8 ,2 9 3 w o rld w id e re s p o n d e n ts , w e ig h te d b y c o u n try , c o m p a n y s iz e a n d in d u s try
Among cloud users

3. © 2 0 1 8 C is c o a n d / o r it s a f f ilia t e s . A ll r ig h t s r e s e r v e d .
SaaS
SaaSSaaS SaaS
SaaS SaaS

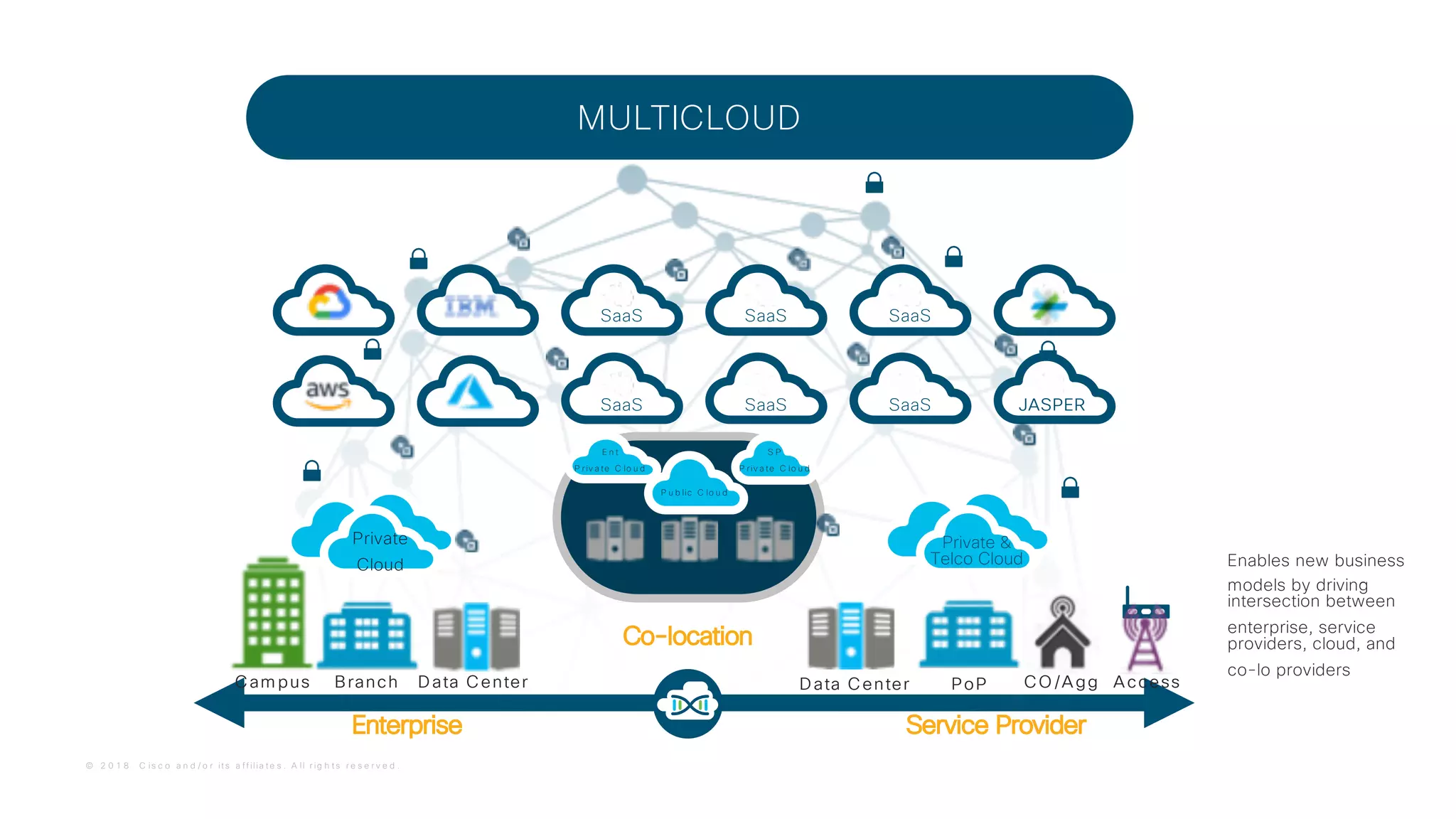

MULTICLOUD
Private
Cloud
Cam pus Branch Data Center
JASPER
P u b lic C lo u d
E n t
P riv a te C lo u d
S P
P riv a te C lo u d
Enables new business
models by driving
intersection between
enterprise, service
providers, cloud, and
co-lo providers
Data Center PoP
Private &
Telco Cloud
CO /Agg Access
Co-location
Enterprise Service Provider

4. © 2 0 1 8 C is c o a n d / o r it s a f f ilia t e s . A ll r ig h t s r e s e r v e d .

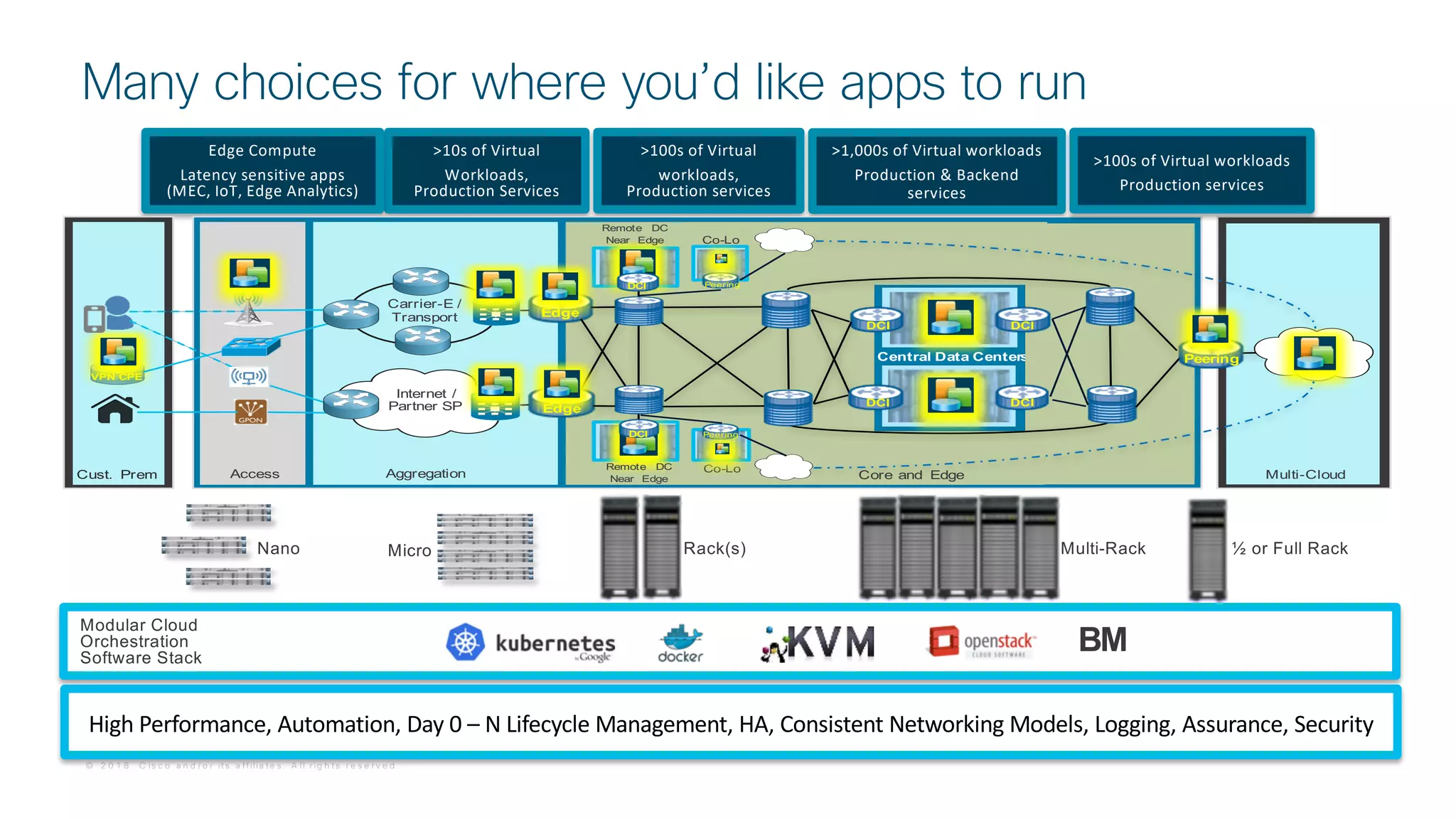

Many choices for where you’d like apps to run
>1,000s of Virtual workloads
Production & Backend
services
Rack(s)
>100s of Virtual
workloads,
Production services
>10s of Virtual
Workloads,
Production Services
Edge Compute
Latency sensitive apps
(MEC, IoT, Edge Analytics)
BM
High Performance, Automation, Day 0 – N Lifecycle Management, HA, Consistent Networking Models, Logging, Assurance, Security
Modular Cloud
Orchestration
Software Stack
Multi-Rack
`
Access
Carrier-E /
Transport
Central Data Centers
Edge
Internet /
Partner SP Edge
Core and EdgeAggregation Multi-Cloud
VPN CPE
Cust. Prem
Peering
DCI
DCI
DCI
DCI
DCI
DCI
Remote DC
Near Edge
Remote DC
Near Edge
Co-Lo
Co-Lo
Peering
Peering
>100s of Virtual workloads
Production services
MicroNano ½ or Full Rack

5. © 2 0 1 8 C is c o a n d / o r it s a f f ilia t e s . A ll r ig h t s r e s e r v e d .

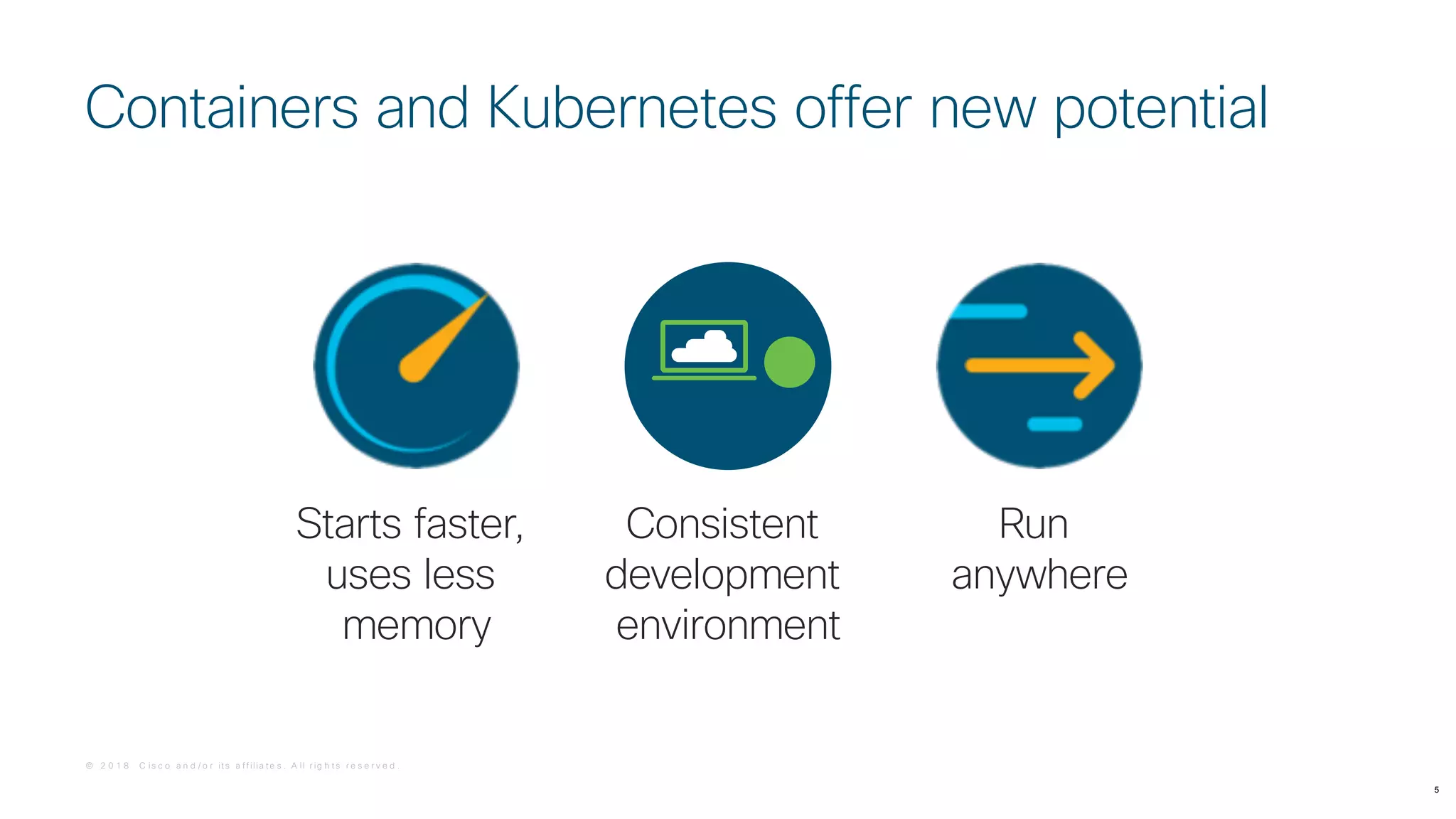

Containers and Kubernetes offer new potential
5
Starts faster,
uses less
memory
Consistent
development
environment
Run
anywhere

6. © 2 0 1 8 C is c o a n d / o r it s a f f ilia t e s . A ll r ig h t s r e s e r v e d .

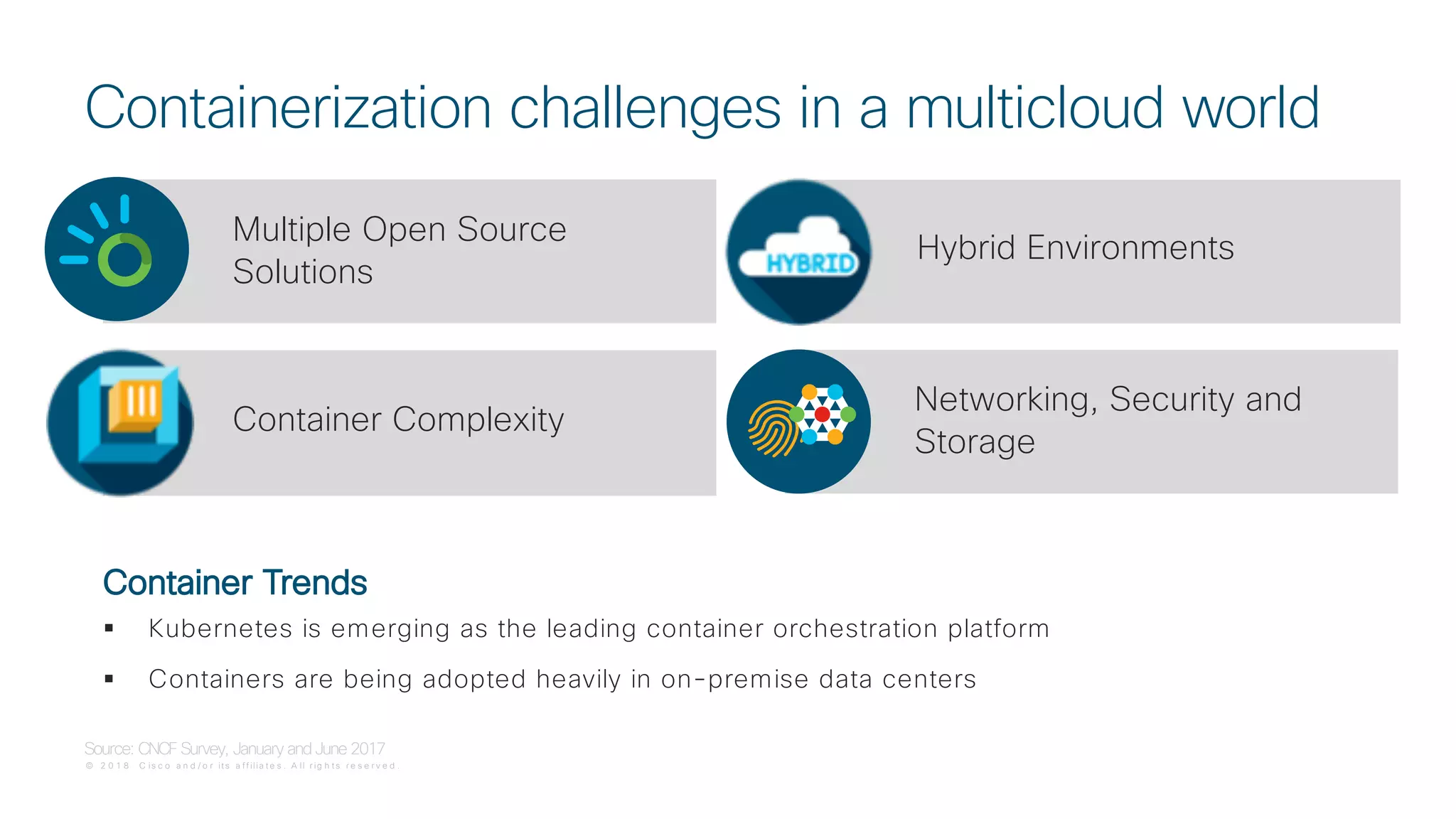

Containerization challenges in a multicloud world
Multiple Open Source
Solutions
Hybrid Environments
Container Complexity
Networking, Security and
Storage
Source: CNCF Survey, January and June 2017
Container Trends
§ Kubernetes is emerging as the leading container orchestration platform
§ Containers are being adopted heavily in on-premise data centers

7. © 2 0 1 8 C is c o a n d / o r it s a f f ilia t e s . A ll r ig h t s r e s e r v e d .
Native Kubernetes (100% Upstream)
Direct updates and best practices from open source
community
Hybrid Cloud Optimized
A key element of the Cisco-Google open hybrid cloud
solution
Integrated
Networking | Management | Security | Analytics
Container-based Applications Management
Extending Cisco’s portfolio of offers
The Cisco Container Platform - Kubernetes
Turnkey Solution
For Production-Grade Container
Environments
Easy to acquire, deploy & manage | Extensible platform | World-class advisory & support | Open & consistent

8. Announced October 2017

9. © 2 0 1 8 C is c o a n d / o r it s a f f ilia t e s . A ll r ig h t s r e s e r v e d .

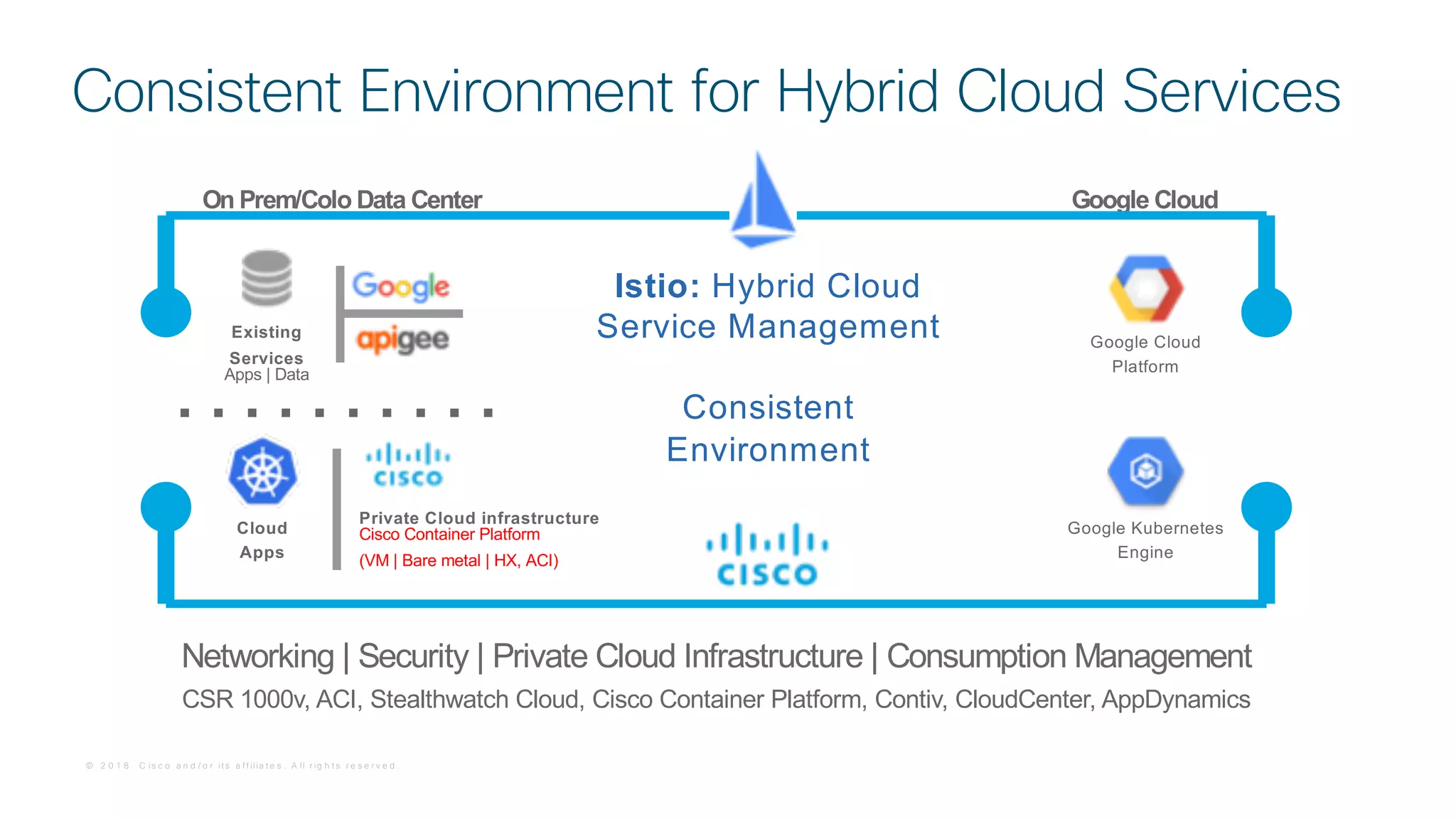

Consistent Environment for Hybrid Cloud Services
On Prem/Colo Data Center Google Cloud
Google Cloud
Platform
Google Kubernetes
Engine
Existing
Services
Apps | Data
Private Cloud infrastructure
Cisco Container Platform
(VM | Bare metal | HX, ACI)
Cloud
Apps
Istio: Hybrid Cloud
Service Management
Consistent
Environment
Networking | Security | Private Cloud Infrastructure | Consumption Management
CSR 1000v, ACI, Stealthwatch Cloud, Cisco Container Platform, Contiv, CloudCenter, AppDynamics

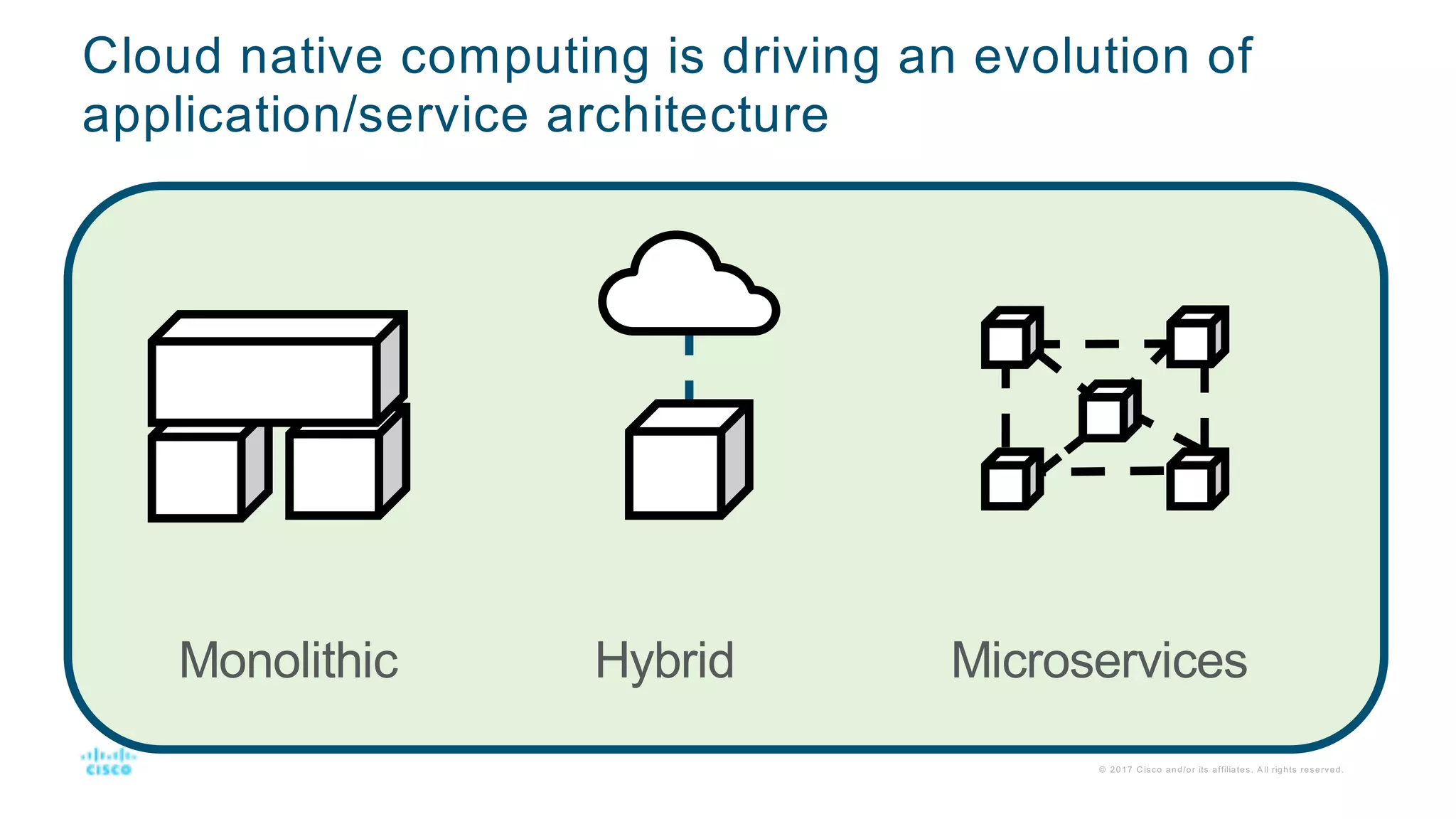

10. Cloud native computing is driving an evolution of
application/service architecture
© 2017 C isco and/or its affiliates. A ll rights reserved.
Monolithic Hybrid Microservices

11. © 2017 C isco and/or its affiliates. A ll rights reserved.
Wecome to the wonderful world of
distributed systems !
Observability Traffic
management
Security and
Policy

12. Payments
Order
Mgmt
Web
Server
Content
Server

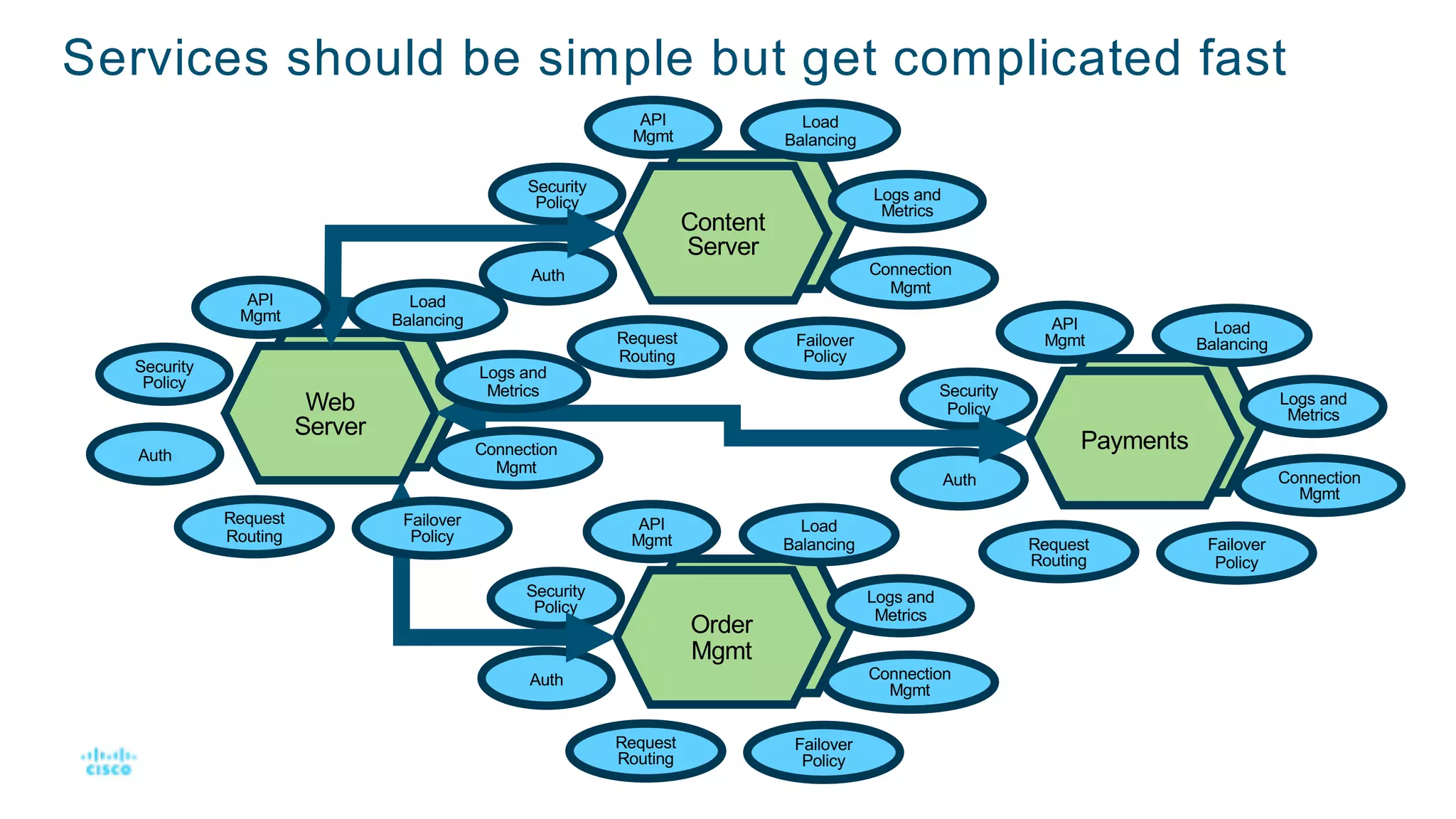

Services should be simple but get complicated fast
Auth
Logs and
Metrics
API
Mgmt
Security
Policy
Load
Balancing
Connection
Mgmt
Order
Mgmt
Request
Routing
Failover
Policy
Content
Server
Auth
Logs and
Metrics
API
Mgmt
Security
Policy
Load
Balancing
Connection
Mgmt
Request
Routing
Failover
Policy
Auth
Logs and
Metrics
API
Mgmt
Security
Policy
Load
Balancing
Connection
Mgmt
Payments
Request
Routing
Failover
Policy
Web
Server
Auth
Logs and
Metrics
API
Mgmt
Security
Policy
Load
Balancing
Connection
Mgmt
Request
Routing
Failover
Policy

13. Order
Mgmt
Payments
Content
Server
Web
Server

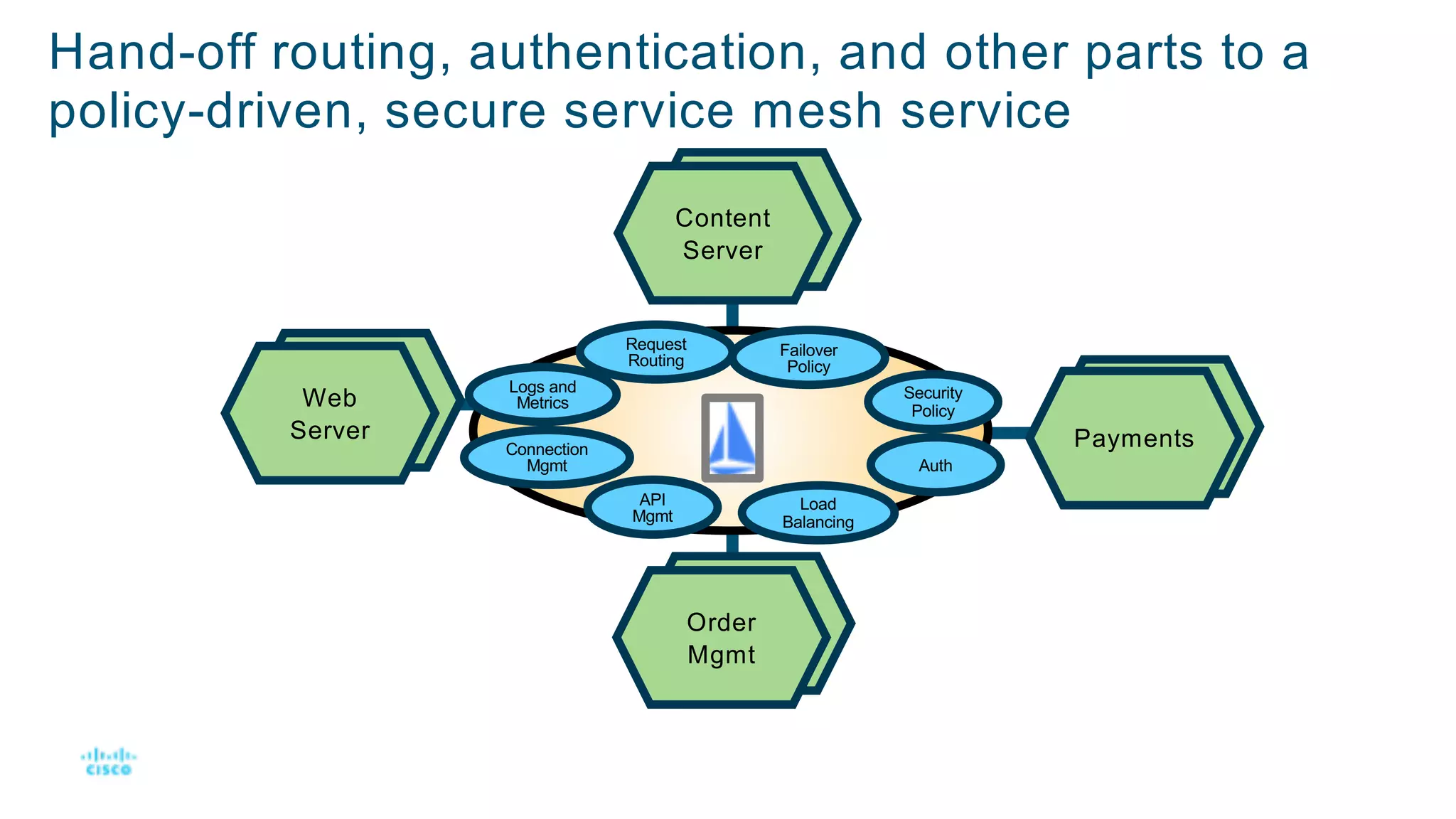

Hand-off routing, authentication, and other parts to a
policy-driven, secure service mesh service
API
Mgmt
Load
Balancing
Order
Mgmt
Content
Server
Request
Routing
Failover
Policy
Auth
Security
Policy
Payments
Web
Server
Logs and
Metrics
Connection
Mgmt

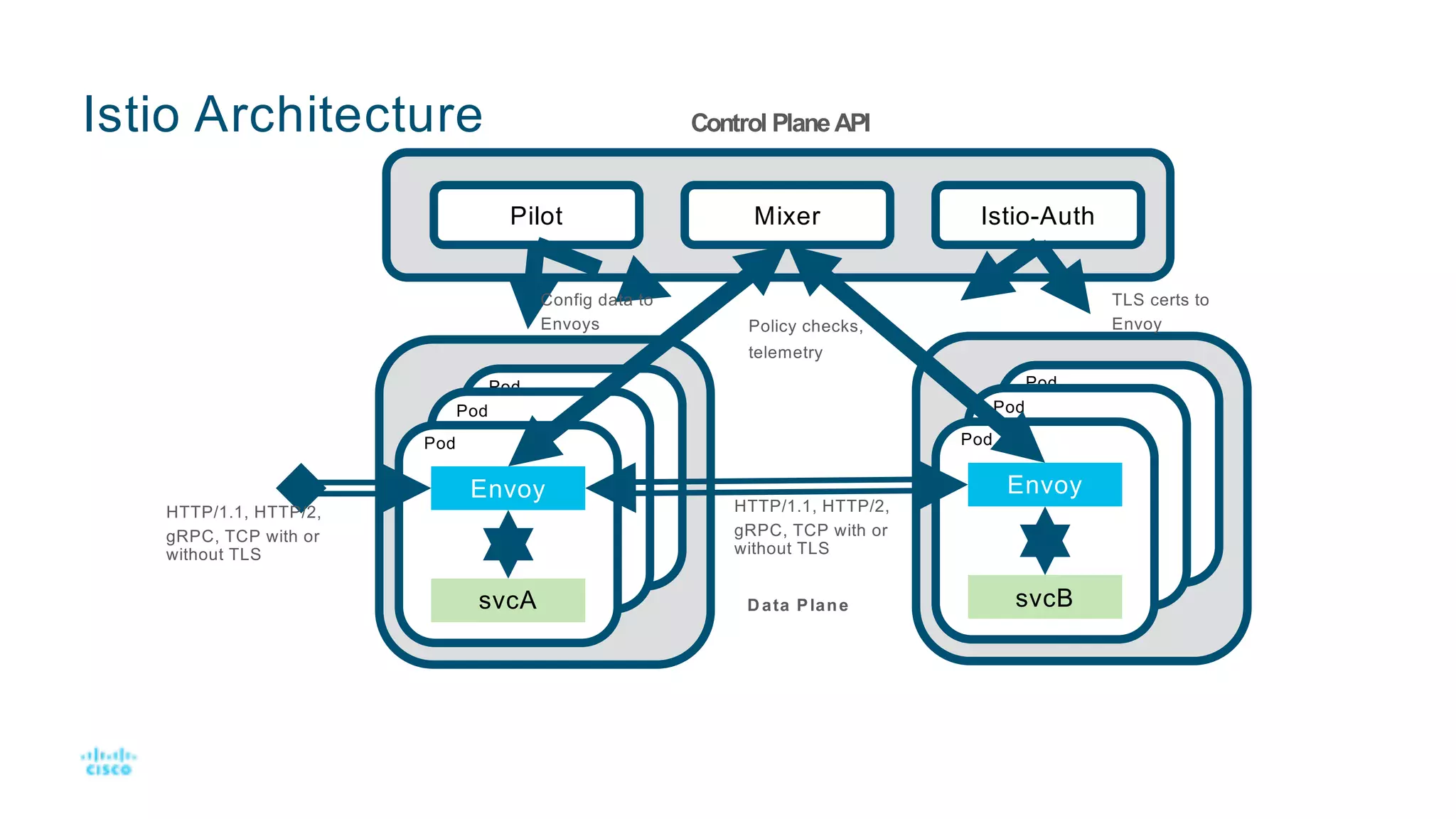

14. Istio Architecture
PilotPilot Mixer Istio-Auth
Pod
Pod
Pod
Envoy
svcA
Pod
Pod
Pod
Envoy
svcB
HTTP/1.1, HTTP/2,
gRPC, TCP with or
without TLS
Config data to
Envoys
TLS certs to
EnvoyPolicy checks,
telemetry
HTTP/1.1, HTTP/2,
gRPC, TCP with or
without TLS
Control PlaneAPI
Data Plane

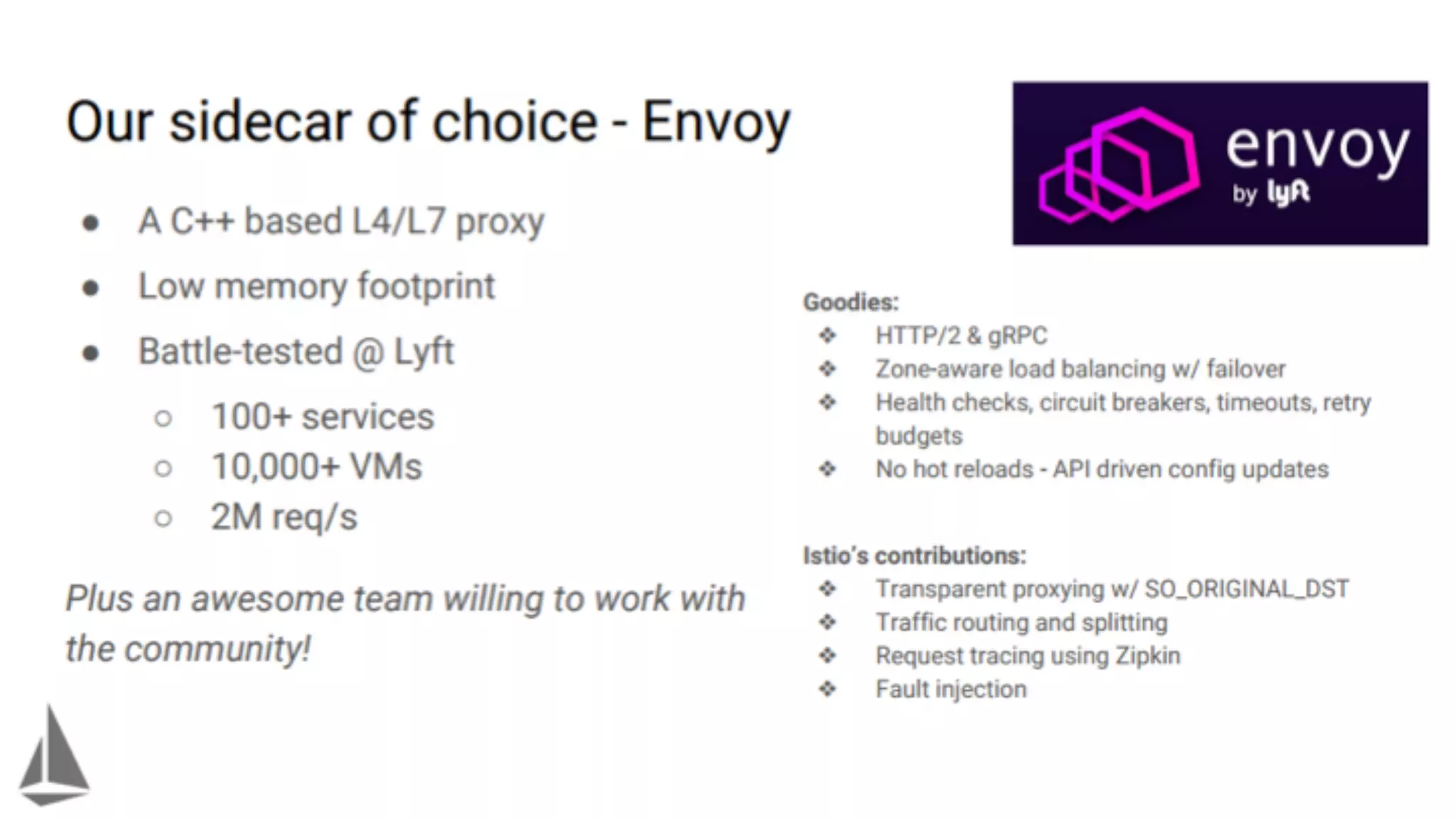

15. Several different service mesh options for developers
© 2017 C isco and/or its affiliates. A ll rights reserved.

16. © 2017 C isco and/or its affiliates. A ll rights reserved.

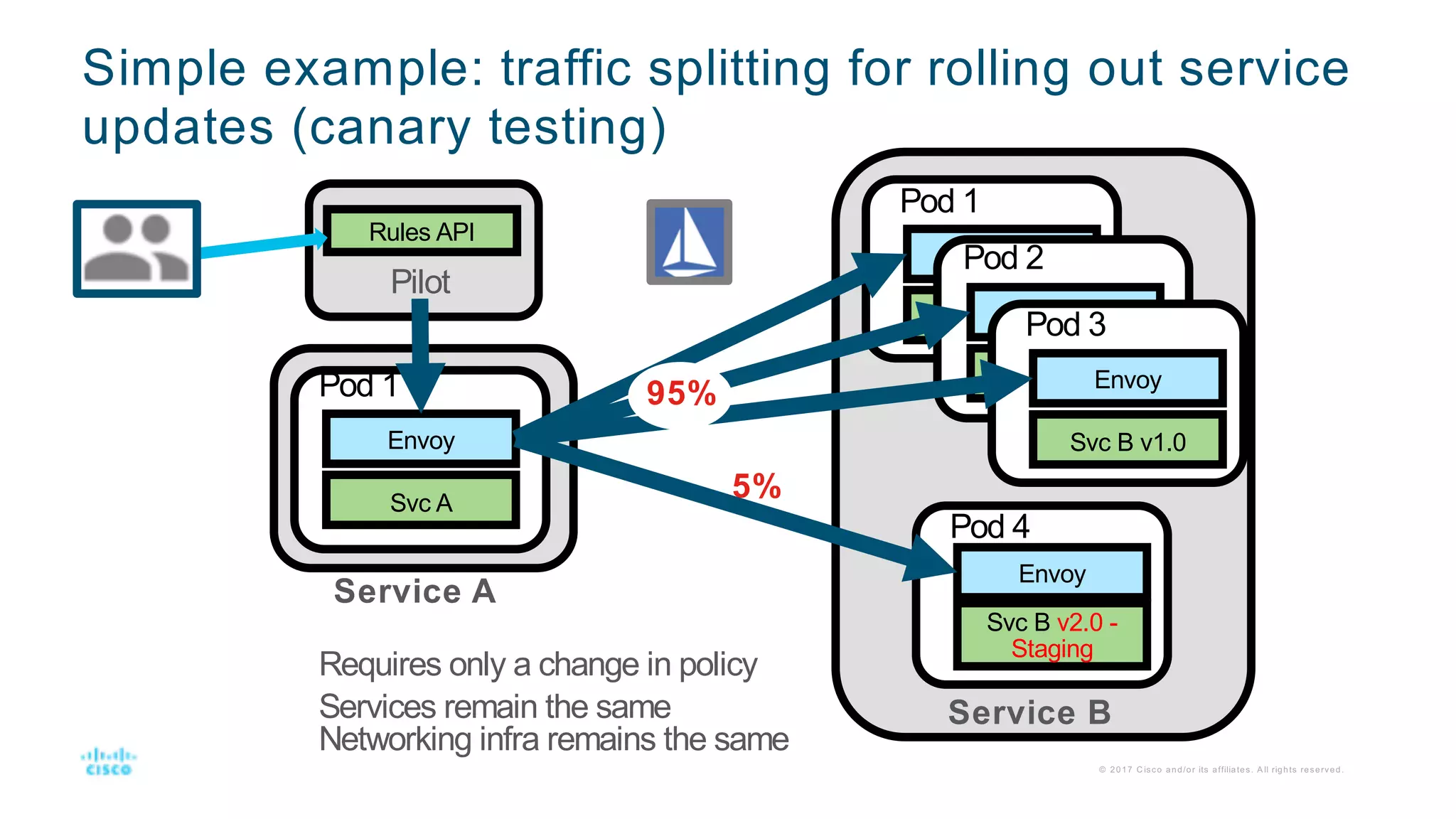

17. Simple example: traffic splitting for rolling out service
updates (canary testing)
© 2017 C isco and/or its affiliates. A ll rights reserved.
5%
Requires only a change in policy
Services remain the same
Networking infra remains the same
Rules API
Pilot
Svc A
Service A
Envoy
Pod 1
Svc B v1.0
Envoy
Pod 1
Svc B v1.0
Envoy
Pod 2
Svc B v1.0
Envoy
Pod 3
Svc B v2.0 -
Staging
Envoy
Pod 4
Service B
95%

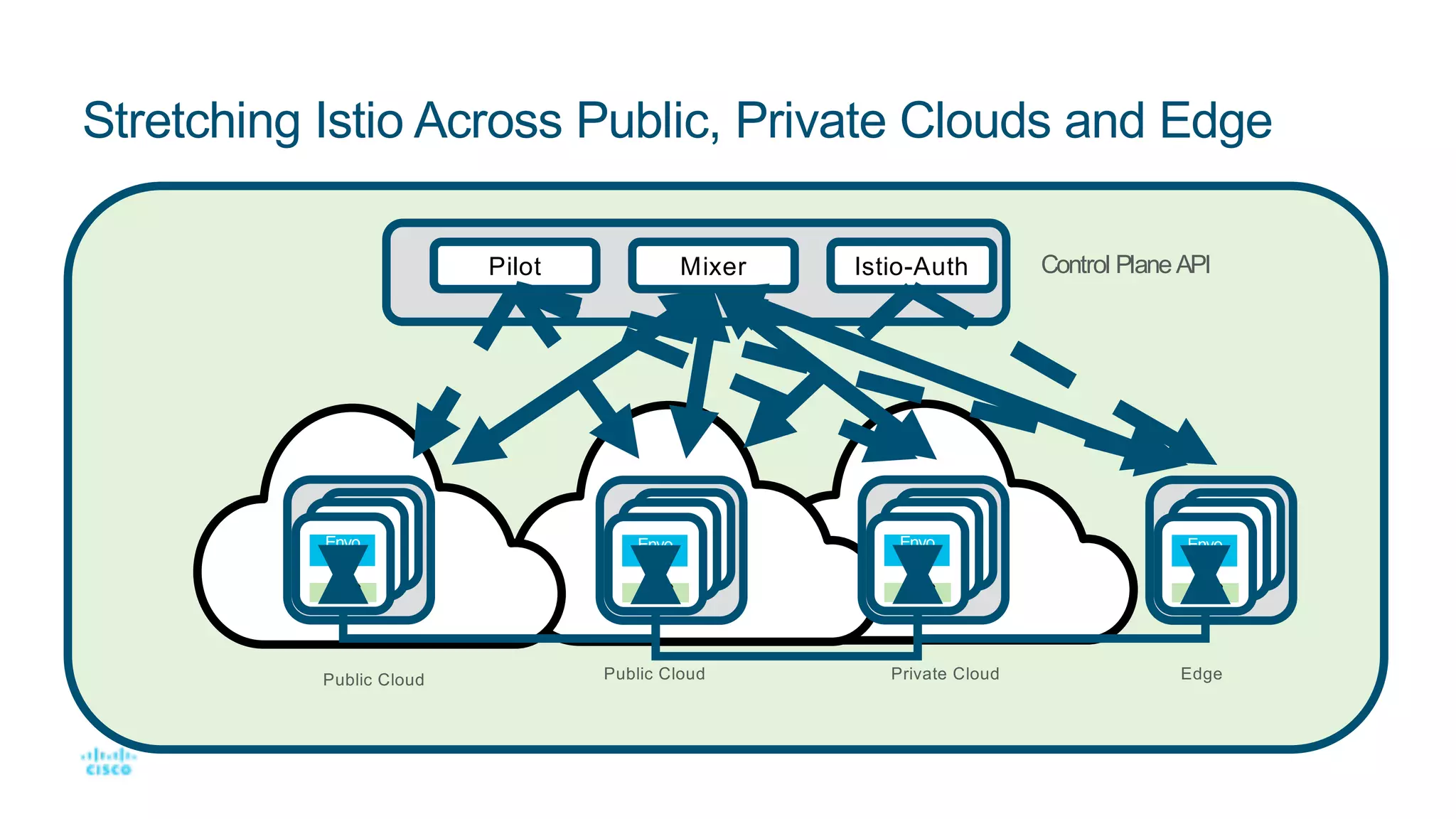

18. Stretching Istio Across Public, Private Clouds and Edge
PilotPilot Mixer Istio-Auth
Envo
y
svc
Public Cloud
Control PlaneAPI
Envo
y
svc
Envo
y
svc
Envo
y
svc
Public Cloud Private Cloud Edge

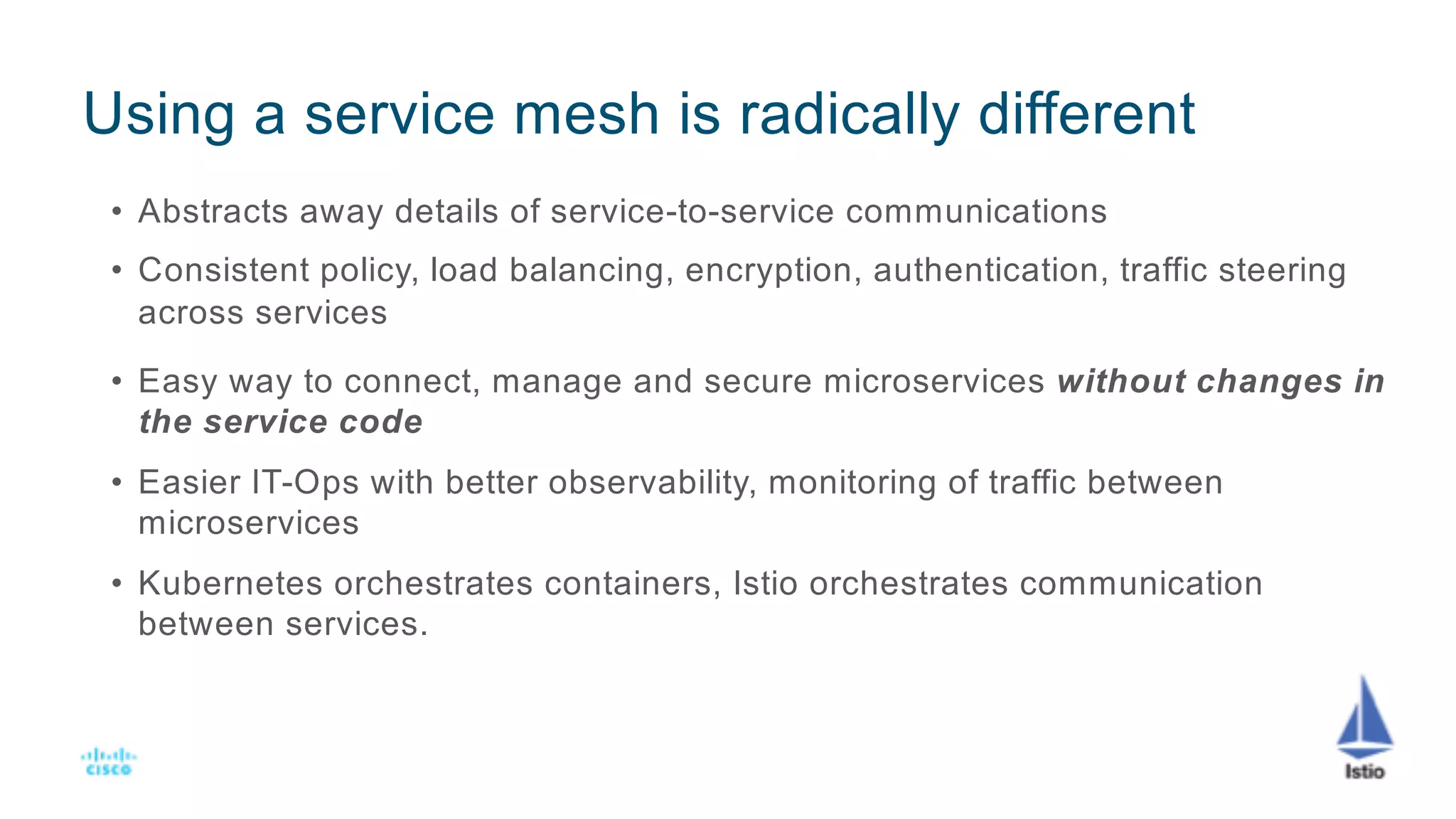

19. Using a service mesh is radically different
• Abstracts away details of service-to-service communications
• Consistent policy, load balancing, encryption, authentication, traffic steering
across services
• Easy way to connect, manage and secure microservices without changes in
the service code
• Easier IT-Ops with better observability, monitoring of traffic between
microservices
• Kubernetes orchestrates containers, Istio orchestrates communication
between services.

20. Biggest Impact: Changing the way we think about
application/service development
Bring application development becomes
assembly of ready-made, highly-scalable,
proven services running anywhere from the
edge to the cloud.
