The document provides a device modeling report for the solar cell part number BP 365TS, manufactured by BP Solar. It includes output characteristics, circuit simulation results, and performance data such as maximum power (Pmax = 65W), voltage at Pmax (Vmp = 8.7V), short-circuit current (Isc = 8.1A), and open-circuit voltage (Voc = 11.0V). The report also contains a comparison of measurement and simulation results with minimal errors.

1. Device Modeling Report
COMPONENTS: Solar Cell
PART NUMBER: BP 365TS
MUNUFACTURER: bp Solar
REMARK:Pmax=65(W)
REPORT of Solar Cells (LTspice IV)
Bee Technologies Inc.
All Rights Reserved Copyright (c) Bee Technologies Inc. 2009
1

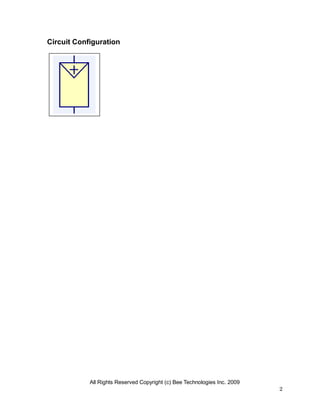

2. Circuit Configuration
All Rights Reserved Copyright (c) Bee Technologies Inc. 2009
2

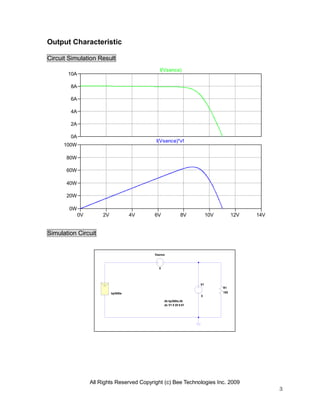

3. Output Characteristic
Circuit Simulation Result
I(Vsence)
10A
8A
6A
4A
2A
0A
I(Vsence)*v1
100W
80W
60W
40W
20W
0W
0V 2V 4V 6V 8V 10V 12V 14V
Simulation Circuit
Vsence
0
V1
R1
bp365ts 100
0
.lib bp365ts.lib
.dc V1 0 20 0.01
All Rights Reserved Copyright (c) Bee Technologies Inc. 2009
3

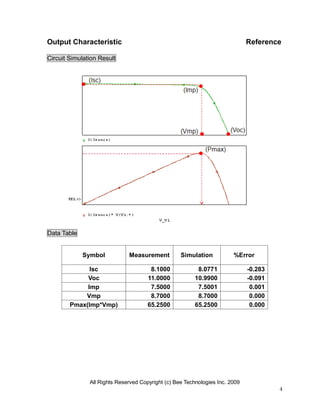

4. Output Characteristic Reference
Circuit Simulation Result
Data Table
Symbol Measurement Simulation %Error
Isc 8.1000 8.0771 -0.283
Voc 11.0000 10.9900 -0.091
Imp 7.5000 7.5001 0.001
Vmp 8.7000 8.7000 0.000
Pmax(Imp*Vmp) 65.2500 65.2500 0.000
All Rights Reserved Copyright (c) Bee Technologies Inc. 2009
4

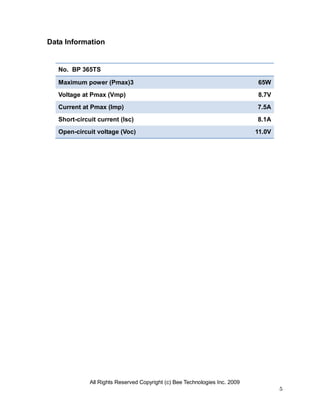

5. Data Information
No. BP 365TS
Maximum power (Pmax)3 65W
Voltage at Pmax (Vmp) 8.7V
Current at Pmax (Imp) 7.5A
Short-circuit current (Isc) 8.1A
Open-circuit voltage (Voc) 11.0V
All Rights Reserved Copyright (c) Bee Technologies Inc. 2009
5
