The document describes various digital logic components including logic gates, adders, subtractors, encoders, decoders, multiplexers, demultiplexers, flip-flops, counters, registers, and a traffic light controller. Logic gates such as AND, OR, NOT, NAND, NOR, XOR and XNOR are implemented. Adders include half adders, full adders, parallel adders, and carry lookahead adders. Flip-flops include D, T, JK, and SR flip-flops. Counters include an up-down counter. A traffic light controller module is described to control lights using a 3-bit state register. CMOS implementations of logic gates are also provided.

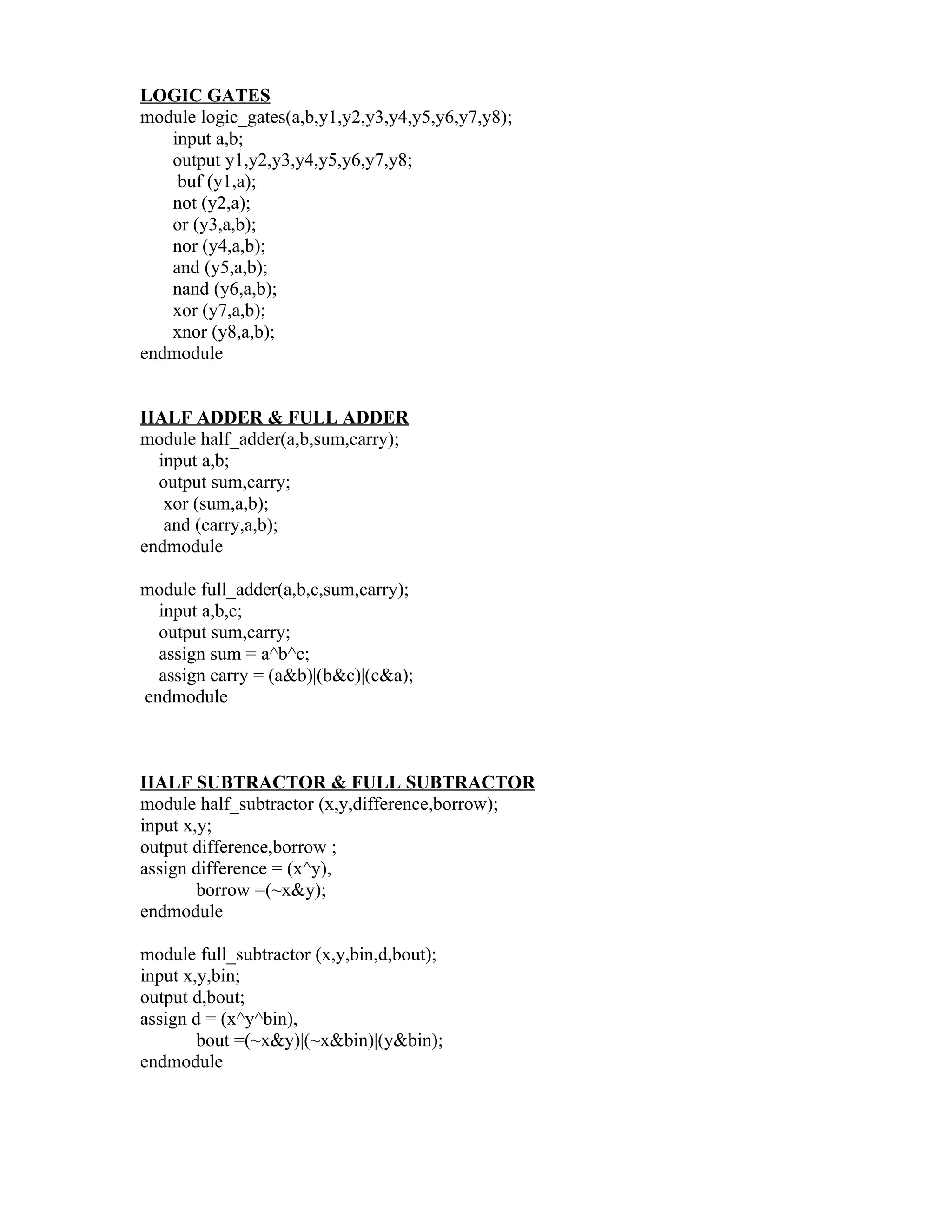

1. LOGIC GATES
module logic_gates(a,b,y1,y2,y3,y4,y5,y6,y7,y8);
input a,b;
output y1,y2,y3,y4,y5,y6,y7,y8;
buf (y1,a);
not (y2,a);
or (y3,a,b);
nor (y4,a,b);
and (y5,a,b);
nand (y6,a,b);
xor (y7,a,b);
xnor (y8,a,b);
endmodule
HALF ADDER & FULL ADDER
module half_adder(a,b,sum,carry);
input a,b;
output sum,carry;
xor (sum,a,b);
and (carry,a,b);
endmodule
module full_adder(a,b,c,sum,carry);
input a,b,c;
output sum,carry;
assign sum = a^b^c;
assign carry = (a&b)|(b&c)|(c&a);
endmodule
HALF SUBTRACTOR & FULL SUBTRACTOR
module half_subtractor (x,y,difference,borrow);
input x,y;
output difference,borrow ;
assign difference = (x^y),
borrow =(~x&y);
endmodule
module full_subtractor (x,y,bin,d,bout);
input x,y,bin;
output d,bout;
assign d = (x^y^bin),
bout =(~x&y)|(~x&bin)|(y&bin);
endmodule

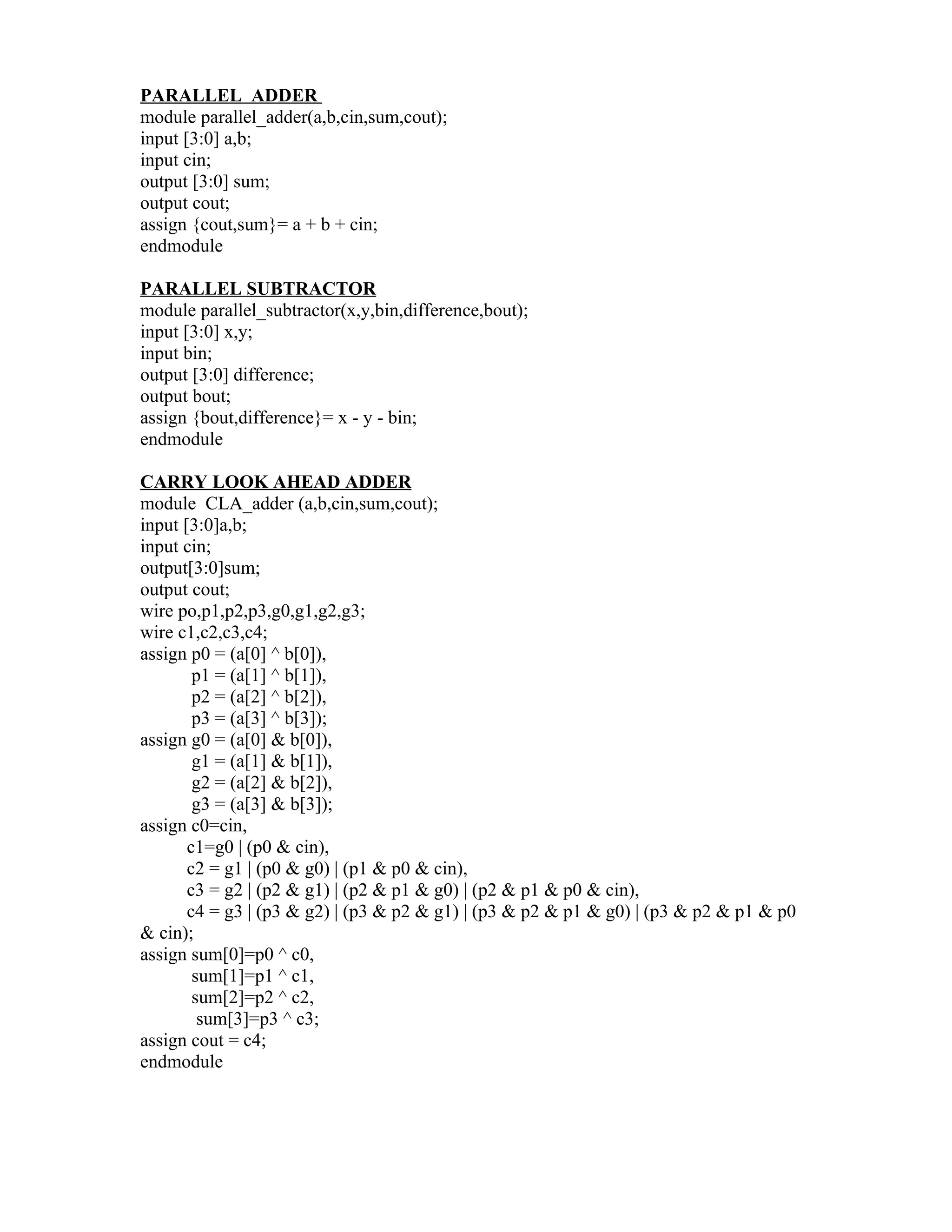

2. PARALLEL ADDER
module parallel_adder(a,b,cin,sum,cout);
input [3:0] a,b;
input cin;
output [3:0] sum;
output cout;
assign {cout,sum}= a + b + cin;
endmodule
PARALLEL SUBTRACTOR
module parallel_subtractor(x,y,bin,difference,bout);
input [3:0] x,y;
input bin;
output [3:0] difference;
output bout;
assign {bout,difference}= x - y - bin;
endmodule
CARRY LOOK AHEAD ADDER
module CLA_adder (a,b,cin,sum,cout);
input [3:0]a,b;
input cin;
output[3:0]sum;
output cout;
wire po,p1,p2,p3,g0,g1,g2,g3;
wire c1,c2,c3,c4;
assign p0 = (a[0] ^ b[0]),
p1 = (a[1] ^ b[1]),
p2 = (a[2] ^ b[2]),
p3 = (a[3] ^ b[3]);
assign g0 = (a[0] & b[0]),
g1 = (a[1] & b[1]),
g2 = (a[2] & b[2]),
g3 = (a[3] & b[3]);
assign c0=cin,
c1=g0 | (p0 & cin),
c2 = g1 | (p0 & g0) | (p1 & p0 & cin),
c3 = g2 | (p2 & g1) | (p2 & p1 & g0) | (p2 & p1 & p0 & cin),
c4 = g3 | (p3 & g2) | (p3 & p2 & g1) | (p3 & p2 & p1 & g0) | (p3 & p2 & p1 & p0
& cin);
assign sum[0]=p0 ^ c0,
sum[1]=p1 ^ c1,
sum[2]=p2 ^ c2,
sum[3]=p3 ^ c3;
assign cout = c4;
endmodule

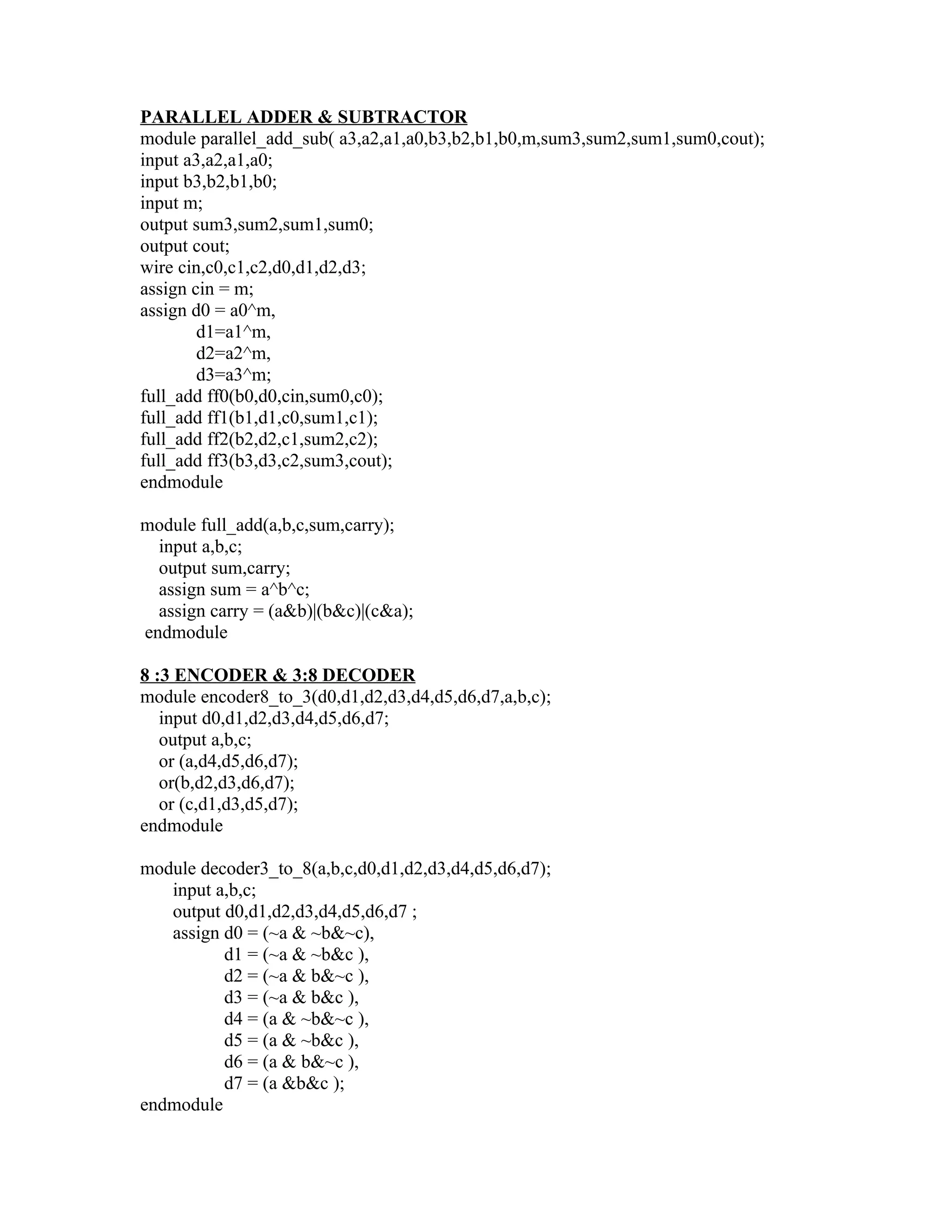

3. PARALLEL ADDER & SUBTRACTOR
module parallel_add_sub( a3,a2,a1,a0,b3,b2,b1,b0,m,sum3,sum2,sum1,sum0,cout);
input a3,a2,a1,a0;
input b3,b2,b1,b0;
input m;
output sum3,sum2,sum1,sum0;
output cout;
wire cin,c0,c1,c2,d0,d1,d2,d3;
assign cin = m;
assign d0 = a0^m,
d1=a1^m,
d2=a2^m,
d3=a3^m;
full_add ff0(b0,d0,cin,sum0,c0);
full_add ff1(b1,d1,c0,sum1,c1);
full_add ff2(b2,d2,c1,sum2,c2);
full_add ff3(b3,d3,c2,sum3,cout);
endmodule
module full_add(a,b,c,sum,carry);
input a,b,c;
output sum,carry;
assign sum = a^b^c;
assign carry = (a&b)|(b&c)|(c&a);
endmodule
8 :3 ENCODER & 3:8 DECODER
module encoder8_to_3(d0,d1,d2,d3,d4,d5,d6,d7,a,b,c);
input d0,d1,d2,d3,d4,d5,d6,d7;
output a,b,c;
or (a,d4,d5,d6,d7);
or(b,d2,d3,d6,d7);
or (c,d1,d3,d5,d7);
endmodule
module decoder3_to_8(a,b,c,d0,d1,d2,d3,d4,d5,d6,d7);
input a,b,c;
output d0,d1,d2,d3,d4,d5,d6,d7 ;
assign d0 = (~a & ~b&~c),
d1 = (~a & ~b&c ),
d2 = (~a & b&~c ),
d3 = (~a & b&c ),
d4 = (a & ~b&~c ),
d5 = (a & ~b&c ),
d6 = (a & b&~c ),
d7 = (a &b&c );
endmodule

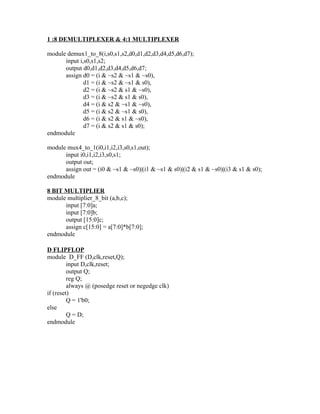

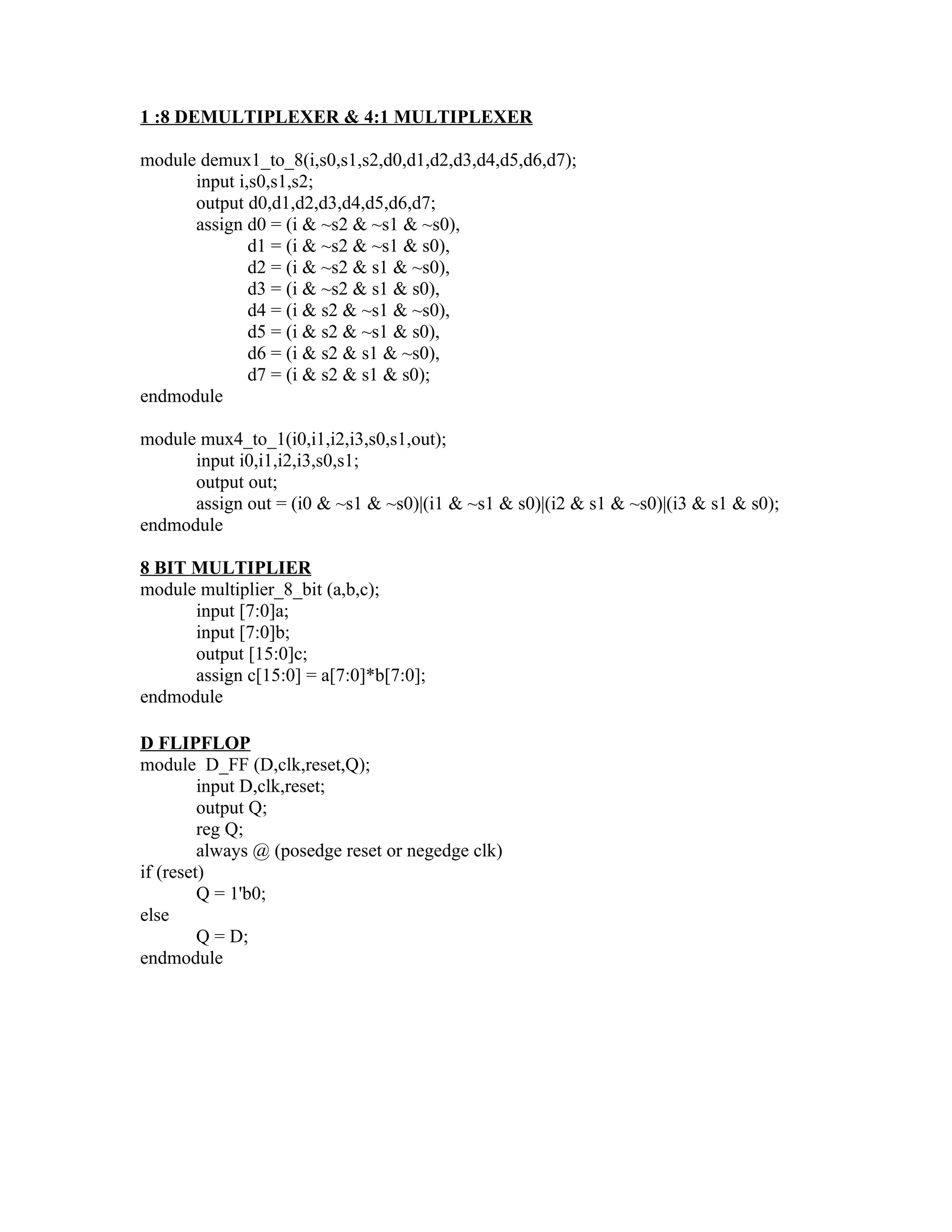

4. 1 :8 DEMULTIPLEXER & 4:1 MULTIPLEXER
module demux1_to_8(i,s0,s1,s2,d0,d1,d2,d3,d4,d5,d6,d7);
input i,s0,s1,s2;
output d0,d1,d2,d3,d4,d5,d6,d7;
assign d0 = (i & ~s2 & ~s1 & ~s0),
d1 = (i & ~s2 & ~s1 & s0),
d2 = (i & ~s2 & s1 & ~s0),
d3 = (i & ~s2 & s1 & s0),
d4 = (i & s2 & ~s1 & ~s0),
d5 = (i & s2 & ~s1 & s0),
d6 = (i & s2 & s1 & ~s0),
d7 = (i & s2 & s1 & s0);
endmodule
module mux4_to_1(i0,i1,i2,i3,s0,s1,out);
input i0,i1,i2,i3,s0,s1;
output out;
assign out = (i0 & ~s1 & ~s0)|(i1 & ~s1 & s0)|(i2 & s1 & ~s0)|(i3 & s1 & s0);
endmodule
8 BIT MULTIPLIER
module multiplier_8_bit (a,b,c);
input [7:0]a;
input [7:0]b;
output [15:0]c;
assign c[15:0] = a[7:0]*b[7:0];
endmodule
D FLIPFLOP
module D_FF (D,clk,reset,Q);
input D,clk,reset;
output Q;
reg Q;
always @ (posedge reset or negedge clk)
if (reset)
Q = 1'b0;
else
Q = D;
endmodule

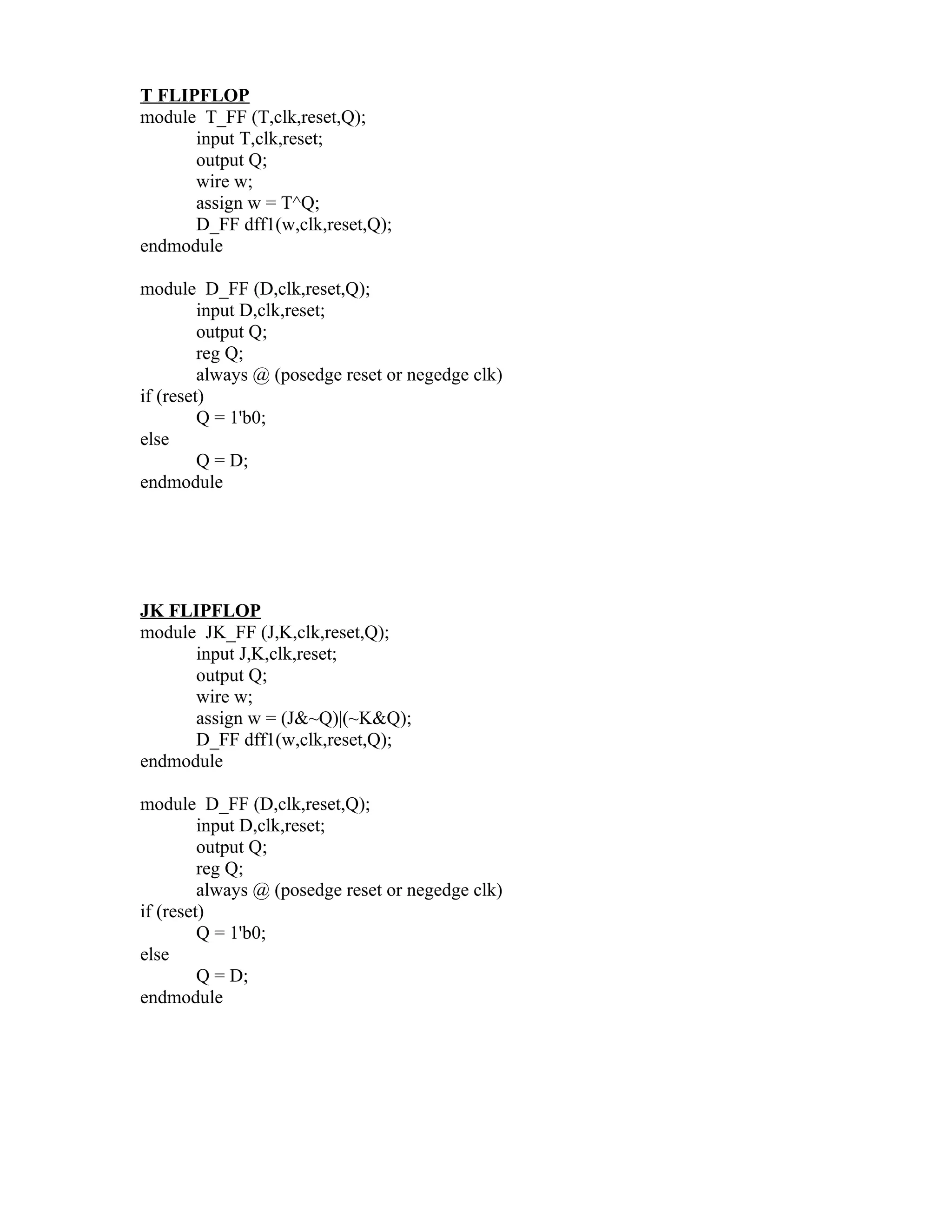

5. T FLIPFLOP
module T_FF (T,clk,reset,Q);
input T,clk,reset;
output Q;
wire w;
assign w = T^Q;
D_FF dff1(w,clk,reset,Q);
endmodule
module D_FF (D,clk,reset,Q);
input D,clk,reset;
output Q;
reg Q;
always @ (posedge reset or negedge clk)
if (reset)
Q = 1'b0;
else
Q = D;
endmodule
JK FLIPFLOP
module JK_FF (J,K,clk,reset,Q);
input J,K,clk,reset;
output Q;
wire w;
assign w = (J&~Q)|(~K&Q);
D_FF dff1(w,clk,reset,Q);
endmodule
module D_FF (D,clk,reset,Q);
input D,clk,reset;
output Q;
reg Q;
always @ (posedge reset or negedge clk)
if (reset)
Q = 1'b0;
else
Q = D;
endmodule

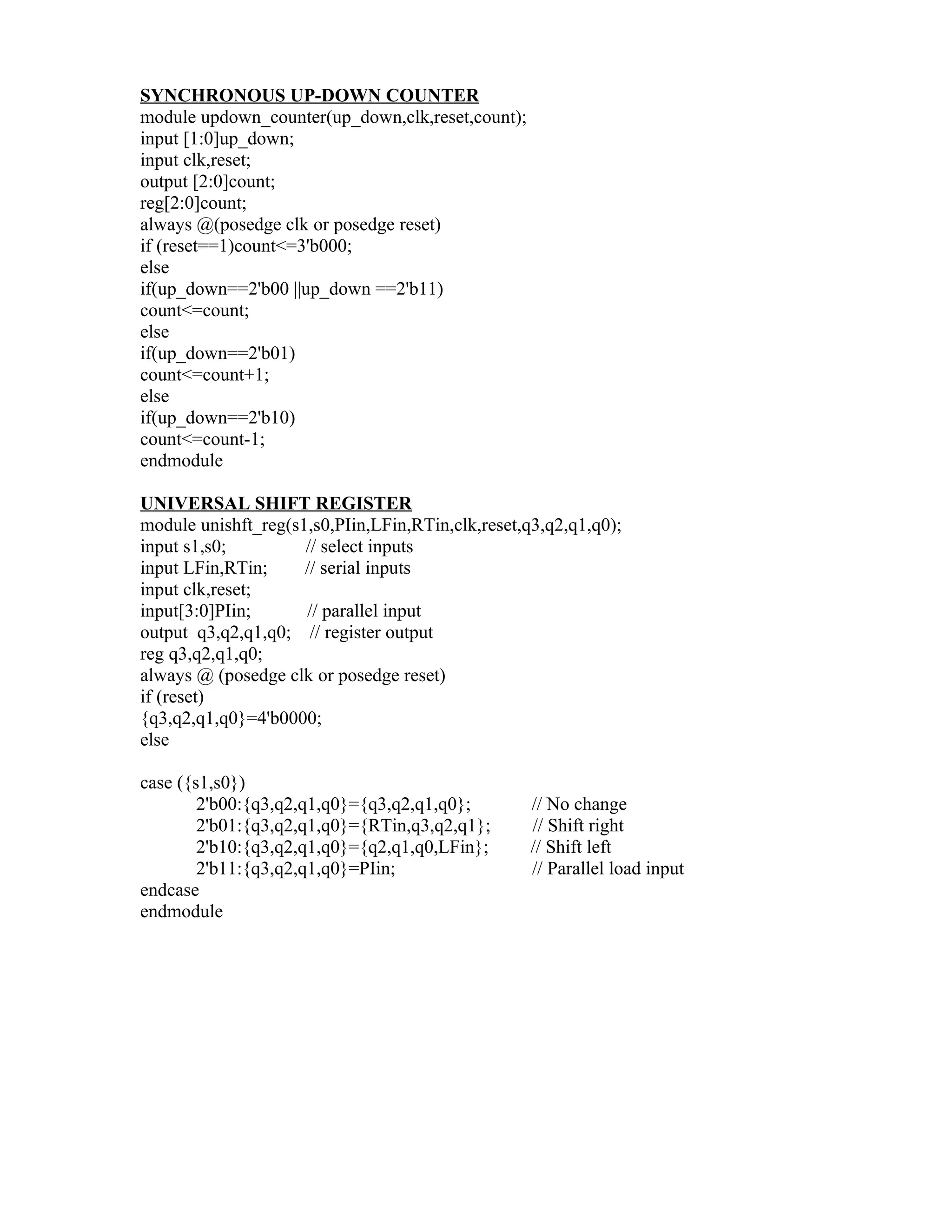

6. SYNCHRONOUS UP-DOWN COUNTER
module updown_counter(up_down,clk,reset,count);
input [1:0]up_down;
input clk,reset;
output [2:0]count;
reg[2:0]count;
always @(posedge clk or posedge reset)
if (reset==1)count<=3'b000;
else
if(up_down==2'b00 ||up_down ==2'b11)
count<=count;
else
if(up_down==2'b01)
count<=count+1;
else
if(up_down==2'b10)
count<=count-1;
endmodule
UNIVERSAL SHIFT REGISTER
module unishft_reg(s1,s0,PIin,LFin,RTin,clk,reset,q3,q2,q1,q0);
input s1,s0; // select inputs
input LFin,RTin; // serial inputs
input clk,reset;
input[3:0]PIin; // parallel input
output q3,q2,q1,q0; // register output
reg q3,q2,q1,q0;
always @ (posedge clk or posedge reset)
if (reset)
{q3,q2,q1,q0}=4'b0000;
else
case ({s1,s0})
2'b00:{q3,q2,q1,q0}={q3,q2,q1,q0}; // No change
2'b01:{q3,q2,q1,q0}={RTin,q3,q2,q1}; // Shift right
2'b10:{q3,q2,q1,q0}={q2,q1,q0,LFin}; // Shift left
2'b11:{q3,q2,q1,q0}=PIin; // Parallel load input
endcase
endmodule

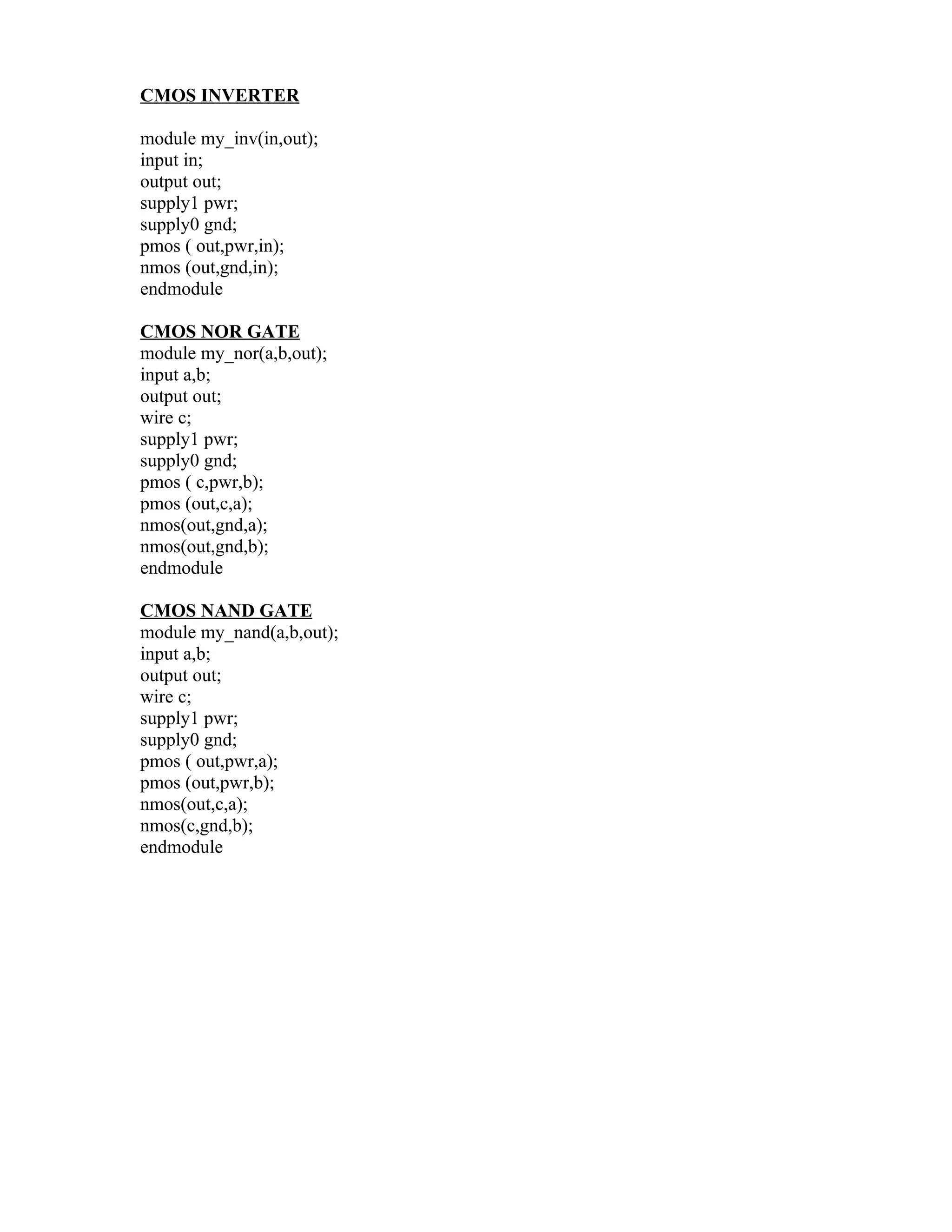

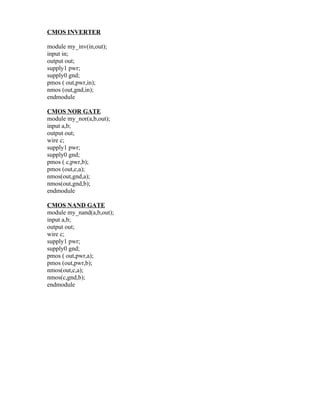

7. CMOS INVERTER
module my_inv(in,out);
input in;
output out;
supply1 pwr;
supply0 gnd;
pmos ( out,pwr,in);
nmos (out,gnd,in);
endmodule
CMOS NOR GATE
module my_nor(a,b,out);
input a,b;
output out;
wire c;
supply1 pwr;
supply0 gnd;
pmos ( c,pwr,b);
pmos (out,c,a);
nmos(out,gnd,a);
nmos(out,gnd,b);
endmodule
CMOS NAND GATE
module my_nand(a,b,out);
input a,b;
output out;
wire c;
supply1 pwr;
supply0 gnd;
pmos ( out,pwr,a);
pmos (out,pwr,b);
nmos(out,c,a);
nmos(c,gnd,b);
endmodule

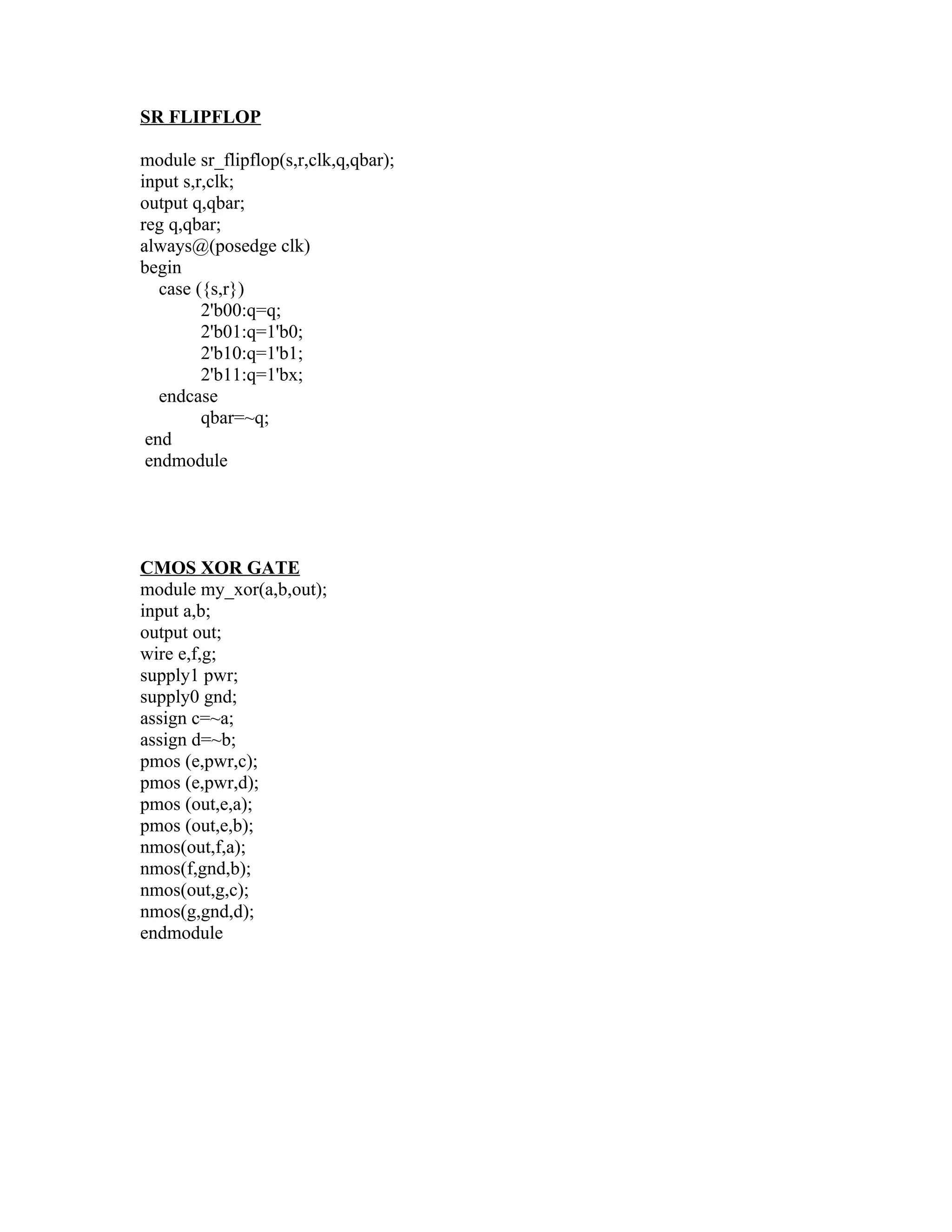

8. SR FLIPFLOP
module sr_flipflop(s,r,clk,q,qbar);
input s,r,clk;
output q,qbar;
reg q,qbar;
always@(posedge clk)
begin
case ({s,r})
2'b00:q=q;
2'b01:q=1'b0;
2'b10:q=1'b1;
2'b11:q=1'bx;
endcase
qbar=~q;
end
endmodule
CMOS XOR GATE
module my_xor(a,b,out);
input a,b;
output out;
wire e,f,g;
supply1 pwr;
supply0 gnd;
assign c=~a;
assign d=~b;
pmos (e,pwr,c);
pmos (e,pwr,d);
pmos (out,e,a);
pmos (out,e,b);
nmos(out,f,a);
nmos(f,gnd,b);
nmos(out,g,c);
nmos(g,gnd,d);
endmodule

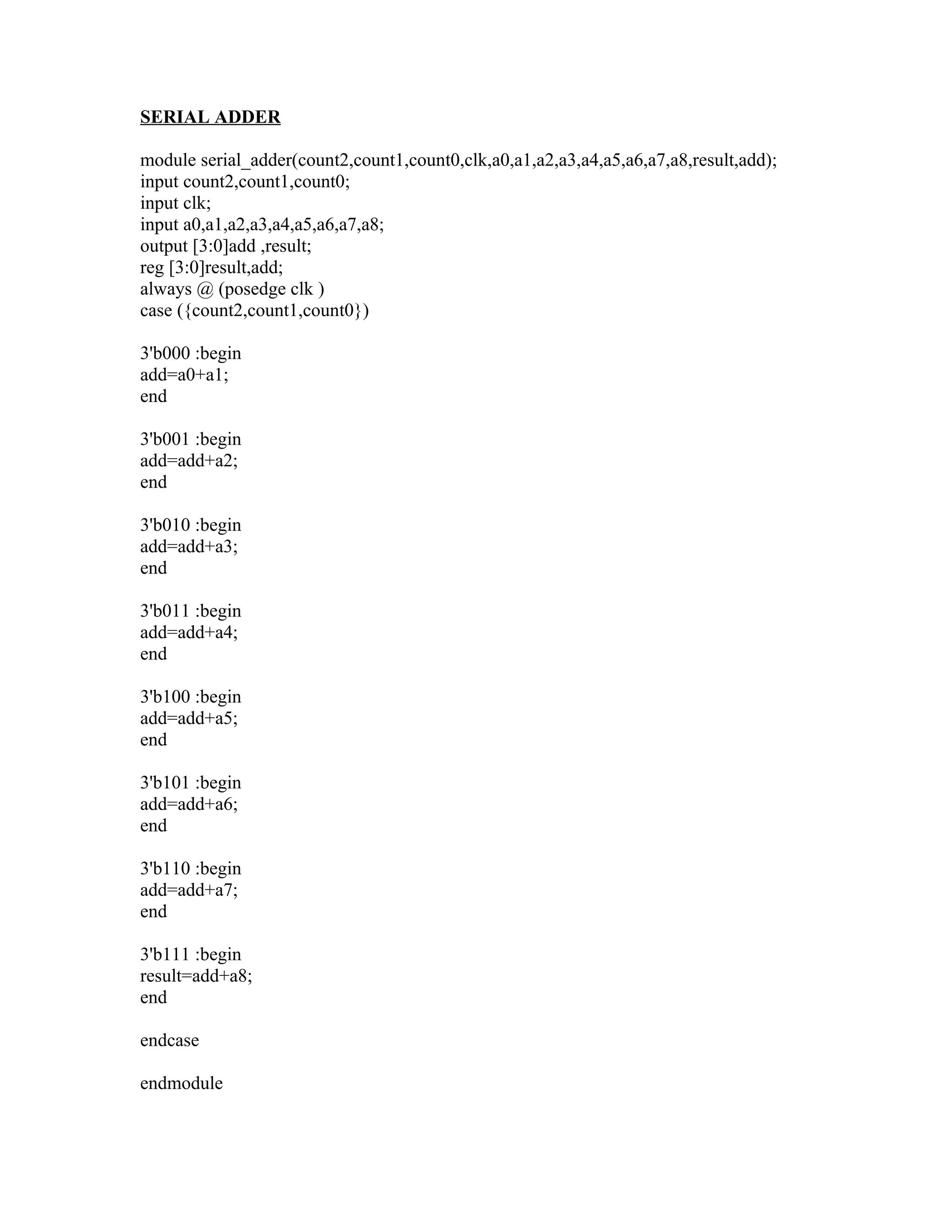

9. SERIAL ADDER
module serial_adder(count2,count1,count0,clk,a0,a1,a2,a3,a4,a5,a6,a7,a8,result,add);
input count2,count1,count0;
input clk;
input a0,a1,a2,a3,a4,a5,a6,a7,a8;
output [3:0]add ,result;
reg [3:0]result,add;
always @ (posedge clk )
case ({count2,count1,count0})
3'b000 :begin
add=a0+a1;
end
3'b001 :begin
add=add+a2;
end
3'b010 :begin
add=add+a3;
end
3'b011 :begin
add=add+a4;
end
3'b100 :begin
add=add+a5;
end
3'b101 :begin
add=add+a6;
end
3'b110 :begin
add=add+a7;
end
3'b111 :begin
result=add+a8;
end
endcase
endmodule

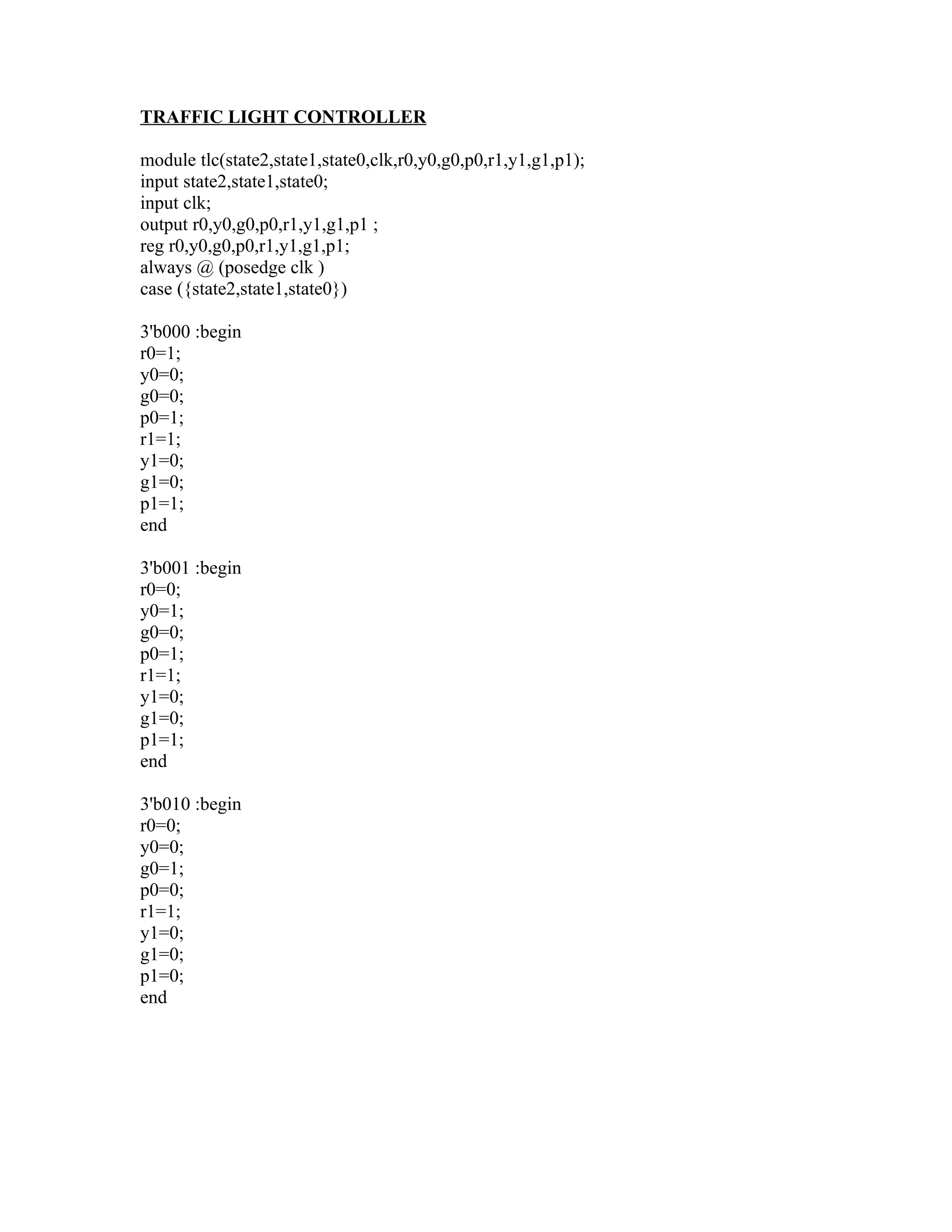

10. TRAFFIC LIGHT CONTROLLER
module tlc(state2,state1,state0,clk,r0,y0,g0,p0,r1,y1,g1,p1);
input state2,state1,state0;
input clk;
output r0,y0,g0,p0,r1,y1,g1,p1 ;
reg r0,y0,g0,p0,r1,y1,g1,p1;
always @ (posedge clk )
case ({state2,state1,state0})
3'b000 :begin
r0=1;
y0=0;
g0=0;
p0=1;
r1=1;
y1=0;
g1=0;
p1=1;
end
3'b001 :begin
r0=0;
y0=1;
g0=0;
p0=1;
r1=1;
y1=0;
g1=0;
p1=1;
end
3'b010 :begin
r0=0;
y0=0;
g0=1;
p0=0;
r1=1;
y1=0;
g1=0;
p1=0;
end

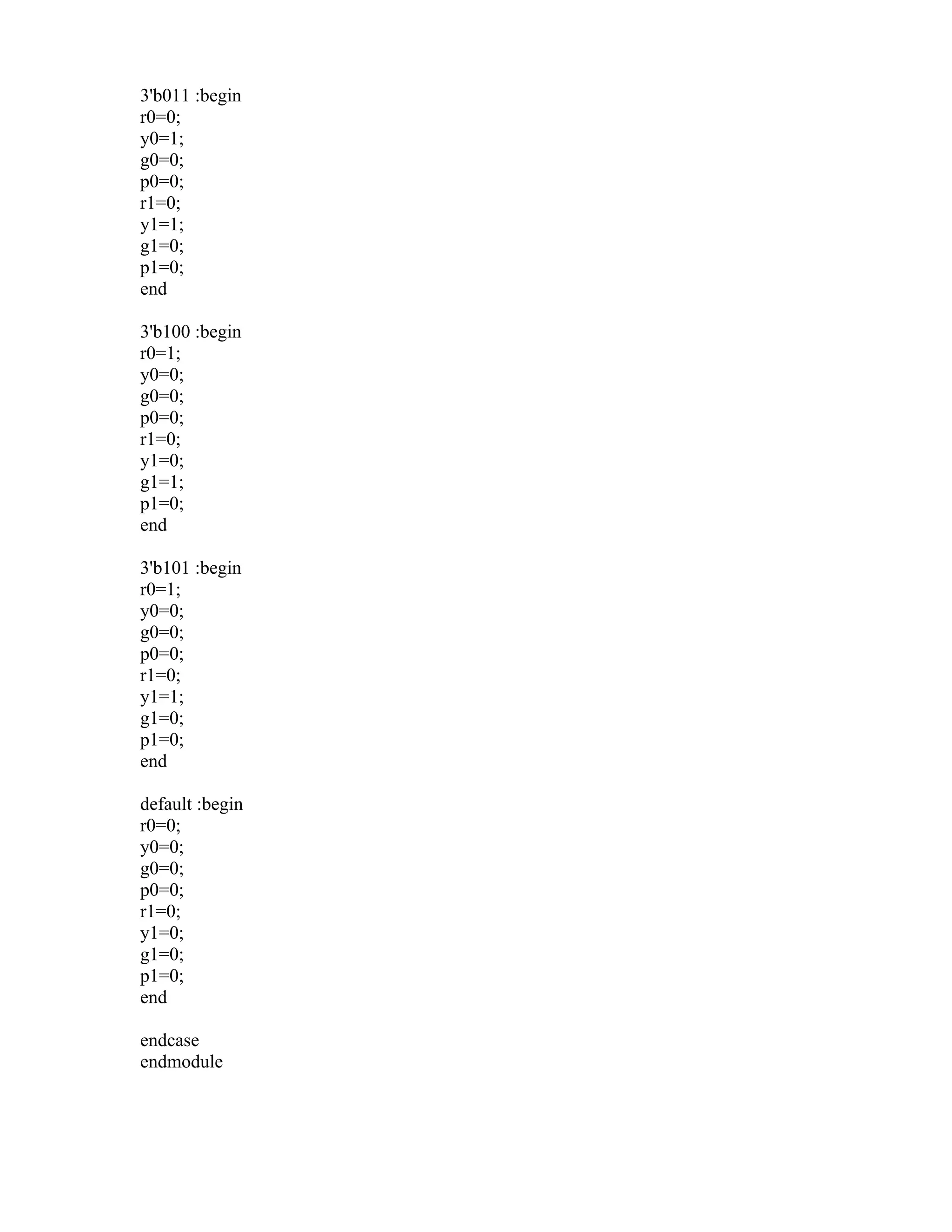

11. 3'b011 :begin
r0=0;
y0=1;
g0=0;
p0=0;
r1=0;
y1=1;
g1=0;
p1=0;
end
3'b100 :begin
r0=1;
y0=0;
g0=0;
p0=0;
r1=0;
y1=0;
g1=1;
p1=0;
end
3'b101 :begin
r0=1;
y0=0;
g0=0;
p0=0;
r1=0;
y1=1;
g1=0;
p1=0;
end
default :begin
r0=0;
y0=0;
g0=0;
p0=0;
r1=0;
y1=0;
g1=0;
p1=0;
end
endcase
endmodule
