4/30/2015 1Alera Project
© 2015 Ecofilae
[1]

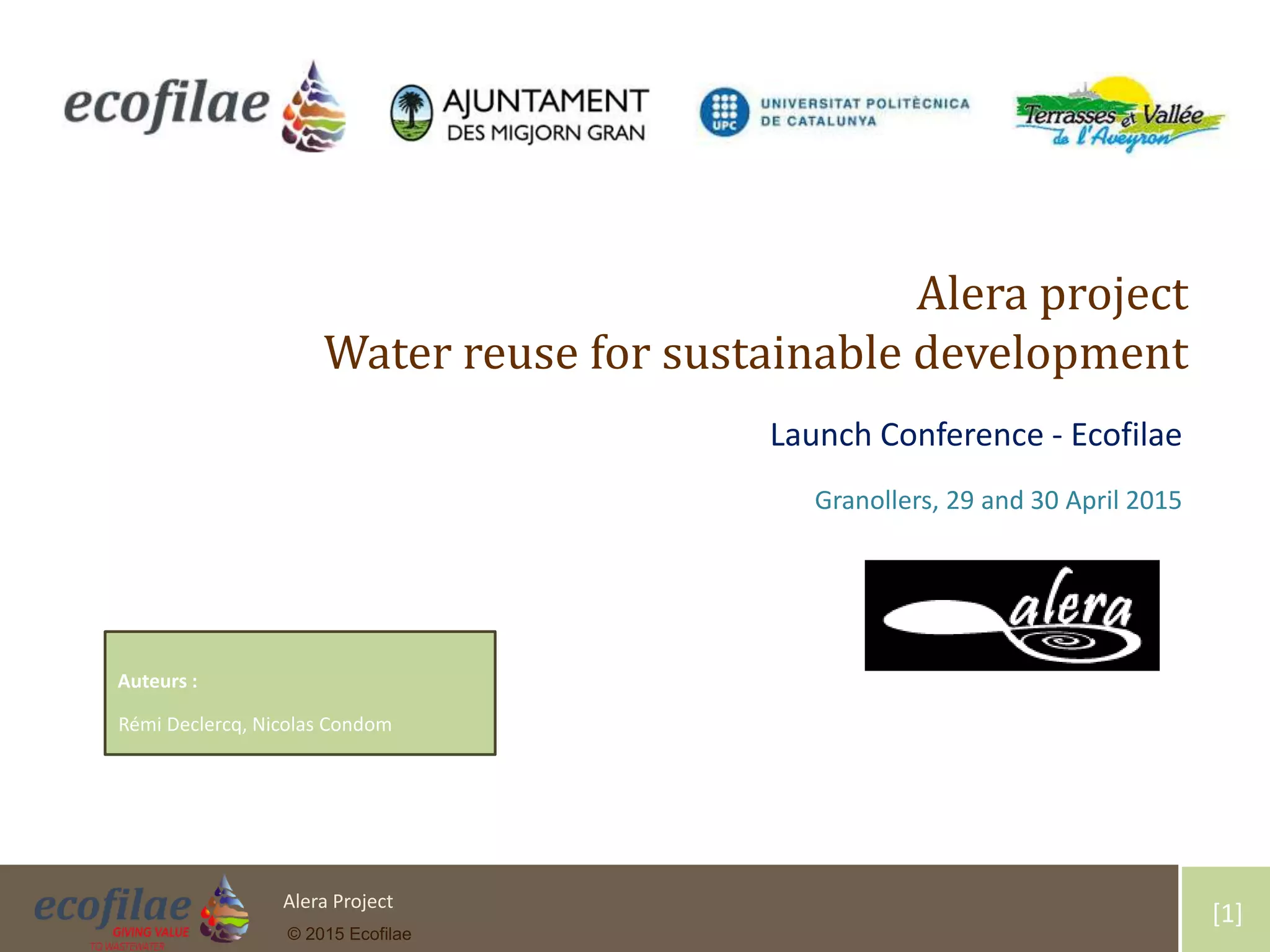

Auteurs :
Alera project
Water reuse for sustainable development
Launch Conference - Ecofilae
Granollers, 29 and 30 April 2015
Rémi Declercq, Nicolas Condom
4/30/2015 2Alera Project
© 2015 Ecofilae

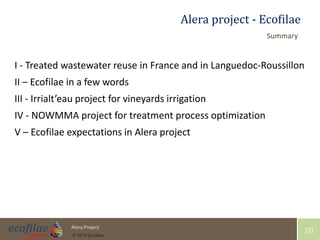

[2]
Alera project - Ecofilae
I - Treated wastewater reuse in France and in Languedoc-Roussillon
II – Ecofilae in a few words
III - Irrialt’eau project for vineyards irrigation
IV - NOWMMA project for treatment process optimization
V – Ecofilae expectations in Alera project
Summary
4/30/2015 3Alera Project
© 2015 Ecofilae
[3]

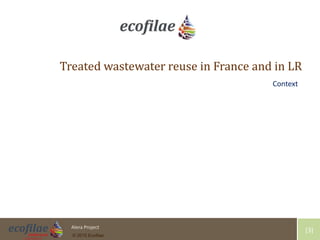

Treated wastewater reuse in France and in LR
Context
4/30/2015 4Alera Project
© 2015 Ecofilae
[4]

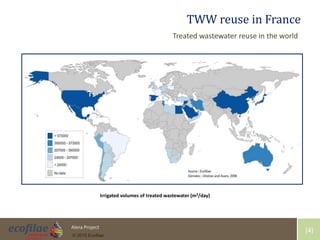

TWW reuse in France
Treated wastewater reuse in the world
Irrigated volumes of treated wastewater (m3/day)
4/30/2015 5Alera Project
© 2015 Ecofilae
[5]

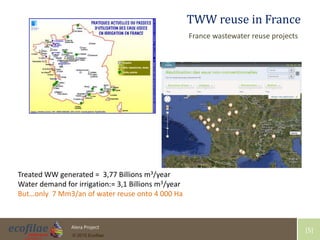

TWW reuse in France
France wastewater reuse projects
Treated WW generated = 3,77 Billions m3/year
Water demand for irrigation:= 3,1 Billions m3/year
But…only 7 Mm3/an of water reuse onto 4 000 Ha
4/30/2015 6Alera Project
© 2015 Ecofilae
[6]

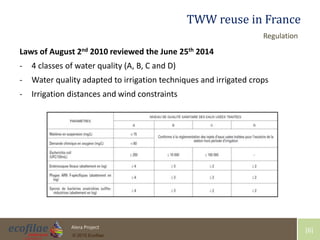

TWW reuse in France
Laws of August 2nd 2010 reviewed the June 25th 2014
- 4 classes of water quality (A, B, C and D)
- Water quality adapted to irrigation techniques and irrigated crops
- Irrigation distances and wind constraints
Regulation
4/30/2015 7Alera Project
© 2015 Ecofilae
[7]

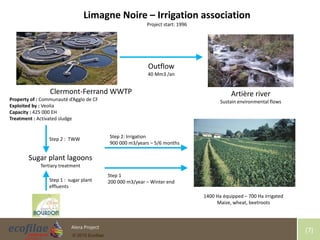

Clermont-Ferrand WWTP
Property of : Communauté d’Agglo de CF
Exploited by : Veolia
Capacity : 425 000 EH
Treatment : Activated sludge
1400 Ha équipped – 700 Ha irrigated
Maize, wheat, beetroots
Artière river
Sustain environmental flows
Limagne Noire – Irrigation association
Project start: 1996
Outflow
40 Mm3 /an
Sugar plant lagoons
Tertiary treatment
Step 1 : sugar plant
effluents
Step 2 : TWW
Step 1
200 000 m3/year – Winter end
Step 2: Irrigation
900 000 m3/years – 5/6 months
4/30/2015 8Alera Project
© 2015 Ecofilae
[8]

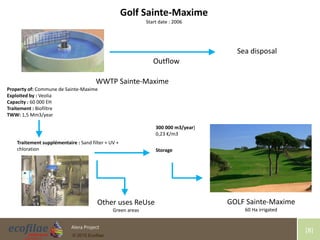

WWTP Sainte-Maxime
Property of: Commune de Sainte-Maxime
Exploited by : Veolia
Capacity : 60 000 EH
Traitement : Biofiltre
TWW: 1,5 Mm3/year
GOLF Sainte-Maxime
60 Ha irrigated
Golf Sainte-Maxime
Start date : 2006
Outflow
Traitement supplémentaire : Sand filter + UV +
chloration
Other uses ReUse
Green areas
300 000 m3/year)
0,23 €/m3
Sea disposal
Storage
4/30/2015 9Alera Project
© 2015 Ecofilae
[9]

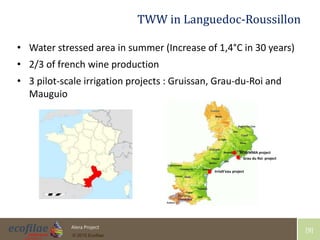

TWW in Languedoc-Roussillon
• Water stressed area in summer (Increase of 1,4°C in 30 years)
• 2/3 of french wine production
• 3 pilot-scale irrigation projects : Gruissan, Grau-du-Roi and
Mauguio
NOWMMA project
Irrialt’eau project
Grau du Roi project
4/30/2015 10Alera Project
© 2015 Ecofilae
[10]

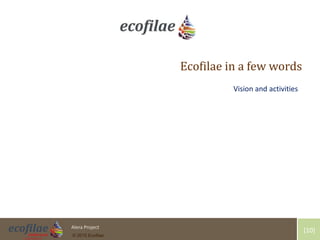

Ecofilae in a few words
Vision and activities
4/30/2015 11Alera Project
© 2015 Ecofilae
[11]
SOLUCIONES PARA
VALORIZAR LAS AGUAS
RESIDUALES
4/30/2015 12Alera Project
© 2015 Ecofilae
[12]

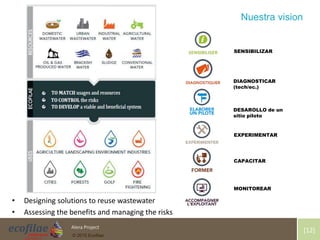

Nuestra vision
SENSIBILIZAR
DIAGNOSTICAR
(tech/ec.)
DESAROLLO de un
sitio piloto
EXPERIMENTAR
CAPACITAR
MONITOREAR
• Designing solutions to reuse wastewater
• Assessing the benefits and managing the risks
4/30/2015 13Alera Project
© 2015 Ecofilae

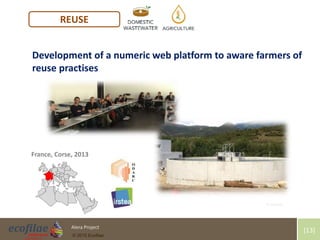

[13]
REUSE
Development of a numeric web platform to aware farmers of
reuse practises
France, Corse, 2013 N. Condom
N. Condom
4/30/2015 14Alera Project
© 2015 Ecofilae
[14]

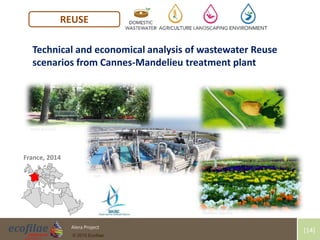

REUSE
France, 2014
Technical and economical analysis of wastewater Reuse
scenarios from Cannes-Mandelieu treatment plant
Mairie de Cannes
Suez
Golf Old Course
Pépinières Bauchery
4/30/2015 15Alera Project
© 2015 Ecofilae
[15]
REUSE

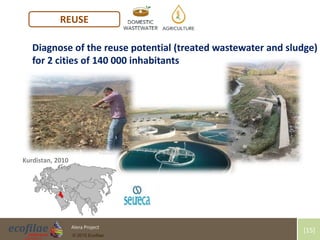

Diagnose of the reuse potential (treated wastewater and sludge)
for 2 cities of 140 000 inhabitants
Kurdistan, 2010
N.Condom
N.Condom
N.Condom
4/30/2015 16Alera Project
© 2015 Ecofilae
[16]
REUSE
Cost-Benefits analyses of water reuse projects
France, 2013
N. Condom
IRSTEA
4/30/2015 17Alera Project
© 2015 Ecofilae

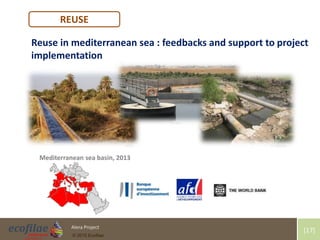

[17]
REUSE
Reuse in mediterranean sea : feedbacks and support to project
implementation
Mediterranean sea basin, 2013
N. CondomCIRAD
PSEAU
4/30/2015 18Alera Project
© 2015 Ecofilae

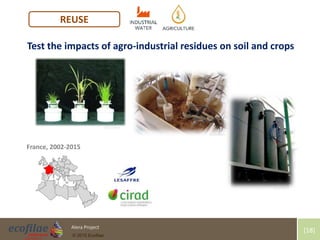

[18]
REUSE
France, 2002-2015
Test the impacts of agro-industrial residues on soil and crops
N.Condom
N.Condom
N.Condom
N.Condom
4/30/2015 19Alera Project
© 2015 Ecofilae
[19]

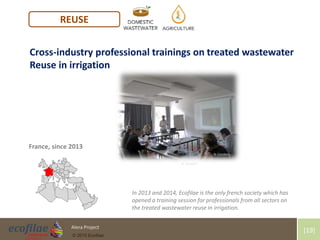

REUSE
In 2013 and 2014, Ecofilae is the only french society which has
opened a training session for professionals from all sectors on
the treated wastewater reuse in irrigation.
France, since 2013
Cross-industry professional trainings on treated wastewater
Reuse in irrigation
N. Condom
N. Condom
4/30/2015 20Alera Project
© 2015 Ecofilae
[20]
4/30/2015 21Alera Project
© 2015 Ecofilae
[21]

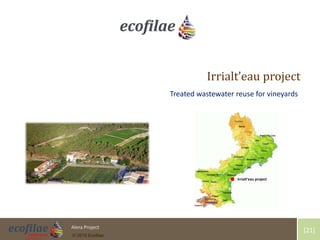

Irrialt’eau project
Treated wastewater reuse for vineyards
INRA Irrialt’eau project
4/30/2015 22Alera Project
© 2015 Ecofilae
[22]

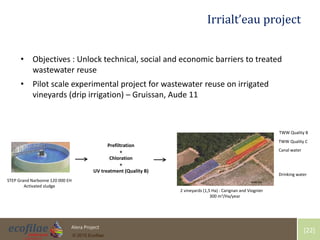

Irrialt’eau project
• Objectives : Unlock technical, social and economic barriers to treated
wastewater reuse
• Pilot scale experimental project for wastewater reuse on irrigated
vineyards (drip irrigation) – Gruissan, Aude 11
Veolia Eau
Drinking water
TWW Quality C
Canal water
TWW Quality B
2 vineyards (1,5 Ha) : Carignan and Viognier
300 m3/Ha/year
STEP Grand Narbonne 120 000 EH
Activated sludge
Prefiltration
+
Chloration
+
UV treatment (Quality B)
4/30/2015 23Alera Project
© 2015 Ecofilae
[23]

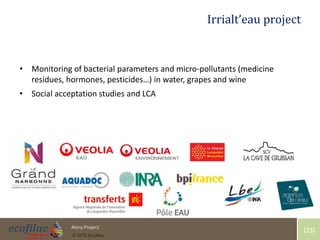

Irrialt’eau project
• Monitoring of bacterial parameters and micro-pollutants (medicine
residues, hormones, pesticides…) in water, grapes and wine
• Social acceptation studies and LCA
4/30/2015 24Alera Project
© 2015 Ecofilae
[24]

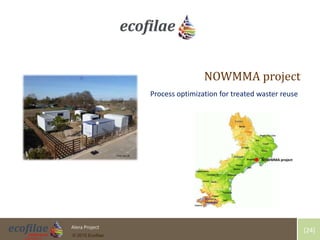

NOWMMA project
Process optimization for treated waster reuse
Pole Eau LR
NOWMMA project
4/30/2015 25Alera Project
© 2015 Ecofilae
[25]

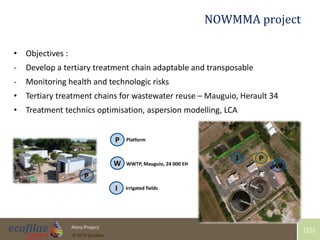

NOWMMA project
• Objectives :
- Develop a tertiary treatment chain adaptable and transposable
- Monitoring health and technologic risks
• Tertiary treatment chains for wastewater reuse – Mauguio, Herault 34
• Treatment technics optimisation, aspersion modelling, LCA
P
I Irrigated fields
Platform
WW WWTP, Mauguio, 24 000 EH
P
4/30/2015 26Alera Project
© 2015 Ecofilae
[26]
NOWMMA project
• Technologies tested : Sand filtration, Microfiltration, Ultrafiltration, UV…
• Planned uses for water : Irrigation, Green areas, Street cleaning…
Aspersion modelling (IRSTEA)
4/30/2015 27Alera Project
© 2015 Ecofilae

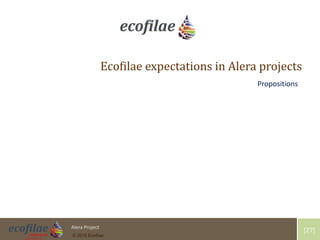

[27]
Ecofilae expectations in Alera projects
Propositions
4/30/2015 28Alera Project
© 2015 Ecofilae
[28]

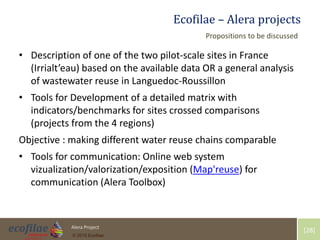

Ecofilae – Alera projects
• Description of one of the two pilot-scale sites in France
(Irrialt’eau) based on the available data OR a general analysis
of wastewater reuse in Languedoc-Roussillon
• Tools for Development of a detailed matrix with
indicators/benchmarks for sites crossed comparisons
(projects from the 4 regions)
Objective : making different water reuse chains comparable
• Tools for communication: Online web system
vizualization/valorization/exposition (Map'reuse) for
communication (Alera Toolbox)
Propositions to be discussed
4/30/2015 29Alera Project
© 2015 Ecofilae
[29]

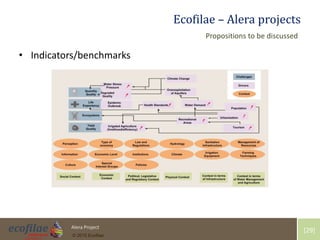

Ecofilae – Alera projects
• Indicators/benchmarks
Propositions to be discussed
4/30/2015 30Alera Project
© 2015 Ecofilae
[30]

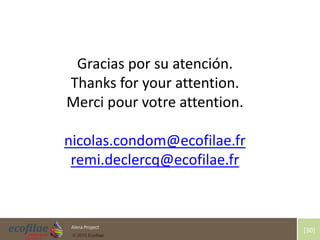

Gracias por su atención.
Thanks for your attention.
Merci pour votre attention.
nicolas.condom@ecofilae.fr
remi.declercq@ecofilae.fr

More Related Content

What's hot

EN - Alternative use of water in the upstream and downstream oil&gas industry
EN - Alternative use of water in the upstream and downstream oil&gas industry  EN - Alternative use of water in the upstream and downstream oil&gas industry
EN - Alternative use of water in the upstream and downstream oil&gas industry
Degrémont Industry

A paradigm shift in Brittany: How a change in agricultural practice has helpe...
A paradigm shift in Brittany: How a change in agricultural practice has helpe...A paradigm shift in Brittany: How a change in agricultural practice has helpe...
A paradigm shift in Brittany: How a change in agricultural practice has helpe...
EIP Water

Developing Alternative Water Supplies
Developing Alternative Water SuppliesDeveloping Alternative Water Supplies
Developing Alternative Water Supplies
Robert Brears

THE MARKETABILITY OF WASTEWATER REUSE IN ALEXANDRIA SANITARY DRAINAGE COMPANY
THE MARKETABILITY OF WASTEWATER REUSE IN ALEXANDRIA SANITARY DRAINAGE COMPANYTHE MARKETABILITY OF WASTEWATER REUSE IN ALEXANDRIA SANITARY DRAINAGE COMPANY
THE MARKETABILITY OF WASTEWATER REUSE IN ALEXANDRIA SANITARY DRAINAGE COMPANY
Helalley Helalley

Smart Water Solution Using Internet of Things (IoT)
Smart Water Solution Using Internet of Things (IoT)Smart Water Solution Using Internet of Things (IoT)
Smart Water Solution Using Internet of Things (IoT)
Vinay Gor

Wastewater Management: Overview and Case Studies
Wastewater Management: Overview and Case StudiesWastewater Management: Overview and Case Studies
Wastewater Management: Overview and Case Studies
Inogen Environmental Alliance

A VISION FOR FUTURE SLUDGE MANAGEMENT IN ALEXANDRIA ( Egypt)
A VISION FOR FUTURE SLUDGE MANAGEMENT IN ALEXANDRIA ( Egypt)A VISION FOR FUTURE SLUDGE MANAGEMENT IN ALEXANDRIA ( Egypt)
A VISION FOR FUTURE SLUDGE MANAGEMENT IN ALEXANDRIA ( Egypt)
Helalley Helalley

World water day
World water dayWorld water day
World water day
Abdul Khurram

Proposed wastewater reuse project in alexandria
Proposed wastewater reuse project in alexandriaProposed wastewater reuse project in alexandria
Proposed wastewater reuse project in alexandria
Helalley Helalley

GREY WATER RECYCLING SYSTEM
GREY WATER RECYCLING SYSTEMGREY WATER RECYCLING SYSTEM
GREY WATER RECYCLING SYSTEM
Melvin Eldin

Sewage treatment disposal.7423610
Sewage treatment disposal.7423610Sewage treatment disposal.7423610
Sewage treatment disposal.7423610safwan patel

ENE3 - Water and nutrient circular economy policy support: the innovation dea...
ENE3 - Water and nutrient circular economy policy support: the innovation dea...ENE3 - Water and nutrient circular economy policy support: the innovation dea...
ENE3 - Water and nutrient circular economy policy support: the innovation dea...
European Sustainable Phosphorus Platform

Scope of reuse of sewage for baroda city
Scope of reuse of sewage for baroda cityScope of reuse of sewage for baroda city
Scope of reuse of sewage for baroda city
Arvind Kumar

1. L E C T 43 Slides 120111 U R., E
1. L  E  C  T 43 Slides 120111 U  R., E1. L  E  C  T 43 Slides 120111 U  R., E
1. L E C T 43 Slides 120111 U R., ESG PHADKE

Uniting univeristies, research labs, local government and the private sector ...
Uniting univeristies, research labs, local government and the private sector ...Uniting univeristies, research labs, local government and the private sector ...
Uniting univeristies, research labs, local government and the private sector ...
EIP Water

NextGen La Trappe Netherlands
NextGen La Trappe NetherlandsNextGen La Trappe Netherlands
NextGen La Trappe Netherlands
NextGen Water Solutions


What's hot (19)

EN - Alternative use of water in the upstream and downstream oil&gas industry
EN - Alternative use of water in the upstream and downstream oil&gas industry  EN - Alternative use of water in the upstream and downstream oil&gas industry
EN - Alternative use of water in the upstream and downstream oil&gas industry

A paradigm shift in Brittany: How a change in agricultural practice has helpe...
A paradigm shift in Brittany: How a change in agricultural practice has helpe...A paradigm shift in Brittany: How a change in agricultural practice has helpe...
A paradigm shift in Brittany: How a change in agricultural practice has helpe...

Developing Alternative Water Supplies
Developing Alternative Water SuppliesDeveloping Alternative Water Supplies
Developing Alternative Water Supplies

Waste water =)
Waste water =)Waste water =)
Waste water =)

THE MARKETABILITY OF WASTEWATER REUSE IN ALEXANDRIA SANITARY DRAINAGE COMPANY
THE MARKETABILITY OF WASTEWATER REUSE IN ALEXANDRIA SANITARY DRAINAGE COMPANYTHE MARKETABILITY OF WASTEWATER REUSE IN ALEXANDRIA SANITARY DRAINAGE COMPANY
THE MARKETABILITY OF WASTEWATER REUSE IN ALEXANDRIA SANITARY DRAINAGE COMPANY

Smart Water Solution Using Internet of Things (IoT)
Smart Water Solution Using Internet of Things (IoT)Smart Water Solution Using Internet of Things (IoT)
Smart Water Solution Using Internet of Things (IoT)

Wastewater Management: Overview and Case Studies
Wastewater Management: Overview and Case StudiesWastewater Management: Overview and Case Studies
Wastewater Management: Overview and Case Studies

A VISION FOR FUTURE SLUDGE MANAGEMENT IN ALEXANDRIA ( Egypt)
A VISION FOR FUTURE SLUDGE MANAGEMENT IN ALEXANDRIA ( Egypt)A VISION FOR FUTURE SLUDGE MANAGEMENT IN ALEXANDRIA ( Egypt)
A VISION FOR FUTURE SLUDGE MANAGEMENT IN ALEXANDRIA ( Egypt)

World water day
World water dayWorld water day
World water day

Proposed wastewater reuse project in alexandria
Proposed wastewater reuse project in alexandriaProposed wastewater reuse project in alexandria
Proposed wastewater reuse project in alexandria

Water Reuse & Wastewater Management
Water Reuse & Wastewater ManagementWater Reuse & Wastewater Management
Water Reuse & Wastewater Management

GREY WATER RECYCLING SYSTEM
GREY WATER RECYCLING SYSTEMGREY WATER RECYCLING SYSTEM
GREY WATER RECYCLING SYSTEM

Sewage treatment disposal.7423610
Sewage treatment disposal.7423610Sewage treatment disposal.7423610
Sewage treatment disposal.7423610

ENE3 - Water and nutrient circular economy policy support: the innovation dea...
ENE3 - Water and nutrient circular economy policy support: the innovation dea...ENE3 - Water and nutrient circular economy policy support: the innovation dea...
ENE3 - Water and nutrient circular economy policy support: the innovation dea...

Scope of reuse of sewage for baroda city
Scope of reuse of sewage for baroda cityScope of reuse of sewage for baroda city
Scope of reuse of sewage for baroda city

1. L E C T 43 Slides 120111 U R., E
1. L  E  C  T 43 Slides 120111 U  R., E1. L  E  C  T 43 Slides 120111 U  R., E
1. L E C T 43 Slides 120111 U R., E

Uniting univeristies, research labs, local government and the private sector ...
Uniting univeristies, research labs, local government and the private sector ...Uniting univeristies, research labs, local government and the private sector ...
Uniting univeristies, research labs, local government and the private sector ...

NextGen La Trappe Netherlands
NextGen La Trappe NetherlandsNextGen La Trappe Netherlands
NextGen La Trappe Netherlands

Slide landfill jabor
Slide landfill jaborSlide landfill jabor
Slide landfill jabor


Similar to Alera starting conference. Ecofilae.

2015-VEOLIA-CORPORATE
2015-VEOLIA-CORPORATE2015-VEOLIA-CORPORATE
2015-VEOLIA-CORPORATEDavid D'hooge

An integral insight of the efficiency of the use of fertilisers in the agricu...
An integral insight of the efficiency of the use of fertilisers in the agricu...An integral insight of the efficiency of the use of fertilisers in the agricu...
An integral insight of the efficiency of the use of fertilisers in the agricu...
FERTINNOWA:Transfer of INNOvative techniques for sustainable WAter use in FERtigated crops

Water reclamation and reuse in Spain and elsewhere
Water reclamation and reuse in Spain and elsewhereWater reclamation and reuse in Spain and elsewhere
Water reclamation and reuse in Spain and elsewhere
EIP Water

Prezentare fonduri 2014 2020 completata v2
Prezentare fonduri 2014 2020 completata v2Prezentare fonduri 2014 2020 completata v2
Prezentare fonduri 2014 2020 completata v2
Business Development Group

Castell Platja d'Aro a reference case for water reclamation and reuse RTWQM
Castell Platja d'Aro a reference case for water reclamation and reuse RTWQMCastell Platja d'Aro a reference case for water reclamation and reuse RTWQM
Castell Platja d'Aro a reference case for water reclamation and reuse RTWQM
eefpipo3

D1.2-Demonstrator Case Study Nafplio
D1.2-Demonstrator Case Study NafplioD1.2-Demonstrator Case Study Nafplio
D1.2-Demonstrator Case Study Nafplio
DrKristineJung

Alexandra Almeida - FEGGA - ADDING VALUE TO GOLF ACROSS EUROPE 2015 Conferen...
Alexandra Almeida - FEGGA - ADDING VALUE TO GOLF  ACROSS EUROPE 2015 Conferen...Alexandra Almeida - FEGGA - ADDING VALUE TO GOLF  ACROSS EUROPE 2015 Conferen...
Alexandra Almeida - FEGGA - ADDING VALUE TO GOLF ACROSS EUROPE 2015 Conferen...
Alexandra Almeida

D1.2-Demonstrator Case Study Nafplio
D1.2-Demonstrator Case Study NafplioD1.2-Demonstrator Case Study Nafplio
D1.2-Demonstrator Case Study Nafplio
DrKristineJung

D1.2-Demonstrator Case Study Nafplio
D1.2-Demonstrator Case Study NafplioD1.2-Demonstrator Case Study Nafplio
D1.2-Demonstrator Case Study Nafplio
DrKristineJung

Agriculture and Water Use Ohrid draft
Agriculture and Water Use Ohrid draftAgriculture and Water Use Ohrid draft
Agriculture and Water Use Ohrid draftEduard Nedelciu

Interreg Sudoe TWIST - Living Labs
Interreg Sudoe TWIST - Living LabsInterreg Sudoe TWIST - Living Labs
Interreg Sudoe TWIST - Living Labs
CENTA3

Business: Jack Moss, Aquafed, 16th January UN Water Zaragoza Conference 2015
Business: Jack Moss, Aquafed, 16th January UN Water Zaragoza Conference 2015Business: Jack Moss, Aquafed, 16th January UN Water Zaragoza Conference 2015
Business: Jack Moss, Aquafed, 16th January UN Water Zaragoza Conference 2015
water-decade

Presentation-Symwatech-WED-05.06.16-final
Presentation-Symwatech-WED-05.06.16-finalPresentation-Symwatech-WED-05.06.16-final
Presentation-Symwatech-WED-05.06.16-finalManuel Hidalgo

Presentation-Symwatech-WED-05.06.16-final
Presentation-Symwatech-WED-05.06.16-finalPresentation-Symwatech-WED-05.06.16-final
Presentation-Symwatech-WED-05.06.16-finalManuel Hidalgo

Full cycle tanneries: the LCA between now and the future
Full cycle tanneries: the LCA between now and the future Full cycle tanneries: the LCA between now and the future
Full cycle tanneries: the LCA between now and the future
greenLIFE project

Eip water presentation11 2014
Eip water presentation11 2014Eip water presentation11 2014
Eip water presentation11 2014
Business Development Group

European market outlook by Ecosystem Marketplace
European market outlook by Ecosystem MarketplaceEuropean market outlook by Ecosystem Marketplace
European market outlook by Ecosystem Marketplace
Etifor srl

International Water Summit 2016
International Water Summit 2016International Water Summit 2016
International Water Summit 2016
Dori Álvarez Romero

Integrated Industrial Water Management –.pptx
Integrated Industrial Water Management –.pptxIntegrated Industrial Water Management –.pptx
Integrated Industrial Water Management –.pptx
Krishna Krish Krish


Similar to Alera starting conference. Ecofilae. (20)

2015-VEOLIA-CORPORATE
2015-VEOLIA-CORPORATE2015-VEOLIA-CORPORATE
2015-VEOLIA-CORPORATE

An integral insight of the efficiency of the use of fertilisers in the agricu...
An integral insight of the efficiency of the use of fertilisers in the agricu...An integral insight of the efficiency of the use of fertilisers in the agricu...
An integral insight of the efficiency of the use of fertilisers in the agricu...

Water reclamation and reuse in Spain and elsewhere
Water reclamation and reuse in Spain and elsewhereWater reclamation and reuse in Spain and elsewhere
Water reclamation and reuse in Spain and elsewhere

Prezentare fonduri 2014 2020 completata v2
Prezentare fonduri 2014 2020 completata v2Prezentare fonduri 2014 2020 completata v2
Prezentare fonduri 2014 2020 completata v2

Castell Platja d'Aro a reference case for water reclamation and reuse RTWQM
Castell Platja d'Aro a reference case for water reclamation and reuse RTWQMCastell Platja d'Aro a reference case for water reclamation and reuse RTWQM
Castell Platja d'Aro a reference case for water reclamation and reuse RTWQM

D1.2-Demonstrator Case Study Nafplio
D1.2-Demonstrator Case Study NafplioD1.2-Demonstrator Case Study Nafplio
D1.2-Demonstrator Case Study Nafplio

Alexandra Almeida - FEGGA - ADDING VALUE TO GOLF ACROSS EUROPE 2015 Conferen...
Alexandra Almeida - FEGGA - ADDING VALUE TO GOLF  ACROSS EUROPE 2015 Conferen...Alexandra Almeida - FEGGA - ADDING VALUE TO GOLF  ACROSS EUROPE 2015 Conferen...
Alexandra Almeida - FEGGA - ADDING VALUE TO GOLF ACROSS EUROPE 2015 Conferen...

D1.2-Demonstrator Case Study Nafplio
D1.2-Demonstrator Case Study NafplioD1.2-Demonstrator Case Study Nafplio
D1.2-Demonstrator Case Study Nafplio

D1.2-Demonstrator Case Study Nafplio
D1.2-Demonstrator Case Study NafplioD1.2-Demonstrator Case Study Nafplio
D1.2-Demonstrator Case Study Nafplio

Agriculture and Water Use Ohrid draft
Agriculture and Water Use Ohrid draftAgriculture and Water Use Ohrid draft
Agriculture and Water Use Ohrid draft

Interreg Sudoe TWIST - Living Labs
Interreg Sudoe TWIST - Living LabsInterreg Sudoe TWIST - Living Labs
Interreg Sudoe TWIST - Living Labs

Business: Jack Moss, Aquafed, 16th January UN Water Zaragoza Conference 2015
Business: Jack Moss, Aquafed, 16th January UN Water Zaragoza Conference 2015Business: Jack Moss, Aquafed, 16th January UN Water Zaragoza Conference 2015
Business: Jack Moss, Aquafed, 16th January UN Water Zaragoza Conference 2015

Presentation-Symwatech-WED-05.06.16-final
Presentation-Symwatech-WED-05.06.16-finalPresentation-Symwatech-WED-05.06.16-final
Presentation-Symwatech-WED-05.06.16-final

Presentation-Symwatech-WED-05.06.16-final
Presentation-Symwatech-WED-05.06.16-finalPresentation-Symwatech-WED-05.06.16-final
Presentation-Symwatech-WED-05.06.16-final

Full cycle tanneries: the LCA between now and the future
Full cycle tanneries: the LCA between now and the future Full cycle tanneries: the LCA between now and the future
Full cycle tanneries: the LCA between now and the future

Eip water presentation11 2014
Eip water presentation11 2014Eip water presentation11 2014
Eip water presentation11 2014

European market outlook by Ecosystem Marketplace
European market outlook by Ecosystem MarketplaceEuropean market outlook by Ecosystem Marketplace
European market outlook by Ecosystem Marketplace

STEERIN_ENG
STEERIN_ENGSTEERIN_ENG
STEERIN_ENG

International Water Summit 2016
International Water Summit 2016International Water Summit 2016
International Water Summit 2016

Integrated Industrial Water Management –.pptx
Integrated Industrial Water Management –.pptxIntegrated Industrial Water Management –.pptx
Integrated Industrial Water Management –.pptx


Recently uploaded

Artificial Reefs by Kuddle Life Foundation - May 2024
Artificial Reefs by Kuddle Life Foundation - May 2024Artificial Reefs by Kuddle Life Foundation - May 2024
Artificial Reefs by Kuddle Life Foundation - May 2024
punit537210

Prevalence, biochemical and hematological study of diabetic patients
Prevalence, biochemical and hematological study of diabetic patientsPrevalence, biochemical and hematological study of diabetic patients
Prevalence, biochemical and hematological study of diabetic patients
Open Access Research Paper

Alert-driven Community-based Forest monitoring: A case of the Peruvian Amazon
Alert-driven Community-based Forest monitoring: A case of the Peruvian AmazonAlert-driven Community-based Forest monitoring: A case of the Peruvian Amazon
Alert-driven Community-based Forest monitoring: A case of the Peruvian Amazon
CIFOR-ICRAF

ppt on beauty of the nature by Palak.pptx
ppt on  beauty of the nature by Palak.pptxppt on  beauty of the nature by Palak.pptx
ppt on beauty of the nature by Palak.pptx
RaniJaiswal16

Sustainable farming practices in India .pptx
Sustainable farming  practices in India .pptxSustainable farming  practices in India .pptx
Sustainable farming practices in India .pptx
chaitaliambole

Presentación Giulio Quaggiotto-Diálogo improbable .pptx.pdf
Presentación Giulio Quaggiotto-Diálogo improbable .pptx.pdfPresentación Giulio Quaggiotto-Diálogo improbable .pptx.pdf
Presentación Giulio Quaggiotto-Diálogo improbable .pptx.pdf
Innovation and Technology for Development Centre

Celebrating World-environment-day-2024.pdf
Celebrating  World-environment-day-2024.pdfCelebrating  World-environment-day-2024.pdf
Celebrating World-environment-day-2024.pdf
rohankumarsinghrore1

NRW Board Paper - DRAFT NRW Recreation Strategy
NRW Board Paper - DRAFT NRW Recreation StrategyNRW Board Paper - DRAFT NRW Recreation Strategy
NRW Board Paper - DRAFT NRW Recreation Strategy
Robin Grant

Micro RNA genes and their likely influence in rice (Oryza sativa L.) dynamic ...
Micro RNA genes and their likely influence in rice (Oryza sativa L.) dynamic ...Micro RNA genes and their likely influence in rice (Oryza sativa L.) dynamic ...
Micro RNA genes and their likely influence in rice (Oryza sativa L.) dynamic ...
Open Access Research Paper

Characterization and the Kinetics of drying at the drying oven and with micro...
Characterization and the Kinetics of drying at the drying oven and with micro...Characterization and the Kinetics of drying at the drying oven and with micro...
Characterization and the Kinetics of drying at the drying oven and with micro...
Open Access Research Paper

AGRICULTURE Hydrophonic FERTILISER PPT.pptx
AGRICULTURE Hydrophonic FERTILISER PPT.pptxAGRICULTURE Hydrophonic FERTILISER PPT.pptx
AGRICULTURE Hydrophonic FERTILISER PPT.pptx
BanitaDsouza

Navigating the complex landscape of AI governance
Navigating the complex landscape of AI governanceNavigating the complex landscape of AI governance
Navigating the complex landscape of AI governance
Piermenotti Mauro

growbilliontrees.com-Trees for Granddaughter (1).pdf
growbilliontrees.com-Trees for Granddaughter (1).pdfgrowbilliontrees.com-Trees for Granddaughter (1).pdf
growbilliontrees.com-Trees for Granddaughter (1).pdf
yadavakashagra

DRAFT NRW Recreation Strategy - People and Nature thriving together
DRAFT NRW Recreation Strategy - People and Nature thriving togetherDRAFT NRW Recreation Strategy - People and Nature thriving together
DRAFT NRW Recreation Strategy - People and Nature thriving together
Robin Grant

Daan Park Hydrangea flower season I like it
Daan Park Hydrangea flower season I like itDaan Park Hydrangea flower season I like it
Daan Park Hydrangea flower season I like it
a0966109726

IPCC Vice Chair Ladislaus Change Central Asia Climate Change Conference 27 Ma...
IPCC Vice Chair Ladislaus Change Central Asia Climate Change Conference 27 Ma...IPCC Vice Chair Ladislaus Change Central Asia Climate Change Conference 27 Ma...
IPCC Vice Chair Ladislaus Change Central Asia Climate Change Conference 27 Ma...
ipcc-media

"Understanding the Carbon Cycle: Processes, Human Impacts, and Strategies for...
"Understanding the Carbon Cycle: Processes, Human Impacts, and Strategies for..."Understanding the Carbon Cycle: Processes, Human Impacts, and Strategies for...
"Understanding the Carbon Cycle: Processes, Human Impacts, and Strategies for...
MMariSelvam4

Willie Nelson Net Worth: A Journey Through Music, Movies, and Business Ventures
Willie Nelson Net Worth: A Journey Through Music, Movies, and Business VenturesWillie Nelson Net Worth: A Journey Through Music, Movies, and Business Ventures
Willie Nelson Net Worth: A Journey Through Music, Movies, and Business Ventures
greendigital

Natural farming @ Dr. Siddhartha S. Jena.pptx
Natural farming @ Dr. Siddhartha S. Jena.pptxNatural farming @ Dr. Siddhartha S. Jena.pptx
Natural farming @ Dr. Siddhartha S. Jena.pptx
sidjena70

International+e-Commerce+Platform-www.cfye-commerce.shop
International+e-Commerce+Platform-www.cfye-commerce.shopInternational+e-Commerce+Platform-www.cfye-commerce.shop
International+e-Commerce+Platform-www.cfye-commerce.shop
laozhuseo02


Recently uploaded (20)

Artificial Reefs by Kuddle Life Foundation - May 2024
Artificial Reefs by Kuddle Life Foundation - May 2024Artificial Reefs by Kuddle Life Foundation - May 2024
Artificial Reefs by Kuddle Life Foundation - May 2024

Prevalence, biochemical and hematological study of diabetic patients
Prevalence, biochemical and hematological study of diabetic patientsPrevalence, biochemical and hematological study of diabetic patients
Prevalence, biochemical and hematological study of diabetic patients

Alert-driven Community-based Forest monitoring: A case of the Peruvian Amazon
Alert-driven Community-based Forest monitoring: A case of the Peruvian AmazonAlert-driven Community-based Forest monitoring: A case of the Peruvian Amazon
Alert-driven Community-based Forest monitoring: A case of the Peruvian Amazon

ppt on beauty of the nature by Palak.pptx
ppt on  beauty of the nature by Palak.pptxppt on  beauty of the nature by Palak.pptx
ppt on beauty of the nature by Palak.pptx

Sustainable farming practices in India .pptx
Sustainable farming  practices in India .pptxSustainable farming  practices in India .pptx
Sustainable farming practices in India .pptx

Presentación Giulio Quaggiotto-Diálogo improbable .pptx.pdf
Presentación Giulio Quaggiotto-Diálogo improbable .pptx.pdfPresentación Giulio Quaggiotto-Diálogo improbable .pptx.pdf
Presentación Giulio Quaggiotto-Diálogo improbable .pptx.pdf

Celebrating World-environment-day-2024.pdf
Celebrating  World-environment-day-2024.pdfCelebrating  World-environment-day-2024.pdf
Celebrating World-environment-day-2024.pdf

NRW Board Paper - DRAFT NRW Recreation Strategy
NRW Board Paper - DRAFT NRW Recreation StrategyNRW Board Paper - DRAFT NRW Recreation Strategy
NRW Board Paper - DRAFT NRW Recreation Strategy

Micro RNA genes and their likely influence in rice (Oryza sativa L.) dynamic ...
Micro RNA genes and their likely influence in rice (Oryza sativa L.) dynamic ...Micro RNA genes and their likely influence in rice (Oryza sativa L.) dynamic ...
Micro RNA genes and their likely influence in rice (Oryza sativa L.) dynamic ...

Characterization and the Kinetics of drying at the drying oven and with micro...
Characterization and the Kinetics of drying at the drying oven and with micro...Characterization and the Kinetics of drying at the drying oven and with micro...
Characterization and the Kinetics of drying at the drying oven and with micro...

AGRICULTURE Hydrophonic FERTILISER PPT.pptx
AGRICULTURE Hydrophonic FERTILISER PPT.pptxAGRICULTURE Hydrophonic FERTILISER PPT.pptx
AGRICULTURE Hydrophonic FERTILISER PPT.pptx

Navigating the complex landscape of AI governance
Navigating the complex landscape of AI governanceNavigating the complex landscape of AI governance
Navigating the complex landscape of AI governance

growbilliontrees.com-Trees for Granddaughter (1).pdf
growbilliontrees.com-Trees for Granddaughter (1).pdfgrowbilliontrees.com-Trees for Granddaughter (1).pdf
growbilliontrees.com-Trees for Granddaughter (1).pdf

DRAFT NRW Recreation Strategy - People and Nature thriving together
DRAFT NRW Recreation Strategy - People and Nature thriving togetherDRAFT NRW Recreation Strategy - People and Nature thriving together
DRAFT NRW Recreation Strategy - People and Nature thriving together

Daan Park Hydrangea flower season I like it
Daan Park Hydrangea flower season I like itDaan Park Hydrangea flower season I like it
Daan Park Hydrangea flower season I like it

IPCC Vice Chair Ladislaus Change Central Asia Climate Change Conference 27 Ma...
IPCC Vice Chair Ladislaus Change Central Asia Climate Change Conference 27 Ma...IPCC Vice Chair Ladislaus Change Central Asia Climate Change Conference 27 Ma...
IPCC Vice Chair Ladislaus Change Central Asia Climate Change Conference 27 Ma...

"Understanding the Carbon Cycle: Processes, Human Impacts, and Strategies for...
"Understanding the Carbon Cycle: Processes, Human Impacts, and Strategies for..."Understanding the Carbon Cycle: Processes, Human Impacts, and Strategies for...
"Understanding the Carbon Cycle: Processes, Human Impacts, and Strategies for...

Willie Nelson Net Worth: A Journey Through Music, Movies, and Business Ventures
Willie Nelson Net Worth: A Journey Through Music, Movies, and Business VenturesWillie Nelson Net Worth: A Journey Through Music, Movies, and Business Ventures
Willie Nelson Net Worth: A Journey Through Music, Movies, and Business Ventures

Natural farming @ Dr. Siddhartha S. Jena.pptx
Natural farming @ Dr. Siddhartha S. Jena.pptxNatural farming @ Dr. Siddhartha S. Jena.pptx
Natural farming @ Dr. Siddhartha S. Jena.pptx

International+e-Commerce+Platform-www.cfye-commerce.shop
International+e-Commerce+Platform-www.cfye-commerce.shopInternational+e-Commerce+Platform-www.cfye-commerce.shop
International+e-Commerce+Platform-www.cfye-commerce.shop


Alera starting conference. Ecofilae.

  • 1. 4/30/2015 1Alera Project © 2015 Ecofilae [1] Auteurs : Alera project Water reuse for sustainable development Launch Conference - Ecofilae Granollers, 29 and 30 April 2015 Rémi Declercq, Nicolas Condom
  • 2. 4/30/2015 2Alera Project © 2015 Ecofilae [2] Alera project - Ecofilae I - Treated wastewater reuse in France and in Languedoc-Roussillon II – Ecofilae in a few words III - Irrialt’eau project for vineyards irrigation IV - NOWMMA project for treatment process optimization V – Ecofilae expectations in Alera project Summary
  • 3. 4/30/2015 3Alera Project © 2015 Ecofilae [3] Treated wastewater reuse in France and in LR Context
  • 4. 4/30/2015 4Alera Project © 2015 Ecofilae [4] TWW reuse in France Treated wastewater reuse in the world Irrigated volumes of treated wastewater (m3/day)
  • 5. 4/30/2015 5Alera Project © 2015 Ecofilae [5] TWW reuse in France France wastewater reuse projects Treated WW generated = 3,77 Billions m3/year Water demand for irrigation:= 3,1 Billions m3/year But…only 7 Mm3/an of water reuse onto 4 000 Ha
  • 6. 4/30/2015 6Alera Project © 2015 Ecofilae [6] TWW reuse in France Laws of August 2nd 2010 reviewed the June 25th 2014 - 4 classes of water quality (A, B, C and D) - Water quality adapted to irrigation techniques and irrigated crops - Irrigation distances and wind constraints Regulation
  • 7. 4/30/2015 7Alera Project © 2015 Ecofilae [7] Clermont-Ferrand WWTP Property of : Communauté d’Agglo de CF Exploited by : Veolia Capacity : 425 000 EH Treatment : Activated sludge 1400 Ha équipped – 700 Ha irrigated Maize, wheat, beetroots Artière river Sustain environmental flows Limagne Noire – Irrigation association Project start: 1996 Outflow 40 Mm3 /an Sugar plant lagoons Tertiary treatment Step 1 : sugar plant effluents Step 2 : TWW Step 1 200 000 m3/year – Winter end Step 2: Irrigation 900 000 m3/years – 5/6 months
  • 8. 4/30/2015 8Alera Project © 2015 Ecofilae [8] WWTP Sainte-Maxime Property of: Commune de Sainte-Maxime Exploited by : Veolia Capacity : 60 000 EH Traitement : Biofiltre TWW: 1,5 Mm3/year GOLF Sainte-Maxime 60 Ha irrigated Golf Sainte-Maxime Start date : 2006 Outflow Traitement supplémentaire : Sand filter + UV + chloration Other uses ReUse Green areas 300 000 m3/year) 0,23 €/m3 Sea disposal Storage
  • 9. 4/30/2015 9Alera Project © 2015 Ecofilae [9] TWW in Languedoc-Roussillon • Water stressed area in summer (Increase of 1,4°C in 30 years) • 2/3 of french wine production • 3 pilot-scale irrigation projects : Gruissan, Grau-du-Roi and Mauguio NOWMMA project Irrialt’eau project Grau du Roi project
  • 10. 4/30/2015 10Alera Project © 2015 Ecofilae [10] Ecofilae in a few words Vision and activities
  • 11. 4/30/2015 11Alera Project © 2015 Ecofilae [11] SOLUCIONES PARA VALORIZAR LAS AGUAS RESIDUALES
  • 12. 4/30/2015 12Alera Project © 2015 Ecofilae [12] Nuestra vision SENSIBILIZAR DIAGNOSTICAR (tech/ec.) DESAROLLO de un sitio piloto EXPERIMENTAR CAPACITAR MONITOREAR • Designing solutions to reuse wastewater • Assessing the benefits and managing the risks
  • 13. 4/30/2015 13Alera Project © 2015 Ecofilae [13] REUSE Development of a numeric web platform to aware farmers of reuse practises France, Corse, 2013 N. Condom N. Condom
  • 14. 4/30/2015 14Alera Project © 2015 Ecofilae [14] REUSE France, 2014 Technical and economical analysis of wastewater Reuse scenarios from Cannes-Mandelieu treatment plant Mairie de Cannes Suez Golf Old Course Pépinières Bauchery
  • 15. 4/30/2015 15Alera Project © 2015 Ecofilae [15] REUSE Diagnose of the reuse potential (treated wastewater and sludge) for 2 cities of 140 000 inhabitants Kurdistan, 2010 N.Condom N.Condom N.Condom
  • 16. 4/30/2015 16Alera Project © 2015 Ecofilae [16] REUSE Cost-Benefits analyses of water reuse projects France, 2013 N. Condom IRSTEA
  • 17. 4/30/2015 17Alera Project © 2015 Ecofilae [17] REUSE Reuse in mediterranean sea : feedbacks and support to project implementation Mediterranean sea basin, 2013 N. CondomCIRAD PSEAU
  • 18. 4/30/2015 18Alera Project © 2015 Ecofilae [18] REUSE France, 2002-2015 Test the impacts of agro-industrial residues on soil and crops N.Condom N.Condom N.Condom N.Condom
  • 19. 4/30/2015 19Alera Project © 2015 Ecofilae [19] REUSE In 2013 and 2014, Ecofilae is the only french society which has opened a training session for professionals from all sectors on the treated wastewater reuse in irrigation. France, since 2013 Cross-industry professional trainings on treated wastewater Reuse in irrigation N. Condom N. Condom

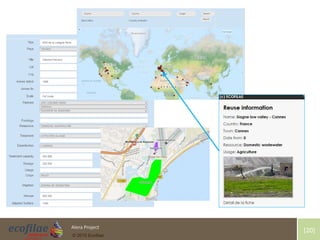

  • 20. 4/30/2015 20Alera Project © 2015 Ecofilae [20]
  • 21. 4/30/2015 21Alera Project © 2015 Ecofilae [21] Irrialt’eau project Treated wastewater reuse for vineyards INRA Irrialt’eau project
  • 22. 4/30/2015 22Alera Project © 2015 Ecofilae [22] Irrialt’eau project • Objectives : Unlock technical, social and economic barriers to treated wastewater reuse • Pilot scale experimental project for wastewater reuse on irrigated vineyards (drip irrigation) – Gruissan, Aude 11 Veolia Eau Drinking water TWW Quality C Canal water TWW Quality B 2 vineyards (1,5 Ha) : Carignan and Viognier 300 m3/Ha/year STEP Grand Narbonne 120 000 EH Activated sludge Prefiltration + Chloration + UV treatment (Quality B)
  • 23. 4/30/2015 23Alera Project © 2015 Ecofilae [23] Irrialt’eau project • Monitoring of bacterial parameters and micro-pollutants (medicine residues, hormones, pesticides…) in water, grapes and wine • Social acceptation studies and LCA
  • 24. 4/30/2015 24Alera Project © 2015 Ecofilae [24] NOWMMA project Process optimization for treated waster reuse Pole Eau LR NOWMMA project
  • 25. 4/30/2015 25Alera Project © 2015 Ecofilae [25] NOWMMA project • Objectives : - Develop a tertiary treatment chain adaptable and transposable - Monitoring health and technologic risks • Tertiary treatment chains for wastewater reuse – Mauguio, Herault 34 • Treatment technics optimisation, aspersion modelling, LCA P I Irrigated fields Platform WW WWTP, Mauguio, 24 000 EH P
  • 26. 4/30/2015 26Alera Project © 2015 Ecofilae [26] NOWMMA project • Technologies tested : Sand filtration, Microfiltration, Ultrafiltration, UV… • Planned uses for water : Irrigation, Green areas, Street cleaning… Aspersion modelling (IRSTEA)
  • 27. 4/30/2015 27Alera Project © 2015 Ecofilae [27] Ecofilae expectations in Alera projects Propositions
  • 28. 4/30/2015 28Alera Project © 2015 Ecofilae [28] Ecofilae – Alera projects • Description of one of the two pilot-scale sites in France (Irrialt’eau) based on the available data OR a general analysis of wastewater reuse in Languedoc-Roussillon • Tools for Development of a detailed matrix with indicators/benchmarks for sites crossed comparisons (projects from the 4 regions) Objective : making different water reuse chains comparable • Tools for communication: Online web system vizualization/valorization/exposition (Map'reuse) for communication (Alera Toolbox) Propositions to be discussed
  • 29. 4/30/2015 29Alera Project © 2015 Ecofilae [29] Ecofilae – Alera projects • Indicators/benchmarks Propositions to be discussed
  • 30. 4/30/2015 30Alera Project © 2015 Ecofilae [30] Gracias por su atención. Thanks for your attention. Merci pour votre attention. nicolas.condom@ecofilae.fr remi.declercq@ecofilae.fr

Editor's Notes

  1. I wil start with this map. This is an overview of wastewater reuse is the colors
  2. Buenos dias. Es un placer tenerlos de visita en Mpl. Yo Me llamo Nicolas C, director fundador de Ecofilae. Voy a hacer la presentacion en espanol y hacer mi mejor esfuerzo para que sea clara. Si es necesario, pidare la ayuda de la traductora. Ecofilae es una agencia de consultoria y de formación independiente que propone asistencia en proyectos de reutilizacion del agua. . Desarollamos tambien sistema experto acessible por web.
  3. En Ecofilae, pensamos que todas las fuentes de aguas residuales (de estaciones de depuracion, industriales, de la agricultura..) tienen un potencial economico para diferentes usos como la irrigacion agricola, de espacios verdes, o uso urbano, etc.). La idea es simple pero la puesta en marcha esta muy complicada : hay numeros frenos. Para obtener un sistema sostentable, es necesario evaluar los riesgos, los beneficios y controlar los impactos negativos. Proponemos differentes servicios de ayuda para la toma de decision como acciones de formacion y sensibilisacion, diagnostico tecnico y economico, desarollo de un programa piloto, pruebas y monitoreo del sistema.
  4. Vineyards in LR is the major crop, 1/3 of the french wine production with 220 000 Ha First irrigated culture in LR (10%) and LR is a water stressed region
  5. If Go NO Go on the firste results in 2015  several Ha for Gruissan Cave coop
  6. If Go NO Go on the firste results in 2015  several Ha for Gruissan Cave coop
  7. Exemples of indicators : reclamation chain, soils, crops, socio-economic ocntext… Different reuse projects : water quality, management Ecofilae develop a mapping webtool and we can integrate the projects and let the link available.
  8. Exemples of indicators : reclamation chain, soils, crops, socio-economic ocntext…
