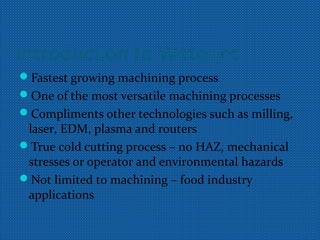

3. Introduction to Waterjet
Fastest growing machining process
One of the most versatile machining processes
Compliments other technologies such as milling,
laser, EDM, plasma and routers
True cold cutting process – no HAZ, mechanical
stresses or operator and environmental hazards
Not limited to machining – food industry
applications

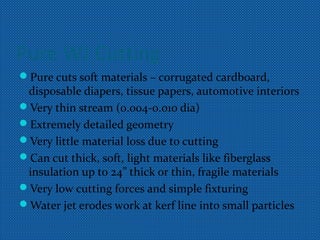

4. Pure WJ Cutting
Pure cuts soft materials – corrugated cardboard,
disposable diapers, tissue papers, automotive interiors
Very thin stream (0.004-0.010 dia)
Extremely detailed geometry
Very little material loss due to cutting
Can cut thick, soft, light materials like fiberglass
insulation up to 24” thick or thin, fragile materials
Very low cutting forces and simple fixturing
Water jet erodes work at kerf line into small particles

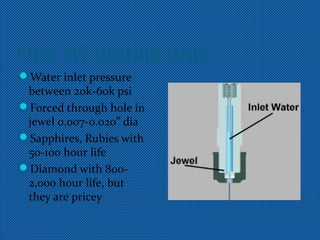

5. Pure WJ Cutting cont.
Water inlet pressure
between 20k-60k psi
Forced through hole in
jewel 0.007-0.020” dia
Sapphires, Rubies with
50-100 hour life
Diamond with 800-
2,000 hour life, but
they are pricey

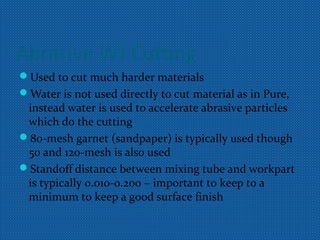

6. Abrasive WJ Cutting
Used to cut much harder materials
Water is not used directly to cut material as in Pure,
instead water is used to accelerate abrasive particles
which do the cutting
80-mesh garnet (sandpaper) is typically used though
50 and 120-mesh is also used
Standoff distance between mixing tube and workpart
is typically 0.010-0.200 – important to keep to a
minimum to keep a good surface finish

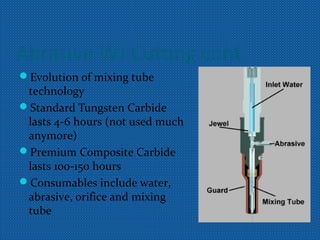

7. Abrasive WJ Cutting cont.
Evolution of mixing tube
technology
Standard Tungsten Carbide
lasts 4-6 hours (not used much
anymore)
Premium Composite Carbide
lasts 100-150 hours
Consumables include water,
abrasive, orifice and mixing
tube
8. Tolerances
Typically +/- 0.005 inch
Machines usually have repeatability of 0.001 inch
Comparatively traditional machining centers can hold
tolerances 0f 0.0001 inch with similar repeatability
WJ tolerance range is good for many applications
where critical tolerances are not crucial to workpart
design

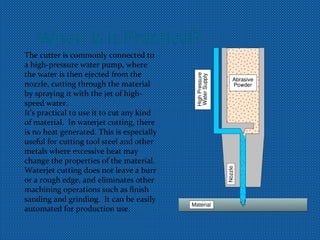

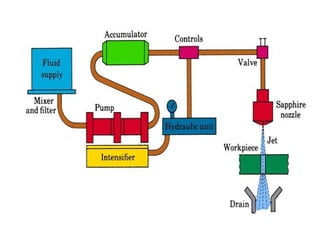

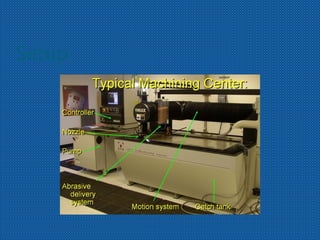

11. When is it Practical?
The cutter is commonly connected to
a high-pressure water pump, where
the water is then ejected from the
nozzle, cutting through the material
by spraying it with the jet of high-
speed water.
It’s practical to use it to cut any kind
of material. In waterjet cutting, there
is no heat generated. This is especially
useful for cutting tool steel and other
metals where excessive heat may
change the properties of the material.
Waterjet cutting does not leave a burr
or a rough edge, and eliminates other
machining operations such as finish
sanding and grinding. It can be easily
automated for production use.

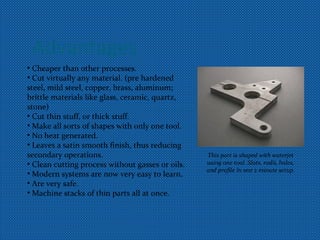

12. Advantages
• Cheaper than other processes.
• Cut virtually any material. (pre hardened
steel, mild steel, copper, brass, aluminum;
brittle materials like glass, ceramic, quartz,
stone)
• Cut thin stuff, or thick stuff.
• Make all sorts of shapes with only one tool.
• No heat generated.
• Leaves a satin smooth finish, thus reducing
secondary operations.
• Clean cutting process without gasses or oils.
• Modern systems are now very easy to learn.
• Are very safe.
• Machine stacks of thin parts all at once.
This part is shaped with waterjet
using one tool. Slots, radii, holes,
and profile in one 2 minute setup.

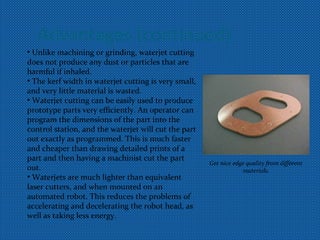

13. Advantages (continued)
• Unlike machining or grinding, waterjet cutting
does not produce any dust or particles that are
harmful if inhaled.
• The kerf width in waterjet cutting is very small,
and very little material is wasted.
• Waterjet cutting can be easily used to produce
prototype parts very efficiently. An operator can
program the dimensions of the part into the
control station, and the waterjet will cut the part
out exactly as programmed. This is much faster
and cheaper than drawing detailed prints of a
part and then having a machinist cut the part
out.
• Waterjets are much lighter than equivalent
laser cutters, and when mounted on an
automated robot. This reduces the problems of
accelerating and decelerating the robot head, as
well as taking less energy.
Get nice edge quality from different
materials.
14. Disadvantages• One of the main disadvantages of
waterjet cutting is that a limited number
of materials can be cut economically.
While it is possible to cut tool steels, and
other hard materials, the cutting rate has
to be greatly reduced, and the time to cut
a part can be very long. Because of this,
waterjet cutting can be very costly and
outweigh the advantages.
• Another disadvantage is that very thick
parts can not be cut with waterjet cutting
and still hold dimensional accuracy. If the
part is too thick, the jet may dissipate
some, and cause it to cut on a diagonal,
or to have a wider cut at the bottom of
the part than the top. It can also cause a
rough wave pattern on the cut surface.
Waterjet lag
15. Disadvantages (continued)
• Taper is also a problem with waterjet cutting in very thick materials.
Taper is when the jet exits the part at a different angle than it enters
the part, and can cause dimensional inaccuracy. Decreasing the speed
of the head may reduce this, although it can still be a problem.
Stream lag caused inside corner damage to this 1-
in.-thick stainless steel part. The exit point of the
stream lags behind the entrance point, causing
irregularities on the inside corners of the part. The
thicker the material is or the faster an operator
tries to cut it, the greater the stream lag and the
more pronounced the damage.

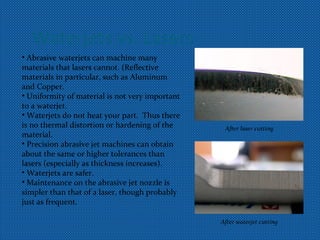

16. Waterjets vs. Lasers
• Abrasive waterjets can machine many
materials that lasers cannot. (Reflective
materials in particular, such as Aluminum
and Copper.
• Uniformity of material is not very important
to a waterjet.
• Waterjets do not heat your part. Thus there
is no thermal distortion or hardening of the
material.
• Precision abrasive jet machines can obtain
about the same or higher tolerances than
lasers (especially as thickness increases).
• Waterjets are safer.
• Maintenance on the abrasive jet nozzle is
simpler than that of a laser, though probably
just as frequent.
After laser cutting
After waterjet cutting

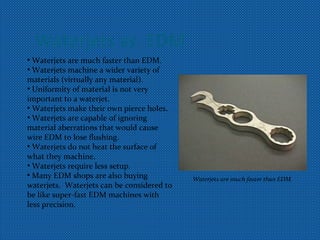

17. Waterjets vs. EDM
• Waterjets are much faster than EDM.
• Waterjets machine a wider variety of
materials (virtually any material).
• Uniformity of material is not very
important to a waterjet.
• Waterjets make their own pierce holes.
• Waterjets are capable of ignoring
material aberrations that would cause
wire EDM to lose flushing.
• Waterjets do not heat the surface of
what they machine.
• Waterjets require less setup.
• Many EDM shops are also buying
waterjets. Waterjets can be considered to
be like super-fast EDM machines with
less precision.
Waterjets are much faster than EDM.

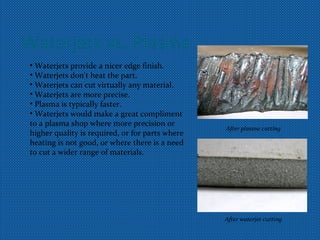

18. Waterjets vs. Plasma
• Waterjets provide a nicer edge finish.
• Waterjets don't heat the part.
• Waterjets can cut virtually any material.
• Waterjets are more precise.
• Plasma is typically faster.
• Waterjets would make a great compliment
to a plasma shop where more precision or
higher quality is required, or for parts where
heating is not good, or where there is a need
to cut a wider range of materials.
After plasma cutting
After waterjet cutting

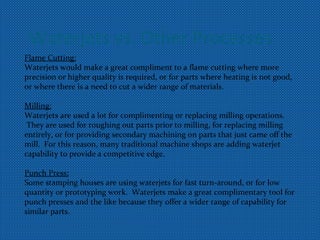

19. Waterjets vs. Other Processes
Flame Cutting:
Waterjets would make a great compliment to a flame cutting where more
precision or higher quality is required, or for parts where heating is not good,
or where there is a need to cut a wider range of materials.
Milling:
Waterjets are used a lot for complimenting or replacing milling operations.
They are used for roughing out parts prior to milling, for replacing milling
entirely, or for providing secondary machining on parts that just came off the
mill. For this reason, many traditional machine shops are adding waterjet
capability to provide a competitive edge.
Punch Press:
Some stamping houses are using waterjets for fast turn-around, or for low
quantity or prototyping work. Waterjets make a great complimentary tool for
punch presses and the like because they offer a wider range of capability for
similar parts.

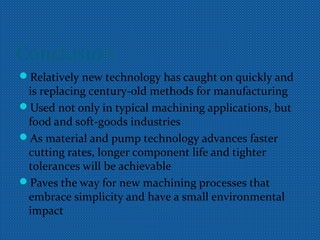

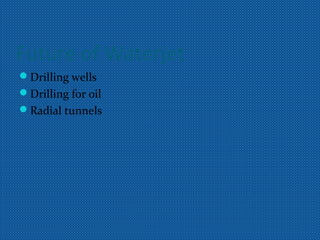

22. Conclusion
Relatively new technology has caught on quickly and
is replacing century-old methods for manufacturing
Used not only in typical machining applications, but
food and soft-goods industries
As material and pump technology advances faster
cutting rates, longer component life and tighter
tolerances will be achievable
Paves the way for new machining processes that
embrace simplicity and have a small environmental
impact
