This presentation discusses 3D printing technology. 3D printing, also known as additive manufacturing, is a process where 3D objects are created by laying down successive layers of material under computer control. A 3D model is first designed using CAD software, then sent to a 3D printer which deposits the material layer by layer to build the physical object. Common techniques include selective laser sintering of powders, fused deposition modeling of plastics, and stereolithography of resins. The presentation outlines the history and development of 3D printing and provides examples of its applications in fields like medicine, engineering, entertainment, fashion and space exploration.

1. A PRESENTATION ON “3D
PRINTING
TECHNOLOGY”

2. What is 3D Printing ?
 3D printing or additive manufacturing is a process of
making three dimensional solid objects from a digital file.
 The creation of a 3D printed object is achieved using
additive processes.
 Additive process, where successive layers of material are
laid down in different shapes.
 Objects can be of almost any shape or geometry, and are
produced from a 3D model or other electronic data source.

3. How Does It Work?
A person creates a 3D image
of an item using a
computer-aided design
(CAD) software program.
The CAD information is sent
to the printer.
The printer forms the item
by depositing the material in
layers—starting from the
bottom layer—onto a
platform. In some cases
light or lasers are used to
harden the material.

4. History
1984 - 86
Charles Hull invents 3D printing and coins the
term “Stereo Lithography”
1992
First 3D printer built by 3D Systems
1999
First application of 3D printing in the medical field
- creating the human bladder

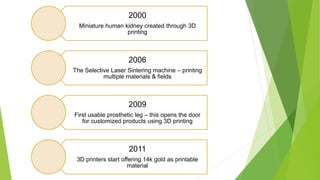

5. 2000
Miniature human kidney created through 3D
printing
2006
The Selective Laser Sintering machine – printing
multiple materials & fields
2009
First usable prosthetic leg – this opens the door
for customized products using 3D printing
2011
3D printers start offering 14k gold as printable
material

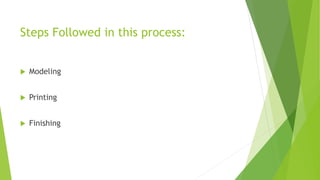

6. Steps Followed in this process:
 Modeling
 Printing
 Finishing

7. Modeling
Additive manufacturing takes virtual blueprints
from computer aided design (CAD)
or animation modeling software and "slices" them
into digital cross-sections for the machine to
successively use as a guideline for printing.

8. Printing
To perform a print, the machine reads the design and lays down
successive layers of liquid, powder, or sheet material to build
the model from a series of cross sections. These layers, which
correspond to the virtual cross sections from the CAD model,
are joined together or automatically fused to create the final
shape.
Advantage: Ability to create almost any shape or geometric
feature.

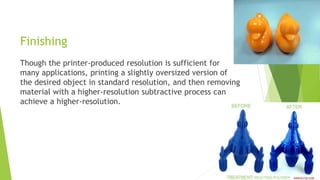

9. Finishing
Though the printer-produced resolution is sufficient for
many applications, printing a slightly oversized version of
the desired object in standard resolution, and then removing
material with a higher-resolution subtractive process can
achieve a higher-resolution.

10. Methods & Technologies
 Several ways to realize 3D objects –
 Selective laser sintering (SLS)
 Fused deposition modelling (FDS)
 Stereo lithography (SLA)

11. Selective laser sintering (SLS)
 This builds objects by using a laser to
selectively fuse together successive
layers of a cocktail of powdered wax,
ceramic, metal, nylon or one of a range
of other materials
 The laser fuses small particles of
plastic, metal, ceramic or glass
powders into a 3-dimensional mass.

12. Fused deposition modelling (FDS)
 This method uses a plastic filament or metal wire as input
material to an extrusion nozzle. The nozzle is heated to melt
the material and can be moved in both horizontal and
vertical directions by CAM. The material hardens
immediately after extrusion from the nozzle.

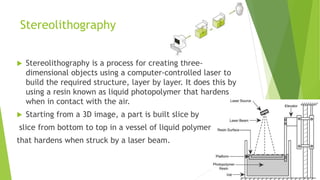

13. Stereolithography
 Stereolithography is a process for creating three-
dimensional objects using a computer-controlled laser to
build the required structure, layer by layer. It does this by
using a resin known as liquid photopolymer that hardens
when in contact with the air.
 Starting from a 3D image, a part is built slice by
slice from bottom to top in a vessel of liquid polymer
that hardens when struck by a laser beam.

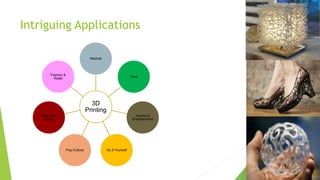

14. Intriguing Applications
3D
Printing
Medical
Food
Games &
Entertainment
Do It Yourself
Pop-Culture
Defense &
Space
Fashion &
Retail

15. Video

16. Fashionable Plaster Medical
This 3D-printed cast to help repair
broken bones may be the future of
medical orthopedic casts. 3D-printed
casts also bring out the positive
potential of this emerging technology.

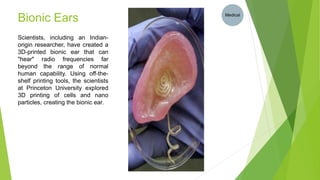

17. Bionic Ears
Scientists, including an Indian-
origin researcher, have created a
3D-printed bionic ear that can
"hear" radio frequencies far
beyond the range of normal
human capability. Using off-the-
shelf printing tools, the scientists
at Princeton University explored
3D printing of cells and nano
particles, creating the bionic ear.
Medical

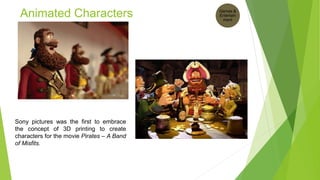

18. Animated Characters
Sony pictures was the first to embrace
the concept of 3D printing to create
characters for the movie Pirates – A Band
of Misfits.
Games &
Entertain
ment

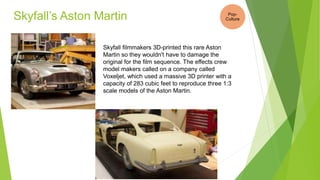

19. Skyfall’s Aston Martin
Skyfall filmmakers 3D-printed this rare Aston
Martin so they wouldn't have to damage the
original for the film sequence. The effects crew
model makers called on a company called
Voxeljet, which used a massive 3D printer with a
capacity of 283 cubic feet to reproduce three 1:3
scale models of the Aston Martin.
Pop-
Culture

20. 3D-printed Lunar Base
Building a base on the moon could
theoretically be made much simpler by
using a 3D printer to construct it from
local materials. The concept was
recently endorsed by the European
Space Agency (ESA) which is now
collaborating with architects to gauge
the feasibility of 3D printing using lunar
soil.
Defense
& Space

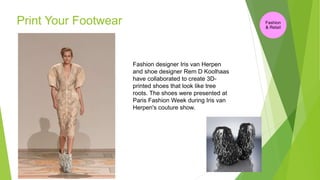

21. Print Your Footwear
Fashion designer Iris van Herpen
and shoe designer Rem D Koolhaas
have collaborated to create 3D-
printed shoes that look like tree
roots. The shoes were presented at
Paris Fashion Week during Iris van
Herpen's couture show.
Fashion
& Retail
