Presented By:
KALPESH SHAH
M.E.(Design)

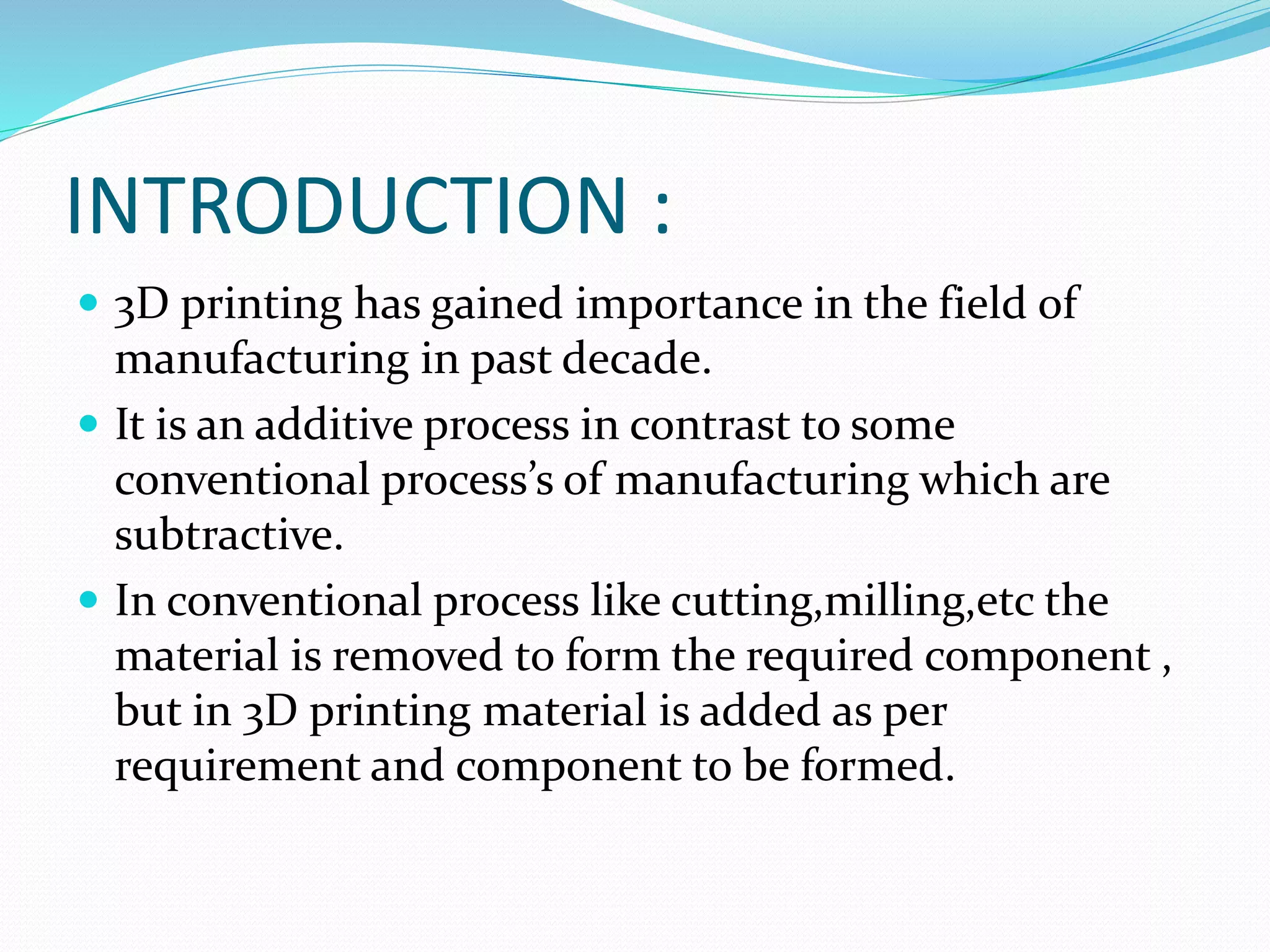

INTRODUCTION :
 3D printing has gained importance in the field of
manufacturing in past decade.
 It is an additive process in contrast to some
conventional process’s of manufacturing which are
subtractive.
 In conventional process like cutting,milling,etc the
material is removed to form the required component ,
but in 3D printing material is added as per
requirement and component to be formed.

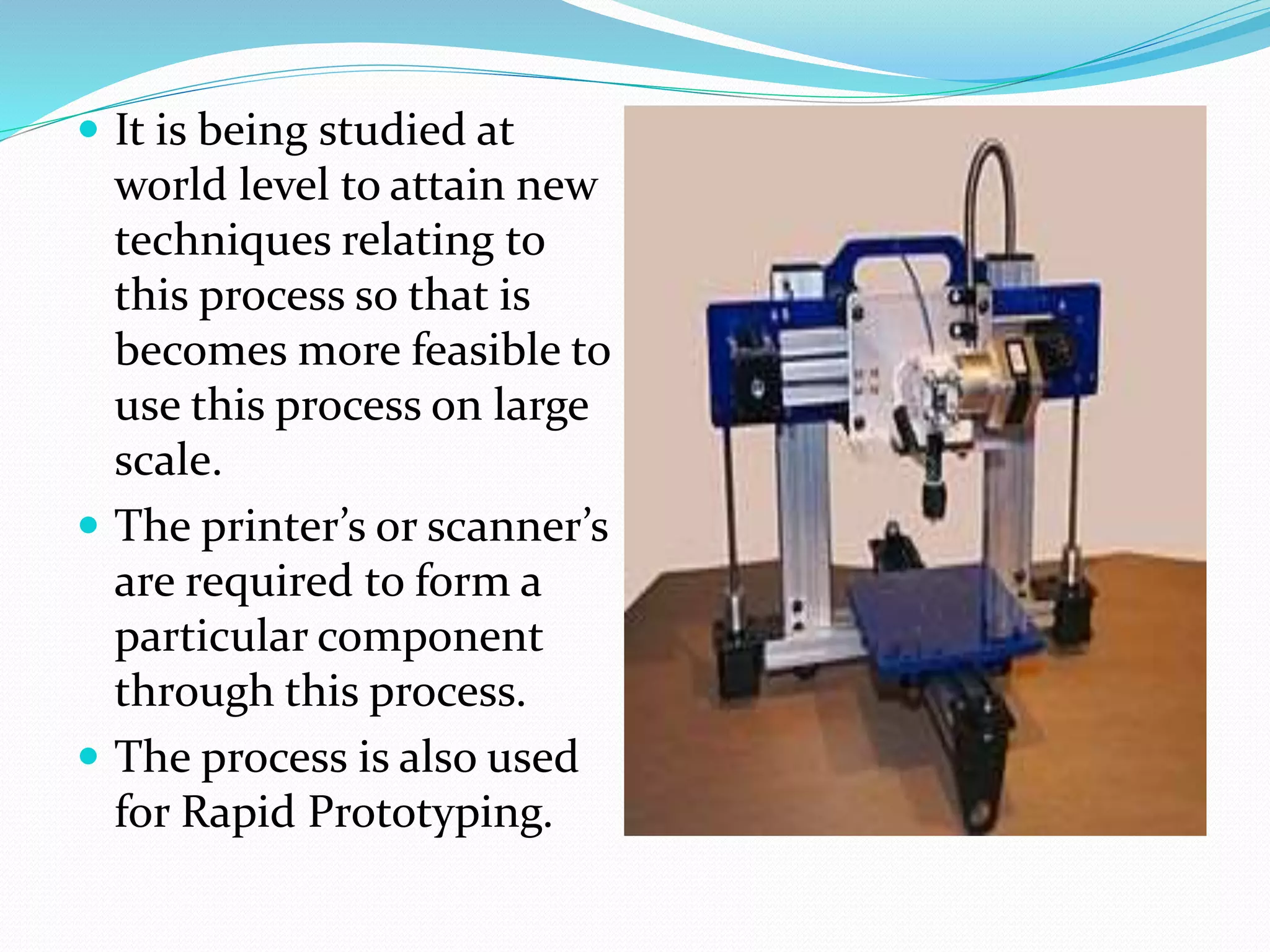

 It is being studied at
world level to attain new
techniques relating to
this process so that is
becomes more feasible to
use this process on large
scale.
 The printer’s or scanner’s
are required to form a
particular component
through this process.
 The process is also used
for Rapid Prototyping.

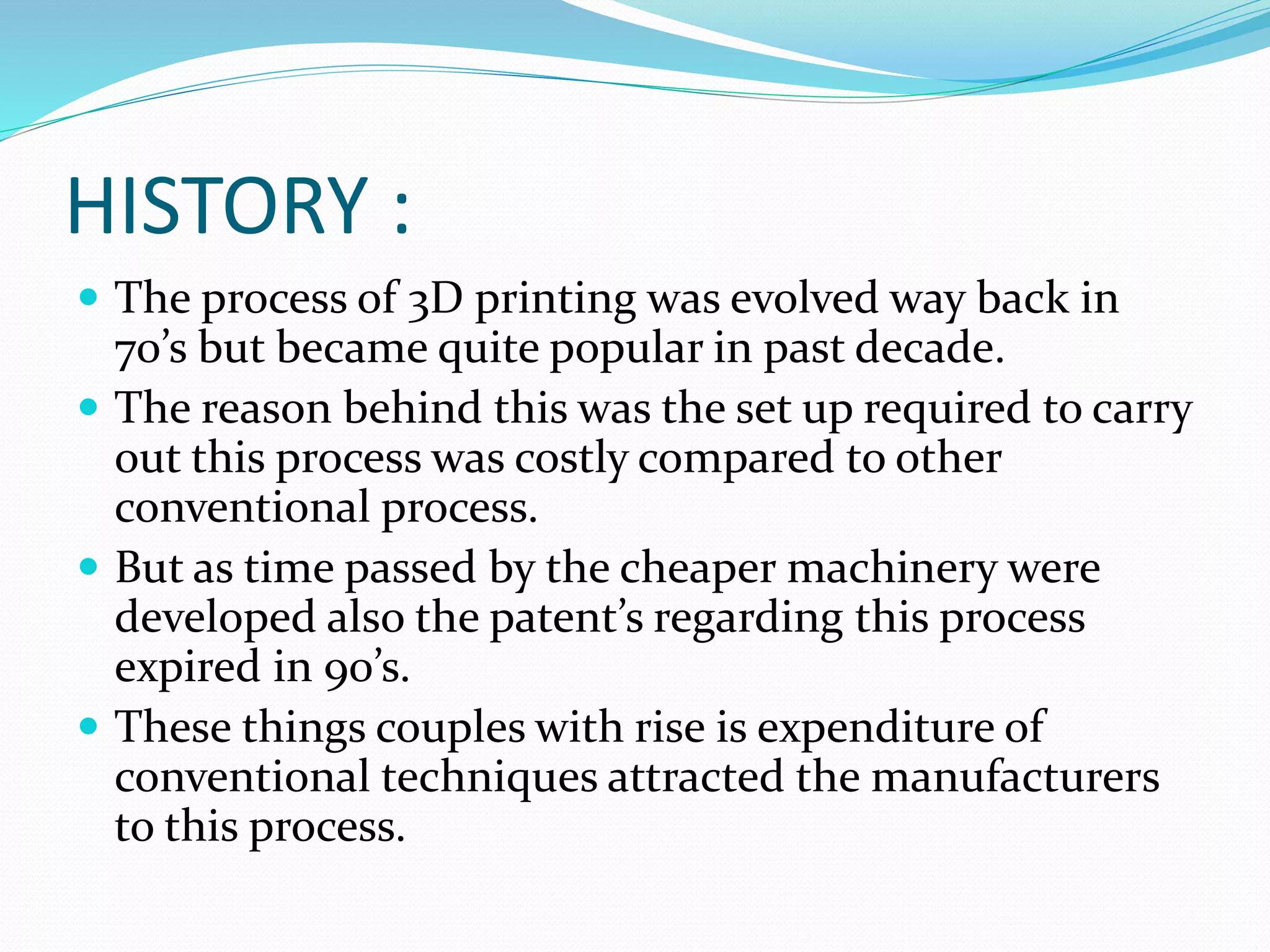

HISTORY :
 The process of 3D printing was evolved way back in
70’s but became quite popular in past decade.
 The reason behind this was the set up required to carry
out this process was costly compared to other
conventional process.
 But as time passed by the cheaper machinery were
developed also the patent’s regarding this process
expired in 90’s.
 These things couples with rise is expenditure of
conventional techniques attracted the manufacturers
to this process.

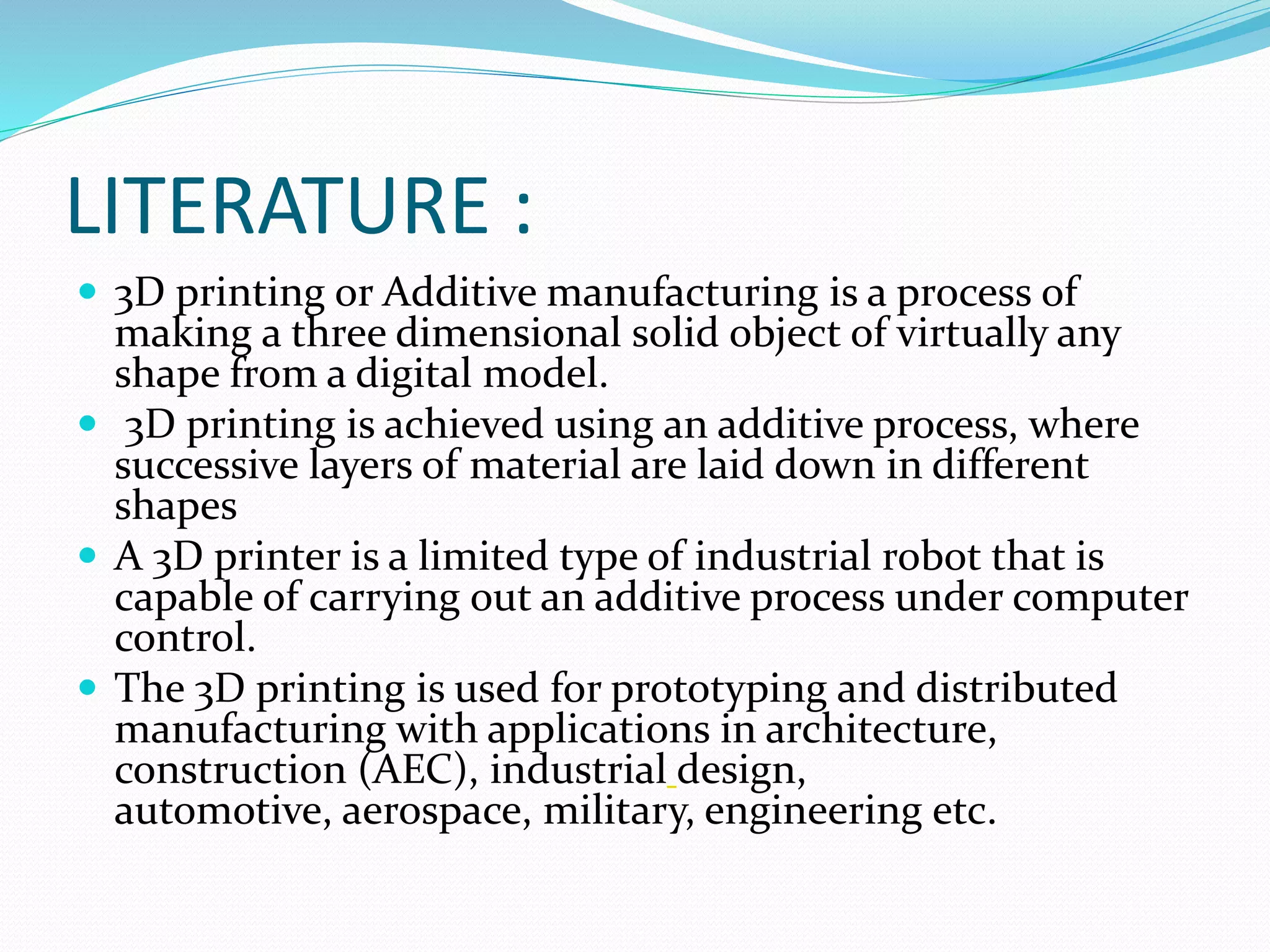

LITERATURE :
 3D printing or Additive manufacturing is a process of
making a three dimensional solid object of virtually any
shape from a digital model.
 3D printing is achieved using an additive process, where
successive layers of material are laid down in different
shapes
 A 3D printer is a limited type of industrial robot that is
capable of carrying out an additive process under computer
control.
 The 3D printing is used for prototyping and distributed
manufacturing with applications in architecture,
construction (AEC), industrial design,
automotive, aerospace, military, engineering etc.

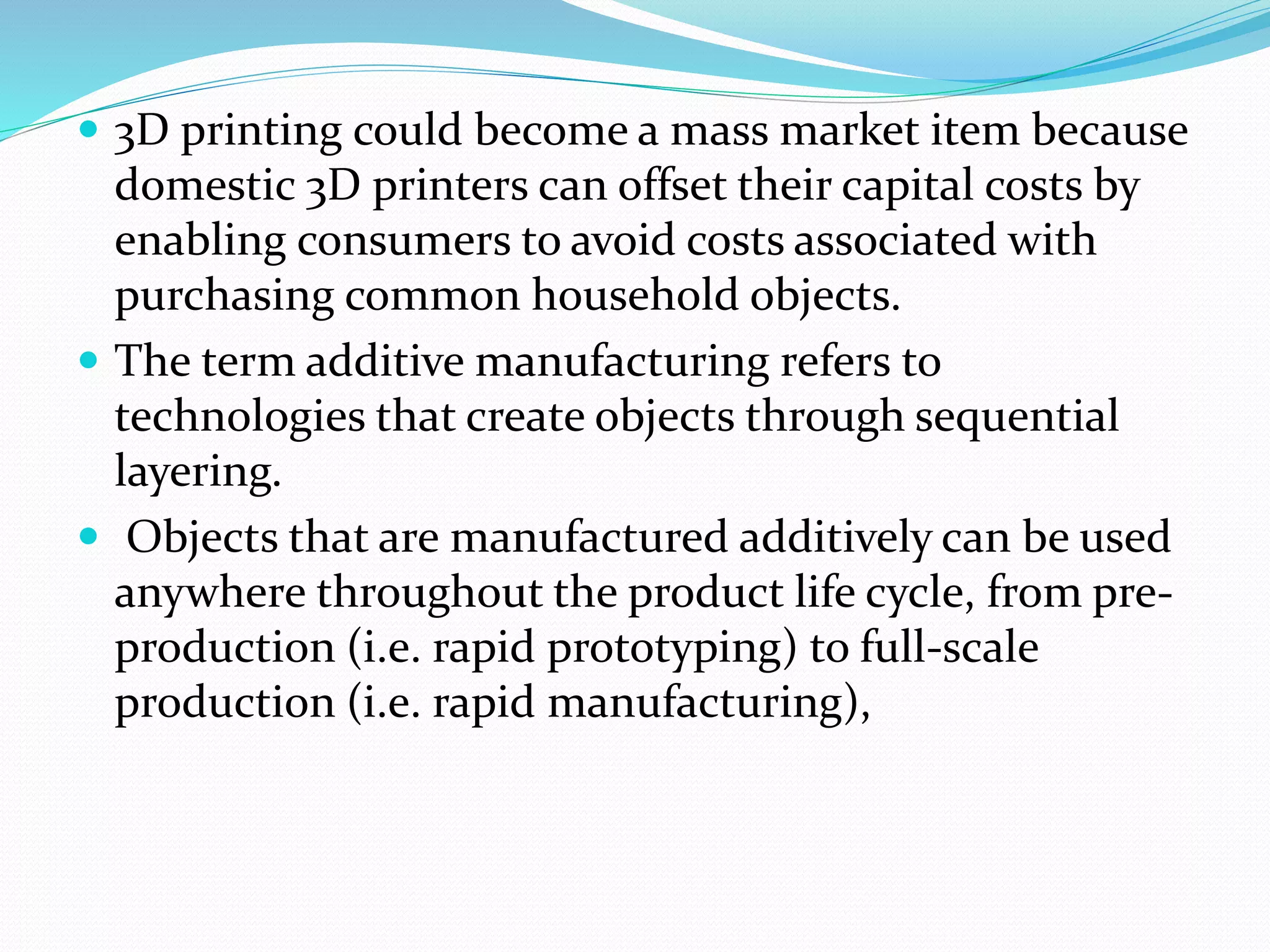

 3D printing could become a mass market item because
domestic 3D printers can offset their capital costs by
enabling consumers to avoid costs associated with
purchasing common household objects.
 The term additive manufacturing refers to
technologies that create objects through sequential
layering.
 Objects that are manufactured additively can be used
anywhere throughout the product life cycle, from pre-production
(i.e. rapid prototyping) to full-scale
production (i.e. rapid manufacturing),

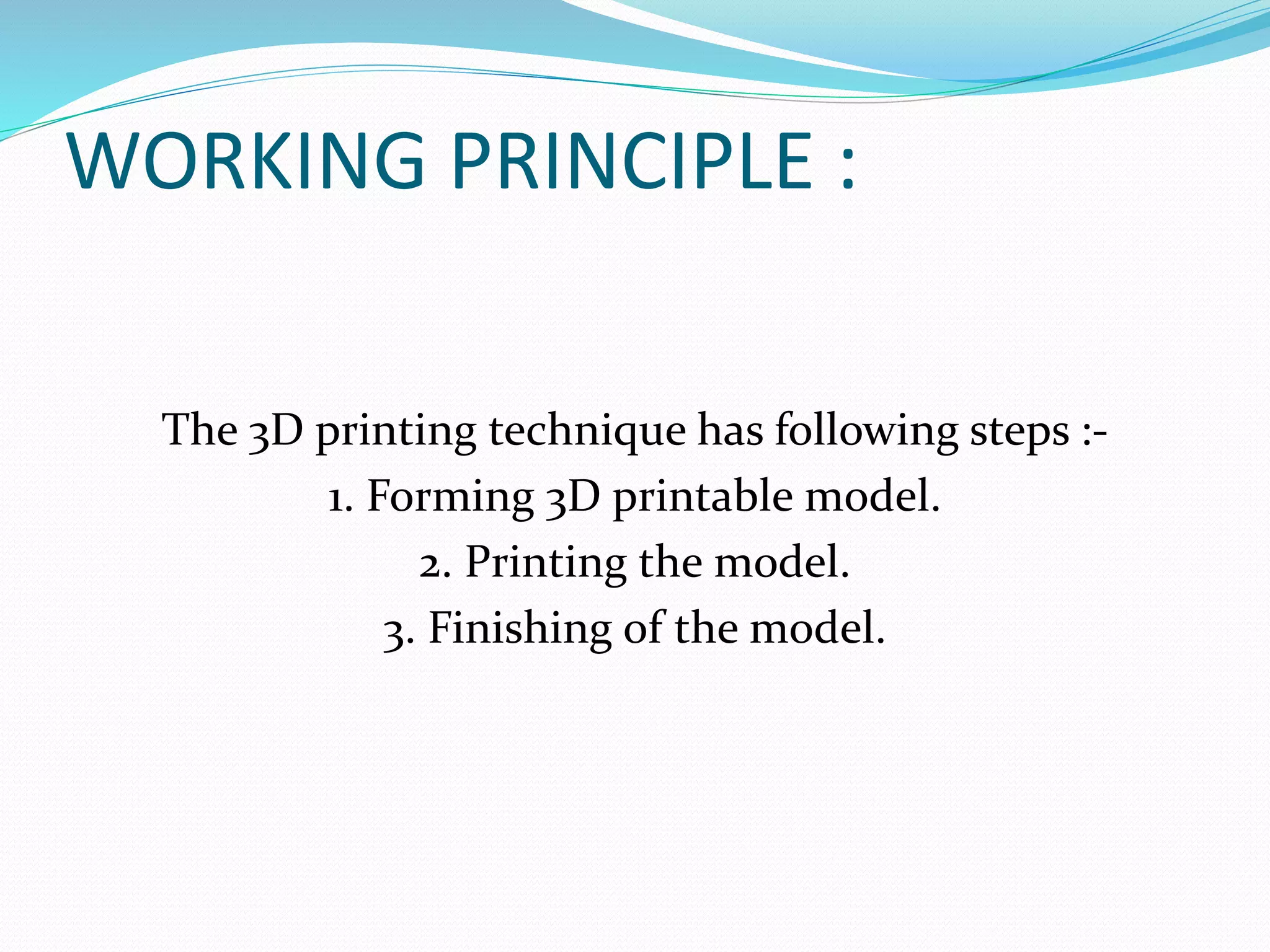

WORKING PRINCIPLE :
The 3D printing technique has following steps :-
1. Forming 3D printable model.
2. Printing the model.
3. Finishing of the model.

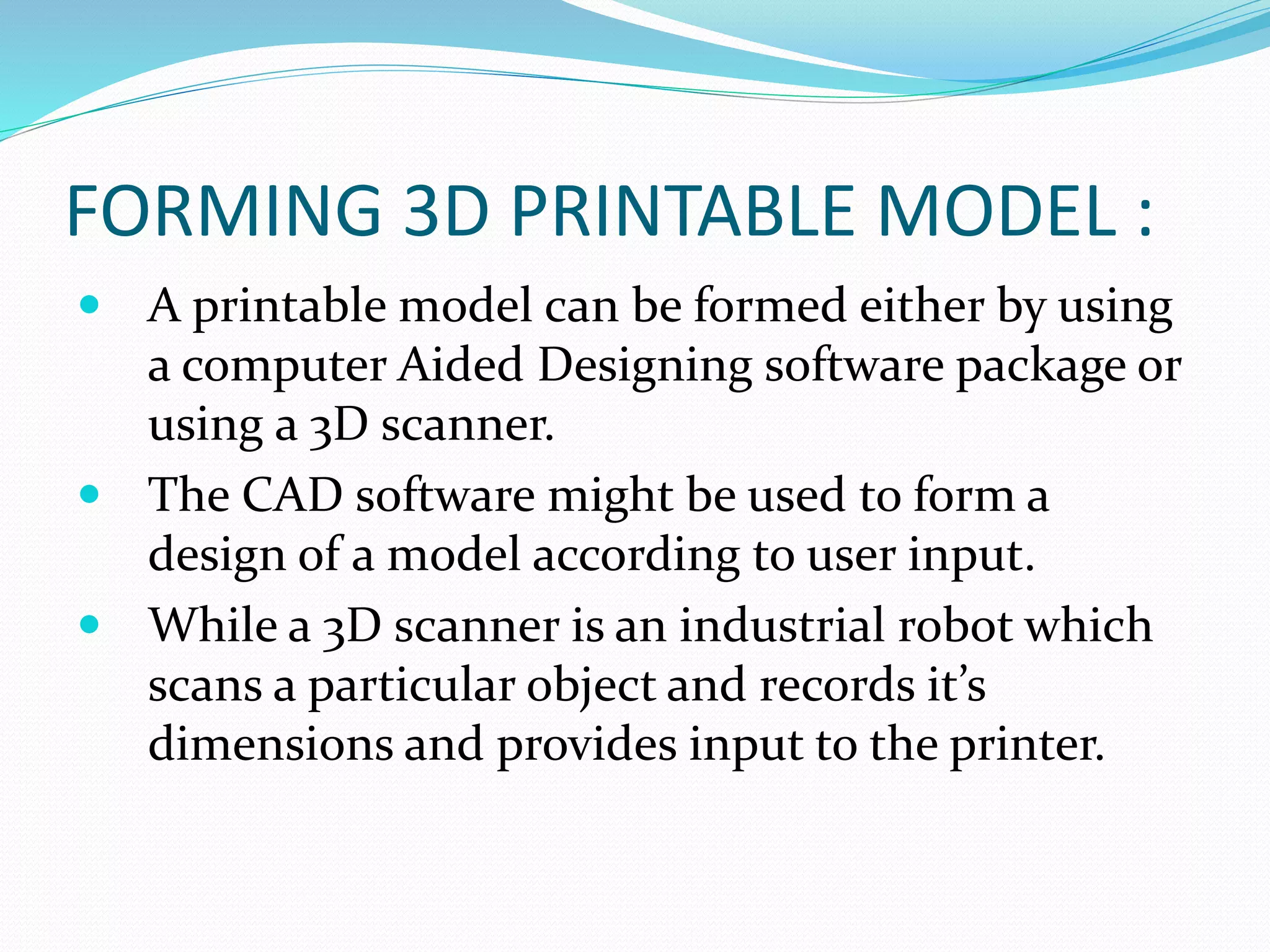

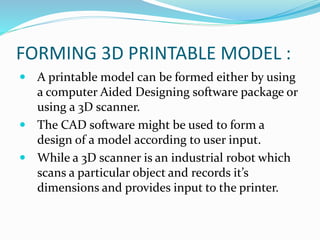

FORMING 3D PRINTABLE MODEL :
 A printable model can be formed either by using
a computer Aided Designing software package or
using a 3D scanner.
 The CAD software might be used to form a
design of a model according to user input.
 While a 3D scanner is an industrial robot which
scans a particular object and records it’s
dimensions and provides input to the printer.

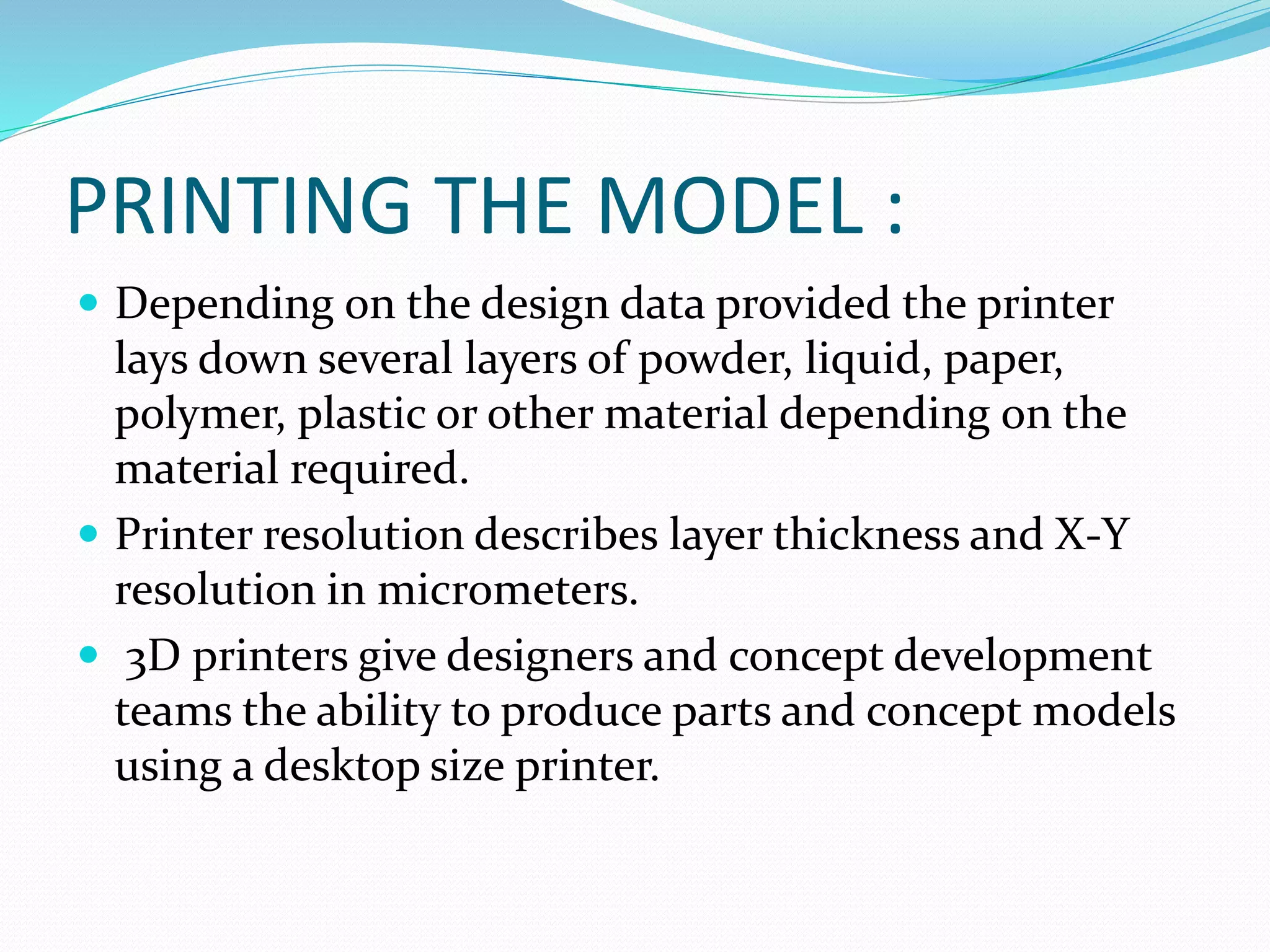

PRINTING THE MODEL :
 Depending on the design data provided the printer
lays down several layers of powder, liquid, paper,
polymer, plastic or other material depending on the
material required.
 Printer resolution describes layer thickness and X-Y
resolution in micrometers.
 3D printers give designers and concept development
teams the ability to produce parts and concept models
using a desktop size printer.

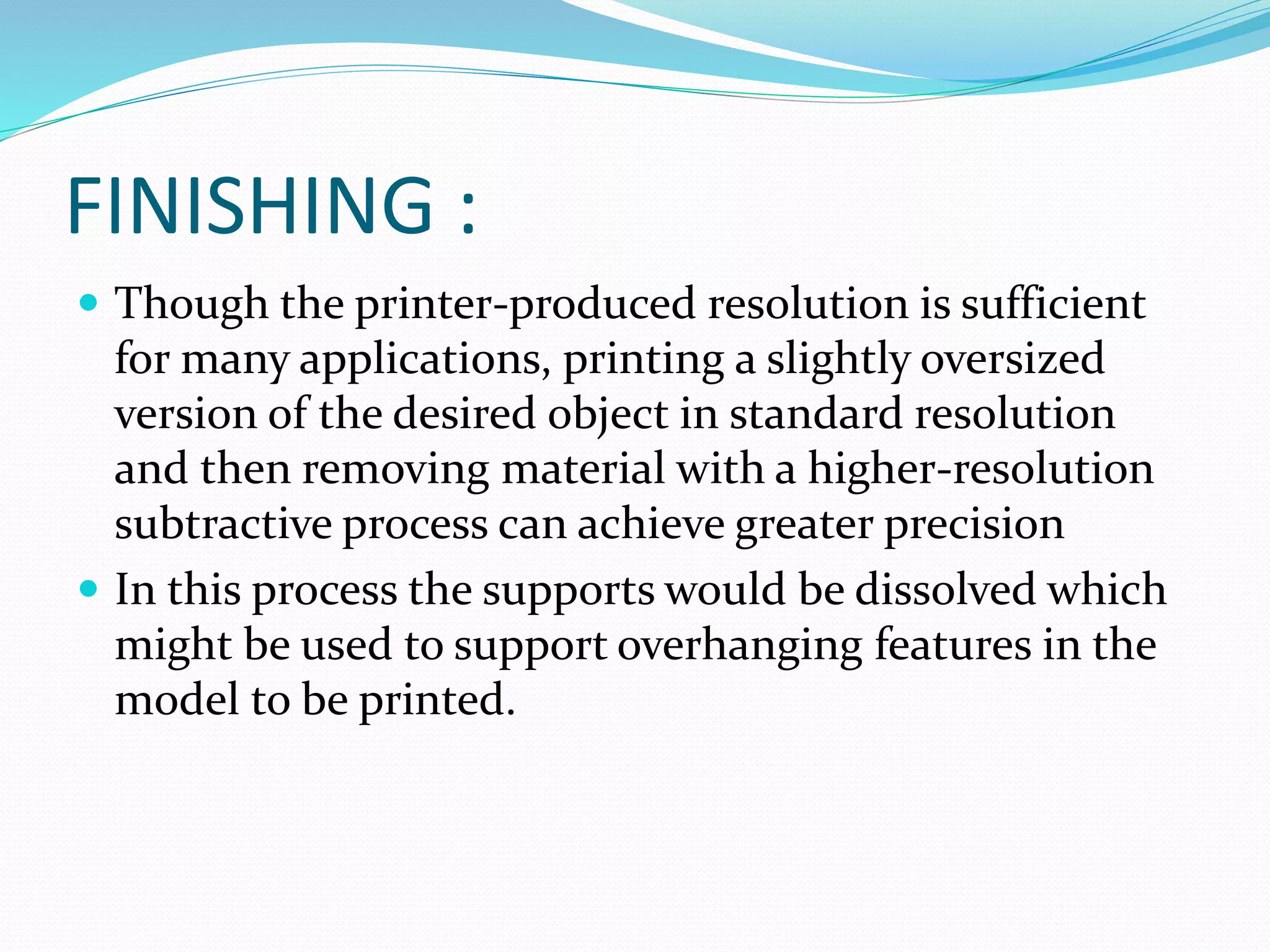

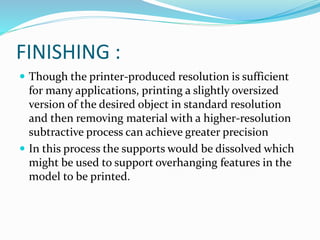

FINISHING :
 Though the printer-produced resolution is sufficient
for many applications, printing a slightly oversized
version of the desired object in standard resolution
and then removing material with a higher-resolution
subtractive process can achieve greater precision
 In this process the supports would be dissolved which
might be used to support overhanging features in the
model to be printed.

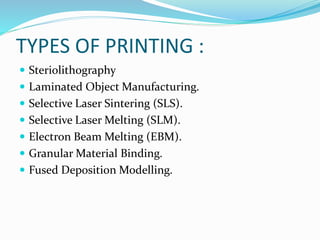

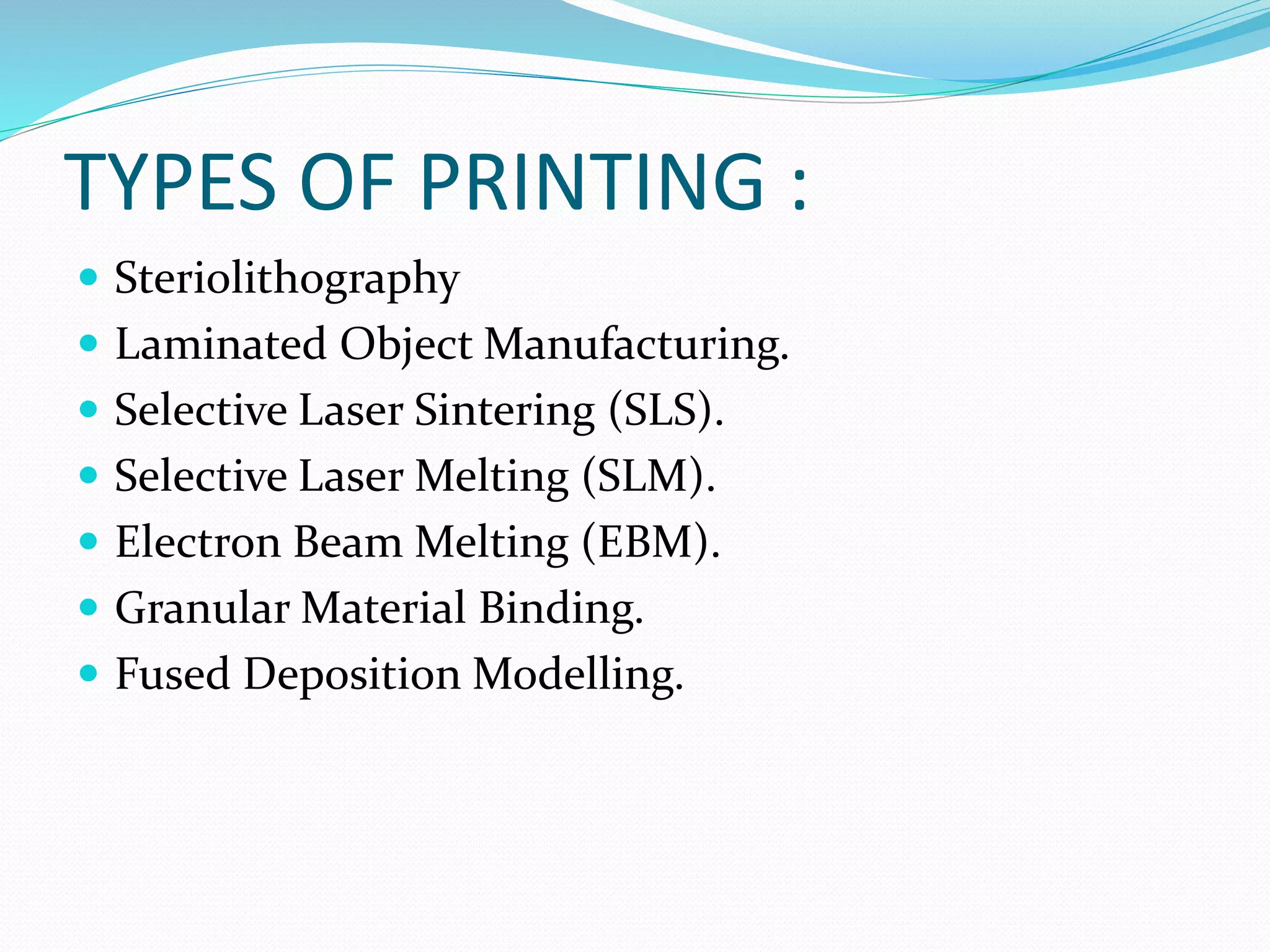

TYPES OF PRINTING :
 Steriolithography
 Laminated Object Manufacturing.
 Selective Laser Sintering (SLS).
 Selective Laser Melting (SLM).
 Electron Beam Melting (EBM).
 Granular Material Binding.
 Fused Deposition Modelling.

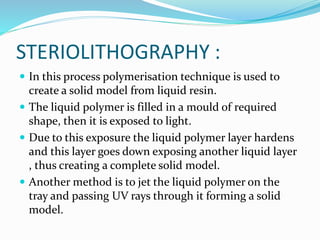

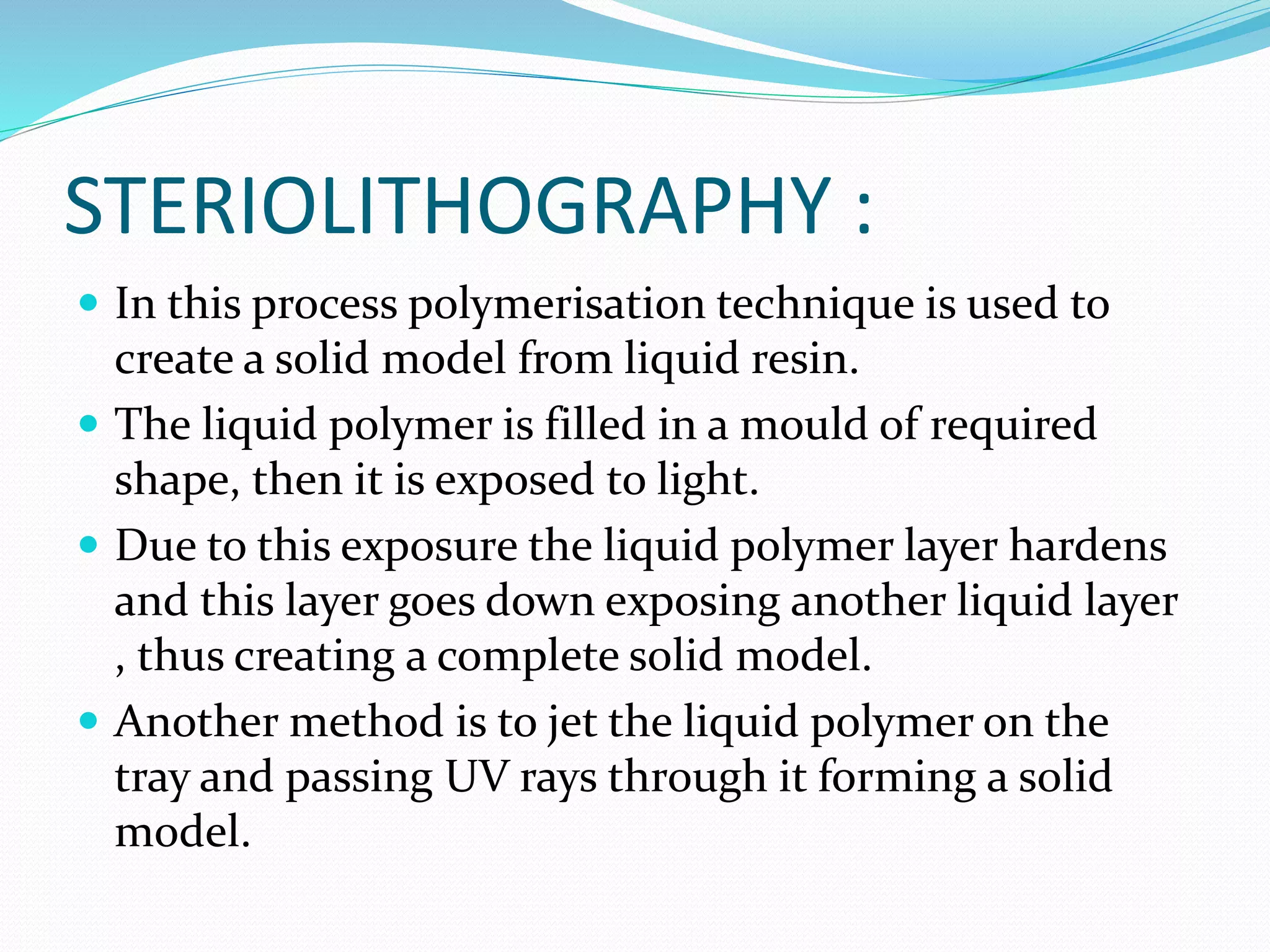

STERIOLITHOGRAPHY :
 In this process polymerisation technique is used to
create a solid model from liquid resin.
 The liquid polymer is filled in a mould of required
shape, then it is exposed to light.
 Due to this exposure the liquid polymer layer hardens
and this layer goes down exposing another liquid layer
, thus creating a complete solid model.
 Another method is to jet the liquid polymer on the
tray and passing UV rays through it forming a solid
model.
LASER STIRIOLITHOGRAPHY :

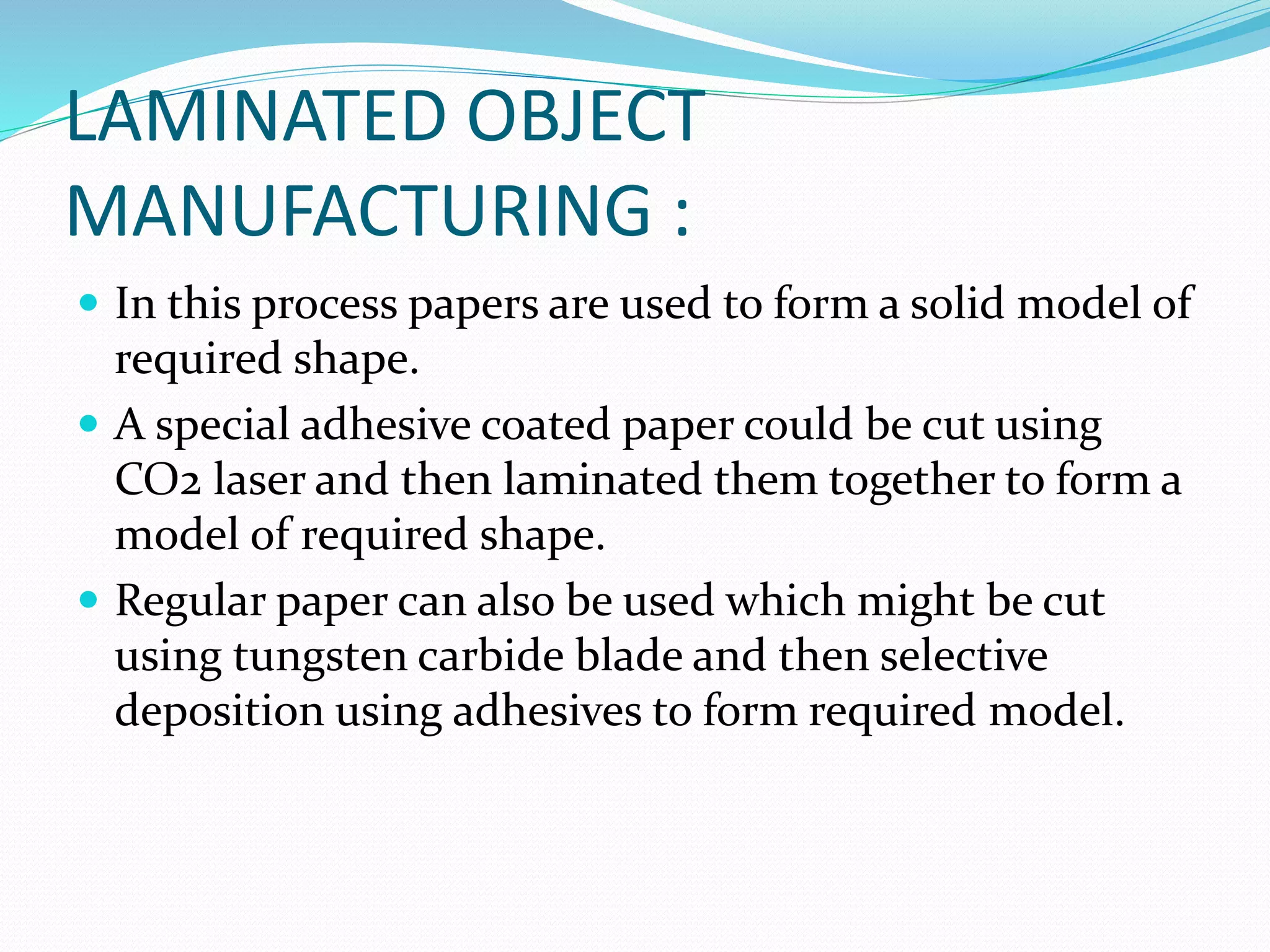

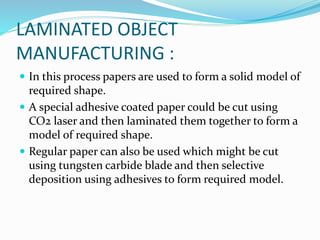

LAMINATED OBJECT
MANUFACTURING :
 In this process papers are used to form a solid model of
required shape.
 A special adhesive coated paper could be cut using
CO2 laser and then laminated them together to form a
model of required shape.
 Regular paper can also be used which might be cut
using tungsten carbide blade and then selective
deposition using adhesives to form required model.

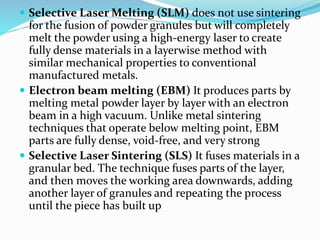

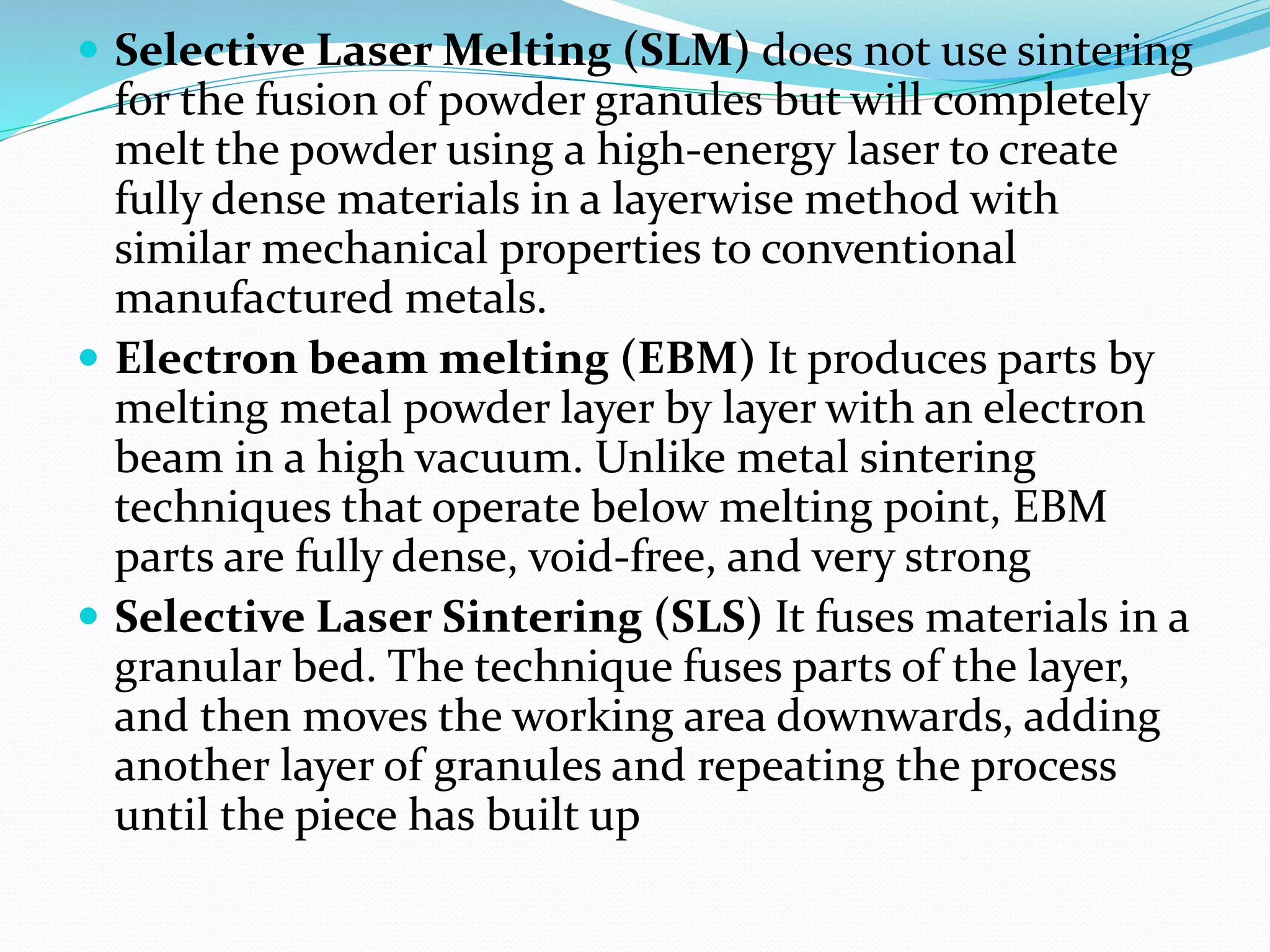

 Selective Laser Melting (SLM) does not use sintering
for the fusion of powder granules but will completely
melt the powder using a high-energy laser to create
fully dense materials in a layerwise method with
similar mechanical properties to conventional
manufactured metals.
 Electron beam melting (EBM) It produces parts by
melting metal powder layer by layer with an electron
beam in a high vacuum. Unlike metal sintering
techniques that operate below melting point, EBM
parts are fully dense, void-free, and very strong
 Selective Laser Sintering (SLS) It fuses materials in a
granular bed. The technique fuses parts of the layer,
and then moves the working area downwards, adding
another layer of granules and repeating the process
until the piece has built up

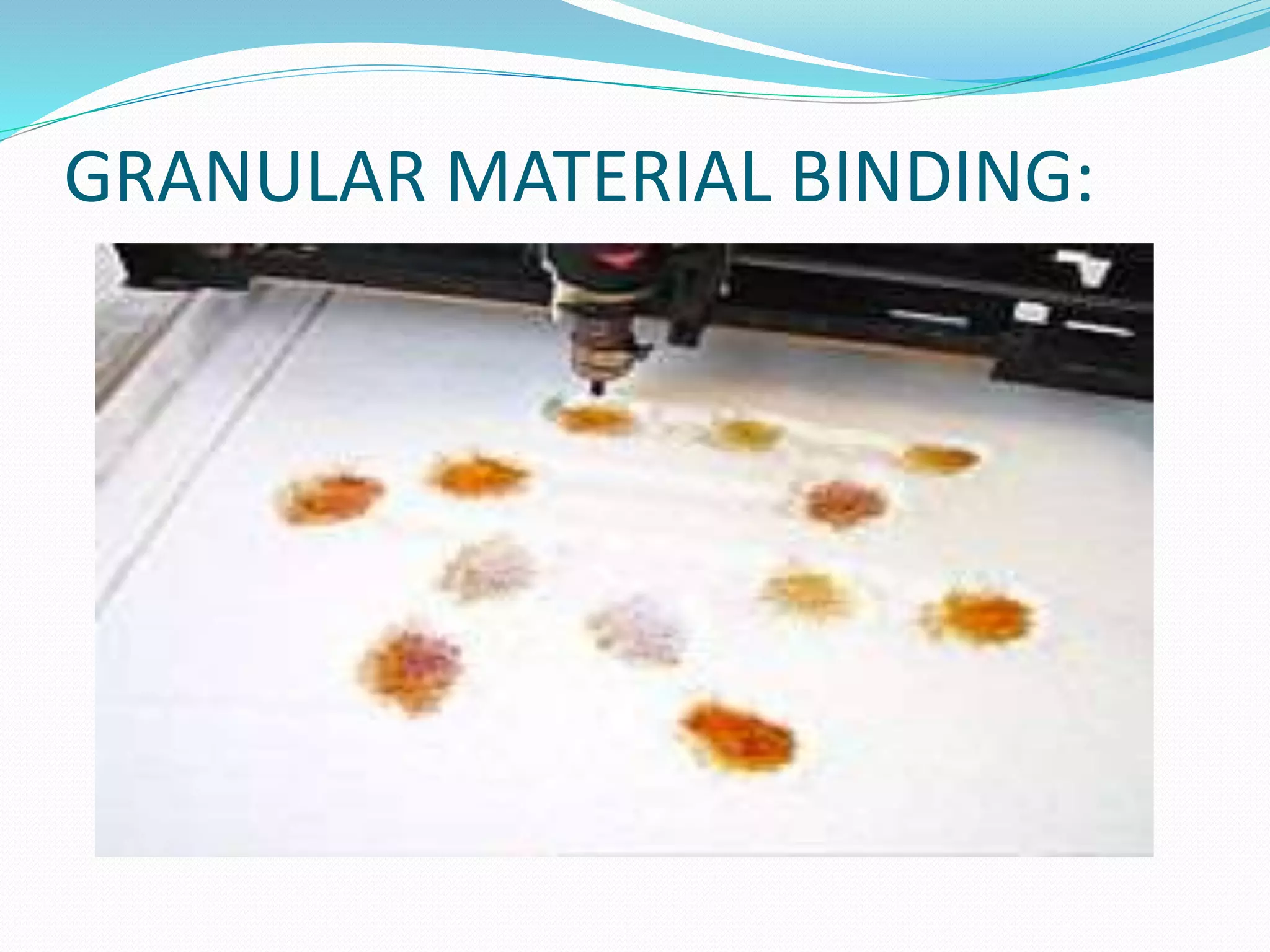

GRANULAR MATERIAL BINDING:

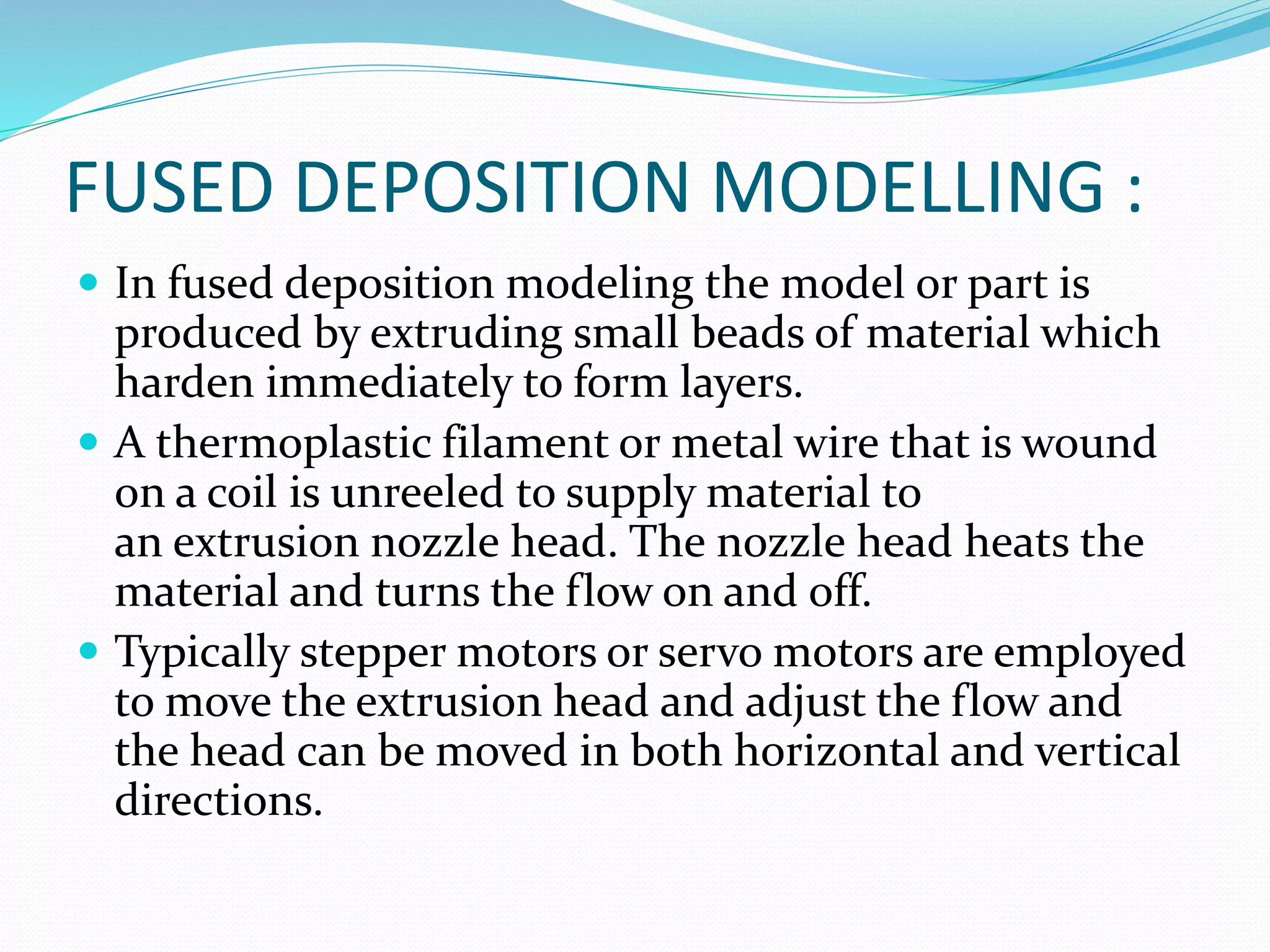

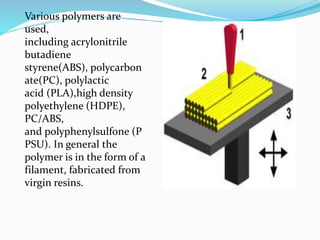

FUSED DEPOSITION MODELLING :
 In fused deposition modeling the model or part is
produced by extruding small beads of material which
harden immediately to form layers.
 A thermoplastic filament or metal wire that is wound
on a coil is unreeled to supply material to
an extrusion nozzle head. The nozzle head heats the
material and turns the flow on and off.
 Typically stepper motors or servo motors are employed
to move the extrusion head and adjust the flow and
the head can be moved in both horizontal and vertical
directions.

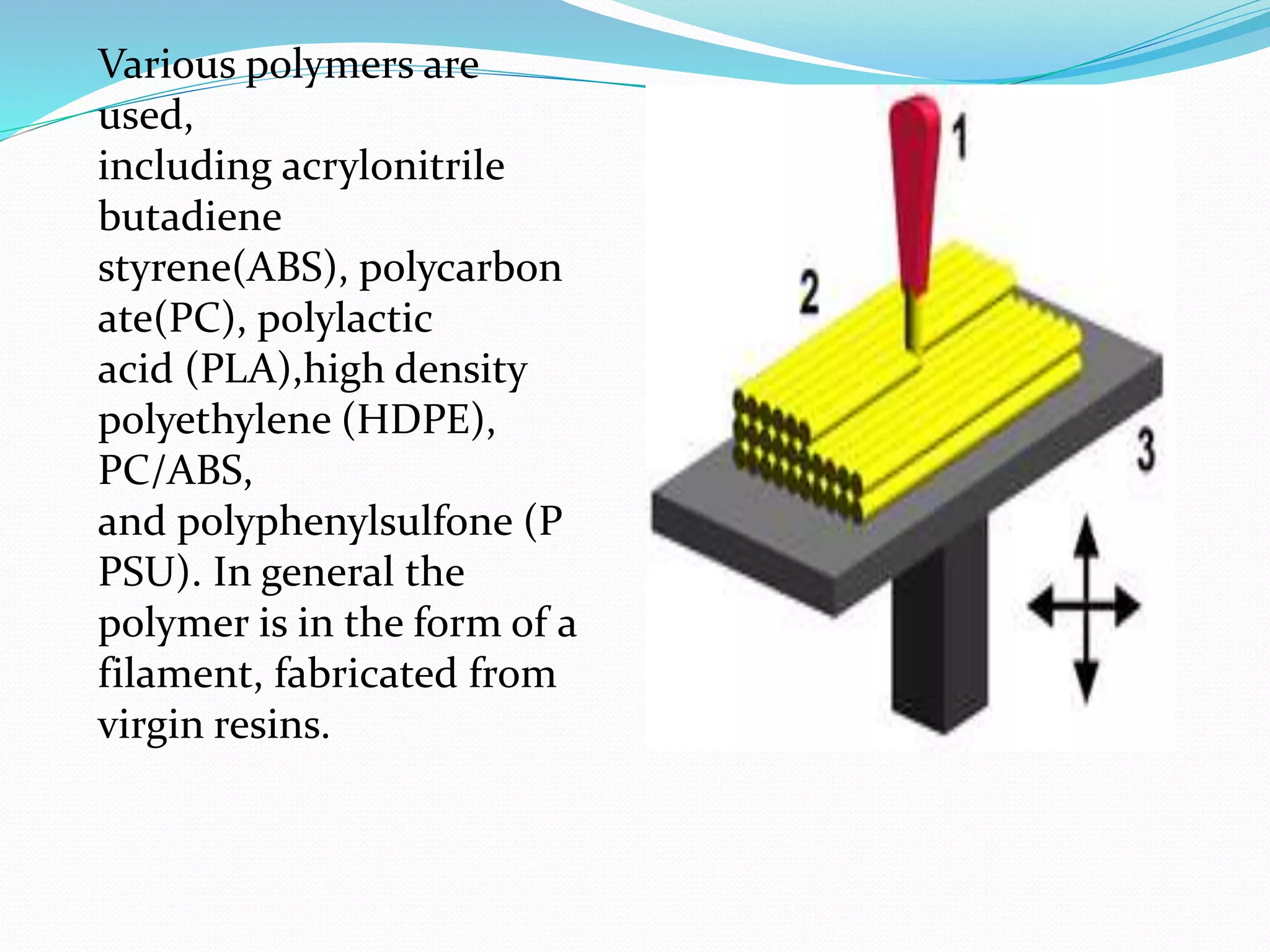

Various polymers are
used,
including acrylonitrile
butadiene
styrene(ABS), polycarbon
ate(PC), polylactic
acid (PLA),high density
polyethylene (HDPE),
PC/ABS,
and polyphenylsulfone (P
PSU). In general the
polymer is in the form of a
filament, fabricated from
virgin resins.
Paper By :- Terry Wohlers
September 7th 2013

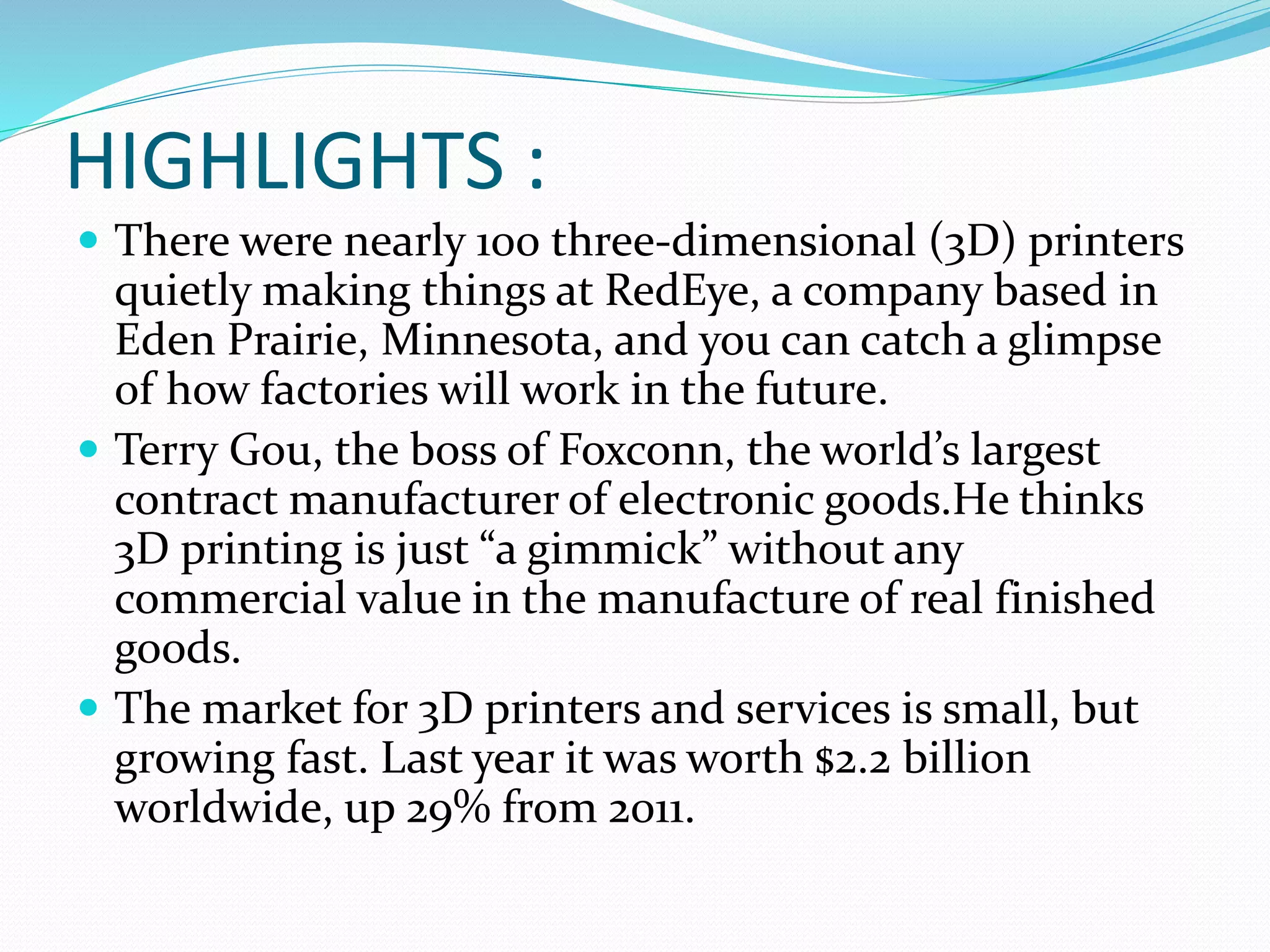

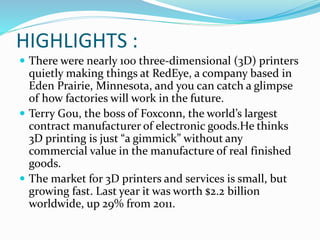

HIGHLIGHTS :
 There were nearly 100 three-dimensional (3D) printers
quietly making things at RedEye, a company based in
Eden Prairie, Minnesota, and you can catch a glimpse
of how factories will work in the future.
 Terry Gou, the boss of Foxconn, the world’s largest
contract manufacturer of electronic goods.He thinks
3D printing is just “a gimmick” without any
commercial value in the manufacture of real finished
goods.
 The market for 3D printers and services is small, but
growing fast. Last year it was worth $2.2 billion
worldwide, up 29% from 2011.

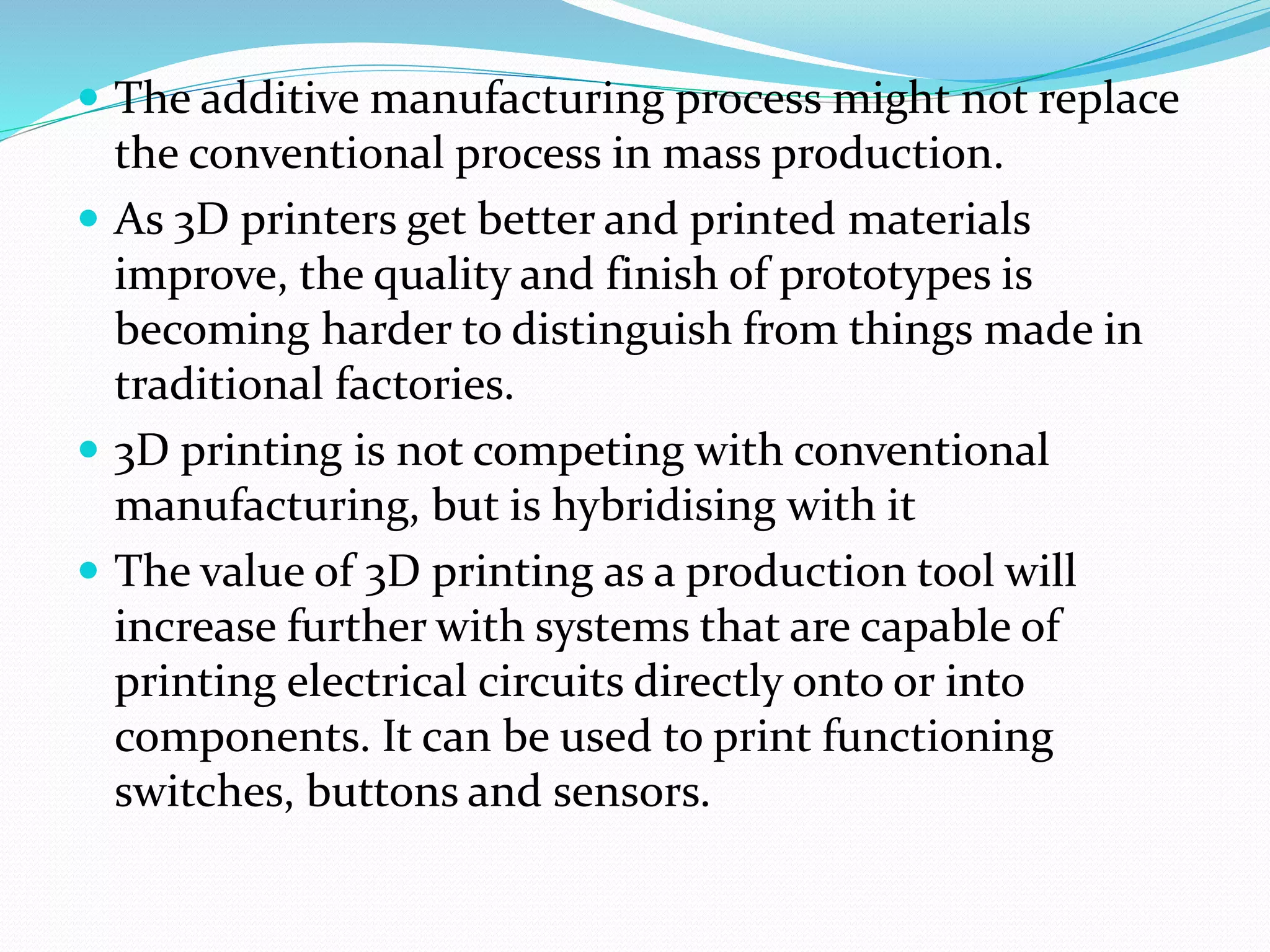

 The additive manufacturing process might not replace
the conventional process in mass production.
 As 3D printers get better and printed materials
improve, the quality and finish of prototypes is
becoming harder to distinguish from things made in
traditional factories.
 3D printing is not competing with conventional
manufacturing, but is hybridising with it
 The value of 3D printing as a production tool will
increase further with systems that are capable of
printing electrical circuits directly onto or into
components. It can be used to print functioning
switches, buttons and sensors.

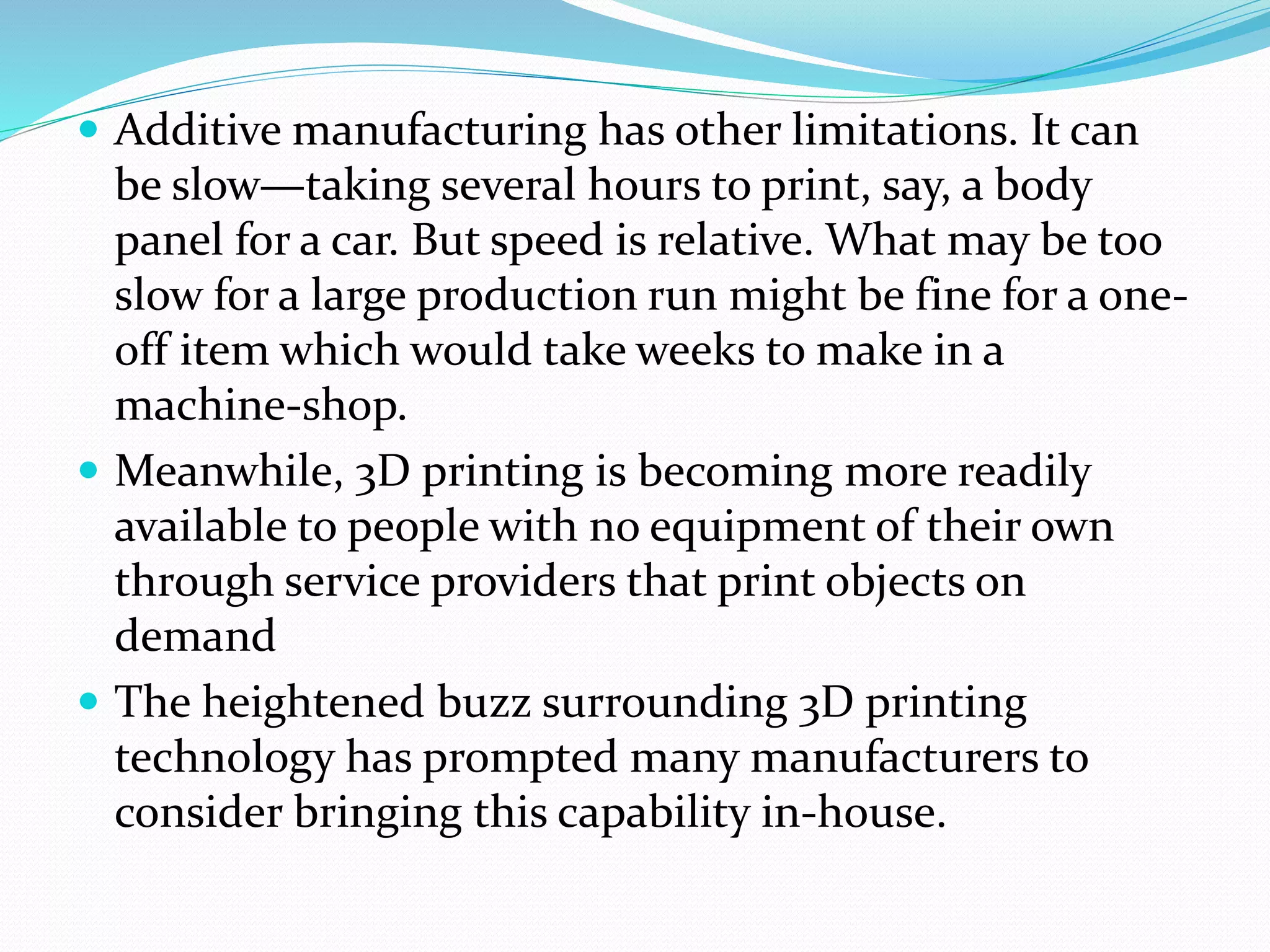

 Additive manufacturing has other limitations. It can
be slow—taking several hours to print, say, a body
panel for a car. But speed is relative. What may be too
slow for a large production run might be fine for a one-off
item which would take weeks to make in a
machine-shop.
 Meanwhile, 3D printing is becoming more readily
available to people with no equipment of their own
through service providers that print objects on
demand
 The heightened buzz surrounding 3D printing
technology has prompted many manufacturers to
consider bringing this capability in-house.
Paper By :- Tim Thellin
10th August 2005

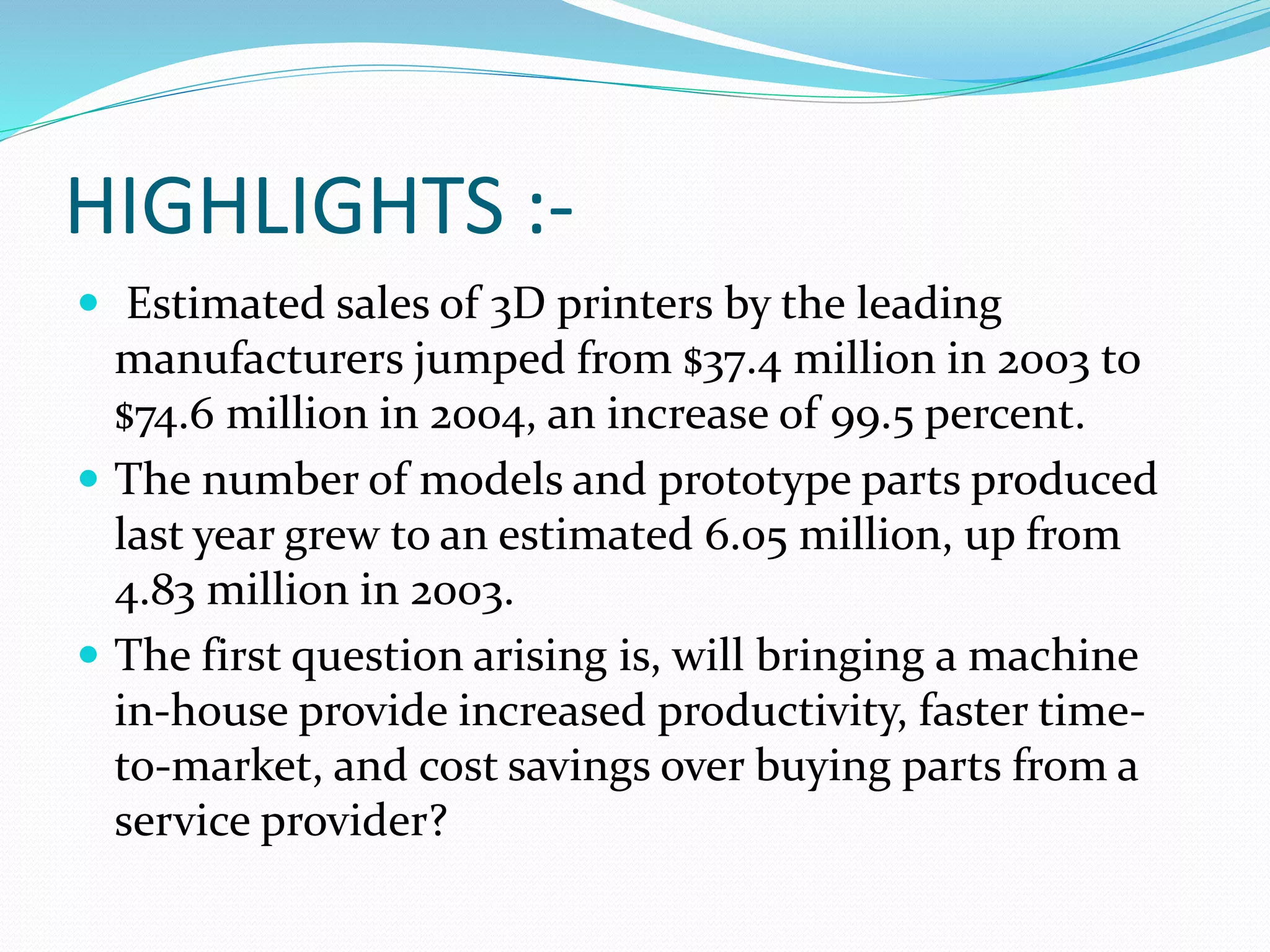

HIGHLIGHTS :-
 Estimated sales of 3D printers by the leading
manufacturers jumped from $37.4 million in 2003 to
$74.6 million in 2004, an increase of 99.5 percent.
 The number of models and prototype parts produced
last year grew to an estimated 6.05 million, up from
4.83 million in 2003.
 The first question arising is, will bringing a machine
in-house provide increased productivity, faster time-to-
market, and cost savings over buying parts from a
service provider?

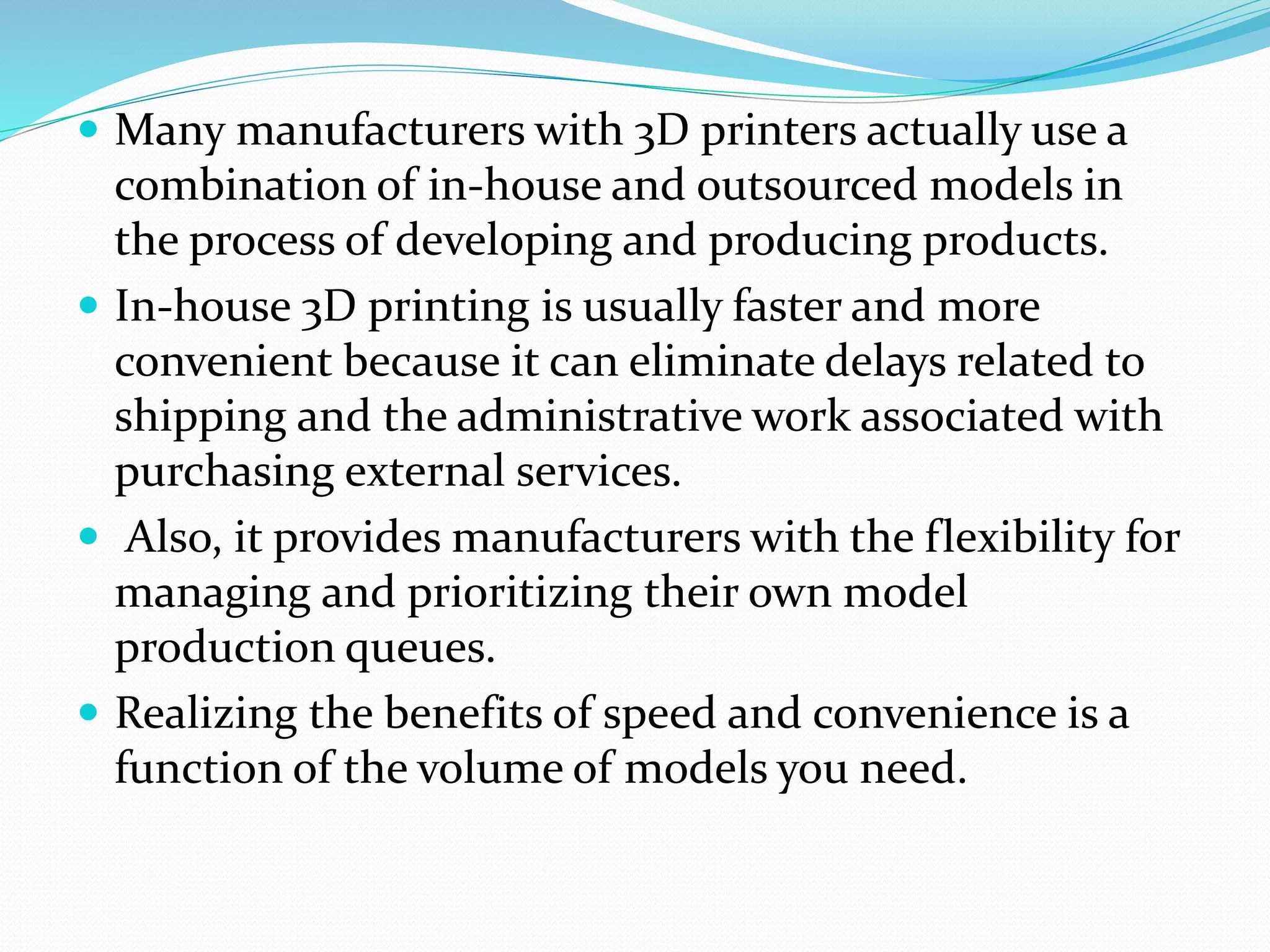

 Many manufacturers with 3D printers actually use a
combination of in-house and outsourced models in
the process of developing and producing products.
 In-house 3D printing is usually faster and more
convenient because it can eliminate delays related to
shipping and the administrative work associated with
purchasing external services.
 Also, it provides manufacturers with the flexibility for
managing and prioritizing their own model
production queues.
 Realizing the benefits of speed and convenience is a
function of the volume of models you need.

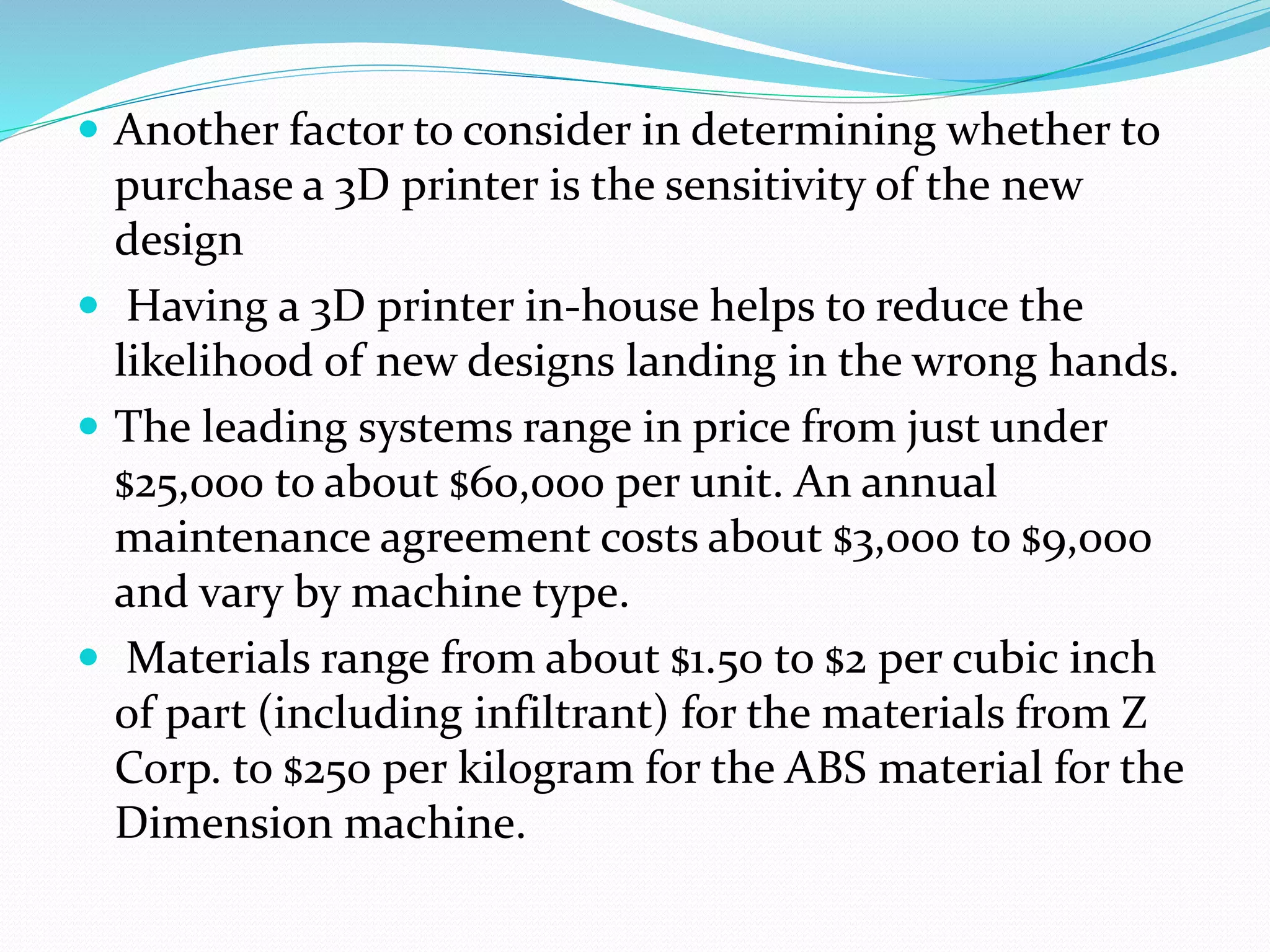

 Another factor to consider in determining whether to
purchase a 3D printer is the sensitivity of the new
design
 Having a 3D printer in-house helps to reduce the
likelihood of new designs landing in the wrong hands.
 The leading systems range in price from just under
$25,000 to about $60,000 per unit. An annual
maintenance agreement costs about $3,000 to $9,000
and vary by machine type.
 Materials range from about $1.50 to $2 per cubic inch
of part (including infiltrant) for the materials from Z
Corp. to $250 per kilogram for the ABS material for the
Dimension machine.

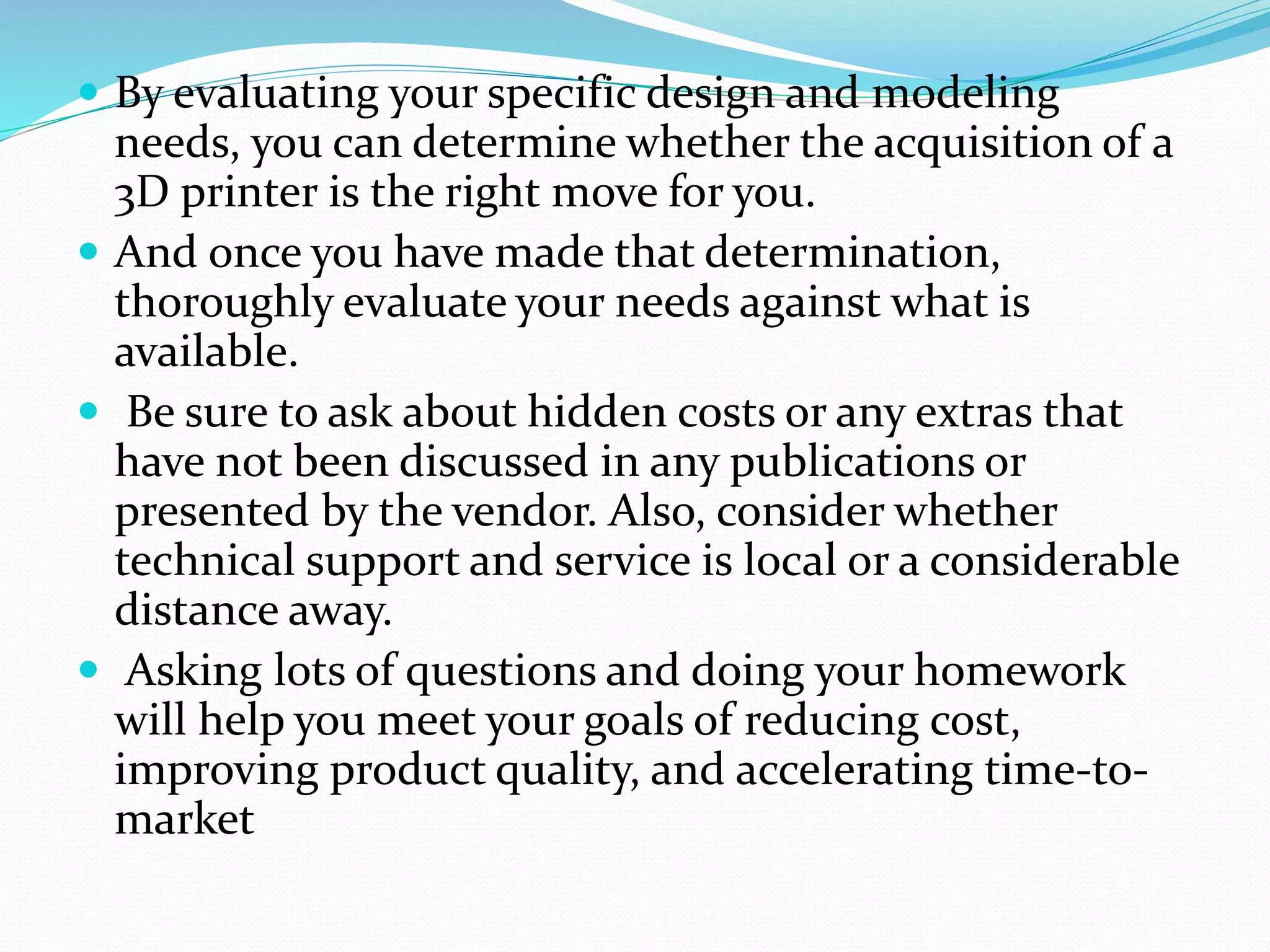

 By evaluating your specific design and modeling
needs, you can determine whether the acquisition of a
3D printer is the right move for you.
 And once you have made that determination,
thoroughly evaluate your needs against what is
available.
 Be sure to ask about hidden costs or any extras that
have not been discussed in any publications or
presented by the vendor. Also, consider whether
technical support and service is local or a considerable
distance away.
 Asking lots of questions and doing your homework
will help you meet your goals of reducing cost,
improving product quality, and accelerating time-to-market

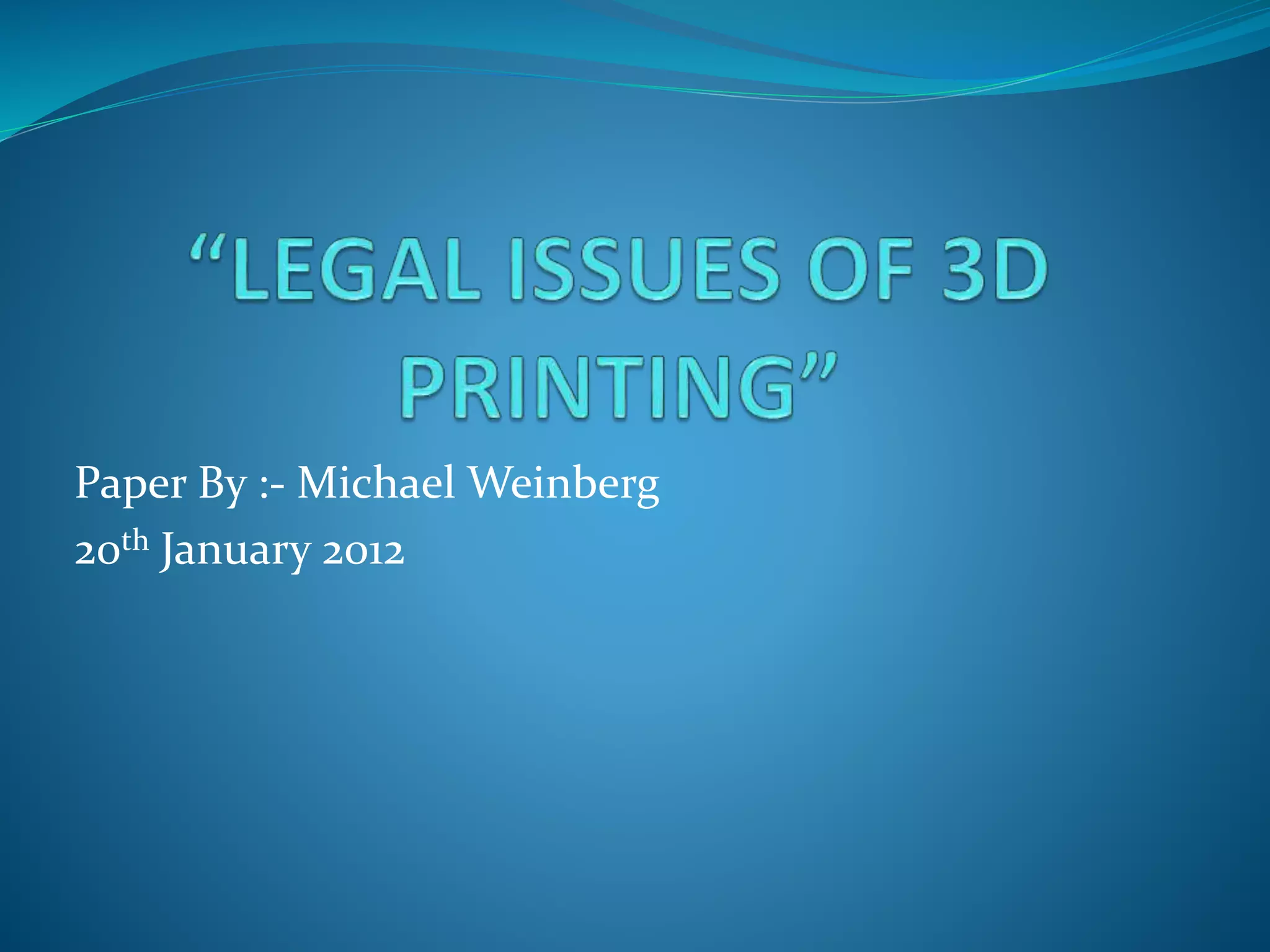

Paper By :- Michael Weinberg
20th January 2012

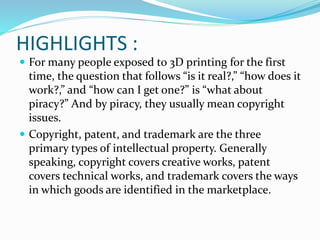

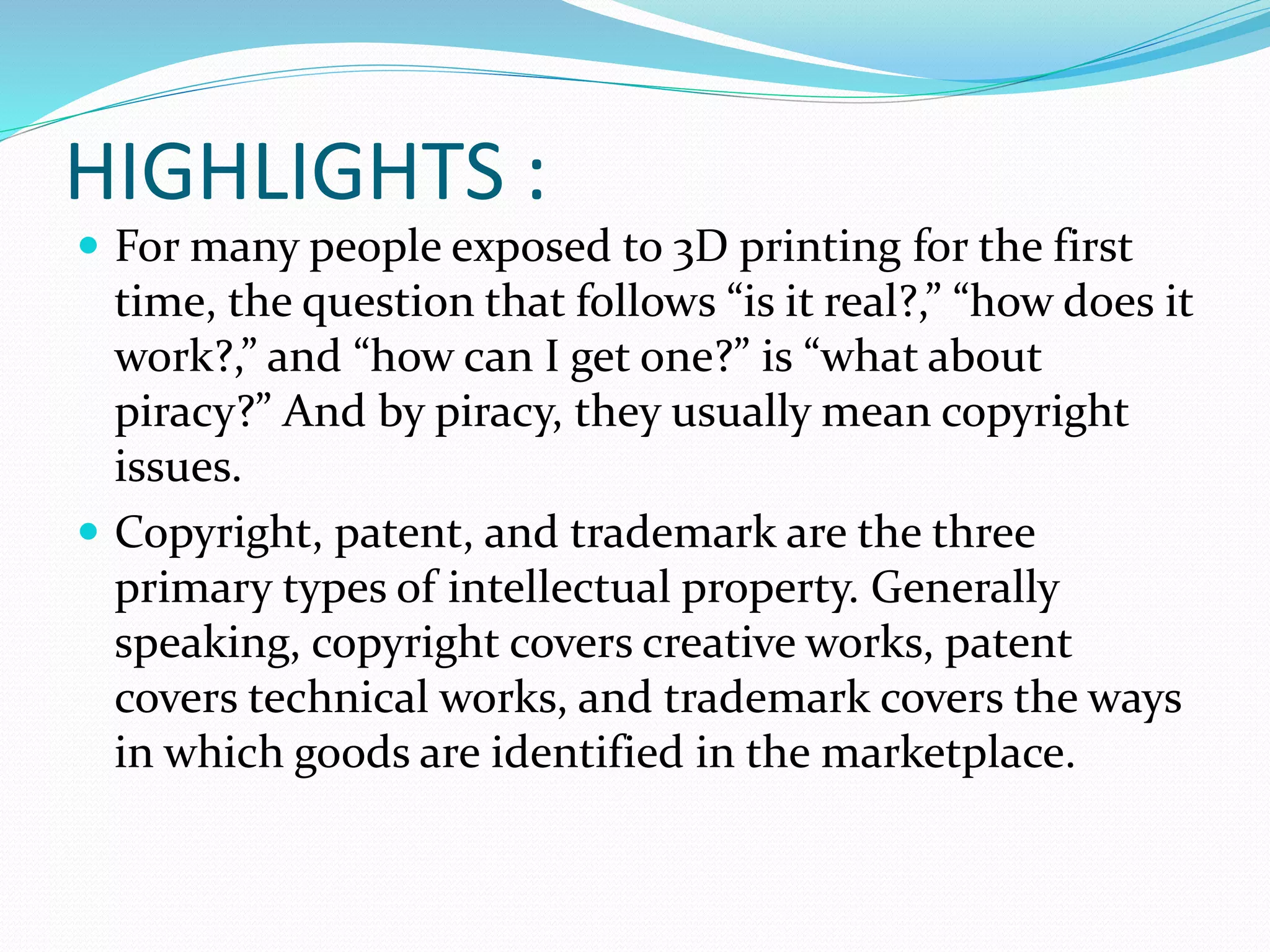

HIGHLIGHTS :
 For many people exposed to 3D printing for the first
time, the question that follows “is it real?,” “how does it
work?,” and “how can I get one?” is “what about
piracy?” And by piracy, they usually mean copyright
issues.
 Copyright, patent, and trademark are the three
primary types of intellectual property. Generally
speaking, copyright covers creative works, patent
covers technical works, and trademark covers the ways
in which goods are identified in the marketplace.
3 d printing ppt

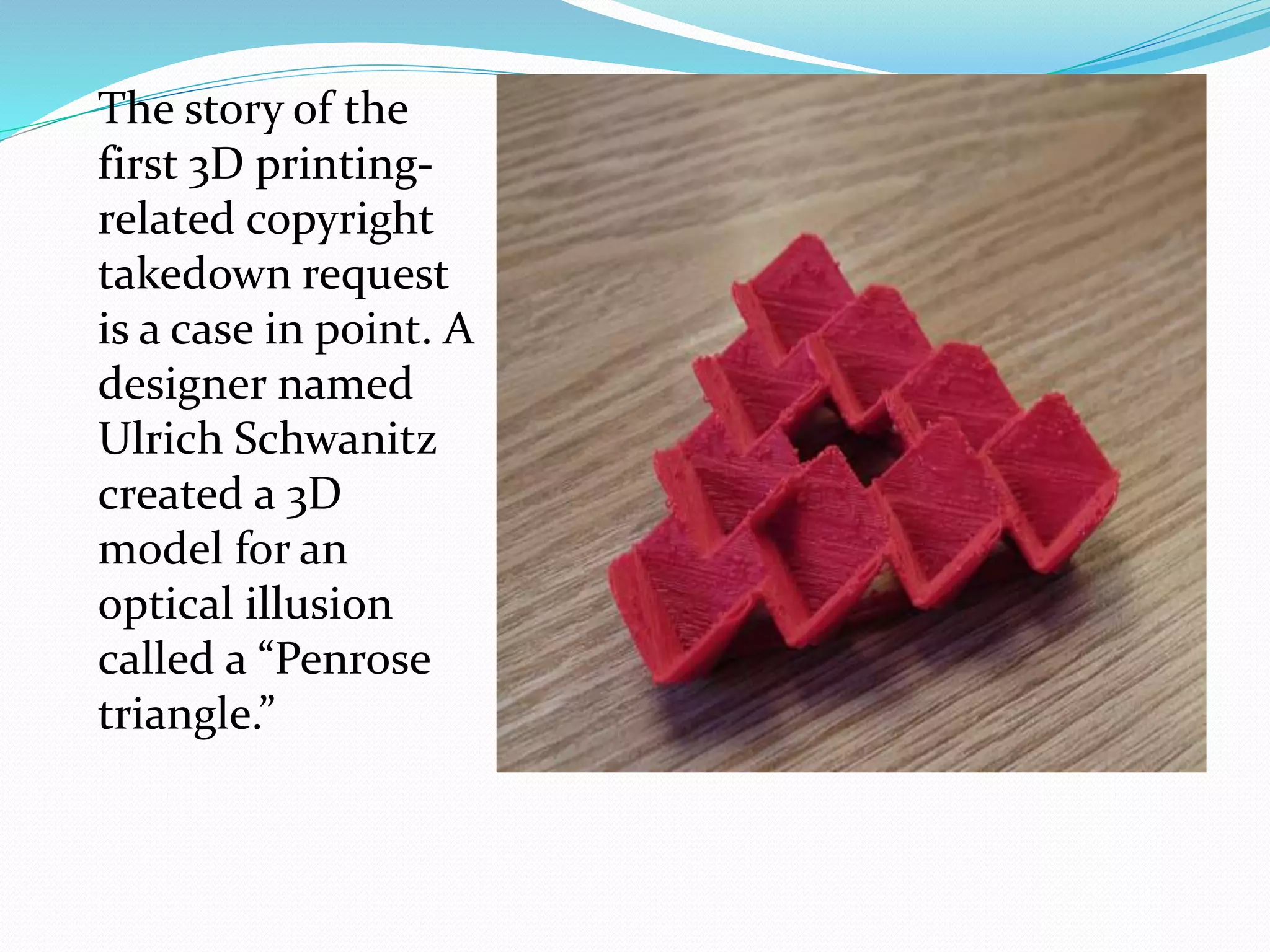

The story of the
first 3D printing-related
copyright
takedown request
is a case in point. A
designer named
Ulrich Schwanitz
created a 3D
model for an
optical illusion
called a “Penrose
triangle.”

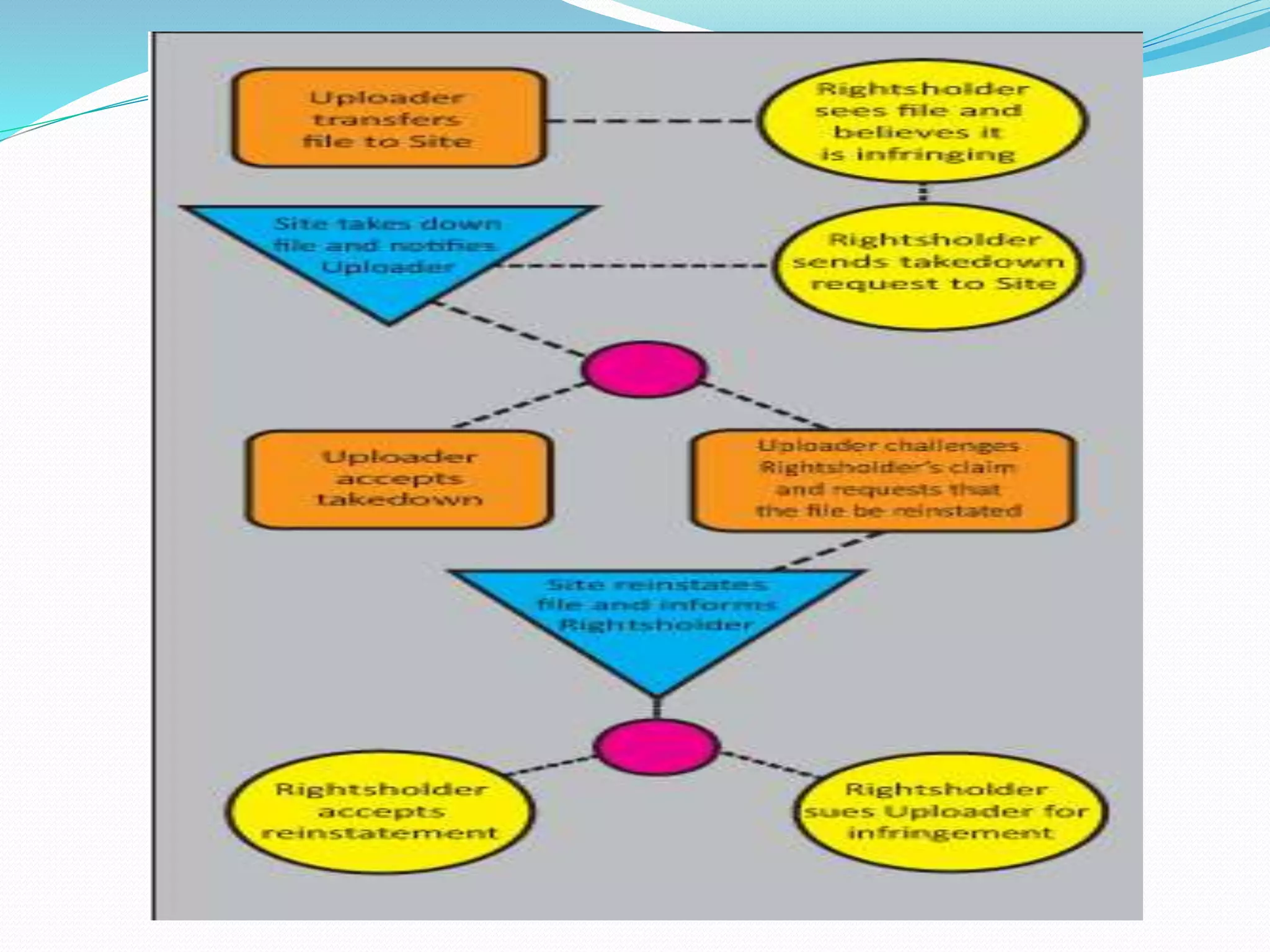

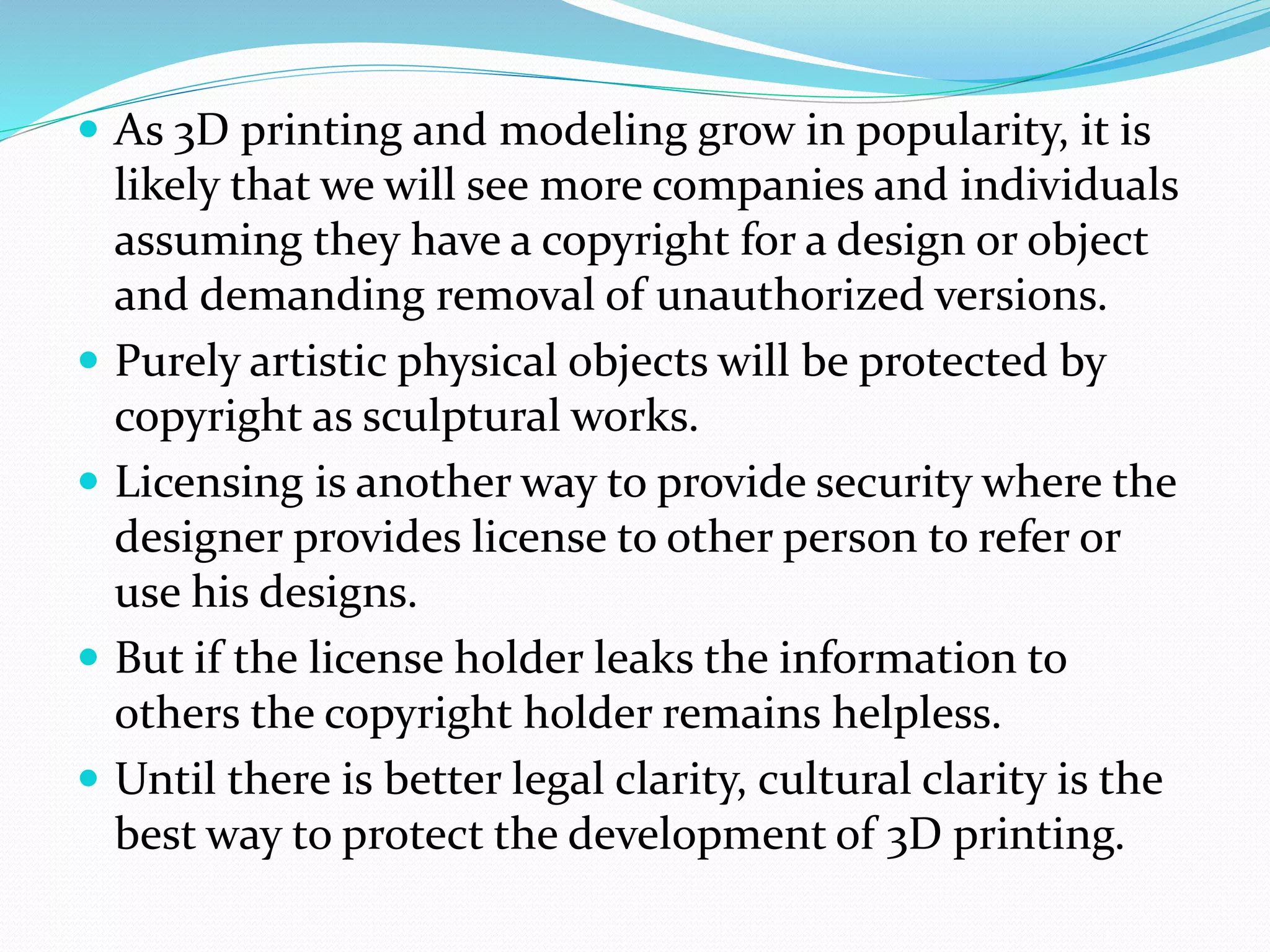

 As 3D printing and modeling grow in popularity, it is
likely that we will see more companies and individuals
assuming they have a copyright for a design or object
and demanding removal of unauthorized versions.
 Purely artistic physical objects will be protected by
copyright as sculptural works.
 Licensing is another way to provide security where the
designer provides license to other person to refer or
use his designs.
 But if the license holder leaks the information to
others the copyright holder remains helpless.
 Until there is better legal clarity, cultural clarity is the
best way to protect the development of 3D printing.

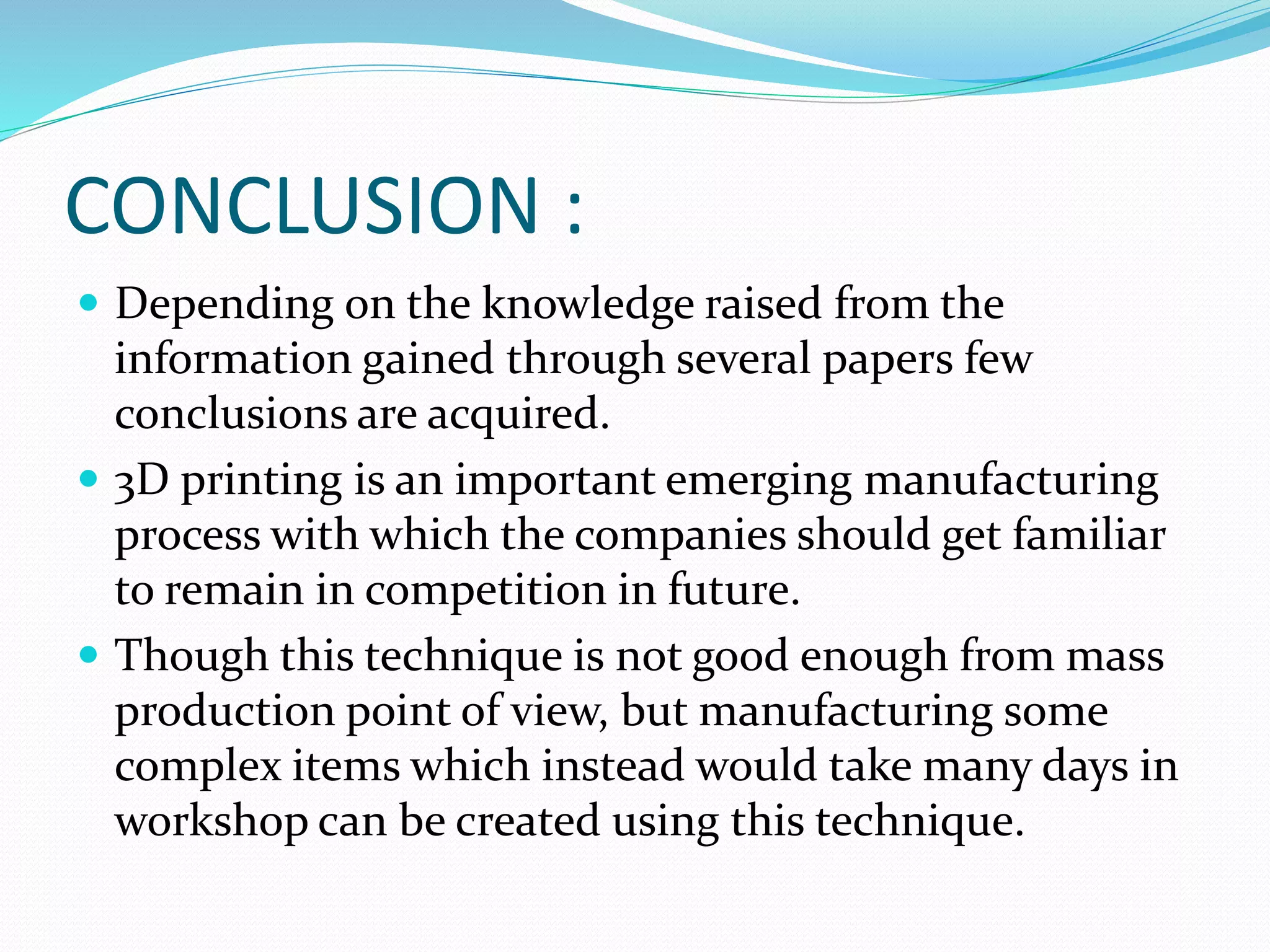

CONCLUSION :
 Depending on the knowledge raised from the
information gained through several papers few
conclusions are acquired.
 3D printing is an important emerging manufacturing
process with which the companies should get familiar
to remain in competition in future.
 Though this technique is not good enough from mass
production point of view, but manufacturing some
complex items which instead would take many days in
workshop can be created using this technique.

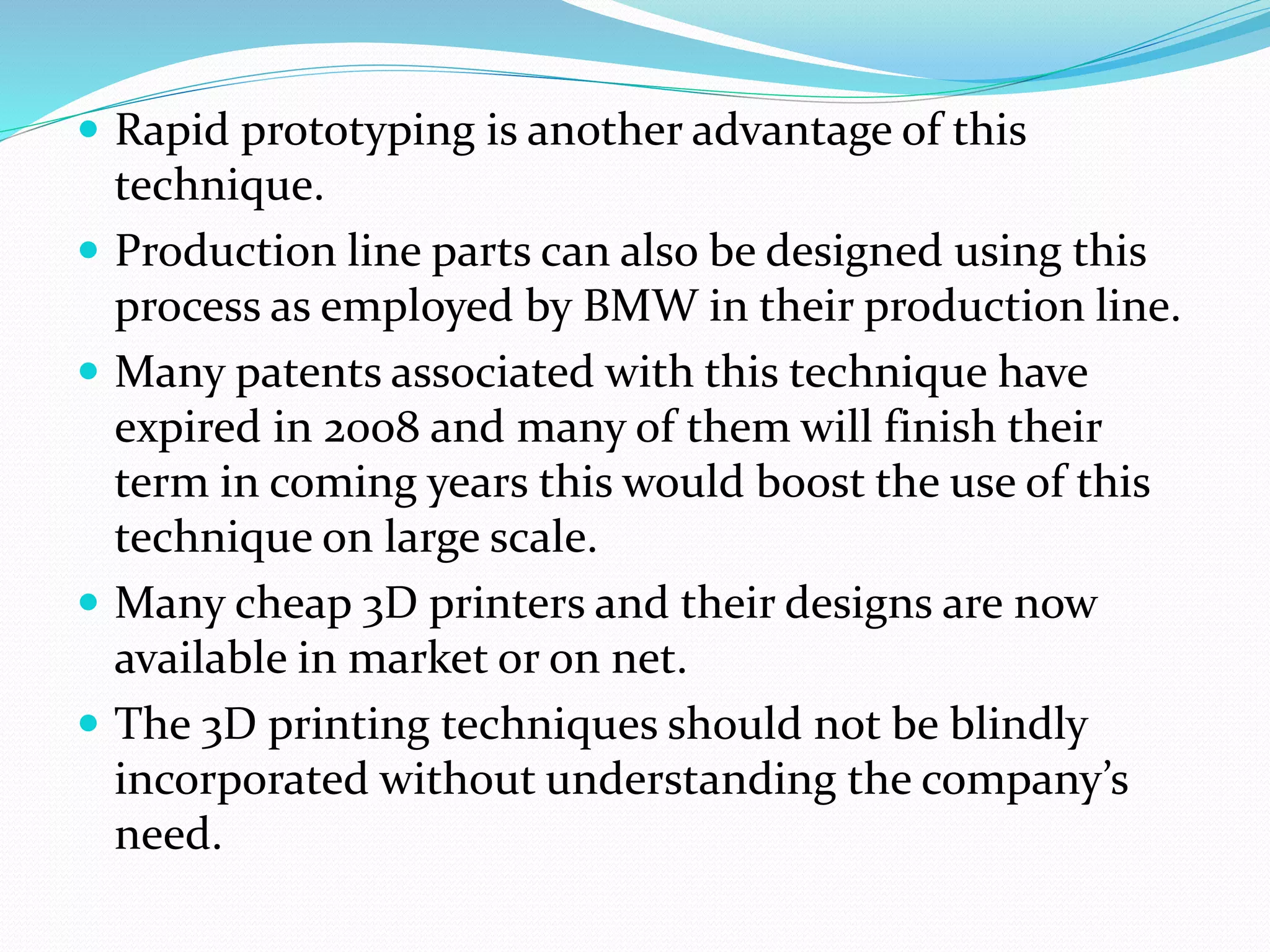

 Rapid prototyping is another advantage of this
technique.
 Production line parts can also be designed using this
process as employed by BMW in their production line.
 Many patents associated with this technique have
expired in 2008 and many of them will finish their
term in coming years this would boost the use of this
technique on large scale.
 Many cheap 3D printers and their designs are now
available in market or on net.
 The 3D printing techniques should not be blindly
incorporated without understanding the company’s
need.

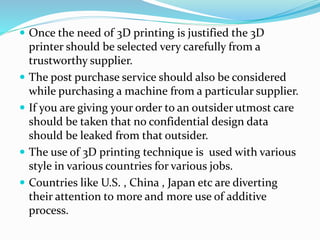

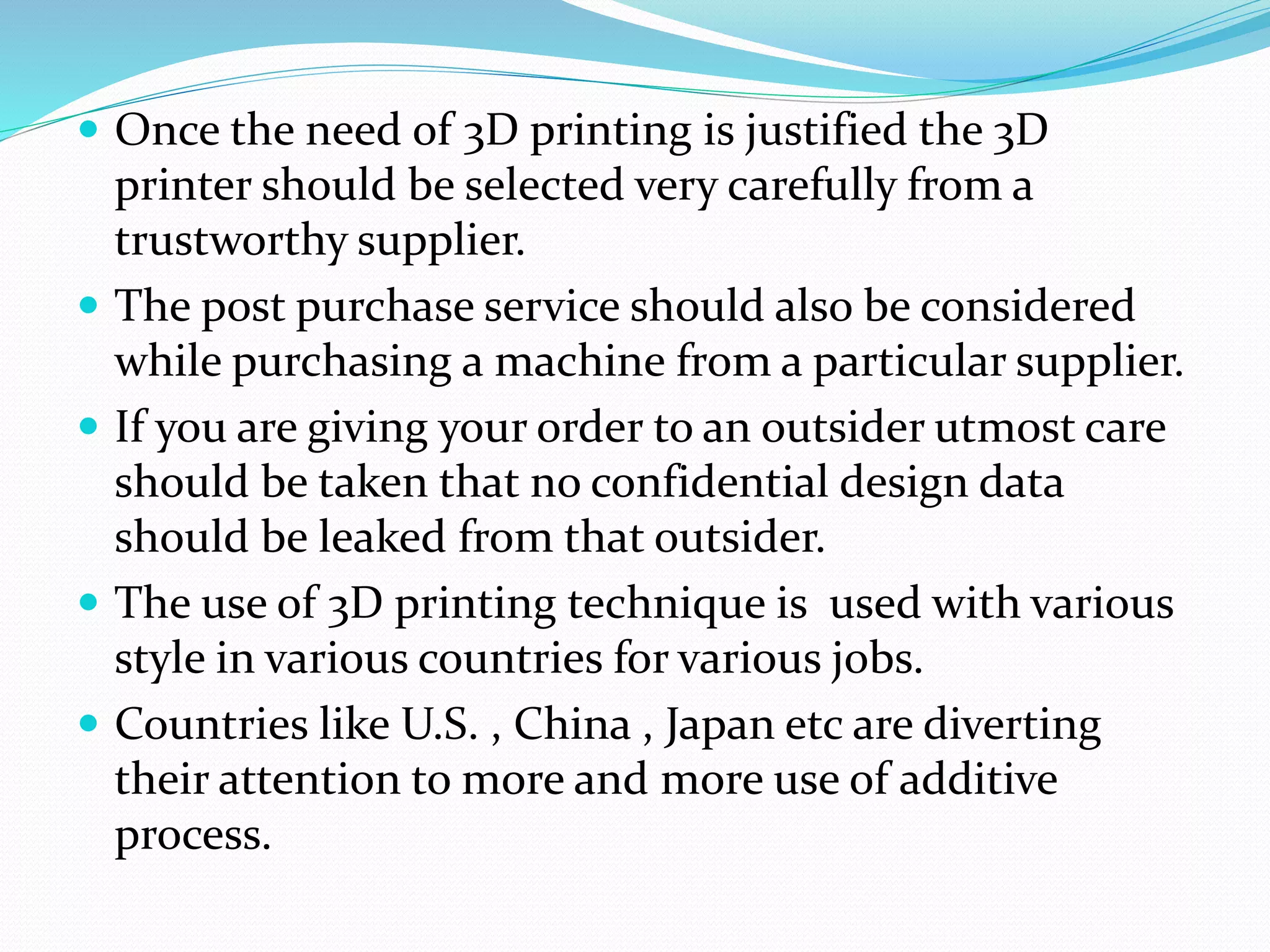

 Once the need of 3D printing is justified the 3D
printer should be selected very carefully from a
trustworthy supplier.
 The post purchase service should also be considered
while purchasing a machine from a particular supplier.
 If you are giving your order to an outsider utmost care
should be taken that no confidential design data
should be leaked from that outsider.
 The use of 3D printing technique is used with various
style in various countries for various jobs.
 Countries like U.S. , China , Japan etc are diverting
their attention to more and more use of additive
process.

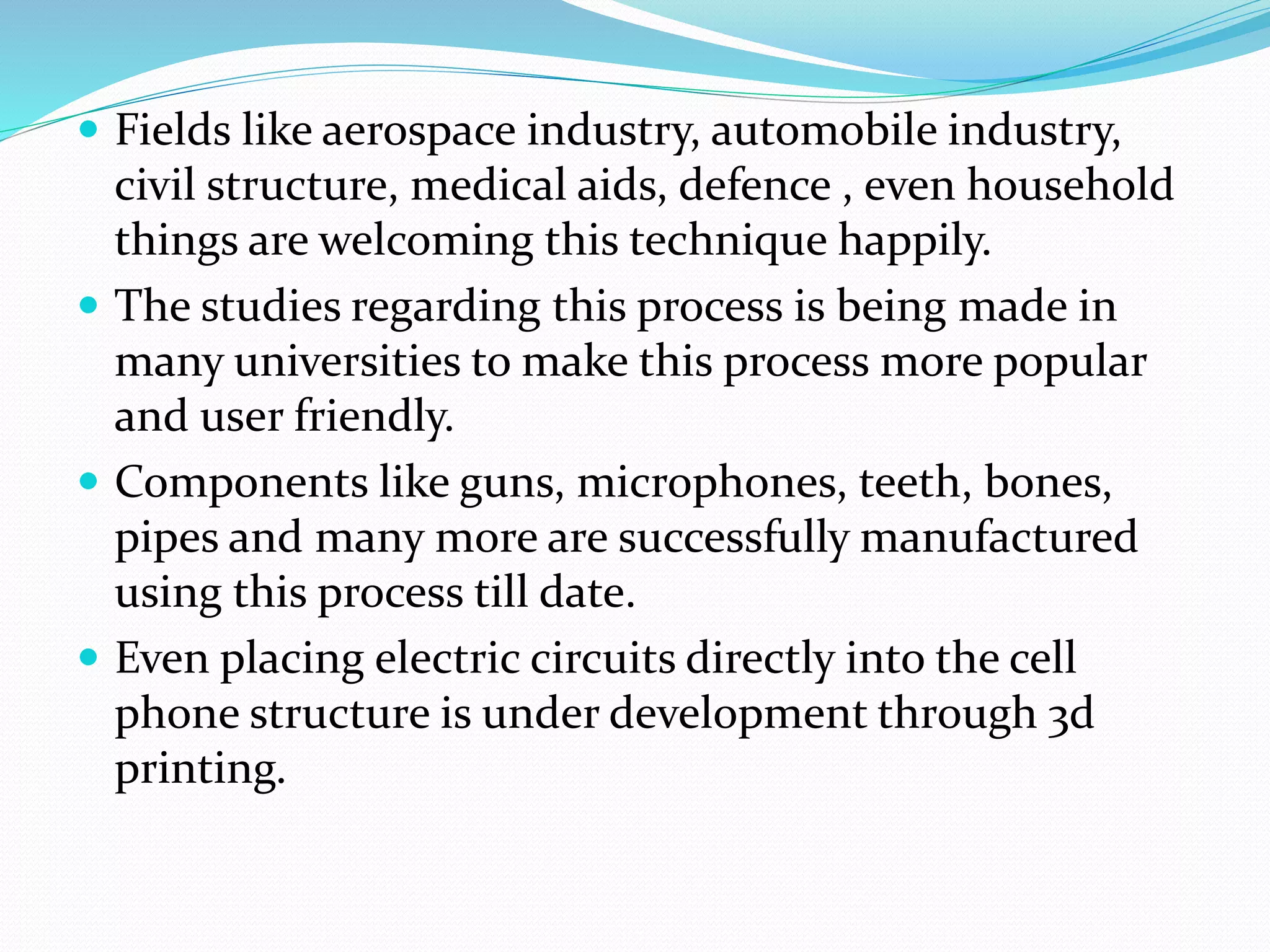

 Fields like aerospace industry, automobile industry,
civil structure, medical aids, defence , even household
things are welcoming this technique happily.
 The studies regarding this process is being made in
many universities to make this process more popular
and user friendly.
 Components like guns, microphones, teeth, bones,
pipes and many more are successfully manufactured
using this process till date.
 Even placing electric circuits directly into the cell
phone structure is under development through 3d
printing.

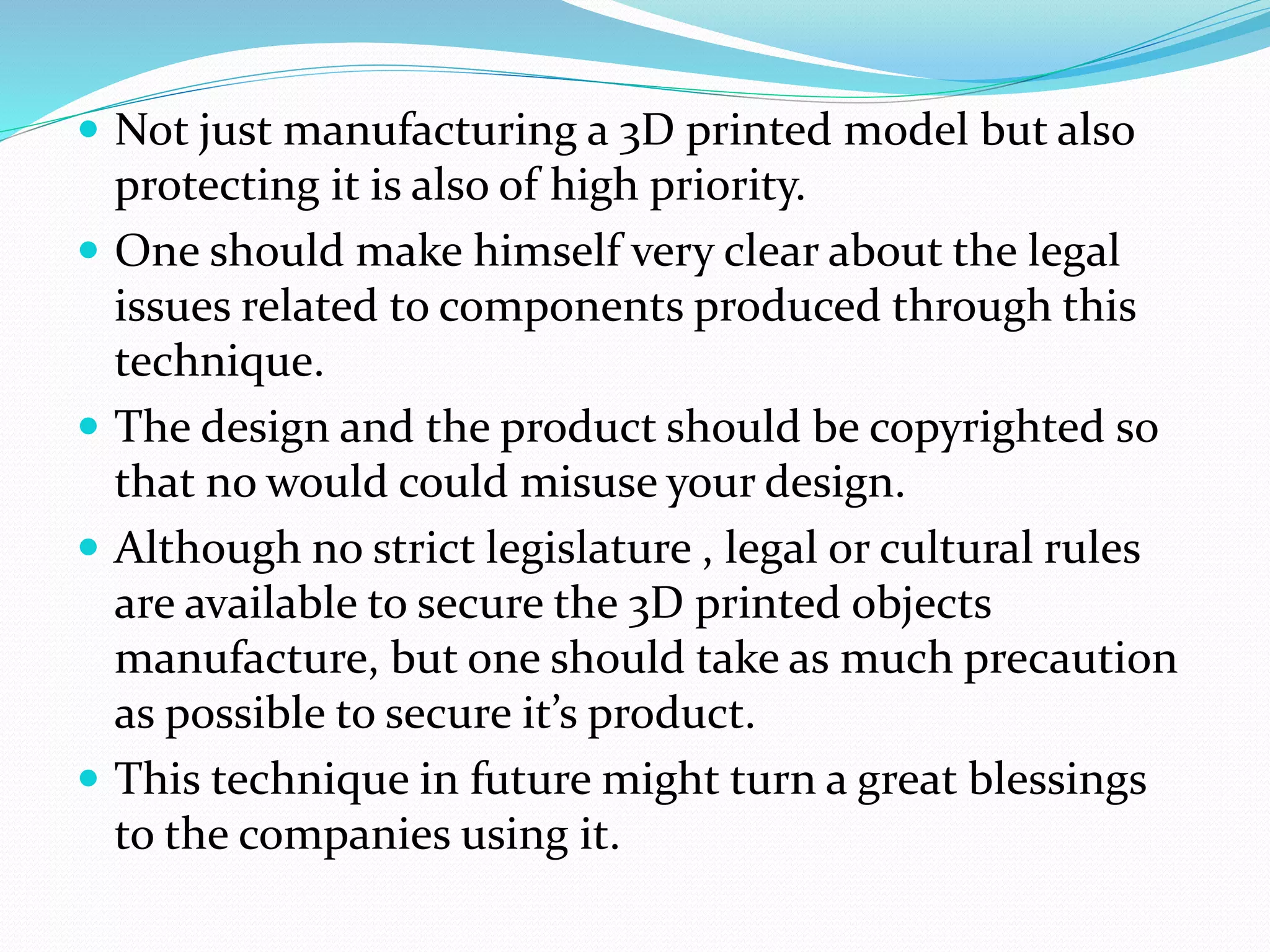

 Not just manufacturing a 3D printed model but also
protecting it is also of high priority.
 One should make himself very clear about the legal
issues related to components produced through this
technique.
 The design and the product should be copyrighted so
that no would could misuse your design.
 Although no strict legislature , legal or cultural rules
are available to secure the 3D printed objects
manufacture, but one should take as much precaution
as possible to secure it’s product.
 This technique in future might turn a great blessings
to the companies using it.

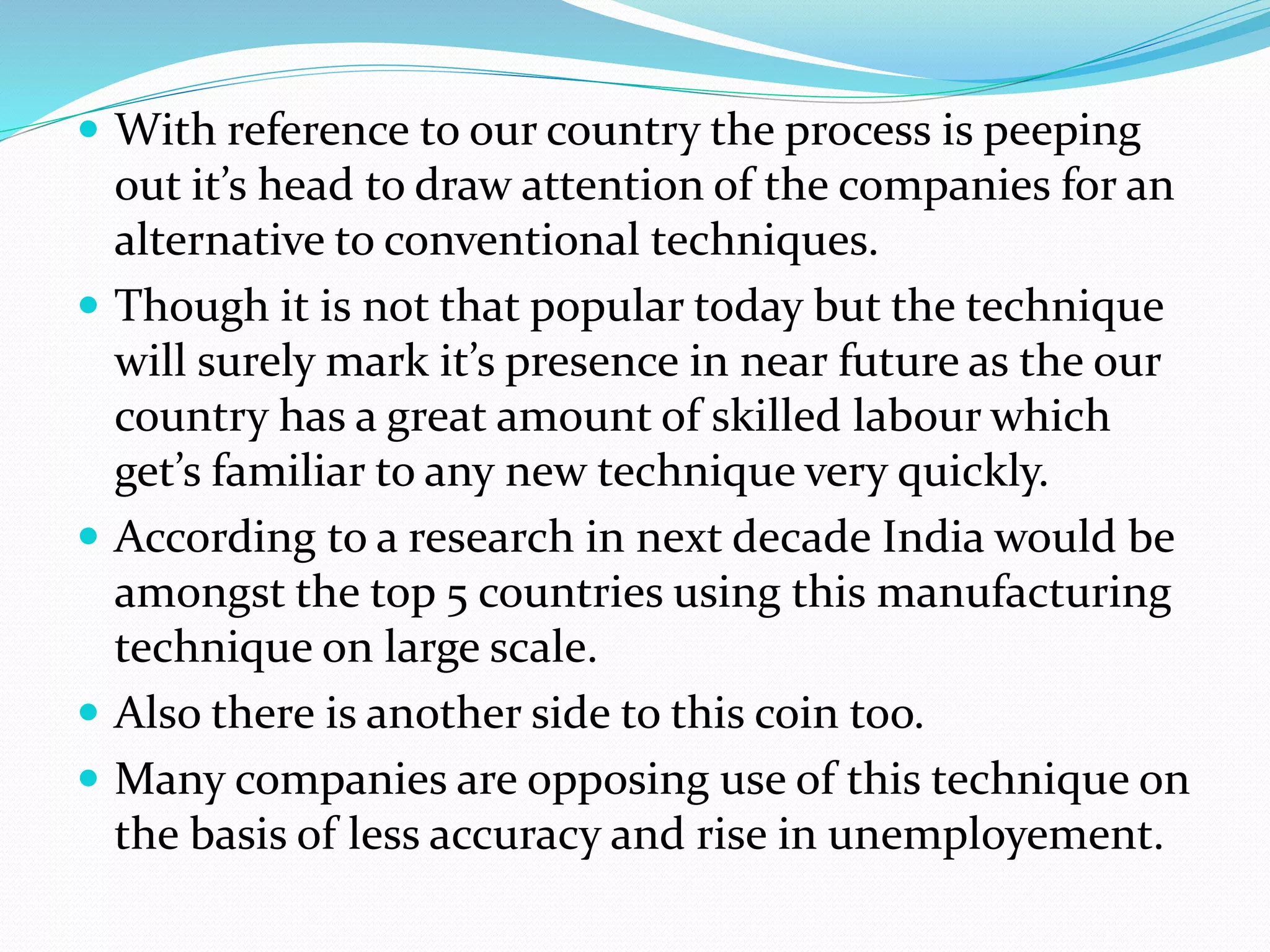

 With reference to our country the process is peeping
out it’s head to draw attention of the companies for an
alternative to conventional techniques.
 Though it is not that popular today but the technique
will surely mark it’s presence in near future as the our
country has a great amount of skilled labour which
get’s familiar to any new technique very quickly.
 According to a research in next decade India would be
amongst the top 5 countries using this manufacturing
technique on large scale.
 Also there is another side to this coin too.
 Many companies are opposing use of this technique on
the basis of less accuracy and rise in unemployement.

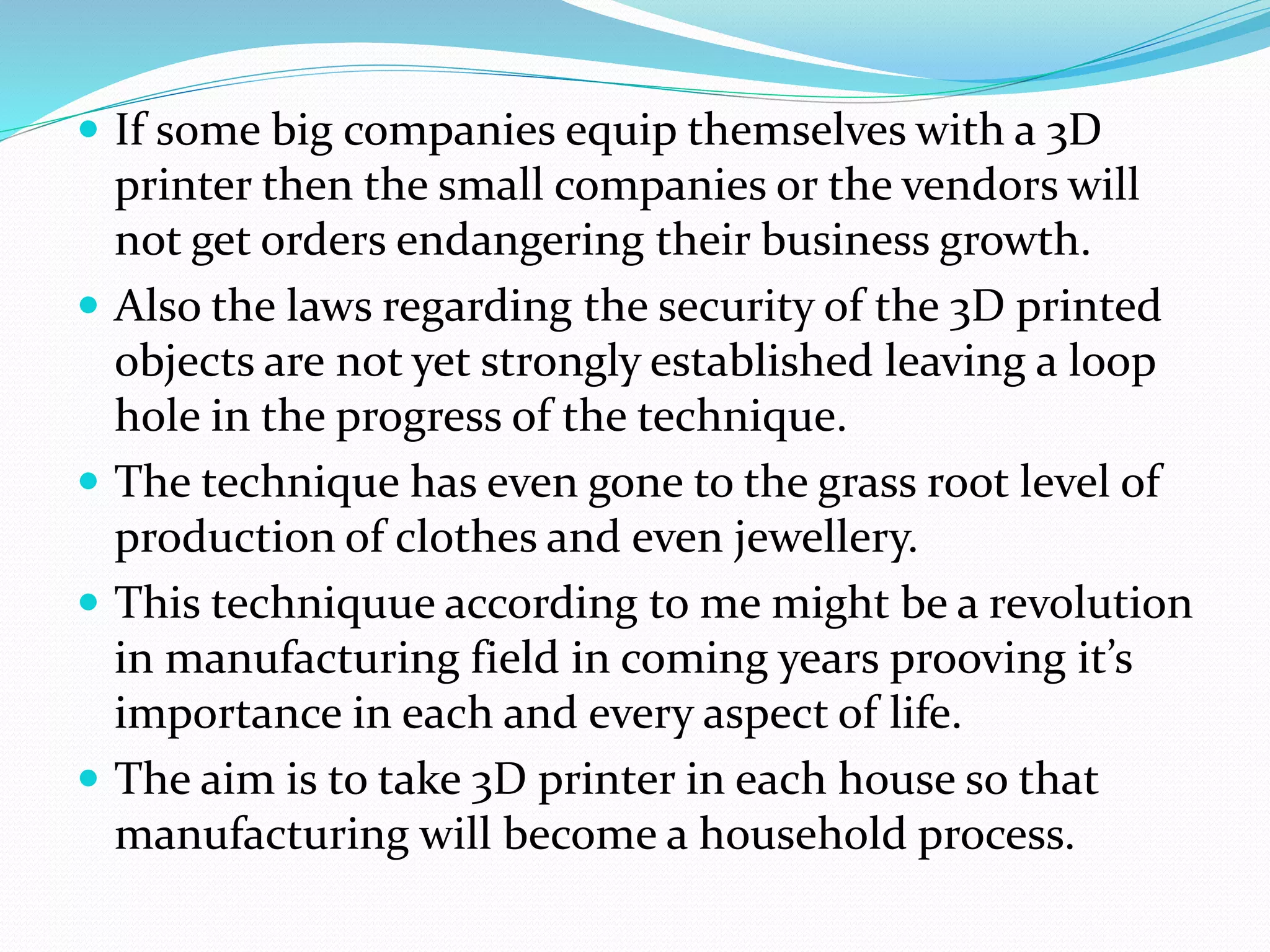

 If some big companies equip themselves with a 3D
printer then the small companies or the vendors will
not get orders endangering their business growth.
 Also the laws regarding the security of the 3D printed
objects are not yet strongly established leaving a loop
hole in the progress of the technique.
 The technique has even gone to the grass root level of
production of clothes and even jewellery.
 This techniquue according to me might be a revolution
in manufacturing field in coming years prooving it’s
importance in each and every aspect of life.
 The aim is to take 3D printer in each house so that
manufacturing will become a household process.
QUERIES???????

More Related Content

What's hot

FDM FUSED DEPOSITION MODELLING
FDM FUSED DEPOSITION MODELLINGFDM FUSED DEPOSITION MODELLING
FDM FUSED DEPOSITION MODELLING
NileshKhona

3D printers
3D printers3D printers
3D printers
SuDarshan Gj

3 d printing final (1) (1)
3 d printing final (1) (1)3 d printing final (1) (1)
3 d printing final (1) (1)
MahimaKumari7

3D printing
3D printing3D printing
3D printing
ROHIT

Seminar Presentation on 3D Printing
Seminar Presentation on 3D PrintingSeminar Presentation on 3D Printing
Seminar Presentation on 3D Printing
Anshul Joshi

3D Printer
3D Printer3D Printer
3D Printer
rogepc1963

3d printing technology
3d printing technology3d printing technology
3d printing technology
Prachi Agarwal

3d printing ppt
 3d printing ppt 3d printing ppt
3d printing ppt
abhishekkansal15

3D PRINTER Seminar fair report (pdf)
3D PRINTER Seminar fair report (pdf)3D PRINTER Seminar fair report (pdf)
3D PRINTER Seminar fair report (pdf)
Arjun Raveendran

Laminated object manufacturing
Laminated object manufacturing Laminated object manufacturing
Laminated object manufacturing
MANI SINGH

3D Printing
3D Printing3D Printing
3D Printing
Seminar Links

Module 1 Additive Manufacturing
Module 1 Additive ManufacturingModule 1 Additive Manufacturing
Module 1 Additive Manufacturing
taruian

Additive manufacturing Processes PDF by (badebhau4@gmail.com)
Additive manufacturing Processes PDF by (badebhau4@gmail.com)Additive manufacturing Processes PDF by (badebhau4@gmail.com)
Additive manufacturing Processes PDF by (badebhau4@gmail.com)
Er. Bade Bhausaheb

Stereolithography (sla) 3 d printing ppt
Stereolithography (sla)   3 d printing pptStereolithography (sla)   3 d printing ppt
Stereolithography (sla) 3 d printing ppt
Innovae3dPvtLtd1

3-D Printing
3-D Printing3-D Printing
3-D Printing
ayush goyal

3 D printing
3 D printing3 D printing
3 D printing
Vipul Sinha

3D Printing technologies
3D Printing technologies3D Printing technologies
3D Printing technologies
SaikrishnaNagumalli

3D printer Technology _ A complete presentation
3D printer Technology _ A complete presentation3D printer Technology _ A complete presentation
3D printer Technology _ A complete presentation
Vijay Patil

3D Printing PPT
3D Printing PPT3D Printing PPT
3dprintingppt 131210062711-phpapp02
3dprintingppt 131210062711-phpapp023dprintingppt 131210062711-phpapp02
3dprintingppt 131210062711-phpapp02
Divyesh Dave


What's hot (20)

FDM FUSED DEPOSITION MODELLING
FDM FUSED DEPOSITION MODELLINGFDM FUSED DEPOSITION MODELLING
FDM FUSED DEPOSITION MODELLING

3D printers
3D printers3D printers
3D printers

3 d printing final (1) (1)
3 d printing final (1) (1)3 d printing final (1) (1)
3 d printing final (1) (1)

3D printing
3D printing3D printing
3D printing

Seminar Presentation on 3D Printing
Seminar Presentation on 3D PrintingSeminar Presentation on 3D Printing
Seminar Presentation on 3D Printing

3D Printer
3D Printer3D Printer
3D Printer

3d printing technology
3d printing technology3d printing technology
3d printing technology

3d printing ppt
 3d printing ppt 3d printing ppt
3d printing ppt

3D PRINTER Seminar fair report (pdf)
3D PRINTER Seminar fair report (pdf)3D PRINTER Seminar fair report (pdf)
3D PRINTER Seminar fair report (pdf)

Laminated object manufacturing
Laminated object manufacturing Laminated object manufacturing
Laminated object manufacturing

3D Printing
3D Printing3D Printing
3D Printing

Module 1 Additive Manufacturing
Module 1 Additive ManufacturingModule 1 Additive Manufacturing
Module 1 Additive Manufacturing

Additive manufacturing Processes PDF by (badebhau4@gmail.com)
Additive manufacturing Processes PDF by (badebhau4@gmail.com)Additive manufacturing Processes PDF by (badebhau4@gmail.com)
Additive manufacturing Processes PDF by (badebhau4@gmail.com)

Stereolithography (sla) 3 d printing ppt
Stereolithography (sla)   3 d printing pptStereolithography (sla)   3 d printing ppt
Stereolithography (sla) 3 d printing ppt

3-D Printing
3-D Printing3-D Printing
3-D Printing

3 D printing
3 D printing3 D printing
3 D printing

3D Printing technologies
3D Printing technologies3D Printing technologies
3D Printing technologies

3D printer Technology _ A complete presentation
3D printer Technology _ A complete presentation3D printer Technology _ A complete presentation
3D printer Technology _ A complete presentation

3D Printing PPT
3D Printing PPT3D Printing PPT
3D Printing PPT

3dprintingppt 131210062711-phpapp02
3dprintingppt 131210062711-phpapp023dprintingppt 131210062711-phpapp02
3dprintingppt 131210062711-phpapp02


Similar to 3 d printing ppt

3 d printing technology
3 d printing technology3 d printing technology
3D Printing Technology PPT by ajaysingh_02
3D Printing Technology PPT by  ajaysingh_023D Printing Technology PPT by  ajaysingh_02
3D Printing Technology PPT by ajaysingh_02
AjaySingh1901

What is 3D Printer?
What is 3D Printer?What is 3D Printer?
What is 3D Printer?
Umur ÖZ

Study on the Fused Deposition Modelling In Additive Manufacturing
Study on the Fused Deposition Modelling In Additive ManufacturingStudy on the Fused Deposition Modelling In Additive Manufacturing
Study on the Fused Deposition Modelling In Additive Manufacturing
IJERD Editor

IRJET- Analysis and Review of Rapid Prototyping Technology, & Study of Materi...
IRJET- Analysis and Review of Rapid Prototyping Technology, & Study of Materi...IRJET- Analysis and Review of Rapid Prototyping Technology, & Study of Materi...
IRJET- Analysis and Review of Rapid Prototyping Technology, & Study of Materi...
IRJET Journal

3d printing
3d printing3d printing
3d printing
KartikMeena5

Additive Manufacturing(3d printing)
Additive Manufacturing(3d printing)Additive Manufacturing(3d printing)
Additive Manufacturing(3d printing)
Kunal Adhikari

3D Printing
3D Printing3D Printing
3D Printing
Rehan Fazal

3D printing
3D printing3D printing
3D printing
DEBOLINAMUKHERJEE7

Honors Additive Manufacturing Presentation.pdf
Honors Additive Manufacturing Presentation.pdfHonors Additive Manufacturing Presentation.pdf
Honors Additive Manufacturing Presentation.pdf
JohnNuccio1

3D PRINTING MARKET  TO BOOM,WILL BE WORTH £8.6 BN BY 2020
3D PRINTING MARKET  TO BOOM,WILL BE  WORTH £8.6 BN BY 20203D PRINTING MARKET  TO BOOM,WILL BE  WORTH £8.6 BN BY 2020
3D PRINTING MARKET  TO BOOM,WILL BE WORTH £8.6 BN BY 2020
Allied Market Research

3d printing
3d printing3d printing
3d printing
vargheseshilpa

Presentation1.pptx
Presentation1.pptxPresentation1.pptx
Presentation1.pptx
RamanandKumarDas1

3 d printing an emerging era of future
 3 d printing an emerging era of future 3 d printing an emerging era of future
3 d printing an emerging era of future
Pravin Ahirwar

krishna ppt.pptx
krishna ppt.pptxkrishna ppt.pptx
krishna ppt.pptx
RamanandKumarDas1

IRJET- Review on Low Cost 3D Printing
IRJET- Review on Low Cost 3D PrintingIRJET- Review on Low Cost 3D Printing
IRJET- Review on Low Cost 3D Printing
IRJET Journal

3D printing and its types_Mayank khare sgsits,indore
3D printing and its types_Mayank khare sgsits,indore3D printing and its types_Mayank khare sgsits,indore
3D printing and its types_Mayank khare sgsits,indore
Mayank khare

What is 3 d printing.docx
What is 3 d printing.docxWhat is 3 d printing.docx
What is 3 d printing.docx
Osama Ghandour Geris

Stereolithography (SLA)
Stereolithography (SLA)Stereolithography (SLA)
Stereolithography (SLA)
Siddharth Upadhyay

3 d printing (Ayush_KNIIT)
3 d printing (Ayush_KNIIT)3 d printing (Ayush_KNIIT)
3 d printing (Ayush_KNIIT)
Aayush Mishra


Similar to 3 d printing ppt (20)

3 d printing technology
3 d printing technology3 d printing technology
3 d printing technology

3D Printing Technology PPT by ajaysingh_02
3D Printing Technology PPT by  ajaysingh_023D Printing Technology PPT by  ajaysingh_02
3D Printing Technology PPT by ajaysingh_02

What is 3D Printer?
What is 3D Printer?What is 3D Printer?
What is 3D Printer?

Study on the Fused Deposition Modelling In Additive Manufacturing
Study on the Fused Deposition Modelling In Additive ManufacturingStudy on the Fused Deposition Modelling In Additive Manufacturing
Study on the Fused Deposition Modelling In Additive Manufacturing

IRJET- Analysis and Review of Rapid Prototyping Technology, & Study of Materi...
IRJET- Analysis and Review of Rapid Prototyping Technology, & Study of Materi...IRJET- Analysis and Review of Rapid Prototyping Technology, & Study of Materi...
IRJET- Analysis and Review of Rapid Prototyping Technology, & Study of Materi...

3d printing
3d printing3d printing
3d printing

Additive Manufacturing(3d printing)
Additive Manufacturing(3d printing)Additive Manufacturing(3d printing)
Additive Manufacturing(3d printing)

3D Printing
3D Printing3D Printing
3D Printing

3D printing
3D printing3D printing
3D printing

Honors Additive Manufacturing Presentation.pdf
Honors Additive Manufacturing Presentation.pdfHonors Additive Manufacturing Presentation.pdf
Honors Additive Manufacturing Presentation.pdf

3D PRINTING MARKET  TO BOOM,WILL BE WORTH £8.6 BN BY 2020
3D PRINTING MARKET  TO BOOM,WILL BE  WORTH £8.6 BN BY 20203D PRINTING MARKET  TO BOOM,WILL BE  WORTH £8.6 BN BY 2020
3D PRINTING MARKET  TO BOOM,WILL BE WORTH £8.6 BN BY 2020

3d printing
3d printing3d printing
3d printing

Presentation1.pptx
Presentation1.pptxPresentation1.pptx
Presentation1.pptx

3 d printing an emerging era of future
 3 d printing an emerging era of future 3 d printing an emerging era of future
3 d printing an emerging era of future

krishna ppt.pptx
krishna ppt.pptxkrishna ppt.pptx
krishna ppt.pptx

IRJET- Review on Low Cost 3D Printing
IRJET- Review on Low Cost 3D PrintingIRJET- Review on Low Cost 3D Printing
IRJET- Review on Low Cost 3D Printing

3D printing and its types_Mayank khare sgsits,indore
3D printing and its types_Mayank khare sgsits,indore3D printing and its types_Mayank khare sgsits,indore
3D printing and its types_Mayank khare sgsits,indore

What is 3 d printing.docx
What is 3 d printing.docxWhat is 3 d printing.docx
What is 3 d printing.docx

Stereolithography (SLA)
Stereolithography (SLA)Stereolithography (SLA)
Stereolithography (SLA)

3 d printing (Ayush_KNIIT)
3 d printing (Ayush_KNIIT)3 d printing (Ayush_KNIIT)
3 d printing (Ayush_KNIIT)


Recently uploaded

Elevate Your Interiors: Danielle Ferrazzano's Essential Design Tips
Elevate Your Interiors: Danielle Ferrazzano's Essential Design TipsElevate Your Interiors: Danielle Ferrazzano's Essential Design Tips
Elevate Your Interiors: Danielle Ferrazzano's Essential Design Tips
danielleferrazzanous

Building Accessibility into your Design Systems
Building Accessibility into your Design SystemsBuilding Accessibility into your Design Systems
Building Accessibility into your Design Systems
Resolute

The Elements Kit Helps You Through Self Discovery
The Elements Kit Helps You Through Self DiscoveryThe Elements Kit Helps You Through Self Discovery
The Elements Kit Helps You Through Self Discovery
rachelzhang95

Revisiting the San Francisco parklets problematizing publicness, parks, and t...
Revisiting the San Francisco parklets problematizing publicness, parks, and t...Revisiting the San Francisco parklets problematizing publicness, parks, and t...
Revisiting the San Francisco parklets problematizing publicness, parks, and t...
baak21

Private Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...
Private Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...Private Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...
Private Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...
45unexpected

High Profile Girls Call Navi Mumbai 🎈🔥9920725232 🔥💋🎈 Provide Best And Top Gir...
High Profile Girls Call Navi Mumbai 🎈🔥9920725232 🔥💋🎈 Provide Best And Top Gir...High Profile Girls Call Navi Mumbai 🎈🔥9920725232 🔥💋🎈 Provide Best And Top Gir...
High Profile Girls Call Navi Mumbai 🎈🔥9920725232 🔥💋🎈 Provide Best And Top Gir...
revolutionary575

Stress Analysis of Maraging Steel Differential Gear using ANSYS
Stress Analysis of Maraging Steel Differential Gear  using ANSYSStress Analysis of Maraging Steel Differential Gear  using ANSYS
Stress Analysis of Maraging Steel Differential Gear using ANSYS
Ram Krishna Singh

FURI88 : Situs Slot RECE Menang paling GEDE jamin pasti WEDE
FURI88 : Situs Slot RECE Menang paling GEDE jamin pasti WEDEFURI88 : Situs Slot RECE Menang paling GEDE jamin pasti WEDE
FURI88 : Situs Slot RECE Menang paling GEDE jamin pasti WEDE
FURI88 ONLINE

100 FPO Overview & concept (1).pptx nigga
100 FPO Overview & concept (1).pptx nigga100 FPO Overview & concept (1).pptx nigga
100 FPO Overview & concept (1).pptx nigga
AvtaritTripathi

Private Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service ...
Private Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service ...Private Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service ...
Private Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service ...
ailynolive

Custom Logo Design The Top Five Advantages
Custom Logo Design The Top Five AdvantagesCustom Logo Design The Top Five Advantages
Custom Logo Design The Top Five Advantages
MR Logo Design

Geometric dimensioning & tolerance for precise manufacturing process
Geometric dimensioning & tolerance for precise manufacturing processGeometric dimensioning & tolerance for precise manufacturing process
Geometric dimensioning & tolerance for precise manufacturing process
vicky196116

Brigada Eskwela Kick-Off Program 1-1111111.pptx
Brigada Eskwela Kick-Off Program 1-1111111.pptxBrigada Eskwela Kick-Off Program 1-1111111.pptx
Brigada Eskwela Kick-Off Program 1-1111111.pptx
HaroldKinatagcan2

ecc3d98e-fb3b-4fe4-a6ff-fbd8d2a86392.pdf
ecc3d98e-fb3b-4fe4-a6ff-fbd8d2a86392.pdfecc3d98e-fb3b-4fe4-a6ff-fbd8d2a86392.pdf
ecc3d98e-fb3b-4fe4-a6ff-fbd8d2a86392.pdf
MojtabaMeghdari

GRAPHIC DESIGNING COURSES IN LAHORE
GRAPHIC DESIGNING COURSES  IN     LAHOREGRAPHIC DESIGNING COURSES  IN     LAHORE
GRAPHIC DESIGNING COURSES IN LAHORE
Anam Kanwal

Art by Sally Booth Advertising Campaigns
Art by Sally Booth Advertising CampaignsArt by Sally Booth Advertising Campaigns
Art by Sally Booth Advertising Campaigns
vsingram

AIS degree offer diploma Transcript
AIS degree offer diploma TranscriptAIS degree offer diploma Transcript
AIS degree offer diploma Transcript
asazt

New PPT Template for operations on field.pptx
New PPT Template for operations on field.pptxNew PPT Template for operations on field.pptx
New PPT Template for operations on field.pptx
hicham benkhelifa

Product And Design Portfolio - Hemant Nagwekar 2024
Product And Design Portfolio - Hemant Nagwekar 2024Product And Design Portfolio - Hemant Nagwekar 2024
Product And Design Portfolio - Hemant Nagwekar 2024
Hemant Nagwekar

How to Buy Verified Payoneer Account in 5 Easy Steps
How to Buy Verified Payoneer Account in 5 Easy StepsHow to Buy Verified Payoneer Account in 5 Easy Steps
How to Buy Verified Payoneer Account in 5 Easy Steps
maudadkalbmundhir


Recently uploaded (20)

Elevate Your Interiors: Danielle Ferrazzano's Essential Design Tips
Elevate Your Interiors: Danielle Ferrazzano's Essential Design TipsElevate Your Interiors: Danielle Ferrazzano's Essential Design Tips
Elevate Your Interiors: Danielle Ferrazzano's Essential Design Tips

Building Accessibility into your Design Systems
Building Accessibility into your Design SystemsBuilding Accessibility into your Design Systems
Building Accessibility into your Design Systems

The Elements Kit Helps You Through Self Discovery
The Elements Kit Helps You Through Self DiscoveryThe Elements Kit Helps You Through Self Discovery
The Elements Kit Helps You Through Self Discovery

Revisiting the San Francisco parklets problematizing publicness, parks, and t...
Revisiting the San Francisco parklets problematizing publicness, parks, and t...Revisiting the San Francisco parklets problematizing publicness, parks, and t...
Revisiting the San Francisco parklets problematizing publicness, parks, and t...

Private Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...
Private Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...Private Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...
Private Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...

High Profile Girls Call Navi Mumbai 🎈🔥9920725232 🔥💋🎈 Provide Best And Top Gir...
High Profile Girls Call Navi Mumbai 🎈🔥9920725232 🔥💋🎈 Provide Best And Top Gir...High Profile Girls Call Navi Mumbai 🎈🔥9920725232 🔥💋🎈 Provide Best And Top Gir...
High Profile Girls Call Navi Mumbai 🎈🔥9920725232 🔥💋🎈 Provide Best And Top Gir...

Stress Analysis of Maraging Steel Differential Gear using ANSYS
Stress Analysis of Maraging Steel Differential Gear  using ANSYSStress Analysis of Maraging Steel Differential Gear  using ANSYS
Stress Analysis of Maraging Steel Differential Gear using ANSYS

FURI88 : Situs Slot RECE Menang paling GEDE jamin pasti WEDE
FURI88 : Situs Slot RECE Menang paling GEDE jamin pasti WEDEFURI88 : Situs Slot RECE Menang paling GEDE jamin pasti WEDE
FURI88 : Situs Slot RECE Menang paling GEDE jamin pasti WEDE

100 FPO Overview & concept (1).pptx nigga
100 FPO Overview & concept (1).pptx nigga100 FPO Overview & concept (1).pptx nigga
100 FPO Overview & concept (1).pptx nigga

Private Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service ...
Private Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service ...Private Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service ...
Private Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service ...

Custom Logo Design The Top Five Advantages
Custom Logo Design The Top Five AdvantagesCustom Logo Design The Top Five Advantages
Custom Logo Design The Top Five Advantages

Geometric dimensioning & tolerance for precise manufacturing process
Geometric dimensioning & tolerance for precise manufacturing processGeometric dimensioning & tolerance for precise manufacturing process
Geometric dimensioning & tolerance for precise manufacturing process

Brigada Eskwela Kick-Off Program 1-1111111.pptx
Brigada Eskwela Kick-Off Program 1-1111111.pptxBrigada Eskwela Kick-Off Program 1-1111111.pptx
Brigada Eskwela Kick-Off Program 1-1111111.pptx

ecc3d98e-fb3b-4fe4-a6ff-fbd8d2a86392.pdf
ecc3d98e-fb3b-4fe4-a6ff-fbd8d2a86392.pdfecc3d98e-fb3b-4fe4-a6ff-fbd8d2a86392.pdf
ecc3d98e-fb3b-4fe4-a6ff-fbd8d2a86392.pdf

GRAPHIC DESIGNING COURSES IN LAHORE
GRAPHIC DESIGNING COURSES  IN     LAHOREGRAPHIC DESIGNING COURSES  IN     LAHORE
GRAPHIC DESIGNING COURSES IN LAHORE

Art by Sally Booth Advertising Campaigns
Art by Sally Booth Advertising CampaignsArt by Sally Booth Advertising Campaigns
Art by Sally Booth Advertising Campaigns

AIS degree offer diploma Transcript
AIS degree offer diploma TranscriptAIS degree offer diploma Transcript
AIS degree offer diploma Transcript

New PPT Template for operations on field.pptx
New PPT Template for operations on field.pptxNew PPT Template for operations on field.pptx
New PPT Template for operations on field.pptx

Product And Design Portfolio - Hemant Nagwekar 2024
Product And Design Portfolio - Hemant Nagwekar 2024Product And Design Portfolio - Hemant Nagwekar 2024
Product And Design Portfolio - Hemant Nagwekar 2024

How to Buy Verified Payoneer Account in 5 Easy Steps
How to Buy Verified Payoneer Account in 5 Easy StepsHow to Buy Verified Payoneer Account in 5 Easy Steps
How to Buy Verified Payoneer Account in 5 Easy Steps


3 d printing ppt

  • 1. Presented By: KALPESH SHAH M.E.(Design)
  • 2. INTRODUCTION :  3D printing has gained importance in the field of manufacturing in past decade.  It is an additive process in contrast to some conventional process’s of manufacturing which are subtractive.  In conventional process like cutting,milling,etc the material is removed to form the required component , but in 3D printing material is added as per requirement and component to be formed.
  • 3.  It is being studied at world level to attain new techniques relating to this process so that is becomes more feasible to use this process on large scale.  The printer’s or scanner’s are required to form a particular component through this process.  The process is also used for Rapid Prototyping.
  • 4. HISTORY :  The process of 3D printing was evolved way back in 70’s but became quite popular in past decade.  The reason behind this was the set up required to carry out this process was costly compared to other conventional process.  But as time passed by the cheaper machinery were developed also the patent’s regarding this process expired in 90’s.  These things couples with rise is expenditure of conventional techniques attracted the manufacturers to this process.
  • 5. LITERATURE :  3D printing or Additive manufacturing is a process of making a three dimensional solid object of virtually any shape from a digital model.  3D printing is achieved using an additive process, where successive layers of material are laid down in different shapes  A 3D printer is a limited type of industrial robot that is capable of carrying out an additive process under computer control.  The 3D printing is used for prototyping and distributed manufacturing with applications in architecture, construction (AEC), industrial design, automotive, aerospace, military, engineering etc.
  • 6.  3D printing could become a mass market item because domestic 3D printers can offset their capital costs by enabling consumers to avoid costs associated with purchasing common household objects.  The term additive manufacturing refers to technologies that create objects through sequential layering.  Objects that are manufactured additively can be used anywhere throughout the product life cycle, from pre-production (i.e. rapid prototyping) to full-scale production (i.e. rapid manufacturing),
  • 7. WORKING PRINCIPLE : The 3D printing technique has following steps :- 1. Forming 3D printable model. 2. Printing the model. 3. Finishing of the model.
  • 8. FORMING 3D PRINTABLE MODEL :  A printable model can be formed either by using a computer Aided Designing software package or using a 3D scanner.  The CAD software might be used to form a design of a model according to user input.  While a 3D scanner is an industrial robot which scans a particular object and records it’s dimensions and provides input to the printer.
  • 9. PRINTING THE MODEL :  Depending on the design data provided the printer lays down several layers of powder, liquid, paper, polymer, plastic or other material depending on the material required.  Printer resolution describes layer thickness and X-Y resolution in micrometers.  3D printers give designers and concept development teams the ability to produce parts and concept models using a desktop size printer.
  • 10. FINISHING :  Though the printer-produced resolution is sufficient for many applications, printing a slightly oversized version of the desired object in standard resolution and then removing material with a higher-resolution subtractive process can achieve greater precision  In this process the supports would be dissolved which might be used to support overhanging features in the model to be printed.
  • 11. TYPES OF PRINTING :  Steriolithography  Laminated Object Manufacturing.  Selective Laser Sintering (SLS).  Selective Laser Melting (SLM).  Electron Beam Melting (EBM).  Granular Material Binding.  Fused Deposition Modelling.
  • 12. STERIOLITHOGRAPHY :  In this process polymerisation technique is used to create a solid model from liquid resin.  The liquid polymer is filled in a mould of required shape, then it is exposed to light.  Due to this exposure the liquid polymer layer hardens and this layer goes down exposing another liquid layer , thus creating a complete solid model.  Another method is to jet the liquid polymer on the tray and passing UV rays through it forming a solid model.
  • 14. LAMINATED OBJECT MANUFACTURING :  In this process papers are used to form a solid model of required shape.  A special adhesive coated paper could be cut using CO2 laser and then laminated them together to form a model of required shape.  Regular paper can also be used which might be cut using tungsten carbide blade and then selective deposition using adhesives to form required model.
  • 15.  Selective Laser Melting (SLM) does not use sintering for the fusion of powder granules but will completely melt the powder using a high-energy laser to create fully dense materials in a layerwise method with similar mechanical properties to conventional manufactured metals.  Electron beam melting (EBM) It produces parts by melting metal powder layer by layer with an electron beam in a high vacuum. Unlike metal sintering techniques that operate below melting point, EBM parts are fully dense, void-free, and very strong  Selective Laser Sintering (SLS) It fuses materials in a granular bed. The technique fuses parts of the layer, and then moves the working area downwards, adding another layer of granules and repeating the process until the piece has built up
  • 17. FUSED DEPOSITION MODELLING :  In fused deposition modeling the model or part is produced by extruding small beads of material which harden immediately to form layers.  A thermoplastic filament or metal wire that is wound on a coil is unreeled to supply material to an extrusion nozzle head. The nozzle head heats the material and turns the flow on and off.  Typically stepper motors or servo motors are employed to move the extrusion head and adjust the flow and the head can be moved in both horizontal and vertical directions.
  • 18. Various polymers are used, including acrylonitrile butadiene styrene(ABS), polycarbon ate(PC), polylactic acid (PLA),high density polyethylene (HDPE), PC/ABS, and polyphenylsulfone (P PSU). In general the polymer is in the form of a filament, fabricated from virgin resins.
  • 19. Paper By :- Terry Wohlers September 7th 2013
  • 20. HIGHLIGHTS :  There were nearly 100 three-dimensional (3D) printers quietly making things at RedEye, a company based in Eden Prairie, Minnesota, and you can catch a glimpse of how factories will work in the future.  Terry Gou, the boss of Foxconn, the world’s largest contract manufacturer of electronic goods.He thinks 3D printing is just “a gimmick” without any commercial value in the manufacture of real finished goods.  The market for 3D printers and services is small, but growing fast. Last year it was worth $2.2 billion worldwide, up 29% from 2011.
  • 21.  The additive manufacturing process might not replace the conventional process in mass production.  As 3D printers get better and printed materials improve, the quality and finish of prototypes is becoming harder to distinguish from things made in traditional factories.  3D printing is not competing with conventional manufacturing, but is hybridising with it  The value of 3D printing as a production tool will increase further with systems that are capable of printing electrical circuits directly onto or into components. It can be used to print functioning switches, buttons and sensors.
  • 22.  Additive manufacturing has other limitations. It can be slow—taking several hours to print, say, a body panel for a car. But speed is relative. What may be too slow for a large production run might be fine for a one-off item which would take weeks to make in a machine-shop.  Meanwhile, 3D printing is becoming more readily available to people with no equipment of their own through service providers that print objects on demand  The heightened buzz surrounding 3D printing technology has prompted many manufacturers to consider bringing this capability in-house.
  • 23. Paper By :- Tim Thellin 10th August 2005
  • 24. HIGHLIGHTS :-  Estimated sales of 3D printers by the leading manufacturers jumped from $37.4 million in 2003 to $74.6 million in 2004, an increase of 99.5 percent.  The number of models and prototype parts produced last year grew to an estimated 6.05 million, up from 4.83 million in 2003.  The first question arising is, will bringing a machine in-house provide increased productivity, faster time-to- market, and cost savings over buying parts from a service provider?
  • 25.  Many manufacturers with 3D printers actually use a combination of in-house and outsourced models in the process of developing and producing products.  In-house 3D printing is usually faster and more convenient because it can eliminate delays related to shipping and the administrative work associated with purchasing external services.  Also, it provides manufacturers with the flexibility for managing and prioritizing their own model production queues.  Realizing the benefits of speed and convenience is a function of the volume of models you need.
  • 26.  Another factor to consider in determining whether to purchase a 3D printer is the sensitivity of the new design  Having a 3D printer in-house helps to reduce the likelihood of new designs landing in the wrong hands.  The leading systems range in price from just under $25,000 to about $60,000 per unit. An annual maintenance agreement costs about $3,000 to $9,000 and vary by machine type.  Materials range from about $1.50 to $2 per cubic inch of part (including infiltrant) for the materials from Z Corp. to $250 per kilogram for the ABS material for the Dimension machine.
  • 27.  By evaluating your specific design and modeling needs, you can determine whether the acquisition of a 3D printer is the right move for you.  And once you have made that determination, thoroughly evaluate your needs against what is available.  Be sure to ask about hidden costs or any extras that have not been discussed in any publications or presented by the vendor. Also, consider whether technical support and service is local or a considerable distance away.  Asking lots of questions and doing your homework will help you meet your goals of reducing cost, improving product quality, and accelerating time-to-market
  • 28. Paper By :- Michael Weinberg 20th January 2012
  • 29. HIGHLIGHTS :  For many people exposed to 3D printing for the first time, the question that follows “is it real?,” “how does it work?,” and “how can I get one?” is “what about piracy?” And by piracy, they usually mean copyright issues.  Copyright, patent, and trademark are the three primary types of intellectual property. Generally speaking, copyright covers creative works, patent covers technical works, and trademark covers the ways in which goods are identified in the marketplace.
  • 31. The story of the first 3D printing-related copyright takedown request is a case in point. A designer named Ulrich Schwanitz created a 3D model for an optical illusion called a “Penrose triangle.”
  • 32.  As 3D printing and modeling grow in popularity, it is likely that we will see more companies and individuals assuming they have a copyright for a design or object and demanding removal of unauthorized versions.  Purely artistic physical objects will be protected by copyright as sculptural works.  Licensing is another way to provide security where the designer provides license to other person to refer or use his designs.  But if the license holder leaks the information to others the copyright holder remains helpless.  Until there is better legal clarity, cultural clarity is the best way to protect the development of 3D printing.
  • 33. CONCLUSION :  Depending on the knowledge raised from the information gained through several papers few conclusions are acquired.  3D printing is an important emerging manufacturing process with which the companies should get familiar to remain in competition in future.  Though this technique is not good enough from mass production point of view, but manufacturing some complex items which instead would take many days in workshop can be created using this technique.
  • 34.  Rapid prototyping is another advantage of this technique.  Production line parts can also be designed using this process as employed by BMW in their production line.  Many patents associated with this technique have expired in 2008 and many of them will finish their term in coming years this would boost the use of this technique on large scale.  Many cheap 3D printers and their designs are now available in market or on net.  The 3D printing techniques should not be blindly incorporated without understanding the company’s need.
  • 35.  Once the need of 3D printing is justified the 3D printer should be selected very carefully from a trustworthy supplier.  The post purchase service should also be considered while purchasing a machine from a particular supplier.  If you are giving your order to an outsider utmost care should be taken that no confidential design data should be leaked from that outsider.  The use of 3D printing technique is used with various style in various countries for various jobs.  Countries like U.S. , China , Japan etc are diverting their attention to more and more use of additive process.
  • 36.  Fields like aerospace industry, automobile industry, civil structure, medical aids, defence , even household things are welcoming this technique happily.  The studies regarding this process is being made in many universities to make this process more popular and user friendly.  Components like guns, microphones, teeth, bones, pipes and many more are successfully manufactured using this process till date.  Even placing electric circuits directly into the cell phone structure is under development through 3d printing.
  • 37.  Not just manufacturing a 3D printed model but also protecting it is also of high priority.  One should make himself very clear about the legal issues related to components produced through this technique.  The design and the product should be copyrighted so that no would could misuse your design.  Although no strict legislature , legal or cultural rules are available to secure the 3D printed objects manufacture, but one should take as much precaution as possible to secure it’s product.  This technique in future might turn a great blessings to the companies using it.
  • 38.  With reference to our country the process is peeping out it’s head to draw attention of the companies for an alternative to conventional techniques.  Though it is not that popular today but the technique will surely mark it’s presence in near future as the our country has a great amount of skilled labour which get’s familiar to any new technique very quickly.  According to a research in next decade India would be amongst the top 5 countries using this manufacturing technique on large scale.  Also there is another side to this coin too.  Many companies are opposing use of this technique on the basis of less accuracy and rise in unemployement.
  • 39.  If some big companies equip themselves with a 3D printer then the small companies or the vendors will not get orders endangering their business growth.  Also the laws regarding the security of the 3D printed objects are not yet strongly established leaving a loop hole in the progress of the technique.  The technique has even gone to the grass root level of production of clothes and even jewellery.  This techniquue according to me might be a revolution in manufacturing field in coming years prooving it’s importance in each and every aspect of life.  The aim is to take 3D printer in each house so that manufacturing will become a household process.
