1. Prashant Sharma, Lecturer, ET&T, MMGGP, Rajnandgaon (C.G.) Page 1
Instruction Set of 8085 microprocessor
a) Data Transfer Group
b) Arithmetic Group
c) Logical Group
d) Branching/Loop Group
e) Stack and Machine Control Group
Notation used in Instruction and opcode
Notations Meaning
M Memory location pointed by HL register pair
R 8-bit register
RP 16-bit register pair
RS Source register
RD Destination register
Addr 16-bit address
X 8-bit data
e) Stack and Machine Control Group
1. PUSH RP 2. POP RP 3. SPHL 4. XTHL
5. NOP 6. HLT 7. EI 8. DI
9. RIM 10. SIM
1. PUSH RP:
Description - When this instruction is executed the contents of the specified
register pair are copied onto the stack.
Operation - Higher order RP-----> (SP-1)
Lower order RP-----> (SP-2)
(SP-2) ------> SP
No. of Bytes- 1
Flags - No flags are modified.

2. Prashant Sharma, Lecturer, ET&T, MMGGP, Rajnandgaon (C.G.) Page 2
Example - PUSH B
Before Execution After Execution
BC = 1020 H BC = 1020 H
SP = 2FFF H SP-1 = 2FFE H = 10H
SP-2 = 2FFD H = 20H
SP = 2FFD H
2. POP RP:
Description - When this instruction is executed the contents of the memory
location pointed by the stack pointer register are copied to the low
order register of register pair. The stack pointer is incremented by
one and the content of that memory location are copied to the
higher order register of register pair.
Operation - SP-----> Lower order RP
(SP+1)-----> Higher order RP
(SP+2) ------> SP
No. of Bytes- 1
Flags - No flags are modified.
Example - POP B
Before Execution After Execution
BC = 4035 H BC = 1020 H
SP = 2FFD H = 20H C = 20H
SP+1 = 2FFE H = 10H B = 10H
SP+2 = 2FFF H SP = 2FFF H
3. SPHL:
Description - Load stack pointer with content of HL register pair.
Operation - HL -----> SP
No. of Bytes- 1
Flags - No flags are modified.
Example - SPHL
Before Execution After Execution
HL = 2040 H HL = 2040 H
SP = 3000 H SP = 2040 H

3. Prashant Sharma, Lecturer, ET&T, MMGGP, Rajnandgaon (C.G.) Page 3
4. XTHL:
Description - Exchange HL register pair with top of stack.
Operation - L <-----> SP
H <-----> (SP+1)
No. of Bytes- 1
Flags - No flags are modified.
Example - XTHL
Before Execution After Execution
HL = 2040 H HL = 4637H
SP = 27FD H = 37H SP = 27FD H = 40H
SP + 1 = 27FE H = 46H SP + 1 = 27FE H = 20H
5. NOP (No operation)
Description - When this instruction is executed no operation is performed and
microprocessor will go for the next instruction after that.
Operation - PC + 1 <-----> PC
No. of Bytes- 1
Flags - No flags are modified.
Example - NOP
6. HLT
Description - When this instruction is executed microprocessor complete the
instruction and halts any further execution and enters the halt acknowledge
machine cycle.
Operation - ------
No. of Bytes- 1
Flags - No flags are modified.
Example - HLT

4. Prashant Sharma, Lecturer, ET&T, MMGGP, Rajnandgaon (C.G.) Page 4
7. EI
Description - This instruction is used to enable all maskable interrupts.
Operation - ------
No. of Bytes- 1
Flags - No flags are modified.
Example - EI
8. DI
Description - This instruction is used to disable all maskable interrupts.
Operation - ------
No. of Bytes- 1
Flags - No flags are modified.
Example - DI
9. SIM(Set Interrupt Mask)
Description - This instruction is used to enable or disable RST 7.5, RST 6.5 and
RST 5.5 interrupts. It is also used in serial data communication.
SIM instruction Format
SOD
Output
Enable
Input
SOD SDE X R 7.5 MSE M’7.5 M’6.5 M’5.5
Bit No. Pin Description Value Comment
D7 SOD Serial output data bit - -
D6 SDE Serial data enable
1 Enable serial port
0 Disable serial port
D5 X Don’t care - -
D4 R 7.5 Reset R 7.5 flip-flop
1 Reset R 7.5 flip-flop
0 No effect on R 7.5 flip-flop
Serial
output port
Interrupt Control Logic

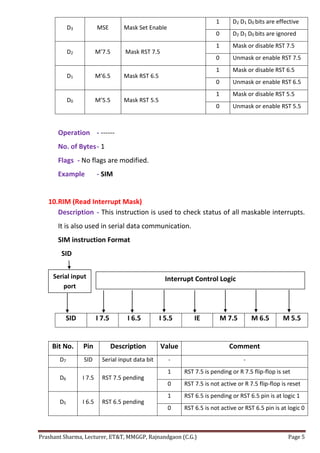

5. Prashant Sharma, Lecturer, ET&T, MMGGP, Rajnandgaon (C.G.) Page 5
D3 MSE Mask Set Enable
1 D2 D1 D0 bits are effective
0 D2 D1 D0 bits are ignored
D2 M’7.5 Mask RST 7.5
1 Mask or disable RST 7.5
0 Unmask or enable RST 7.5
D1 M’6.5 Mask RST 6.5
1 Mask or disable RST 6.5
0 Unmask or enable RST 6.5
D0 M’5.5 Mask RST 5.5
1 Mask or disable RST 5.5
0 Unmask or enable RST 5.5
Operation - ------
No. of Bytes- 1
Flags - No flags are modified.
Example - SIM
10.RIM (Read Interrupt Mask)
Description - This instruction is used to check status of all maskable interrupts.
It is also used in serial data communication.
SIM instruction Format
SID
SID I 7.5 I 6.5 I 5.5 IE M 7.5 M 6.5 M 5.5
Bit No. Pin Description Value Comment
D7 SID Serial input data bit - -
D6 I 7.5 RST 7.5 pending
1 RST 7.5 is pending or R 7.5 flip-flop is set
0 RST 7.5 is not active or R 7.5 flip-flop is reset
D5 I 6.5 RST 6.5 pending
1 RST 6.5 is pending or RST 6.5 pin is at logic 1
0 RST 6.5 is not active or RST 6.5 pin is at logic 0
Serial input
port
Interrupt Control Logic

6. Prashant Sharma, Lecturer, ET&T, MMGGP, Rajnandgaon (C.G.) Page 6
D4 I 5.5 RST 5.5 pending
1 RST 5.5 is pending or RST 6.5 pin is at logic 1
0 RST 5.5 is not active or RST 6.5 pin is at logic 0
D3 IE Interrupt Enable
1 INTE flip-flop is set or all maskable interrupts
are enabled
0 INTE flip-flop is reset or all maskable
interrupts are disabled
D2 M 7.5 Mask RST 7.5
1 Mask or disable RST 7.5
0 Unmask or enable RST 7.5
D1 M 6.5 Mask RST 6.5
1 Mask or disable RST 6.5
0 Unmask or enable RST 6.5
D0 M 5.5 Mask RST 5.5
1 Mask or disable RST 5.5
0 Unmask or enable RST 5.5
Operation - ------
No. of Bytes- 1
Flags - No flags are modified.
Example - RIM
