8085 addressing modes(For College Seminars)
•Download as PPT, PDF•
5 likes•1,722 views

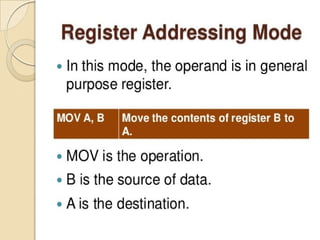

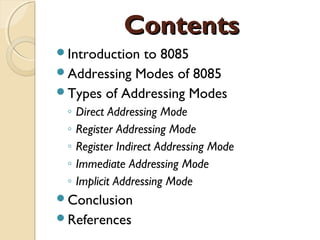

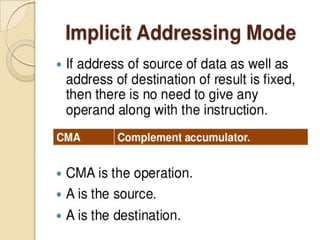

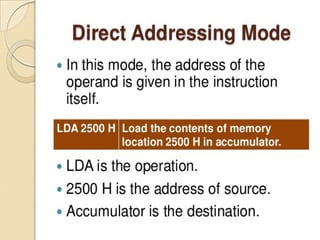

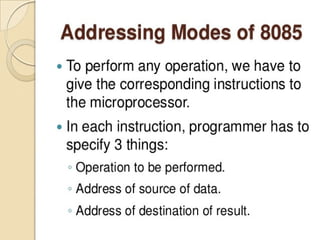

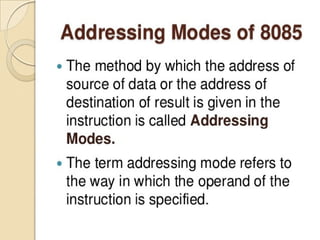

This document discusses the addressing modes of the 8085 microprocessor. It introduces the 8085 and describes its key specifications. It then defines addressing modes as the method by which an instruction specifies the address of the source of data or destination of a result. Five addressing modes are described - direct, register, register indirect, immediate, and implicit. The document concludes that the addressing mode depends on the bytes in the instruction and allows the instruction to specify operands and data addresses.
