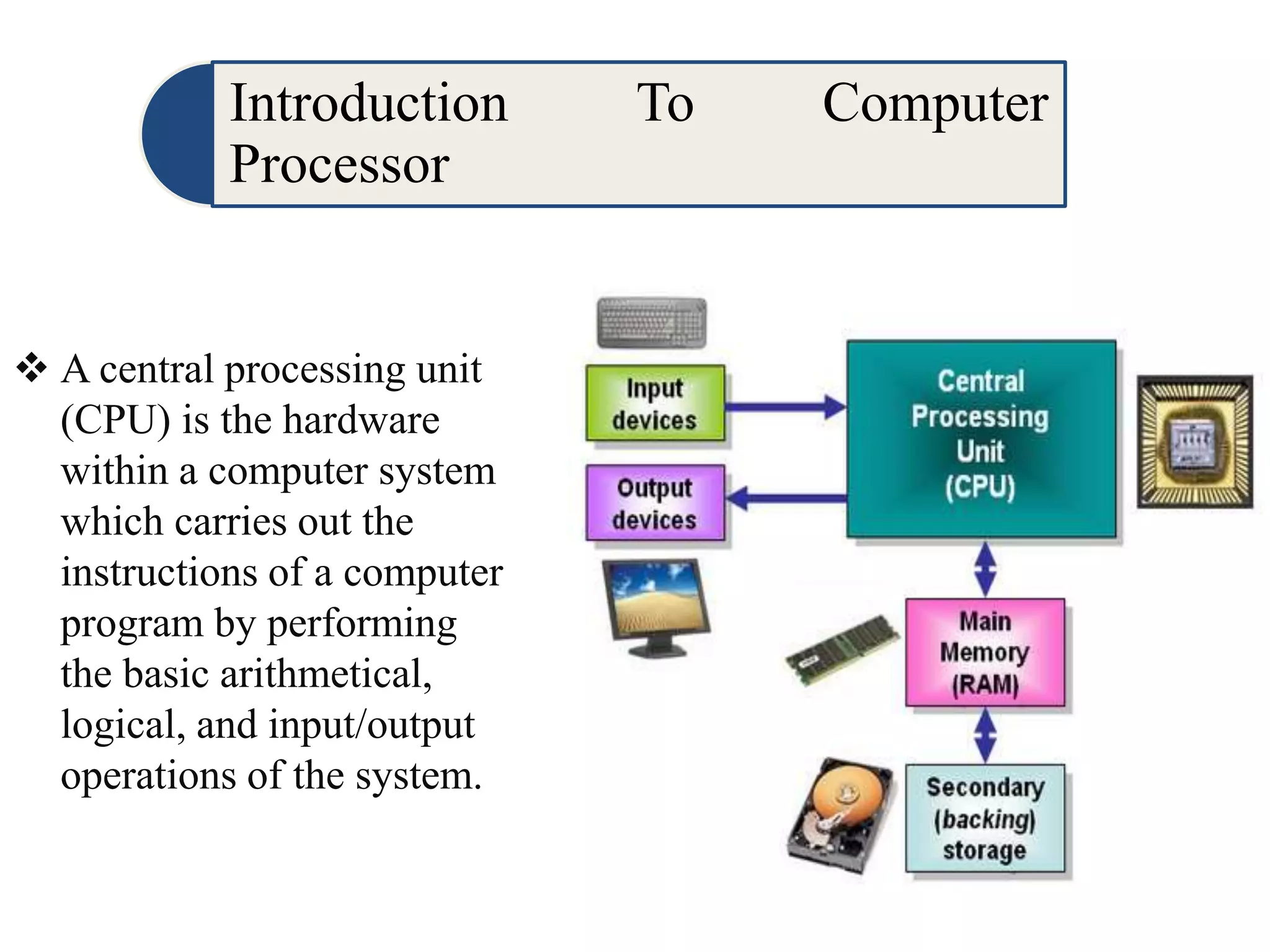

2. Introduction To Computer
Processor
 A central processing unit
(CPU) is the hardware
within a computer system
which carries out the
instructions of a computer
program by performing
the basic arithmetical,
logical, and input/output
operations of the system.

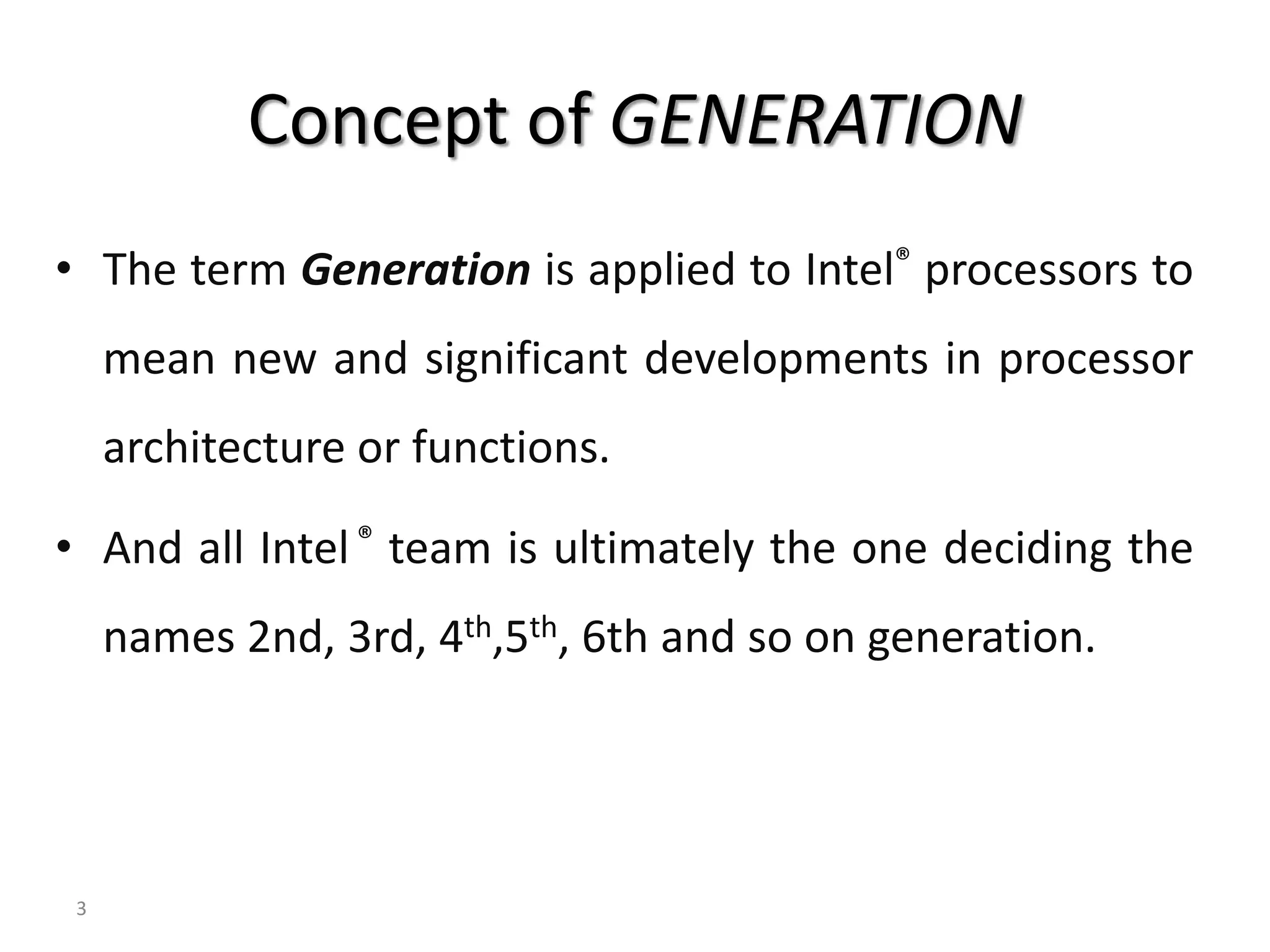

3. Concept of GENERATION
• The term Generation is applied to Intel® processors to
mean new and significant developments in processor
architecture or functions.
• And all Intel® team is ultimately the one deciding the
names 2nd, 3rd, 4th,5th, 6th and so on generation.
3

4. Component of a
Processor
The arithmetic logic unit (ALU) -
performs arithmetic and logical
operations.
The control unit (CU) - extracts
instructions from memory and
decodes and executes them, calling
on the ALU when necessary.
The CPU is comprised of several
components that execute specific
functions.
Execution Unit
Branch Predictor
Floating Point Unit
Primary Cache
Bus Interface
processor Clock

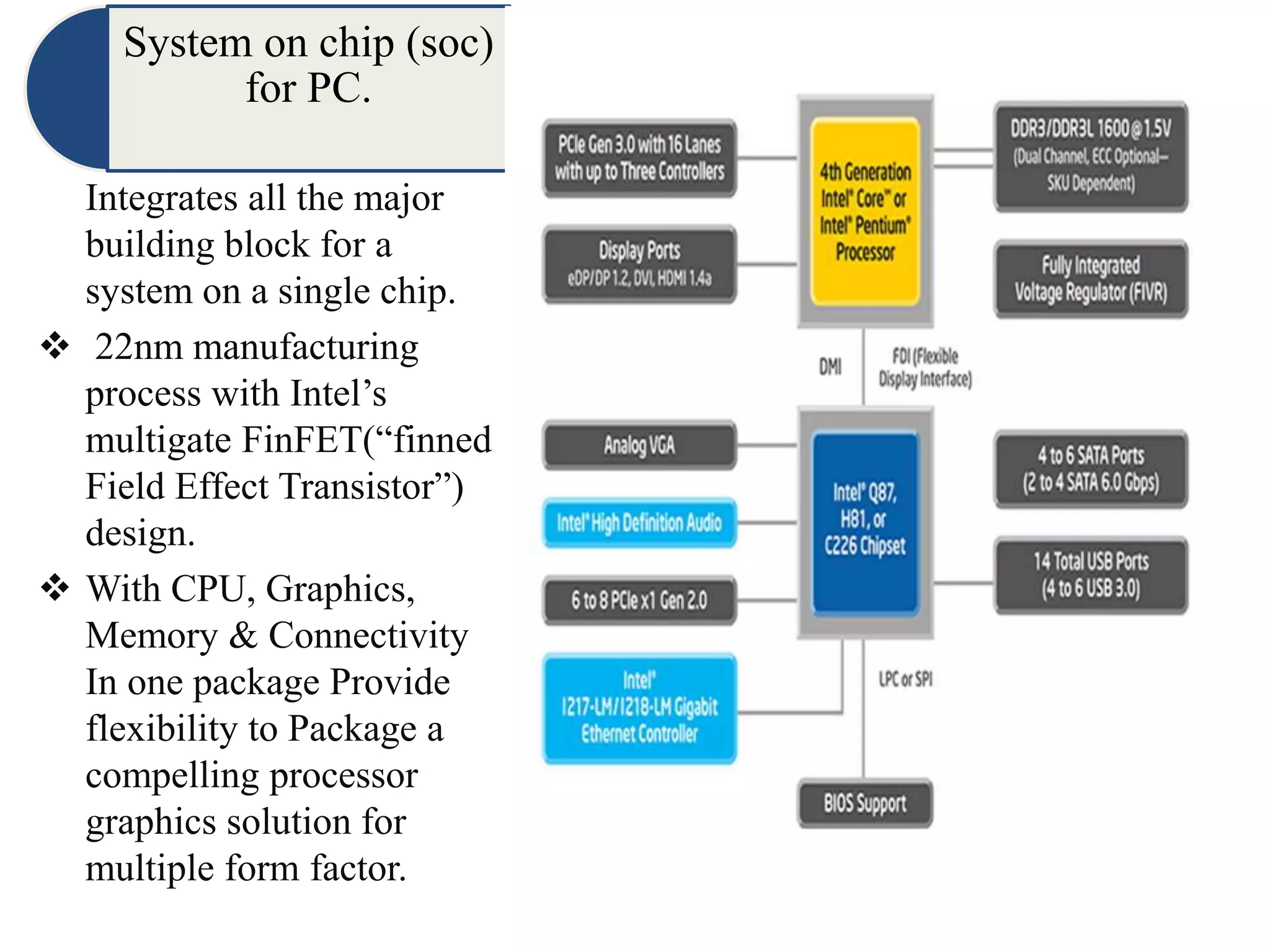

5. System on chip (soc)
for PC.
 Integrates all the major
building block for a
system on a single chip.
 22nm manufacturing
process with Intel’s
multigate FinFET(“finned
Field Effect Transistor”)
design.
 With CPU, Graphics,
Memory & Connectivity
In one package Provide
flexibility to Package a
compelling processor
graphics solution for
multiple form factor.

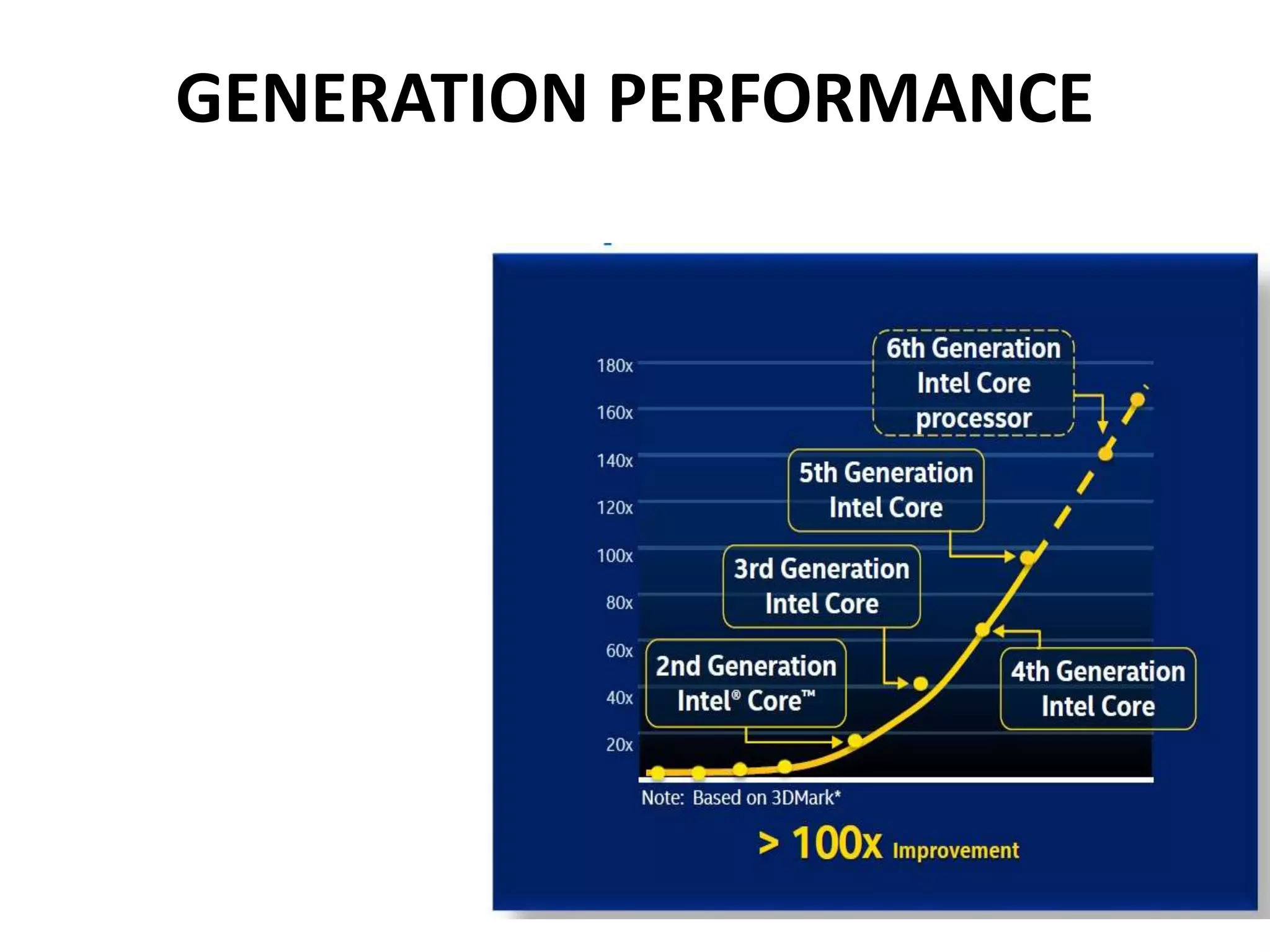

7. GENERATION PERFORMANCE

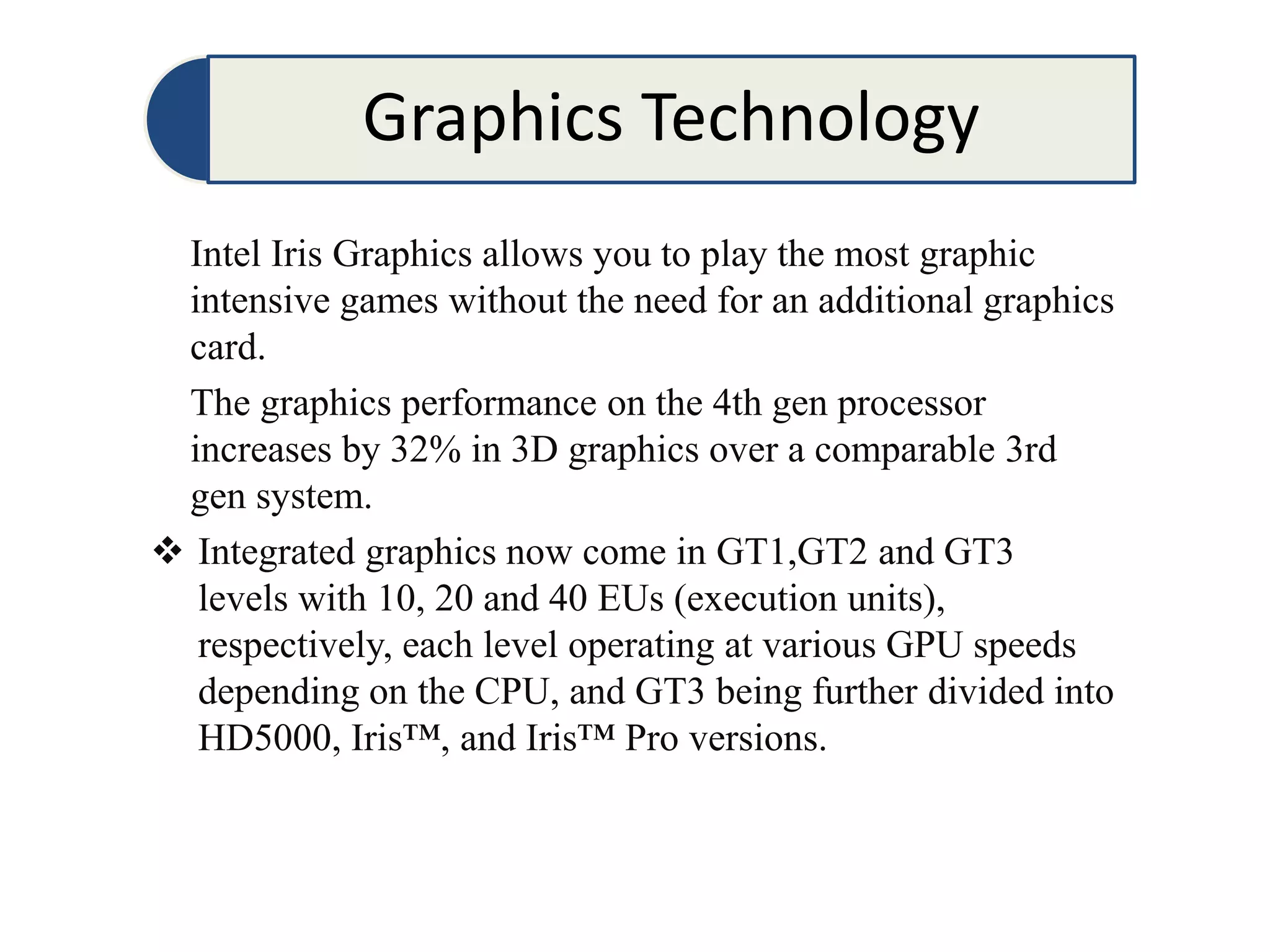

8. Graphics Technology
Intel Iris Graphics allows you to play the most graphic
intensive games without the need for an additional graphics
card.
The graphics performance on the 4th gen processor
increases by 32% in 3D graphics over a comparable 3rd
gen system.
 Integrated graphics now come in GT1,GT2 and GT3
levels with 10, 20 and 40 EUs (execution units),
respectively, each level operating at various GPU speeds
depending on the CPU, and GT3 being further divided into
HD5000, Iris™, and Iris™ Pro versions.

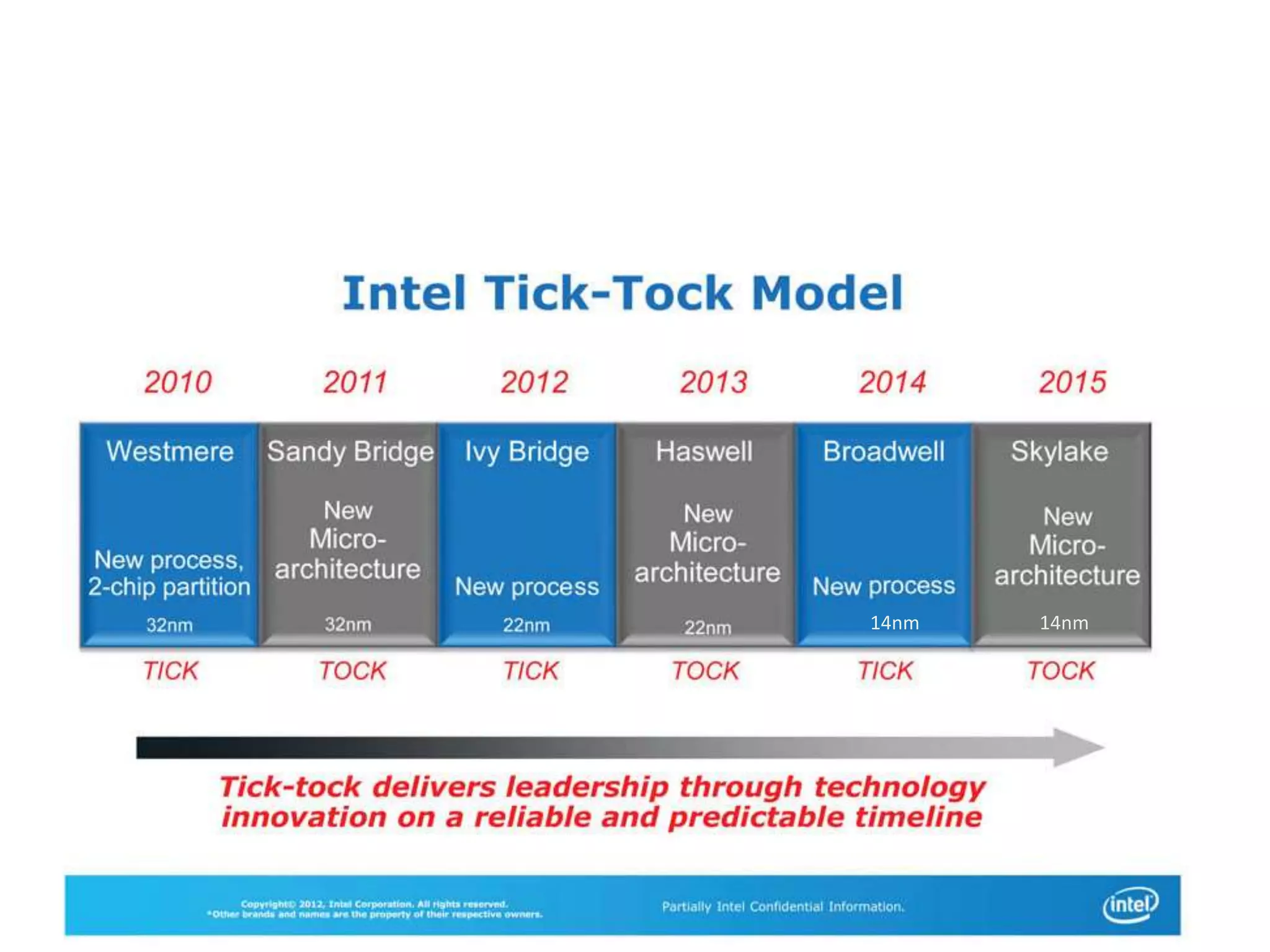

9. 14nm 14nm

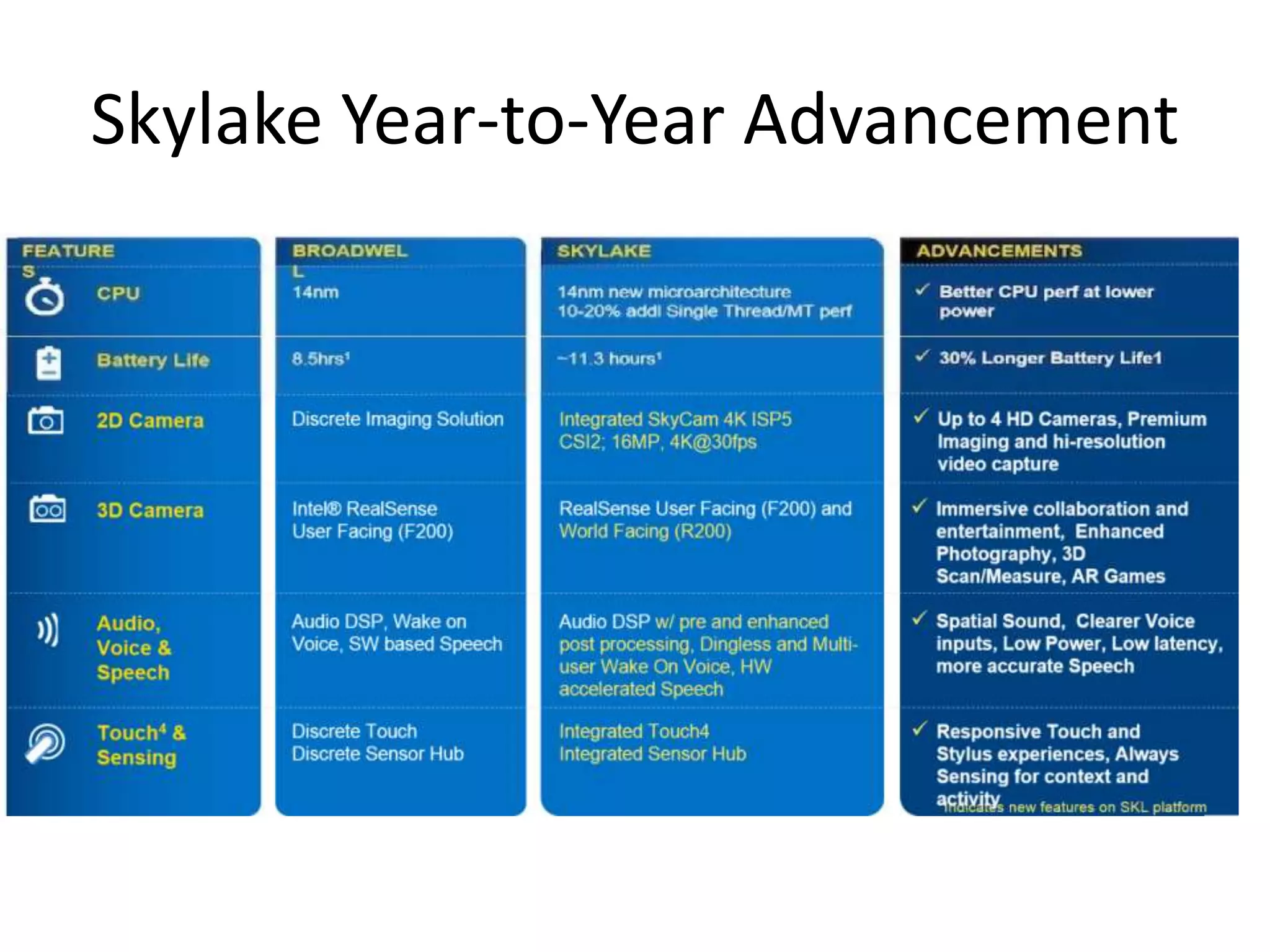

10. Skylake Year-to-Year Advancement

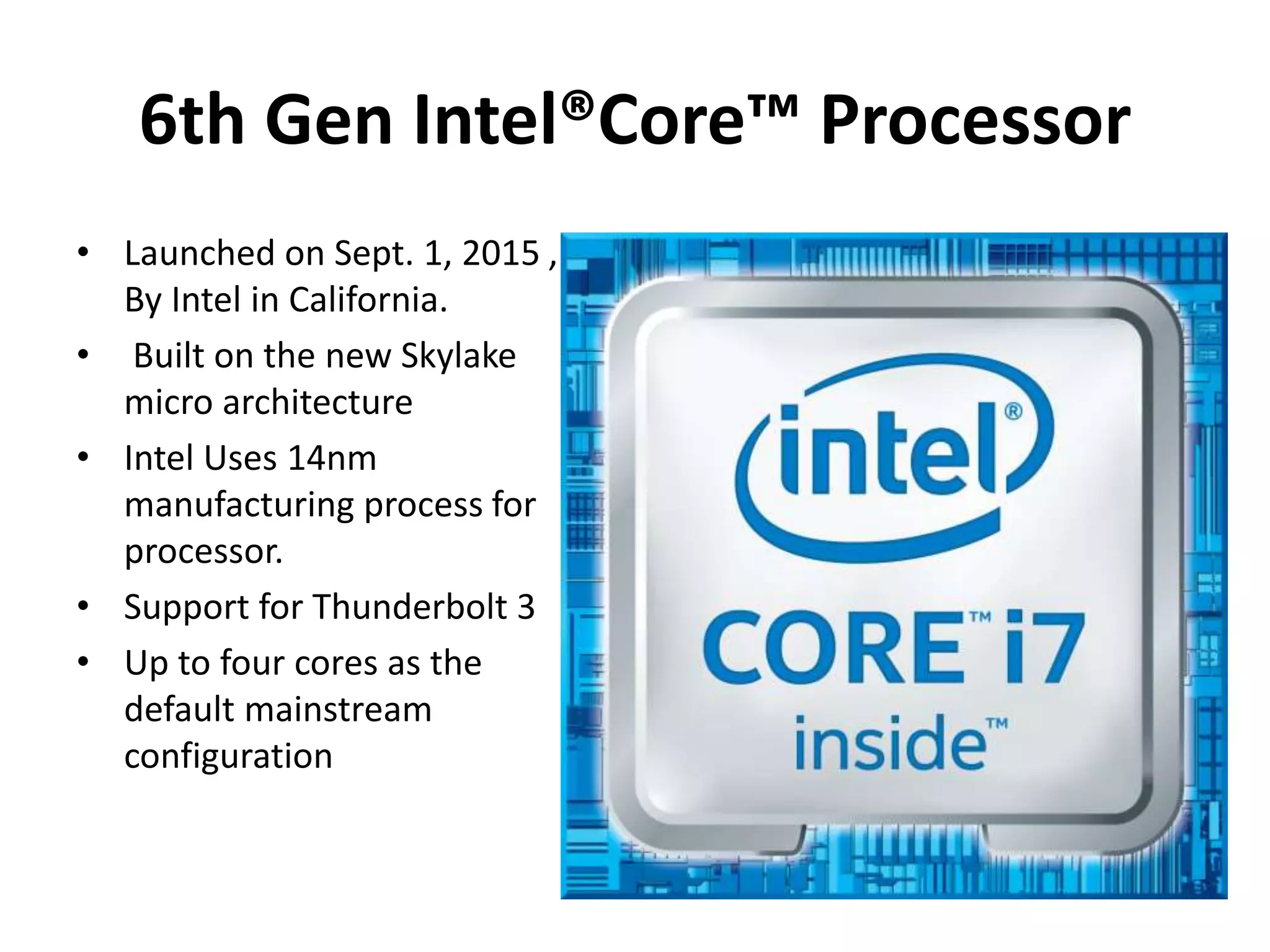

11. 6th Gen Intel®Core™ Processor
• Launched on Sept. 1, 2015 ,
By Intel in California.
• Built on the new Skylake
micro architecture
• Intel Uses 14nm
manufacturing process for
processor.
• Support for Thunderbolt 3
• Up to four cores as the
default mainstream
configuration

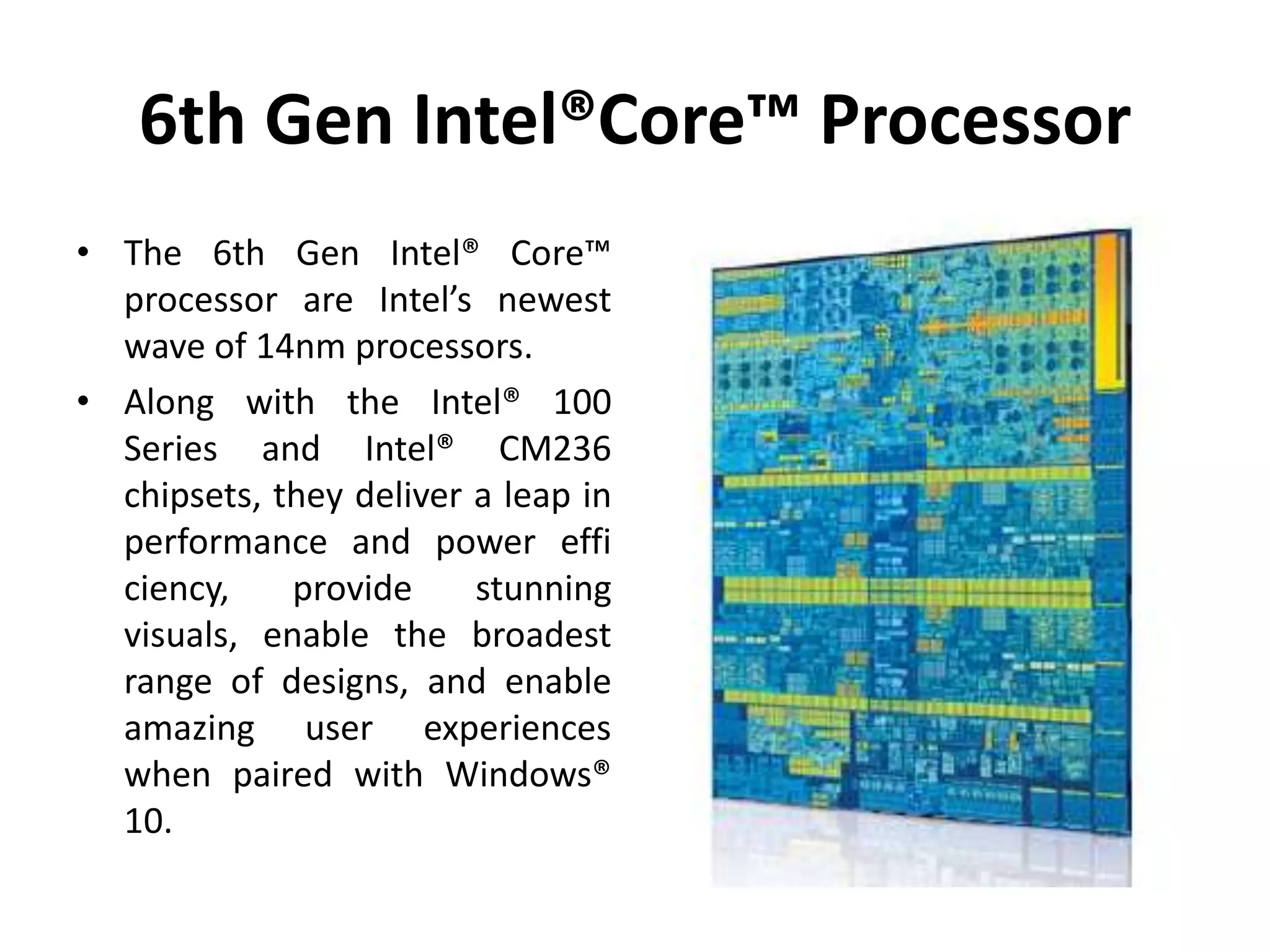

12. 6th Gen Intel®Core™ Processor
• The 6th Gen Intel® Core™
processor are Intel’s newest
wave of 14nm processors.
• Along with the Intel® 100
Series and Intel® CM236
chipsets, they deliver a leap in
performance and power effi
ciency, provide stunning
visuals, enable the broadest
range of designs, and enable
amazing user experiences
when paired with Windows®
10.

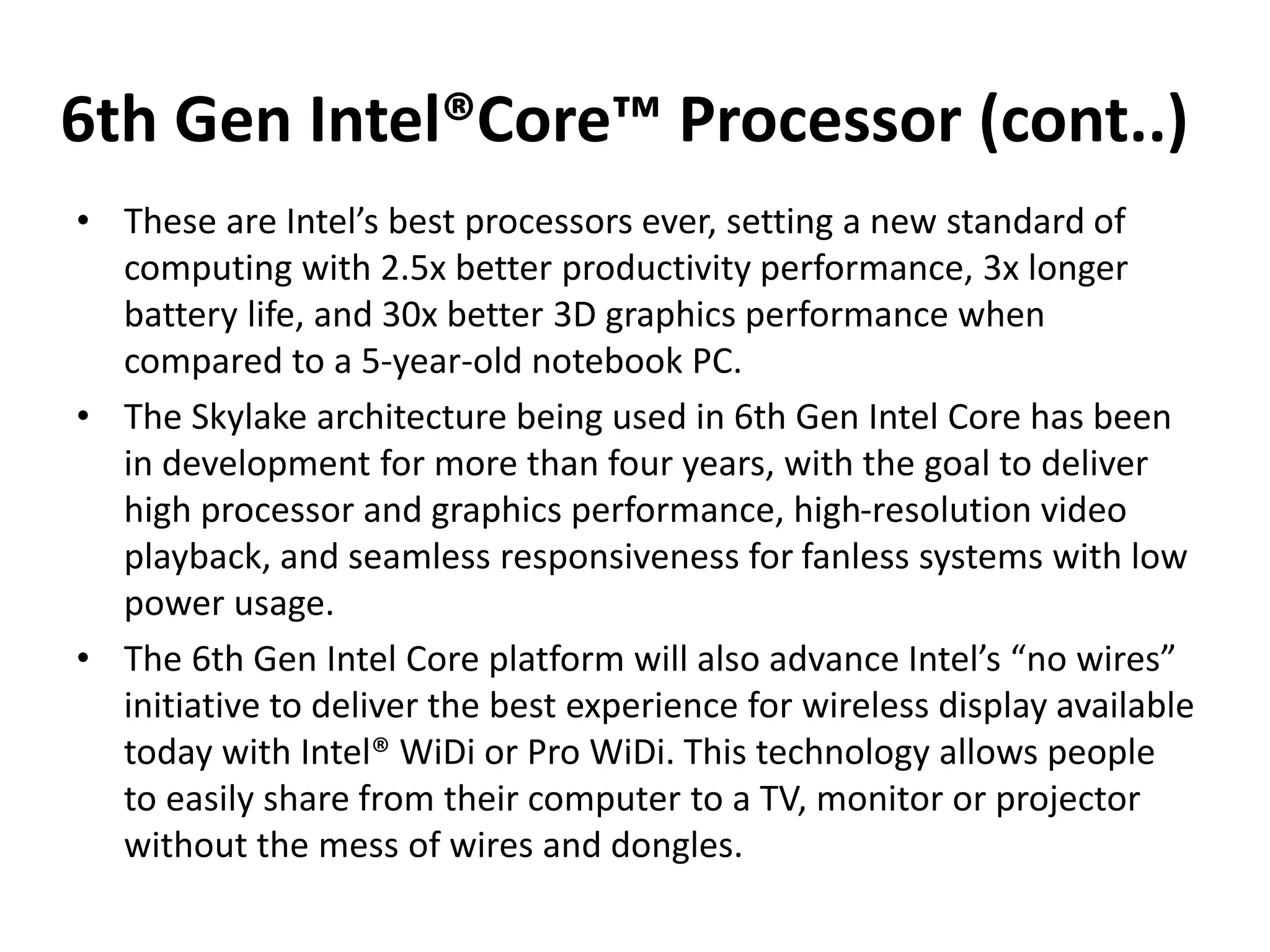

13. 6th Gen Intel®Core™ Processor (cont..)
• These are Intel’s best processors ever, setting a new standard of
computing with 2.5x better productivity performance, 3x longer
battery life, and 30x better 3D graphics performance when
compared to a 5-year-old notebook PC.
• The Skylake architecture being used in 6th Gen Intel Core has been
in development for more than four years, with the goal to deliver
high processor and graphics performance, high-resolution video
playback, and seamless responsiveness for fanless systems with low
power usage.
• The 6th Gen Intel Core platform will also advance Intel’s “no wires”
initiative to deliver the best experience for wireless display available
today with Intel® WiDi or Pro WiDi. This technology allows people
to easily share from their computer to a TV, monitor or projector
without the mess of wires and dongles.

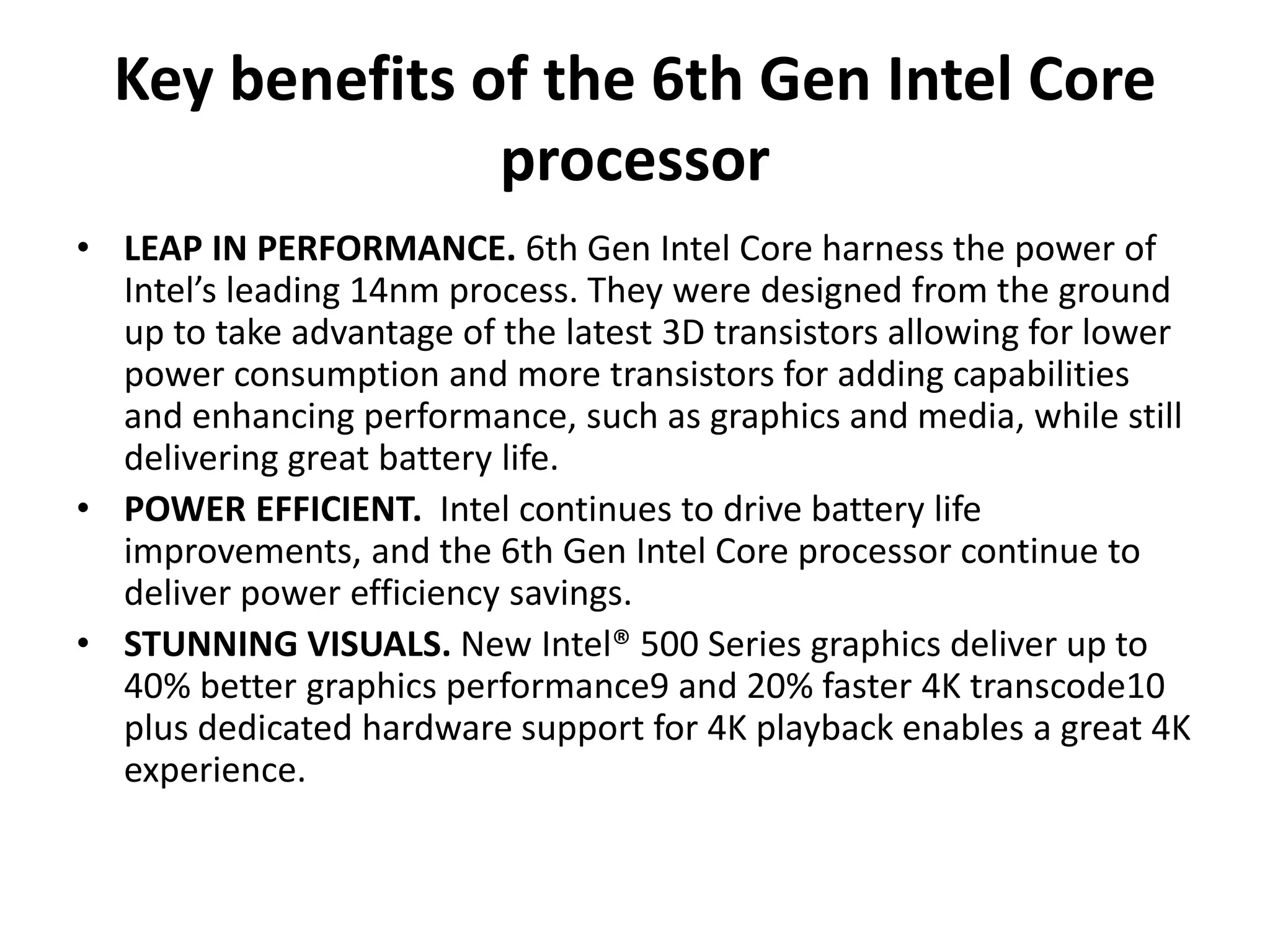

14. Key benefits of the 6th Gen Intel Core
processor
• LEAP IN PERFORMANCE. 6th Gen Intel Core harness the power of
Intel’s leading 14nm process. They were designed from the ground
up to take advantage of the latest 3D transistors allowing for lower
power consumption and more transistors for adding capabilities
and enhancing performance, such as graphics and media, while still
delivering great battery life.
• POWER EFFICIENT. Intel continues to drive battery life
improvements, and the 6th Gen Intel Core processor continue to
deliver power efficiency savings.
• STUNNING VISUALS. New Intel® 500 Series graphics deliver up to
40% better graphics performance9 and 20% faster 4K transcode10
plus dedicated hardware support for 4K playback enables a great 4K
experience.

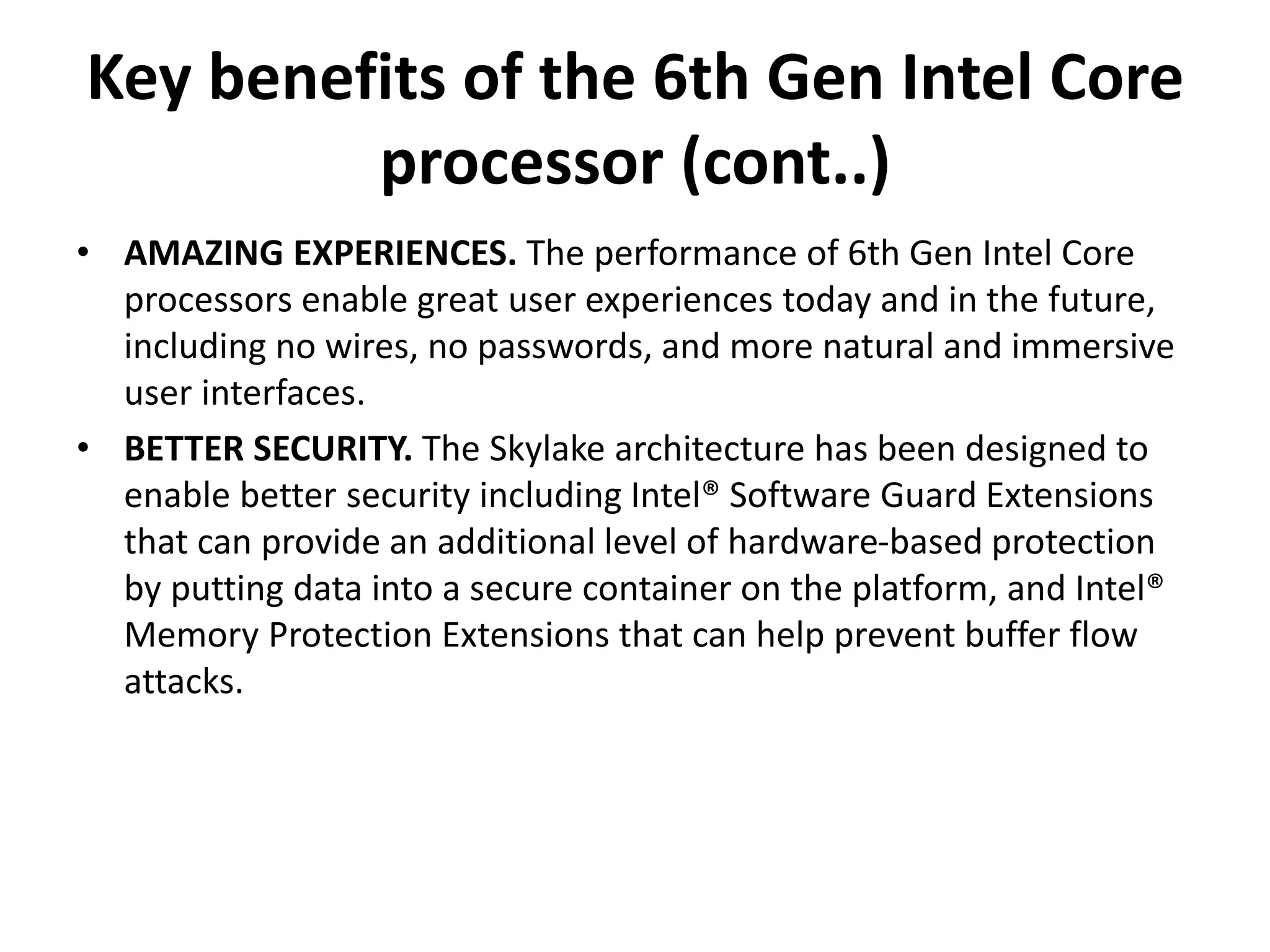

15. Key benefits of the 6th Gen Intel Core
processor (cont..)
• AMAZING EXPERIENCES. The performance of 6th Gen Intel Core
processors enable great user experiences today and in the future,
including no wires, no passwords, and more natural and immersive
user interfaces.
• BETTER SECURITY. The Skylake architecture has been designed to
enable better security including Intel® Software Guard Extensions
that can provide an additional level of hardware-based protection
by putting data into a secure container on the platform, and Intel®
Memory Protection Extensions that can help prevent buffer flow
attacks.

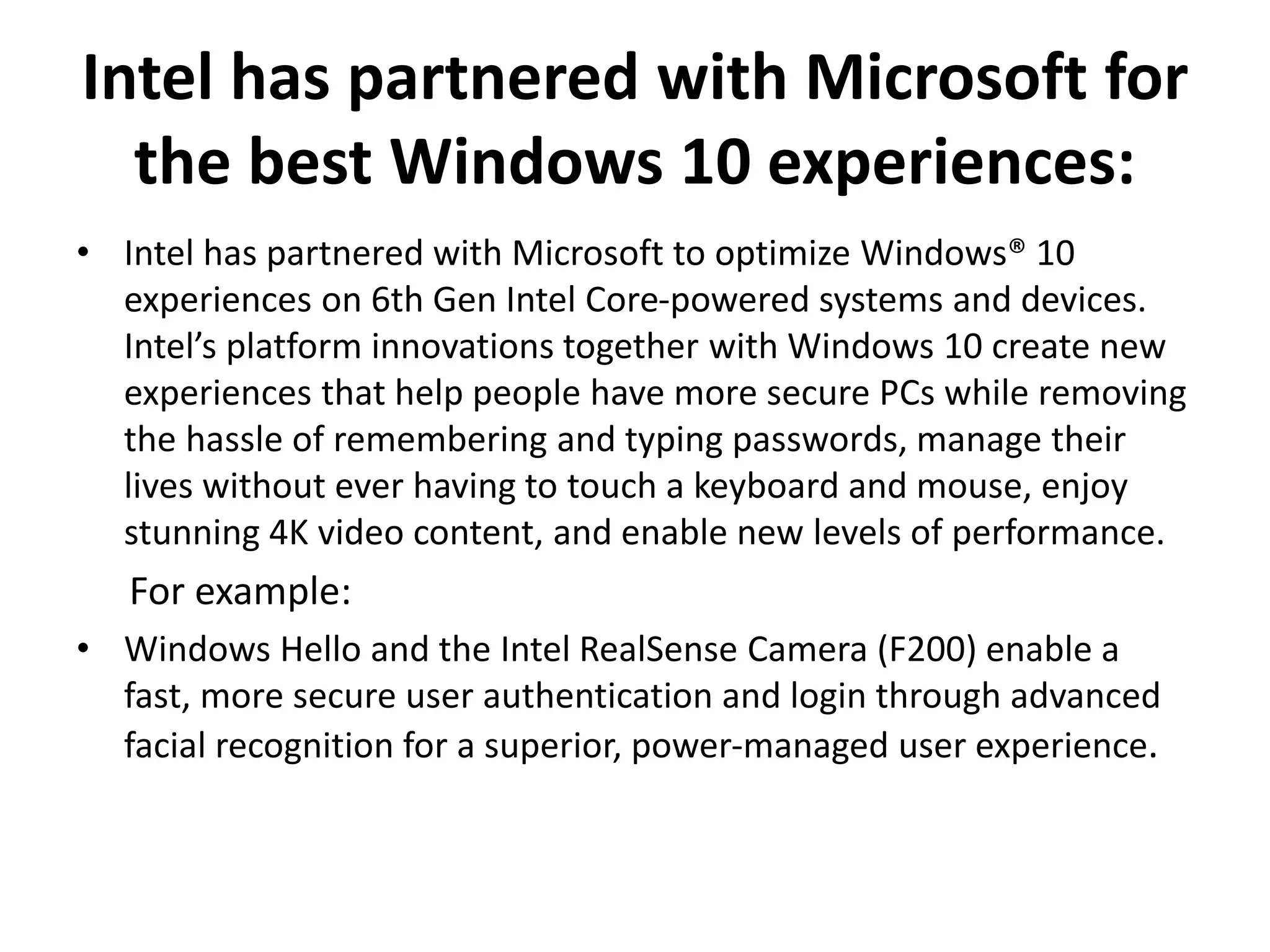

16. Intel has partnered with Microsoft for
the best Windows 10 experiences:
• Intel has partnered with Microsoft to optimize Windows® 10
experiences on 6th Gen Intel Core-powered systems and devices.
Intel’s platform innovations together with Windows 10 create new
experiences that help people have more secure PCs while removing
the hassle of remembering and typing passwords, manage their
lives without ever having to touch a keyboard and mouse, enjoy
stunning 4K video content, and enable new levels of performance.
For example:
• Windows Hello and the Intel RealSense Camera (F200) enable a
fast, more secure user authentication and login through advanced
facial recognition for a superior, power-managed user experience.

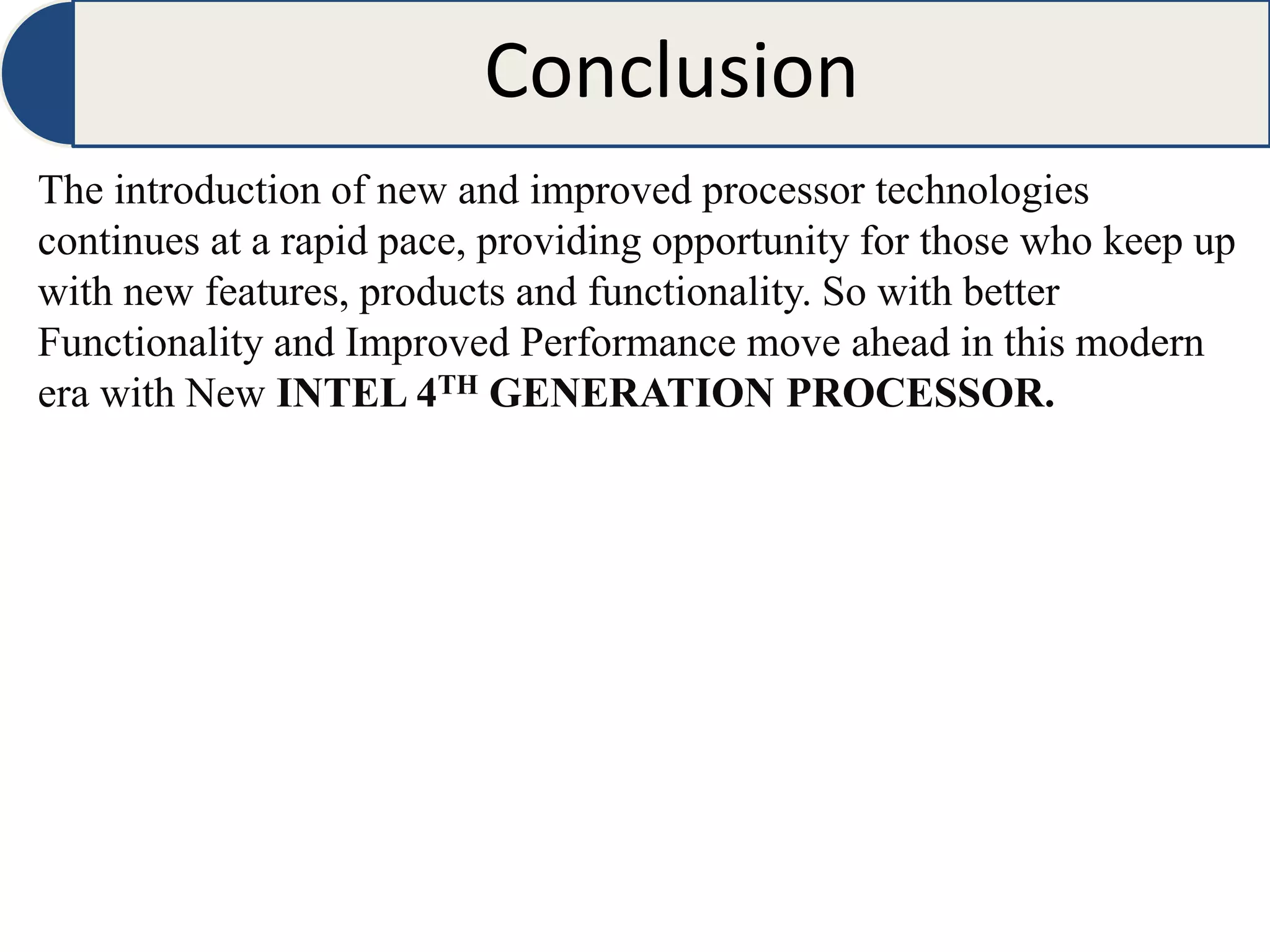

17. Conclusion
The introduction of new and improved processor technologies
continues at a rapid pace, providing opportunity for those who keep up
with new features, products and functionality. So with better
Functionality and Improved Performance move ahead in this modern
era with New INTEL 4TH GENERATION PROCESSOR.
