1. To,
Mr. Koteshwar Rao
ITS Hyderabad
Submitted by :-
Niteen Balpande (15stuhh0086)
Avinash Bhaskar (15stuhh0025)1

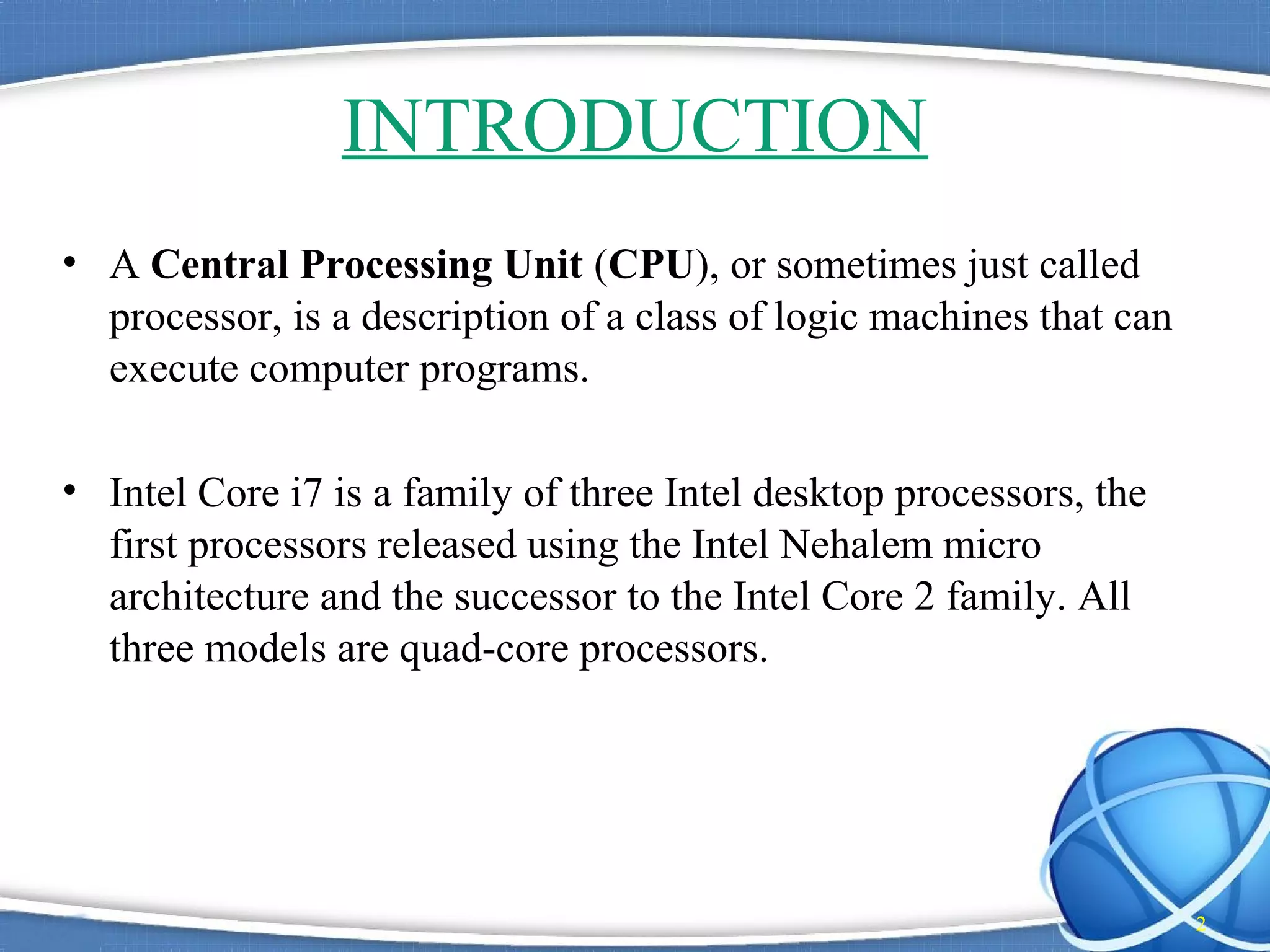

2. INTRODUCTION
• A Central Processing Unit (CPU), or sometimes just called
processor, is a description of a class of logic machines that can
execute computer programs.
• Intel Core i7 is a family of three Intel desktop processors, the
first processors released using the Intel Nehalem micro
architecture and the successor to the Intel Core 2 family. All
three models are quad-core processors.
2

3. BASICS
 In computer architecture, 32-bit integers, memory
addresses, or other data units are those that are at most
32 bits wide. Hence, 32-bit CPU and ALU
architectures are those that are based on registers,
address buses, or data buses of that size.
 In computer architecture, 64-bit integers, memory
addresses, or other data units are those that are at most
64 bits wide. Also, 64-bit CPU and ALU architectures
are those that are based on registers, address buses, or
data buses of that size.
3

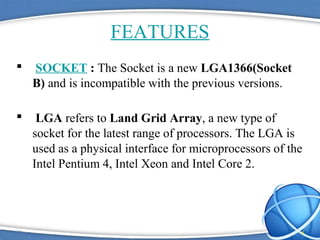

4. FEATURES
 SOCKET : The Socket is a new LGA1366(Socket
B) and is incompatible with the previous versions.
 LGA refers to Land Grid Array, a new type of
socket for the latest range of processors. The LGA is
used as a physical interface for microprocessors of the
Intel Pentium 4, Intel Xeon and Intel Core 2.
4

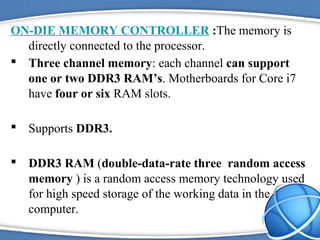

6. ON-DIE MEMORY CONTROLLER :The memory is
directly connected to the processor.
 Three channel memory: each channel can support
one or two DDR3 RAM’s. Motherboards for Core i7
have four or six RAM slots.
 Supports DDR3.
 DDR3 RAM (double-data-rate three random access
memory ) is a random access memory technology used
for high speed storage of the working data in the
computer.
6

7. More About Processor
The speed of data transfer is 25.6 Gbps, almost double
that of FSB.
Clock Speed 1.2 GHz (slowest) & 3.5 Ghz (fastest) or
3.9GHz via Turbo Boost Technology
The cost per piece is INR. 47,000.
7

8. Cache Memory
 32 KB L1 instruction and 32 KB L1 data
cache per core.
 256 KB L2 cache (combined instruction and
data) per core.
 8 MB L3 (combined instruction and data)
shared by all cores.
8

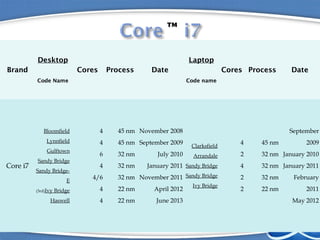

9. Brand
Desktop
Code Name
Cores Process Date
Laptop
Code name
Cores Process Date
Core i7
Bloomfield
Lynnfield
Gulftown
Sandy Bridge
Sandy Bridge-
E
(3rd)Ivy Bridge
Haswell
4
4
6
4
4/6
4
4
45 nm
45 nm
32 nm
32 nm
32 nm
22 nm
22 nm
November 2008
September 2009
July 2010
January 2011
November 2011
April 2012
June 2013
Clarksfield
Arrandale
Sandy Bridge
Sandy Bridge
Ivy Bridge
4
2
4
2
2
45 nm
32 nm
32 nm
32 nm
22 nm
September
2009
January 2010
January 2011
February
2011
May 2012
9

10. 10

11.  Core i7 (Business and HighEnd)
 Core i5 (Mainstream Consumers)
 Core i3 (Entry- Level)
 Celeron
 Pentium
 DMI and Integrated GPU
11

12.  Threads : 4, 2-4, 8 Simultaneous Threads resp.
 Cache : 3-4 MB, 3-8 MB, 4-8 MB resp.
 TurboBoost Technology
 Heat and Energy Efficient
12

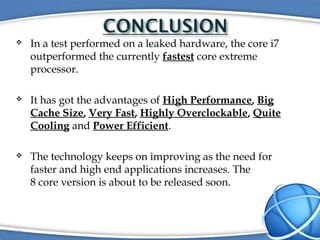

13.  In a test performed on a leaked hardware, the core i7
outperformed the currently fastest core extreme
processor.
 It has got the advantages of High Performance, Big
Cache Size, Very Fast, Highly Overclockable, Quite
Cooling and Power Efficient.
 The technology keeps on improving as the need for
faster and high end applications increases. The
8 core version is about to be released soon.
13

14. 14
