1. Theory of Flight
6.01 Aircraft Design and Construction
References:
FTGU pages 9-14, 27

2. Main Teaching Points
• Parts of an Airplane
• Aircraft Construction
• Landing Gear
• Standard Terminology

3. Definition
The airplane is defined as:
• A power-driven…
• Heavier-than air aircraft…
• Deriving its lift in flight from aerodynamic
reactions…
• On surfaces that remain fixed under given
conditions of flight.

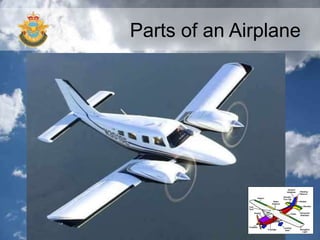

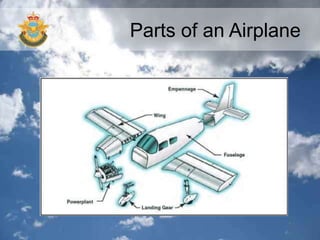

4. Parts of an Airplane

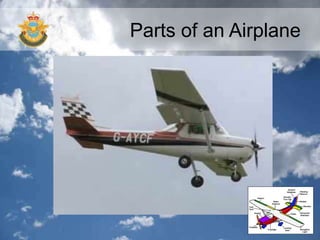

5. Parts of an Airplane

6. Parts of an Airplane

7. Parts of an Airplane

8. Fuselage

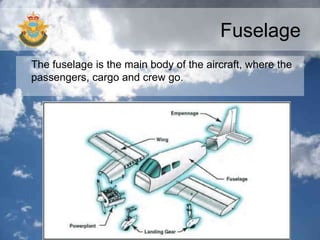

The fuselage is the main body of the aircraft, where the
passengers, cargo and crew go.

9. Fuselage
• The fuselage is normally classified according to the type
of construction:
• -Truss Type
• -Monocoque
• -Semi-monocoque

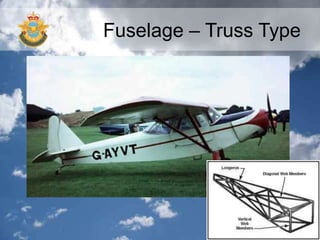

10. Fuselage – Truss Type

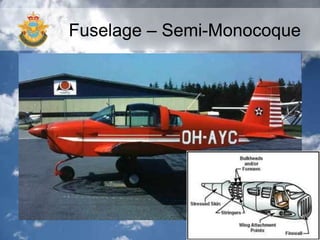

11. Fuselage – Semi-Monocoque

12. Empennage
• The empennage is the rear portion of the airplane
• It is integral to control and stability during flight

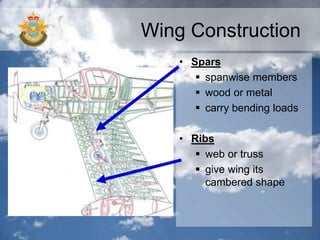

13. Wing Construction
• Spars
 spanwise members
 wood or metal
 carry bending loads
• Ribs
 web or truss
 give wing its
cambered shape

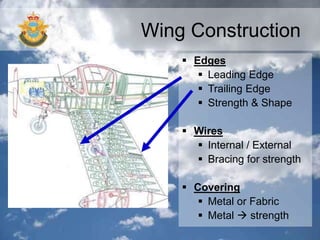

14. Wing Construction
 Edges
 Leading Edge
 Trailing Edge
 Strength & Shape
 Wires
 Internal / External
 Bracing for strength
 Covering
 Metal or Fabric
 Metal  strength

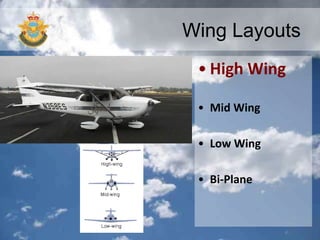

15. Wing Layouts
• High Wing
• Mid Wing
• Low Wing
• Bi-Plane

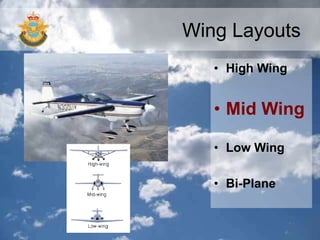

16. Wing Layouts
• High Wing
• Mid Wing
• Low Wing
• Bi-Plane

17. Wing Layouts
• High Wing
• Mid Wing
• Low Wing
• Bi-Plane

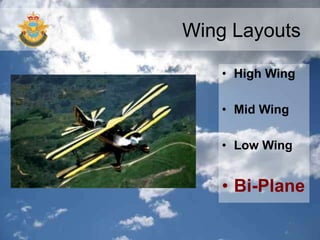

18. Wing Layouts
• High Wing
• Mid Wing
• Low Wing
• Bi-Plane

19. Confirmation

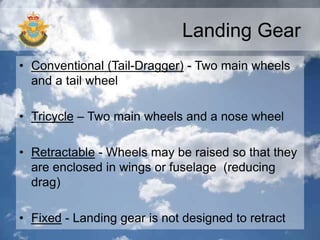

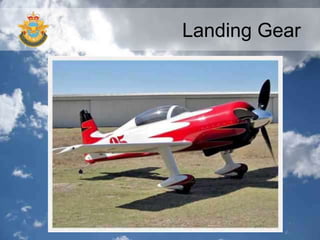

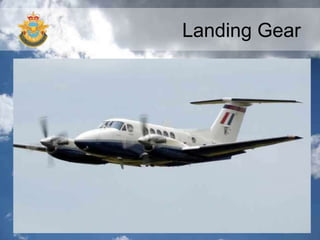

20. Landing Gear
• Conventional (Tail-Dragger) - Two main wheels
and a tail wheel
• Tricycle – Two main wheels and a nose wheel
• Retractable - Wheels may be raised so that they
are enclosed in wings or fuselage (reducing
drag)
• Fixed - Landing gear is not designed to retract

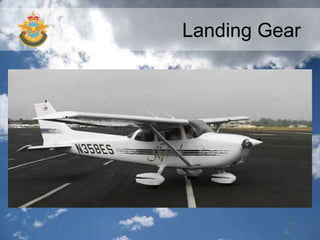

21. Landing Gear

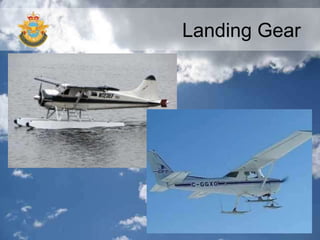

22. Landing Gear

23. Landing Gear

24. Landing Gear

25. Landing Gear

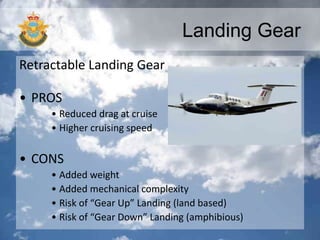

Retractable Landing Gear
• PROS
• Reduced drag at cruise
• Higher cruising speed
• CONS
• Added weight
• Added mechanical complexity
• Risk of “Gear Up” Landing (land based)
• Risk of “Gear Down” Landing (amphibious)

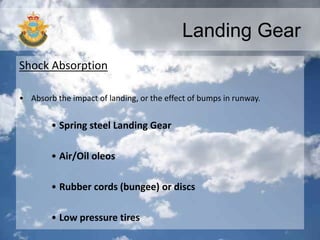

26. Landing Gear
Shock Absorption
• Absorb the impact of landing, or the effect of bumps in runway.
• Spring steel Landing Gear
• Air/Oil oleos
• Rubber cords (bungee) or discs
• Low pressure tires

27. Landing Gear

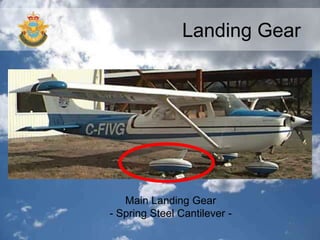

Main Landing Gear
- Spring Steel Cantilever -

28. Landing Gear

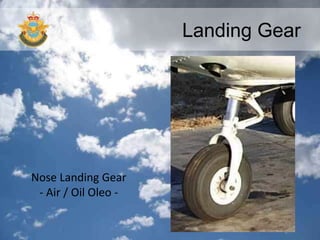

Nose Landing Gear
- Air / Oil Oleo -

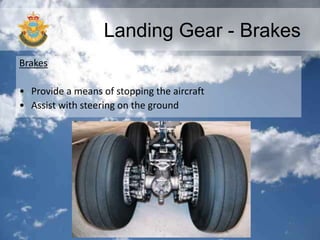

29. Landing Gear - Brakes
Brakes
• Provide a means of stopping the aircraft
• Assist with steering on the ground

30. Confirmation
• How would you
describe the aircraft to
the left?
• -tail dragger?
• -tricycle gear?
• -retractable gear?
• -float plane?
• -high wing?
• -low wing?
• -mid wing?
• -biplane?
• Request the use of the
tools to label the
aircraft.

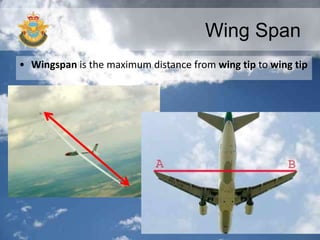

31. Wing Span
• Wingspan is the maximum distance from wing tip to wing tip

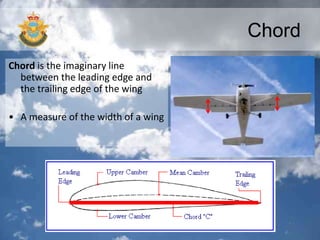

32. Chord
Chord is the imaginary line
between the leading edge and
the trailing edge of the wing
• A measure of the width of a wing

33. Wing Area
Wing Area
• Length of the wing multiplied by the average width of wing

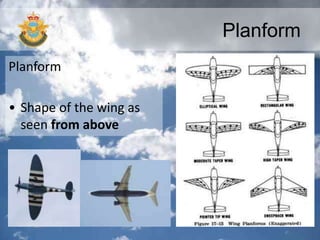

34. Planform
Planform
• Shape of the wing as
seen from above

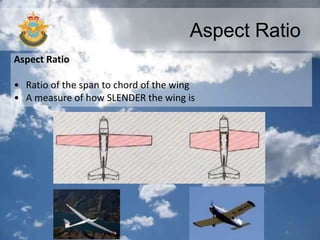

35. Aspect Ratio
Aspect Ratio
• Ratio of the span to chord of the wing
• A measure of how SLENDER the wing is

36. Airfoil
• A structure curved to produce lift

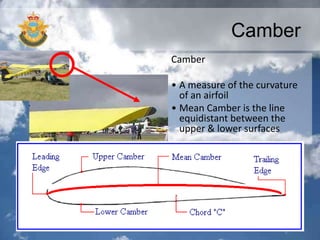

37. Camber
Camber
• A measure of the curvature
of an airfoil
• Mean Camber is the line
equidistant between the
upper & lower surfaces

38. Angle of Incidence
Angle of Incidence
• Angle between chord line and the longitudinal axis

39. Relative Airflow

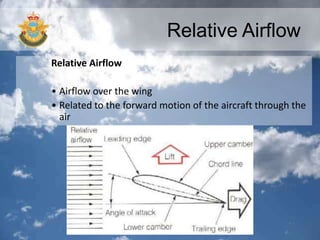

Relative Airflow
• Airflow over the wing
• Related to the forward motion of the aircraft through the
air

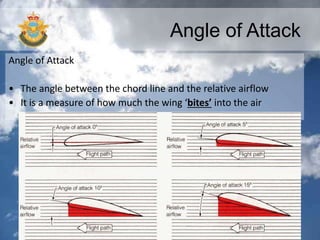

40. Angle of Attack
Angle of Attack
• The angle between the chord line and the relative airflow
• It is a measure of how much the wing ‘bites’ into the air

41. Confirmation
Confirmation Check

42. Confirmation

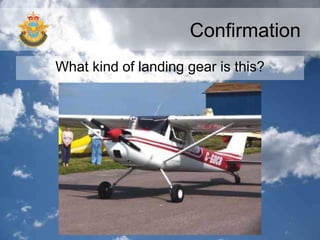

What kind of landing gear is this?

43. Confirmation

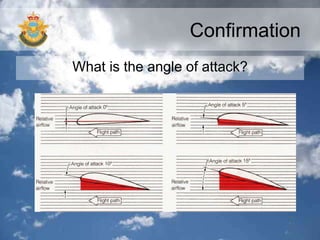

What is the angle of attack?

44. Confirmation
What are some of the differences between
powered aircraft and gliders?

45. Confirmation

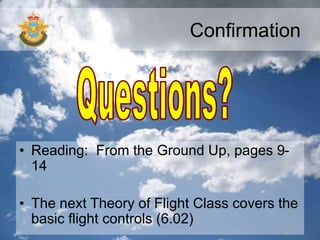

• Reading: From the Ground Up, pages 9-
14
• The next Theory of Flight Class covers the
basic flight controls (6.02)
