This document discusses the anatomy and fractures of the zygomatic bone. It notes that the zygoma forms the cheekbone and articulates with several other facial bones. Zygomatic fractures most commonly occur in the arch or body due to blunt trauma. Diagnosis involves checking for diplopia, ecchymosis, and other signs of orbital or facial bone involvement. Treatment may involve closed or open reduction based on the severity of displacement. Closed reduction techniques try to elevate the bone back into position without surgery, while open reduction requires surgical exposure and fixation of the fracture site.

1. z
zygomatic
fracture Dr. Simon
12/28/2020
Dr.SimonRock

2. 12/28/2020

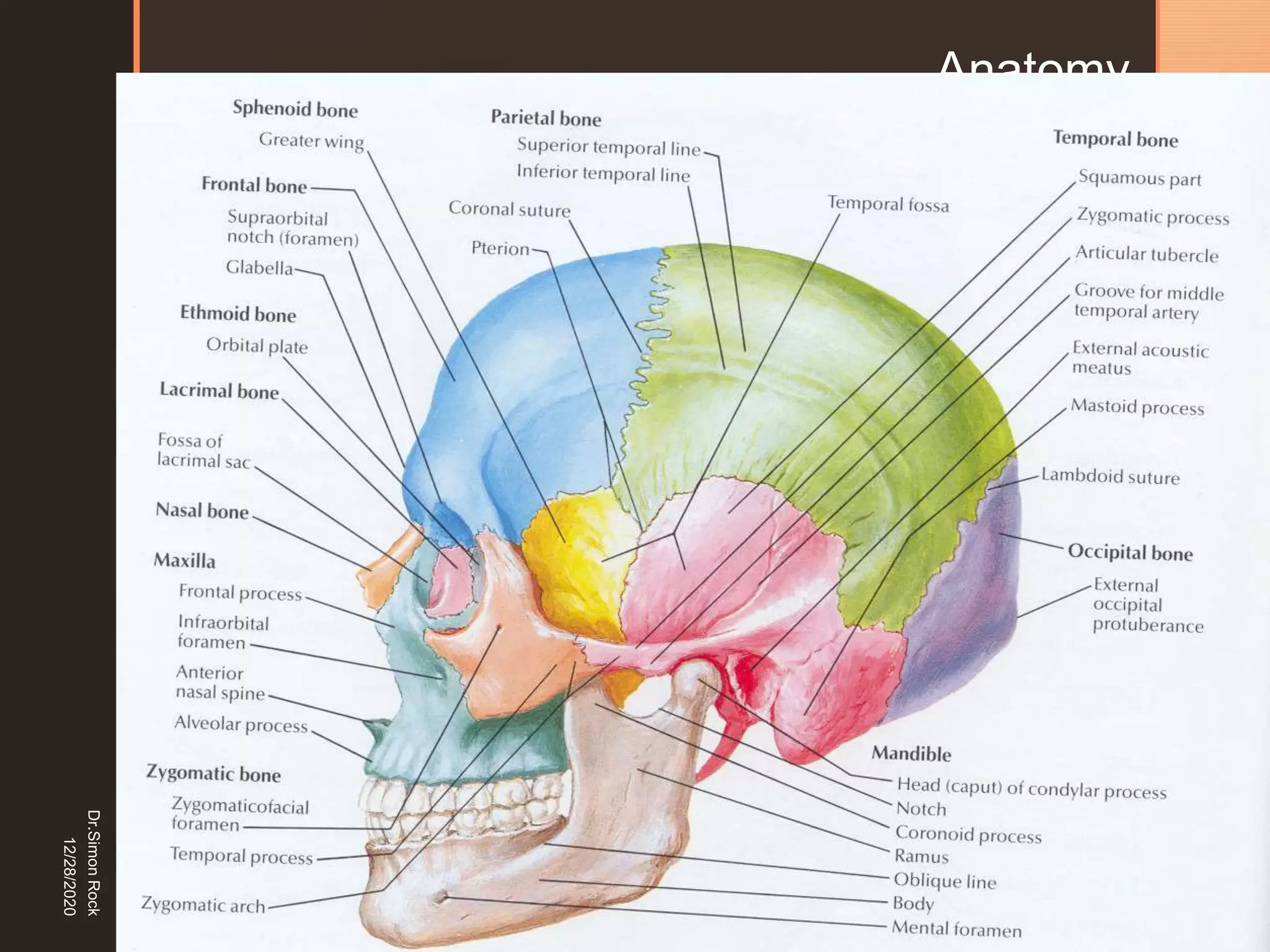

Dr.SimonRock Anatomy

3. 12/28/2020
Dr.SimonRock Anatomy

4. 12/28/2020

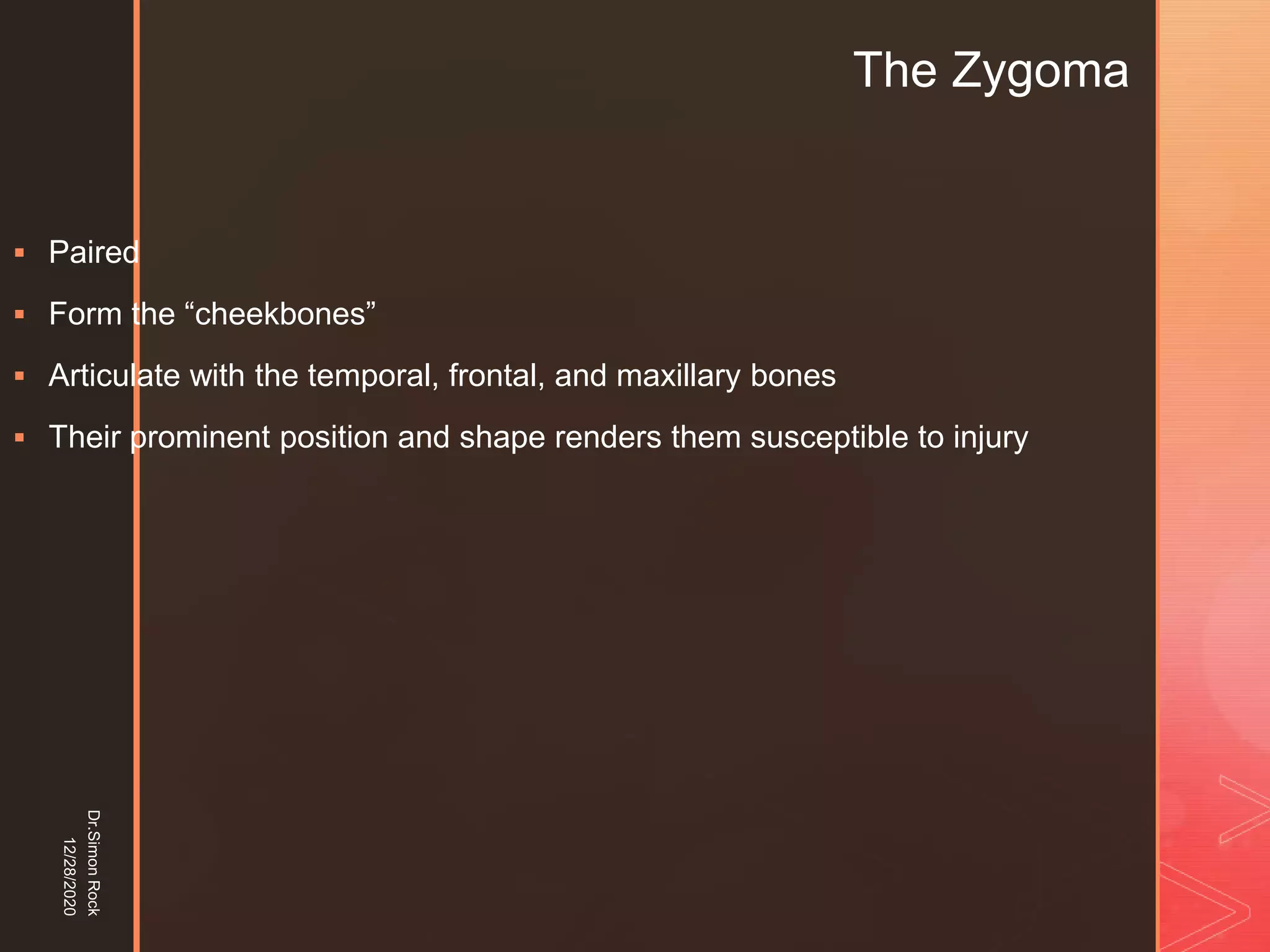

Dr.SimonRock The Zygoma
 Paired
 Form the “cheekbones”
 Articulate with the temporal, frontal, and maxillary bones
 Their prominent position and shape renders them susceptible to injury

5. z

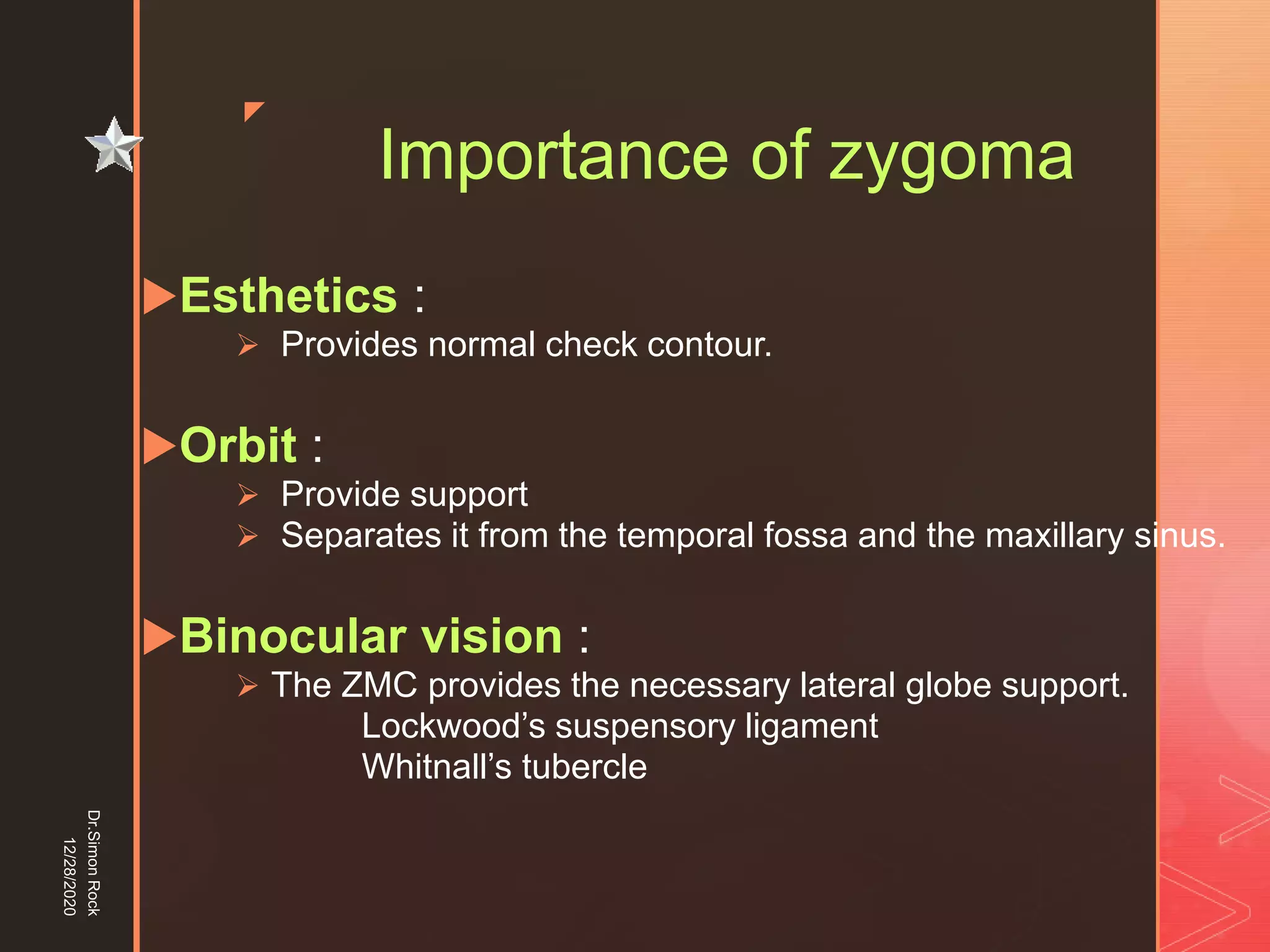

Importance of zygoma
Esthetics :
 Provides normal check contour.
Orbit :
 Provide support
 Separates it from the temporal fossa and the maxillary sinus.
Binocular vision :
 The ZMC provides the necessary lateral globe support.
Lockwood’s suspensory ligament
Whitnall’s tubercle
12/28/2020
Dr.SimonRock

6. z

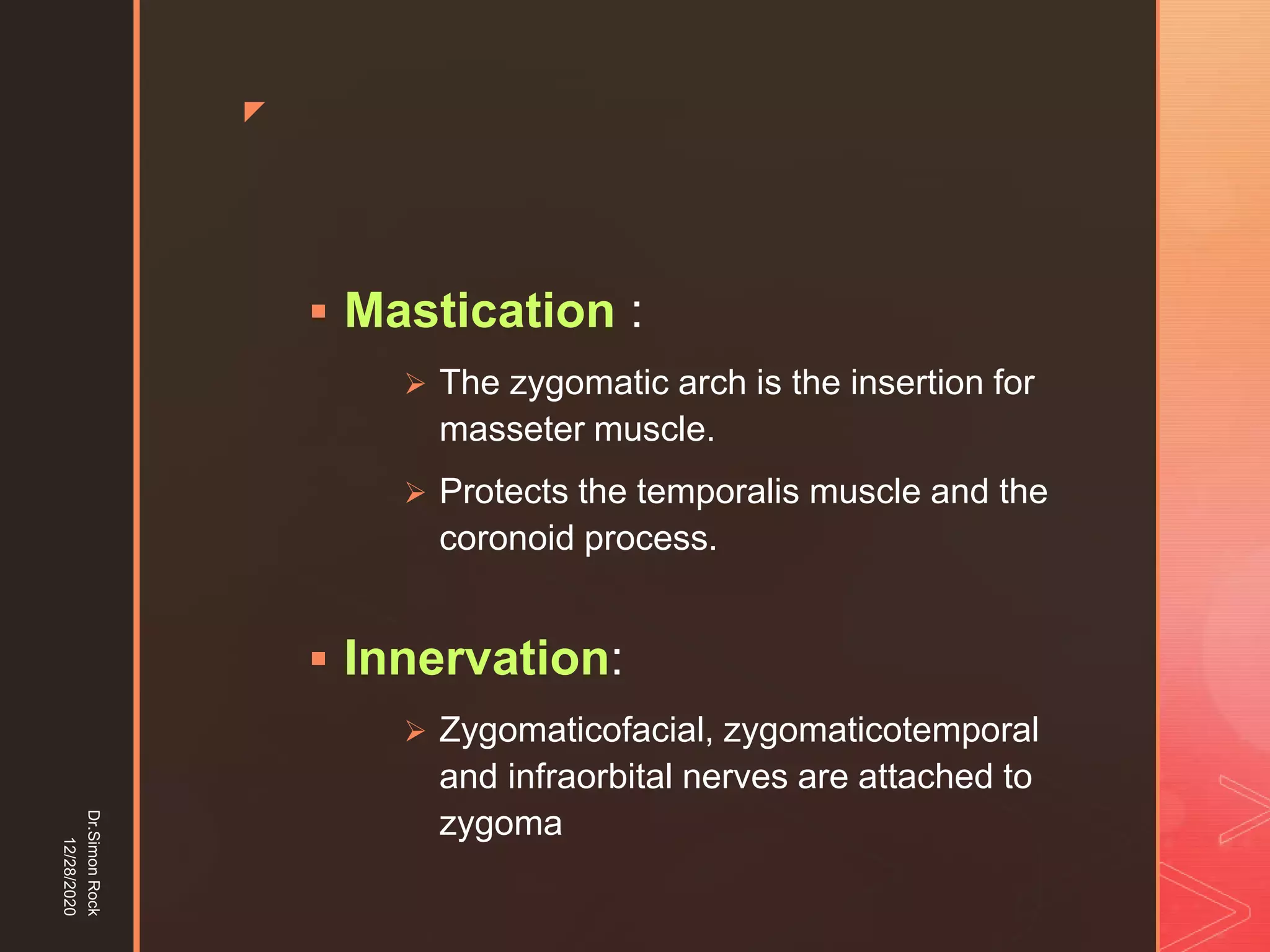

 Mastication :
 The zygomatic arch is the insertion for
masseter muscle.
 Protects the temporalis muscle and the
coronoid process.
 Innervation:
 Zygomaticofacial, zygomaticotemporal
and infraorbital nerves are attached to
zygoma
12/28/2020
Dr.SimonRock

7. z
Articulations of Zygoma :
A. Superficial Articulations
1. With frontal bone through :
 zygomaticofrontal suture.
2. With maxilla at
the lateral antral wall
(zygomaticomaxillary buttresses).
3. With With temporal bone through
 the zygomaticotemporal suture.
12/28/2020
Dr.SimonRock
1
2
3

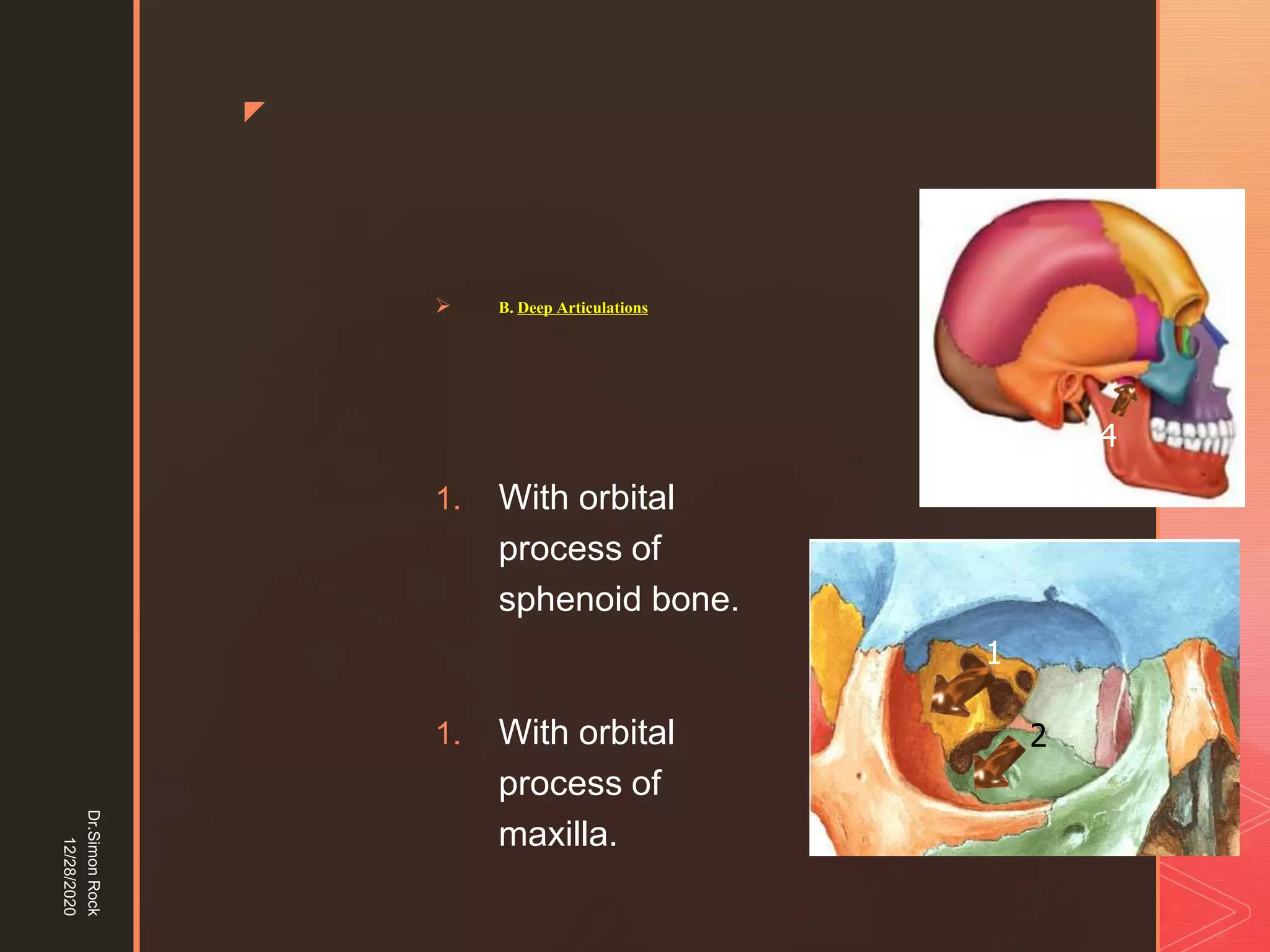

8. z
 B. Deep Articulations
1. With orbital
process of
sphenoid bone.
1. With orbital
process of
maxilla.
12/28/2020
Dr.SimonRock
4
2
1

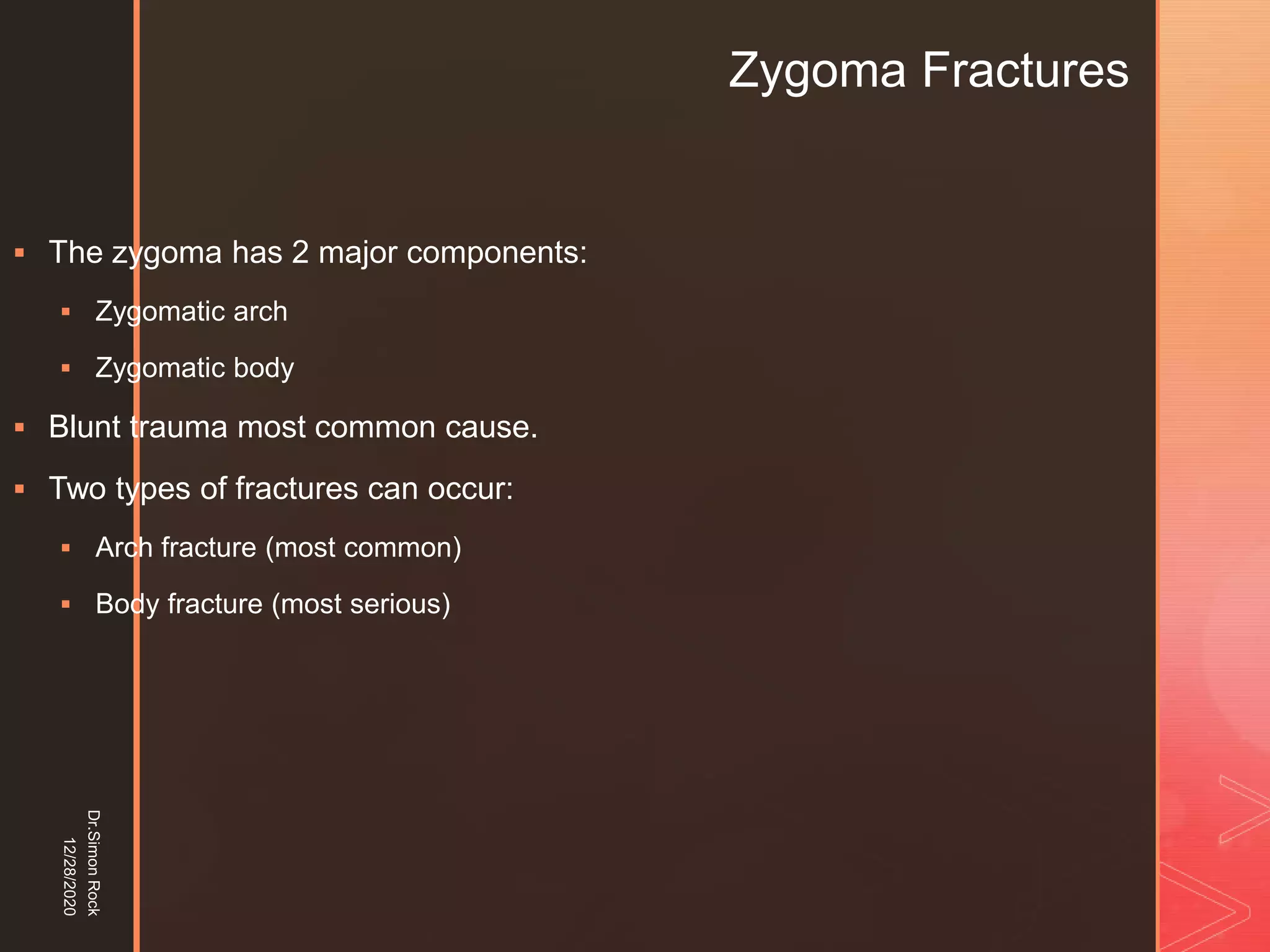

9. 12/28/2020
Dr.SimonRock Zygoma Fractures
 The zygoma has 2 major components:
 Zygomatic arch
 Zygomatic body
 Blunt trauma most common cause.
 Two types of fractures can occur:
 Arch fracture (most common)
 Body fracture (most serious)

10. z

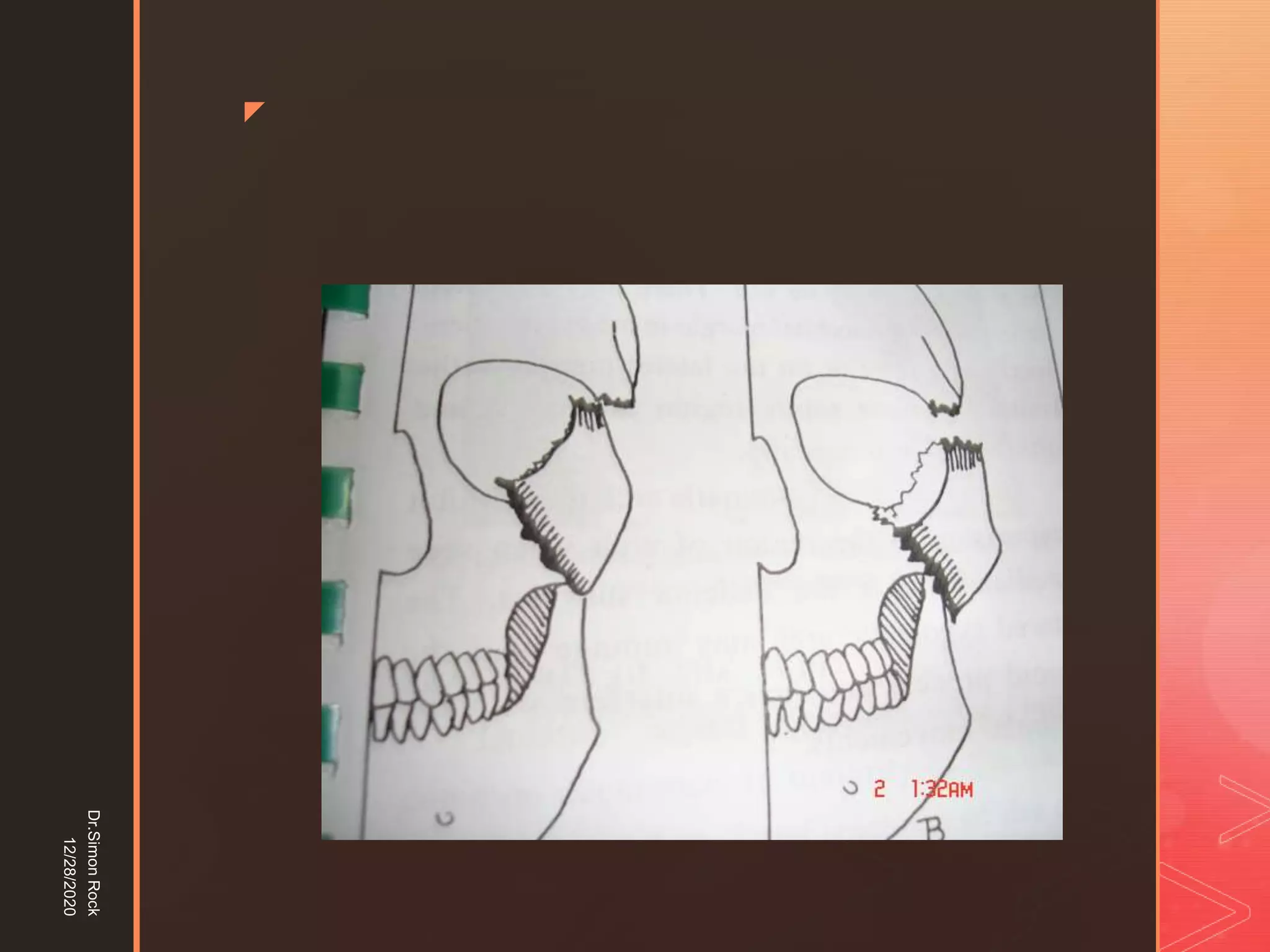

CLASSIFICATION
Fractures of the body, the zygomatic complex
involving the orbit.
1)Minimal or no displacement
2)Inward and downward displacement
3)Inward and posterior displacement
4)Outward displacement
5)Comminution of the complex as a whole
12/28/2020
Dr.SimonRock

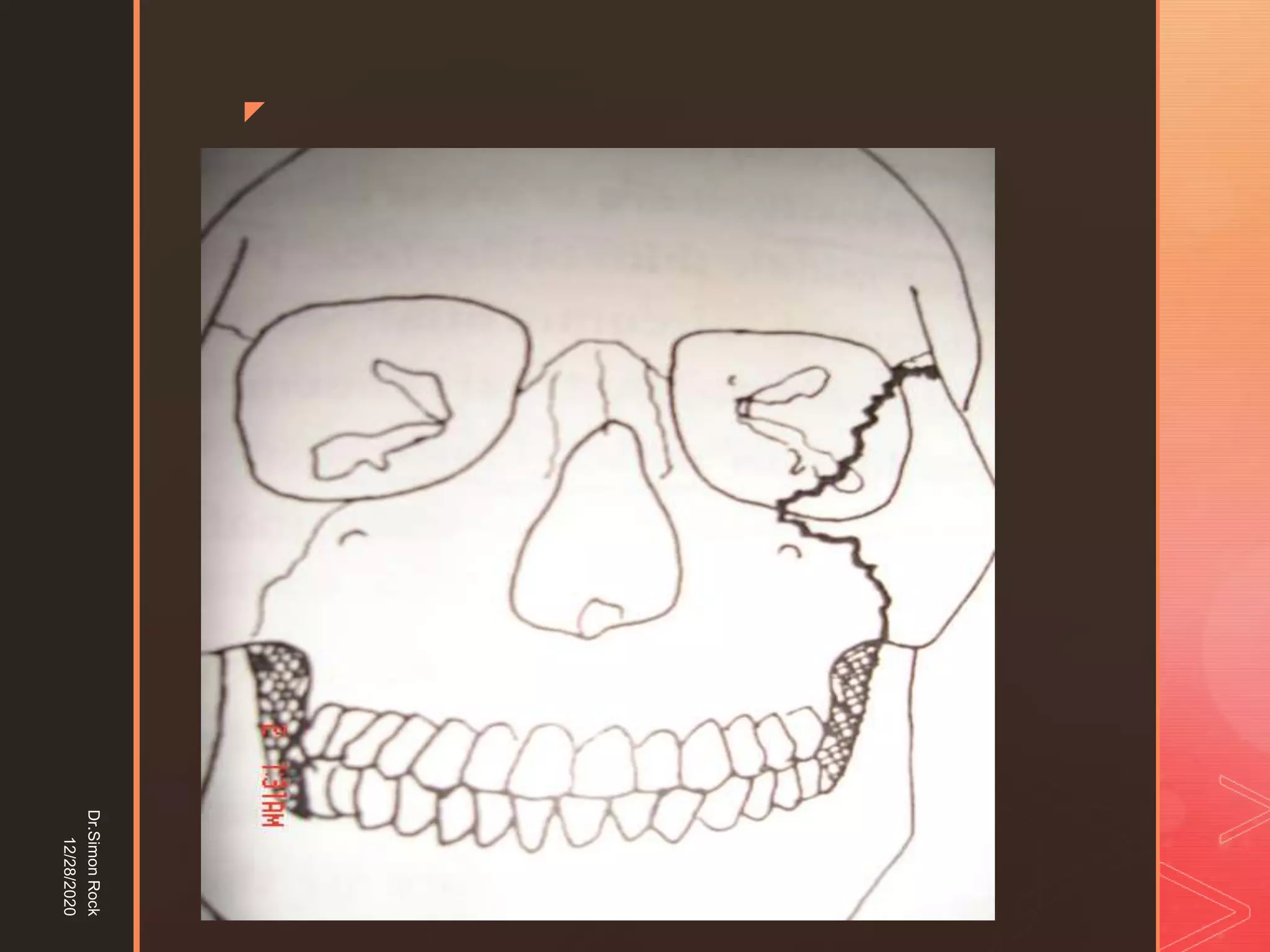

11. z
12/28/2020
Dr.SimonRock

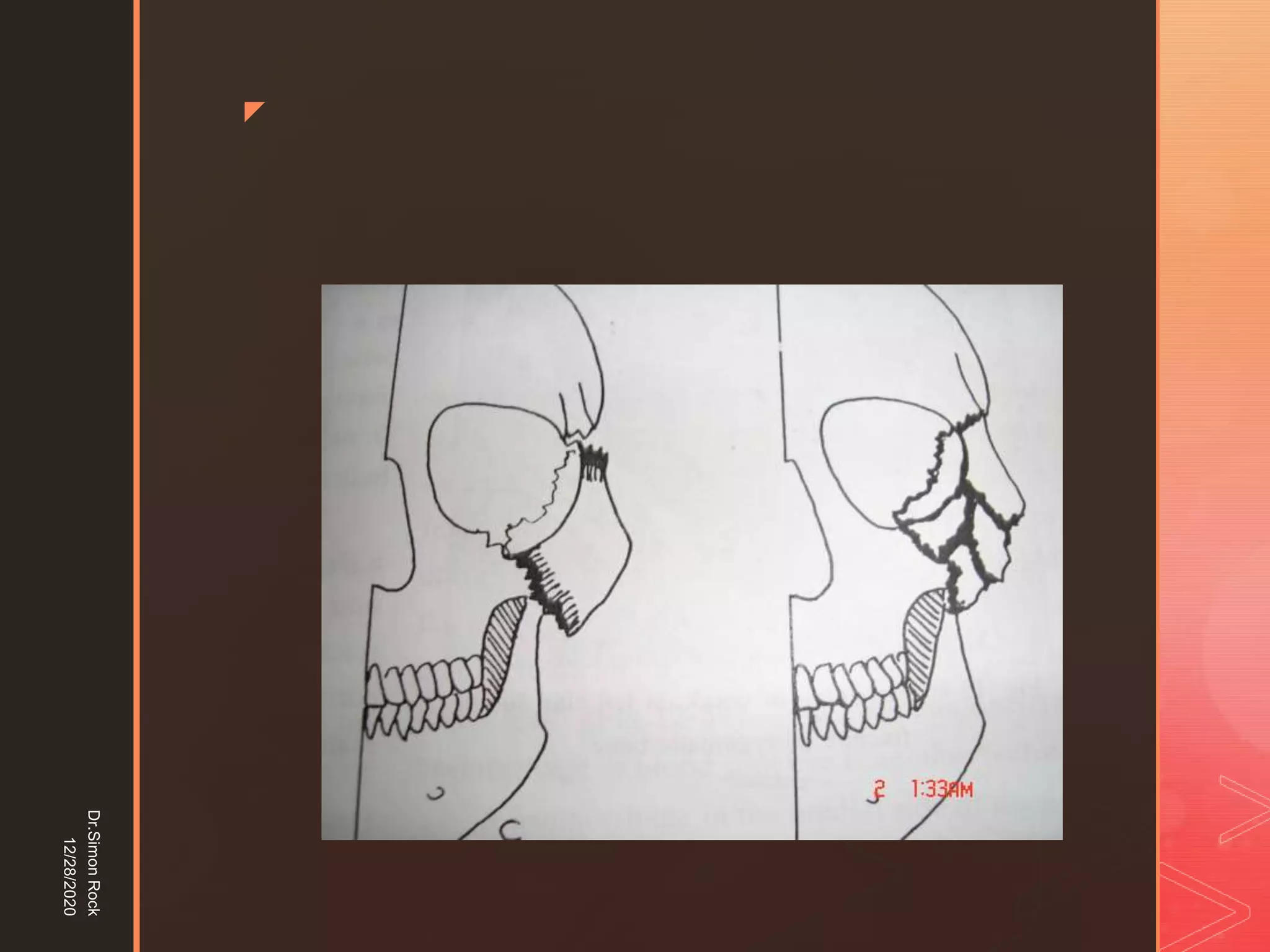

12. z
12/28/2020
Dr.SimonRock

13. z
12/28/2020
Dr.SimonRock

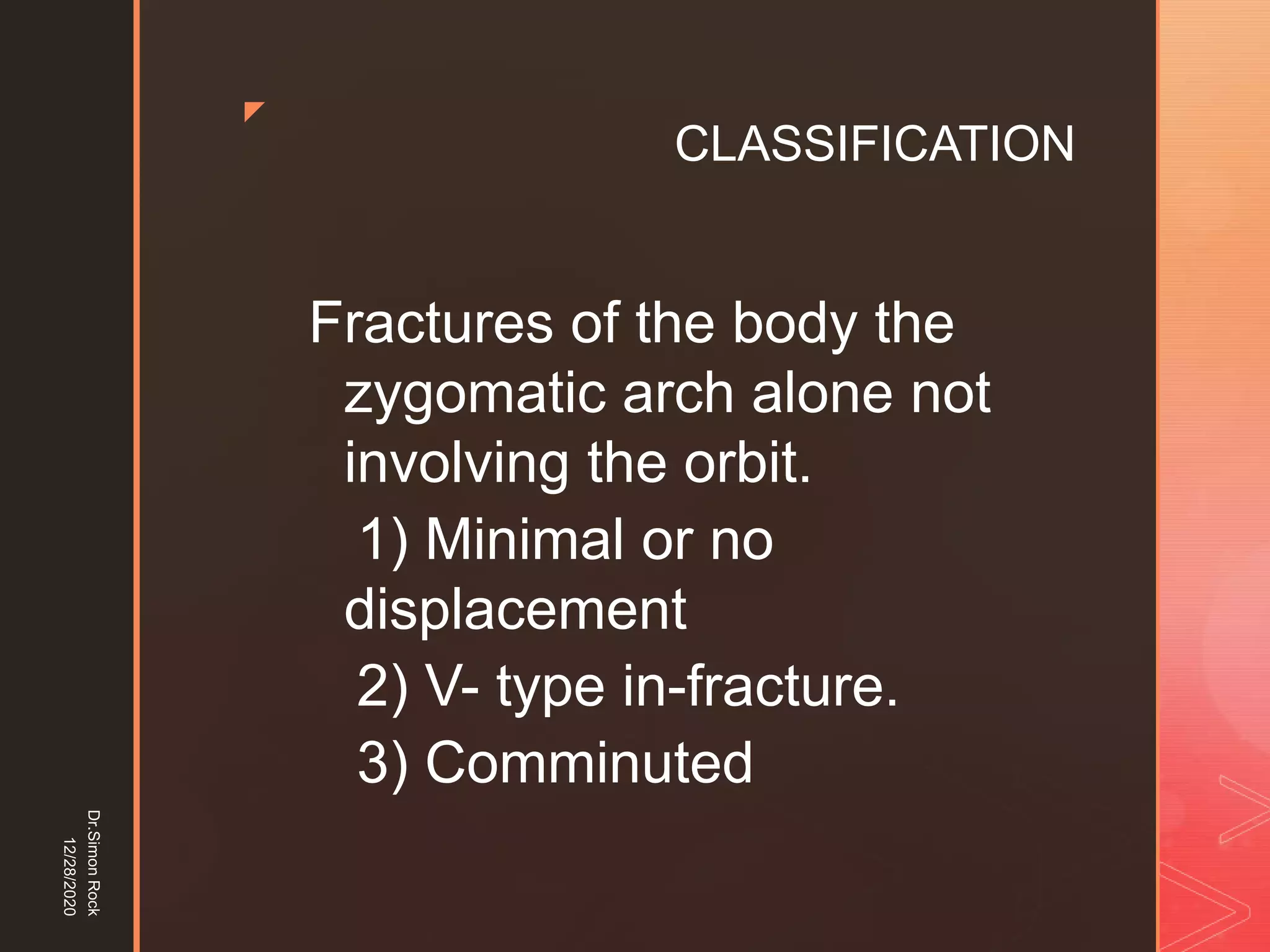

14. z
CLASSIFICATION
Fractures of the body the
zygomatic arch alone not
involving the orbit.
1) Minimal or no
displacement
2) V- type in-fracture.
3) Comminuted
12/28/2020
Dr.SimonRock

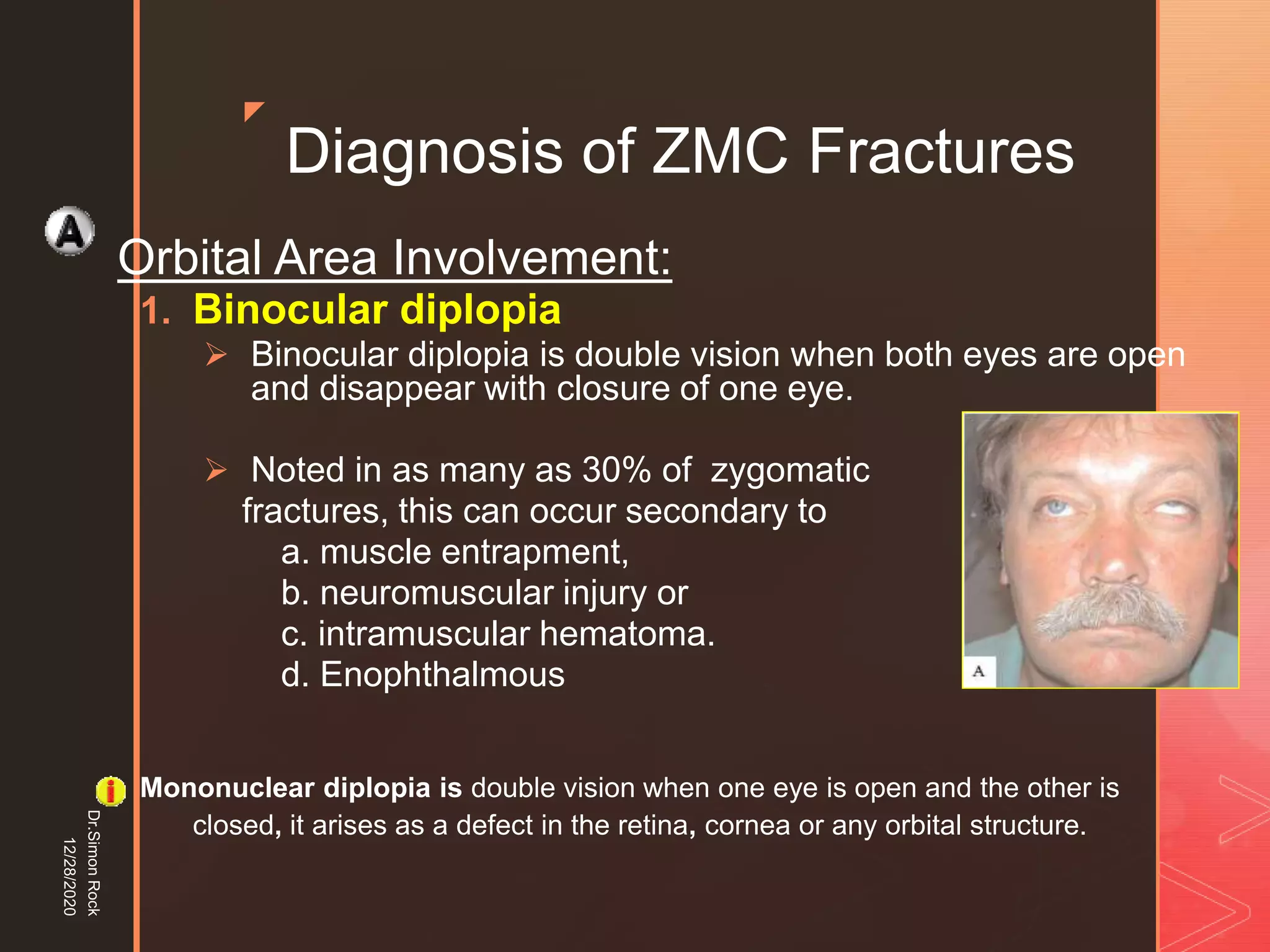

15. z
Diagnosis of ZMC Fractures
Orbital Area Involvement:
1. Binocular diplopia
 Binocular diplopia is double vision when both eyes are open
and disappear with closure of one eye.
 Noted in as many as 30% of zygomatic
fractures, this can occur secondary to
a. muscle entrapment,
b. neuromuscular injury or
c. intramuscular hematoma.
d. Enophthalmous
Mononuclear diplopia is double vision when one eye is open and the other is
closed, it arises as a defect in the retina, cornea or any orbital structure.
12/28/2020
Dr.SimonRock

16. z
2. Subconjunctival hemorrhage
 The conjunctiva is permeable to oxygen so the blood is
oxygenated blood with characteristic bright red color.
12/28/2020
Dr.SimonRock

17. z
3. Ecchymosis of eye lids
12/28/2020
Dr.SimonRock

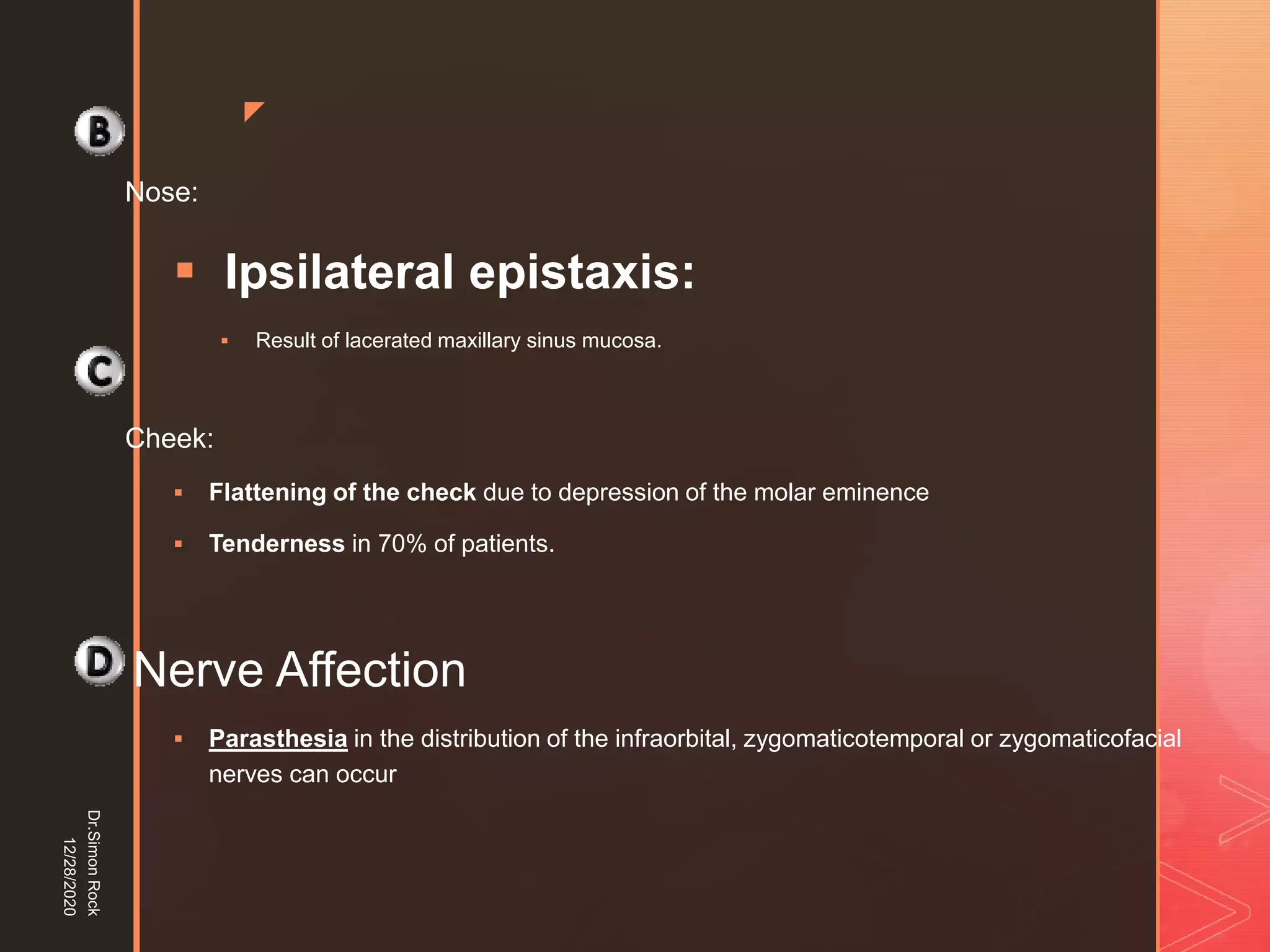

18. z
Nose:
 Ipsilateral epistaxis:
 Result of lacerated maxillary sinus mucosa.
Cheek:
 Flattening of the check due to depression of the molar eminence
 Tenderness in 70% of patients.
Nerve Affection
 Parasthesia in the distribution of the infraorbital, zygomaticotemporal or zygomaticofacial
nerves can occur
12/28/2020
Dr.SimonRock

19. z
12/28/2020
Dr.SimonRock

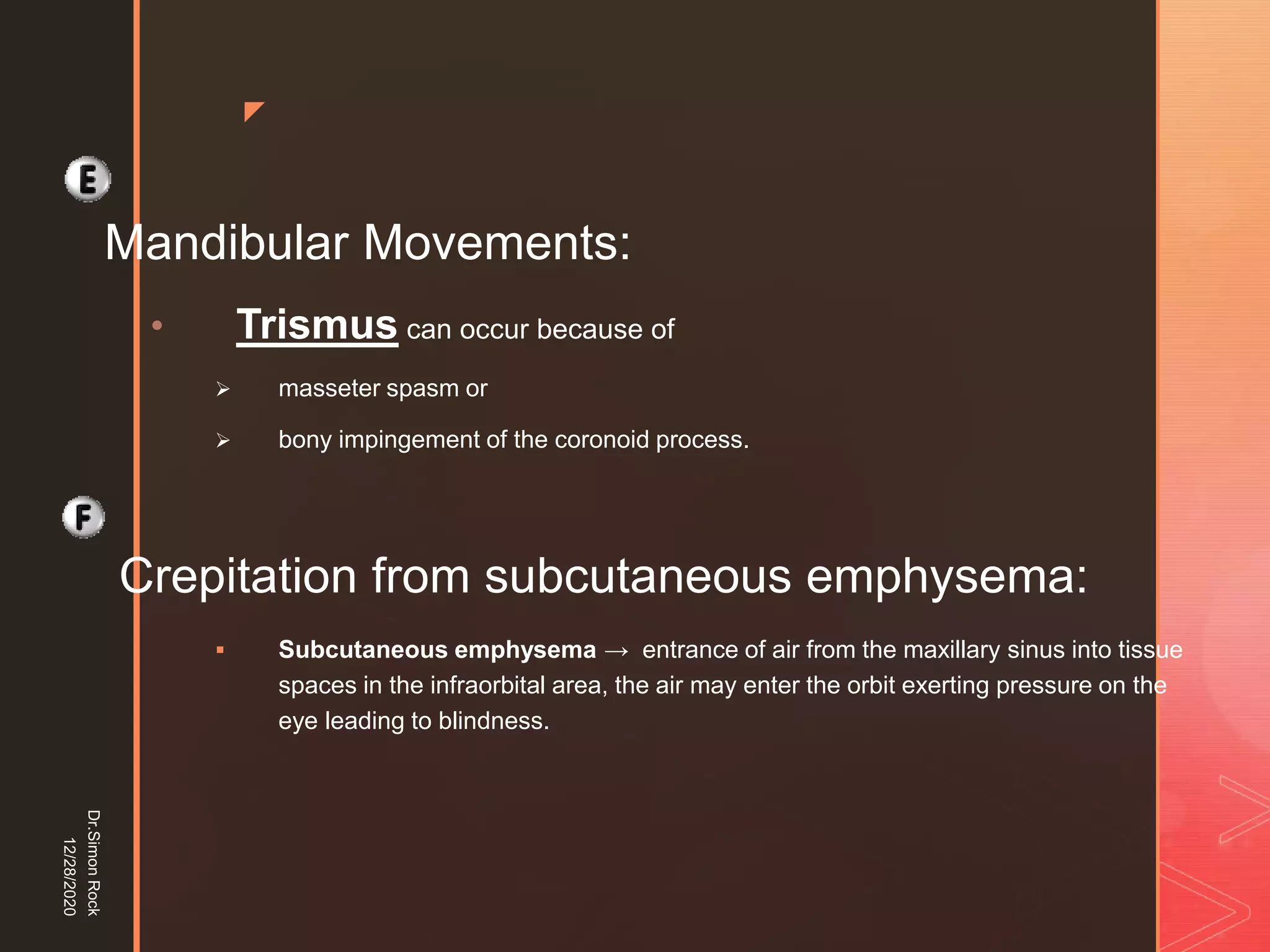

20. z
Mandibular Movements:
• Trismus can occur because of
 masseter spasm or
 bony impingement of the coronoid process.
Crepitation from subcutaneous emphysema:
 Subcutaneous emphysema → entrance of air from the maxillary sinus into tissue
spaces in the infraorbital area, the air may enter the orbit exerting pressure on the
eye leading to blindness.
12/28/2020
Dr.SimonRock

21. 12/28/2020
Dr.SimonRock
Zygomatic Arch Fractures
 Can fracture 2 to 3 places along the arch
 Lateral to each end of the arch
 Fracture in the middle of the arch
 Patients usually present with pain on opening their mouth.

22. 12/28/2020
Dr.SimonRock

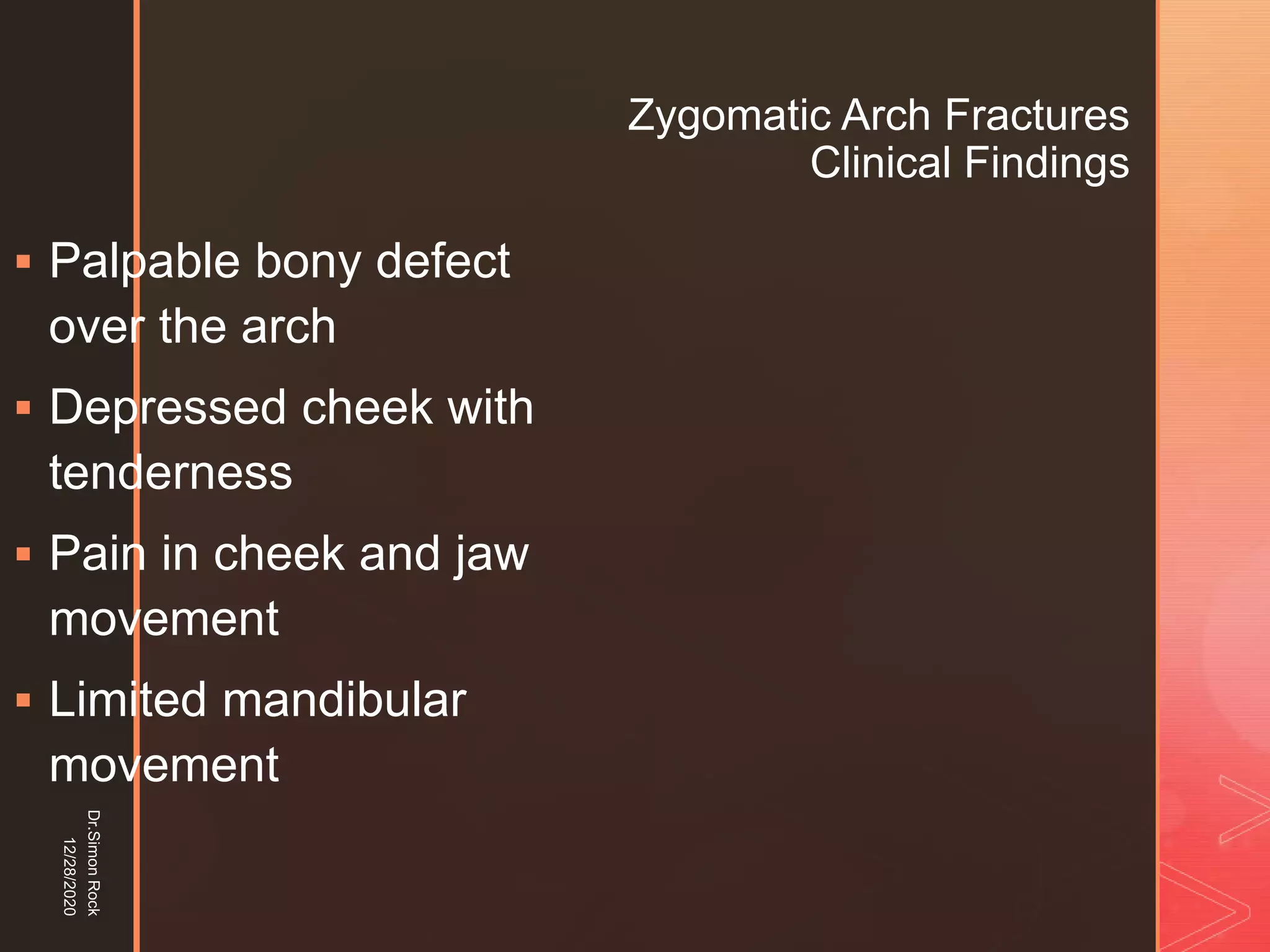

Zygomatic Arch Fractures
Clinical Findings
 Palpable bony defect
over the arch
 Depressed cheek with
tenderness
 Pain in cheek and jaw
movement
 Limited mandibular
movement

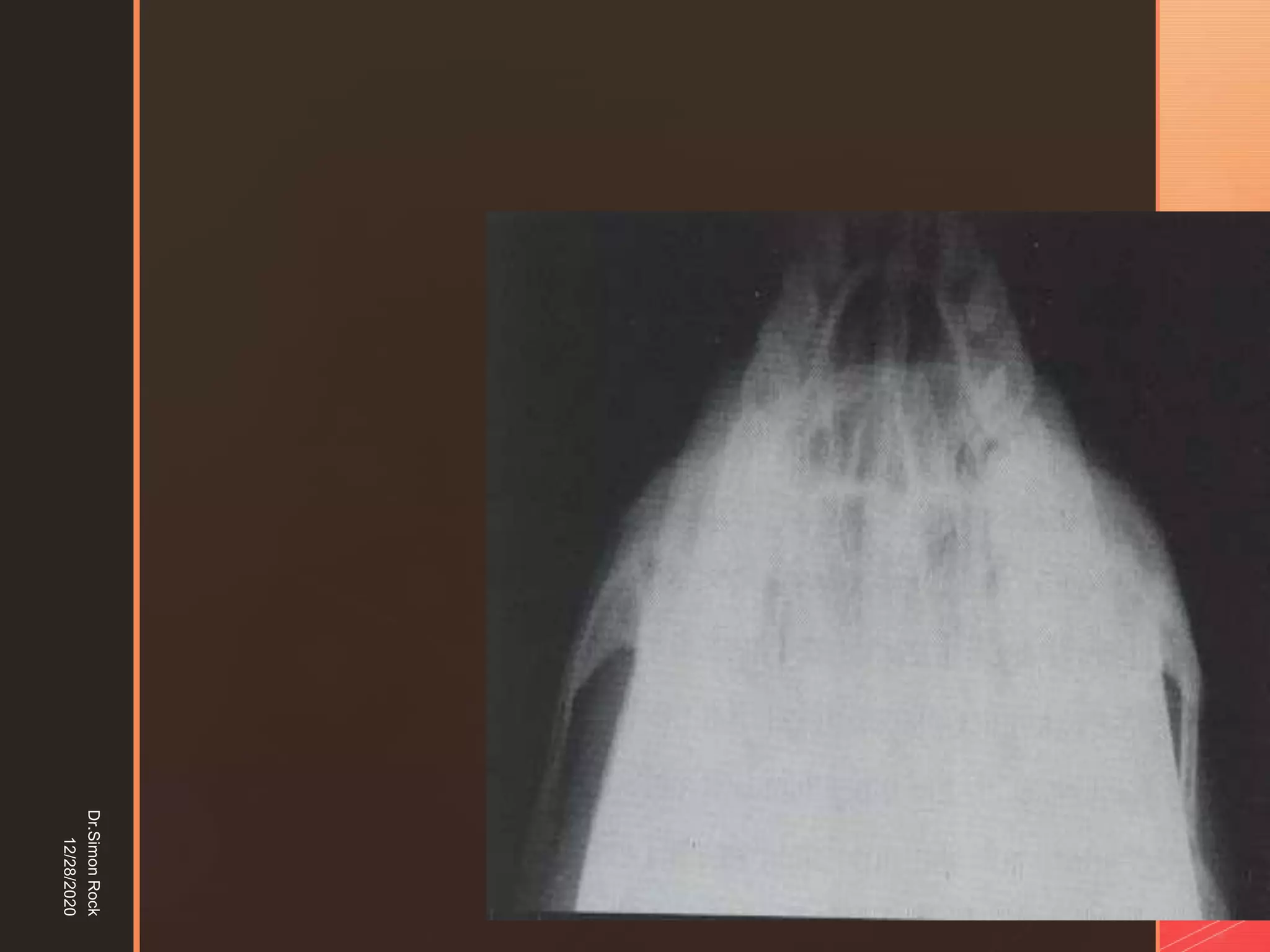

23. z Imaging studies :
1. Postero-anterior view
2. CT scan
3. Submentovertex view (soft)
 Soft → decreased amount of X-ray, used for soft tissue and soft bone as zygomatic
arch.
 Hard → increased amount of X-ray, used for hard bone.
12/28/2020
Dr.SimonRock

24. 12/28/2020
Dr.SimonRock

25. 12/28/2020
Dr.SimonRock

26. 12/28/2020
Dr.SimonRock

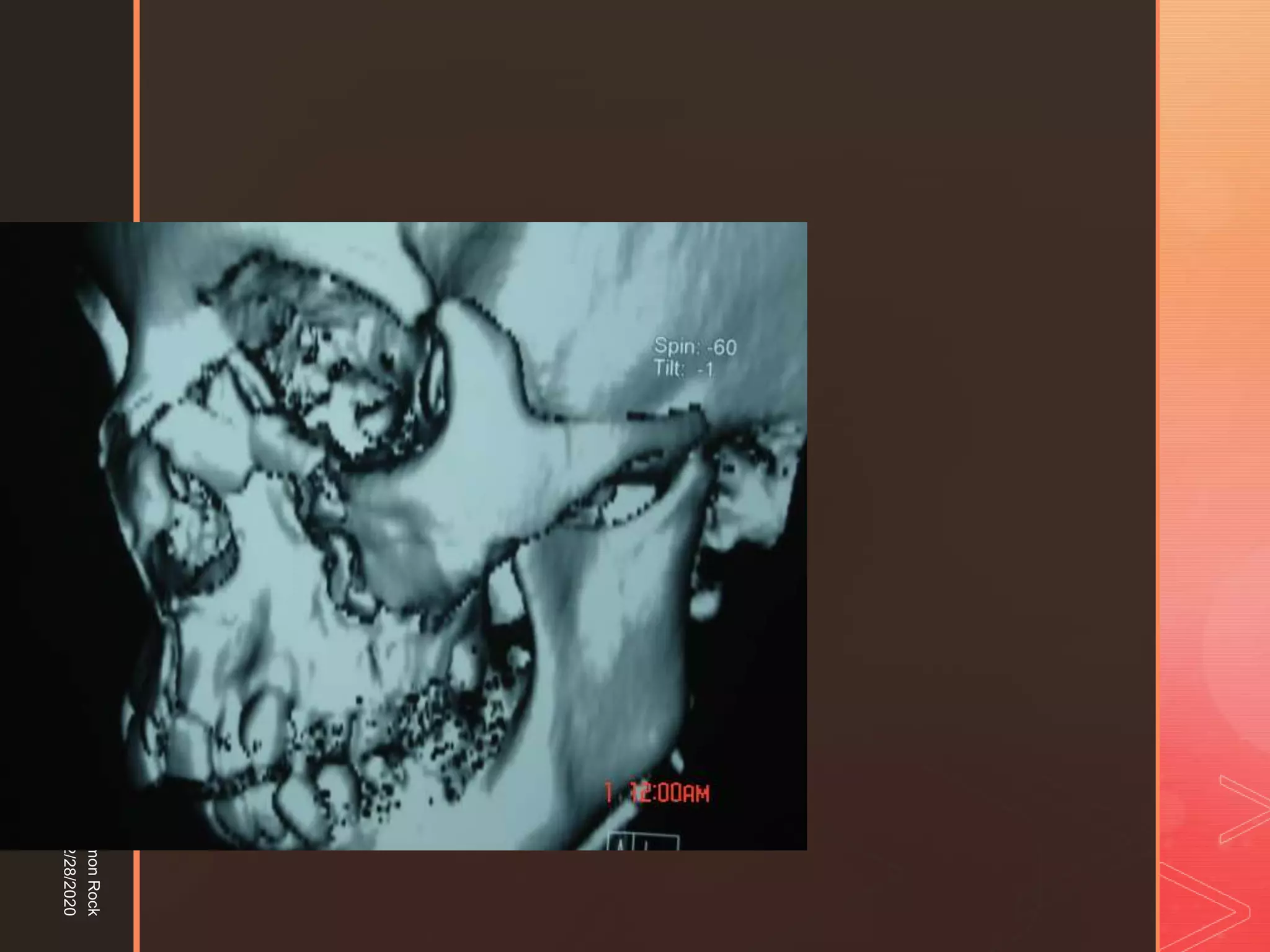

27. 12/28/2020
Dr.SimonRock

28. z
Treatment of ZMC Fracture
Absolute indications:
Diplopia
Restricted mouth opening
Relative indications:
Parasthesia of cheek
Flattening of cheek
12/28/2020
Dr.SimonRock

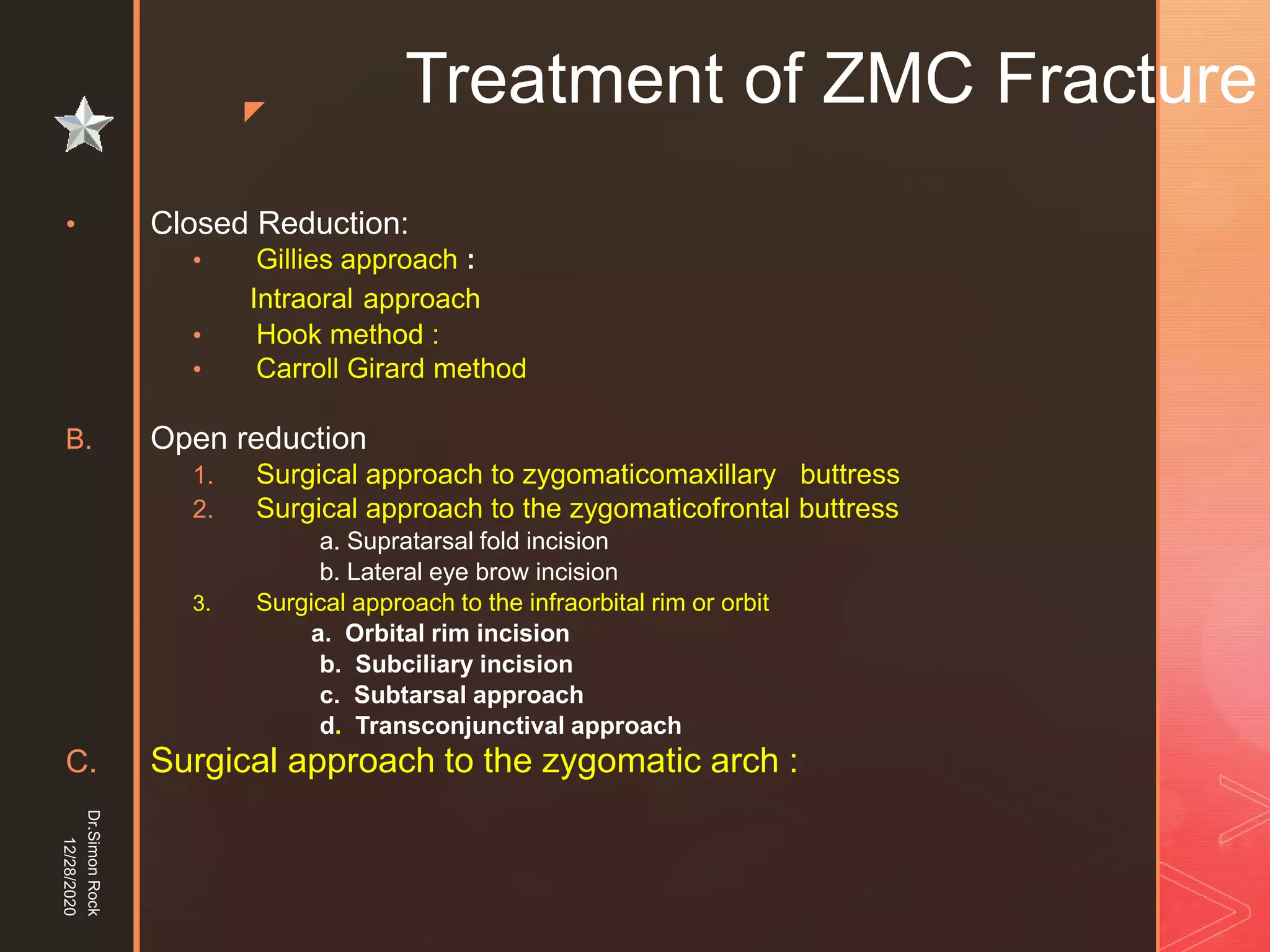

29. z
Treatment of ZMC Fracture
• Closed Reduction:
• Gillies approach :
Intraoral approach
• Hook method :
• Carroll Girard method
B. Open reduction
1. Surgical approach to zygomaticomaxillary buttress
2. Surgical approach to the zygomaticofrontal buttress
a. Supratarsal fold incision
b. Lateral eye brow incision
3. Surgical approach to the infraorbital rim or orbit
a. Orbital rim incision
b. Subciliary incision
c. Subtarsal approach
d. Transconjunctival approach
C. Surgical approach to the zygomatic arch :
12/28/2020
Dr.SimonRock

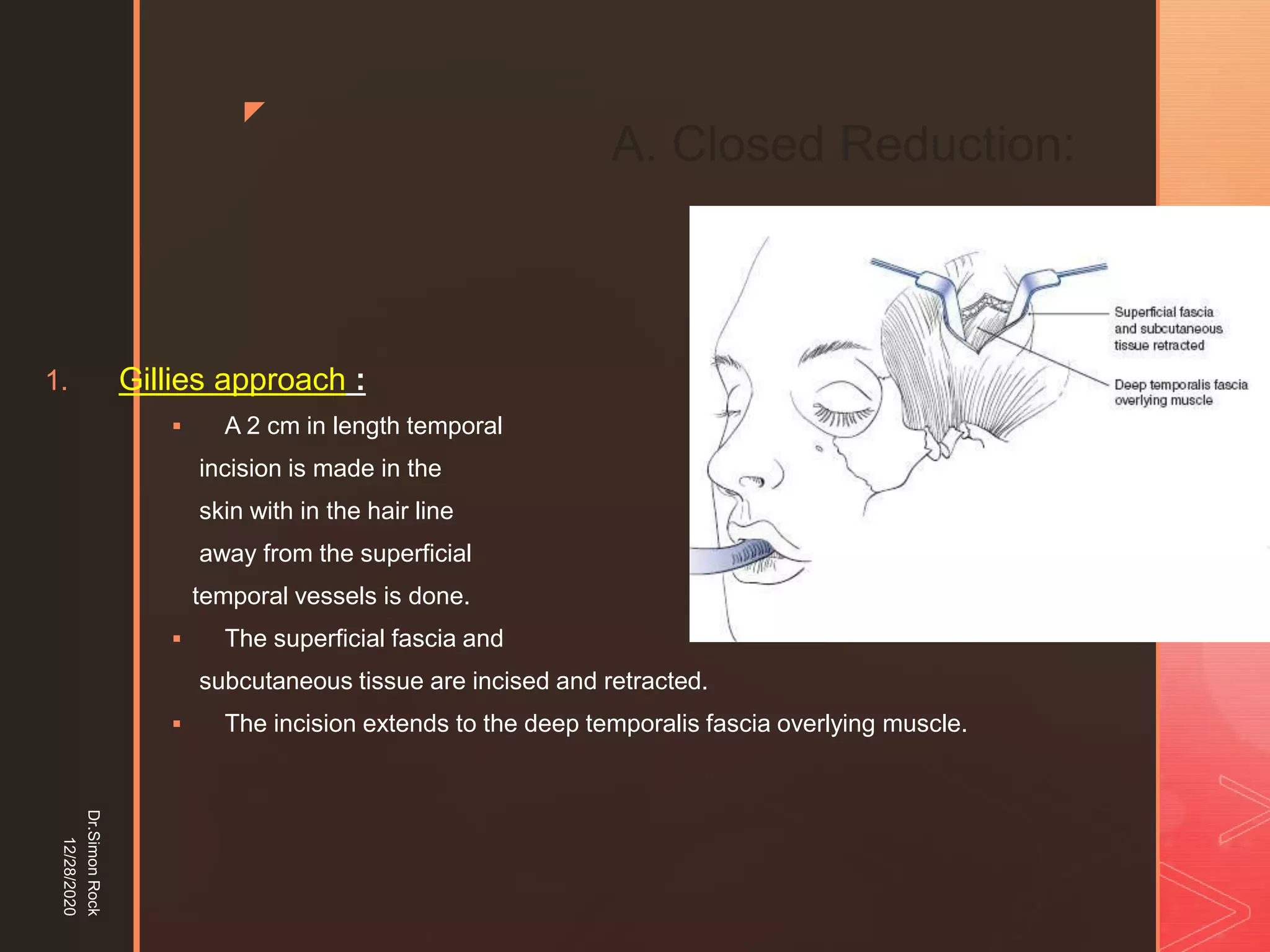

30. z
A. Closed Reduction:
1. Gillies approach :
 A 2 cm in length temporal
incision is made in the
skin with in the hair line
away from the superficial
temporal vessels is done.
 The superficial fascia and
subcutaneous tissue are incised and retracted.
 The incision extends to the deep temporalis fascia overlying muscle.
12/28/2020
Dr.SimonRock

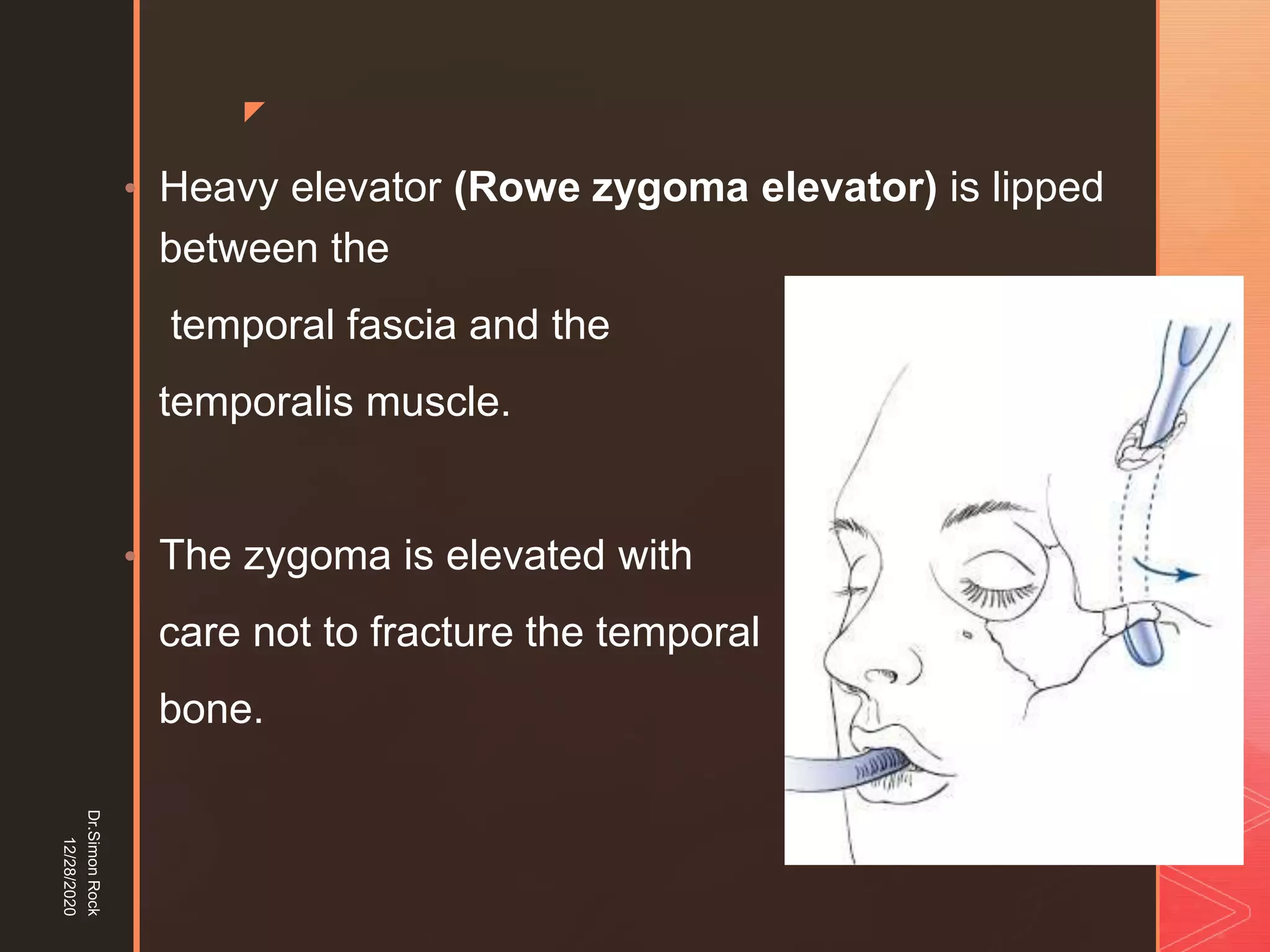

31. z
• Heavy elevator (Rowe zygoma elevator) is lipped
between the
temporal fascia and the
temporalis muscle.
• The zygoma is elevated with
care not to fracture the temporal
bone.
12/28/2020
Dr.SimonRock

32. 12/28/2020
Dr.SimonRock

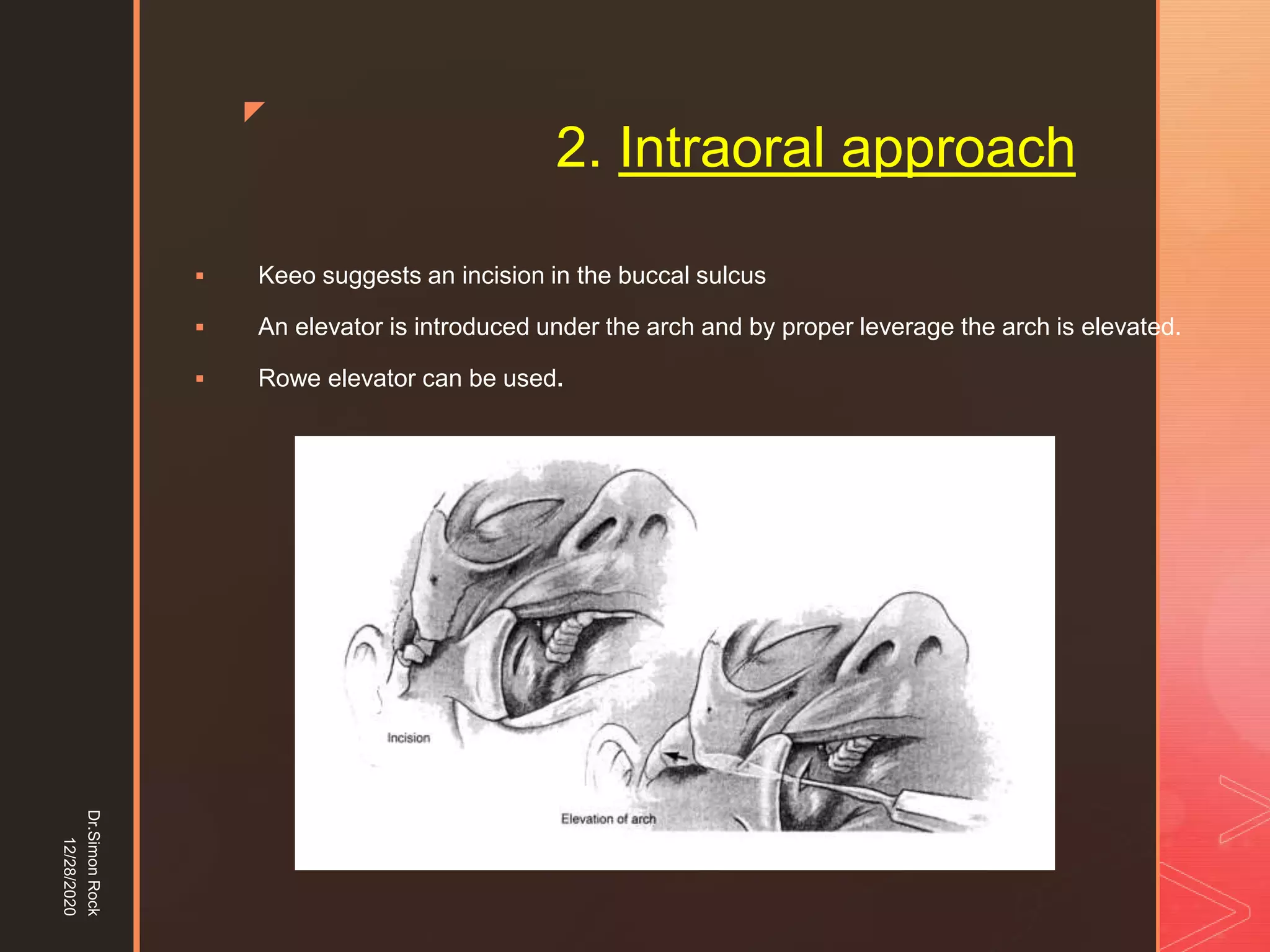

33. z
2. Intraoral approach
 Keeo suggests an incision in the buccal sulcus
 An elevator is introduced under the arch and by proper leverage the arch is elevated.
 Rowe elevator can be used.
12/28/2020
Dr.SimonRock

34. z

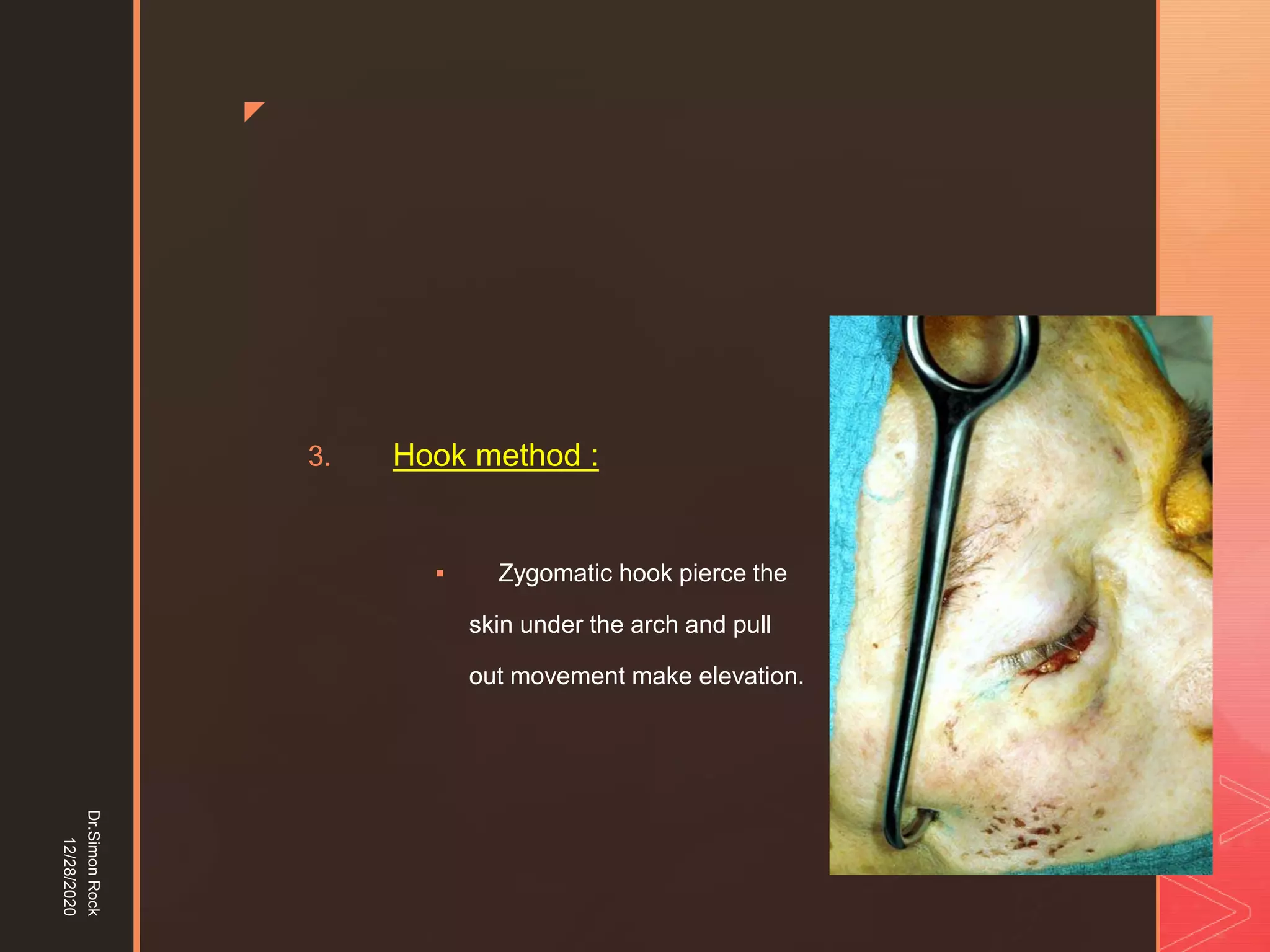

3. Hook method :
 Zygomatic hook pierce the
skin under the arch and pull
out movement make elevation.
12/28/2020
Dr.SimonRock

35. z
4.Carrol Girard method
 The screw is fixed
to the body of the
zygoma and then
pull out the T-
shaped handle to
reduce the zygoma.
12/28/2020
Dr.SimonRock

36. z

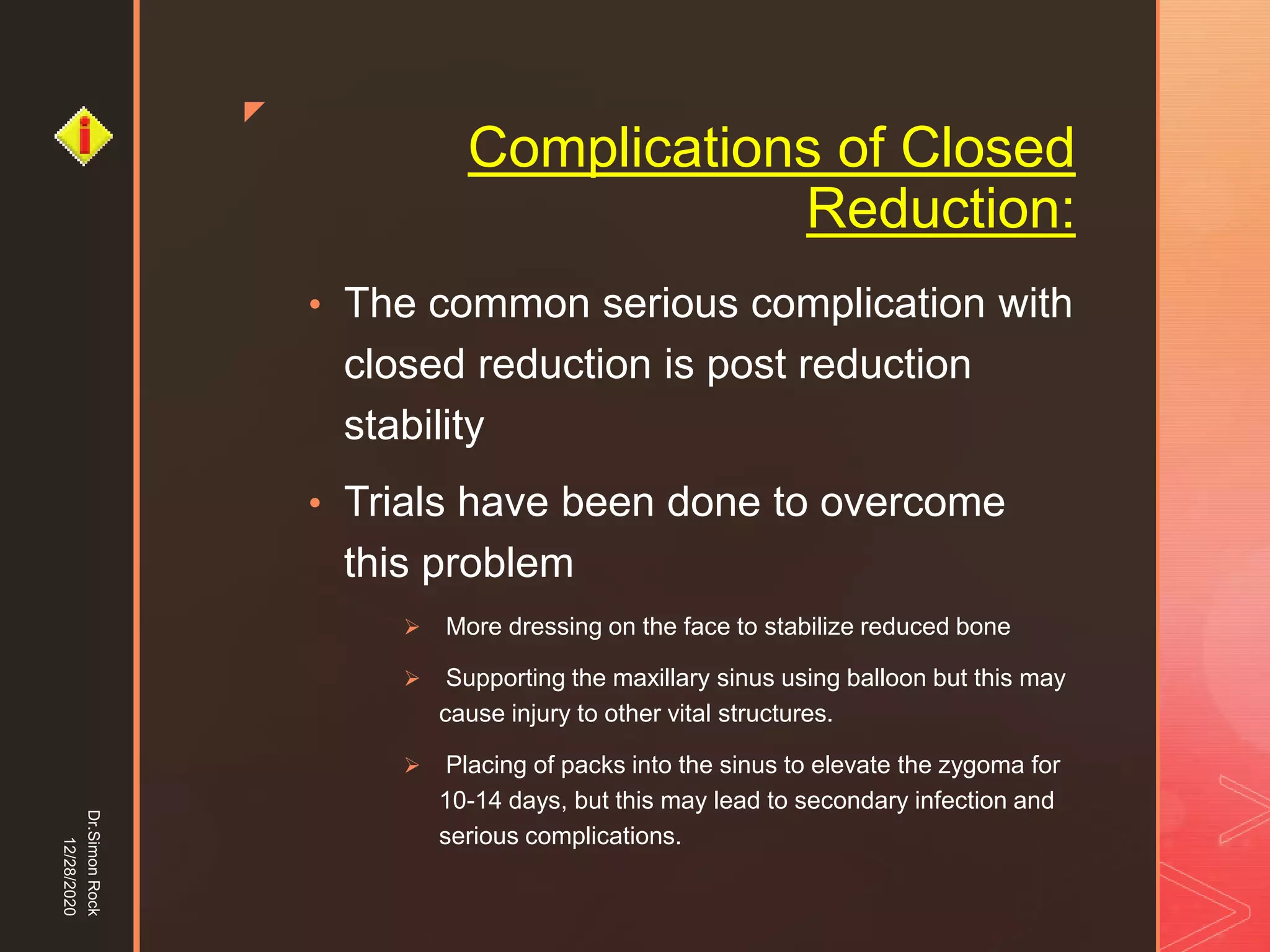

Complications of Closed
Reduction:
• The common serious complication with
closed reduction is post reduction
stability
• Trials have been done to overcome
this problem
 More dressing on the face to stabilize reduced bone
 Supporting the maxillary sinus using balloon but this may
cause injury to other vital structures.
 Placing of packs into the sinus to elevate the zygoma for
10-14 days, but this may lead to secondary infection and
serious complications.
12/28/2020
Dr.SimonRock

37. z
B. Open Reduction:
1. Surgical approach to zygomaticomaxillary
buttress
 An intraoral incision is made in the maxillary vestibule 3-5 mm above the
mucogingival junction.
12/28/2020
Dr.SimonRock

38. z
2. Surgical approach to the zygomaticofrontal
buttress
A. Supratarsal fold incision
 An incision is made 10-14 mm above the
margin of the eye lid.
12/28/2020
Dr.SimonRock

39. z

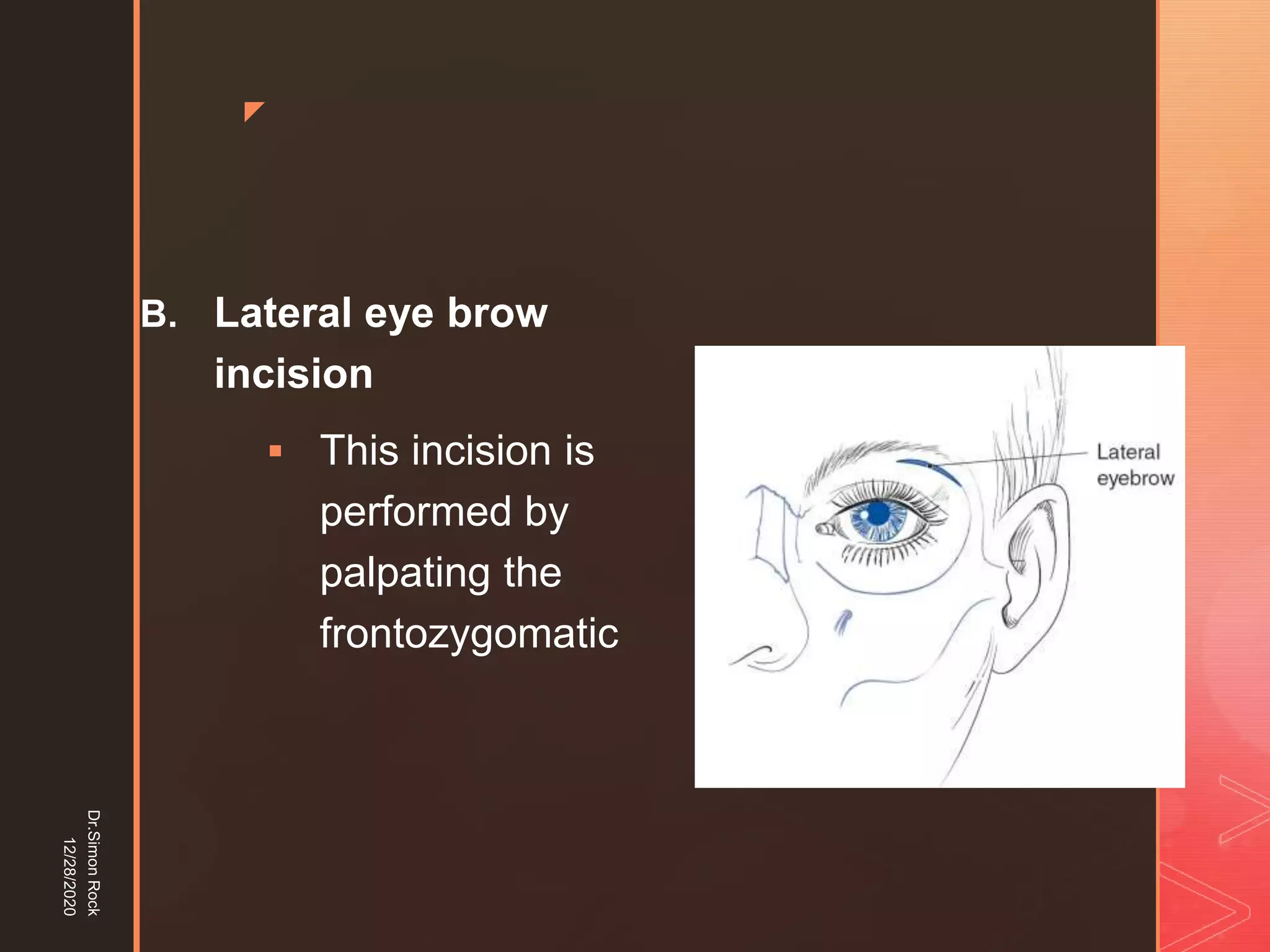

B. Lateral eye brow
incision
 This incision is
performed by
palpating the
frontozygomatic
12/28/2020
Dr.SimonRock

40. z

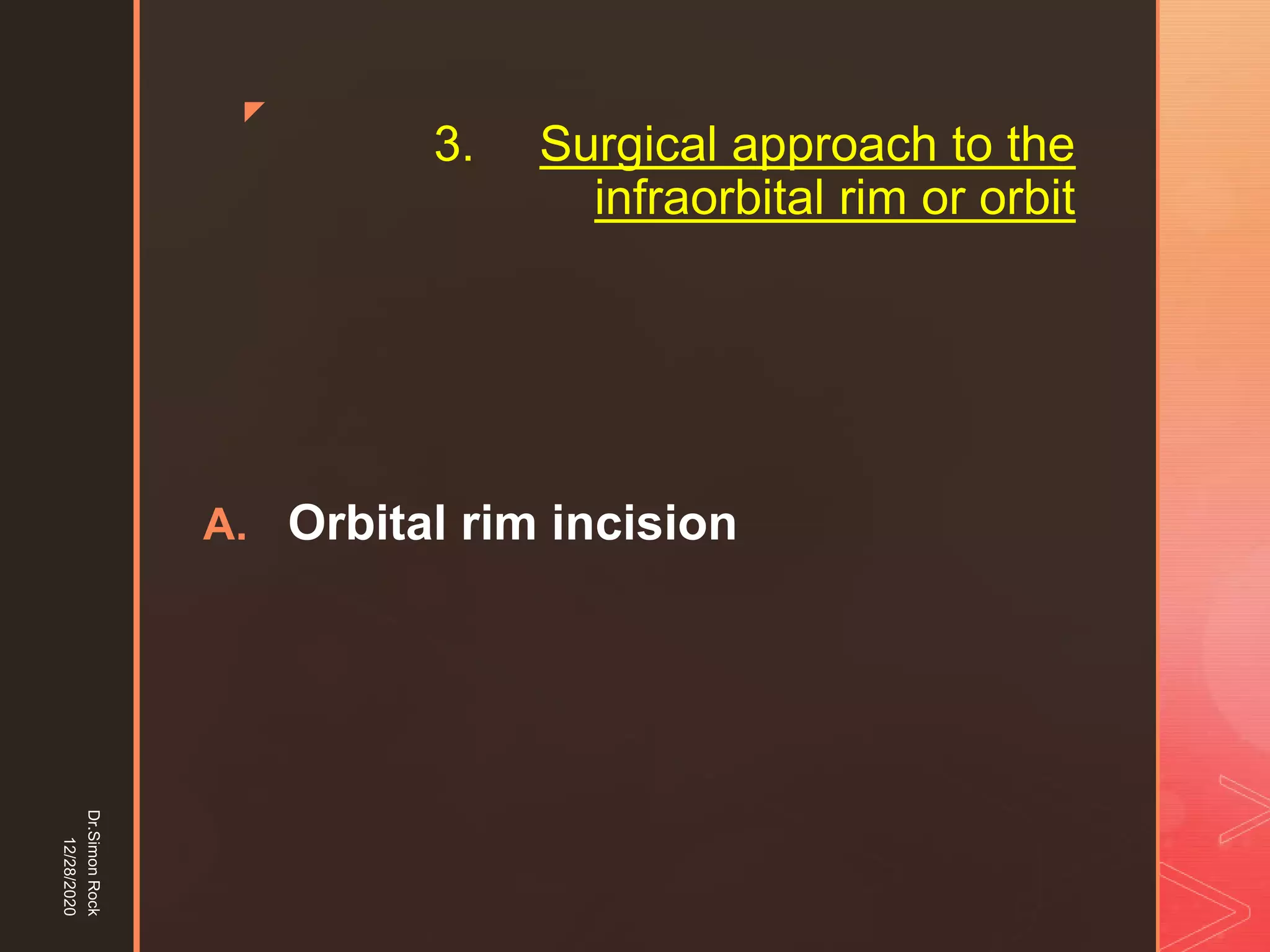

3. Surgical approach to the
infraorbital rim or orbit
A. Orbital rim incision
12/28/2020
Dr.SimonRock

41. z

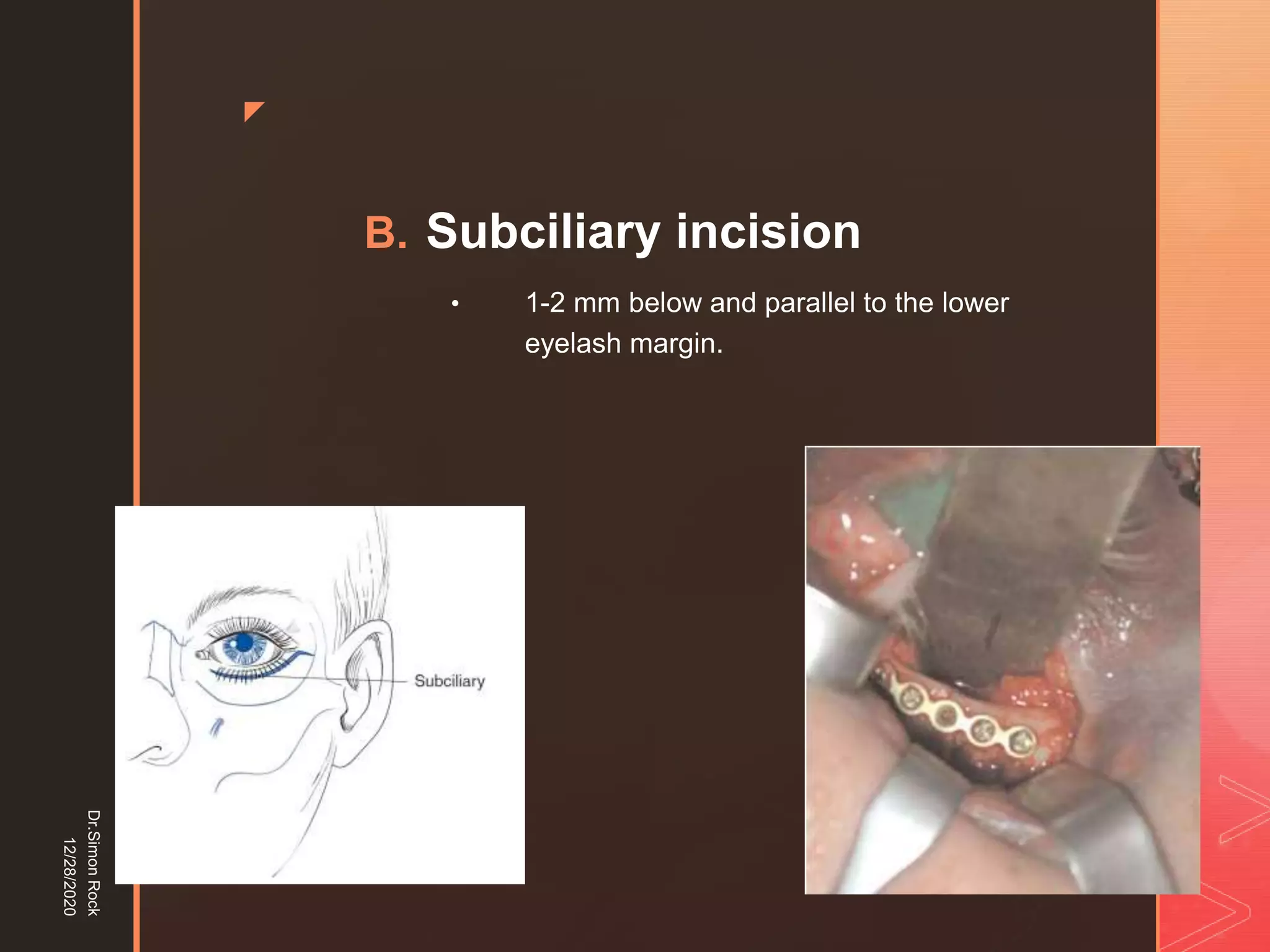

B. Subciliary incision
• 1-2 mm below and parallel to the lower
eyelash margin.
12/28/2020
Dr.SimonRock

42. z

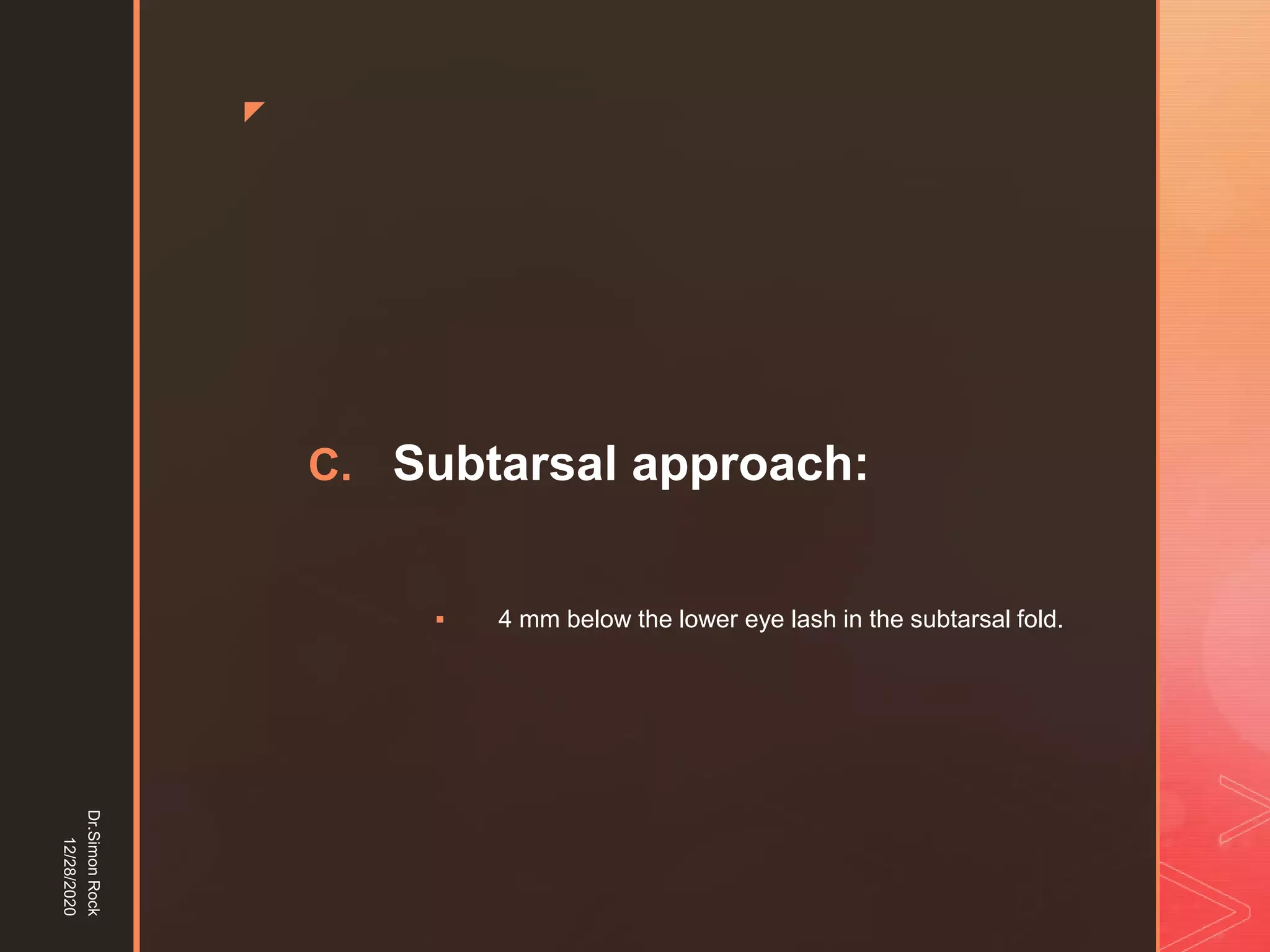

C. Subtarsal approach:
 4 mm below the lower eye lash in the subtarsal fold.
12/28/2020
Dr.SimonRock

43. z

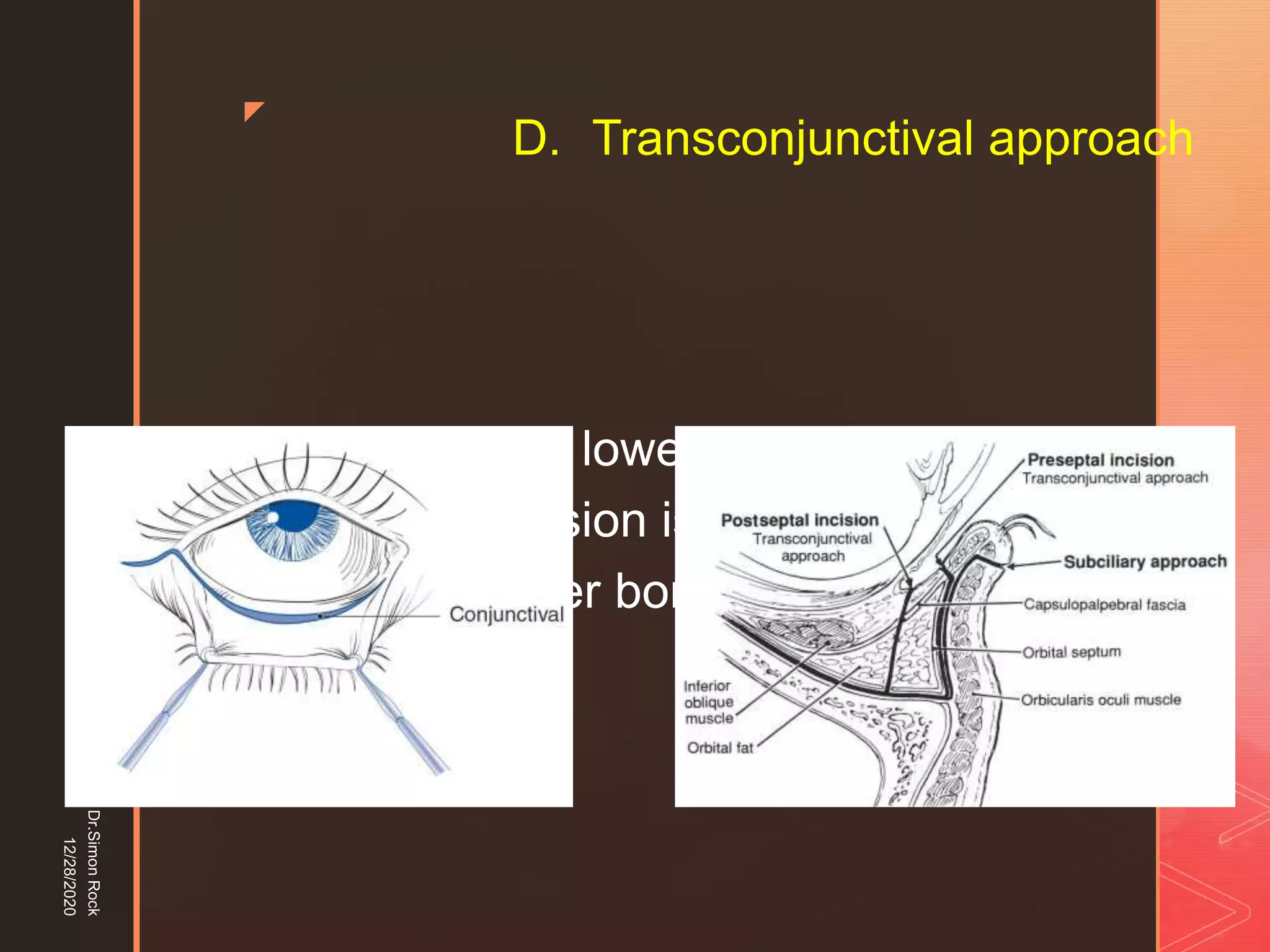

D. Transconjunctival approach
 The lower lid is retracted;
incision is made below the
lower border of the tarsus.
12/28/2020
Dr.SimonRock

44. z
4. Surgical approach to the
zygomatic arch :
 Bicoronal approach
12/28/2020
Dr.SimonRock

45. z
Thank You
