Management of ZMC Fractures
Dr. Kemer K. OMFS (R4)

2. 2
Contents
• Introduction
• Anatomy
• Etiology
• Classifications
• Diagnosis
• Indications
• Treatment
• Complications
• Conclusion
• References

3. 3
Introduction
• The gross shape of the face is influenced
largely by the underlying osseous structures,
the zygoma plays an important role in facial
contour
• Strong buttress of lateral midface lying
between zygomatic processes of frontal bone
& maxilla

4. 4
• Zygomatic fractures are common facial
injuries due to its prominent position within
the facial skeleton.
• It is the 2nd
in frequency after nasal fractures
• a male predilection, with a ratio of 4 : 1 over
females
• The peak incidence of such injuries occurs
around the 2nd
& 3rd
decades of life

5. 5
Anatomy
• A thick strong bone,
roughly quadrilateral
in shape, with an
outer convex (cheek)
surface and an inner
concave (temporal)
surface
• Major buttress of the
facial skeleton

6. 6

7. 7

8. 8

9. 9
Classification
• Manson and his colleagues proposed a
method of classification based on the pattern
of segmentation and displacement
low-energy injuries- # with little or no
displacement
- Incomplete fractures of one or more
articulations may be present

10. 10
Middle-energy fractures- complete # of all
articulations with mild to moderate
displacement

11. 11
High-energy injuries- comminution in the lateral
orbit and lateral displacement with segmentation
of the zygomatic arch

12. 12
Zingg and coworkers classification
Type A fractures- incomplete low-energy
fractures with fracture of only one zygomatic
pillar
Type B fractures- complete “monofragment”
fractures with fracture and displacement
along all four articulations
Type C “multifragment” fractures- included
fragmentation of the zygomatic body

13. 13

14. 14
Diagnosis
History & PE
• The nature, force, and direction of the injuring blow
should be determined
• Pts. complains of pain, periorbital edema, and
ecchymosis
• Paresthesia or anesthesia over the cheek, lateral nose,
upper lip, and maxillary anterior teeth resulting from
injury to the zygomaticotemporal or infraorbital nerves
• Trismus, Epistaxis and diplopia

15. 15
• Ecchymosis
• Edema early clinical signs (61%)
• Flattening of the cheek
• Subconjunctival hemorrhage
• Downward displacement an antimongoloid
slant to the lateral canthus
• enophthalmos

16. 16
• Examination of the zygoma involves inspection and
palpation
• Tenderness, a step-off, or separation at the sutures
• Ecchymosis of the maxillary buccal sulcus
• Deformity at the zygomatic buttress of the maxilla
• The range of mandibular motion

17. 17
• Evaluation of the eye includes documentation
of visual acuity, pupillary response to light,
fundoscopic examination, ocular movement,
and globe position
• Neurologic examination CN-II, III, IV, V, and VI

18. 18
Radiographic Evaluation
• CT scan (axial & coronal)
• Waters’ View ( reverse waters’ view)
• Caldwell’s View(evaluation of rotation around
a horizontal axis).
• Submentovertex View
(jug handle)

19. 19
Indication For Surgery
• Indications for surgery are cosmetic
deformities and functional deficit

20. 20
Treatment
• The surgeon must individualize Rx based on a
combination of Hx, P/E, radiographic findings, and
sound clinical judgment.
• Rx depends on the degree of displacement and the
resultant aesthetic and functional deficits
• Rx may, therefore, range from simple observation of
resolving swelling, extraocular muscle dysfunction, and
paresthesia to ORIF.

21. 21
Zygomatic Arch Fractures
• Nondisplaced and minimally displaced zygomatic arch
fractures may require no surgical correction (observation)
• Duverney was the first surgeon to describe an operative
technique for treatment of a fractured zygomatic arch.
• He used intraoral finger pressure to elevate the depressed
arch.
• Alternatively, bite on a block of wood, which results in
temporalis muscle and tendon tension.
• This force, along with finger pressure in an outward
direction, reduces the fracture.

22. 22
• Goldthwaite in 1924 was the first to describe an
intraoral approach to the zygomatic arch through a
stab wound in the buccal sulcus.
• A sharp elevator is passed superiorly through the
vestibule and behind the maxillary tuberosity and
forward pressure is applied to reduce the arch.

23. 23
Lateral Coronoid Approach
• Also called Quinn’s approach(modificn)
• Place 3-4 cm i/o incision at the level of the maxillary
alveolus and extending it inferiorly along the anterior
border of the ramus through mucosa and submucosa
• Extend up to depth of temporal muscle
• Place instrument b/n temporalis muscle and Z arch

24. 24
Gillie’s Temporal Approaches
• The standard technique for treatment of
zygomatic arch fractures, first described by
Gillies and colleagues in 1927, can also be
used to reduce zygomatic complex fractures.

25. 25

26. 26

27. 27
NB; The arch should be palpated at all times as
a guide to proper reduction. The wound is
closed in layers.

28. 28
• methods of stabilization for zygomatic arch
• include temporarily packing the temporal
fossa with 1/2-inch gauze, a nasogastric tube,
or a urinary catheter
• More conveniently, a transcutaneous
circumzygomatic arch wire can be passed and
tightened over a foam-backed aluminum eye
shield to suspend the arch

29. 29
Zygomatic Complex Fractures
Low-Energy Zygomatic Complex Fractures
• Low-energy, non-displaced or minimally displaced
zygomatic complex fractures may require no
operative correction.
• The patient should be observed longitudinally for
signs of displacement, extraocular muscle
dysfunction, and enophthalmos after swelling
resolves.

30. 30
Middle-Energy Zygomatic Complex Fractures
• Middle-energy, displaced zygomatic complex fractures
require reduction and internal fixation.
• In 1996, Ellis and Kittidumkerng25 proposed an algorithm of
Rx for isolated middle-energy zygomatic complex fractures
that didn’t require orbital reconstruction.
• The initial step in this algorithm is reduction of the fracture.
Ellis and others recommend the use of a Carroll- Girard screw
(3D control in redn), which is inserted into the malar eminence

31. 31

32. 32
• Other authors recommend routine exposure
of 2/more of the three anterior buttresses for
middle-energy injuries: the ZM buttress, ZF
buttress, and the infraorbital rim .
• In this manner, multiple buttresses are
visualized and the three dimensional accuracy
of the reduction can be confirmed

33. 33
High-Energy Zygomatic Complex Fractures
• A more aggressive surgical approach should be planned to
treat high-energy fractures.
• There is often significant comminution of the anterior
buttresses, making anatomic reduction difficult. With
segmentation of the ZA, it’s impossible to control this
posterior buttress.
• In addition, these fractures often require orbital reconstruction.
• To restore proper projection, facial width, and orbital volume,
exposure of the zygomatic arch and orbital floor is often
required in addition to exposure of the anterior buttresses.

34. 34
Percutaneous Approach
• A direct route to elevation of the depressed
zygoma is through the skin surface of the face
overlying the zygoma

35. 35
BONE HOOK
• Applied at a point just inferior and posterior to
the prominence of the zygoma so that it
engages the infratemporal aspect

36. 36
Carroll-Girard screw
• Advantage controlled ZMC positioning in all
three planes of space.

37. 37
Buccal Sulcus Approach

38. 38
• The major advantage, as in most intraoral
approaches, is no external scar.
• Used for both ZMC and zygomatic arch fractures
• Several different instruments can be used Monks or
Cushing (joker) elevator, simple dental extraction
forceps, large Kelly hemostat, right angle retractor,
bone hook
• Avoid using the anterior maxilla as a point of fulcrum

39. 39
Elevation from Eyebrow Approach

40. 40
• Advantage the fracture at the orbital rim is
visualized directly
• Disadvantage is that it is difficult to generate a
large amount of force, especially in the
superior direction

41. 41
Maxillary Vestibular Approach
• Approaches for open treatment of ZMC #
• Access to zygomatic arch, infraorbital rim &
frontal process of the maxilla
Advantage
hidden intraoral scar
Relatively rapid & simple
complications are few

42. 42

43. 43
Supraorbital Eyebrow Approach
• Used to gain access to the lateral orbital rim
• Provides simple and rapid access to the
frontozygomatic area

44. 44
• Disadvantages
Scar will not be hidden in those who have no
eyebrows
 Does not afford a great amount of surgical
access
There is no reason to shave the eyebrow before
incision because the hair may not grow back

45. 45
Upper Eyelid Approach
• The upper eyelid approach to the
superolateral orbital rim is also called the
upper blepharoplasty, upper eyelid crease,
and supratarsal fold approach.

46. 46
Advantage
• it creates inconspicuous scar

47. 47
Lower Eyelid Approaches
Subtarsal Approach
• For approaching to infraorbital rim & orbital floor
• Incision is made in a natural skin crease at or below
the level of the tarsus, approximately half the
distance between the lash margin and orbital rim

48. 48
Advantages
(1) it is relatively easy;
(2) the incision is placed in a natural skin crease
so that the scar is imperceptible; and
(3) it is associated with minimal complications

49. 49
Subciliary Approach
• Also called the infraciliary approach, or
blepharoplasty
• The skin incision is made approximately 2 mm
inferior to the gray line of the lower eyelid, along the
entire length of the lid
• The incision may be extended laterally approximately
1 to 1.5 cm in a natural crease inferior to the lateral
canthal ligament

50. 50
Advantage
• imperceptible scar
Disadvantages
• the procedure is technically difficult for the
novice (beginners)
• higher risk of postoperative ectropion exists

51. 51
Transconjunctival Approach
• Also called the inferior fornix approach
• used for orbital floor and rim fractures
• Two basic transconjunctival incisions
1 Preseptal
2 Retroseptal approaches

52. 52

53. 53
• The retroseptal approach is more direct than
the preseptal approach and is easier
• Lateral canthotomy for improved lateral
exposure but its controversial
• Advantage- produce superior cosmetic results
scar is hidden behind the lower lid
– no skin or muscle dissection is necessary

54. 54
Coronal Approach
• is an extremely useful incision for surgery of
the zygoma and arch
• it provides excellent access to the orbits,
zygomatic bodies, and zygomatic arches, with
almost no complications
• Indicated for comminuted #
• The scar is hidden within the hairline

55. 55

56. 56
Fixation Techniques
1. Transosseous wiring
2. Miniplates
3. External fixators

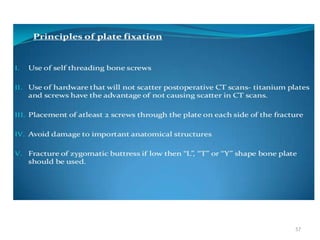

57. 57

58. 58

59. 59
Complications Of Zygomatic
Complex Fractures
• Infraorbital Paresthesia
• Malunion and Asymmetry
• Enophthalmos
• Diplopia
– causes of diplopia include edema and hematoma,
entrapment of the extraocular muscles and orbital
tissue, and injury to cranial nerve III, IV, or VI

60. 60
• Traumatic Optic Neuropathy
– May range from mild visual deficit to complete visual
loss
• Superior Orbital Fissure Syndrome
– Presentation may include ptosis, ophthalmoplegia,
forehead anesthesia, and a fixed dilated pupil
– Rx-reduction of fractures, steroids, orbital apex
exploration
• Traumatic Hyphema (collection of fluid in
anterior chamber i.e b/n cornea & iris)

61. 61
• Retrobulbar Hemorrhage
– may be the result of either the initial injury or the
operative correction
– Rx decompression with lateral canthotomy and cantholysis
• Trismus
– cause is impingement of the zygomatic body on the
coronoid process of the mandible & fibro-osseous
ankylosis
– Rx Coronoidectomy

62. 62

63. 63
References
• Oral & maxillofacial trauma – Fonseca 3rd
edition
• Principles of oral & maxillofacial surgery –
Peterson 3rd
edition

64. 64
Thank you
