This document discusses distributed file systems (DFS), which provide access to files across a network. It describes the typical architecture of a DFS including flat file services, directory services, and client modules. Flat file services implement operations like read, write, create and delete on file contents. Directory services provide name to identifier mappings and support functions for adding/removing files from directories. The client module provides a unified interface and locates file and directory servers.

1. DISTRIBUTED FILE SYSTEMS
(DFS)

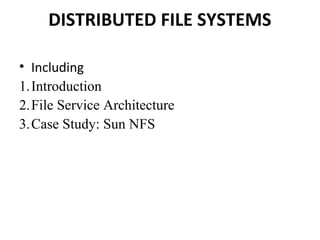

2. DISTRIBUTED FILE SYSTEMS
• Including
1.Introduction
2.File Service Architecture
3.Case Study: Sun NFS

3. 1. Introduction
1. Characteristics of file system
2. Distributed File system requirements

4. 2. File service architecture
 providing access to files is obtained by structuring
the file service as three components:
1. Flat file service
2. Directory service
3. Client module.
 The relevant modules and their relationship is
shown in Figure

5. File Service Architecture
Client computer Server computer
Application
program
Application
program
Client module
Directory service
Flat file service
Lookup
AddName
UnName
GetNames
Read
Write
Create
Delete
GetAttributes
SetAttributes
*
Figure 8.5

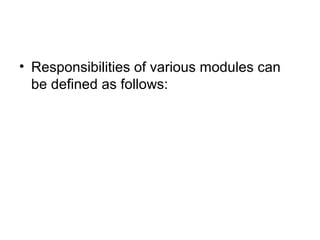

6. • Responsibilities of various modules can
be defined as follows:

7. 1. Flat file service
• Concerned with the implementation of
operations on the contents of file.
• Unique File Identifiers (UFIDs) are used to
refer to files in all requests for flat file service
operations.

8. Flat file service operations
1. Read
2. Write
3. Create
4. Delete
5. GetAttributes
6. SetAttributes

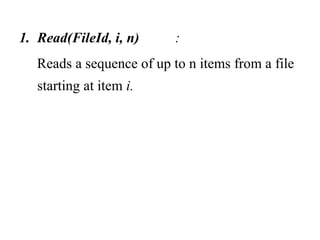

9. 1. Read(FileId, i, n) :
Reads a sequence of up to n items from a file
starting at item i.

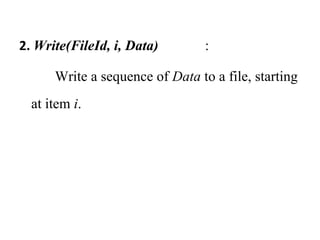

10. 2. Write(FileId, i, Data) :
Write a sequence of Data to a file, starting
at item i.

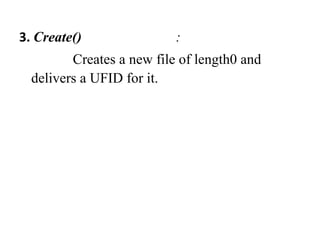

11. 3. Create() :
Creates a new file of length0 and
delivers a UFID for it.

12. 4. Delete(FileId) :Removes the file from the
file store.
5. GetAttributes(FileId) : Returns the file
attributes for the file.
6. SetAttributes(FileId, Attr) :Sets the file
attributes.

13. 2. Directory service
• Provides mapping between text names
for the files and their UFIDs.
• Clients may obtain the UFID of a file by
quoting its text name to directory service.
• Directory service supports functions to
add new files to directories.

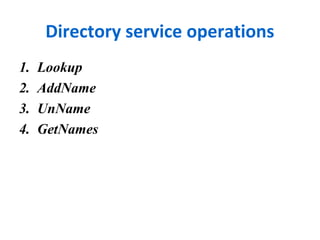

14. Directory service operations
1. Lookup
2. AddName
3. UnName
4. GetNames

15. Directory service operations

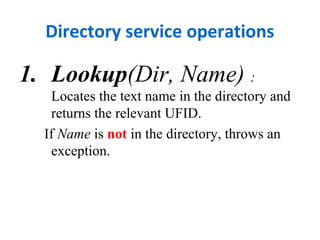

1. Lookup(Dir, Name) :
Locates the text name in the directory and
returns the relevant UFID.
If Name is not in the directory, throws an
exception.

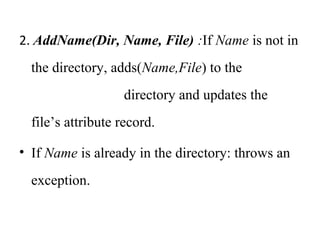

16. 2. AddName(Dir, Name, File) :If Name is not in
the directory, adds(Name,File) to the
directory and updates the
file’s attribute record.
• If Name is already in the directory: throws an
exception.

17. 3. UnName(Dir, Name) :If Name is in the
directory, the entry containing Name is
removed from the directory.
• If Name is not in the directory: throws an
exception.

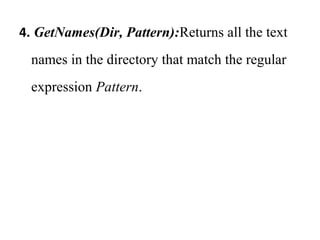

18. 4. GetNames(Dir, Pattern):Returns all the text
names in the directory that match the regular
expression Pattern.

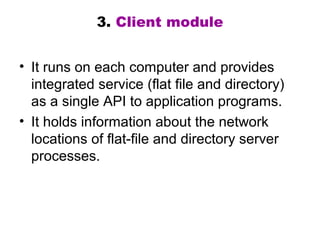

19. 3. Client module
• It runs on each computer and provides
integrated service (flat file and directory)
as a single API to application programs.
• It holds information about the network
locations of flat-file and directory server
processes.

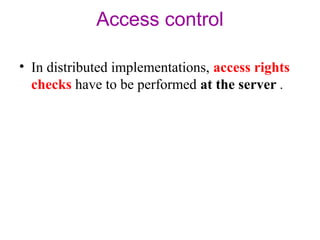

20. Access control
• In distributed implementations, access rights
checks have to be performed at the server .

21. Hierarchic file system
• A hierarchic file system consists of a
number of directories arranged in a tree
structure.

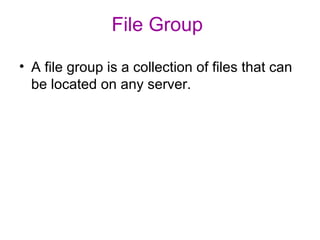

22. File Group
• A file group is a collection of files that can
be located on any server.

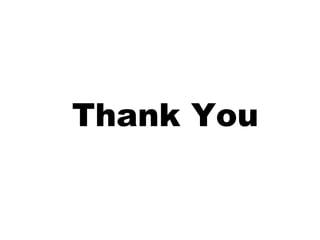

23. Thank You
