This document discusses strings, languages, and regular expressions. It defines key terms like alphabet, string, language, and operations on strings and languages. It then introduces regular expressions as a notation for specifying patterns of strings. Regular expressions are defined over an alphabet and can combine symbols, concatenation, union, and Kleene closure to describe languages. Examples are provided to illustrate regular expression notation and properties. Limitations of regular expressions in describing certain languages are also noted.

1. 1
SPECIFICATION OF
TOKENS

2. 2
Strings and Languages
• Regular Expressions are an important notation for specifying patterns.
• Alphabet – any finite set of symbols
e.g. ASCII, binary alphabet, UNICODE, EBCDIC,LATIN-1
• String – A finite sequence of symbols drawn from an alphabet
– Banana (ASCII Alphabet)
– Length of a string => |s|
– Empty String => ε
• Other terms relating to strings: prefix; suffix; substring; proper prefix,
suffix, or substring (non-empty, not entire string); subsequence
• Language – A set of strings over a fixed alphabet

3. 3
Languages
• A language, L, is simply any set of strings over a
fixed alphabet.
Alphabet Languages
{0,1} {0,10,100,1000,100000…}
{0,1,00,11,000,111,…}
{a,b,c} {abc,aabbcc,aaabbbccc,…}
{A, … ,Z} {FOR,WHILE,GOTO,…}
{A,…,Z,a,…,z,0,…9, { All legal PASCAL progs}
+,-,…,<,>,…}
Special Languages:  - EMPTY LANGUAGE
 - contains  string only

4. 4
String operations
• Given String: banana
• Prefix : ban, banana
• Suffix : ana, banana
• Substring : nan, ban, ana, banana
• Subsequence: bnan, nn
• Proper Prefix and Suffix

5. 5

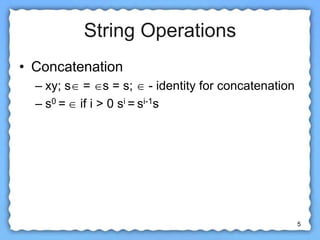

String Operations
• Concatenation
– xy; s = s = s;  - identity for concatenation
– s0 =  if i > 0 si = si-1s

6. 6

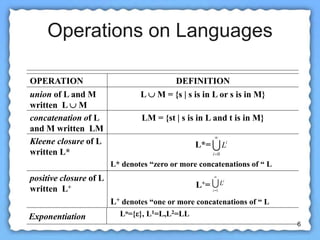

Operations on Languages
OPERATION DEFINITION
union of L and M
written L  M
concatenation of L
and M written LM
Kleene closure of L
written L*
positive closure of L
written L+
L  M = {s | s is in L or s is in M}
LM = {st | s is in L and t is in M}
L+=


0
i
i
L
L* denotes “zero or more concatenations of “ L
L*=


1
i
i
L
L+ denotes “one or more concatenations of “ L
Exponentiation Lo={ε}, L1=L,L2=LL

7. 7

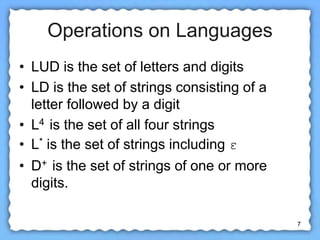

Operations on Languages
• LUD is the set of letters and digits
• LD is the set of strings consisting of a
letter followed by a digit
• L4 is the set of all four strings
• L* is the set of strings including ε
• D+ is the set of strings of one or more
digits.

8. 8

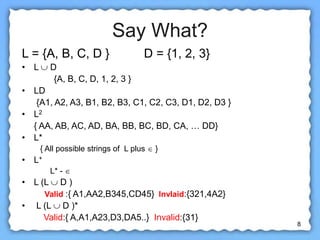

Say What?
L = {A, B, C, D } D = {1, 2, 3}
• L  D
{A, B, C, D, 1, 2, 3 }
• LD
{A1, A2, A3, B1, B2, B3, C1, C2, C3, D1, D2, D3 }
• L2
{ AA, AB, AC, AD, BA, BB, BC, BD, CA, … DD}
• L*
{ All possible strings of L plus  }
• L+
L* - 
• L (L  D )
Valid :{ A1,AA2,B345,CD45} Invlaid:{321,4A2}
• L (L  D )*
Valid:{ A,A1,A23,D3,DA5..} Invalid:{31}

9. 9
Regular Expressions
• A Regular Expression is a Set of Rules /
Techniques for Constructing Sequences of
Symbols (Strings) from an Alphabet.
• Let  Be an Alphabet, r a Regular Expression
Then L(r) is the Language That is characterized
by the Rules of r

10. 10
Regular Expressions
• Defined over an alphabet Σ
• ε represents {ε}, the set containing the empty string
• If a is a symbol in Σ, then a is a regular expression
denoting {a}, the set containing the string a
• If r and s are regular expressions denoting the
languages L(r) and L(s), then:
– (r)|(s) is a regular expression denoting L(r)U L(s)
– (r)(s) is a regular expression denoting L(r)L(s)
– (r)* is a regular expression denoting (L(r))*
– (r) is a regular expression denoting L(r)
• Precedence: * (left associative), then concatenation (left
associative), then | (left associative)

11. 11
Regular Expressions
Alphabet = {a, b}
1. a|b denotes {a, b}
2. (a|b)(a|b) denotes {ab, aa, ba, bb}
3. a* denotes {, a, aa, …}
4. (a|b)* - Strings of a’s and b’s including the 
5. a|a*b – a followed by zero/more a’s followed by b

12. 12
Algebraic Properties of Regular
Expressions
AXIOM DESCRIPTION
r | s = s | r
r | (s | t) = (r | s) | t
(r s) t = r (s t)
r = r
r = r
r* = ( r |  )*
r ( s | t ) = r s | r t
( s | t ) r = s r | t r
r** = r*
| is commutative
| is associative
concatenation is associative
concatenation distributes over |
relation between * and 
 Is the identity element for concatenation
* is idempotent

13. 13
Regular Definitions
• Names maybe given to regular expressions; these
names can be used like symbols
• Let  is an alphabet of basic symbols. The regular
definition is a sequence of definitions of the form
d1 r1
d2 r2
. . .
dn rn
Where, each di is a distinct name, and each ri is a
regular expression over the symbols in   {d1, d2,
…, di-1 }

14. 14

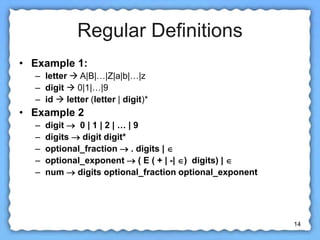

Regular Definitions
• Example 1:
– letter  A|B|…|Z|a|b|…|z
– digit  0|1|…|9
– id  letter (letter | digit)*
• Example 2
– digit  0 | 1 | 2 | … | 9
– digits  digit digit*
– optional_fraction  . digits | 
– optional_exponent  ( E ( + | -| ) digits) | 
– num  digits optional_fraction optional_exponent

15. 15

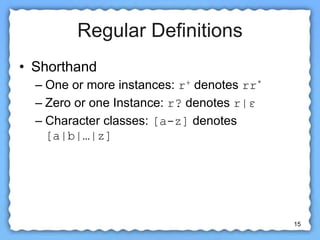

Regular Definitions
• Shorthand
– One or more instances: r+ denotes rr*
– Zero or one Instance: r? denotes r|ε
– Character classes: [a-z] denotes
[a|b|…|z]

16. 16

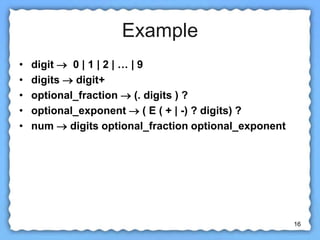

Example
• digit  0 | 1 | 2 | … | 9
• digits  digit+
• optional_fraction  (. digits ) ?
• optional_exponent  ( E ( + | -) ? digits) ?
• num  digits optional_fraction optional_exponent

17. 17

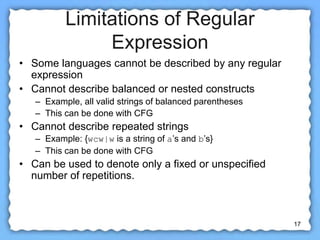

Limitations of Regular
Expression
• Some languages cannot be described by any regular
expression
• Cannot describe balanced or nested constructs
– Example, all valid strings of balanced parentheses
– This can be done with CFG
• Cannot describe repeated strings
– Example: {wcw|w is a string of a’s and b’s}
– This can be done with CFG
• Can be used to denote only a fixed or unspecified
number of repetitions.
