This document summarizes a lecture on syntactic analysis and parsing. It introduces context-free grammars, derivations, parse trees, ambiguity, and notation for grammars including BNF and EBNF. Examples are provided to illustrate grammar rules and derivations for simple expressions. Syntax diagrams and parse trees are presented as tools for visualizing grammars and parsing structures. Homework is assigned to build a parse tree for a given expression.

1. CSE340 - Principles of
Programming Languages
Lecture 08:
Syntactic Analysis II
Javier Gonzalez-Sanchez
javiergs@asu.edu
BYENG M1-38
Office Hours: By appointment

2. Javier Gonzalez-Sanchez | CSE340 | Summer 2015 | 2

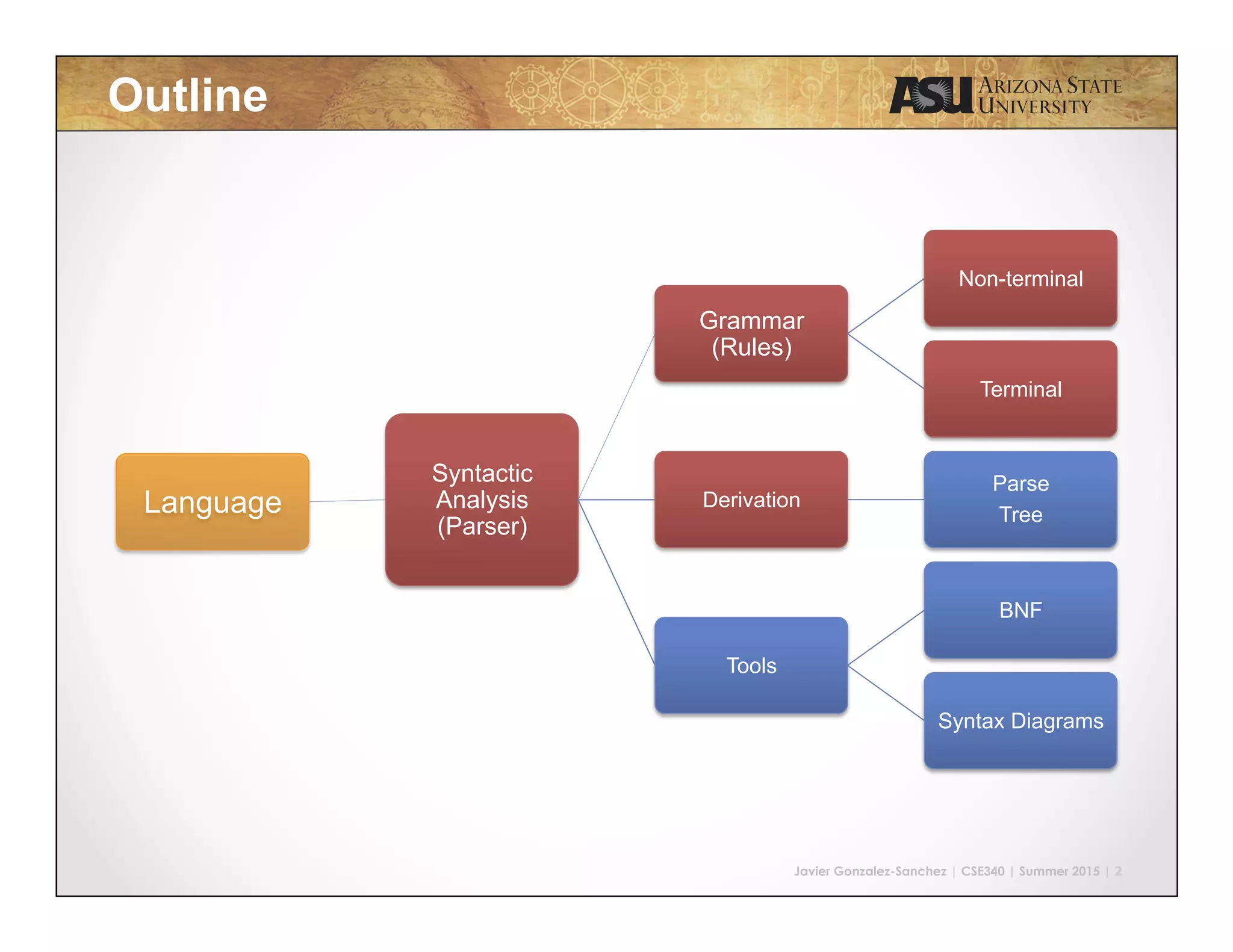

Outline
Language
Syntactic
Analysis
(Parser)
Grammar
(Rules)
Non-terminal
Terminal
Derivation
Parse
Tree
Tools
BNF
Syntax Diagrams

3. Javier Gonzalez-Sanchez | CSE340 | Summer 2015 | 3
Grammar | Derivation
E à E OP E
E à integer
OP à + | - | * | /
E à ( E )
E
⇒ E OP E
⇒ integer OP E
⇒ integer * E
⇒ integer * (E)
⇒ integer * (E OP E)
⇒ integer * (integer OP E)
⇒ integer * (integer + E)
⇒ integer * (integer + integer)
5 * ( 7 + 20 )
Integer operator delimiter integer operator integer delimiter

4. Javier Gonzalez-Sanchez | CSE340 | Summer 2015 | 4
5 * ( 7 + 20 )
Integer operator delimiter integer operator integer delimiter
Grammar | Derivation
E
⇒ E OP E
⇒ E OP (E)
⇒ E OP (E OP E)
⇒ E OP (E OP integer)
⇒ E OP (E + integer)
⇒ E OP (integer + integer)
⇒ E * (integer + integer)
⇒ integer * (integer + integer)
E à E OP E
E à integer
OP à + | - | * | /
E à ( E )

5. Javier Gonzalez-Sanchez | CSE340 | Summer 2015 | 5
Parse Tree
§ A parse tree is a tree encoding the steps in a
derivation.
§ Internal nodes represent nonterminal symbols used
in the production.
§ Inorder walk of the leaves contains the generated
string.
§ Encodes what productions are used, not the order
in which those productions are applied.

6. Javier Gonzalez-Sanchez | CSE340 | Summer 2015 | 6
Parse Tree

7. Javier Gonzalez-Sanchez | CSE340 | Summer 2015 | 7
Parse Tree

8. Javier Gonzalez-Sanchez | CSE340 | Summer 2015 | 8
Goal
Goal of syntax analysis:
§ Recover the structure described by a series of
tokens.
§ Recover a parse tree for the given input.

9. Javier Gonzalez-Sanchez | CSE340 | Summer 2015 | 9
The problem
E à E OP E
E à integer
OP à + | - | * | /
E à ( E )
5 * 7 + 20
Integer operator integer operator integer

10. Javier Gonzalez-Sanchez | CSE340 | Summer 2015 | 10
A serious problem

11. Javier Gonzalez-Sanchez | CSE340 | Summer 2015 | 11
Ambiguity
• A grammar is said to be ambiguous if there is at
least one string with two or more parse trees.
• Note that ambiguity is a property of grammars, not
languages.
We will review this topic in the next lecture

12. Javier Gonzalez-Sanchez | CSE340 | Summer 2015 | 12
Our Tools
Backus-Naur Form (BNF)
Extended Backus-Naur Form (EBNF)
Syntax Diagrams

13. Javier Gonzalez-Sanchez | CSE340 | Summer 2015 | 13
BNF (Backus-Naur Form)
Formal, mathematical way to specify grammars
All the previous examples, where we use:
à or ::= is defined as
| or operator
<nonterminal> or use uppercases
terminal (lowercases)
* John Backus and Peter Naur

14. Javier Gonzalez-Sanchez | CSE340 | Summer 2015 | 14
EBNF
Extended BNF include notation to indicate:
• 0 or more occurrences {…}
• 1 or more occurrences +
• 0 or 1 occurrences […]
• Use of parentheses for grouping ( )
* Niklaus Wirth

15. Javier Gonzalez-Sanchez | CSE340 | Summer 2015 | 15
Example
Grammar rule for calling a method:
§ draw(x, y, z);
§ print (a, b, c, d);
§ done();
§ foobar(one, two, three, four, five);
§ sqrt(x);

16. Javier Gonzalez-Sanchez | CSE340 | Summer 2015 | 16
BNF vs EBNF
BNF
<call_method> à identifier(<identifiers>); | identifier();
<identifiers> à identifier | identifier,<identifiers>
EBNF
<call_method> à identifier ('('<identifiers>')' | '('')' ) ';'
<identifiers> à identifier | identifier,<identifiers>
EBNF
<call_method> à identifier'('[<identifiers>]')' ';'
<identifiers> à identifier | identifier,<identifiers>
EBNF
<call_method> à identifier'('[<identifiers>]')' ';'
<identifiers> à identifier { ,identifier }

17. Javier Gonzalez-Sanchez | CSE340 | Summer 2015 | 17
Syntax Diagrams
Call_method
Identifiers

18. Javier Gonzalez-Sanchez | CSE340 | Summer 2015 | 18
Is it BNF or EBNF?
BLOCK → STMT | { STMTS } | { }
STMTS → STMT | STMT STMTS
STMT → EXPR; |
if (EXPR) BLOCK |
while (EXPR) BLOCK |
BLOCK |
. . .
EXPR → EXPR + EXPR |
EXPR – EXPR |
EXPR * EXPR |
identifier |
integer |
...

19. Javier Gonzalez-Sanchez | CSE340 | Summer 2015 | 19
Syntax Diagrams
BLOCK STMTS
STMT EXPR

20. Javier Gonzalez-Sanchez | CSE340 | Summer 2015 | 20
Is it BNF or EBNF?
BLOCK → STMT | '{' { STMT } '}'
STMT → EXPR; |
if '(' EXPR ')' BLOCK |
while '(' EXPR ')' BLOCK |
BLOCK |
. . .
EXPR → EXPR '+' EXPR |
EXPR '–' EXPR |
EXPR '*' EXPR |
identifier |
integer |
...

21. Javier Gonzalez-Sanchez | CSE340 | Summer 2015 | 21
Syntax Diagrams
BLOCK
STMT EXPR

22. Javier Gonzalez-Sanchez | CSE340 | Summer 2015 | 22
Homework
Create a Parse Tree for the following expression.
Use the rules stated in the previous lecture
while ( 5 ) { if ( 6 ) { } }
