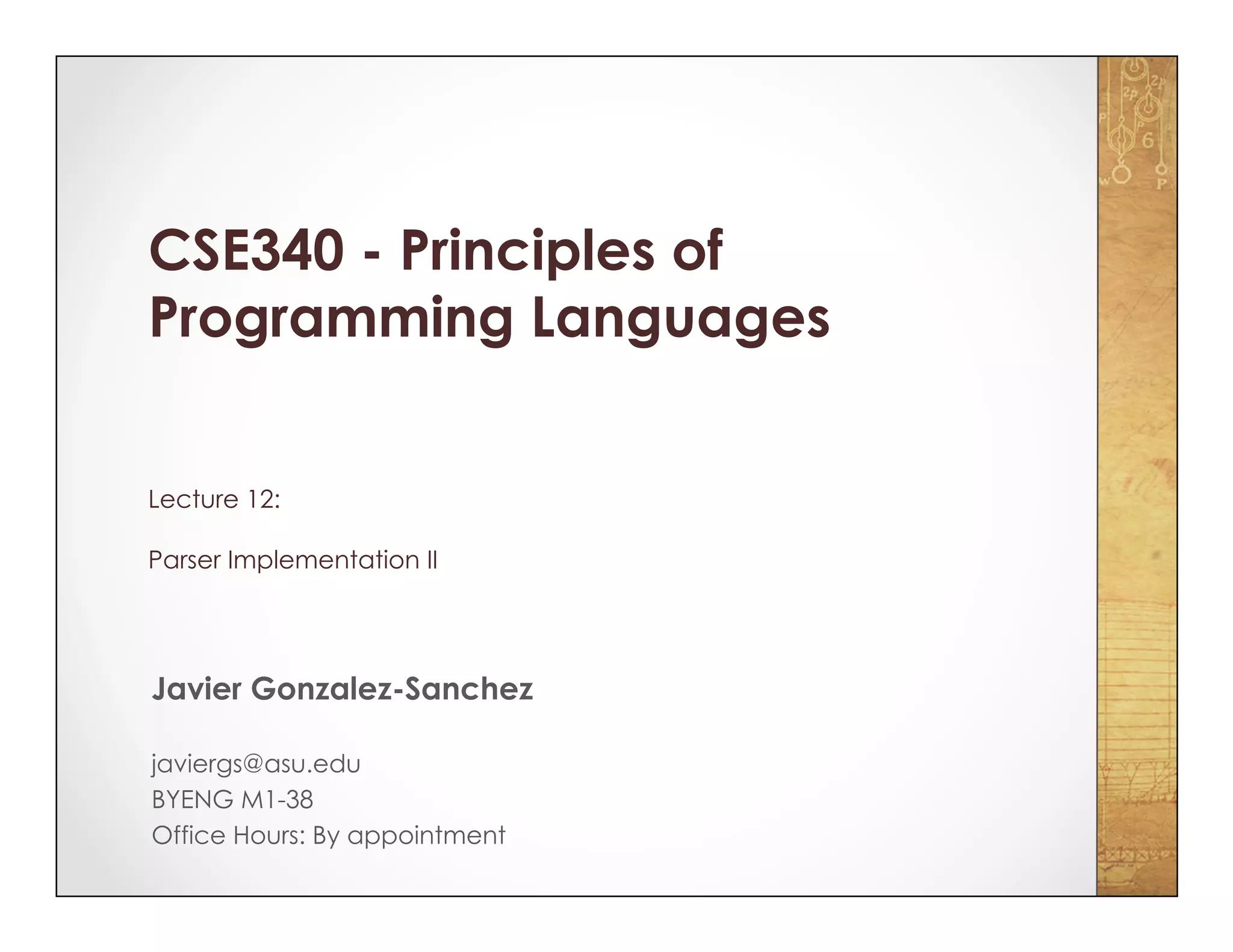

201506 CSE340 Lecture 12

CSE340 - Principles of
Programming Languages
Lecture 12:
Parser Implementation II
Javier Gonzalez-Sanchez
javiergs@asu.edu
BYENG M1-38
Office Hours: By appointment

Javier Gonzalez-Sanchez | CSE340 | Summer 2015 | 2

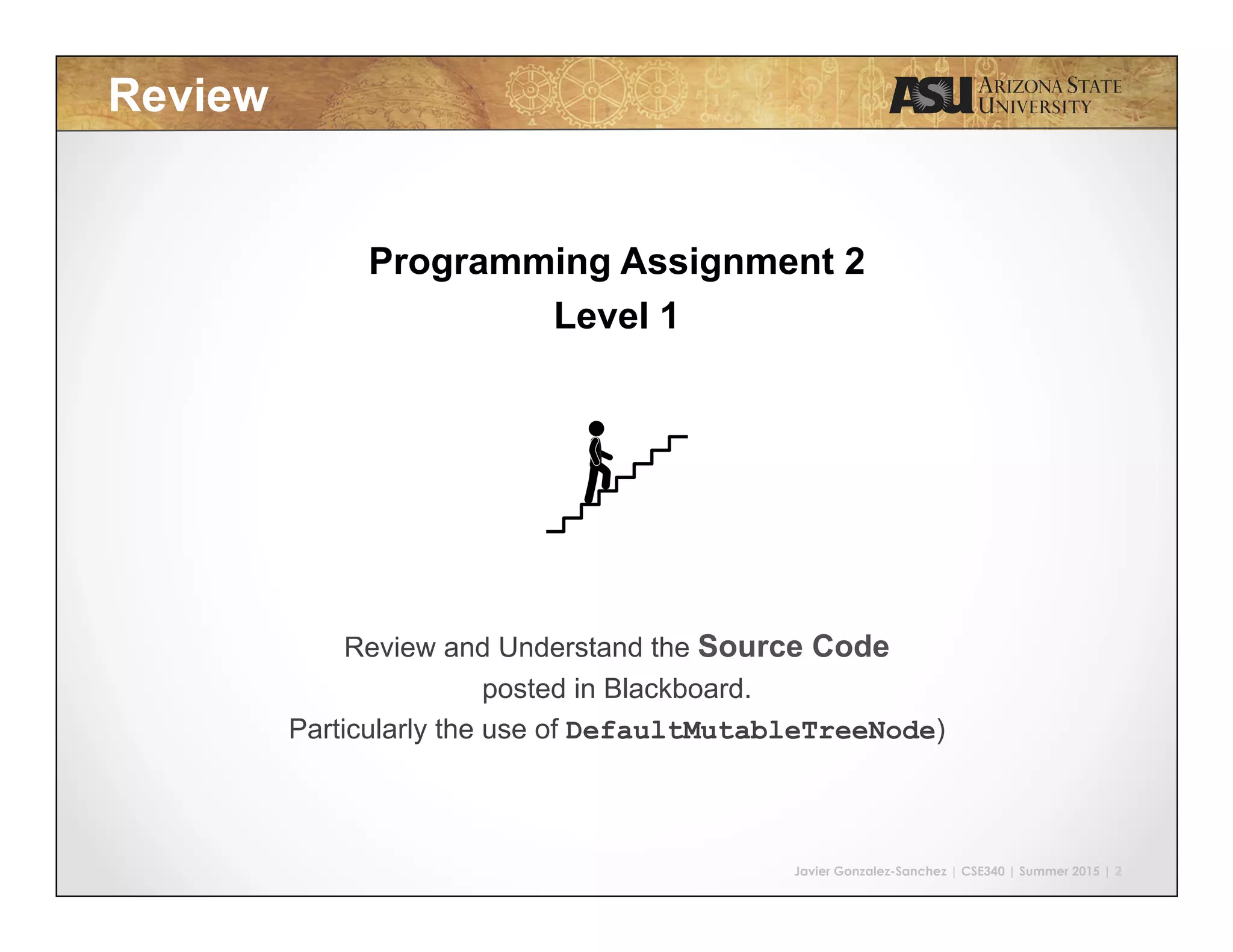

Review
Programming Assignment 2
Level 1
Review and Understand the Source Code
posted in Blackboard.
Particularly the use of DefaultMutableTreeNode)

Review
* Parser.java is the only file that you are allowed to modify

Review
Level 2
Modify the Source Code
to include the rules PROGRAM and BODY, EXPRESSION, X, Y, R
(from Grammar 2)

Review
<PROGRAM> à '{' <BODY> '}'
<BODY> à {<EXPRESSION>';'}
<EXPRESSION> à <X> {'|' <X>}
<X> à <Y> {'&' <Y>}
<Y> à ['!'] <R>
<R> à <E> {('>'|'<'|'=='|'!=') <E>}
<E> à <A> {(’+'|'-’) <A>}
<A> à {('*'|'/') }
 à ['-'] <C>
<C> à integer|
identifier|'(' <EXPRESSION> ')'

Level 3
The complete grammar for our language

KEYWORD {return, print}
STRING
Language
Actions
Expressions
(operators)
Instructions
Control
Structures
ARITHMETIC OPERATORS { +, -, *, /, =}
LOGIC OPERATORS { &, |, ! }
RELATIONAL OPERATORS {<, >, ==, !=}
KEYWORD { if, else, while, switch, case }
Data
INTEGER
FLOAT
HEXADECIMAL
CHAR
KEYWORD { void, int, char, string, float, boolean }
KEYWORD { true, false }
BINARY
Delimiter : ; , ( ) { } [ ]
Assignment 2 | Language
OCTAL
IDENTIFIER

Assignment 2 | Grammar
<PROGRAM> à '{' <BODY> '}’
<BODY> à {<PRINT>';'|<ASSIGNMENT>';'|<VARIABLE>';’|<WHILE>|<IF>|<RETURN>';'}
<ASSIGNMENT> à identifier '=' <EXPRESSION>
<VARIABLE> à ('int'|'float'|'boolean'|'char’|'string'|'void')identifier
<WHILE> à 'while' '(' <EXPRESSION> ')' <PROGRAM>
<IF> à 'if' '(' <EXPRESSION> ')' <PROGRAM> ['else' <PROGRAM>]
<RETURN> à 'return'
<PRINT> à ’print’ ‘(‘ <EXPRESSION> ‘)’
<EXPRESSION> à <X> {'|' <X>}
<X> à <Y> {'&' <Y>}
<Y> à ['!'] <R>
<R> à <E> {('>'|'<'|'=='|'!=') <E>}
<E> à <A> {(’+'|'-’) <A>}
<A> à {('*'|'/') }
 à ['-'] <C>
<C> à integer | octal | hexadecimal | binary | true | false |
string | char | float | identifier|'(' <EXPRESSION> ')'

Assignment 2 | Input
Are there syntactical errors?
{
float a;
x = 0;
int x;
y = 1 + 1;
x = (0b11) +(05 – 0xFF34);
while (2 == "hi") {
a = 2 > (4 + Y);
if (true) { if( 2 + 2 ) {} else {} }
}
print ("hello" + "world");
}

{
int x;
x = 5;
x = 05;
x = 0x5ff;
x = 5.55;
x = "five";
x = ’5';
x = false;
}

{
int x;
float x;
string x;
char x;
void x;
boolean x;
}

{
x = "hello" + "world" – 'w' * 5 / 3.4;
x = y – hello & 0xffff | 05;
x = -7;
x = !y;
x = (cse340 + cse310) / cse101 ;
}

Assignment 2 | Code
------------ program(root);

Assignment 2 | Code
public static void RULE_PROGRAM() {
if (tokens.get(currentToken).getWord().equals(“{”)) {
currentToken++;
else
error(1);
RULE_BODY();
if (tokens.get(currentToken).getWord().equals(“}”))
currentToken++;
else
error(2);
}
PROGRAM

Assignment 2 | Code
public static void RULE_BODY() {
while (!tokens.get(currentToken).getWord().equals(“}”)) {
if (tokens.get(currentToken).getToken().equals(“identifier”)) {
RULE_ASSIGNMENT();
if (tokens.get(currentToken).getWord().equals(“;”)) {
currentToken++;
else error(3);
} else if (tokens.get(currentToken).getToken().equals(“int”) | ...) {
RULE_VARIABLE();
if (tokens.get(currentToken).getWord().equals(";")) {
currentToken++;
else error(3);
} else if (tokens.get(currentToken).getWord().equals(“while”)) {
RULE_WHILE();
} else if (tokens.get(currentToken).getWord().equals(“if”)) {
RULE_IF();
} else if (tokens.get(currentToken).getWord().equals(“return”)) {
RULE_RETURN();
if (tokens.get(currentToken).getWord().equals(“;”)) {
currentToken++;
else
error(3);
} else error(4);
}
}
BODY

Assignment 2 | Code
public static void RULE_ASSIGNMENT() {
}
ASSIGNMENT

Assignment 2 | Code
public static void RULE_VARIABLE() {
}
VARIABLE

Assignment 2 | Code
public static void RULE_WHILE() {
}
WHILE

Assignment 2 | Code
public static void RULE_IF() {
}
IF

Assignment 2 | Code
public static void RULE_RETURN() {
}
RETURN

Assignment 2 | Code
public static void RULE_PRINT () {
}
PRINT

Assignment 2 | Code
public static void RULE_C() {
}
C

PREDICTIVE
DESCENDENT
RECURSIVE
PARSER

Concepts
{
int a;
a = 0xFF + 0b111;
while (a != 05) {
if (true) {
a = 2.5e-1 / 7;
} else {
a = 'A’;
while(true) {
}
}
}
print ("hello");
}
PREDICTIVE
DESCENDENT
RECURSIVE
PARSER

Homework
Programming Assignment #2
(Complete Levels 1 to 3)

CSE340 - Principles of Programming Languages
Javier Gonzalez-Sanchez
javiergs@asu.edu
Summer 2015
Disclaimer. These slides can only be used as study material for the class CSE340 at ASU. They cannot be distributed or used for another purpose.
