Kernel Recipes 2013 - Overview display in the Linux kernel
- 1. Display and Kernel Review and Future Kernel Recipes 2013 Paris Laurent Pinchart laurent.pinchart@ideasonboard.com
- 4. display /
- 5. / graphics /
- 6. / video
- 7. Problem - Purpose display / graphics / video
- 8. format
- 10. device / CPU
- 11. Problem - Source format memory / deep pipeline device / CPU
- 12. rotation /
- 13. / scaling /
- 14. / composing
- 16. X11 /
- 17. / Wayland /
- 18. / MIR /
- 19. / SDL /
- 20. / DirectFB /
- 21. / Raw API
- 23. DRM /
- 24. / FBDEV /
- 25. / V4L2

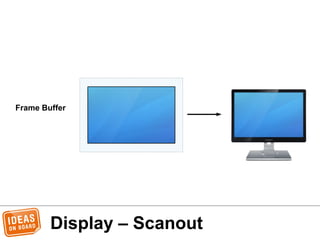

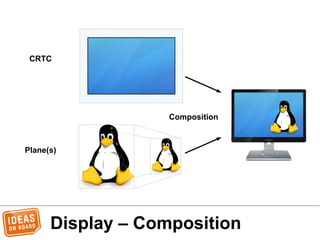

- 27. Display – Scanout Frame Buffer
- 34. Origins

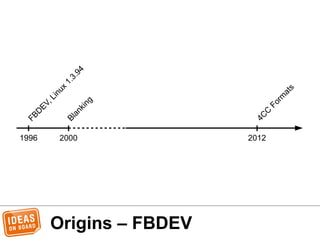

- 35. Origins – FBDEV FBD EV,Linux 1.3.94 1996 2012 4C C Form ats 2000 Blanking

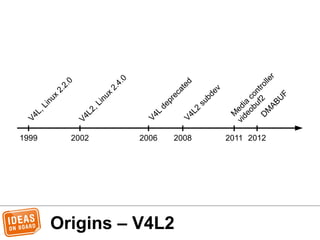

- 36. Origins – V4L2 V4L,Linux 2.2.0 1999 2002 2006 V4L2,Linux 2.4.0 V4L deprecated 2008 V4L2 subdev 2011 M edia controller videobuf2 2012 D M ABU F

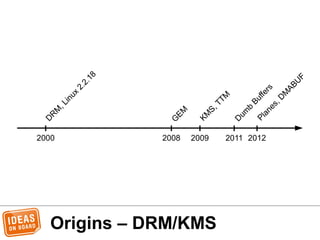

- 37. Origins – DRM/KMS 2000 D R M ,Linux 2.2.18 2009 KM S,TTM 2008 G EM Planes,D M ABU F 2011 2012 D um b Buffers
- 38. Features

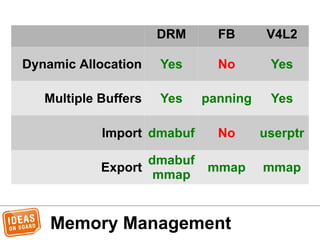

- 39. Memory Management DRM FB V4L2 Dynamic Allocation Yes No Yes Multiple Buffers Yes panning Yes Import dmabuf No userptr Export dmabuf mmap mmap mmap

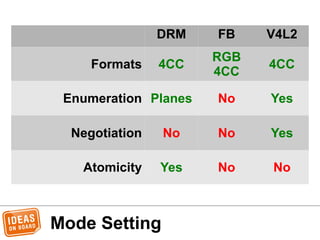

- 40. Mode Setting DRM FB V4L2 Formats 4CC RGB 4CC 4CC Enumeration Planes No Yes Negotiation No No Yes Atomicity Yes No No

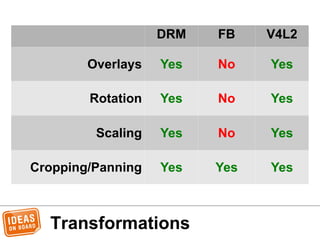

- 41. Transformations DRM FB V4L2 Overlays Yes No Yes Rotation Yes No Yes Scaling Yes No Yes Cropping/Panning Yes Yes Yes

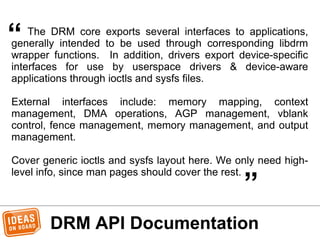

- 43. DRM API Documentation The DRM core exports several interfaces to applications, generally intended to be used through corresponding libdrm wrapper functions. In addition, drivers export device-specific interfaces for use by userspace drivers & device-aware applications through ioctls and sysfs files. External interfaces include: memory mapping, context management, DMA operations, AGP management, vblank control, fence management, memory management, and output management. Cover generic ioctls and sysfs layout here. We only need high- level info, since man pages should cover the rest. “ „

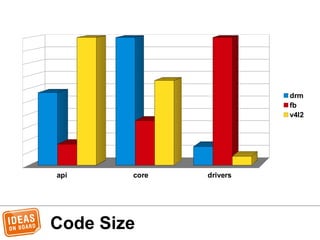

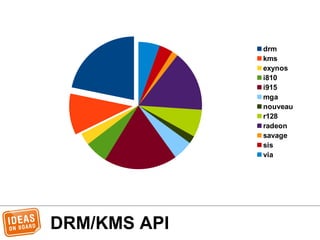

- 45. Code Size api core drivers drm fb v4l2

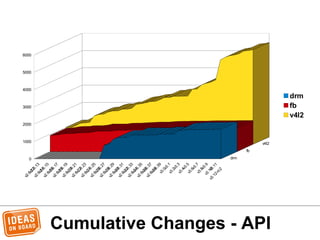

- 46. Cumulative Changes - API 0 1000 2000 3000 4000 5000 6000 drm fb v4l2 drm fb v4l2

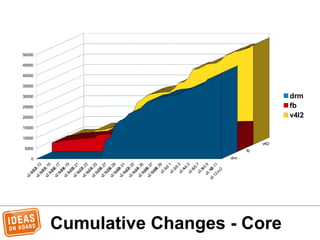

- 47. Cumulative Changes - Core 0 5000 10000 15000 20000 25000 30000 35000 40000 45000 50000 drm fb v4l2 drm fb v4l2

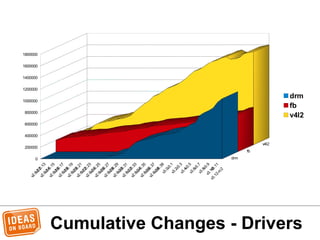

- 48. Cumulative Changes - Drivers 0 200000 400000 600000 800000 1000000 1200000 1400000 1600000 1800000 drm fb v4l2 drm fb v4l2

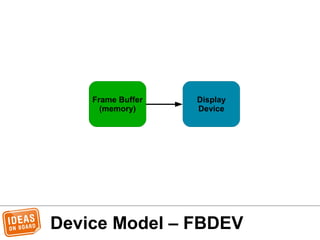

- 50. Device Model – FBDEV Frame Buffer (memory) Display Device

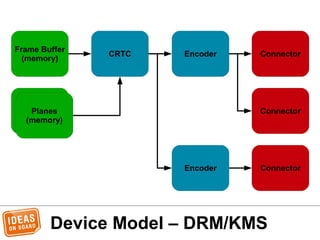

- 51. Device Model – DRM/KMS Frame Buffer (memory) CRTC Encoder Connector Planes (memory) Encoder Connector Connector

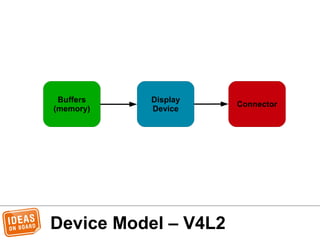

- 52. Device Model – V4L2 Buffers (memory) Display Device Connector

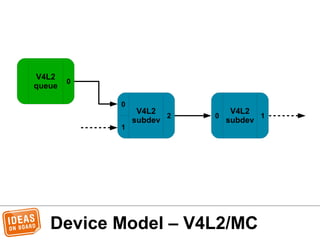

- 53. Device Model – V4L2/MC V4L2 subdev 0 1 2 V4L2 subdev 0 1 V4L2 queue 0
- 54. Device Model – V4L2/MC
- 55. Use Cases
- 56. Use Cases - FBDEV
- 57. Use Cases - FBDEV (that's it...)
- 58. Use Cases - V4L2 Video
- 59. Use Cases – DRM/KMS Everything else

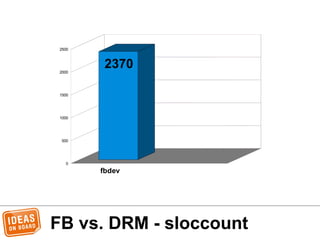

- 60. FB vs. DRM - sloccount fbdev 0 500 1000 1500 2000 2500 2370

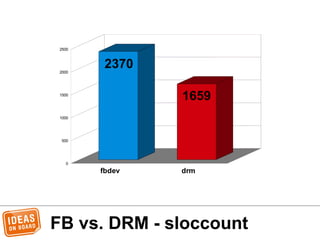

- 61. FB vs. DRM - sloccount fbdev drm 0 500 1000 1500 2000 2500 2370 1659

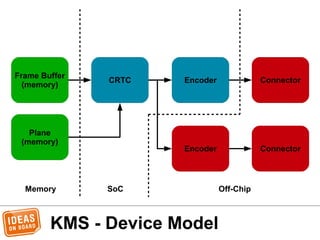

- 63. KMS - Device Model Frame Buffer (memory) CRTC Encoder Connector Plane (memory) SoCMemory Off-Chip Encoder Connector

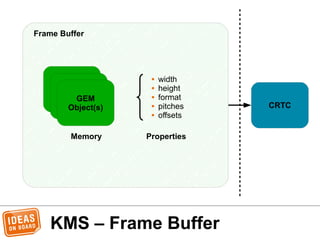

- 64. KMS – Frame Buffer CRTC Frame Buffer GEM Object(s) Memory ● width ● height ● format ● pitches ● offsets Properties
- 65. DRM/KMS – GEM Object CRTC Frame Buffer GEM Object ● width ● height ● bpp ● pitch ● size Properties Memory

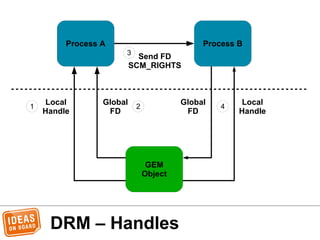

- 66. DRM – Handles Process A Local Handle GEM Object Process B Send FD SCM_RIGHTS Global FD 1 2 Global FD 4 Local Handle 3
- 67. Active Area KMS – Modes (1/2) sync back porch front porch active area

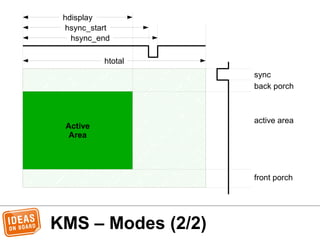

- 68. Active Area KMS – Modes (2/2) sync back porch front porch active area hdisplay hsync_start htotal hsync_end

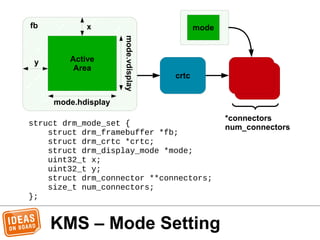

- 69. KMS – Mode Setting crtc fb Active Area x y mode.hdisplay mode.vdisplay *connectors num_connectors mode struct drm_mode_set { struct drm_framebuffer *fb; struct drm_crtc *crtc; struct drm_display_mode *mode; uint32_t x; uint32_t y; struct drm_connector **connectors; size_t num_connectors; };
- 71. WIP – Display Framework Common Display Framework http://lwn.net/Articles/512363/

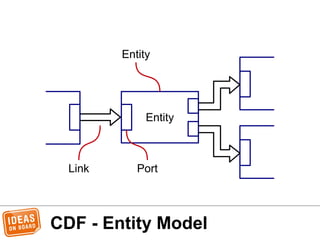

- 72. Entity Entity Link Port CDF - Entity Model

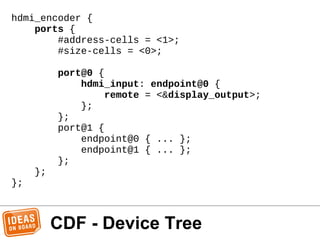

- 73. CDF - Device Tree hdmi_encoder { ports { #address-cells = <1>; #size-cells = <0>; port@0 { hdmi_input: endpoint@0 { remote = <&display_output>; }; }; port@1 { endpoint@0 { ... }; endpoint@1 { ... }; }; }; };
- 74. Display Controller Video Entity Pipeline Controller controlcontrol Entity Entity CDF - Configuration Model

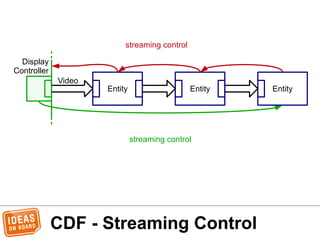

- 75. Display Controller Video Entity streaming control streaming control Entity Entity CDF - Streaming Control

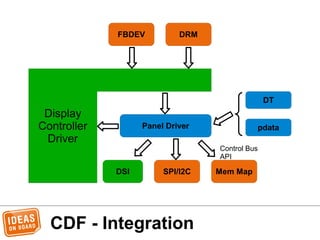

- 76. CDF - Integration Display Controller Driver Control Bus API FBDEV DRM SPI/I2C Mem Map Panel Driver DT pdata DSI
- 77. • dri-devel@listsfreedesktop.org • linux-fbdev@vger.kernel.org • linux-media@vger.kernel.org • laurent.pinchart@ideasonboard.com Contact
- 78. ? !
- 79. merci.
