The document outlines the architecture and operational structure of the Linux SD/MMC driver stack, including the roles of core, device, and host components. It details the structure and allocation of the mmc_host, operations for managing requests, and data transmission handling. Additionally, it includes function definitions for host operations and request management within the SD/MMC framework.

1. 1
Linux SD/MMC Driver Stack
Champ Yen
http://champyen.blogspot.com
champ.yen@gmail.com

2. 2
Core
SDIO SD MMC
BLOCK
Device
UART
(SDIO)
BlueTooth
(SDIO)
WIFI
(SDIO)
Host
AIT OMAP S3C ......
Device
● Implement specific subsystem
devices(ex: UART, WIFI) by utilizing
Core API.
Core
-Diagnosing SD/MMC/SDIO device
-SD/MMC/SDIO Protocol Layer
implementation
-Power Management Policy
Host
-Hardware dependent interface
-Handling requests from Core layer.

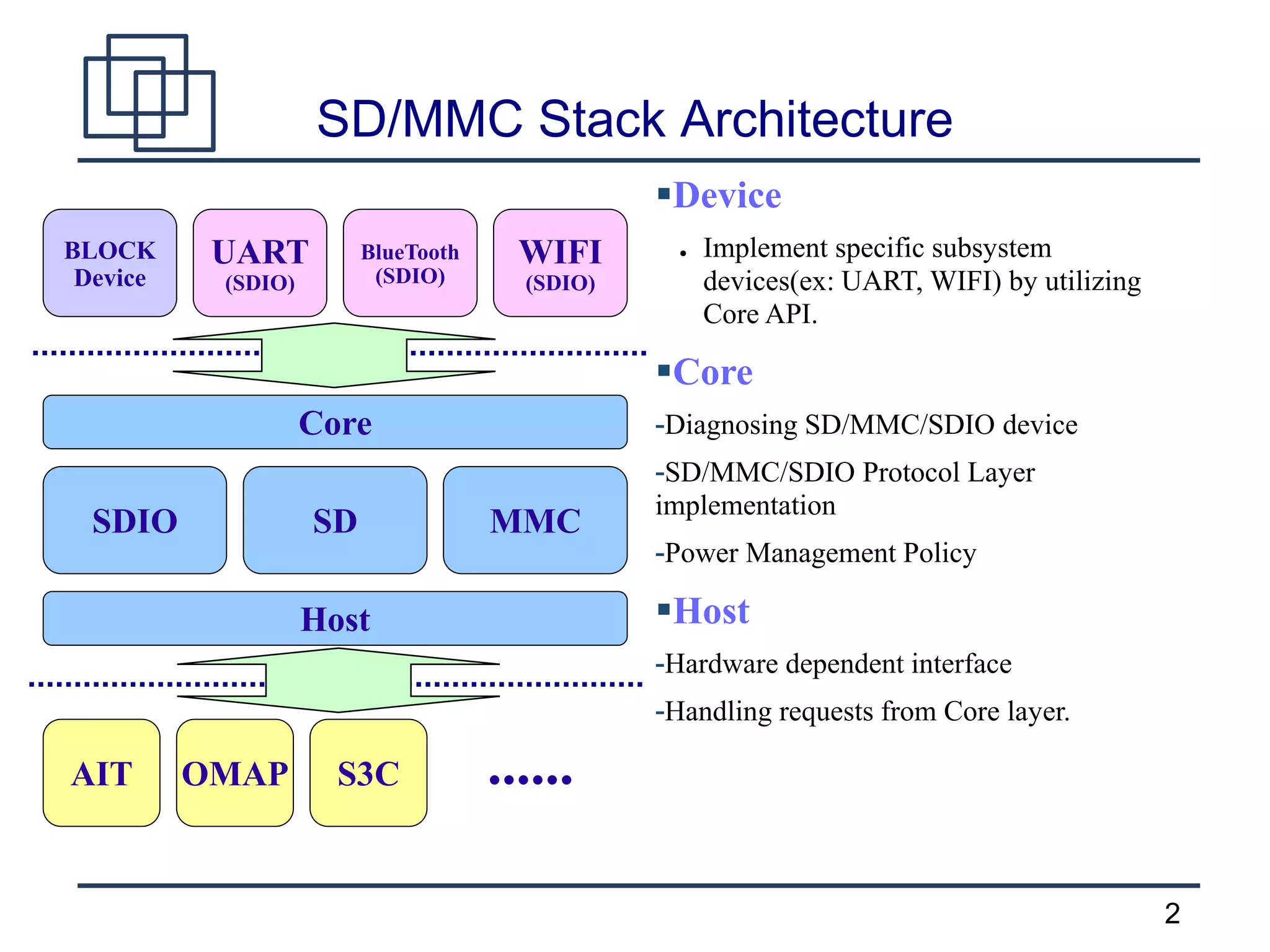

SD/MMC Stack Architecture

3. 3

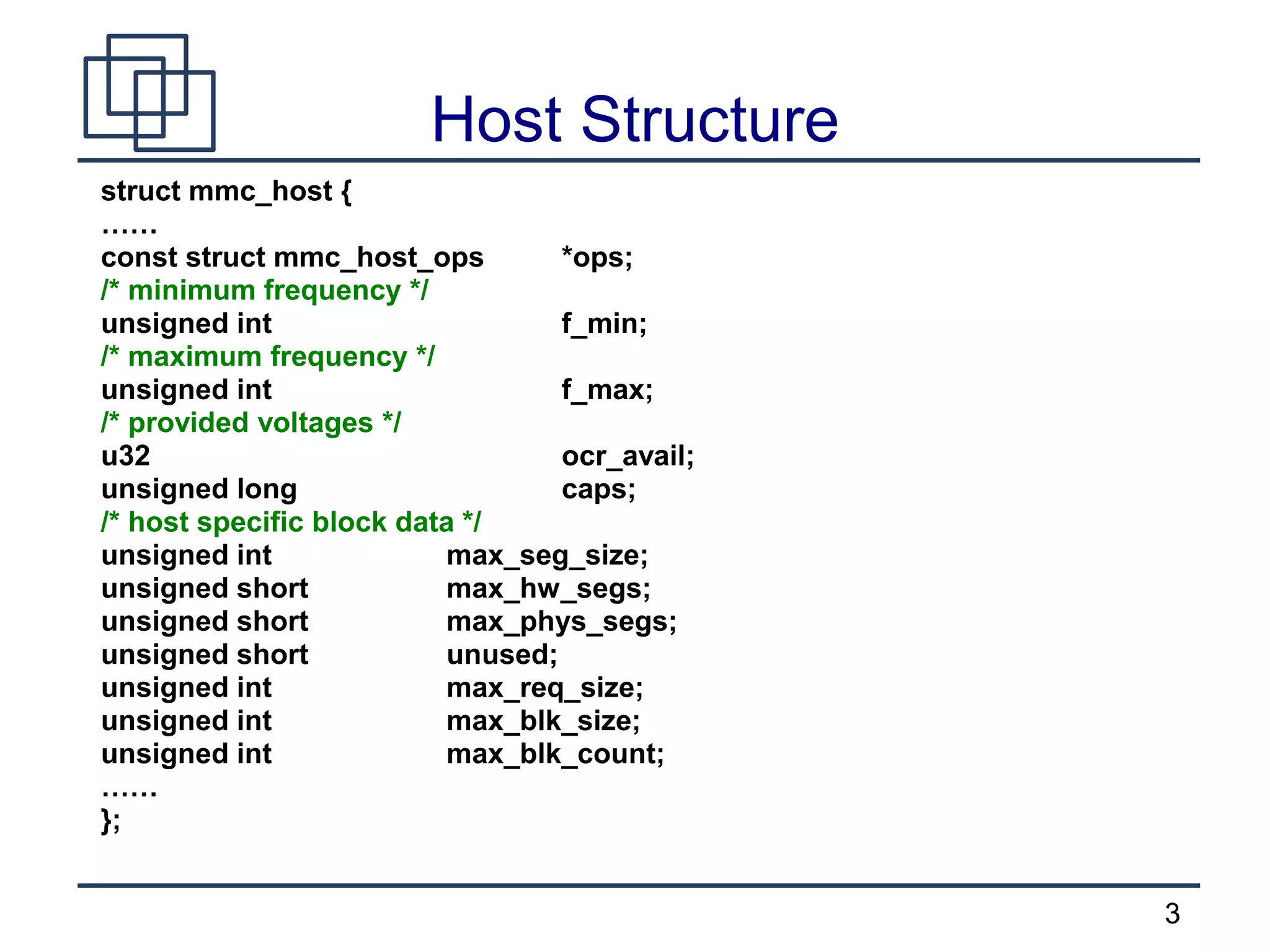

Host Structure
struct mmc_host {
……
const struct mmc_host_ops *ops;
/* minimum frequency */
unsigned int f_min;
/* maximum frequency */
unsigned int f_max;
/* provided voltages */
u32 ocr_avail;
unsigned long caps;
/* host specific block data */
unsigned int max_seg_size;
unsigned short max_hw_segs;
unsigned short max_phys_segs;
unsigned short unused;
unsigned int max_req_size;
unsigned int max_blk_size;
unsigned int max_blk_count;
……
};

4. 4

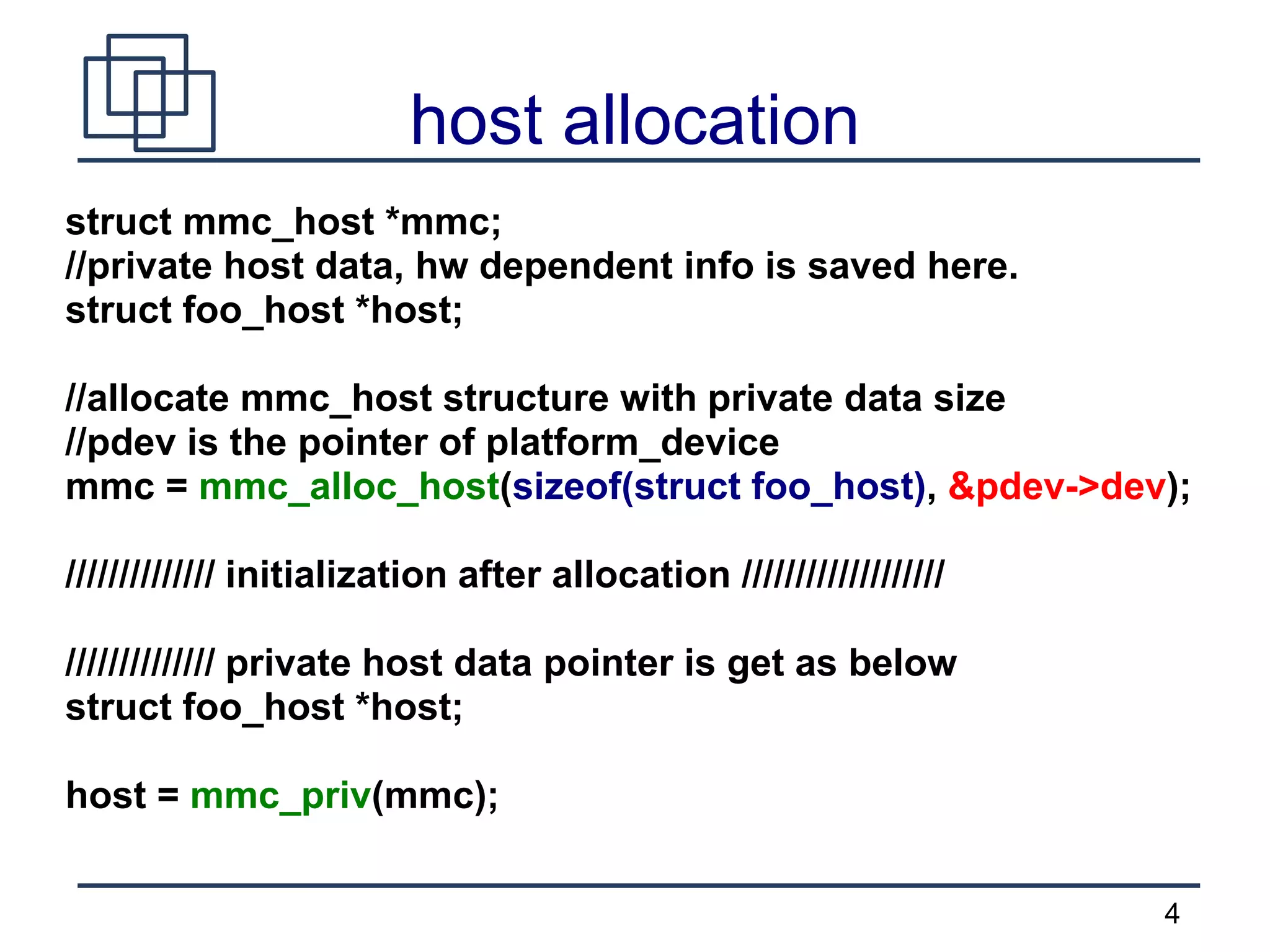

host allocation
struct mmc_host *mmc;
//private host data, hw dependent info is saved here.
struct foo_host *host;
//allocate mmc_host structure with private data size
//pdev is the pointer of platform_device
mmc = mmc_alloc_host(sizeof(struct foo_host), &pdev->dev);
////////////// initialization after allocation ///////////////////
////////////// private host data pointer is get as below
struct foo_host *host;
host = mmc_priv(mmc);

5. 5

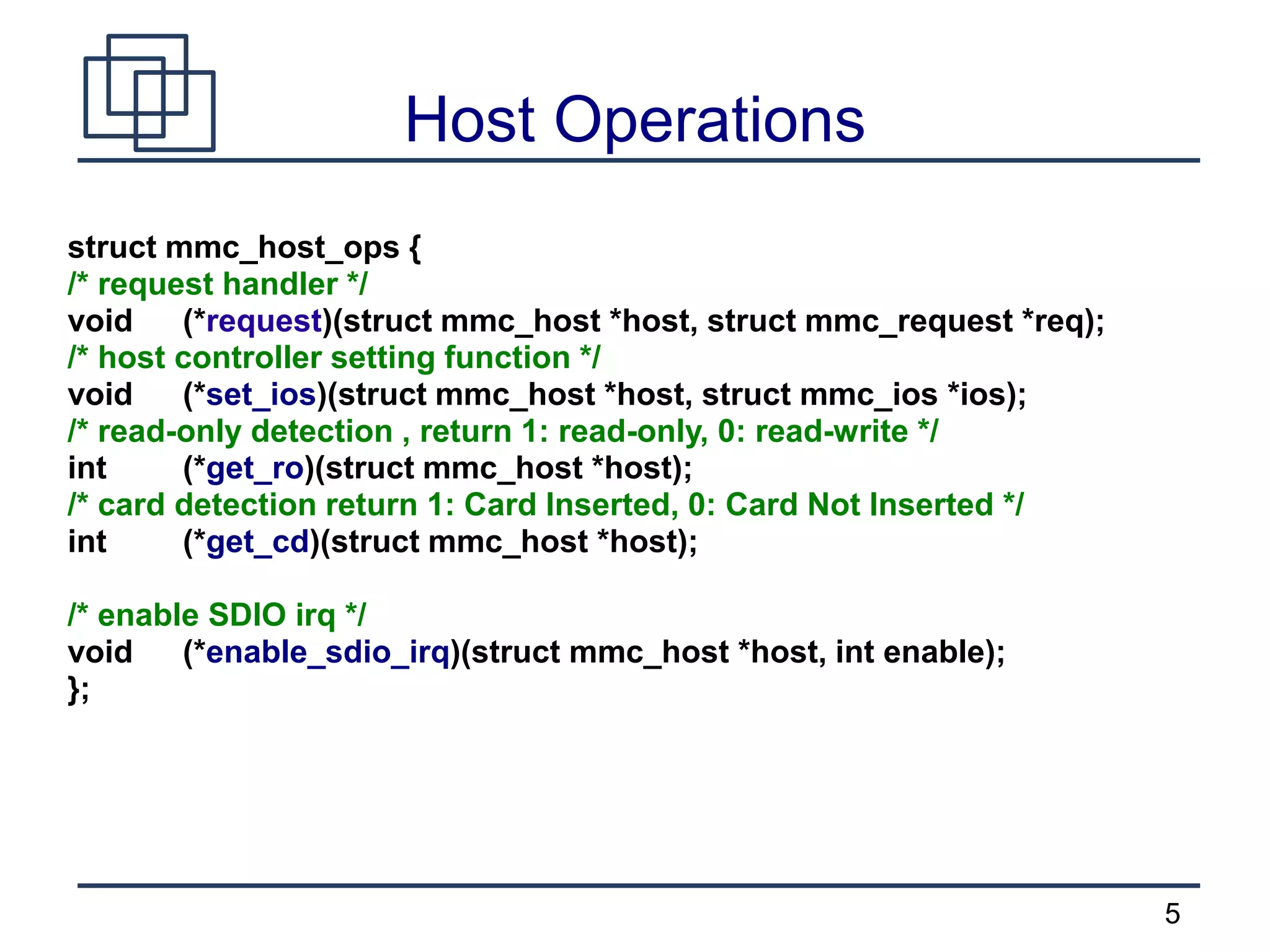

Host Operations
struct mmc_host_ops {
/* request handler */
void (*request)(struct mmc_host *host, struct mmc_request *req);
/* host controller setting function */
void (*set_ios)(struct mmc_host *host, struct mmc_ios *ios);
/* read-only detection , return 1: read-only, 0: read-write */
int (*get_ro)(struct mmc_host *host);
/* card detection return 1: Card Inserted, 0: Card Not Inserted */
int (*get_cd)(struct mmc_host *host);
/* enable SDIO irq */
void (*enable_sdio_irq)(struct mmc_host *host, int enable);
};

6. 6

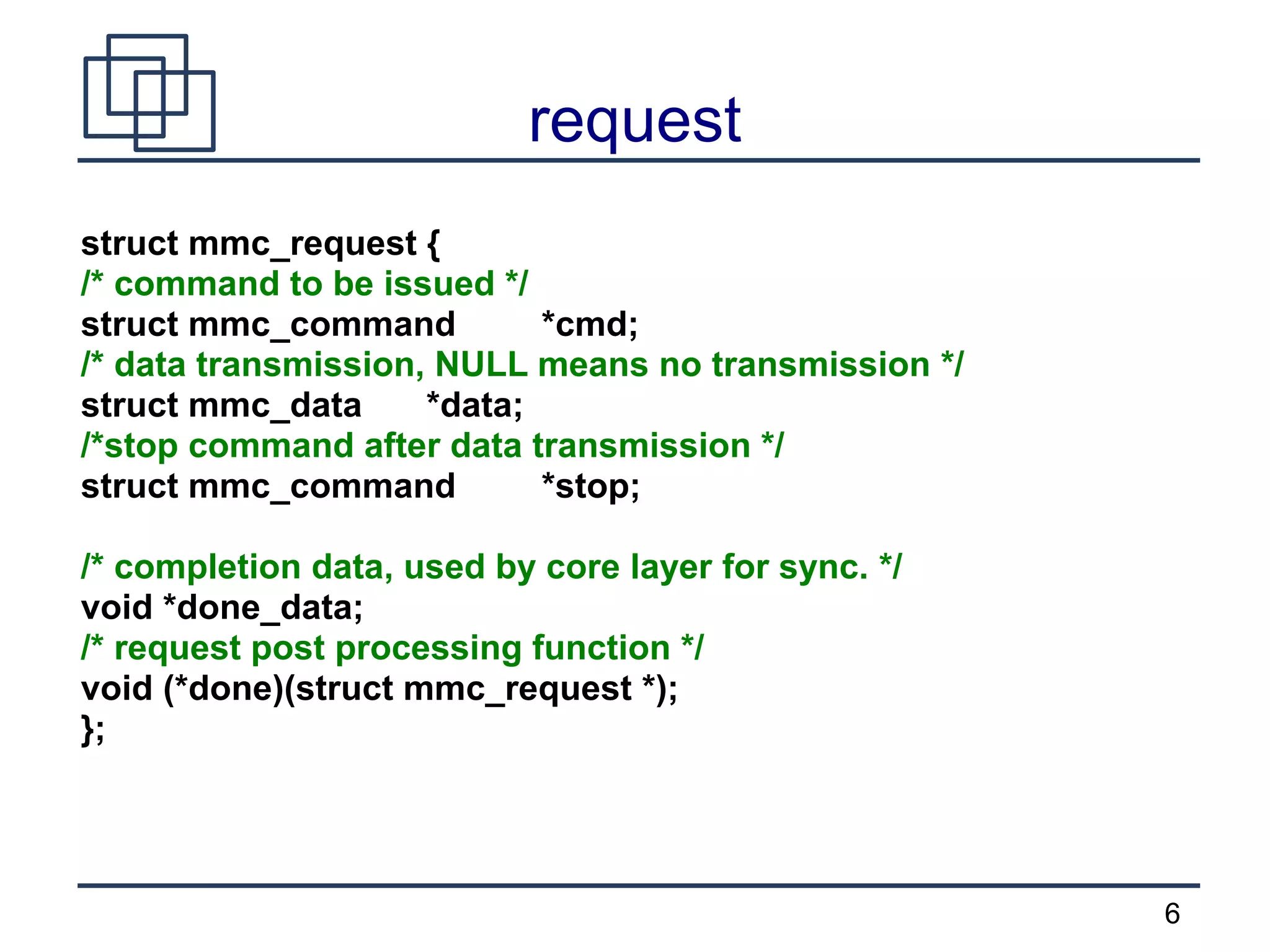

request
struct mmc_request {
/* command to be issued */
struct mmc_command *cmd;
/* data transmission, NULL means no transmission */
struct mmc_data *data;
/*stop command after data transmission */
struct mmc_command *stop;
/* completion data, used by core layer for sync. */
void *done_data;
/* request post processing function */
void (*done)(struct mmc_request *);
};

7. 7

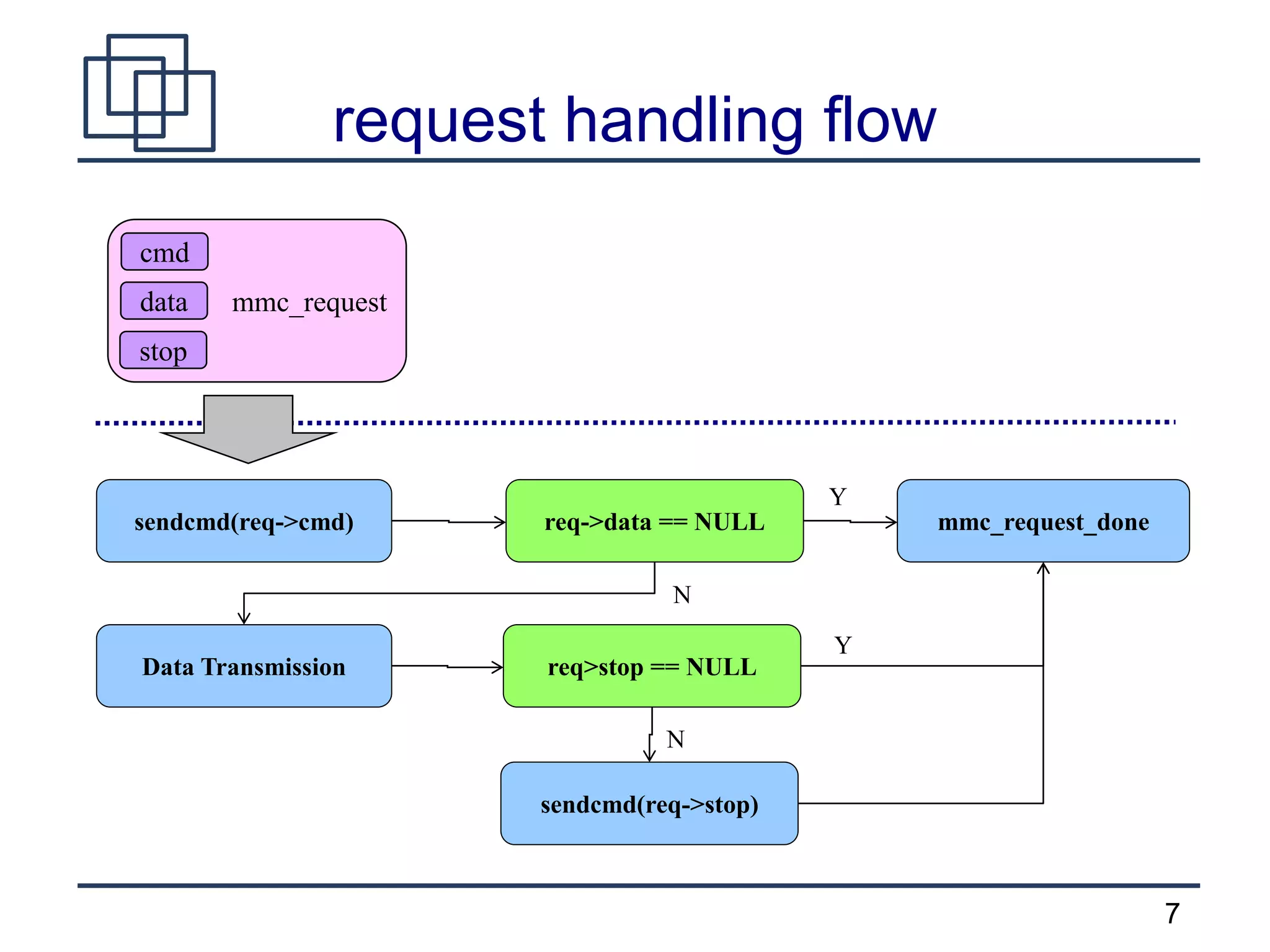

request handling flow
req->data == NULLsendcmd(req->cmd)
Data Transmission req>stop == NULL
mmc_request_done
sendcmd(req->stop)
N
Y
Y
N
mmc_request
cmd
data
stop

8. 8
Q&A
