1. LIBVIRT and KVM
For FredLug by Peter Larsen
October 2017

2. 2
Agenda
● A bit of history
● QEMU and KVM – the Linux Virtualization
● An easy demo
● Libvirt overview and some examples
● VirtManager
● Templates
● Advanced Topics

3. 3

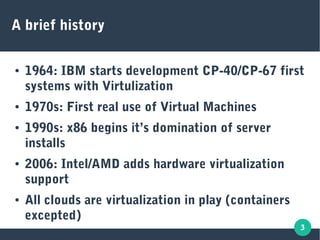

A brief history
● 1964: IBM starts development CP-40/CP-67 first
systems with Virtulization
● 1970s: First real use of Virtual Machines
● 1990s: x86 begins it’s domination of server
installs
● 2006: Intel/AMD adds hardware virtualization
support
● All clouds are virtualization in play (containers
excepted)

4. 4
What’s the big deal?
● Provision systems using an API (= automation)
● Higher density – better utalization of hardware
● Cool tricks like snap-shotting and quick
provision from templates
● Easy to manipulate “external” hardware, adding
more disk, network interfaces, CPUs etc. with a
click
● Portability/independence of hardware

5. 5
How does it work?
● Simulation of hardware – hard drives, network,
memory, CPU (type, features) etc.
● Hardware Virtualization has processor support
for switching and simulated hardware addressing
etc.
● Emulation (QEMU) of hardware allows running
different processor architectures

6. 6

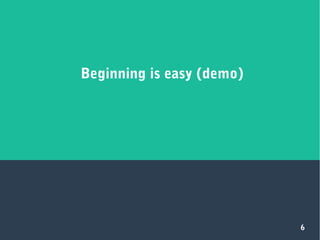

Beginning is easy (demo)

7. 7
Linux Virtualization

8. 8
Does your processor support Virtualization?
● $ lscpu | grep Virtualization
Virtualization: VT-x
● YAY! - I can use KVM
● KVM = Kernel-based Virtual Machine
Hardware virtualization
FASTER!
● All Intel/AMD processors since the late 2000s have
virtualization support
● You may need to enable virtualization in the BIOS

9. 9
The guest OS doesn’t matter
● Anything that supports the processor you’re
simulating can run
● Windows, MAC, Linux, Unix etc. can all run in a
VM running on another platform

10. 10
QEMU
Quick EMUlator

11. 11
Emulation with QEMU
● Install
dnf install @Virtualization qemu-user
● To see ARM emulators:
qemu-system-arm -M help
● Note – NO NEED FOR ROOT!
● Lots of emulators!
qemu-system-aarch64 qemu-system-mips64 qemu-system-sh4
qemu-system-alpha qemu-system-mips64el qemu-system-sh4eb
qemu-system-arm qemu-system-mipsel qemu-system-sparc
qemu-system-cris qemu-system-moxie qemu-system-sparc64
qemu-system-i386 qemu-system-nios2 qemu-system-tricore
qemu-system-lm32 qemu-system-or1k qemu-system-unicore32
qemu-system-m68k qemu-system-ppc qemu-system-x86_64
qemu-system-microblaze qemu-system-ppc64 qemu-system-xtensa
qemu-system-microblazeel qemu-system-ppcemb qemu-system-xtensaeb
qemu-system-mips qemu-system-s390x

12. 12

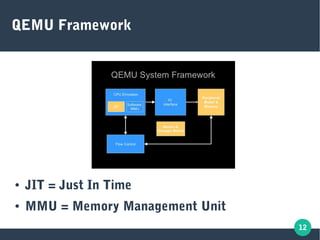

QEMU Framework
● JIT = Just In Time
● MMU = Memory Management Unit

13. 13
● $ qemu-system-aarch64 -M help | wc -l
51
● Lots of ARM processors!
● Great for testing compilers and code generators
for using optimal code for a given hardware
platform
● Run:
qemu-system-aarch64 -m <memory size> -M <machine name> -drive if=none,file=<hard drive file name>,id=hd0
-device virtio-blk-device,drive=hd0 -netdev type=tap,id=net0 -device virtio-net-device,netdev=net0
Lots of families of types of processors

14. 14

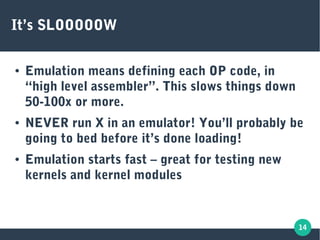

It’s SLOOOOOW
● Emulation means defining each OP code, in
“high level assembler”. This slows things down
50-100x or more.
● NEVER run X in an emulator! You’ll probably be
going to bed before it’s done loading!
● Emulation starts fast – great for testing new
kernels and kernel modules

15. 15
Introducing KVM
● Kernel module
● Is meant for native emulation – running X86_64
VMs on an X86_64 processor.
● Passthrough of OP codes to hardware – no
emulation
● FAST
● Same interface as emulation. Pretty cool!

16. 16
I’m not a hardware guy ..
● No need for emulation?
● Not into hardware architectures?
● Want simple command lines?
● LIBVIRT is the answer

17. 17
LIBVIRT (and gang)

18. 18
QEMU and KVM introduction

19. 19
What is Libvirt?
● Standard library for talking to different
hypervisors
● One toolset to rule all the APIs!
● Mostly used with KVM today
● Defines networking, disks, graphical and other
devices in a declartive way

20. 20

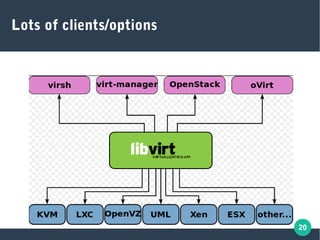

Lots of clients/options

21. 21

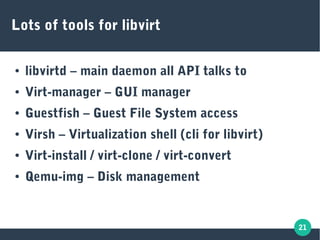

Lots of tools for libvirt
● libvirtd – main daemon all API talks to
● Virt-manager – GUI manager
● Guestfish – Guest File System access
● Virsh – Virtualization shell (cli for libvirt)
● Virt-install / virt-clone / virt-convert
● Qemu-img – Disk management

22. 22

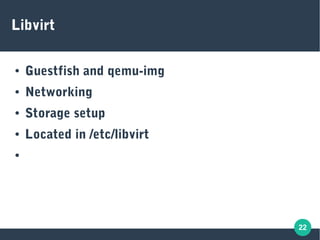

Libvirt
● Guestfish and qemu-img
● Networking
● Storage setup
● Located in /etc/libvirt
●

23. 23
VirtManager
● Easiest way to manage Vms
● Virsh – alternative command line method (more
options)
●

24. 24
Boxes
● User space Vms – even easier than virt-manager
● Fewer options
● Great for basic desktop virtualization needs
● Let’s take a look (DEMO)

25. 25
Templates – start from a given state
● Save an existing VM – use it to build a new VM without
doing a full install
● General method:
– Setup VM from scratch using install media
– Customize it
– Stop it
– Freeze/copy VM image => template name
● Create new VM from existing image
– Copy template image to new VM image
– Create VM from existing image.

26. 26

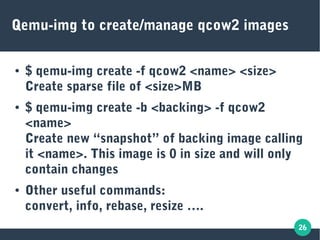

Qemu-img to create/manage qcow2 images
● $ qemu-img create -f qcow2 <name> <size>
Create sparse file of <size>MB
● $ qemu-img create -b <backing> -f qcow2
<name>
Create new “snapshot” of backing image calling
it <name>. This image is 0 in size and will only
contain changes
● Other useful commands:
convert, info, rebase, resize ….

27. 27
Advanced topics

28. 28

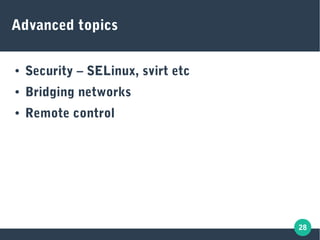

Advanced topics
● Security – SELinux, svirt etc
● Bridging networks
● Remote control

29. 29
Security
● SELinux rules the roost
● Advanced rules (svirt) creates locks preventing one VM from accessing
other Vms
● Lots of “virt*” sebools to manage what virtualization is allowed to do:
virt_use_nfs, virt_use_usb etc
● Important context labels (man libvirt-selinux):
– virt_image_t – all images (default /var/lib/libvirt/images)
– virt_content_t – files used to start/run a VM
– virt_etc_t - /etc/libvirt files (there are subtypes)
– $ semanage fcontext -l | grep “virt_”
for a nice long list
● Get in trouble? Relabel!
– # fixfiles onboot

30. 30

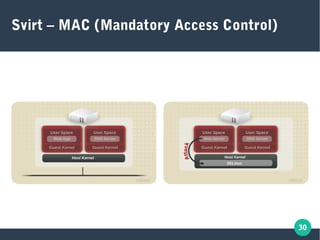

Svirt – MAC (Mandatory Access Control)

31. 31

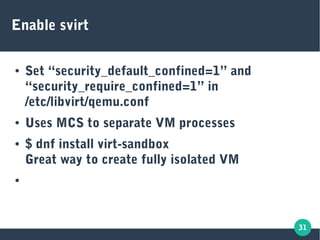

Enable svirt
● Set “security_default_confined=1” and
“security_require_confined=1” in
/etc/libvirt/qemu.conf
● Uses MCS to separate VM processes
● $ dnf install virt-sandbox
Great way to create fully isolated VM
●

32. 32

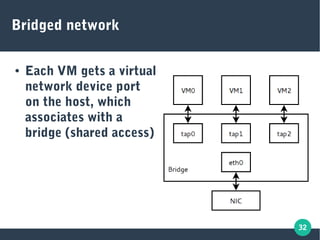

Bridged network
● Each VM gets a virtual
network device port
on the host, which
associates with a
bridge (shared access)

33. 33

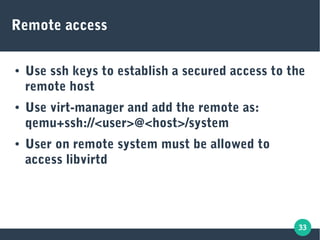

Remote access
● Use ssh keys to establish a secured access to the
remote host
● Use virt-manager and add the remote as:
qemu+ssh://<user>@<host>/system
● User on remote system must be allowed to
access libvirtd

34. 34
Questions?
THANK YOU!
