This document discusses various algorithms and data structures including divide-and-conquer, greedy algorithms, dynamic programming, pattern matching, and tries. It provides examples of each technique and describes how to determine when a problem can be solved using each approach. The key characteristics of different trie variants like standard, compressed, and suffix tries are also outlined. Overall, the document presents fundamental algorithm design strategies and data structures.

1. Oxford University Press © 2012Data Structures Using C++ by Dr Varsha Patil
1

2. Oxford University Press © 2012Data Structures Using C++ by Dr Varsha Patil
2

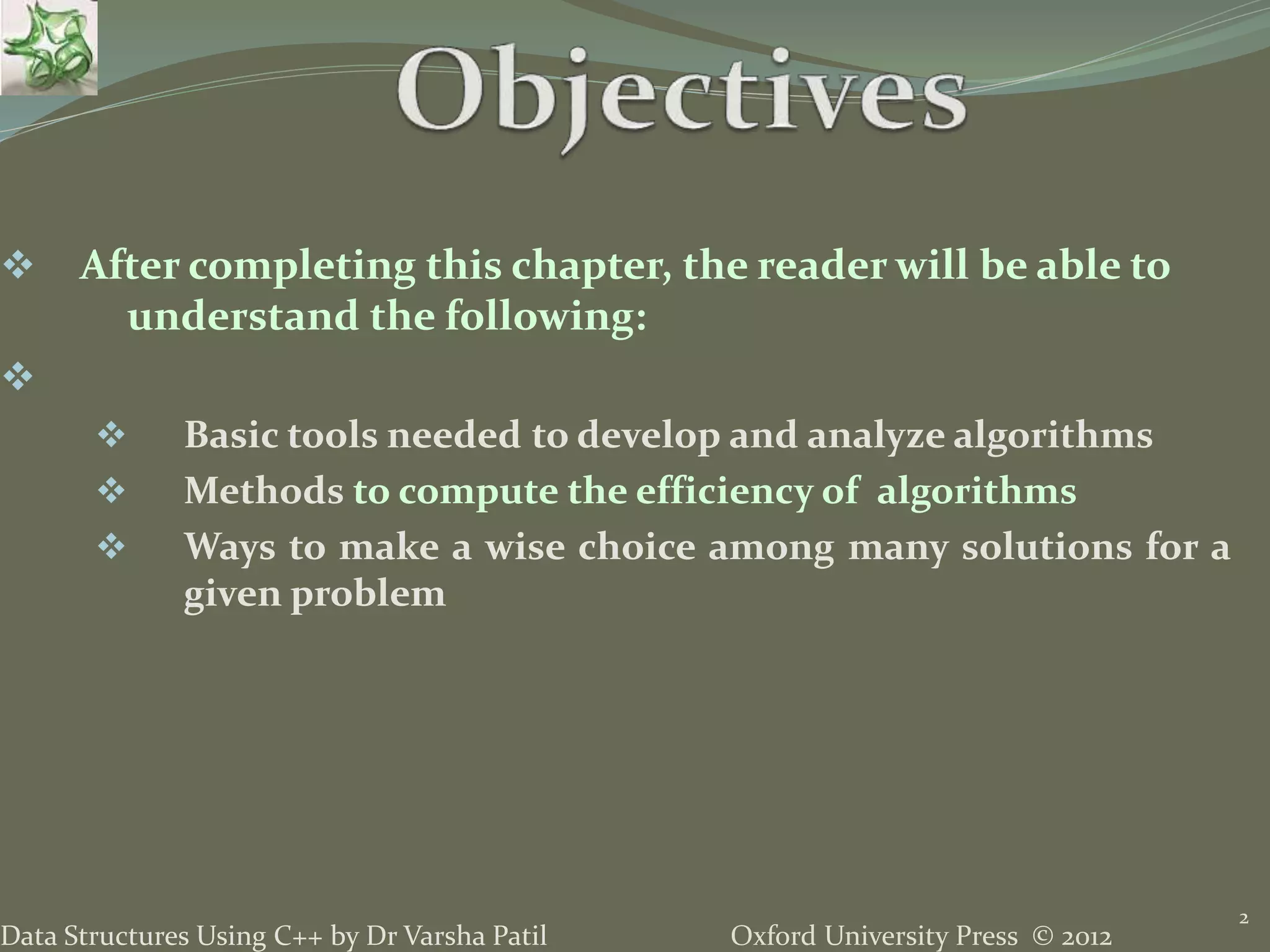

 After completing this chapter, the reader will be able to
understand the following:

 Basic tools needed to develop and analyze algorithms
 Methods to compute the efficiency of algorithms
 Ways to make a wise choice among many solutions for a
given problem

3. Oxford University Press © 2012Data Structures Using C++ by Dr Varsha Patil
3
Algorithm Analysis
Asymptoti c Notations (W, p, O)
Big Omega (W)

4. Oxford University Press © 2012Data Structures Using C++ by Dr Varsha Patil
4
Algorithm Analysis
Asymptoti c Notations (W, p, O)
Big Omega (W)

5. Oxford University Press © 2012Data Structures Using C++ by Dr Varsha Patil
5
 The following steps elaborate the general structure of the
divide-and-conquer strategy
 If the data size n of problem P is fundamental,
calculate the result of P(n) and go to step 4
 If the data size n of problem P is not fundamental,
divide the problem P(n) into equivalent subproblems
P(n1), P(n2), … P(ni) such that i ≥ 1
 Apply divide-and-conquer recursively to each
individual subproblem P(n1), P(n2), …,P(ni)
 Combine the results of all subproblems P(n1), P(n2),…,
P(ni) to get the final solution of P(n)

6. Oxford University Press © 2012Data Structures Using C++ by Dr Varsha Patil
6
 At level one, only one call to a partition is made
with n elements; at level two, Atmost two calls are
made with elements (n - 1), and so on
C(n) = O(n2)

7. Oxford University Press © 2012Data Structures Using C++ by Dr Varsha Patil
7
 General
 Knapsack Problem
 Elements of Greedy Strategy

8. Oxford University Press © 2012Data Structures Using C++ by Dr Varsha Patil
8
 To decide whether a problem can be solved using a
greedy strategy, the following elements should be
considered:
 Greedy-choice property
 Optimal substructure Greedy Method

9. Oxford University Press © 2012Data Structures Using C++ by Dr Varsha Patil
9
 Greedy-choice property A problem exhibits
greedy-choice property if a globally optimal
solution can be arrived at by making a locally
optimal greedy choice
 That is, we make the choice that seems best at
that time without considering the results from
the sub problems

10. Oxford University Press © 2012Data Structures Using C++ by Dr Varsha Patil
10
 The General Method
 Elements of Dynamic Programming
 Principle of Optimality
 Limitations of Dynamic Programming
 Knapsack Problem

11. Oxford University Press © 2012Data Structures Using C++ by Dr Varsha Patil
11
 The General Method
 Elements of Dynamic Programming
 Principle of Optimality
 Limitations of Dynamic Programming
 Knapsack Problem

12. Oxford University Press © 2012Data Structures Using C++ by Dr Varsha Patil
12
A dynamic programming solution has the following three
components:
 Formulate the answer as a recurrence relation or a
recursive algorithm
 Show that the number of different instances of your
recurrence is bounded by a polynomial
 Specify an order of evaluation for the recurrence

13. Oxford University Press © 2012Data Structures Using C++ by Dr Varsha Patil
13
To decide whether a problem can be solved using the dynamic
programming method, the following three elements of dynamic
programming should be considered:

 Optimal substructure
 Overlapping subproblems
 Memorization

14. Oxford University Press © 2012Data Structures Using C++ by Dr Varsha Patil
14
 A problem exhibits optimal substructure if an optimal
solution to the problem contains within it optimal
solutions to subproblems
 It also means that dynamic programming (and greedy
method) might apply

15. Oxford University Press © 2012Data Structures Using C++ by Dr Varsha Patil
15
 When a recursive algorithm revisits the same problem
repeatedly, it is said that the optimization problem has
overlapping sub problems
 This is beneficial for dynamic programming
 It solves each subproblem once and stores the answer in a
table
 This answer can be searched in constant time when required.
This is contradictory to the divide-and-conquer strategy
where a new problem is generated at each step of recursion

16. Oxford University Press © 2012Data Structures Using C++ by Dr Varsha Patil
16
 A problem exhibits optimal substructure if an optimal
solution to the problem contains within it optimal solutions
to subproblems
 It also means that dynamic programming (and greedy
method) might apply

17. Oxford University Press © 2012Data Structures Using C++ by Dr Varsha Patil
17
 However, it uses the control structure similar to the
recursive algorithm
 In a memorized recursive algorithm, an entry is
maintained in a table for the solution to each subproblem
 Initially, all entries contain a special value, which
indicates that the entry is not yet used
 For each subproblem, which is encountered for the first
time, its solution is computed and stored in the table
 Next time, for that subproblem, its entry is searched and
the value is used
 This can be implemented using hashing

18. Oxford University Press © 2012Data Structures Using C++ by Dr Varsha Patil
18
 The principle of optimality states that an optimal
sequence of decisions has the property that whatever
the initial state and decision are, the remaining
decisions must constitute an optimal decision
sequence with regard to the state resulting from the
first decision
Principle of Optimality

19. Oxford University Press © 2012Data Structures Using C++ by Dr Varsha Patil
19
 Pattern matching is the process of finding the
presence of a particular string (pattern) in the given
string (text)
Pattern Matching

20. Oxford University Press © 2012Data Structures Using C++ by Dr Varsha Patil
20
 Database search
 Search engine
 Text editors
 Intrusion detection
 Natural language processing
 Feature detection in digitized images
A few such applications are as follows:

21. Oxford University Press © 2012Data Structures Using C++ by Dr Varsha Patil
21
The most popular are the following:
Brute-force approach
Boyer–Moore algorithm
Knuth–Morris–Pratt algorithm
Robin–Karp algorithm
Text partitioning algorithm
Semi-numerical algorithm
Popular techniques for
string pattern search

22. Oxford University Press © 2012Data Structures Using C++ by Dr Varsha Patil
22
 String : A string is a finite sequence of symbols that are
chosen from a set or alphabet:
 Alphabet is a set of characters or symbols
 Substring: A substring or subsequence of a string is a
subset of the symbols in a string where the order of
elements is preserved
 Suffix: A suffix of S is a substring S[i, …, m − 1], where i
ranges between 0 and m − 1

23. Oxford University Press © 2012Data Structures Using C++ by Dr Varsha Patil
23
 This is a simple straight forward approach based on
the comparison of a pattern character by character
with a string

24. Oxford University Press © 2012Data Structures Using C++ by Dr Varsha Patil
24
 The steps involved in this approach are as
follows:
 Adjust the pattern P at beginning of the text
 Start moving from left to right and compare the
character of pattern to the corresponding character
in text
 Continue with step 2 until successful (all characters
of the pattern are matched) or unsuccessful (a
mismatch is detected)

25. Oxford University Press © 2012Data Structures Using C++ by Dr Varsha Patil
25
 Boyer and Moore have developed an efficient pattern
matching algorithm
 Instead of sliding by one character to the right at a time, in
Boyer–Moore approach, the sliding to the right is done in
longer steps
 The algorithm scans the character of pattern from right to
left beginning with the rightmost character
 If the text symbol compared with the rightmost
pattern symbol does not occur in the pattern at all, then the
pattern can be shifted by m positions (where m is length
of pattern)

26. Oxford University Press © 2012Data Structures Using C++ by Dr Varsha Patil
26
 The researchers Knuth, Morris, and Pattern
proposed a linear time algorithm for the string
matching problem
 In this approach, a matching time of O(n) is
achieved by avoiding comparisons with characters
of T that have previously been involved in
comparison with some element of the pattern P to
be matched so that backtracking is avoided

27. Oxford University Press © 2012Data Structures Using C++ by Dr Varsha Patil
27
 The KMP matcher finds the occurrence of the
pattern P in text T and returns the number of shifts
of P, after which the occurrence is found taking T, P,
and prefix function p as inputs

28. Oxford University Press © 2012Data Structures Using C++ by Dr Varsha Patil
28
 A compact data structure that represents a set of
strings (such as all the words in a text) known as tries
 A trie is a tree-based data structure for storing strings
to make pattern matching faster
 A trie helps in pattern matching in time that is
proportional to the length of the pattern
 Tries can be used to perform prefix query for
information retrieval
 Prefix query searches for the longest prefix of a given
string that matches a prefix of some string in the tries

29. Oxford University Press © 2012Data Structures Using C++ by Dr Varsha Patil
29
 There are variants of tries, which are listed as
follows:
 Standard tries
 Compressed trie
 Suffix tries

30. Oxford University Press © 2012Data Structures Using C++ by Dr Varsha Patil
30
 The standard trie for a set of strings S is an ordered tree
such that
 Each node but the root is labelled with a character;
 The children of a node are alphabetically ordered;
 The paths from the external nodes to the oot yield the
strings of S

31. Oxford University Press © 2012Data Structures Using C++ by Dr Varsha Patil
31
 Similar to the standard trie, a compressed is a tree-
based data structure
 For storing strings in order to make pattern matching
much faster
 This is an optimized approach for pattern matching
specially suitable for applications where time is a
more crucial factor

32. Oxford University Press © 2012Data Structures Using C++ by Dr Varsha Patil
32
Following are the unique characteristics of
compressed tire:
 A compressed trie (or Patricia trie) has internal
nodes of degree at least 2
 It is obtained from standard trie by compressing
chains of redundant nodes

33. Oxford University Press © 2012Data Structures Using C++ by Dr Varsha Patil
33
b
id u
o
ok il sh y
s
ell to
ck p

34. Oxford University Press © 2012Data Structures Using C++ by Dr Varsha Patil
34
m e g h a v i n d
0 1 2 3 4 5 6 7 8
d e me
ghavind
nd
ndghavind
nd
ghavind
vind

35. Oxford University Press © 2012Data Structures Using C++ by Dr Varsha Patil
35
 A suffix trie is a compressed Trie for all the suffixes
of a text
 This is a compressed Trie, and hence, possesses all
features a compressed trie and makes it more
powerful for making a search faster as it includes
all suffixes of a text

36. Oxford University Press © 2012Data Structures Using C++ by Dr Varsha Patil
36
