Week 1: Intro to Data Structures and Algorithms
Ferdin Joe John Joseph, PhD
Faculty of Information Technology
Thai-Nichi Institute of Technology, Bangkok

Join our g+ community
Faculty of Information Technology, Thai -
Nichi Institute of Technology
2
https://bit.ly/2skCIK0

DSA 107 – A Road Map
Attendance
(10%)
Mid Exam
(40%)
How GPA
works for
DSA 107?
Final Exam
(50%)
3

Textbooks
4

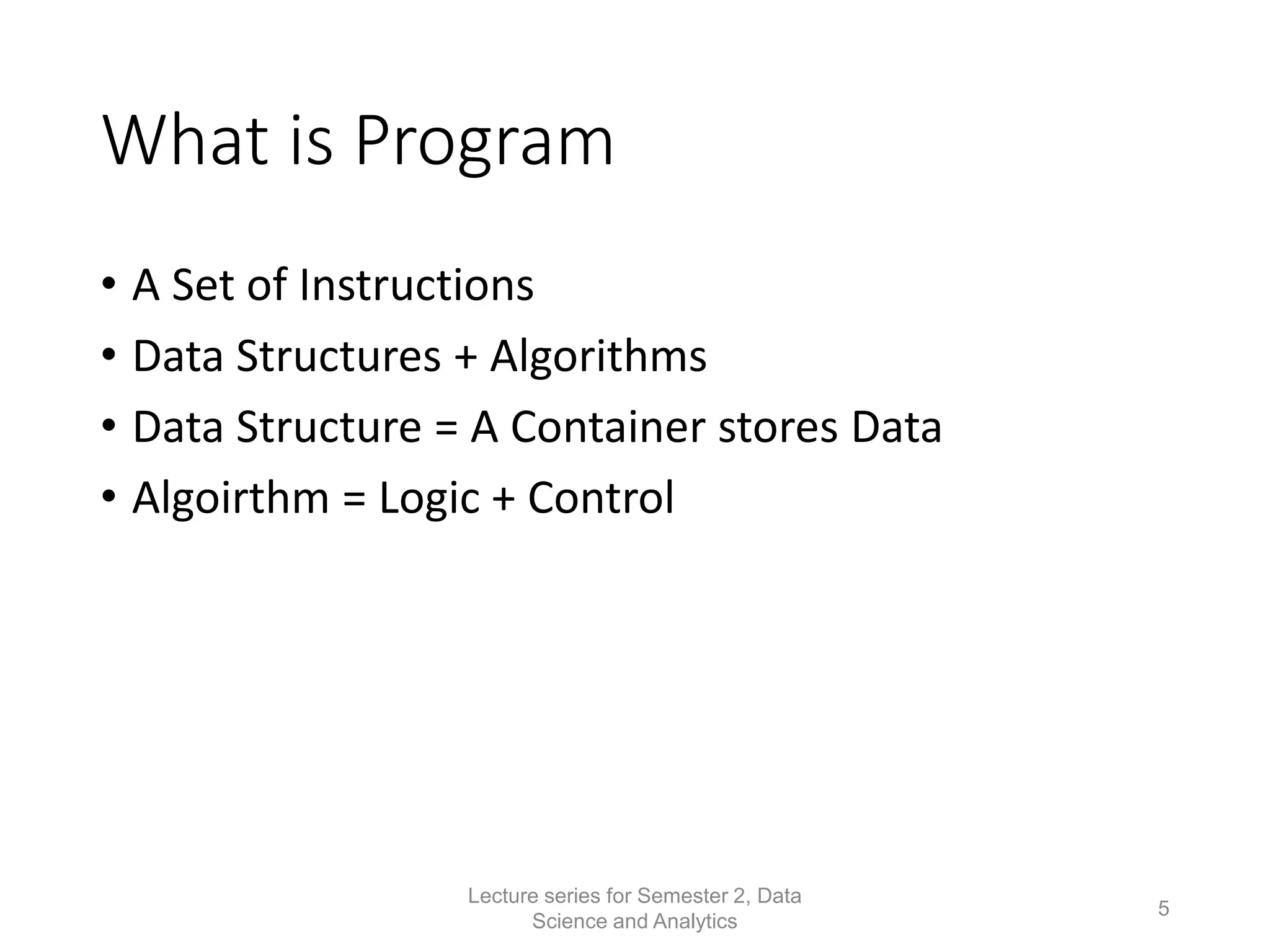

What is Program
• A Set of Instructions
• Data Structures + Algorithms
• Data Structure = A Container stores Data
• Algoirthm = Logic + Control
Lecture series for Semester 2, Data
Science and Analytics
5

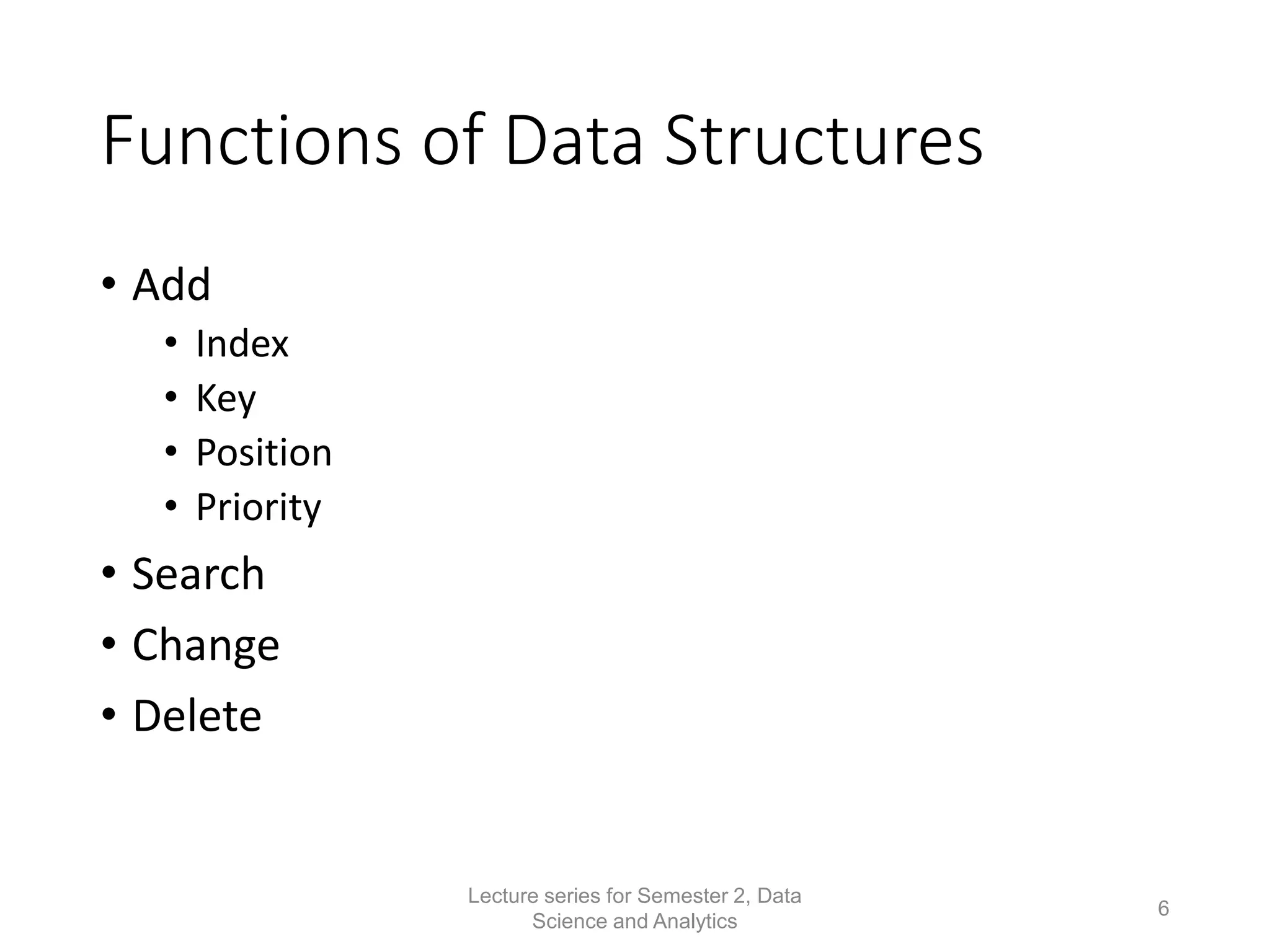

Functions of Data Structures
• Add
• Index
• Key
• Position
• Priority
• Search
• Change
• Delete
6

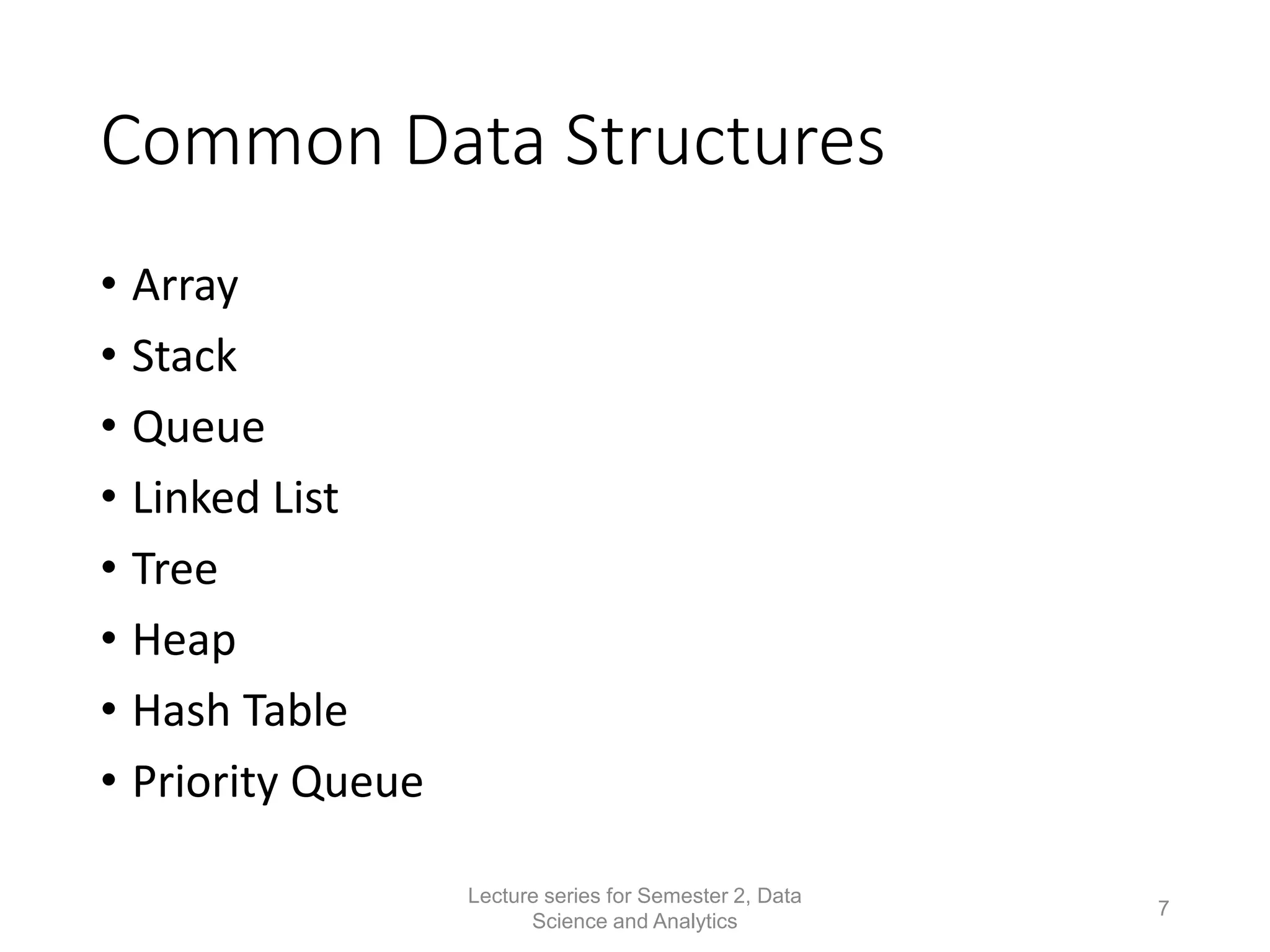

Common Data Structures
• Array
• Stack
• Queue
• Linked List
• Tree
• Heap
• Hash Table
• Priority Queue
7

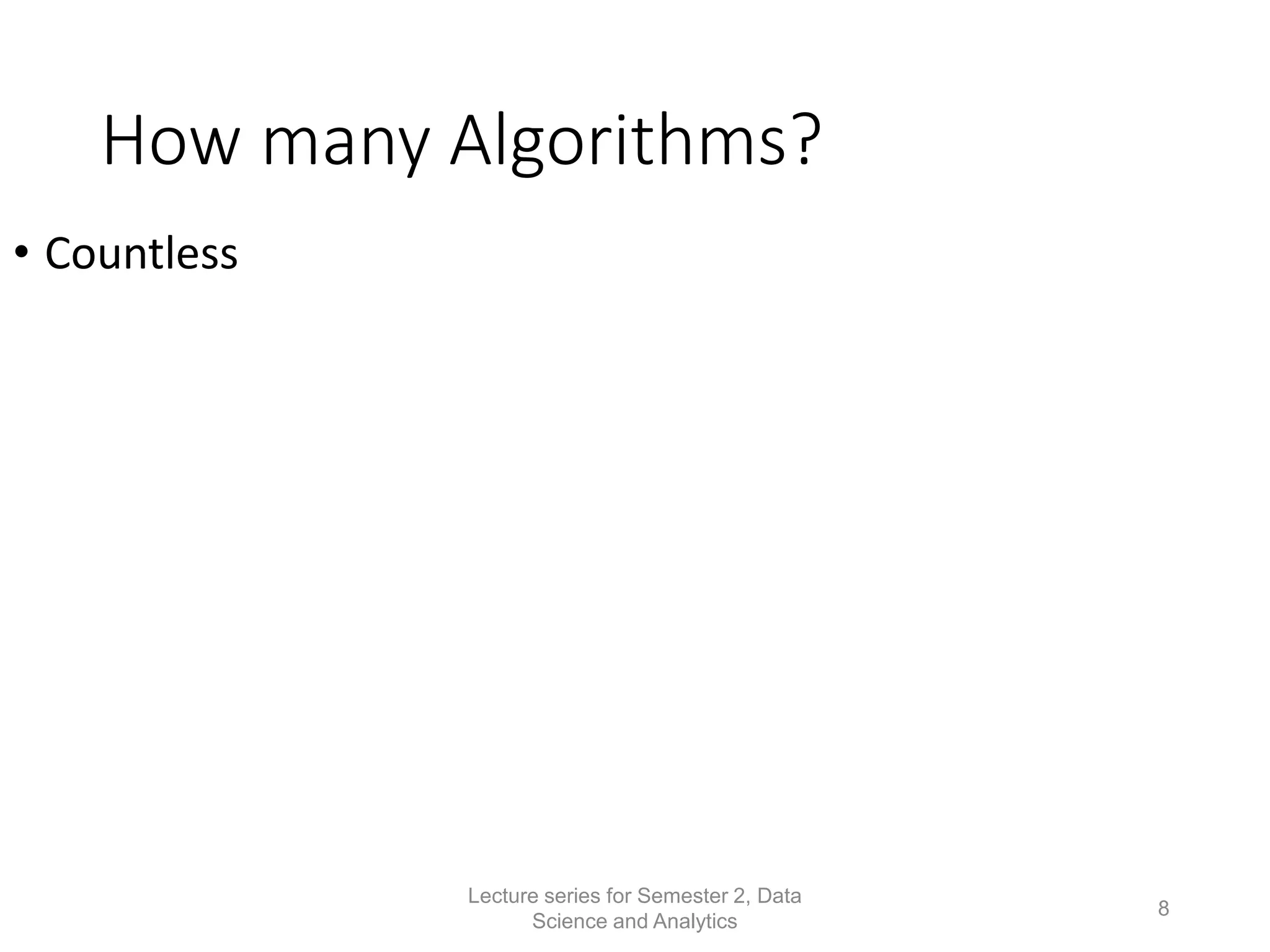

How many Algorithms?
• Countless
8

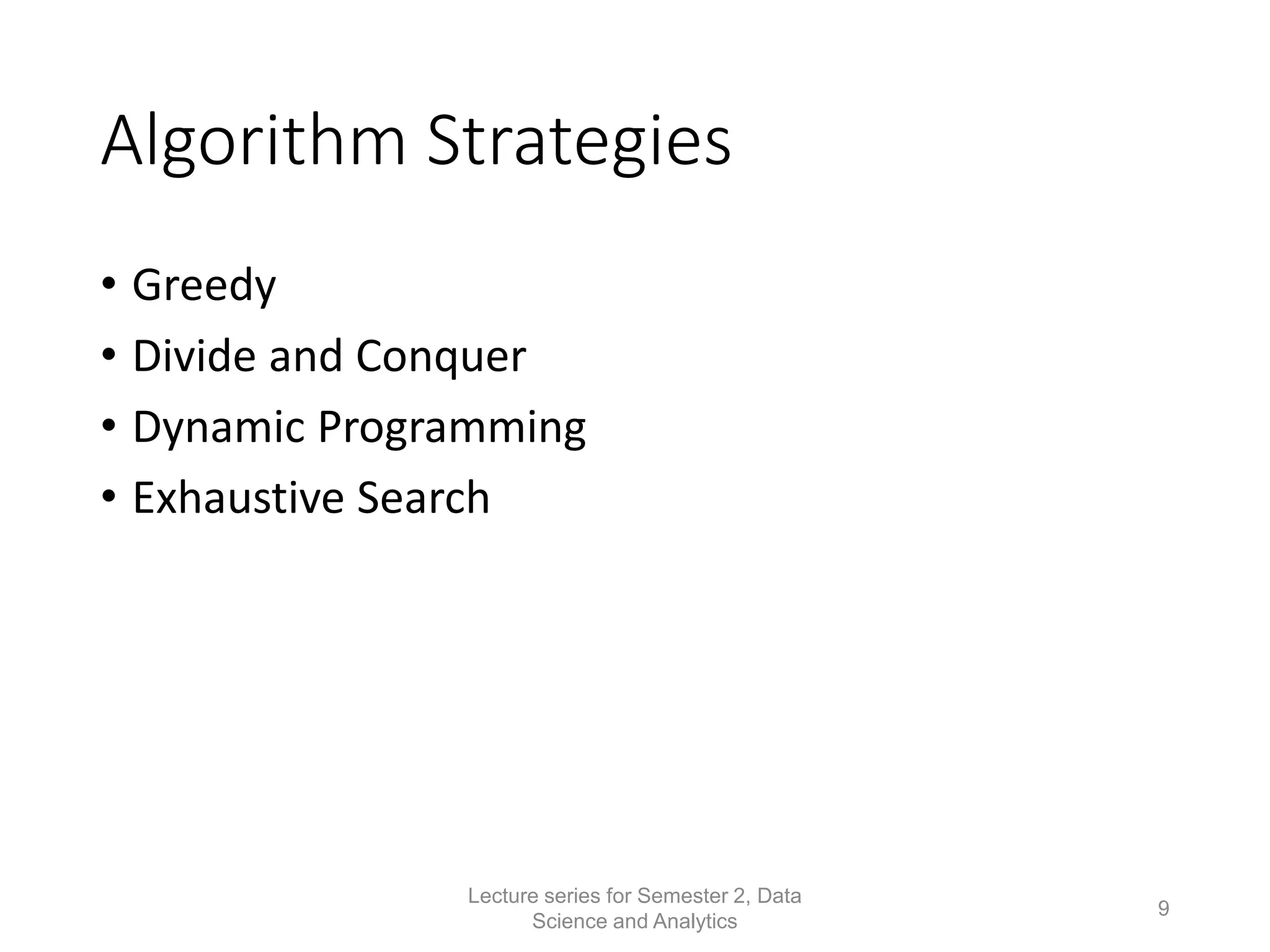

Algorithm Strategies
• Greedy
• Divide and Conquer
• Dynamic Programming
• Exhaustive Search
9

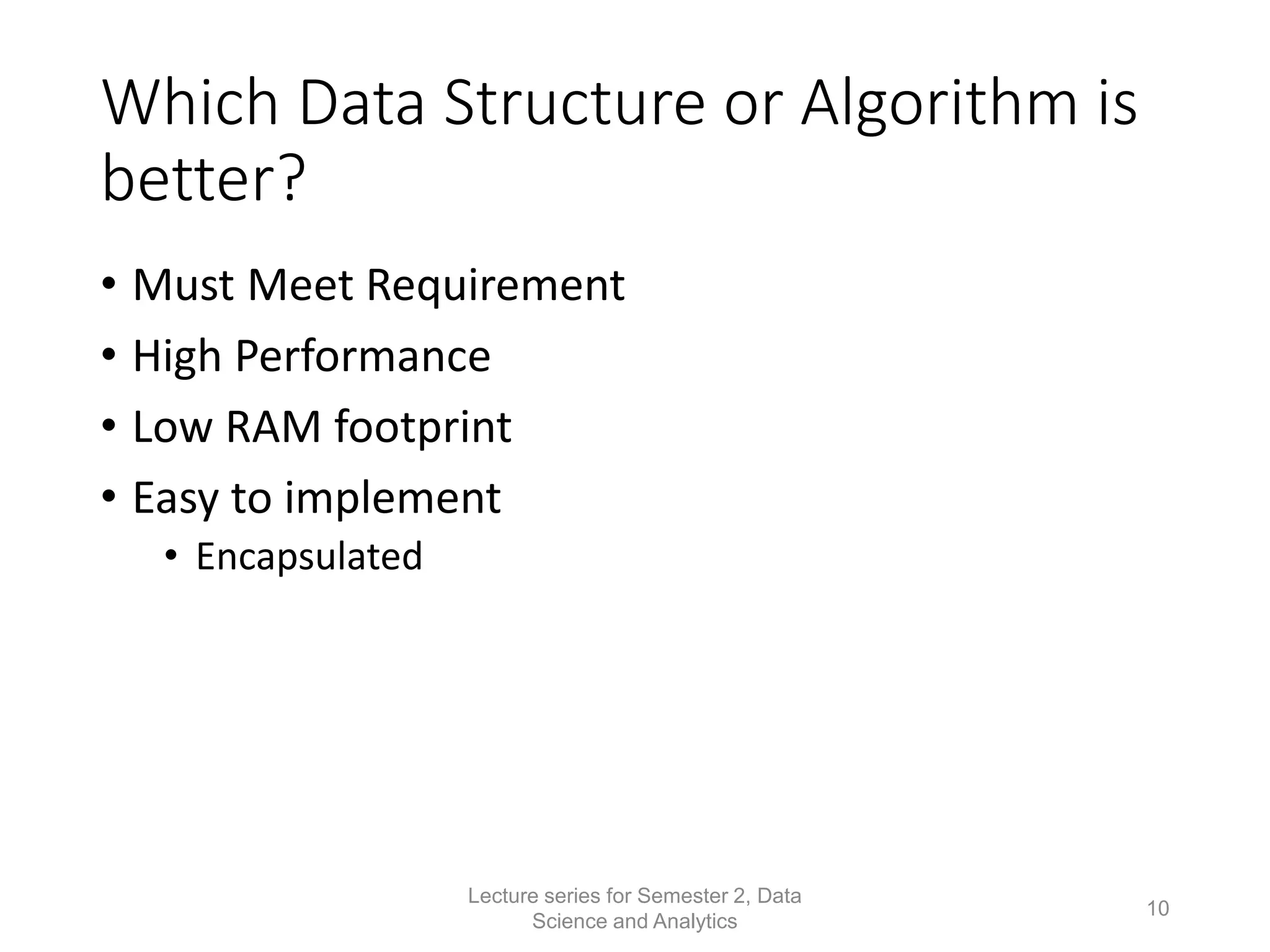

Which Data Structure or Algorithm is
better?
• Must Meet Requirement
• High Performance
• Low RAM footprint
• Easy to implement
• Encapsulated
10

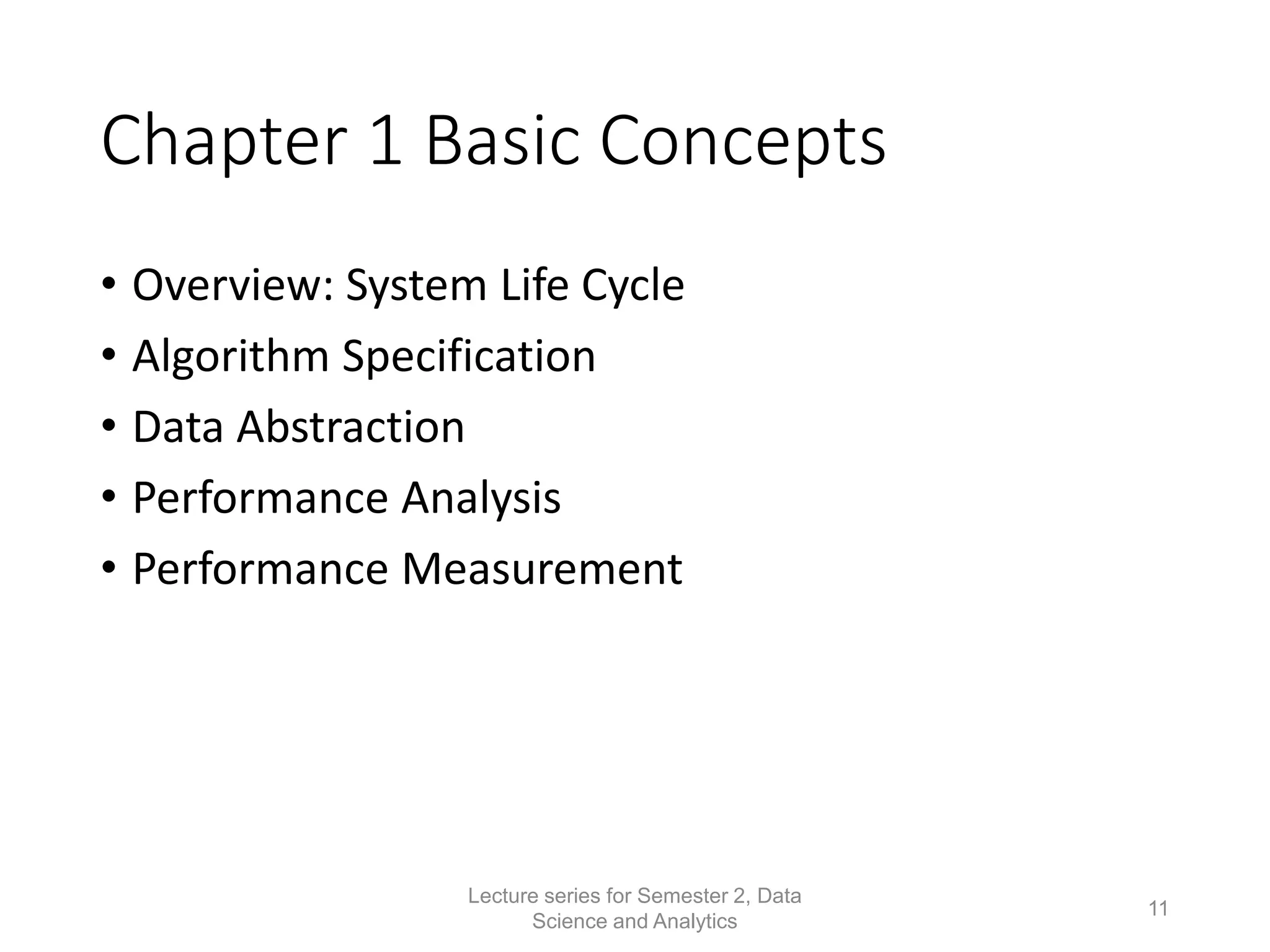

Chapter 1 Basic Concepts
• Overview: System Life Cycle
• Algorithm Specification
• Data Abstraction
• Performance Analysis
• Performance Measurement
11

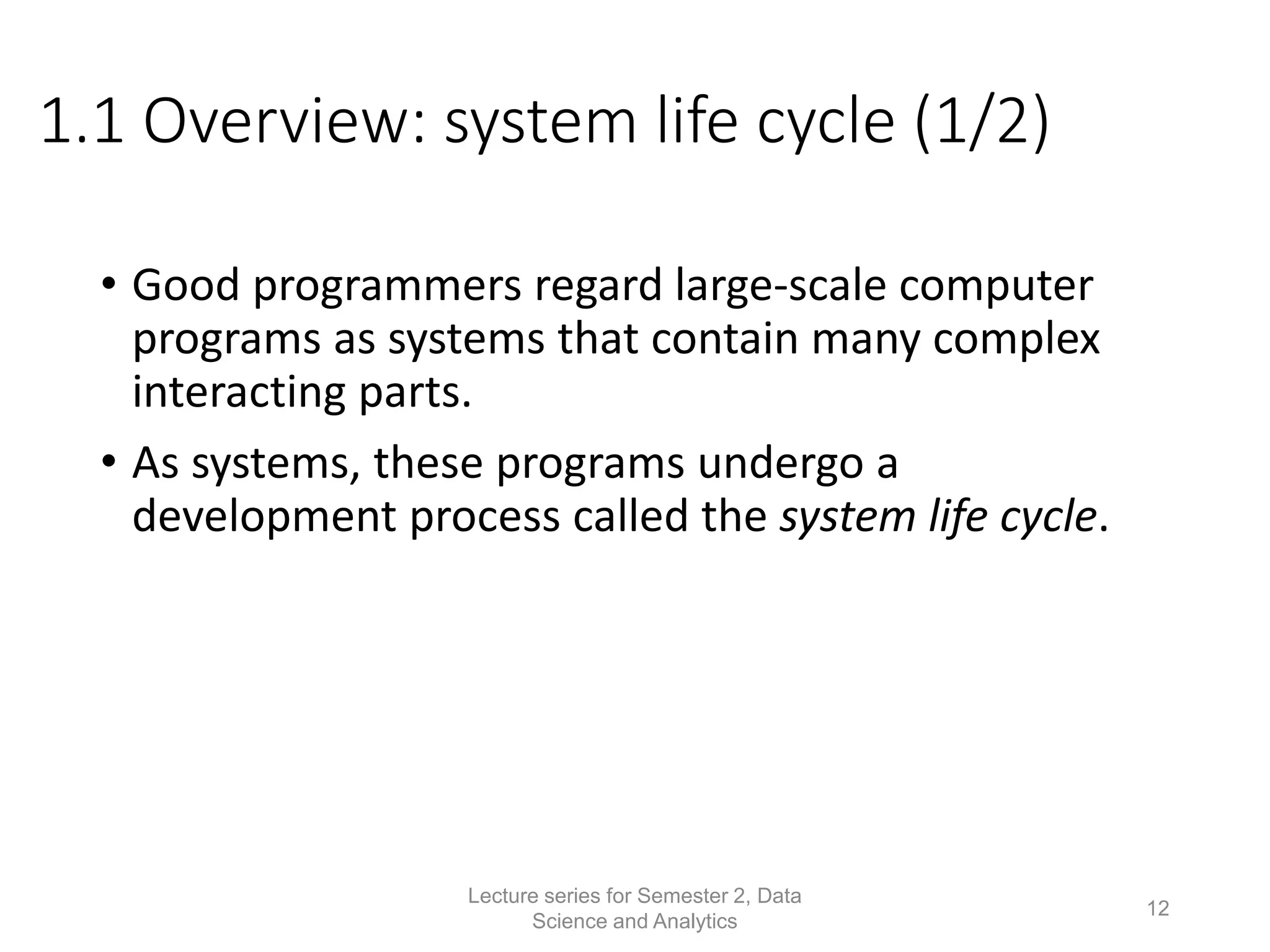

1.1 Overview: system life cycle (1/2)
• Good programmers regard large-scale computer
programs as systems that contain many complex
interacting parts.
• As systems, these programs undergo a
development process called the system life cycle.
12

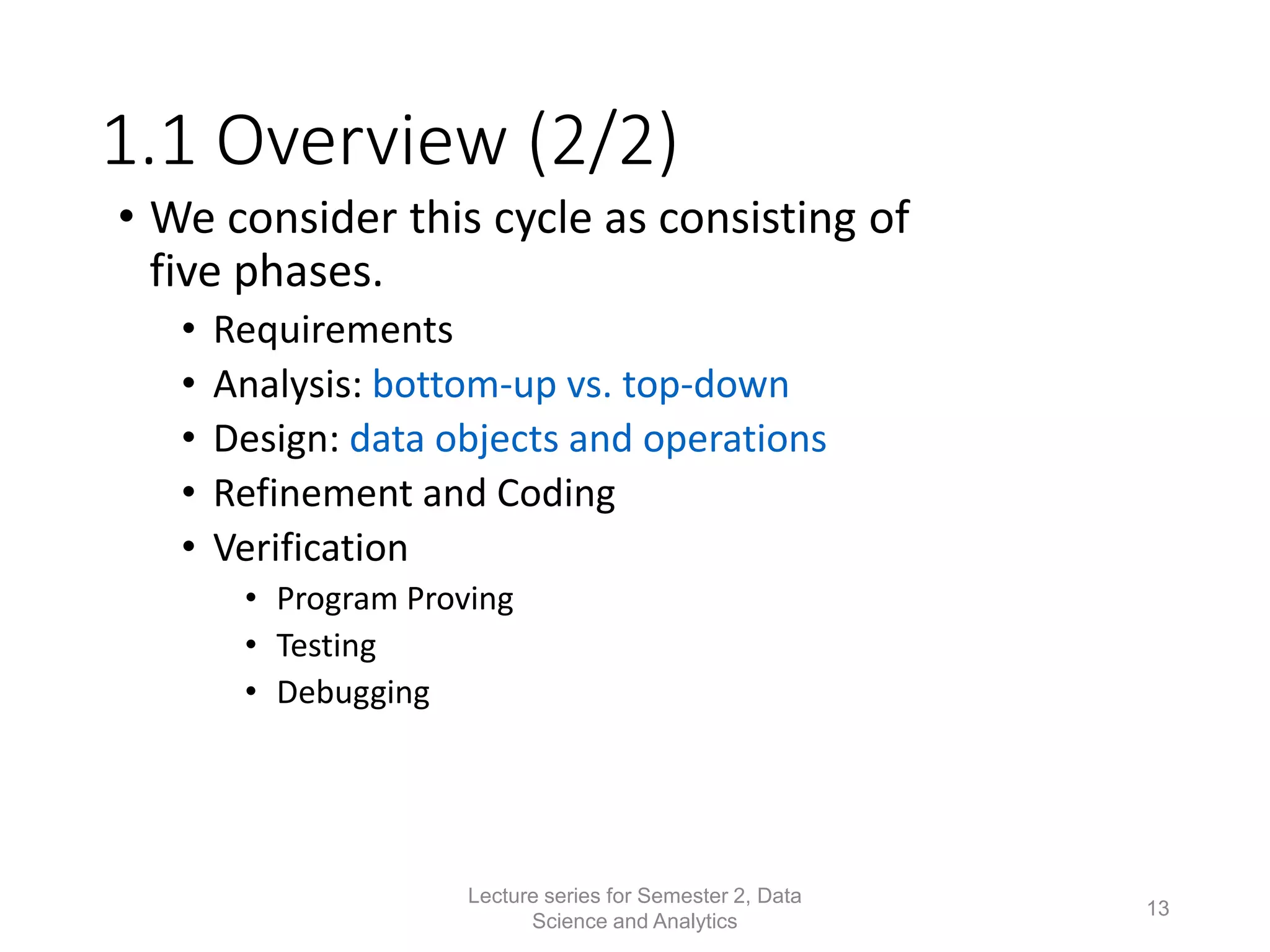

1.1 Overview (2/2)
• We consider this cycle as consisting of
five phases.
• Requirements
• Analysis: bottom-up vs. top-down
• Design: data objects and operations
• Refinement and Coding
• Verification
• Program Proving
• Testing
• Debugging
13

1.2 Algorithm Specification
• 1.2.1 Introduction
• An algorithm is a finite set of instructions that accomplishes a
particular task.
• Criteria
• input: zero or more quantities that are externally supplied
• output: at least one quantity is produced
• definiteness: clear and unambiguous
• finiteness: terminate after a finite number of steps
• effectiveness: instruction is basic enough to be carried out
• A program does not have to satisfy the finiteness criteria.
14

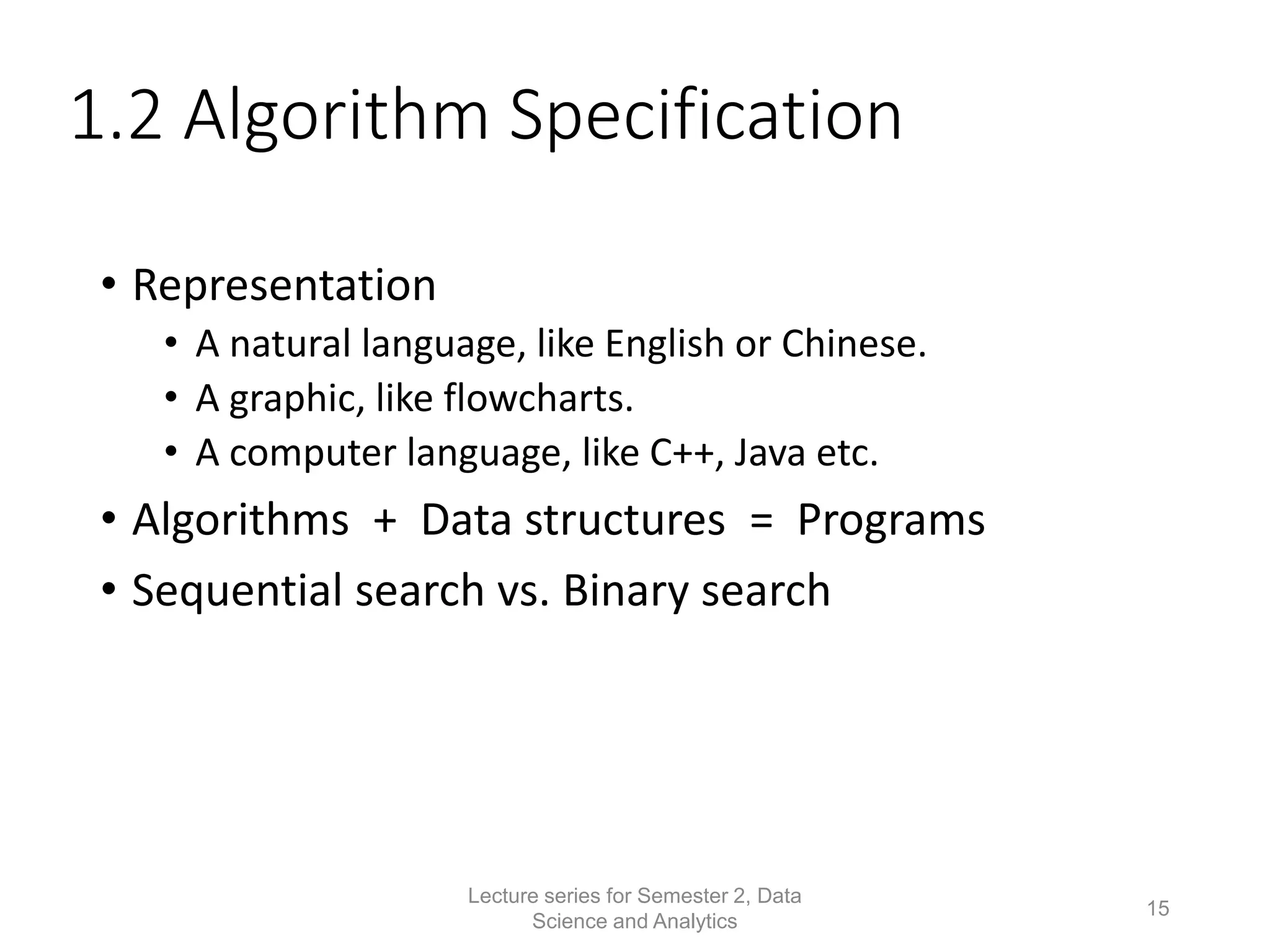

1.2 Algorithm Specification
• Representation
• A natural language, like English or Chinese.
• A graphic, like flowcharts.
• A computer language, like C++, Java etc.
• Algorithms + Data structures = Programs
• Sequential search vs. Binary search
15

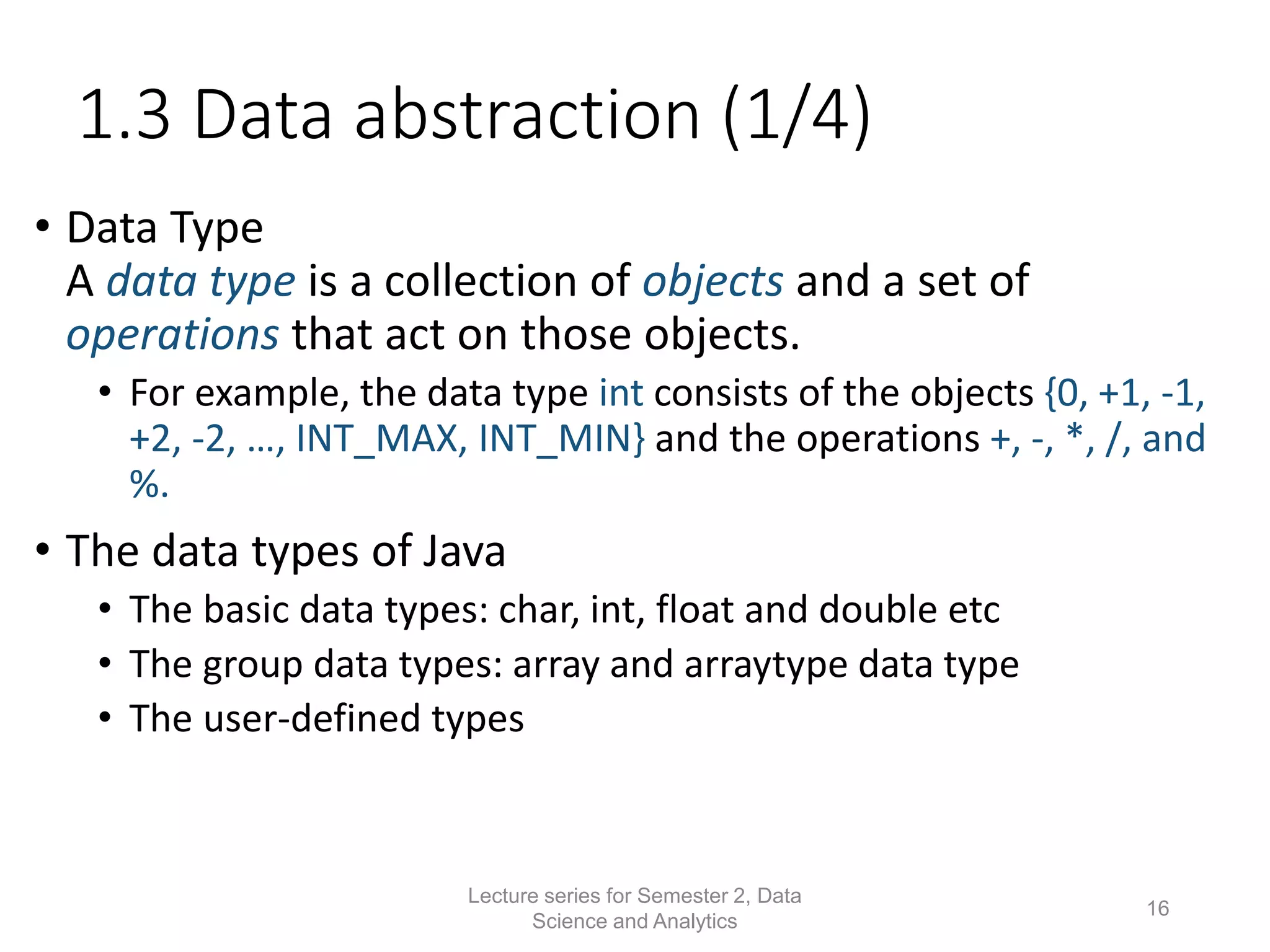

1.3 Data abstraction (1/4)
• Data Type
A data type is a collection of objects and a set of
operations that act on those objects.
• For example, the data type int consists of the objects {0, +1, -1,
+2, -2, …, INT_MAX, INT_MIN} and the operations +, -, *, /, and
%.
• The data types of Java
• The basic data types: char, int, float and double etc
• The group data types: array and arraytype data type
• The user-defined types
16

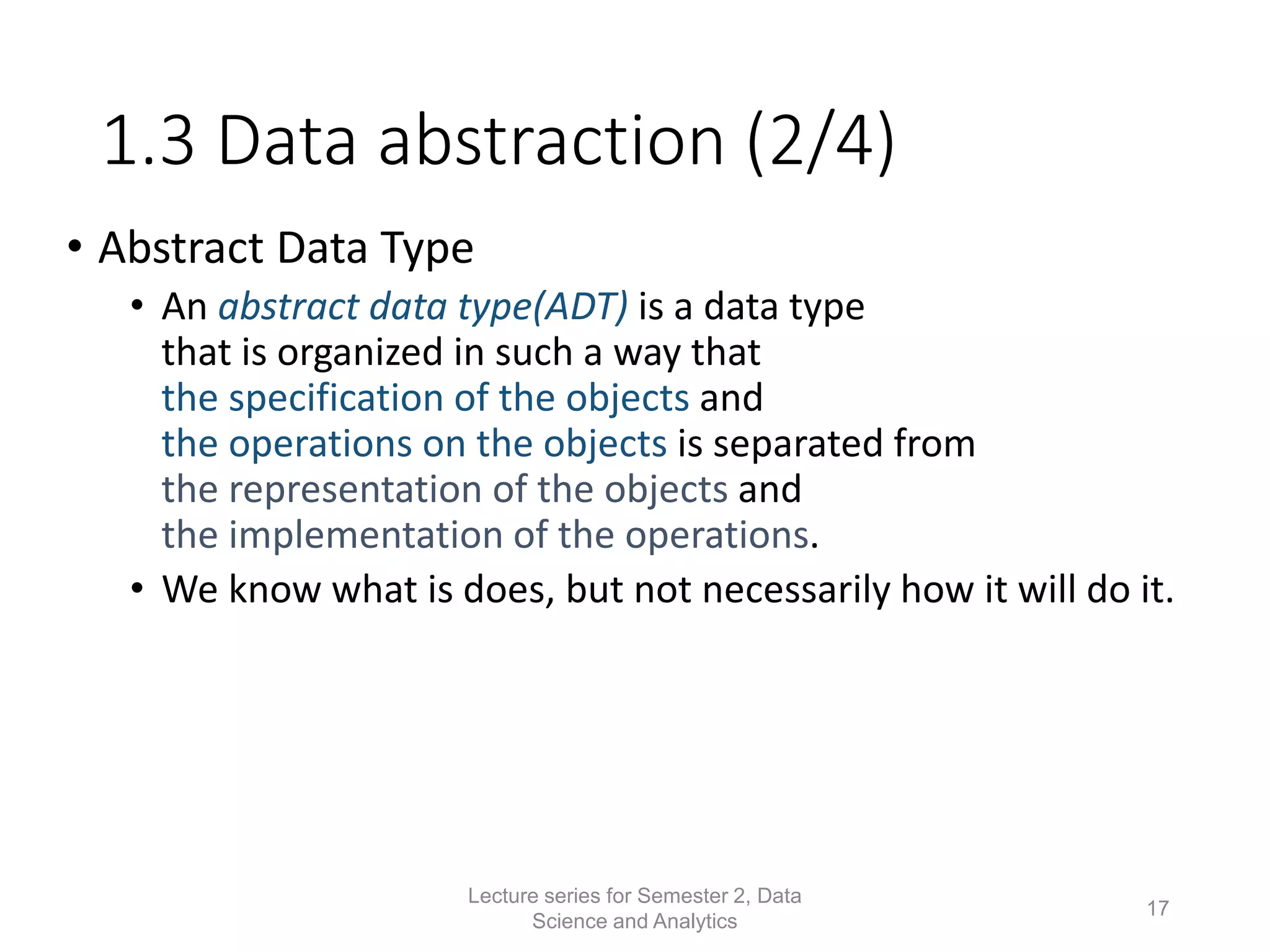

• Abstract Data Type
• An abstract data type(ADT) is a data type
that is organized in such a way that
the specification of the objects and
the operations on the objects is separated from
the representation of the objects and
the implementation of the operations.
• We know what is does, but not necessarily how it will do it.
17

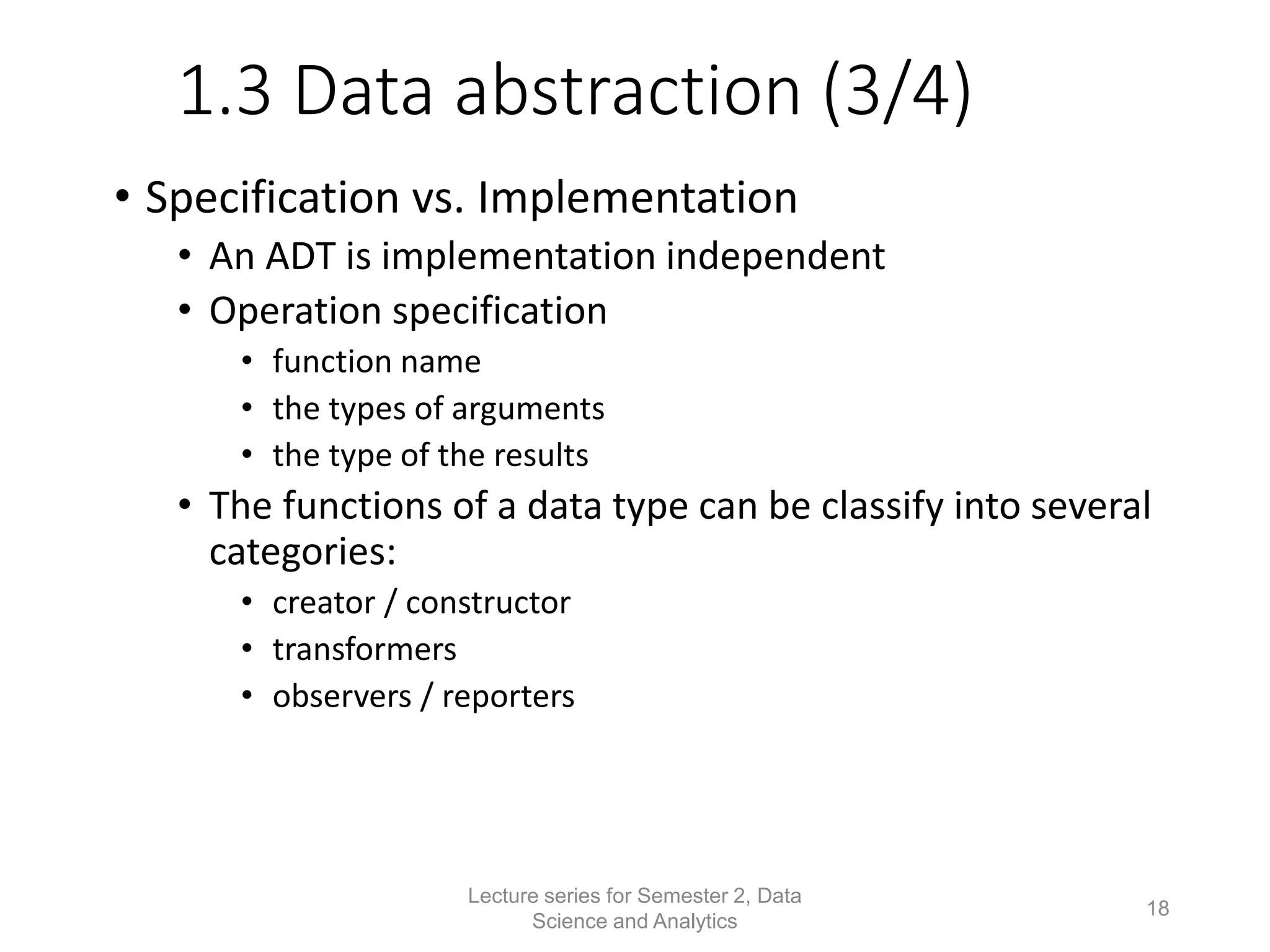

• Specification vs. Implementation
• An ADT is implementation independent
• Operation specification
• function name
• the types of arguments
• the type of the results
• The functions of a data type can be classify into several
categories:
• creator / constructor
• transformers
• observers / reporters
18

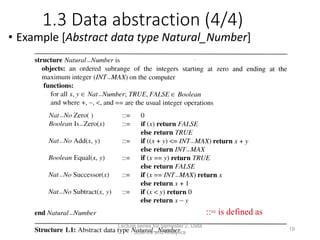

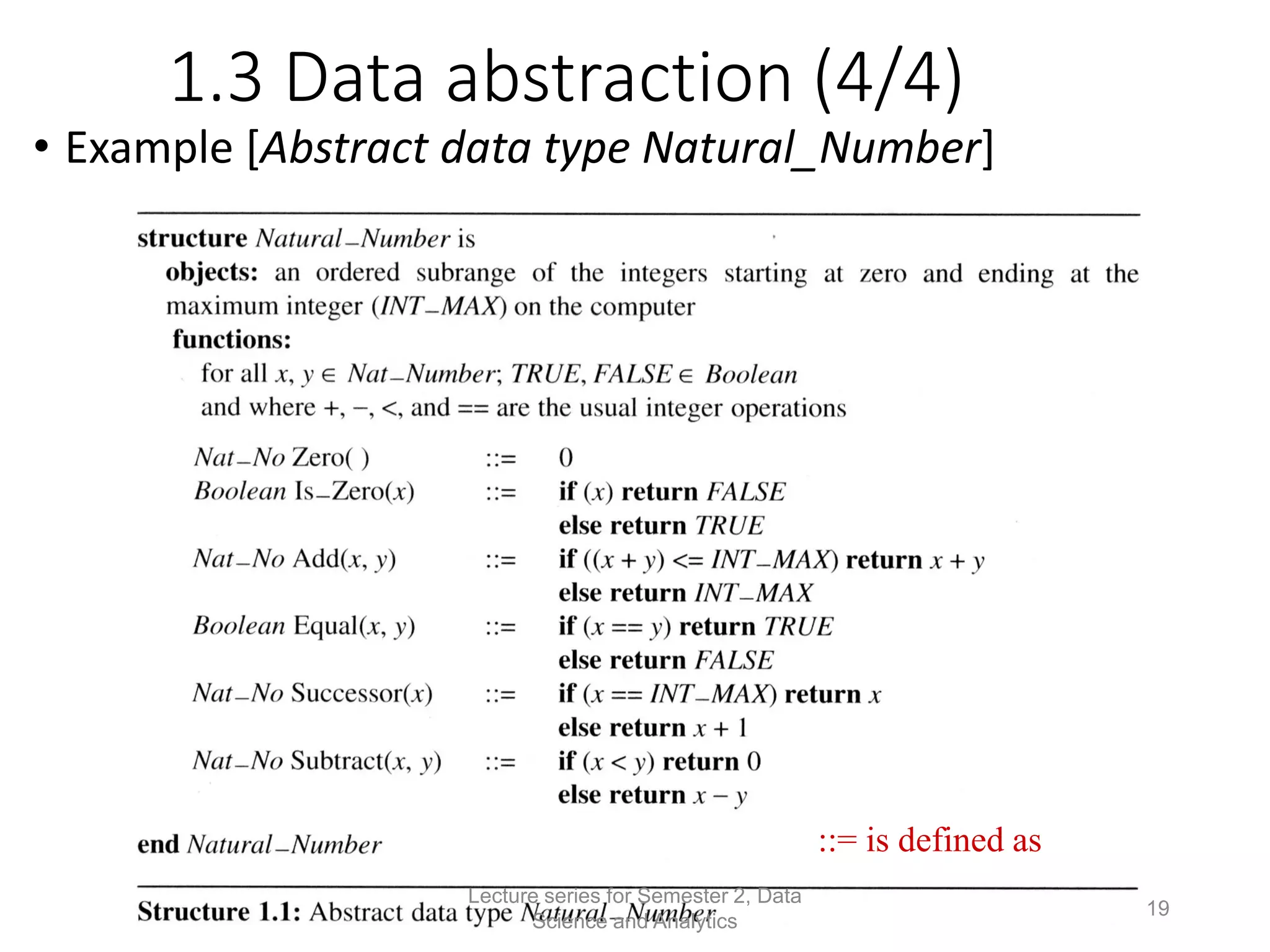

• Example [Abstract data type Natural_Number]
::= is defined as
19

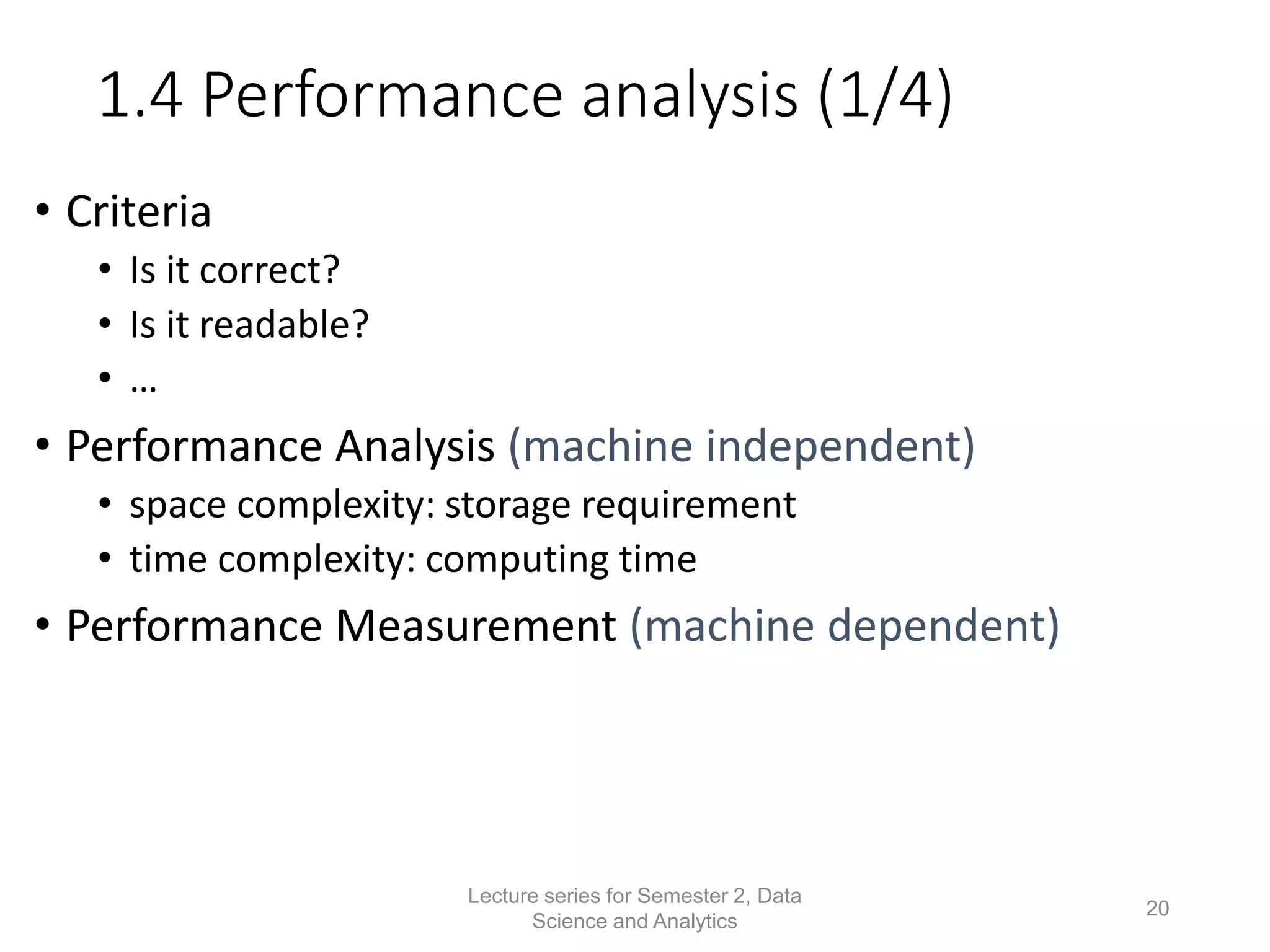

1.4 Performance analysis (1/4)
• Criteria
• Is it correct?
• Is it readable?
• …
• Performance Analysis (machine independent)
• space complexity: storage requirement
• time complexity: computing time
• Performance Measurement (machine dependent)
20

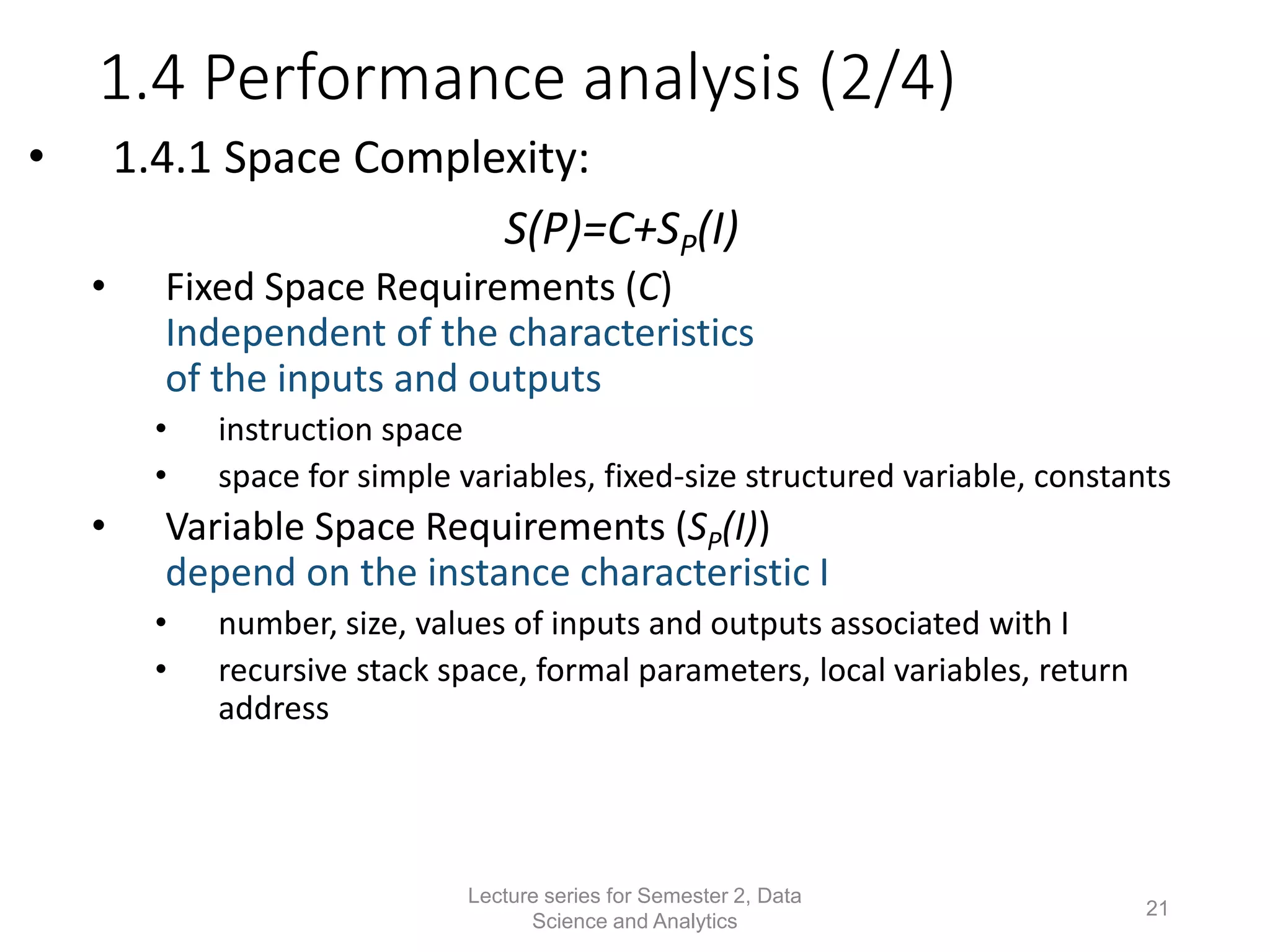

• 1.4.1 Space Complexity:
S(P)=C+SP(I)
• Fixed Space Requirements (C)
Independent of the characteristics
of the inputs and outputs
• instruction space
• space for simple variables, fixed-size structured variable, constants
• Variable Space Requirements (SP(I))
depend on the instance characteristic I
• number, size, values of inputs and outputs associated with I
• recursive stack space, formal parameters, local variables, return
address
21

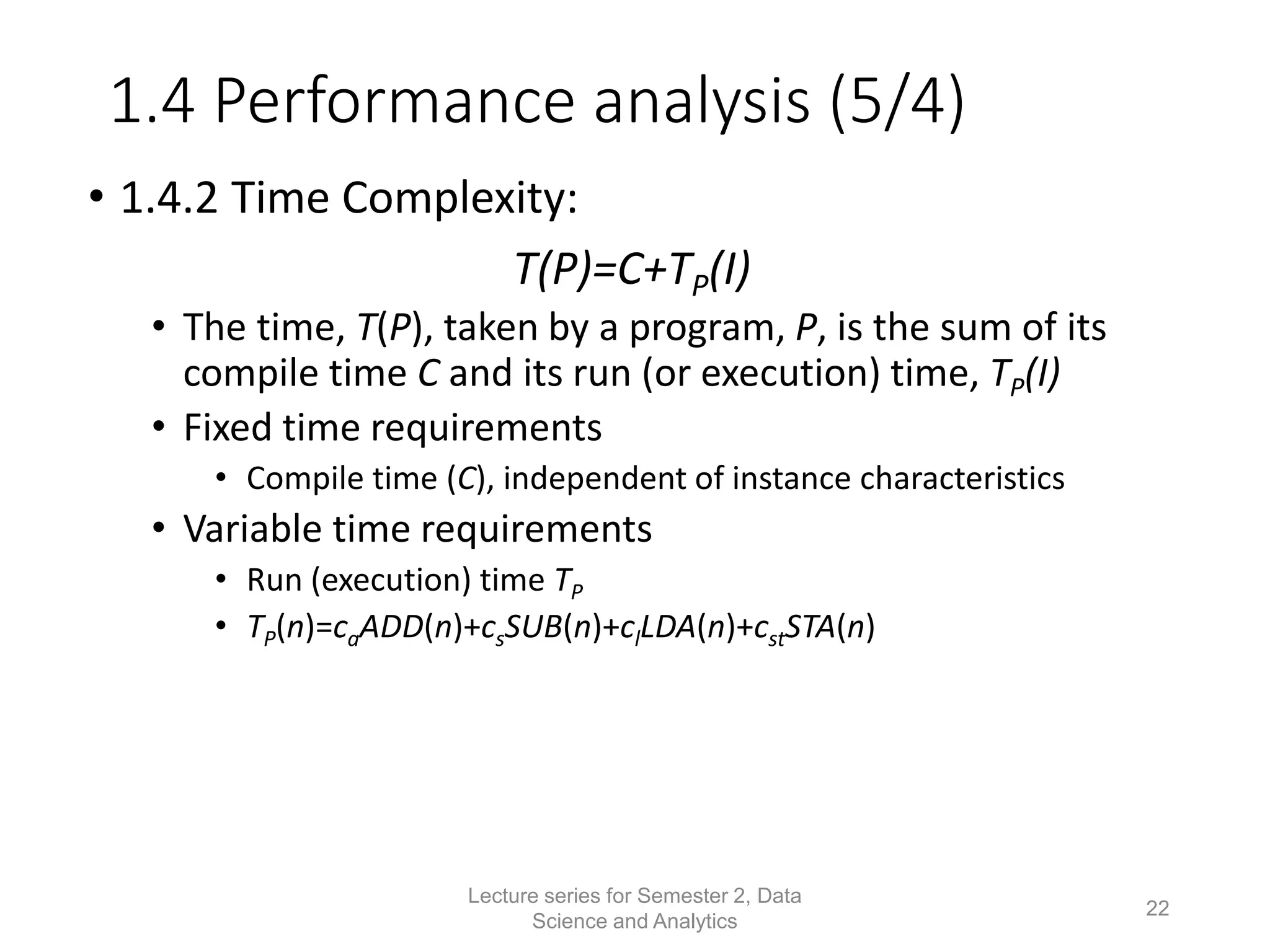

• 1.4.2 Time Complexity:
T(P)=C+TP(I)
• The time, T(P), taken by a program, P, is the sum of its
compile time C and its run (or execution) time, TP(I)
• Fixed time requirements
• Compile time (C), independent of instance characteristics
• Variable time requirements
• Run (execution) time TP
• TP(n)=caADD(n)+csSUB(n)+clLDA(n)+cstSTA(n)
22

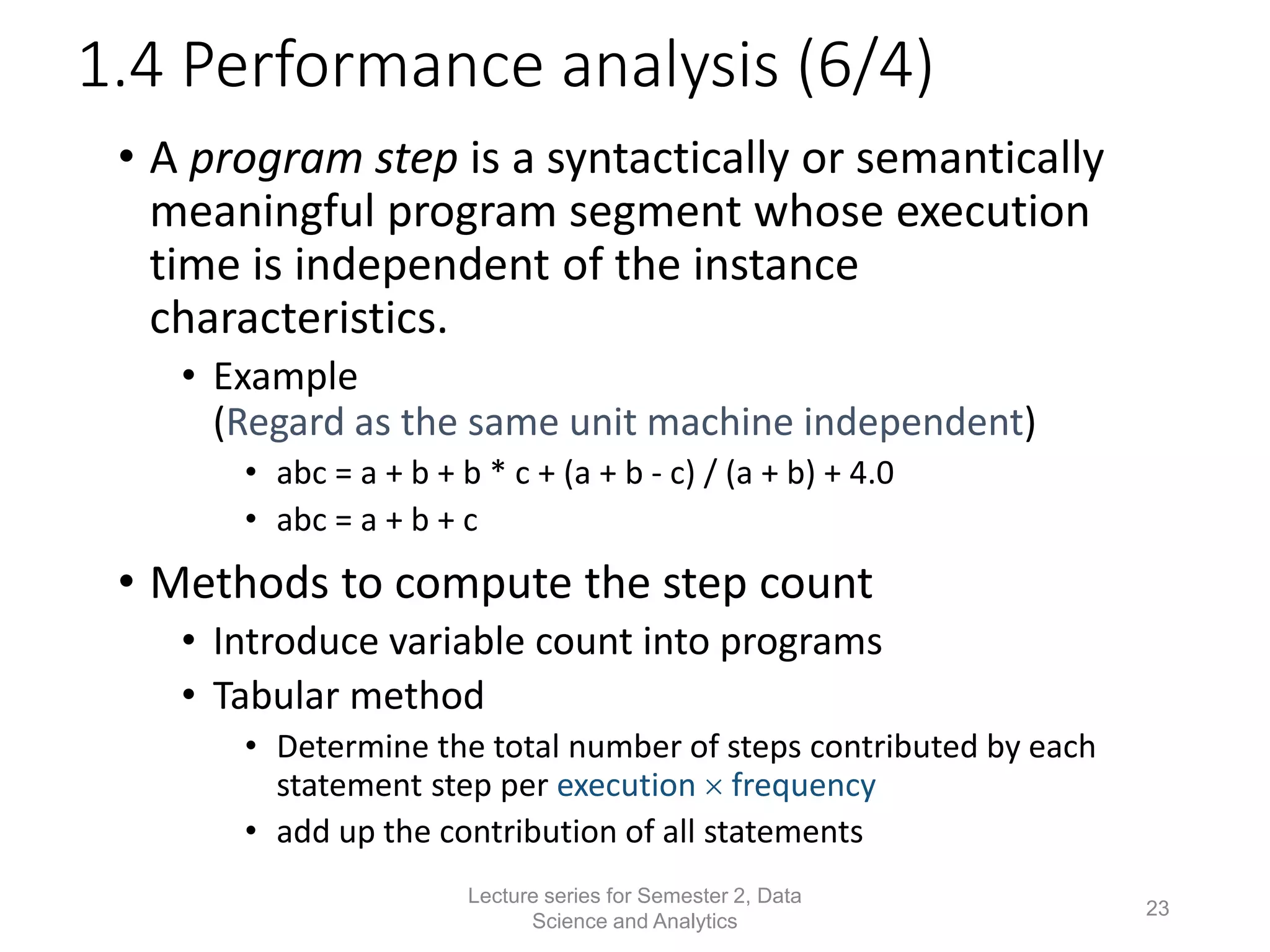

• A program step is a syntactically or semantically
meaningful program segment whose execution
time is independent of the instance
characteristics.
• Example
(Regard as the same unit machine independent)
• abc = a + b + b * c + (a + b - c) / (a + b) + 4.0
• abc = a + b + c
• Methods to compute the step count
• Introduce variable count into programs
• Tabular method
• Determine the total number of steps contributed by each
statement step per execution × frequency
• add up the contribution of all statements
23

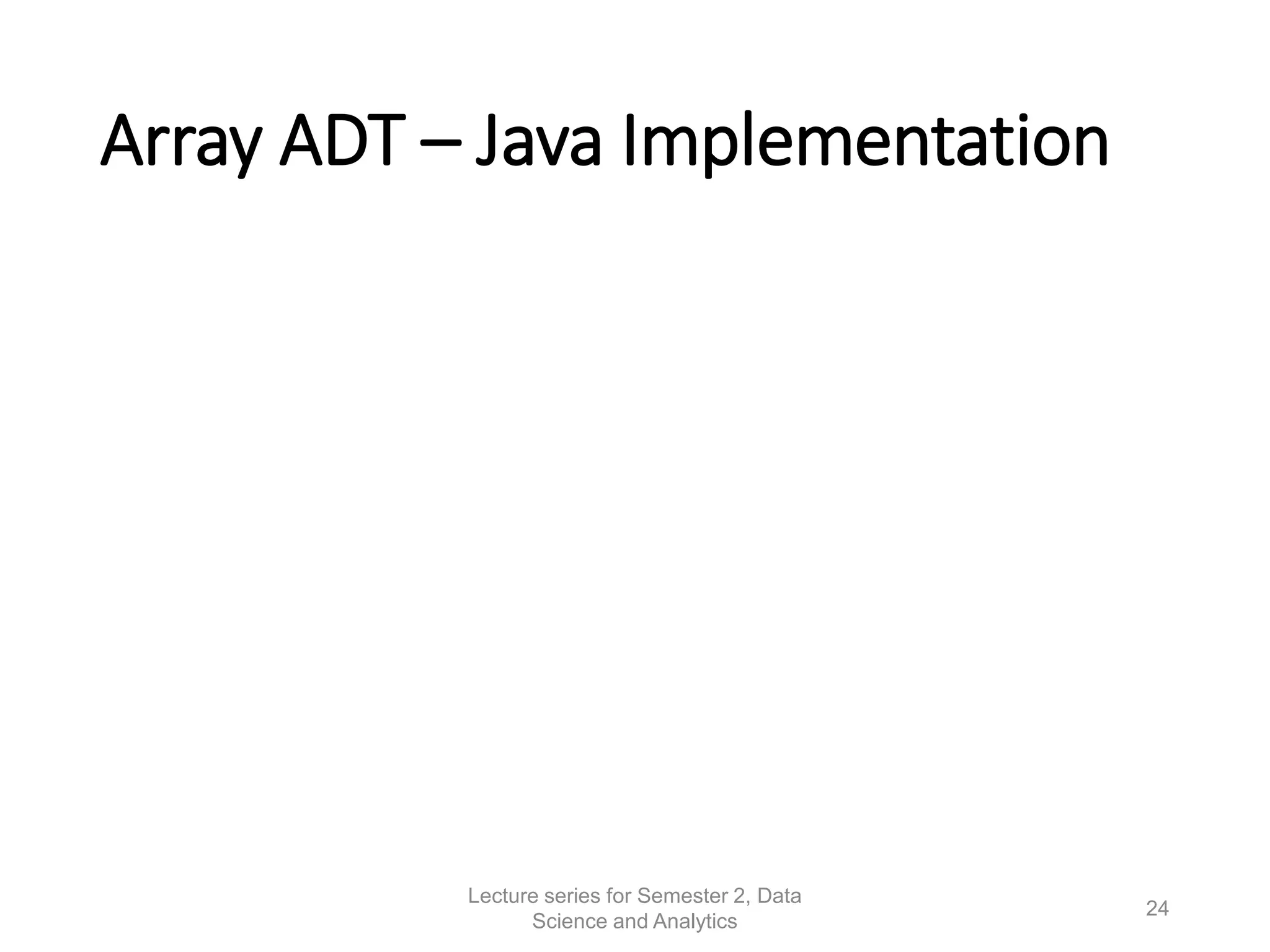

Array ADT – Java Implementation
24

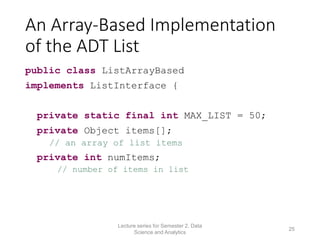

An Array-Based Implementation
of the ADT List
public class ListArrayBased
implements ListInterface {
private static final int MAX_LIST = 50;
private Object items[];
// an array of list items
private int numItems;
// number of items in list
25

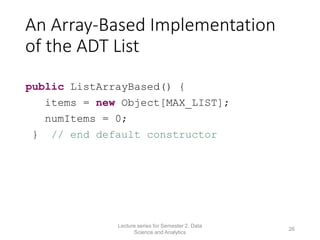

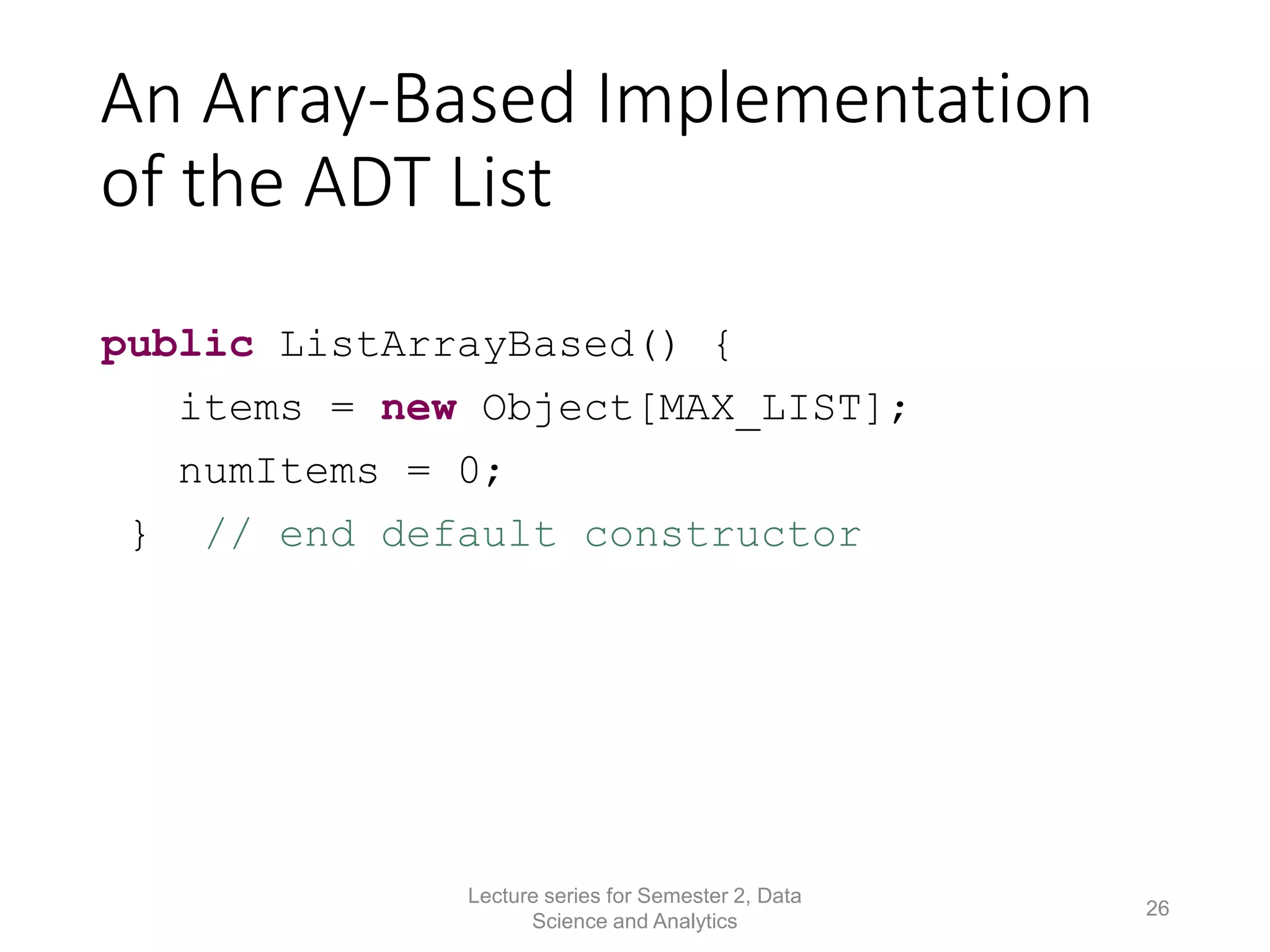

of the ADT List
public ListArrayBased() {
items = new Object[MAX_LIST];
numItems = 0;
} // end default constructor
26

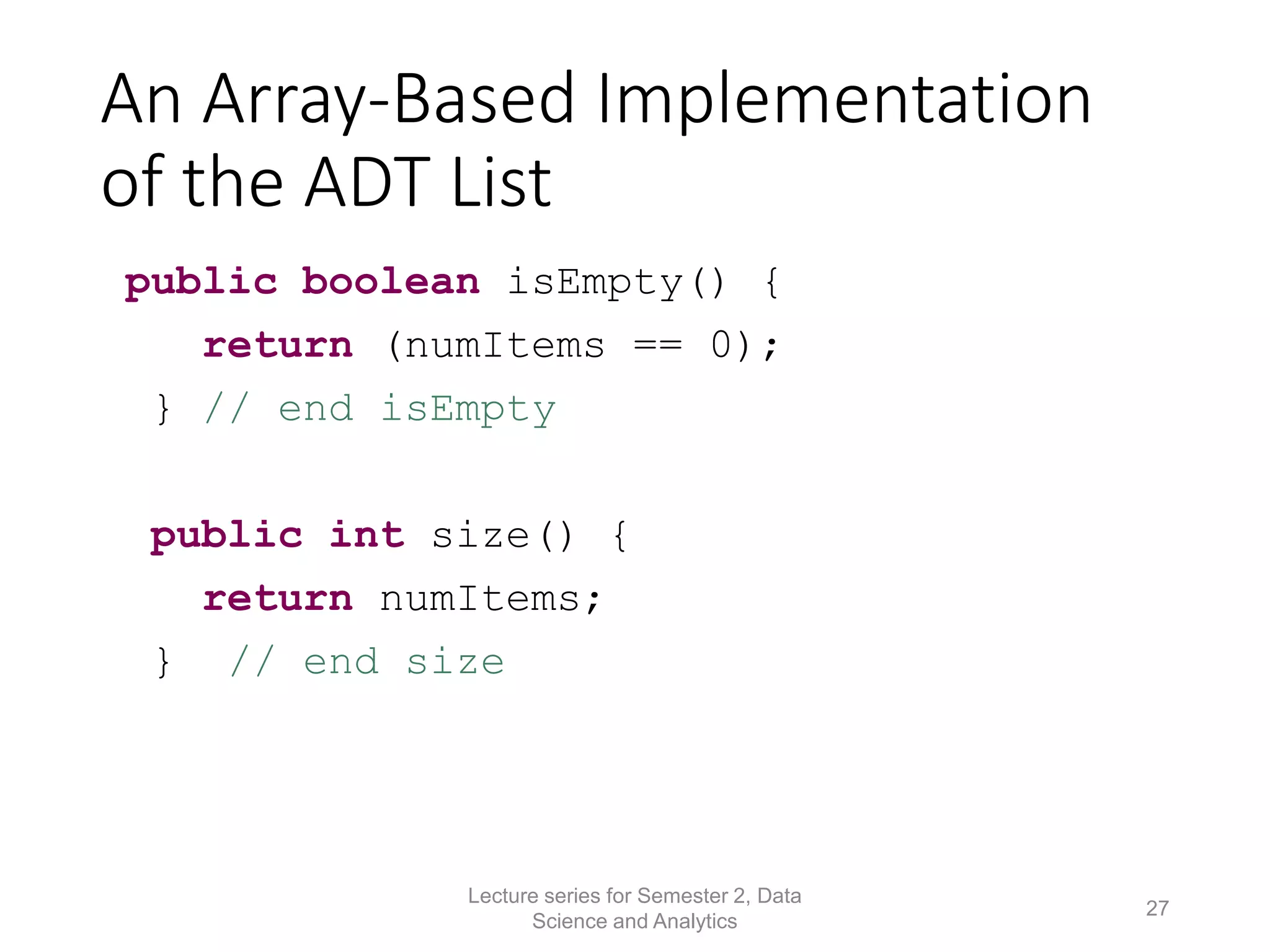

of the ADT List
public boolean isEmpty() {
return (numItems == 0);
} // end isEmpty
public int size() {
return numItems;
} // end size
27

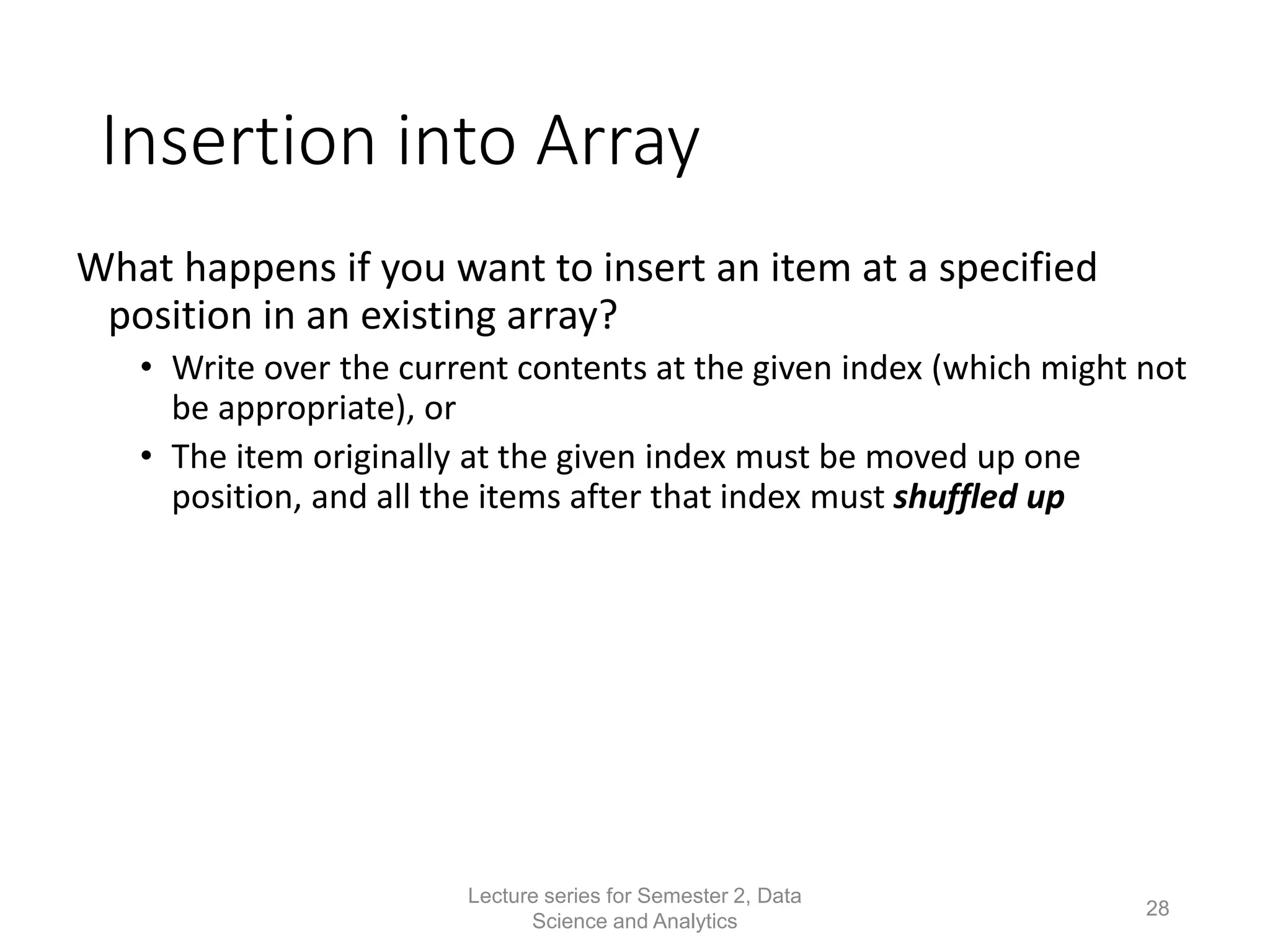

Insertion into Array
What happens if you want to insert an item at a specified
position in an existing array?
• Write over the current contents at the given index (which might not
be appropriate), or
• The item originally at the given index must be moved up one
position, and all the items after that index must shuffled up
28

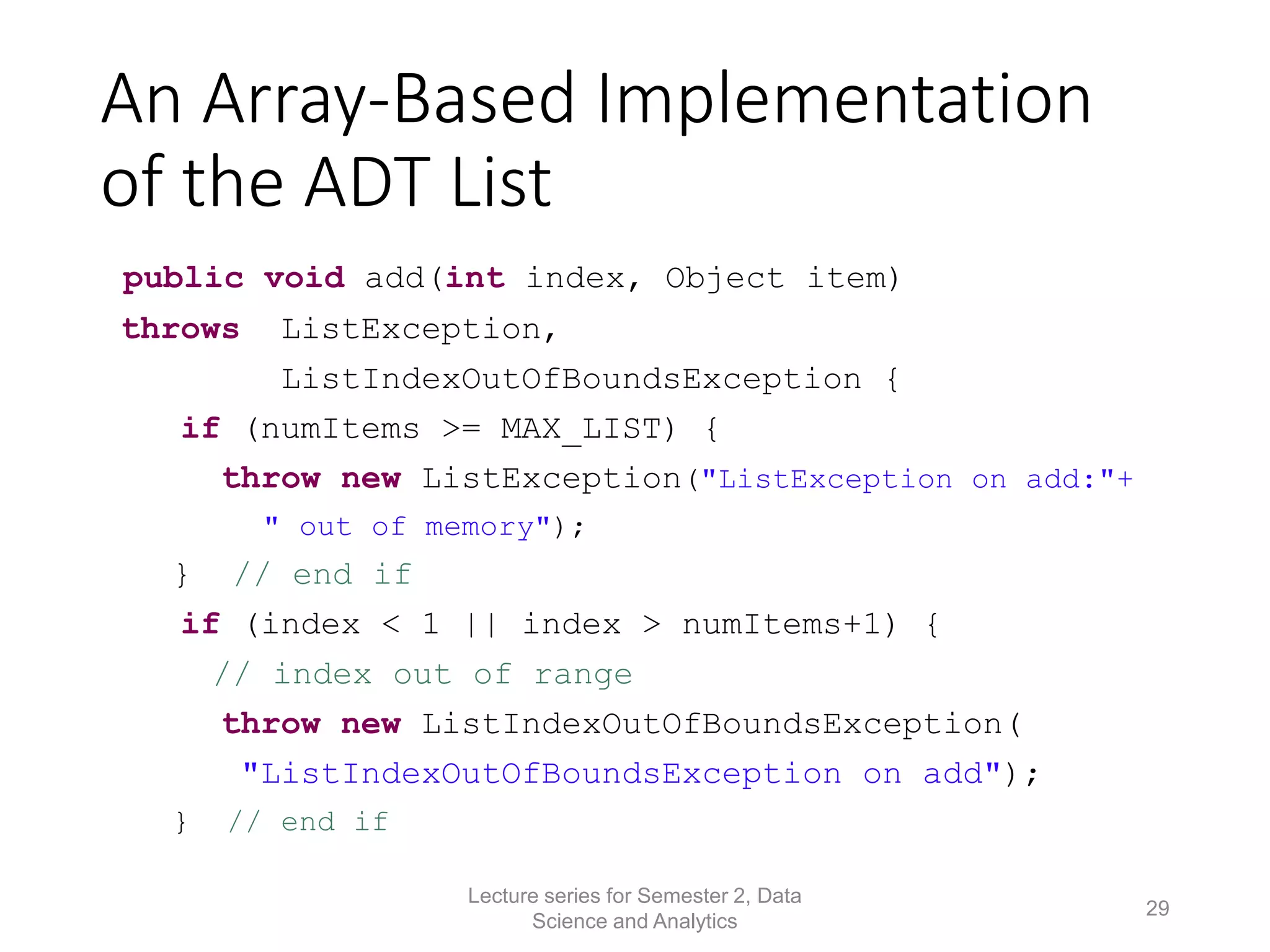

of the ADT List
public void add(int index, Object item)
throws ListException,
ListIndexOutOfBoundsException {
if (numItems >= MAX_LIST) {
throw new ListException("ListException on add:"+
" out of memory");
} // end if
if (index < 1 || index > numItems+1) {
// index out of range
throw new ListIndexOutOfBoundsException(
"ListIndexOutOfBoundsException on add");
} // end if
29

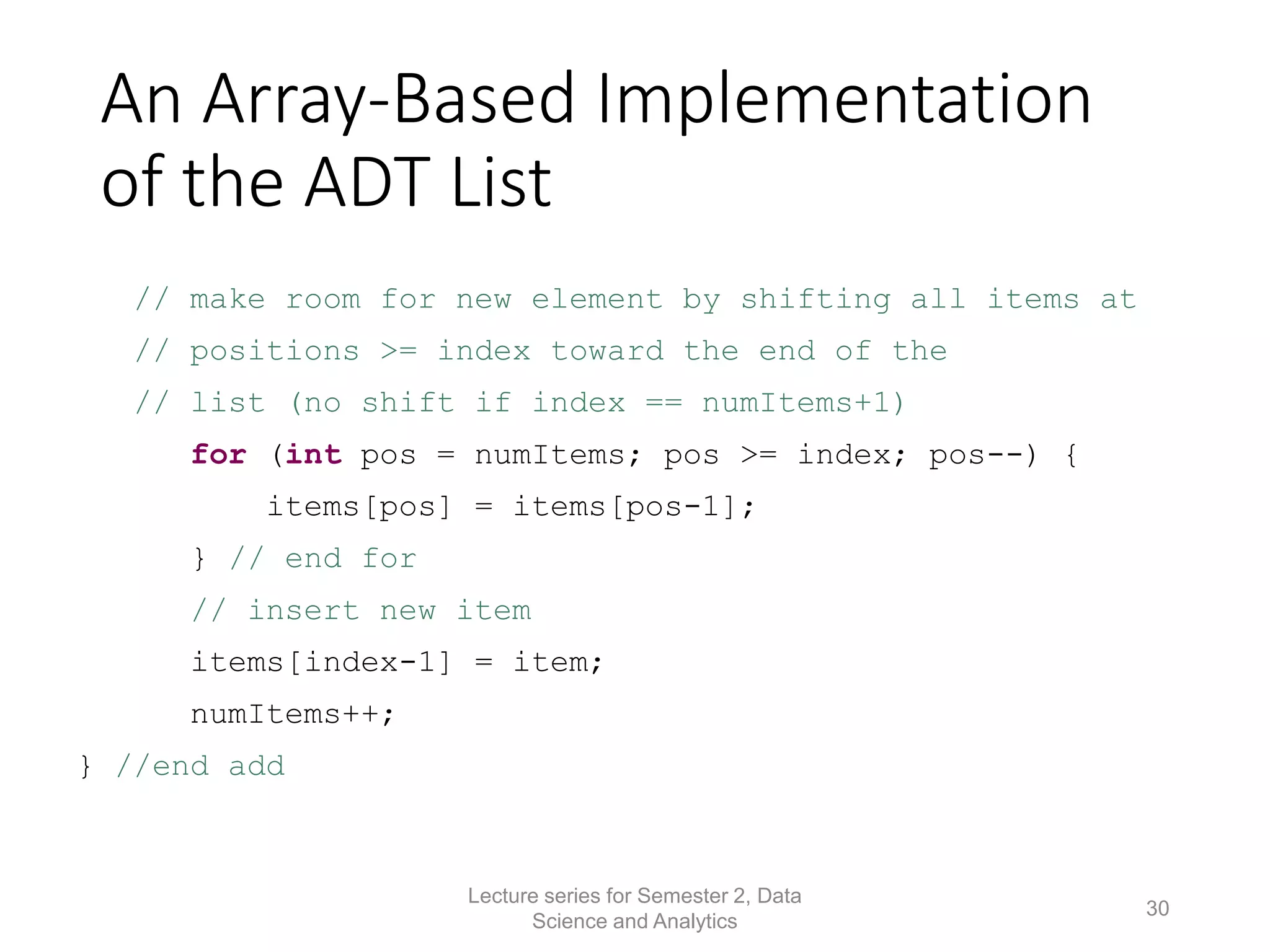

of the ADT List
// make room for new element by shifting all items at
// positions >= index toward the end of the
// list (no shift if index == numItems+1)
for (int pos = numItems; pos >= index; pos--) {
items[pos] = items[pos-1];
} // end for
// insert new item
items[index-1] = item;
numItems++;
} //end add
30

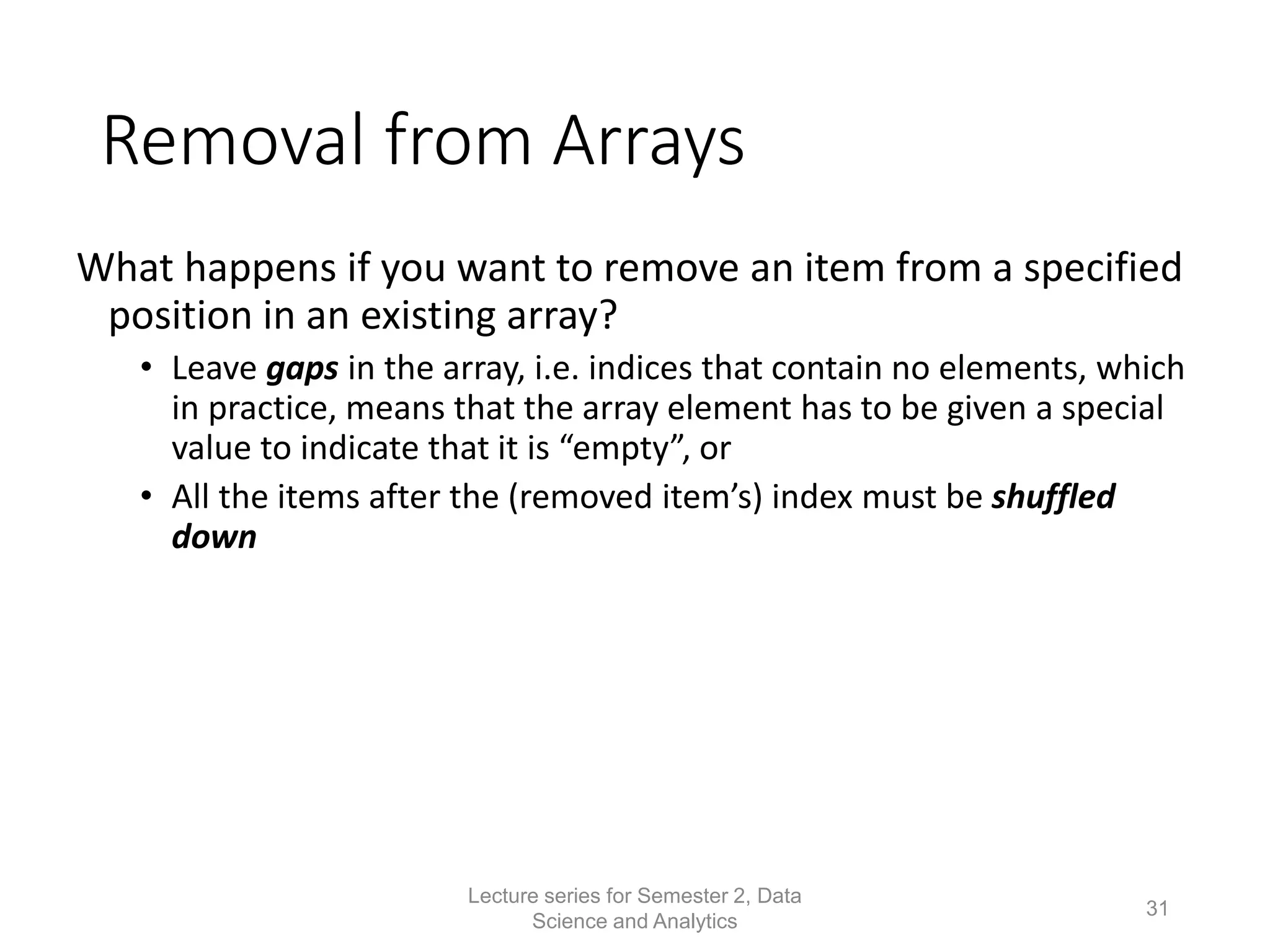

Removal from Arrays
What happens if you want to remove an item from a specified
position in an existing array?
• Leave gaps in the array, i.e. indices that contain no elements, which
in practice, means that the array element has to be given a special
value to indicate that it is “empty”, or
• All the items after the (removed item’s) index must be shuffled
down
31

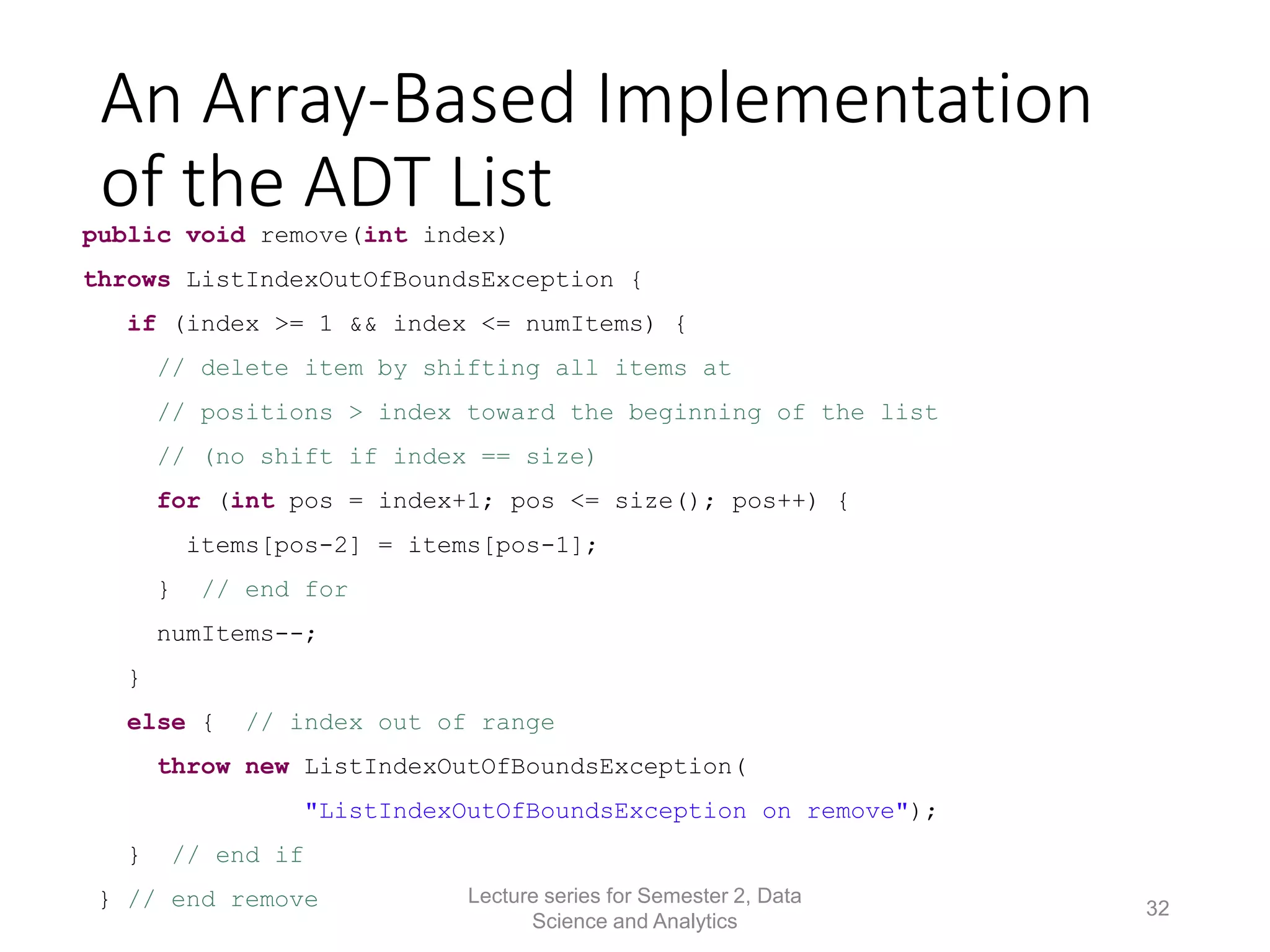

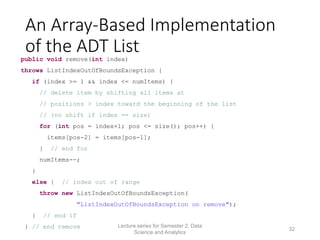

of the ADT Listpublic void remove(int index)
throws ListIndexOutOfBoundsException {
if (index >= 1 && index <= numItems) {
// delete item by shifting all items at
// positions > index toward the beginning of the list
// (no shift if index == size)
for (int pos = index+1; pos <= size(); pos++) {
items[pos-2] = items[pos-1];
} // end for
numItems--;
}
else { // index out of range
"ListIndexOutOfBoundsException on remove");
} // end if
} // end remove Lecture series for Semester 2, Data
32

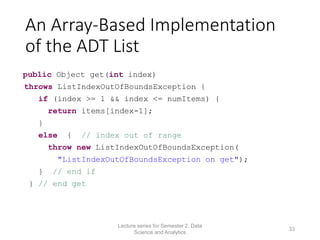

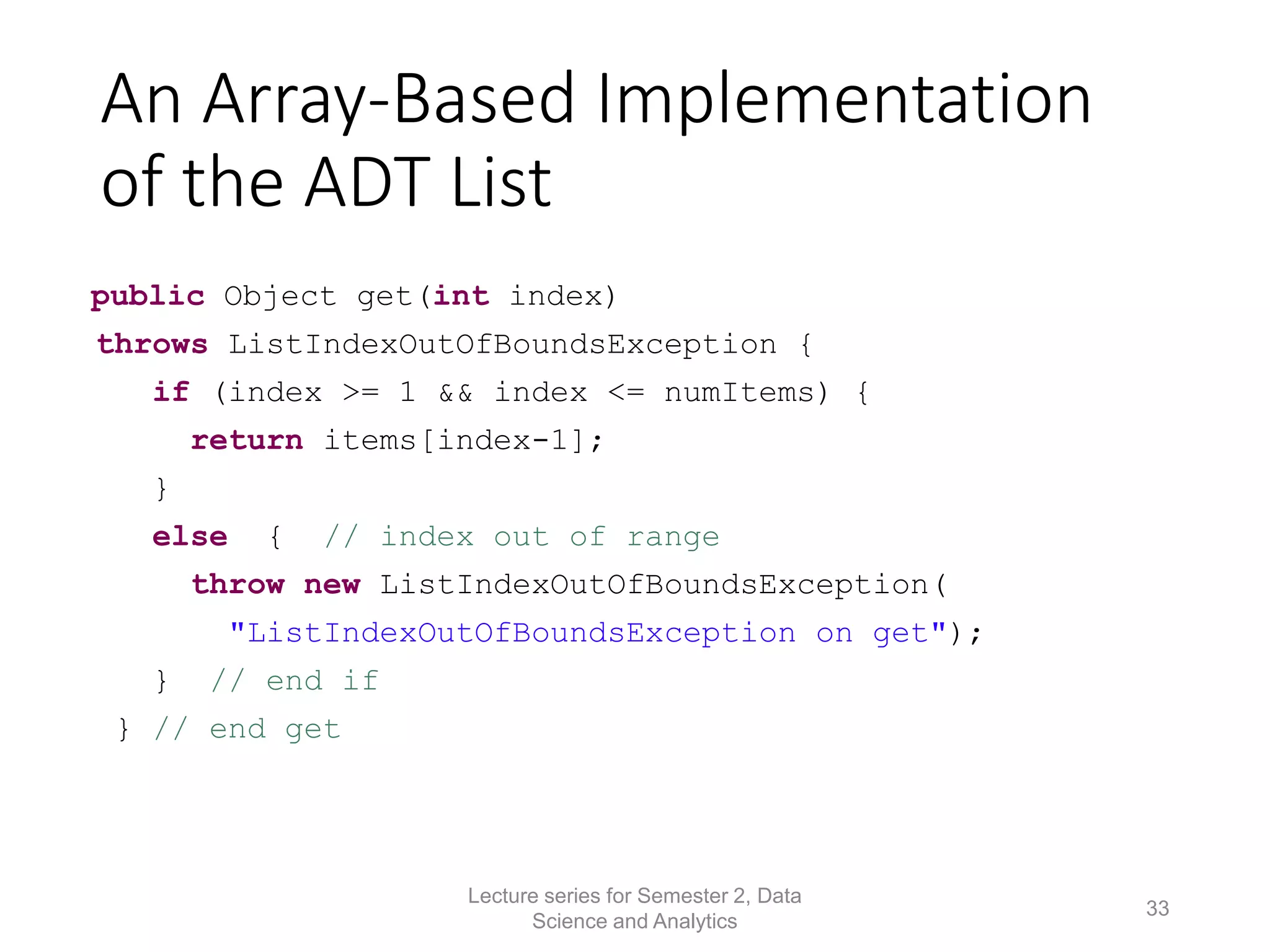

of the ADT List
public Object get(int index)
throws ListIndexOutOfBoundsException {
if (index >= 1 && index <= numItems) {
return items[index-1];
}
else { // index out of range
"ListIndexOutOfBoundsException on get");
} // end if
} // end get
33

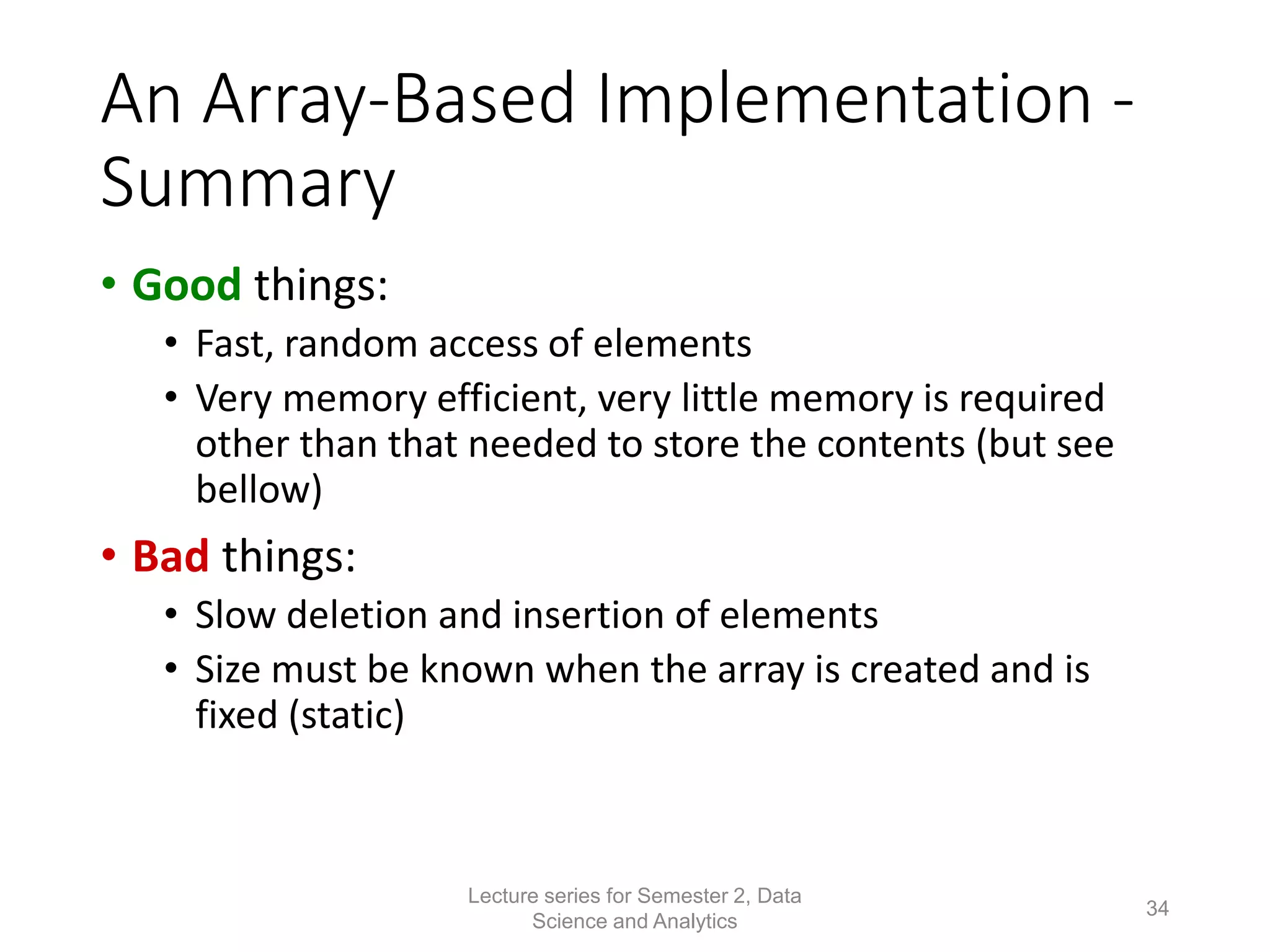

An Array-Based Implementation -
Summary
• Good things:
• Fast, random access of elements
• Very memory efficient, very little memory is required
other than that needed to store the contents (but see
bellow)
• Bad things:
• Slow deletion and insertion of elements
• Size must be known when the array is created and is
fixed (static)
34

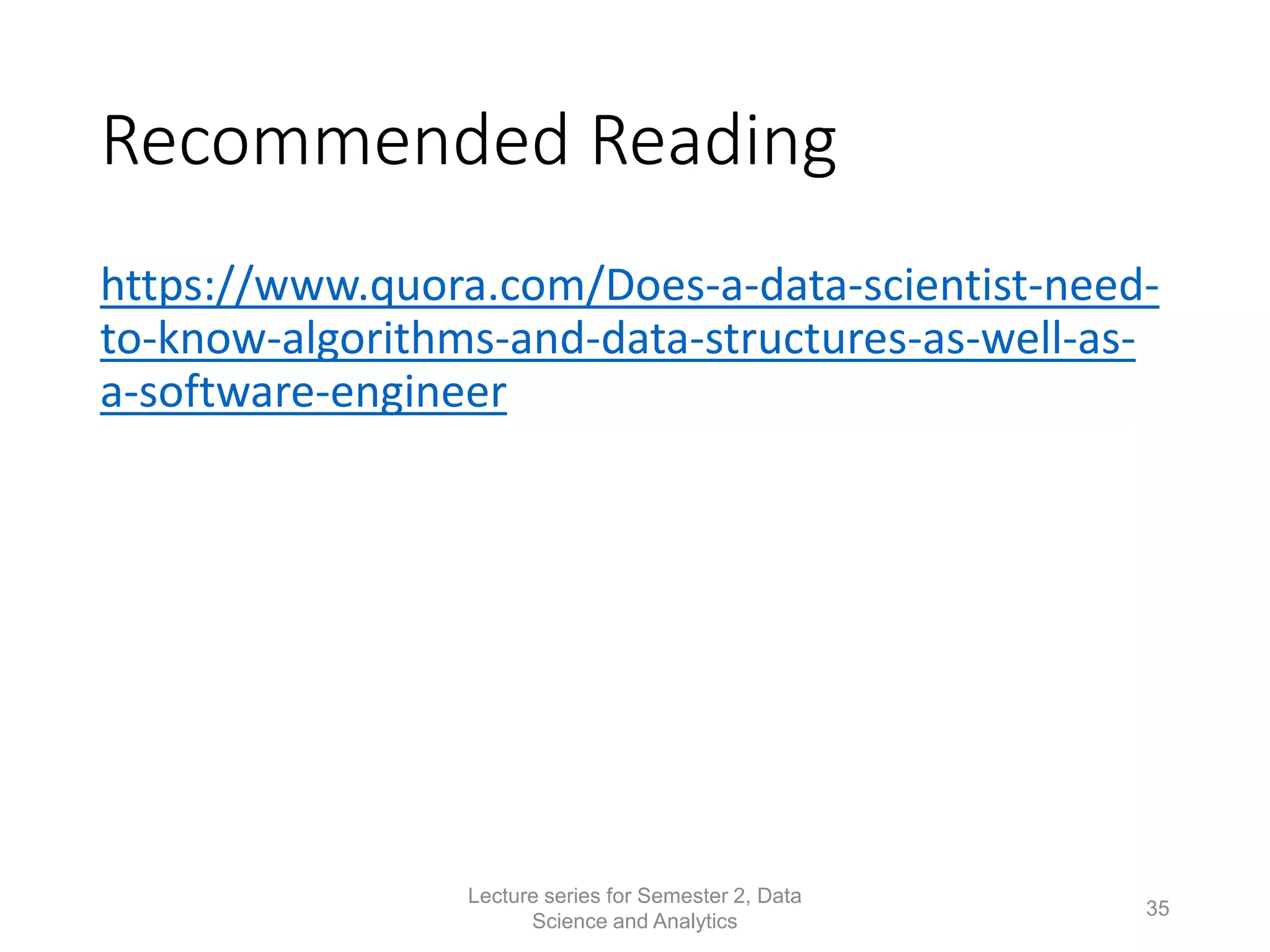

Recommended Reading
https://www.quora.com/Does-a-data-scientist-need-
to-know-algorithms-and-data-structures-as-well-as-
a-software-engineer
35

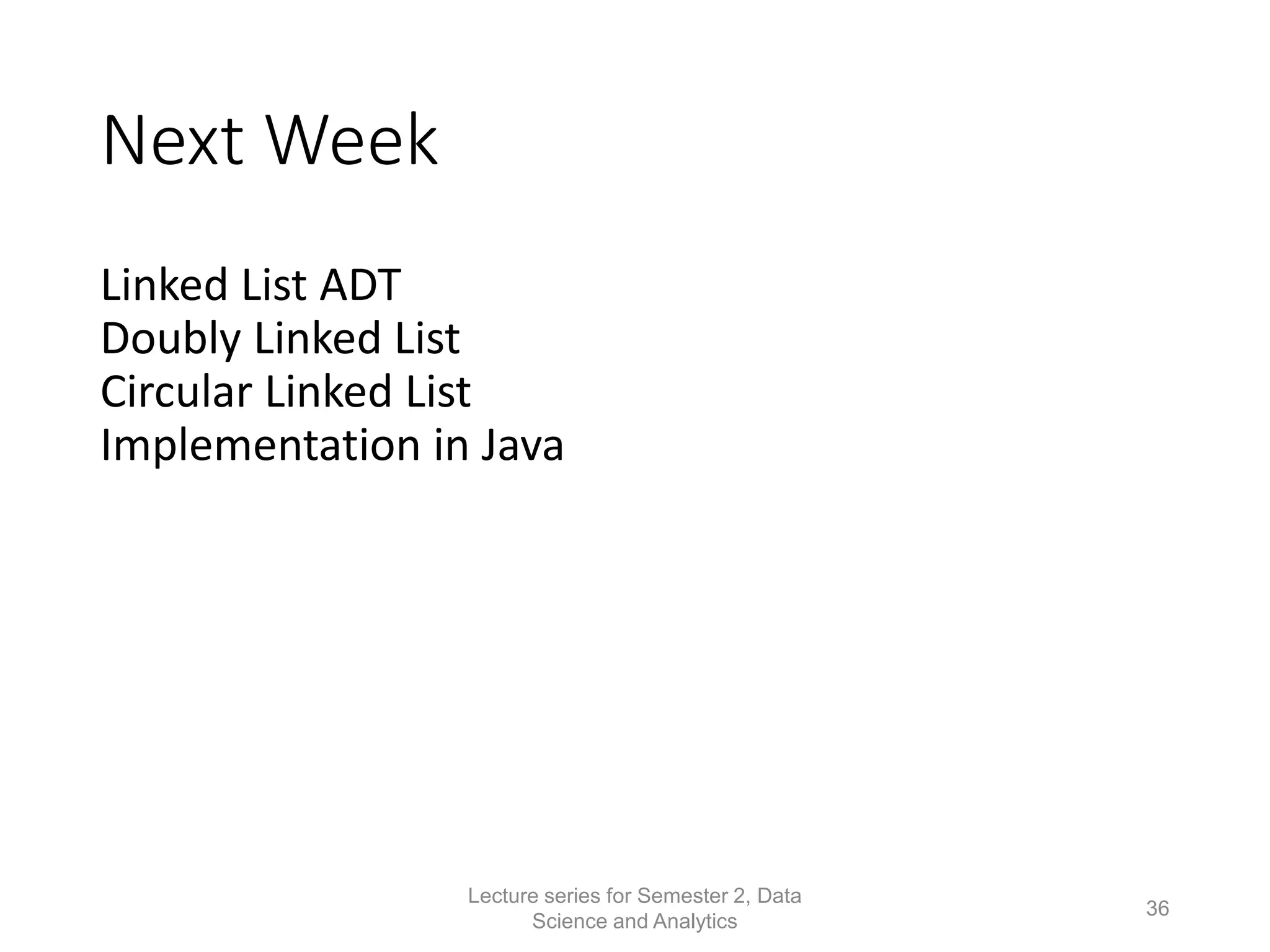

Next Week
Linked List ADT
Doubly Linked List
Circular Linked List
Implementation in Java
36
