1. Final Project Presentation: Review
2nd Semester
1436 - 2015
Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
2. 1- STATEMENT OF THE PROBLEM
2- SITE ANALYSIS
3- CONCEPT DEVELOPMENT
4- PLANS
5- ELEVATIONS
6- SECTIONS
7- PERSPECTIVES & RENDERING
8- ANALYSIS OF THE DESIGN

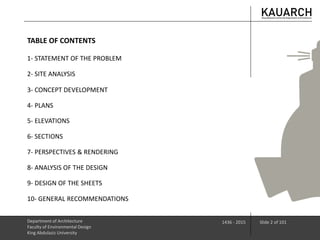

TABLE OF CONTENTS
Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 2 of 101

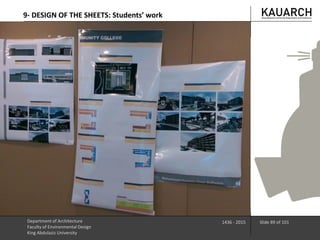

9- DESIGN OF THE SHEETS
10- GENERAL RECOMMENDATIONS
3. 1- STATEMENT OF THE PROBLEM
2- SITE ANALYSIS
Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 3 of 101
3- CONCEPT DEVELOPMENT
4- PLANS
5- ELEVATIONS
6- SECTIONS
7- PERSPECTIVES & RENDERING

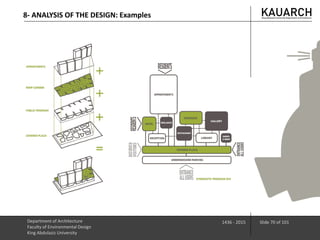

8- ANALYSIS OF THE DESIGN
9- DESIGN OF THE SHEETS
10- GENERAL RECOMMENDATIONS
TABLE OF CONTENTS
4. 1- STATEMENT OF THE PROBLEM
Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 4 of 101
Scope and limitations of the design
problem should be stated, identifying:
• The design lesson (Dimension and
scale, building components,
context, sustainability, flexibility
and organization, etc.).
• The scale of the project (urban
scale, architectural scale, etc.)
• Any special needs of the client
(given scenarios).
• Location of the project (given,
selected, hypothetical, etc.)
The aim is to build a common ground
of understanding between you and
the jury members.
Designing the design
studio
Designing the design
problem
Changing the scope
and limitations
Information should be
stated to the jury
members
5. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 5 of 101

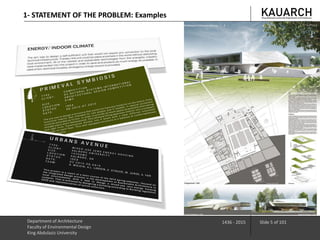

1- STATEMENT OF THE PROBLEM: Examples
6. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 6 of 101

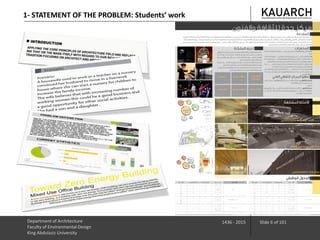

1- STATEMENT OF THE PROBLEM: Students’ work
7. 1- STATEMENT OF THE PROBLEM
2- SITE ANALYSIS
Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 7 of 101
3- CONCEPT DEVELOPMENT
4- PLANS
5- ELEVATIONS
6- SECTIONS
7- PERSPECTIVES & RENDERING
8- ANALYSIS OF THE DESIGN
9- DESIGN OF THE SHEETS
10- GENERAL RECOMMENDATIONS
TABLE OF CONTENTS

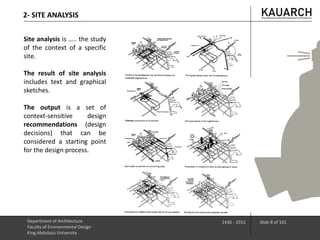

8. 2- SITE ANALYSIS
Site analysis is ….. the study
of the context of a specific
site.
The result of site analysis
includes text and graphical
sketches.
The output is a set of
context-sensitive design
recommendations (design
decisions) that can be
considered a starting point
for the design process.
Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 8 of 101

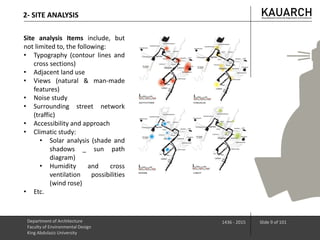

9. Site analysis Items include, but
not limited to, the following:
• Typography (contour lines and
cross sections)
• Adjacent land use
• Views (natural & man-made
features)
• Noise study
• Surrounding street network
(traffic)
• Accessibility and approach
• Climatic study:
• Solar analysis (shade and
shadows _ sun path
diagram)
• Humidity and cross
ventilation possibilities
(wind rose)
• Etc.
Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 9 of 101
2- SITE ANALYSIS
10. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 10 of 101

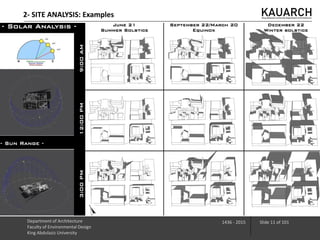

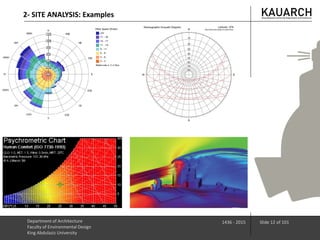

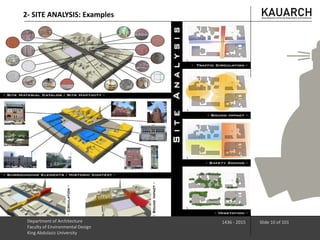

2- SITE ANALYSIS: Examples
11. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 11 of 101
2- SITE ANALYSIS: Examples
12. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 12 of 101
2- SITE ANALYSIS: Examples
13. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 13 of 101
2- SITE ANALYSIS: Examples
14. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 14 of 101

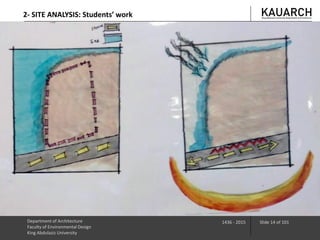

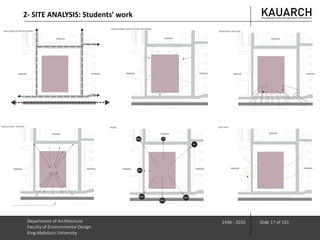

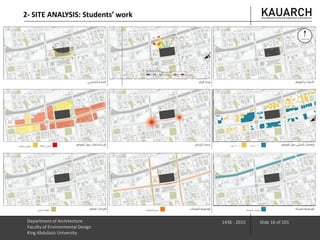

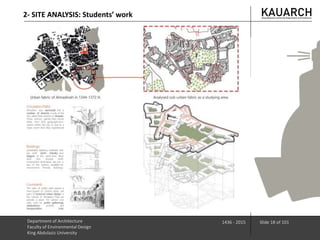

2- SITE ANALYSIS: Students’ work
15. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 15 of 101

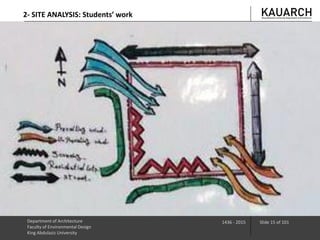

2- SITE ANALYSIS: Students’ work
16. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 16 of 101
2- SITE ANALYSIS: Students’ work
17. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 17 of 101
2- SITE ANALYSIS: Students’ work
18. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 18 of 101
2- SITE ANALYSIS: Students’ work
19. 1- STATEMENT OF THE PROBLEM
2- SITE ANALYSIS
Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 19 of 101
3- CONCEPT DEVELOPMENT
4- PLANS
5- ELEVATIONS
6- SECTIONS
7- PERSPECTIVES & RENDERING
8- ANALYSIS OF THE DESIGN
9- DESIGN OF THE SHEETS
10- GENERAL RECOMMENDATIONS
TABLE OF CONTENTS
20. 3- CONCEPT DEVELOPMENT
Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 20 of 101

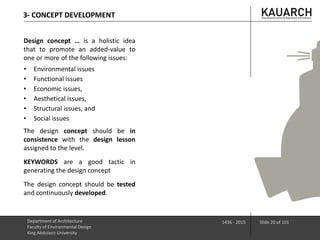

Design concept … is a holistic idea
that to promote an added-value to
one or more of the following issues:
• Environmental issues
• Functional issues
• Economic issues,
• Aesthetical issues,
• Structural issues, and
• Social issues
The design concept should be in
consistence with the design lesson
assigned to the level.
KEYWORDS are a good tactic in
generating the design concept
The design concept should be tested
and continuously developed.
21. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 21 of 101

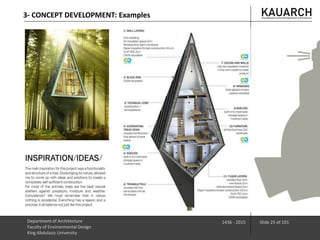

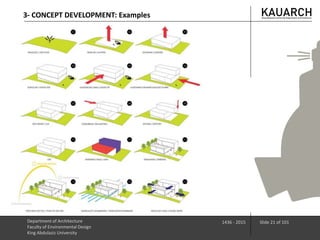

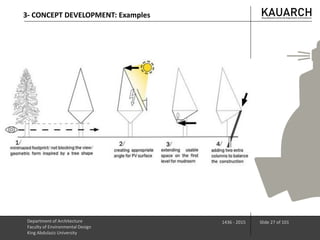

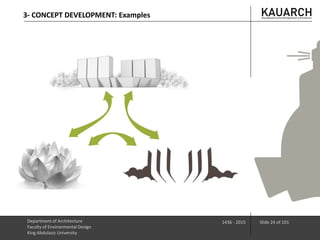

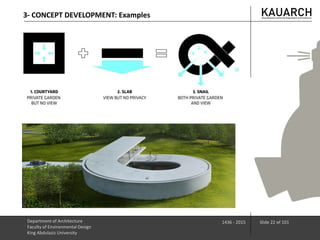

3- CONCEPT DEVELOPMENT: Examples
22. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 22 of 101

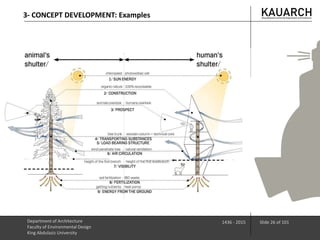

3- CONCEPT DEVELOPMENT: Examples
23. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 23 of 101

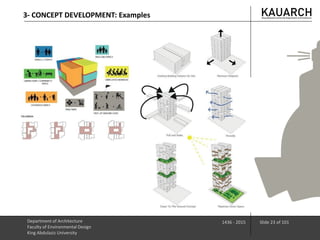

3- CONCEPT DEVELOPMENT: Examples
24. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 24 of 101
3- CONCEPT DEVELOPMENT: Examples
25. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 25 of 101
3- CONCEPT DEVELOPMENT: Examples
26. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 26 of 101
3- CONCEPT DEVELOPMENT: Examples
27. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 27 of 101
3- CONCEPT DEVELOPMENT: Examples
28. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 28 of 101

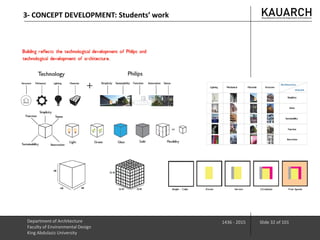

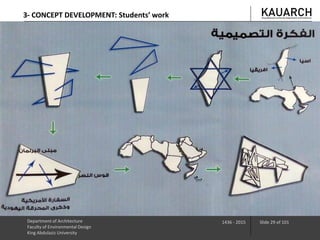

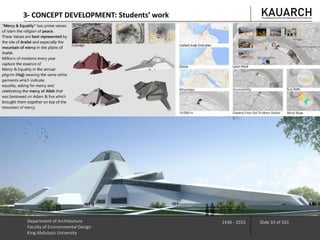

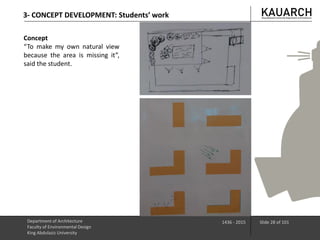

3- CONCEPT DEVELOPMENT: Students’ work
Concept
“To make my own natural view
because the area is missing it”,
said the student.
29. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 29 of 101
3- CONCEPT DEVELOPMENT: Students’ work
30. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 30 of 101
3- CONCEPT DEVELOPMENT: Students’ work

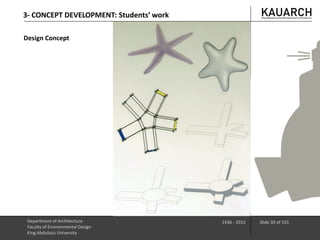

Design Concept
31. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 31 of 101

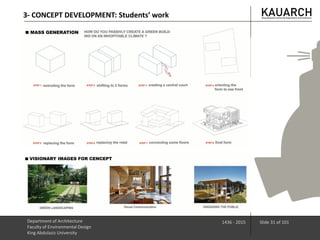

3- CONCEPT DEVELOPMENT: Students’ work
32. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 32 of 101
3- CONCEPT DEVELOPMENT: Students’ work
33. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 33 of 101
3- CONCEPT DEVELOPMENT: Students’ work
34. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 34 of 101
3- CONCEPT DEVELOPMENT
4- PLANS
5- ELEVATIONS
6- SECTIONS
7- PERSPECTIVES & RENDERING
8- ANALYSIS OF THE DESIGN
9- DESIGN OF THE SHEETS
10- GENERAL RECOMMENDATIONS
1- STATEMENT OF THE PROBLEM
2- SITE ANALYSIS
TABLE OF CONTENTS

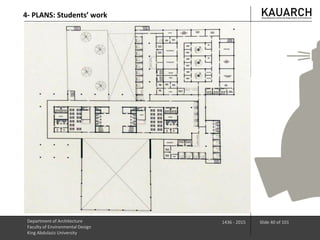

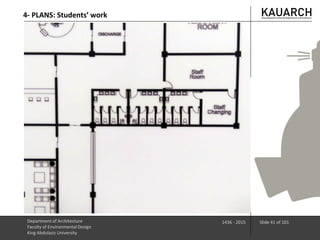

35. 4- PLANS
Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 35 of 101

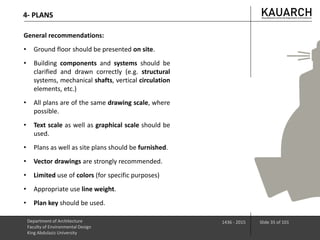

General recommendations:
• Ground floor should be presented on site.
• Building components and systems should be
clarified and drawn correctly (e.g. structural
systems, mechanical shafts, vertical circulation
elements, etc.)
• All plans are of the same drawing scale, where
possible.
• Text scale as well as graphical scale should be
used.
• Plans as well as site plans should be furnished.
• Vector drawings are strongly recommended.
• Limited use of colors (for specific purposes)
• Appropriate use line weight.
• Plan key should be used.

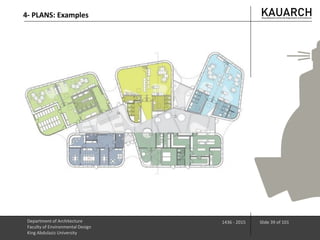

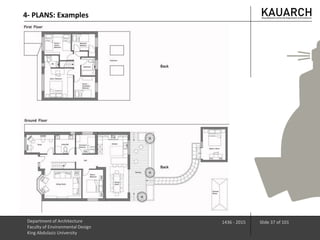

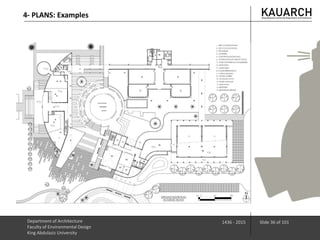

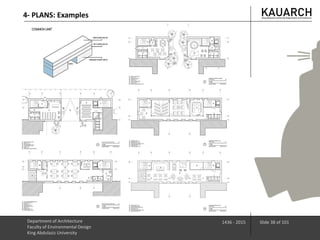

36. 4- PLANS: Examples
Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 36 of 101
40. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 40 of 101

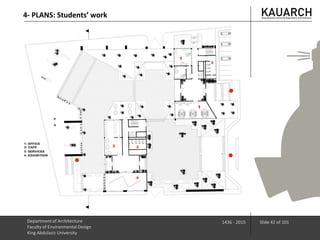

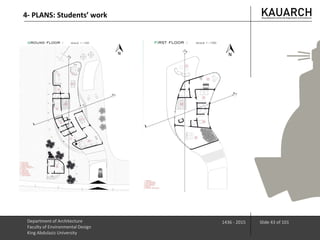

4- PLANS: Students’ work
41. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 41 of 101
4- PLANS: Students’ work
42. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 42 of 101
4- PLANS: Students’ work
43. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 43 of 101
4- PLANS: Students’ work
44. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 44 of 101

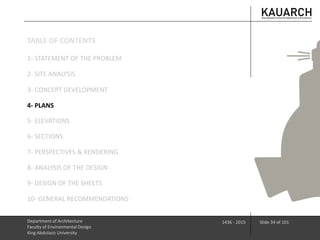

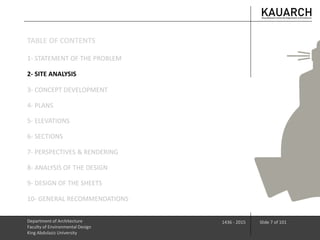

3- CONCEPT DEVELOPMENT
4- PLANS
5- ELEVATIONS
6- SECTIONS
7- PERSPECTIVES & RENDERING
8- ANALYSIS OF THE DESIGN
9- DESIGN OF THE SHEETS
10- GENERAL RECOMMENDATIONS
1- STATEMENT OF THE PROBLEM
2- SITE ANALYSIS
TABLE OF CONTENTS
45. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 45 of 101
5- ELEVATIONS
General recommendations:
• All elevations are of the same drawing scale, if
possible.
• Hatch patterns could be used to reflect
different exterior finishing materials.
• Shade and shadow to support the readability
of elevations.
• Limited use of colors (for specific purposes)
• The use of site furniture according to the
drawing scale.
• Appropriate use of line weight.
46. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 46 of 101

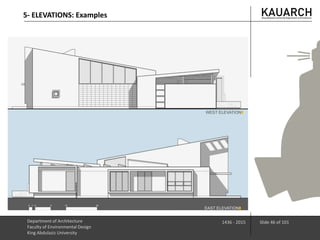

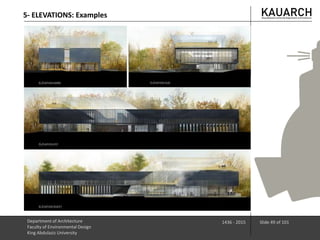

5- ELEVATIONS: Examples

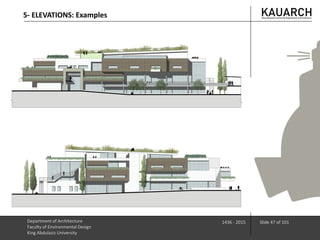

47. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 47 of 101
5- ELEVATIONS: Examples

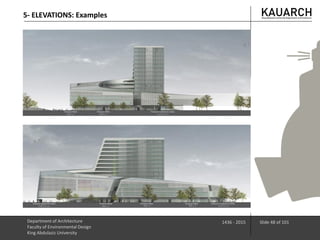

48. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 48 of 101
5- ELEVATIONS: Examples
49. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 49 of 101
5- ELEVATIONS: Examples
50. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 50 of 101

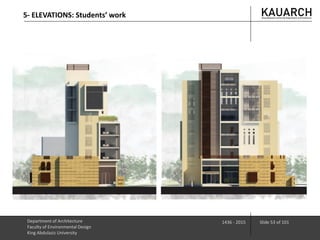

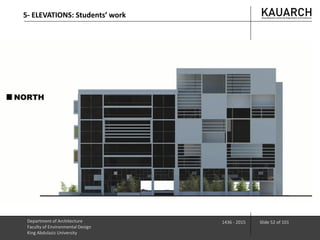

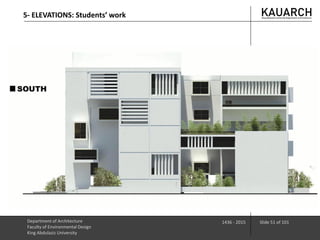

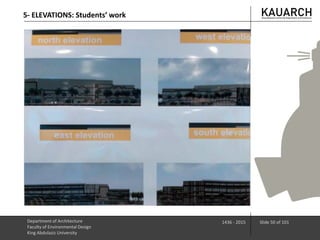

5- ELEVATIONS: Students’ work
51. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 51 of 101
5- ELEVATIONS: Students’ work
52. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 52 of 101
5- ELEVATIONS: Students’ work
53. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 53 of 101
5- ELEVATIONS: Students’ work
54. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 54 of 101
3- CONCEPT DEVELOPMENT
4- PLANS
5- ELEVATIONS
6- SECTIONS
7- PERSPECTIVES & RENDERING
8- ANALYSIS OF THE DESIGN
9- DESIGN OF THE SHEETS
10- GENERAL RECOMMENDATIONS
1- STATEMENT OF THE PROBLEM
2- SITE ANALYSIS
TABLE OF CONTENTS
55. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 55 of 101

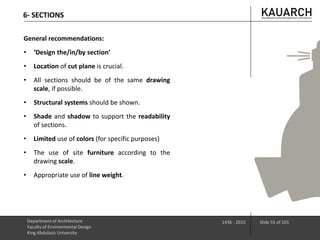

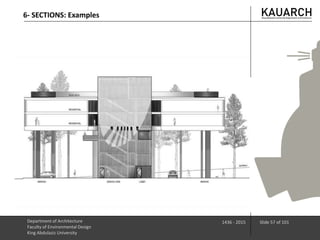

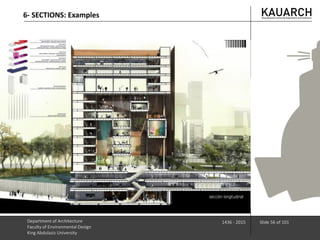

6- SECTIONS
General recommendations:
• ‘Design the/in/by section’
• Location of cut plane is crucial.
• All sections should be of the same drawing
scale, if possible.
• Structural systems should be shown.
• Shade and shadow to support the readability
of sections.
• Limited use of colors (for specific purposes)
• The use of site furniture according to the
drawing scale.
• Appropriate use of line weight.
59. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 59 of 101

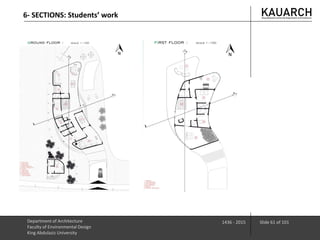

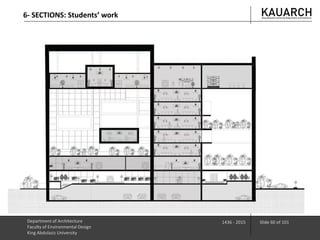

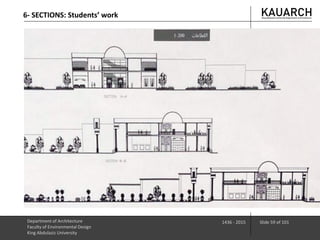

6- SECTIONS: Students’ work
60. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 60 of 101
6- SECTIONS: Students’ work
61. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 61 of 101
6- SECTIONS: Students’ work
62. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 62 of 101
3- CONCEPT DEVELOPMENT
4- PLANS
5- ELEVATIONS
6- SECTIONS
7- PERSPECTIVES & RENDERING
8- ANALYSIS OF THE DESIGN
9- DESIGN OF THE SHEETS
10- GENERAL RECOMMENDATIONS
1- STATEMENT OF THE PROBLEM
2- SITE ANALYSIS
TABLE OF CONTENTS
63. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 63 of 101

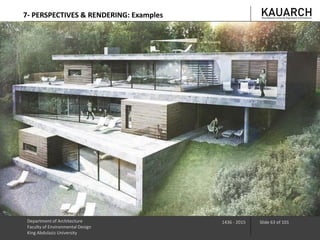

7- PERSPECTIVES & RENDERING: Examples
64. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 64 of 101

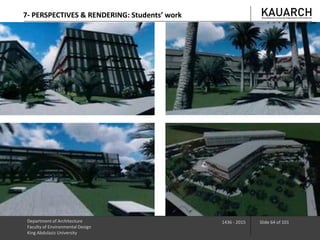

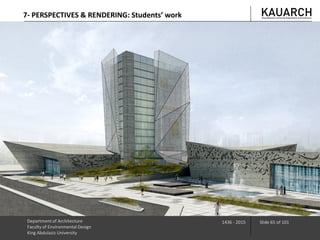

7- PERSPECTIVES & RENDERING: Students’ work
65. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 65 of 101
7- PERSPECTIVES & RENDERING: Students’ work
66. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 66 of 101

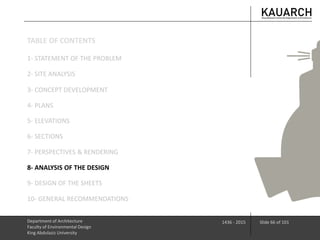

3- CONCEPT DEVELOPMENT
4- PLANS
5- ELEVATIONS
6- SECTIONS
7- PERSPECTIVES & RENDERING
8- ANALYSIS OF THE DESIGN
9- DESIGN OF THE SHEETS
10- GENERAL RECOMMENDATIONS
1- STATEMENT OF THE PROBLEM
2- SITE ANALYSIS
TABLE OF CONTENTS

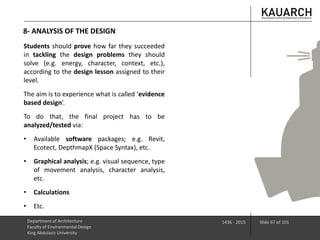

67. 8- ANALYSIS OF THE DESIGN
Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 67 of 101
Students should prove how far they succeeded
in tackling the design problems they should
solve (e.g. energy, character, context, etc.),
according to the design lesson assigned to their
level.
The aim is to experience what is called ‘evidence
based design’.
To do that, the final project has to be
analyzed/tested via:
• Available software packages; e.g. Revit,
Ecotect, DepthmapX (Space Syntax), etc.
• Graphical analysis; e.g. visual sequence, type
of movement analysis, character analysis,
etc.
• Calculations
• Etc.

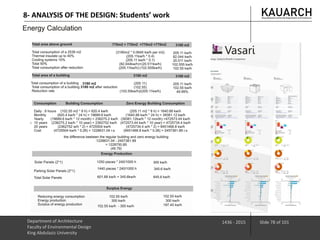

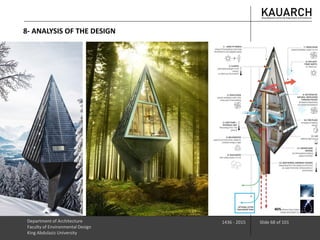

68. 8- ANALYSIS OF THE DESIGN
Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 68 of 101

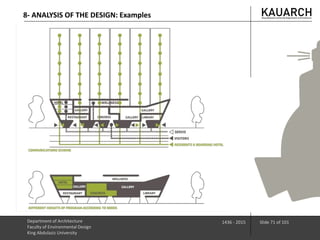

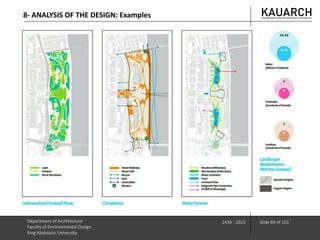

69. 8- ANALYSIS OF THE DESIGN: Examples
Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 69 of 101
70. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 70 of 101
8- ANALYSIS OF THE DESIGN: Examples
71. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 71 of 101
8- ANALYSIS OF THE DESIGN: Examples
72. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 72 of 101

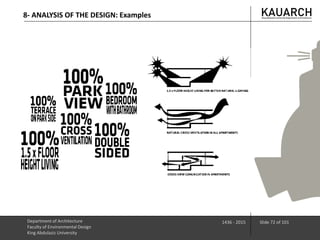

8- ANALYSIS OF THE DESIGN: Examples
73. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 73 of 101

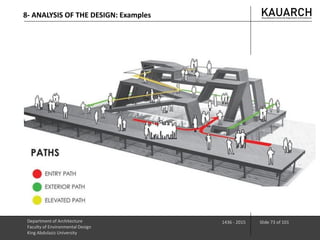

8- ANALYSIS OF THE DESIGN: Examples
74. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 74 of 101

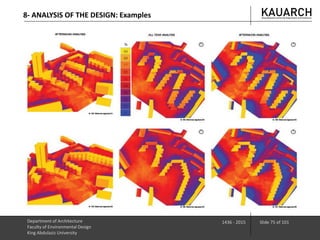

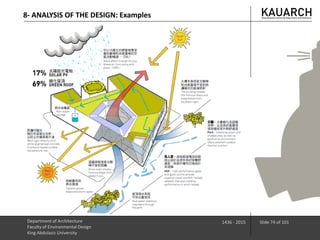

8- ANALYSIS OF THE DESIGN: Examples
75. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 75 of 101
8- ANALYSIS OF THE DESIGN: Examples
76. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 76 of 101
8- ANALYSIS OF THE DESIGN: Examples

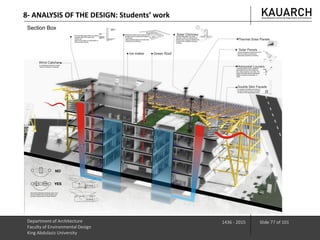

77. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 77 of 101
8- ANALYSIS OF THE DESIGN: Students’ work
78. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 78 of 101
8- ANALYSIS OF THE DESIGN: Students’ work

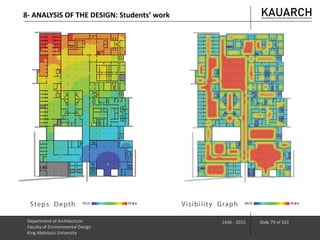

79. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 79 of 101
8- ANALYSIS OF THE DESIGN: Students’ work
80. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 80 of 101

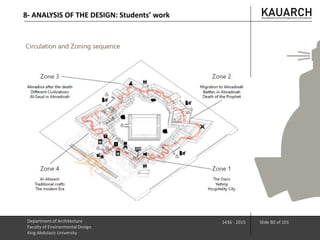

8- ANALYSIS OF THE DESIGN: Students’ work
81. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 81 of 101
8- ANALYSIS OF THE DESIGN: Students’ work
82. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 82 of 101
3- CONCEPT DEVELOPMENT
4- PLANS
5- ELEVATIONS
6- SECTIONS
7- PERSPECTIVES & RENDERING
8- ANALYSIS OF THE DESIGN
9- DESIGN OF THE SHEETS
10- GENERAL RECOMMENDATIONS
1- STATEMENT OF THE PROBLEM
2- SITE ANALYSIS
TABLE OF CONTENTS

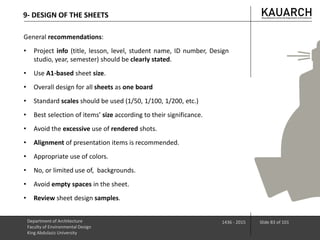

83. 9- DESIGN OF THE SHEETS
Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 83 of 101
General recommendations:
• Project info (title, lesson, level, student name, ID number, Design
studio, year, semester) should be clearly stated.
• Use A1-based sheet size.
• Overall design for all sheets as one board
• Standard scales should be used (1/50, 1/100, 1/200, etc.)
• Best selection of items’ size according to their significance.
• Avoid the excessive use of rendered shots.
• Alignment of presentation items is recommended.
• Appropriate use of colors.
• No, or limited use of, backgrounds.
• Avoid empty spaces in the sheet.
• Review sheet design samples.

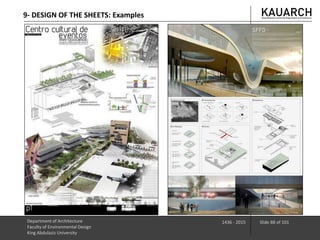

84. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 84 of 101

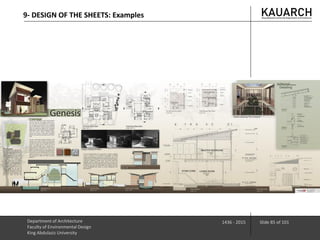

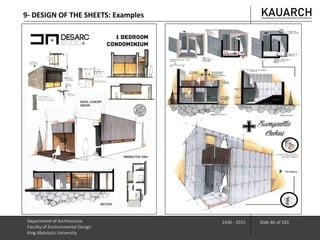

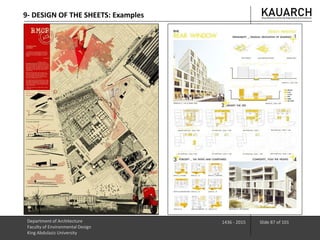

9- DESIGN OF THE SHEETS: Examples

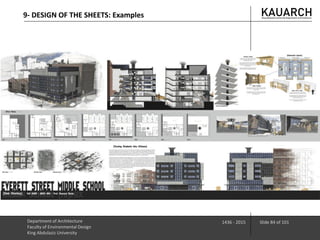

85. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 85 of 101
9- DESIGN OF THE SHEETS: Examples
86. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 86 of 101
9- DESIGN OF THE SHEETS: Examples
87. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 87 of 101
9- DESIGN OF THE SHEETS: Examples
88. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 88 of 101
9- DESIGN OF THE SHEETS: Examples

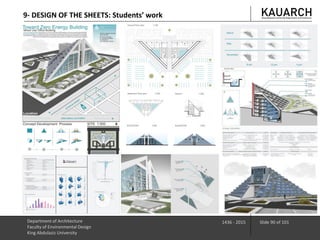

89. 9- DESIGN OF THE SHEETS: Students’ work
Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 89 of 101

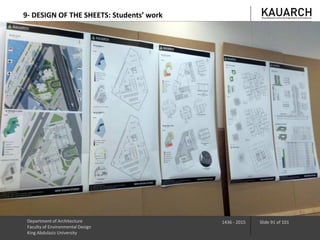

90. 9- DESIGN OF THE SHEETS: Students’ work
Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 90 of 101
91. 9- DESIGN OF THE SHEETS: Students’ work
Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 91 of 101
92. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 92 of 101
3- CONCEPT DEVELOPMENT
4- PLANS
5- ELEVATIONS
6- SECTIONS
7- PERSPECTIVES & RENDERING
8- ANALYSIS OF THE DESIGN
9- DESIGN OF THE SHEETS
10- GENERAL RECOMMENDATIONS
1- STATEMENT OF THE PROBLEM
2- SITE ANALYSIS

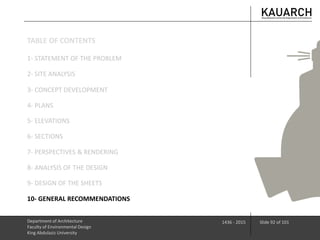

TABLE OF CONTENTS
93. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 93 of 101
10- GENERAL RECOMMENDATIONS
94. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 94 of 101

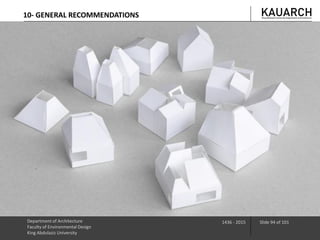

10- GENERAL RECOMMENDATIONS
95. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 95 of 101

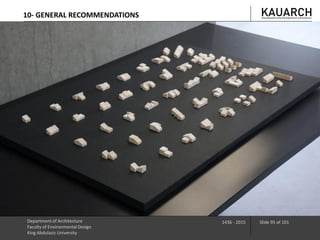

10- GENERAL RECOMMENDATIONS
96. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 96 of 101

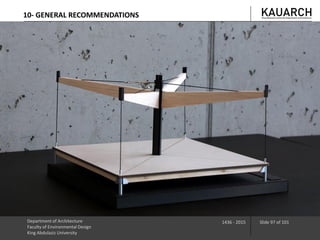

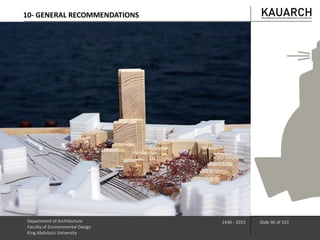

10- GENERAL RECOMMENDATIONS
97. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 97 of 101
10- GENERAL RECOMMENDATIONS
98. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 98 of 101

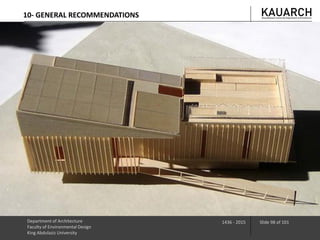

10- GENERAL RECOMMENDATIONS
99. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 99 of 101

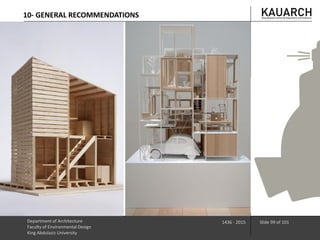

10- GENERAL RECOMMENDATIONS
100. Department of Architecture
Faculty of Environmental Design
King Abdulaziz University
1436 - 2015 Slide 100 of 101
10- GENERAL RECOMMENDATIONS
