- 1. CONSTRUCTION SAFETY B.E.A.T ConsultancySdn. Bhd. 1

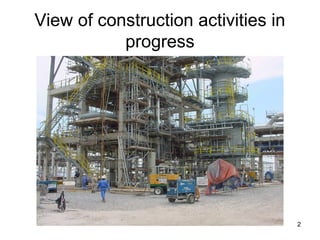

- 2. 2 View of constructionactivities in progress
- 3. SCOPE • Definition andLegislative needs • Construction base activities • Tools & Machinery that usually use • Construction site hazard • Types of accident • Safety & health management for construction 3

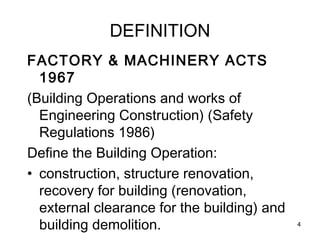

- 4. DEFINITION FACTORY & MACHINERYACTS 1967 (Building Operations and works of Engineering Construction) (Safety Regulations 1986) Define the Building Operation: • construction, structure renovation, recovery for building (renovation, external clearance for the building) and building demolition. 4
- 5.

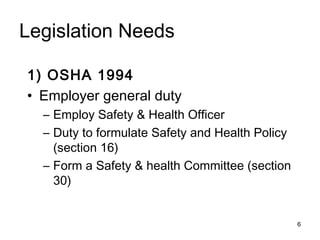

- 6. Legislation Needs 1) OSHA1994 • Employer general duty – Employ Safety & Health Officer – Duty to formulate Safety and Health Policy (section 16) – Form a Safety & health Committee (section 30) 6
- 7. OSH Act (Safety& Health Officer) Regulations, 1996 – Registered with DOSH Legislation Needs 7
- 8. 8 Legislation Needs Safety andHealth officer Order 1997 – S&H Officer if the project value exceeded RM20 million whether fro: a) Building operation b) Construction Engineering
- 9. 2) FMA 1967 •General provision involving machinery qualification, Installation and occupational (under FMA 1967); • FMA regulation ( Building operation and Works of Engineering Construction (Safety) Regulations, 1986 – Safety & Health provision for activities, tools and employer. Legislation Needs 9
- 10. Activity in ConstructionSite • Piling • Concrete work • Demolition • Bricks absorbing • wire installation/ electric cable, tube • welding • handling/ transportation for construction substance 10
- 11. • Installation • formwork • painting • raw materials transportation • cleaning • machine operation Activity in Construction Site (Cont) 11
- 12.

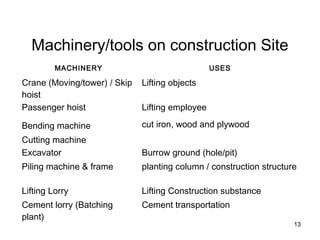

- 13. Machinery/tools on constructionSite MACHINERY USES Crane (Moving/tower) / Skip hoist Lifting objects Passenger hoist Lifting employee Bending machine Cutting machine cut iron, wood and plywood Excavator Burrow ground (hole/pit) Piling machine & frame planting column / construction structure Lifting Lorry Lifting Construction substance Cement lorry (Batching plant) Cement transportation 13

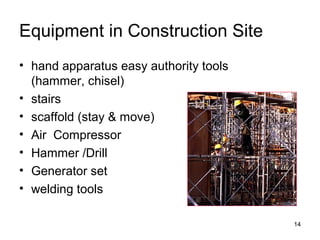

- 14. Equipment in ConstructionSite • hand apparatus easy authority tools (hammer, chisel) • stairs • scaffold (stay & move) • Air Compressor • Hammer /Drill • Generator set • welding tools 14
- 15.
- 16. Construction Hazard • heat •noise • Mineral dust • mechanical • electric • radiation • chemical substance • ergonomic problem • biological • work at height • work in narrow space • lightning • Suffocation 16
- 17. Types of Accidentsin Construction Site • fall from height • fall from same level • structure collapse • electric shock • wedged between object • Suffocation • Collide/hit with falling object 17

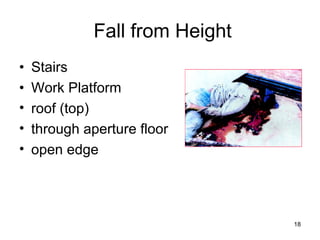

- 18. Fall from Height •Stairs • Work Platform • roof (top) • through aperture floor • open edge 18
- 19. Causes Factor • Nofences • no equipment checking • equipment installing is not competent • no safety harness • Stair design failure • Stair in wrong position Fall from Height 19
- 20.
- 21. Fall on thesame Level • wire on the floor • slippery floor Causes Factor: • no cleanliness at workplace • no equipment storage • No cleanliness performing 21
- 22. Structure Collapse • Accidentduring working /formwork Causes Factor : • No ground adherent installation • no guidelines and job procedure • excess load • structure failure 22

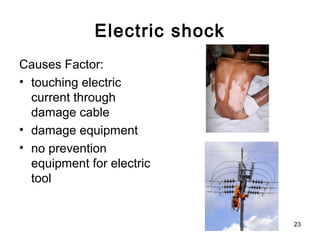

- 23. Electric shock Causes Factor: •touching electric current through damage cable • damage equipment • no prevention equipment for electric tool 23
- 24. Suffocation • narrow spaces(tank, small room, etc..) • shortage of oxygen • water pond Causes : • no adequate ventilation • no exhaust vacuum • no guidelines for safe working system • no training and lack of knowledge 24
- 25. Collide with Vehicles Causes: • No special passage for employee • No fences • No regulation or traffic enforcement in the area • No vehicle checking • Driver are not trained 25
- 26. Safety & HealthManagement in Construction Strategy: • form a safety & health Committee • Recognize the hazard in work are • define the risk • Plan & arrange Safety & Health Steps 26
- 27. Employer control : •legislate safety & health policy • hire Safety & Health Officer (depends to cost appraisal project) • hire site base Safety Supervisor • Re-enforce the safety rules in work Safety & Health Management in Construction 27

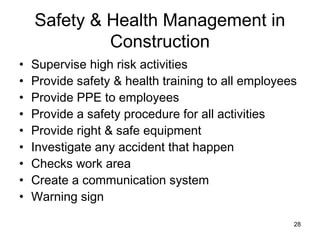

- 28. • Supervise highrisk activities • Provide safety & health training to all employees • Provide PPE to employees • Provide a safety procedure for all activities • Provide right & safe equipment • Investigate any accident that happen • Checks work area • Create a communication system • Warning sign Safety & Health Management in Construction 28
- 29.

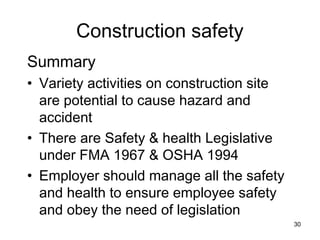

- 30. Construction safety Summary • Varietyactivities on construction site are potential to cause hazard and accident • There are Safety & health Legislative under FMA 1967 & OSHA 1994 • Employer should manage all the safety and health to ensure employee safety and obey the need of legislation 30
- 31.

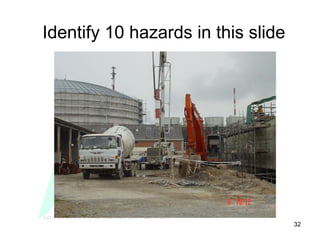

- 32. 32 Identify 10 hazardsin this slide
- 33. 33 Identify 10 hazardson this slide
- 34. 34 Questions • What isthe related regulation associated with safety in the construction industry? • What are the three legal requirements stipulated in the BOWEC? • Who are the workers covered under the OSHA 1994? • Who are not covered under OSHA 1994 and why? • What is the requirement of SHO as stipulated in OSHA 1994? • What is the composition of Safety and Health committee as stipulated in the OSHA 1994? • What are the functions of the safety and health policy as stipulated in OSHA 1994?
- 35. 35 Questions • What isthe roles and responsibilities as stipulated in the safety and health committee regulations 1996? • Under which section of the OSHA 1994 that employer must formulate the safety and health policy? • What are the hazards that workers may encounter while working in the confined space? • What are the safety requirements as stipulated in the BOWEC?
