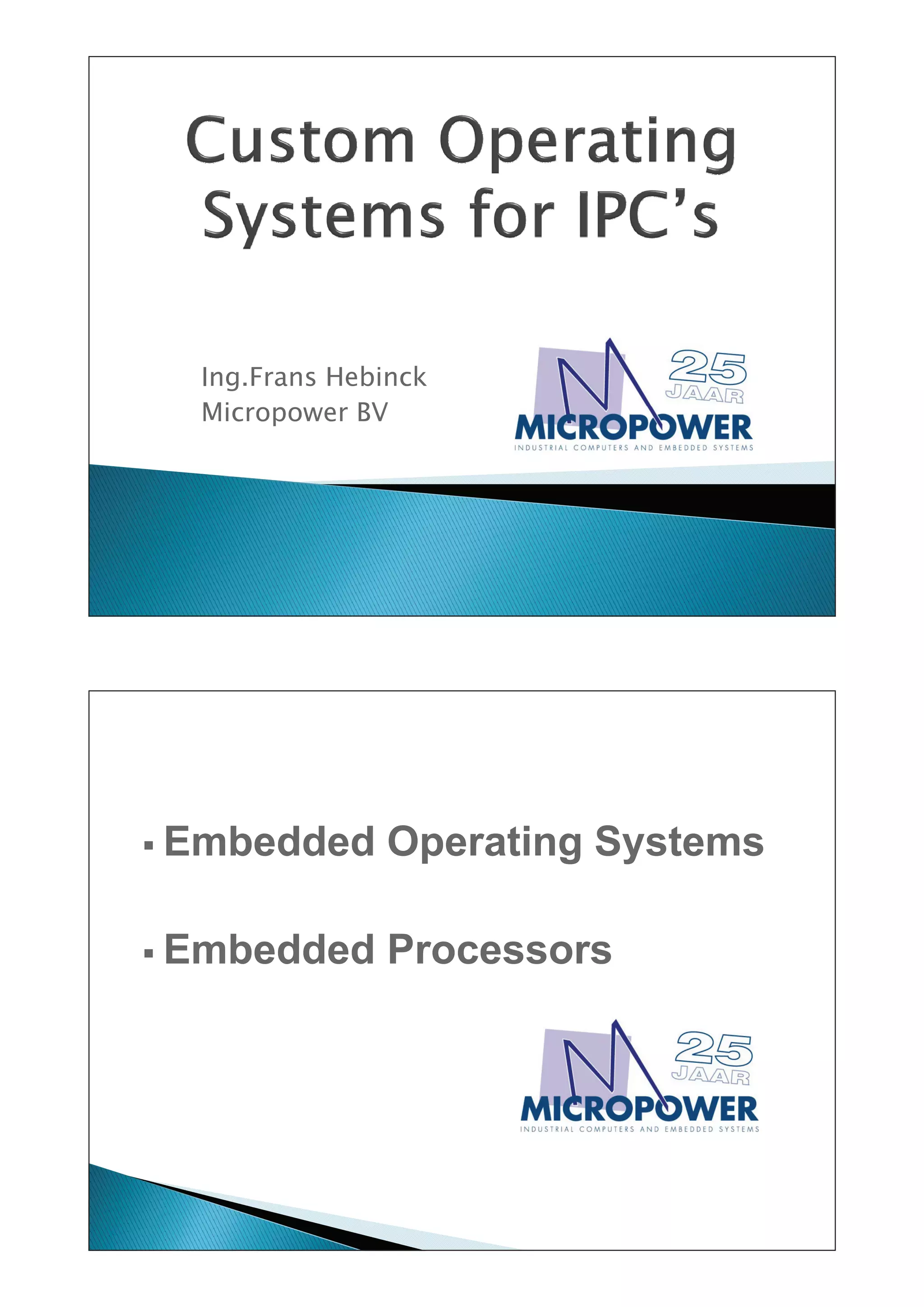

1. Ing.Frans Hebinck
Mi
Micropower BV
ƒ E b dd d
Embedded Operating Systems
O ti S t
ƒ Embedded Processors

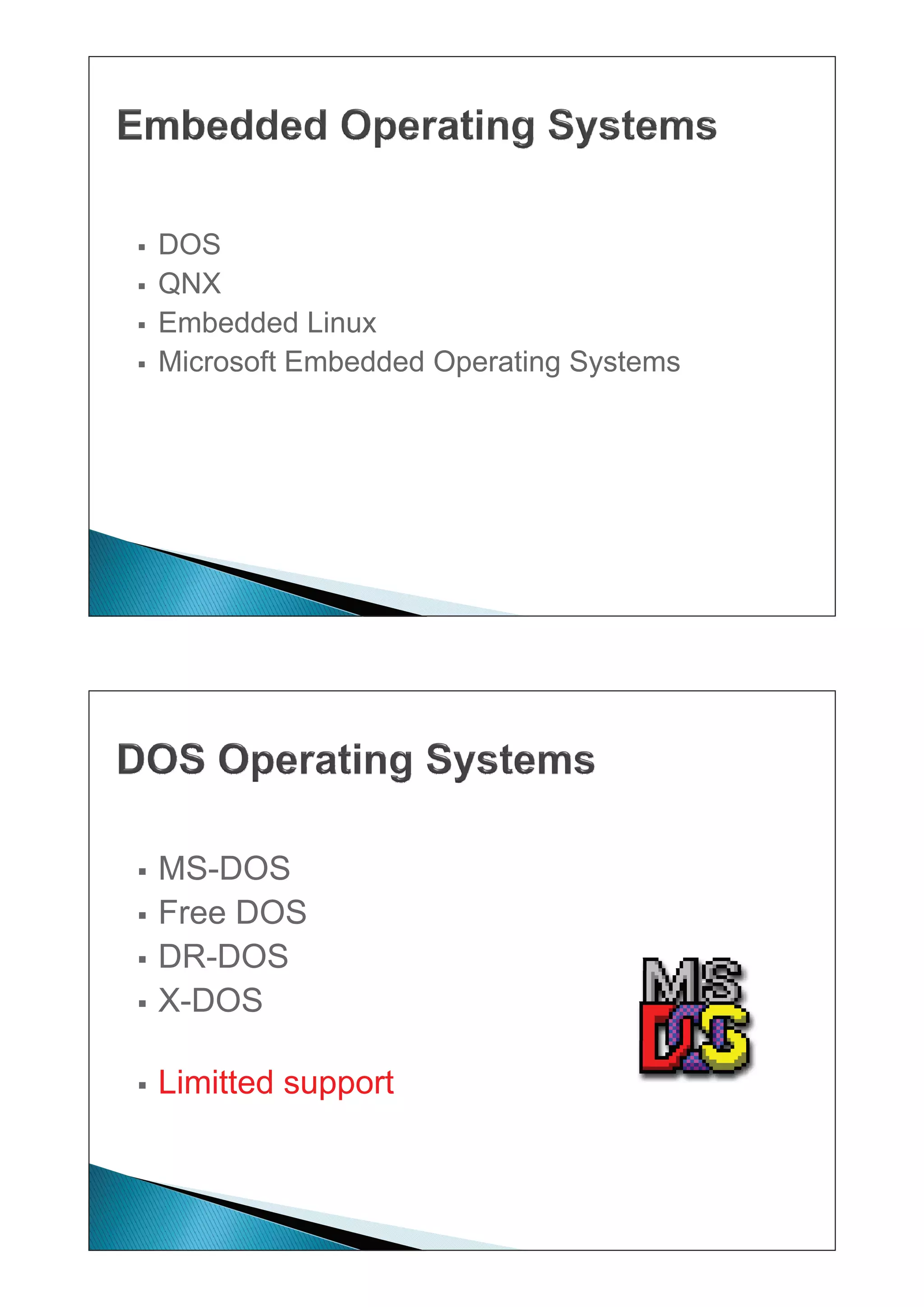

2. ƒ DOS
ƒ QNX
ƒ Embedded Linux
ƒ Microsoft Embedded Operating Systems
ƒ MS-DOS
ƒ Free DOS
F
ƒ DR-DOS
ƒ X-DOS
ƒ Limitted support

3. De afbeelding k an niet worden weergegev en. Het is mogelijk dat er onv oldoende geheugen beschik baar is op de computer om de afbeelding te openen of dat de afbeelding beschadigd is. Start de computer opnieuw op en open het bestand opnieuw. A ls de afbeelding nog steeds wordt v oorgesteld door een rode X, k unt u de afbeelding v erwijderen en opnieuw inv oegen.

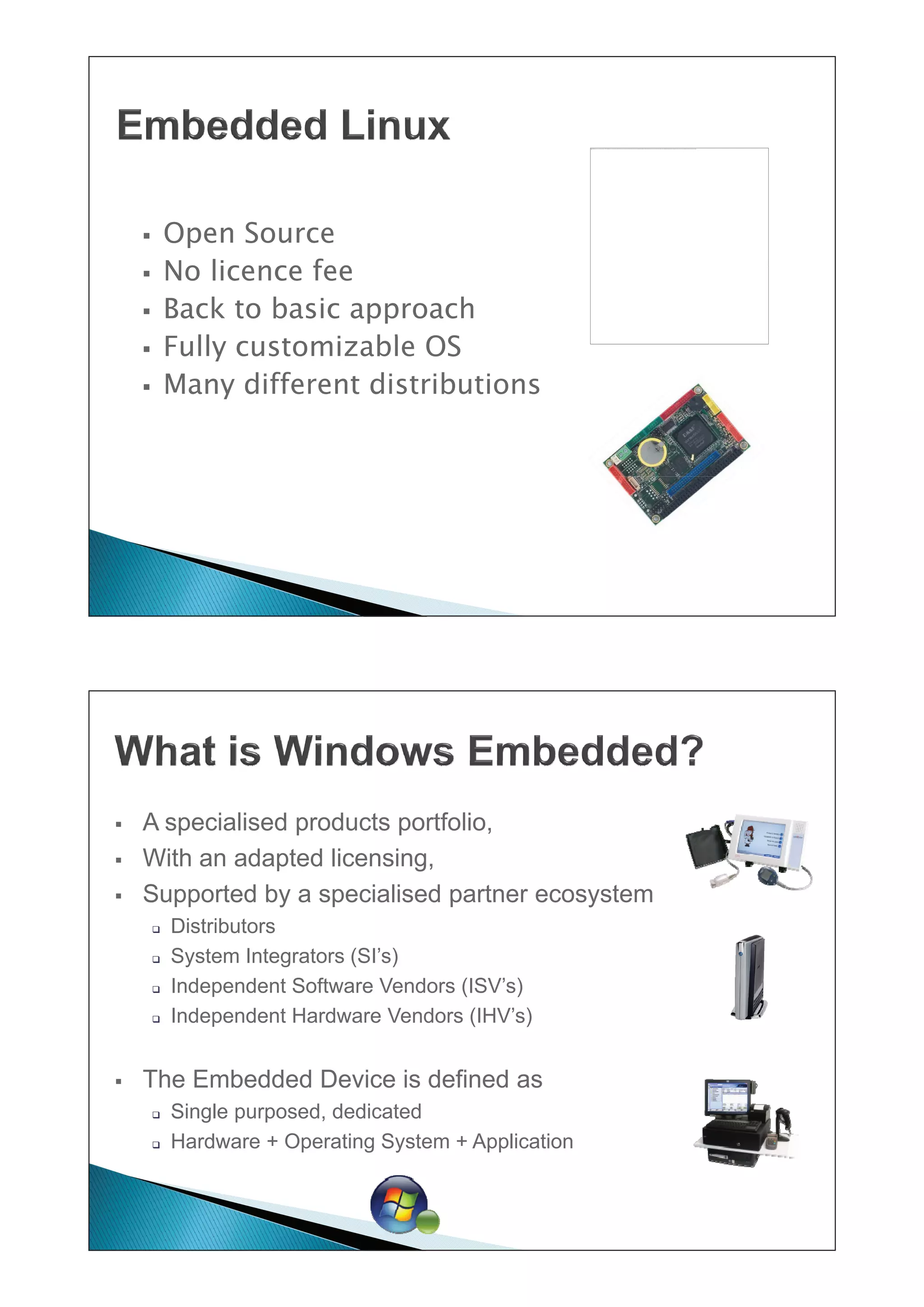

ƒ Open Source
ƒ No licence fee
ƒ Back to basic approach
ƒ Fully
F ll customizable OS
i bl
ƒ Many different distributions
ƒ A specialised products portfolio,
spec a sed p oducts po t o o,
ƒ With an adapted licensing,
ƒ Supported by a specialised partner ecosystem
‰ Distributors
‰ System Integrators (SI’s)
‰ Independent Software Vendors (ISV’s)
‰ Independent Hardware Vendors (IHV’s)
ƒ The Embedded Device is defined as
‰ Single purposed, dedicated
purposed
‰ Hardware + Operating System + Application

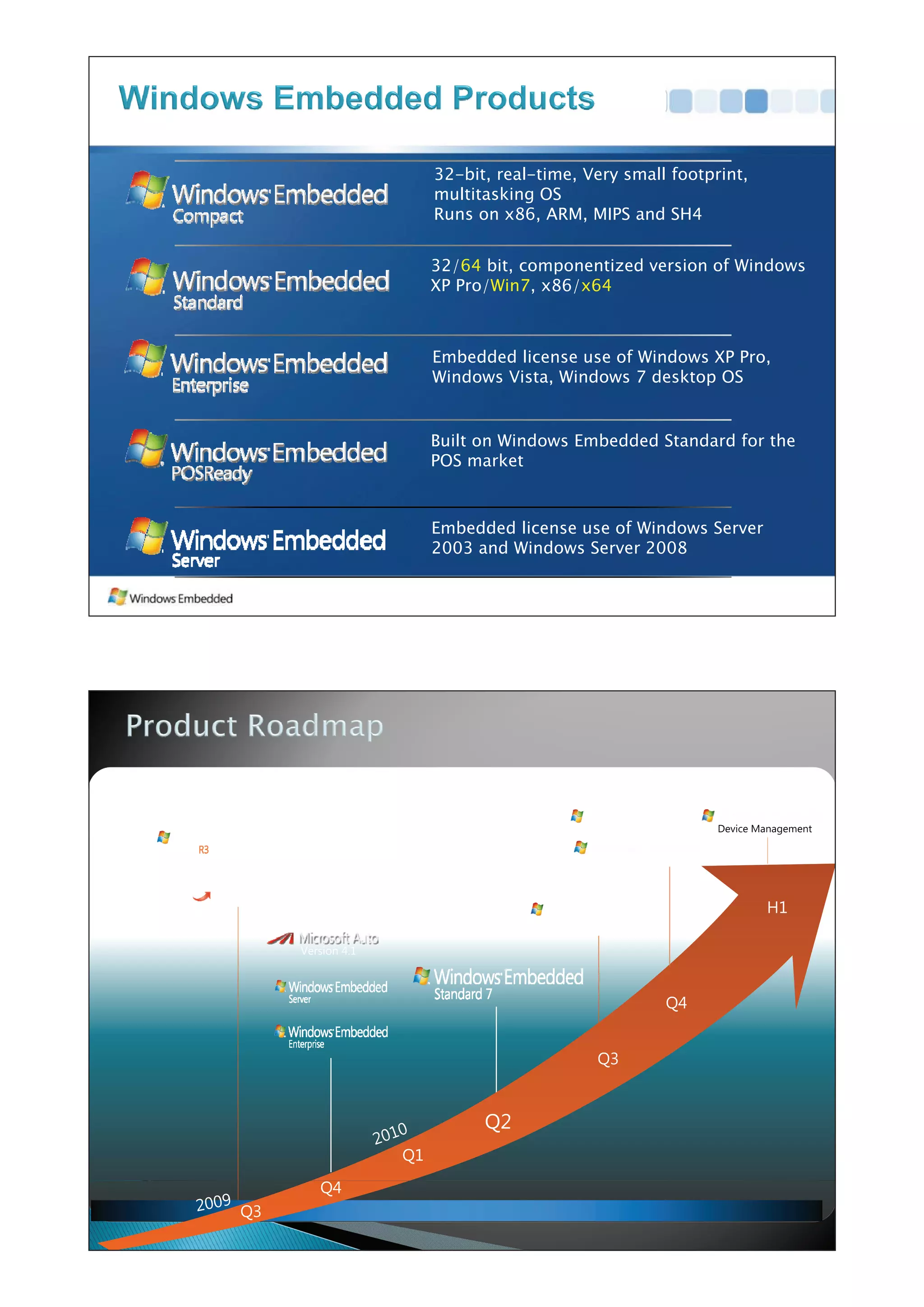

4. 32-bit, real-time, Very small footprint,
multitasking OS
Runs on x86, ARM, MIPS and SH4
32/64 bit componentized version of Windows
bit,
XP Pro/Win7, x86/x64
Embedded license use of Windows XP Pro,
Windows Vista, Windows 7 desktop OS
Built on Windows Embedded Standard for the
POS market
Embedded license use of Windows Server
2003 and Windows Server 2008

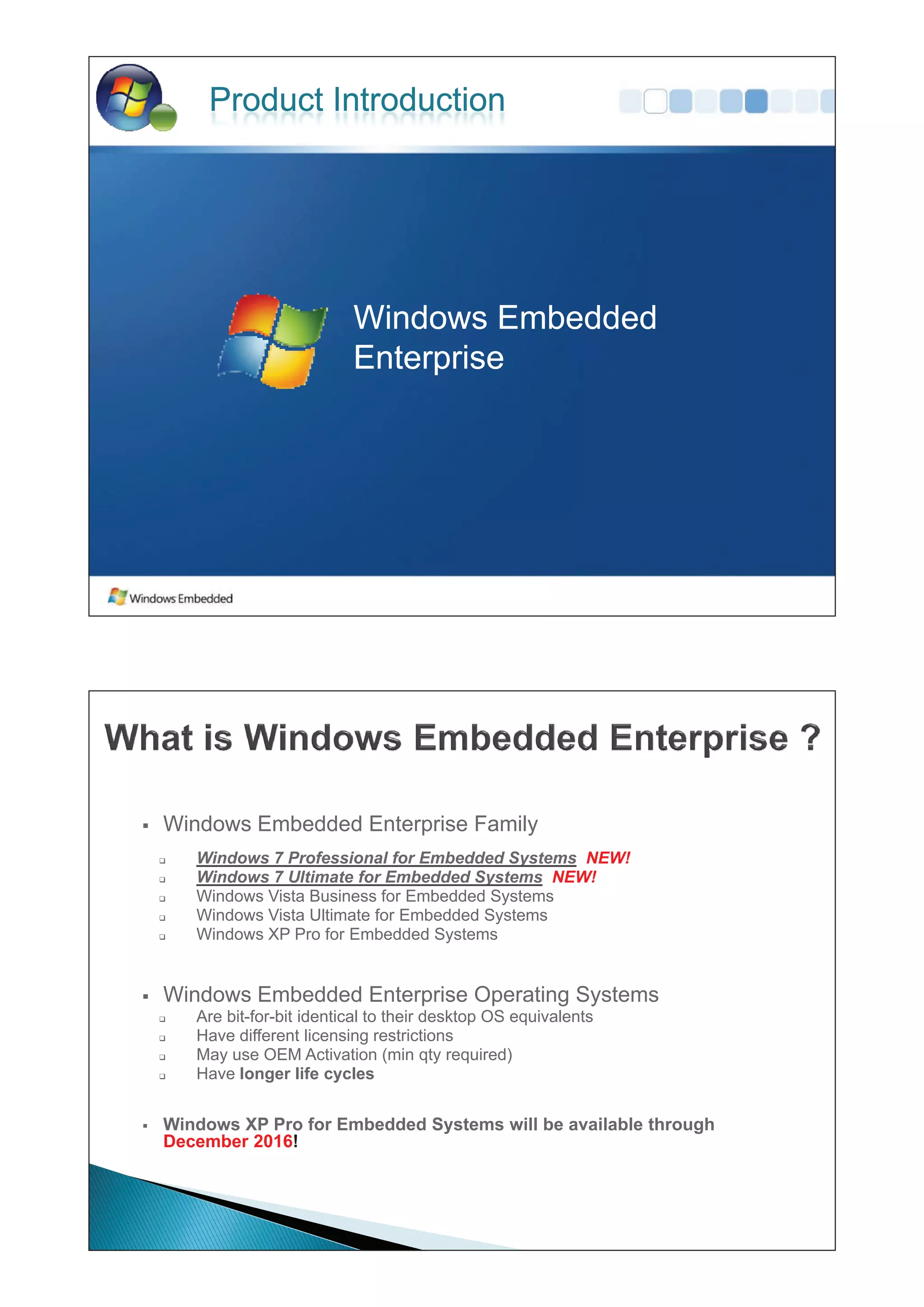

5. Product Introduction
ƒ Windows Embedded Enterprise Family
‰ Windows 7 Professional for Embedded Systems NEW!
‰ Windows 7 Ultimate for Embedded Systems NEW!
‰ Windows Vista Business for Embedded Systems
‰ Windows Vista Ultimate for Embedded Systems
‰ Windows XP Pro for Embedded Systems
ƒ Windows Embedded Enterprise Operating Systems
‰ Are bit-for-bit identical to their desktop OS equivalents
‰ Have different licensing restrictions
‰ May use OEM Activation (min qty required)
‰ Have longer life cycles
ƒ Windows XP Pro for Embedded Systems will be available through
December 2016!

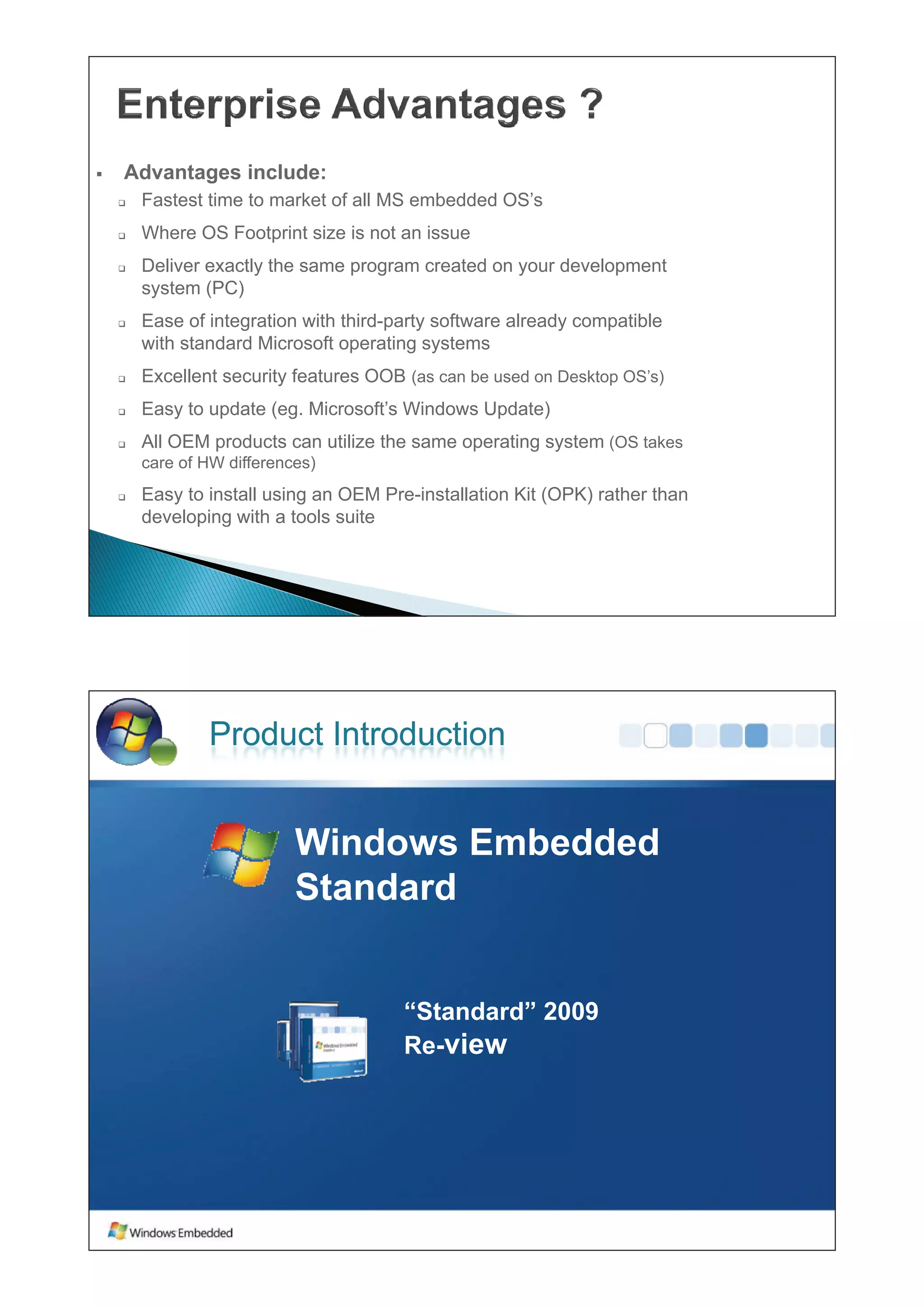

6. ƒ Advantages include:
‰ Fastest ti
F t t time to market of all MS embedded OS’
t k t f ll b dd d OS’s
‰ Where OS Footprint size is not an issue
‰ Deliver exactly the same program created on your development
system (PC)
‰ Ease of integration with third-party software already compatible
with standard Mi
ih d d Microsoft operating systems
f i
‰ Excellent security features OOB (as can be used on Desktop OS’s)
‰ Easy to update (eg Microsoft’s Windows Update)
(eg. Microsoft s
‰ All OEM products can utilize the same operating system (OS takes
care of HW differences)
‰ Easy to install using an OEM Pre-installation Kit (OPK) rather than
developing with a tools suite
Product Introduction
Windows Embedded
Wi d E b dd d
Standard
“Standard” 2009
Re view
Re-

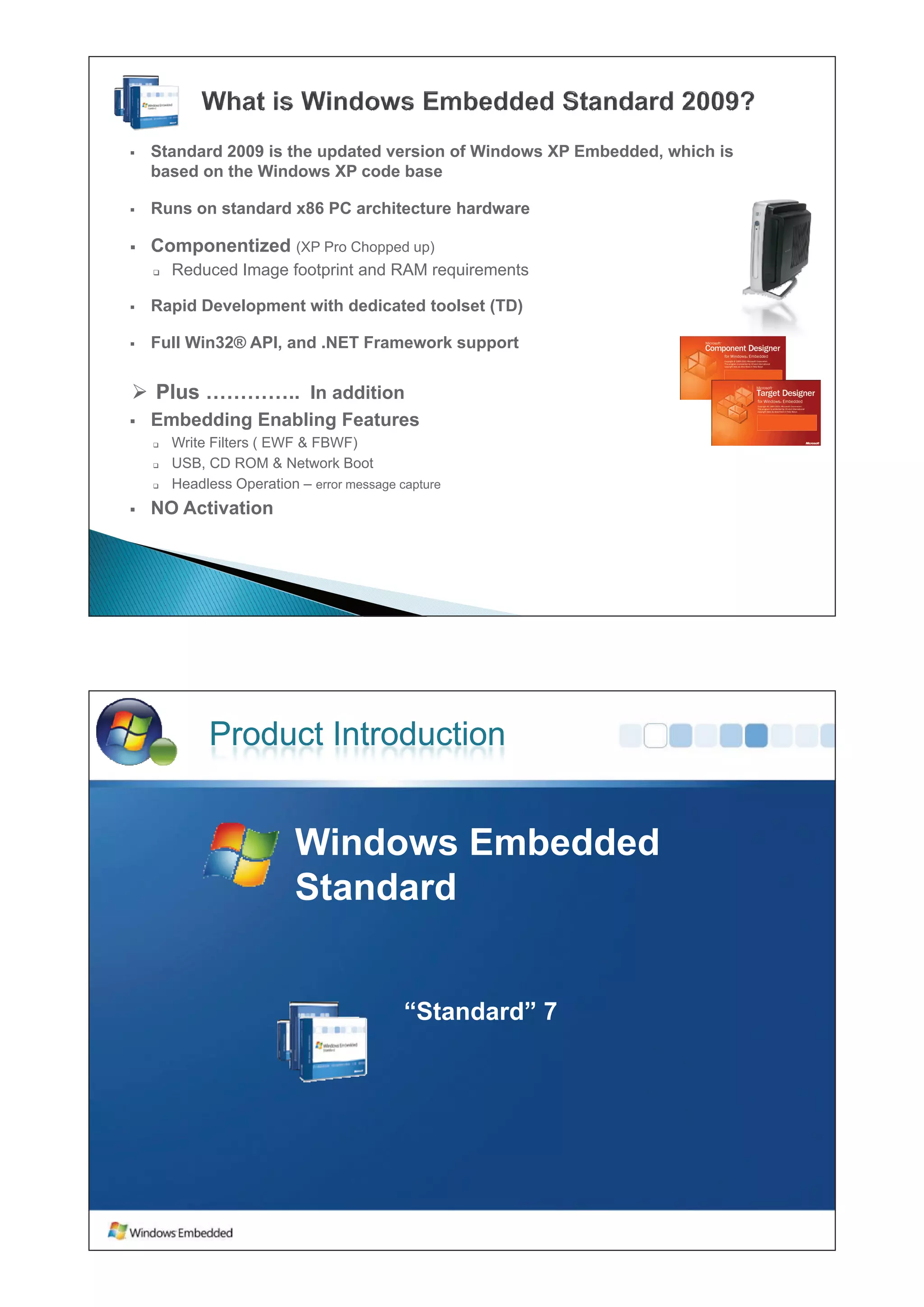

7. ƒ Standard 2009 is the updated version of Windows XP Embedded, which is
based on the Windows XP code base
ƒ Runs on standard x86 PC architecture hardware
ƒ Componentized (XP Pro Chopped up)
‰ Reduced I
R d d Image f t i t and RAM requirements
footprint d i t
ƒ Rapid Development with dedicated toolset (TD)
ƒ Full Wi 32® API
F ll Win32® API, and .NET F
d NET Framework support
k
¾ Plus ………….. In addition
ƒ Embedding Enabling Features
‰ Write Filters ( EWF & FBWF)
‰ USB, CD ROM & Network Boot
‰ Headless Operation – error message capture
ƒ NO Activation
Product Introduction
Windows Embedded
Wi d E b dd d
Standard
“Standard” 7

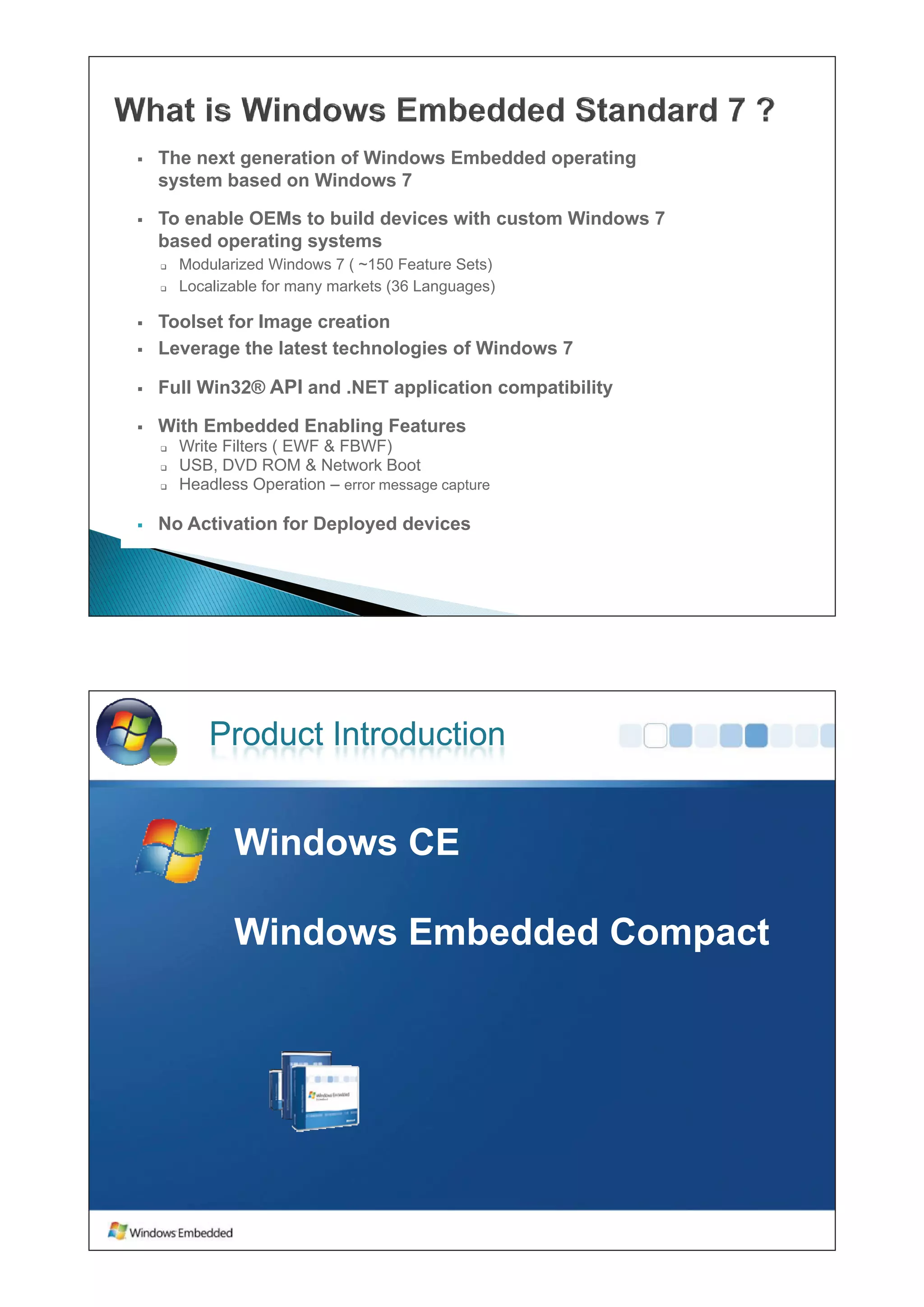

8. ƒ The next generation of Windows Embedded operating
system based on Windows 7
ƒ To enable OEMs to build devices with custom Windows 7
based operating systems
‰ Modularized Windows 7 ( ~150 Feature Sets)
150
‰ Localizable for many markets (36 Languages)
ƒ Toolset for Image creation
ƒ Leverage the latest technologies of Windows 7
ƒ Full Win32® API and .NET application compatibility
ƒ With Embedded Enabling Features
‰ Write Filters ( EWF & FBWF)
‰ USB, DVD ROM & Network Boot
‰ Headless Operation – error message capture
ƒ No Activation for Deployed devices
Product Introduction
Windows CE
Wi d
Windows Embedded Compact

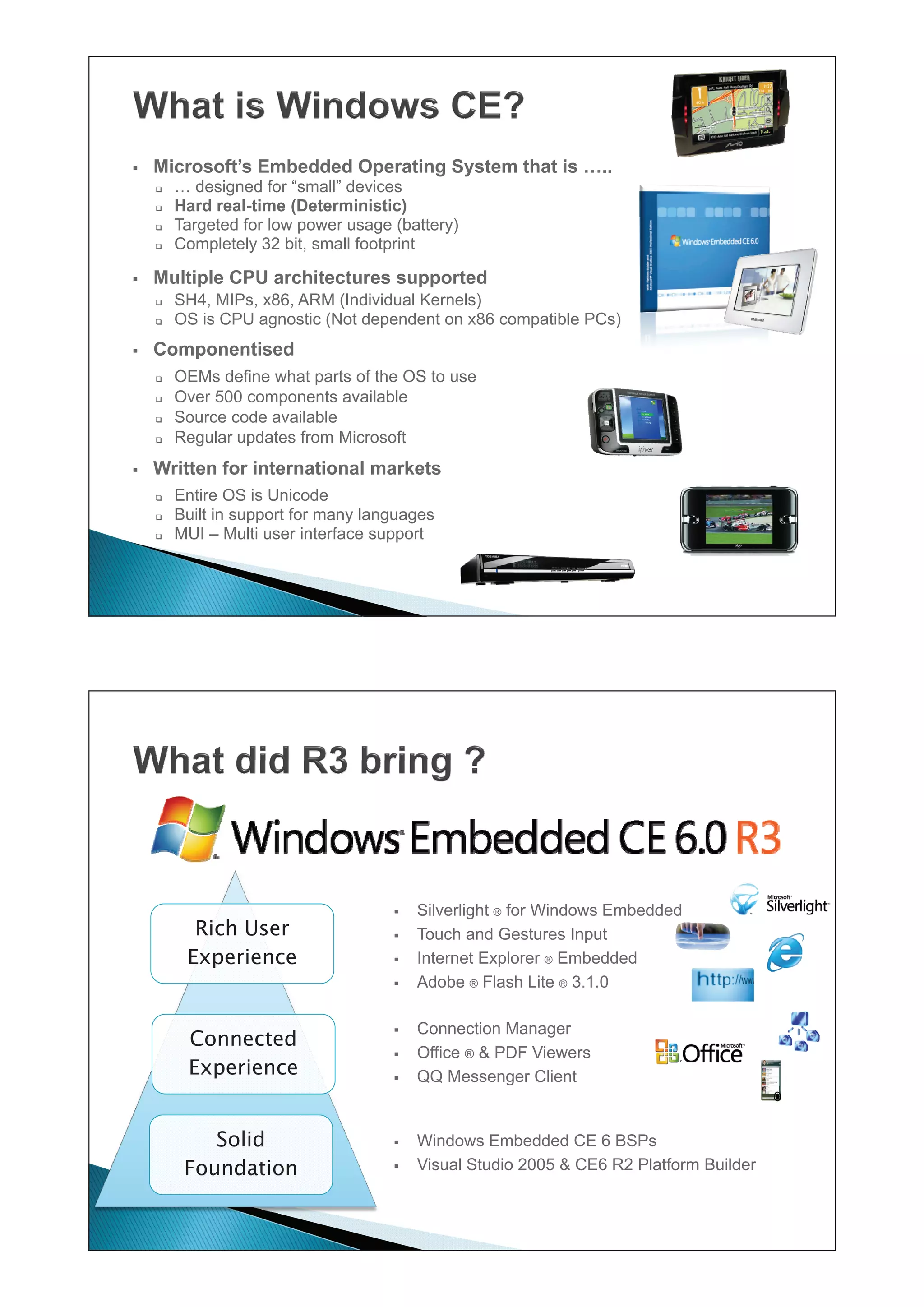

9. ƒ Microsoft’s Embedded Operating System that is …..
‰ … designed for “small” devices
‰ Hard real-time (Deterministic)
‰ Targeted for low power usage (battery)
‰ Completely 32 bit, small footprint
ƒ Multiple CPU architectures supported
‰ SH4, MIPs, x86, ARM (Individual Kernels)
‰ OS is CPU agnostic (Not dependent on x86 compatible PCs)
ƒ Componentised
‰ OEMs define what parts of the OS to use
‰ Over 500 components available
‰ Source code available
‰ Regular updates from Microsoft
ƒ Written for international markets
‰ Entire OS is Unicode
‰ Built in support for many languages
‰ MUI – Multi user interface support
ƒ Silverlight ® for Windows Embedded
Rich User ƒ Touch and Gestures Input
Experience ƒ Internet Explorer ® Embedded
ƒ Adobe ® Flash Lite ® 3.1.0
ƒ Connection Manager
Connected
ƒ Office ® & PDF Viewers
Experience ƒ QQ Messenger Client
Solid ƒ Windows Embedded CE 6 BSPs
Foundation ƒ Visual Studio 2005 & CE6 R2 Platform Builder

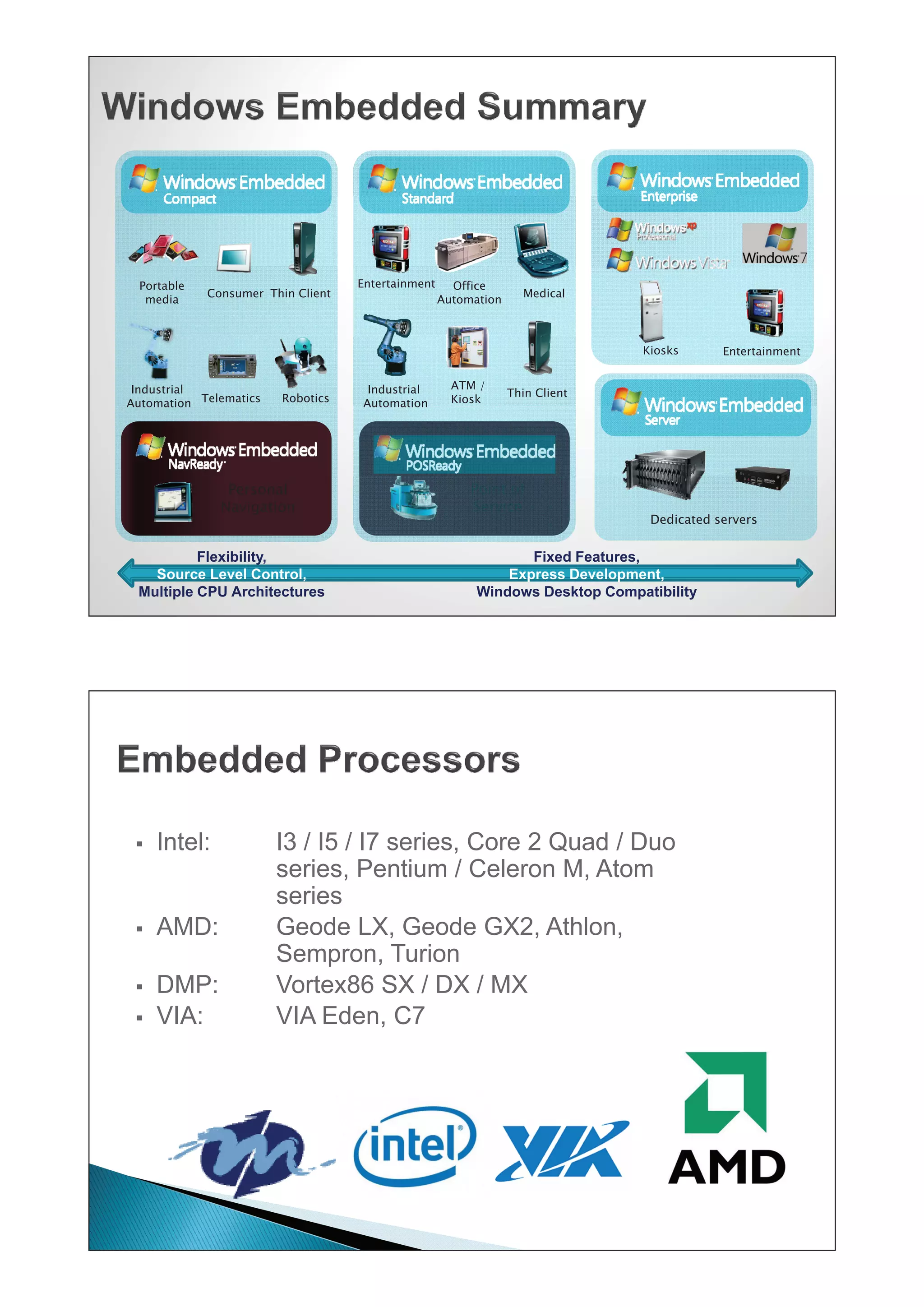

10. Portable Entertainment Office
Consumer Thin Client Medical
media Automation
Kiosks Entertainment
Industrial Industrial ATM /
Thin Client
Automation Telematics Robotics Automation Kiosk
Personal Point of
Navigation Service
Dedicated servers
Flexibility, Fixed Features,
Source Level Control, Express Development,
Multiple CPU Architectures Windows Desktop Compatibility
ƒ Intel: I3 / I5 / I7 series, Core 2 Quad / Duo
series, Pentium / Celeron M, Atom
series
ƒ AMD: Geode LX, Geode GX2, Athlon,
Sempron, Turion
ƒ DMP: Vortex86 SX / DX / MX
ƒ VIA: VIA Eden, C7

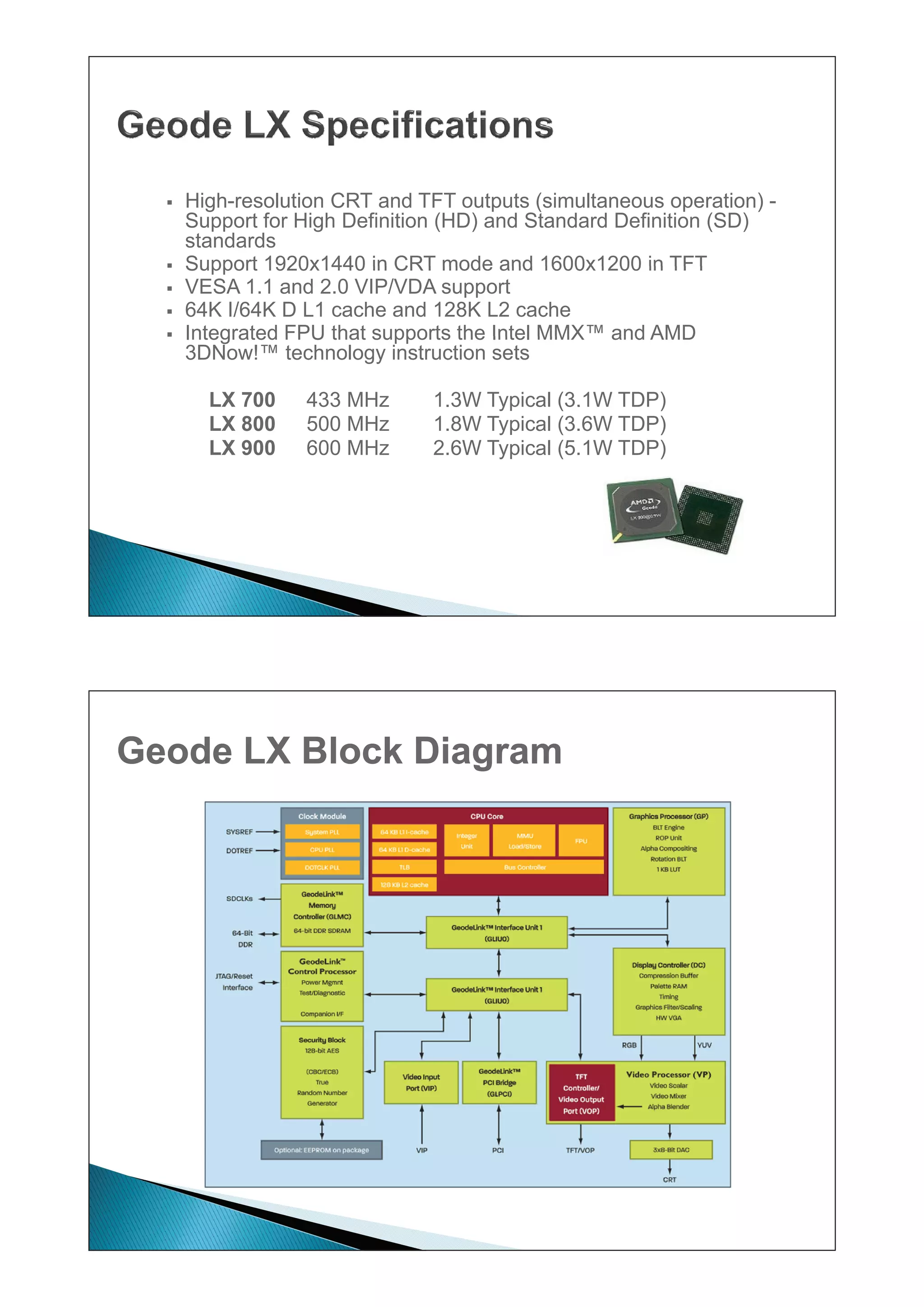

11. ƒ High-resolution CRT and TFT outputs (simultaneous operation) -
Hi h l ti d t t ( i lt ti )
Support for High Definition (HD) and Standard Definition (SD)
standards
ƒ Support 1920x1440 in CRT mode and 1600x1200 in TFT
ƒ VESA 1.1 and 2.0 VIP/VDA support
ƒ 64K I/64K D L1 cache and 128K L2 cache
ƒ Integrated FPU that supports the Intel MMX™ and AMD
MMX
3DNow!™ technology instruction sets
LX 700 433 MHz 1.3W Typical (3.1W TDP)
LX 800 500 MHz 1.8W Typical (3.6W TDP)
LX 900 600 MHz 2.6W Typical (5.1W TDP)
Geode LX Block Diagram

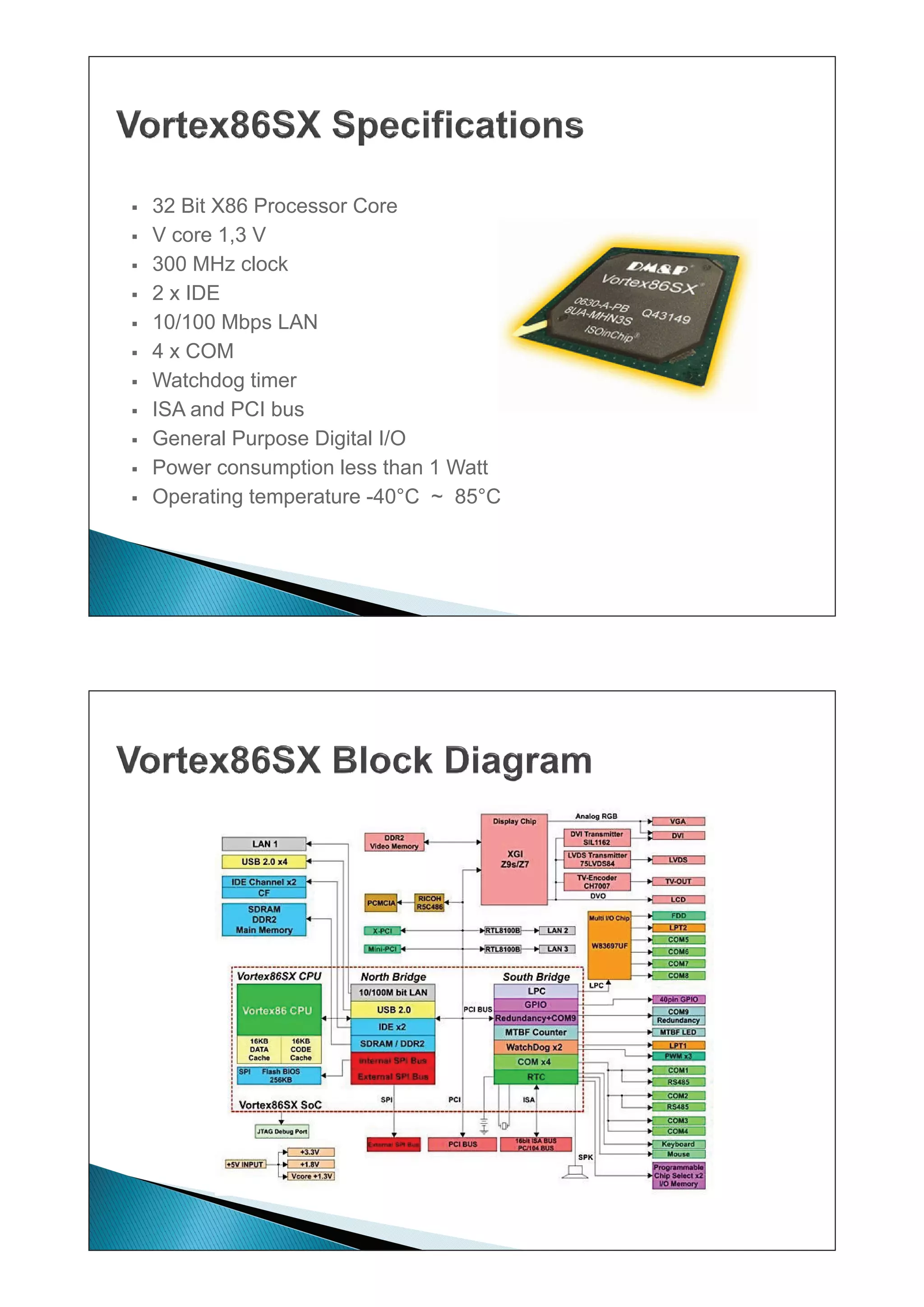

12. ƒ 32 Bit X86 Processor Core
ƒ V core 1,3 V
ƒ 300 MHz clock
ƒ 2 x IDE
ƒ 10/100 Mbps LAN
ƒ 4 x COM
ƒ Watchdog timer
ƒ ISA and PCI bus
ƒ General Purpose Digital I/O
ƒ Power consumption less than 1 Watt
p
ƒ Operating temperature -40°C ~ 85°C

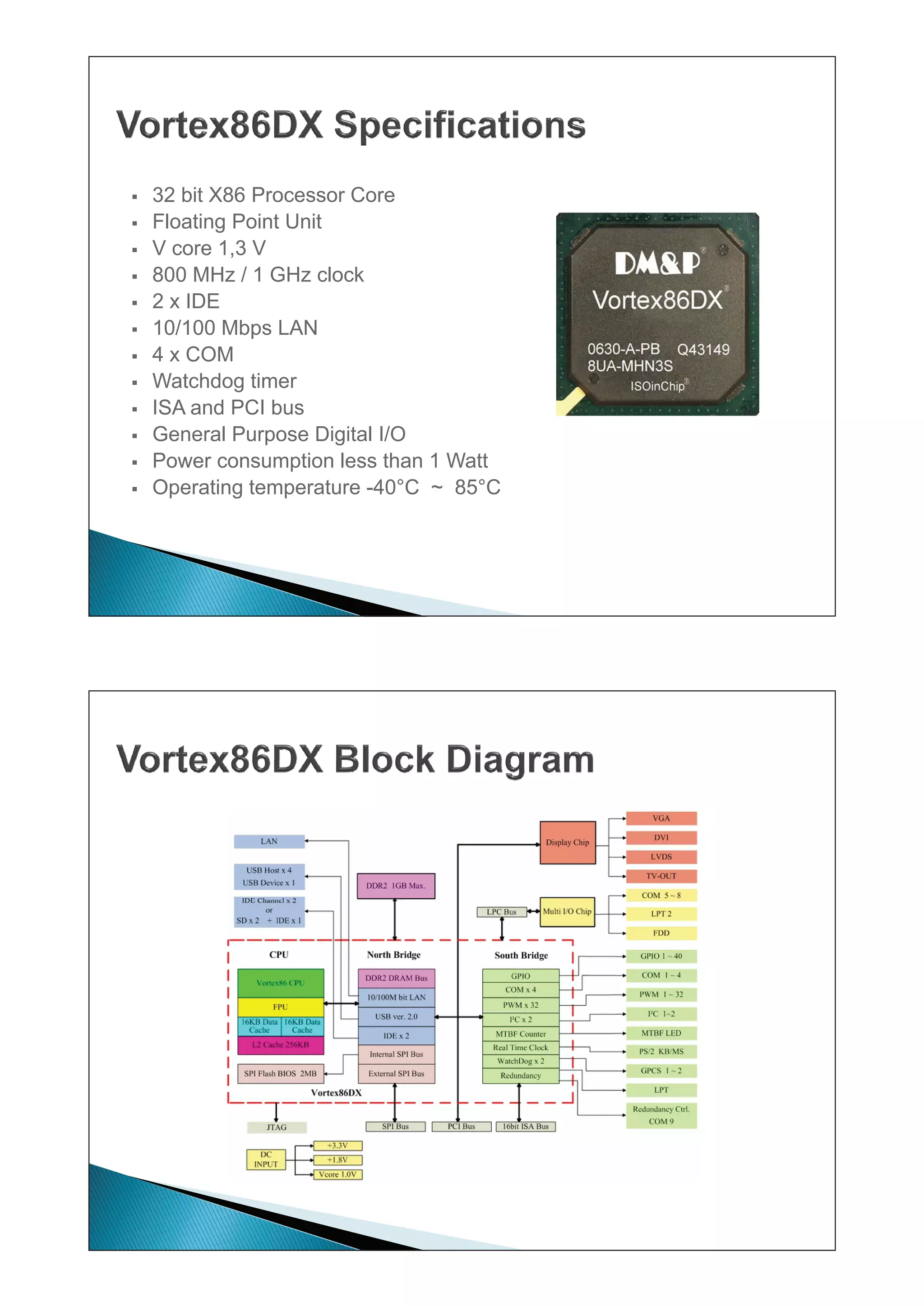

13. ƒ 32 bit X86 Processor Core
ƒ Floating Point Unit
ƒ V core 1,3 V
ƒ 800 MHz / 1 GHz clock
ƒ 2 x IDE
ƒ 10/100 Mbps LAN
p
ƒ 4 x COM
ƒ Watchdog timer
ƒ ISA and PCI bus
ƒ General Purpose Digital I/O
ƒ Power consumption less than 1 Watt
ƒ Operating temperature -40°C ~ 85°C

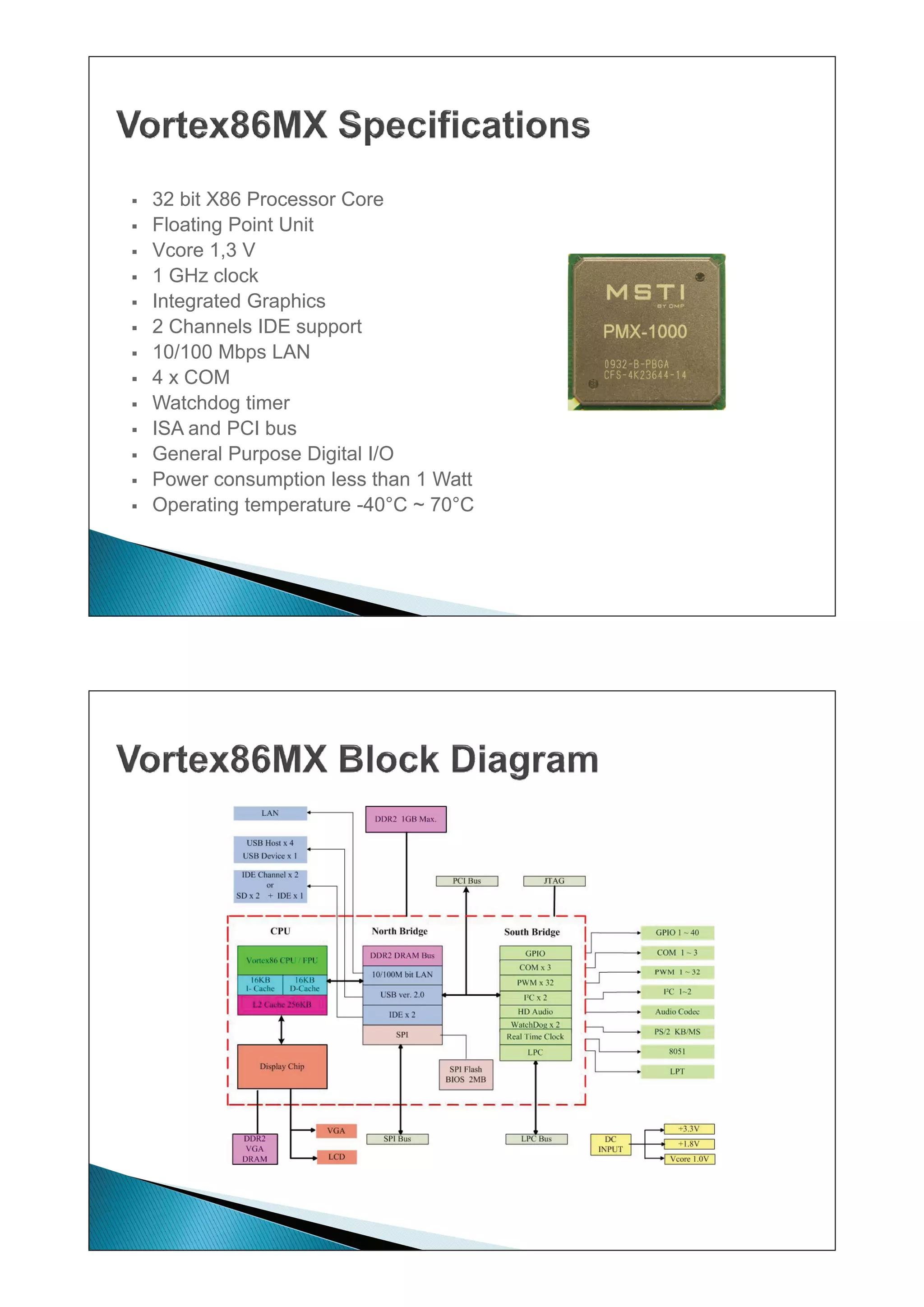

14. ƒ 32 bit X86 Processor Core
ƒ Floating Point Unit
ƒ Vcore 1,3 V
ƒ 1 GHz clock
ƒ Integrated Graphics
ƒ 2 Channels IDE support
pp
ƒ 10/100 Mbps LAN
ƒ 4 x COM
ƒ Watchdog timer
ƒ ISA and PCI bus
ƒ General Purpose Digital I/O
ƒ Power consumption less than 1 Watt
ƒ Operating temperature -40°C ~ 70°C

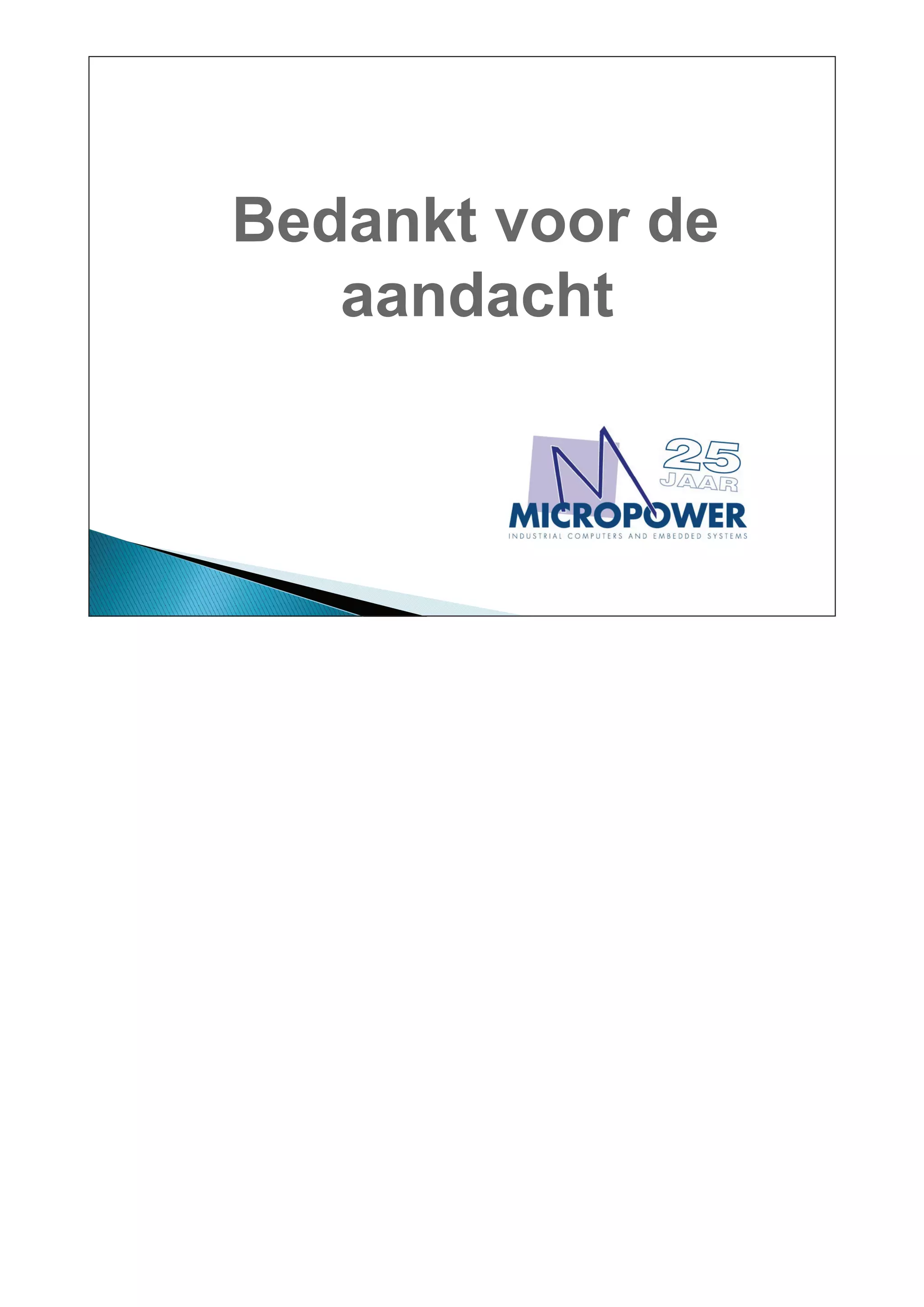

15. Bedankt voor de
aandacht
