RFID uses radio waves to electronically identify objects. An RFID tag contains information that is transmitted to an RFID reader when within range of its radio waves. A basic RFID system consists of tags containing data chips and antennas, readers and antennas to interrogate tags, and application software. Common applications of RFID include credit cards, electronic toll collection, and access control. While offering benefits over barcodes like storing more data and remote reading, RFID costs remain higher and standards are still developing.

1. RFID
10/16/2012

2. Future
Survey development
Introduction Applications Conclusion
Results and
opportunities

3. RFID
 RFID = Radio Frequency Identification
 Electronic labeling and wireless identification of
objects using radio frequency
 Tag carries with its information
 a serial number
 Model number
 Color or any other imaginable data
 When these tags pass through a field generated by a
compatible reader, they transmit this information
back to the reader, thereby identifying the object

4. RFID components
 A basic RFID system consists of these components:
 A programmable RFID tag/inlay for storing item data;
 Consisting of an RFID chip for data storage
 an antenna to facilitate communication with the RFID chip
 A reader/antenna system to interrogate the RFID
inlay
 Application software and a host computer system

5. RFID Tag
The RFID tag consists of an integrated circuit (IC)
embedded in a thin film medium.
Information stored in the memory of the RFID chip is
transmitted by the antenna circuit embedded in the
RFID inlay via radio frequencies, to an RFID reader
3 types
Passive
Semi-passive
Active

6. Types of RFID Tags

7. Applications

8. Current Applications

9. Credit Cards with RFID
(Paywave function)
Applications
Octopus (Smart Card)

10. Autotoll (Electronic toll collection)
Applications
Access Control

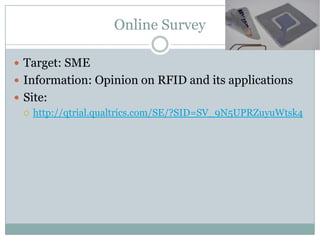

11. Online Survey
 Target: SME
 Information: Opinion on RFID and its applications
 Site:
 http://qtrial.qualtrics.com/SE/?SID=SV_9N5UPRZuyuWtsk4

12. Survey Result
Types of the companies answersing the questionnaire
12% 6%
Education
6%
23% Manufacturing
Retailing
Warehousing
Transportation
Others
29%
24%

13. Further Development
 In medical uses and library management

14. Video

15. Conclusion
 Positive
 RFID is a contactless reading technology and can read
through other materials
 Hold more data than barcode does
 RFID tags data can be changed or added
 More effective, bring lots of convenience to us
 Negative
 Cost is relatively remain high (compare to barcode)
 RFID signals may have problems with some materials
 RFID standards are still being developed
