The document discusses radio frequency identification (RFID) technology, including its components, types of RFID tags, and some current applications. It then outlines the results of an online survey that asked small and medium enterprises about their opinions on RFID and its applications. Common applications identified included inventory control, logistics/supply chain management, and library management.

1. Operating System
CHAN YIK MAN
12206571
10/23/2012

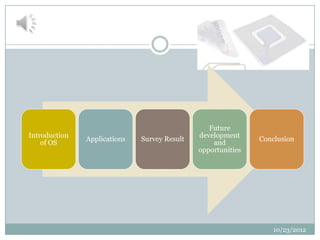

2. Future
Introduction development
Applications Survey Result Conclusion
of OS and
opportunities
10/23/2012

3. RFID
 RFID = Radio Frequency Identification
 Electronic labeling and wireless identification of
objects using radio frequency
 Tag carries with its information
 a serial number
 Model number
 Color or any other imaginable data
 When these tags pass through a field generated by a
compatible reader, they transmit this information
back to the reader, thereby identifying the object

4. RFID components
 A basic RFID system consists of these components:
 A programmable RFID tag/inlay for storing item data;
 Consisting of an RFID chip for data storage
 an antenna to facilitate communication with the RFID chip
 A reader/antenna system to interrogate the RFID
inlay
 Application software and a host computer system

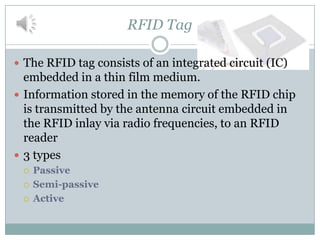

5. RFID Tag
 The RFID tag consists of an integrated circuit (IC)
embedded in a thin film medium.
 Information stored in the memory of the RFID chip
is transmitted by the antenna circuit embedded in
the RFID inlay via radio frequencies, to an RFID
reader
 3 types
 Passive
 Semi-passive
 Active

6. Types of RFID Tags
Active Tags Semi-passive Tags Passive Tags
• Use a battery • Contain built-in • Derive their power
• communicate over batteries to power from the field
distances of several the chip’s circuitry, generated by the
meters resist interference reader
and circumvent a • without having an
lack of power from active transmitter to
the reader signal due transfer the
to long distance. information stored
• They are different
from active tags in
that they only
transmit data at the
time a response is
received

7. Applications

8. Current Applications

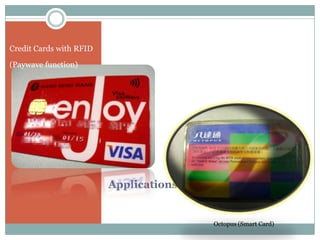

9. Credit Cards with RFID
(Paywave function)
Applications
Octopus (Smart Card)

10. Autotoll (Electronic toll collection)
Applications
Access Control

11. Online Survey
 Target: SME
 Information: Opinion on RFID and its applications
 Site:
 http://qtrial.qualtrics.com/SE/?SID=SV_9N5UPRZuyuWtsk4

12. Survey Result
Types of industries that respondents think
it is possible to apply RFID technology
Document
Management
8%
Inventory
Control
10% Security Customer Services
8% 5%
Hotel Management
Library Management
Other 5%
21%
18%
Banking and Finance
Pharmaceutic 5%
manufacturing
industries Logistics and Supply Social Services
15% Chain Management 3%
20%

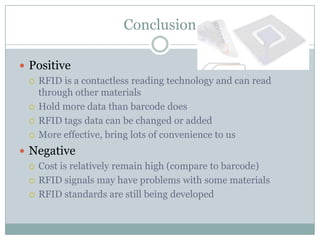

13. Conclusion
 Positive
 RFID is a contactless reading technology and can read
through other materials
 Hold more data than barcode does
 RFID tags data can be changed or added
 More effective, bring lots of convenience to us
 Negative
 Cost is relatively remain high (compare to barcode)
 RFID signals may have problems with some materials
 RFID standards are still being developed

14. Further Development
 In medical uses and library management

15. Video
