1. RFID Application
Yu Sin Yan
12202088
17 October 2012

2. Workflow
Future
Introduction development
Applications Survey Results Conclusion
of RFID and
opportunities
17 October 2012

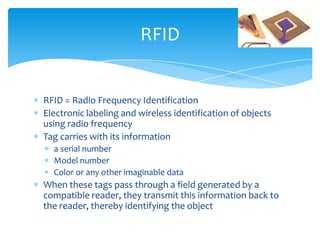

3. RFID
RFID = Radio Frequency Identification
Electronic labeling and wireless identification of objects
using radio frequency
Tag carries with its information
a serial number
Model number
Color or any other imaginable data
When these tags pass through a field generated by a
compatible reader, they transmit this information back to
the reader, thereby identifying the object

4. RFID components
A basic RFID system consists of these components:
A programmable RFID tag/inlay for storing item data;
Consisting of an RFID chip for data storage
an antenna to facilitate communication with the RFID chip
A reader/antenna system to interrogate the RFID
inlay
Application software and a host computer system

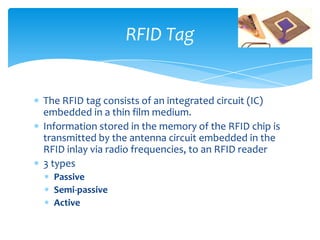

5. RFID Tag
The RFID tag consists of an integrated circuit (IC)
embedded in a thin film medium.
Information stored in the memory of the RFID chip is
transmitted by the antenna circuit embedded in the
RFID inlay via radio frequencies, to an RFID reader
3 types
Passive
Semi-passive
Active

6. Types of RFID Tags
Active Tags Semi-passive Tags Passive Tags
•Use a battery •Contain built-in •Derive their power from
•communicate over batteries to power the the field generated by
distances of several chip’s circuitry, resist the reader
meters interference and •without having an
circumvent a lack of active transmitter to
power from the reader transfer the information
signal due to long stored
distance.
•They are different from
active tags in that they
only transmit data at
the time a response is
received

7. Applications
Frequency Appx. Read Data Speed Cost of Application
Range Tags
Low Frequency <5cm Low High • Animal Identification
(125kHz)
(passive) • Access Control
High Frequency 10 cm – 1m Low to Moderate Medium • Smart Cards
(13.56 Mhz) to Low
(passive) • Payment (paywave)
Ultra High 3m -7m Moderate to Low • Logistics and Supply Chain
Frequency (433, High
868-928 Mhz) (passive) • Baggage Tracking
Microwave (2.45 & 10m -15m High High • Electronic toll collection
5.8 Ghz) (Autotoll)
(passive)
• Container Tracking
20m – 40m
(active)

8. Current Applications
Application Segment Representative Competitive Current Typical Tag Type
Applications Technologies Penetration
Access Control Doorway entry Other keyless entry High Passive
technologies
Asset Tracking Locating tractors None Low Active
within a freight yard
Asset Tagging Tracking corporate Bar Code Low Passive
computing systems
Authentication Luxury goods Holograms Low Passive
counterfeit
prevention
Baggage Tracking Positive bag Bar Code, Optical Low Passive
matching Character Recognition
POS Applications SpeedPass Credit Cards, Smart Medium Passive
Cards, Wireless Phones
SCM (Container Level) Tracking containers GPS-based Systems Low Active
in shipping terminals
SCM (Pallet Level) Tracking palletized Bar Code Minimal Active, Passive
shipments
SCM (Item Level) Identifying individual Bar Code Minimal Passive
items
Vehicle Identification Electronic toll Bar Code, License plate, Medium Active, Passive
collection reader systems
Vehicle Immobilizers Automotive ignition Other theft prevention High Passive
systems technologies

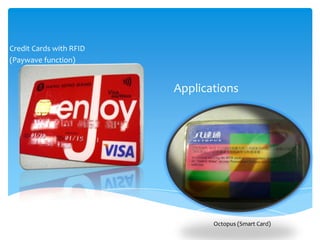

9. Credit Cards with RFID
(Paywave function)
Applications
Octopus (Smart Card)

10. Autotoll (Electronic toll collection)
Applications
Access Control

11. Online Survey
Target: SME
Information: Opinion on RFID and its applications
Site:
http://qtrial.qualtrics.com/SE/?SID=SV_9N5UPRZuyuWts
k4

12. Survey Result
Types of industries that respondents think
it is possible to apply RFID technology
Document Management
8%
Inventory Control
10%
Security
Customer Services
8%
5%
Library Management Hotel Management
21% Other 5%
18%
Banking and Finance
5%
Pharmaceutic
manufacturing
Social Services
industries Logistics and Supply Chain 3%
15% Management
20%

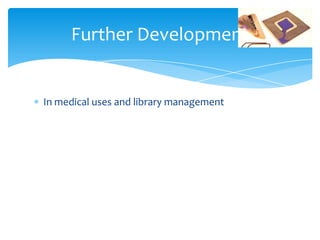

13. Further Development
In medical uses and library management

14. Video

15. Conclusion
Positive
RFID is a contactless reading technology and can read through
other materials
Hold more data than barcode does
RFID tags data can be changed or added
More effective, bring lots of convenience to us
Negative
Cost is relatively remain high (compare to barcode)
RFID signals may have problems with some materials
RFID standards are still being developed
