The document discusses RFID technology, including its components, types of tags, applications in various industries, and the results of an online survey on opinions of RFID. RFID uses radio waves to automatically identify objects through tags that can be attached to or incorporated into a product. The document concludes that while RFID provides benefits over barcodes like increased data capacity and reusability, costs remain relatively high and standards are still being developed.

1. 10/16/2012
FRID

2. 10/16/2012
Workflow
Introduction
Applications Survey Result Conclusion
of Internet

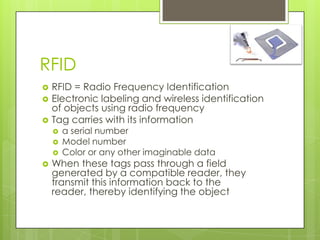

3. RFID
 RFID = Radio Frequency Identification
 Electronic labeling and wireless identification
of objects using radio frequency
 Tag carries with its information
 a serial number
 Model number
 Color or any other imaginable data
 When these tags pass through a field
generated by a compatible reader, they
transmit this information back to the
reader, thereby identifying the object

4. RFID components
 A basic RFID system consists of these
components:
 A programmable RFID tag/inlay for storing item
data;
 Consisting of an RFID chip for data storage
 an antenna to facilitate communication with
the RFID chip
 A reader/antenna system to interrogate the
RFID inlay
 Application software and a host computer
system

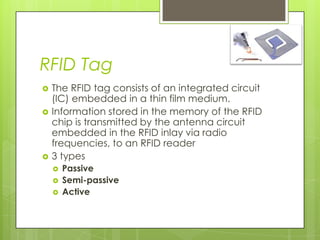

5. RFID Tag
 The RFID tag consists of an integrated circuit
(IC) embedded in a thin film medium.
 Information stored in the memory of the RFID
chip is transmitted by the antenna circuit
embedded in the RFID inlay via radio
frequencies, to an RFID reader
 3 types
 Passive
 Semi-passive
 Active

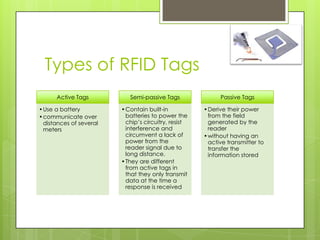

6. Types of RFID Tags
Active Tags Semi-passive Tags Passive Tags
•Use a battery •Contain built-in •Derive their power
•communicate over batteries to power the from the field
distances of several chip’s circuitry, resist generated by the
meters interference and reader
circumvent a lack of •without having an
power from the active transmitter to
reader signal due to transfer the
long distance. information stored
•They are different
from active tags in
that they only transmit
data at the time a
response is received

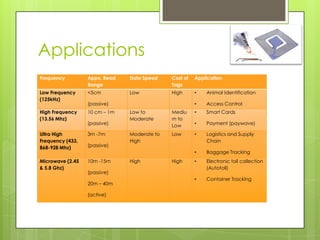

7. Applications
Frequency Appx. Read Data Speed Cost of Application
Range Tags
Low Frequency <5cm Low High • Animal Identification
(125kHz)
(passive) • Access Control
High Frequency 10 cm – 1m Low to Mediu • Smart Cards
(13.56 Mhz) Moderate m to
(passive) Low • Payment (paywave)
Ultra High 3m -7m Moderate to Low • Logistics and Supply
Frequency (433, High Chain
868-928 Mhz) (passive)
• Baggage Tracking
Microwave (2.45 10m -15m High High • Electronic toll collection
& 5.8 Ghz) (Autotoll)
(passive)
• Container Tracking
20m – 40m
(active)

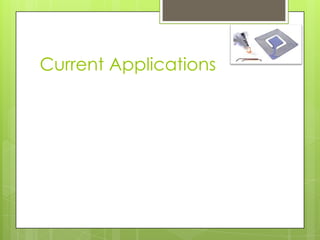

8. Current Applications

9. Credit Cards with RFID
(Paywave function)
Applications
Octopus (Smart Card)

10. Autotoll (Electronic toll collection)
Applications
Access Control

11. Online Survey
 Target:SME
 Information: Opinion on RFID and its
applications
 Site:
 http://qtrial.qualtrics.com/SE/?SID=SV_9N5U
PRZuyuWtsk4

12. Survey Result
Types of industries that respondents think
it is possible to apply RFID technology
Document Management
8%
Inventory Control
10%
Security Customer Services
8% 5%
Library Management Hotel Management
21% Other 5%
18%
Banking and Finance
5%
Pharmaceutic
manufacturing
Social Services
industries Logistics and Supply Chain 3%
15% Management
20%

13. Further Development
 In medical uses and library management

14. Video

15. Conclusion
 Positive
 RFID is a contactless reading technology and can
read through other materials
 Hold more data than barcode does
 RFID tags data can be changed or added
 More effective, bring lots of convenience to us
 Negative
 Cost is relatively remain high (compare to barcode)
 RFID signals may have problems with some materials
 RFID standards are still being developed
