RFID is a technology that uses radio waves to identify objects electronically. It consists of tags that carry data, readers that can interrogate the tags, and software. Common applications include access control, asset tracking, supply chain management, and payment systems like Paywave. A survey found that respondents thought RFID could be applied to inventory control, logistics, library management, and healthcare. Further development is needed in medical and library uses. While RFID provides benefits over barcodes like storing more data, costs remain higher and standards are still being developed.

1. RFID APPLICATION
Name: Ng Ho Nam
ID:12210943

2. Future
Introduction Survey Development
Applications Conclusion
of RFID Results and
opportunities

3. RFID
RFID = Radio Frequency Identification
Electronic labeling and wireless identification of objects using radio frequency
Tag carries with its information
a serial number
Model number
Color or any other imaginable data
When these tags pass through a field generated by a compatible reader, they
transmit this information back to the reader, thereby identifying the object

4. RFID COMPONENTS
A basic RFID system consists of these components:
A programmable RFID tag/inlay for storing item data;
Consisting of an RFID chip for data storage
an antenna to facilitate communication with the RFID chip
A reader/antenna system to interrogate the RFID inlay
Application software and a host computer system

5. RFID TAG
The RFID tag consists of an integrated circuit (IC) embedded in a thin film
medium.
Information stored in the memory of the RFID chip is transmitted by the
antenna circuit embedded in the RFID inlay via radio frequencies, to an RFID
reader
3 types
Passive
Semi-passive
Active

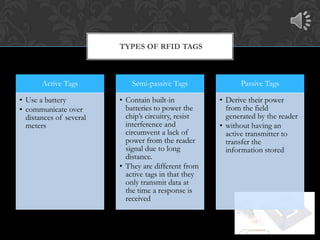

6. TYPES OF RFID TAGS
Active Tags Semi-passive Tags Passive Tags
• Use a battery • Contain built-in • Derive their power
• communicate over batteries to power the from the field
distances of several chip’s circuitry, resist generated by the reader
meters interference and • without having an
circumvent a lack of active transmitter to
power from the reader transfer the
signal due to long information stored
distance.
• They are different from
active tags in that they
only transmit data at
the time a response is
received

7. APPLICATIONS
Frequency Appx. Read Data Speed Cost of Application
Range Tags
Low Frequency <5cm Low High • Animal Identification
(125kHz)
(passive) • Access Control
High Frequency 10 cm – 1m Low to Moderate Medium • Smart Cards
(13.56 Mhz) to Low
(passive) • Payment (paywave)
Ultra High 3m -7m Moderate to High Low • Logistics and Supply Chain
Frequency (433,
(passive) • Baggage Tracking
868-928 Mhz)
Microwave (2.45 & 10m -15m High High • Electronic toll collection
5.8 Ghz) (Autotoll)
(passive)
• Container Tracking
20m – 40m
(active)

8. CURRENT APPLICATIONS
Application Segment Representative Applications Competitive Technologies Current Penetration Typical Tag Type
Access Control Doorway entry Other keyless entry technologies High Passive
Asset Tracking Locating tractors within a freight yard None Low Active
Asset Tagging Tracking corporate computing systems Bar Code Low Passive
Authentication Luxury goods counterfeit prevention Holograms Low Passive
Baggage Tracking Positive bag matching Bar Code, Optical Character Recognition Low Passive
POS Applications SpeedPass Credit Cards, Smart Cards, Wireless Phones Medium Passive
SCM (Container Level) Tracking containers in shipping terminals GPS-based Systems Low Active
SCM (Pallet Level) Tracking palletized shipments Bar Code Minimal Active, Passive
SCM (Item Level) Identifying individual items Bar Code Minimal Passive
Vehicle Identification Electronic toll collection Bar Code, License plate, reader systems Medium Active, Passive
Vehicle Immobilizers Automotive ignition systems Other theft prevention technologies High Passive

9. Credit Cards with RFID APPLICATIONS
(Paywave function)
Octopus (Smart Card)

10. APPLICATIONS
Autotoll (Electronic toll collection)
Access Control

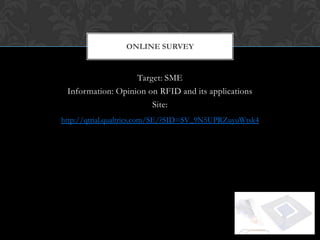

11. ONLINE SURVEY
Target: SME
Information: Opinion on RFID and its applications
Site:
http://qtrial.qualtrics.com/SE/?SID=SV_9N5UPRZuyuWtsk4

12. SURVEY RESULT
Types of industries that respondents think
it is possible to apply RFID technology
Document Management
8%
Inventory Control
10%
Security Customer Services
8% 5%
Library Management Hotel Management
21% Other 5%
18%
Banking and Finance
5%
Pharmaceutic
manufacturing
Social Services
industries Logistics and Supply Chain 3%
15% Management
20%

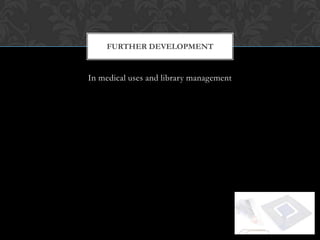

13. FURTHER DEVELOPMENT
In medical uses and library management

14. VIDEO

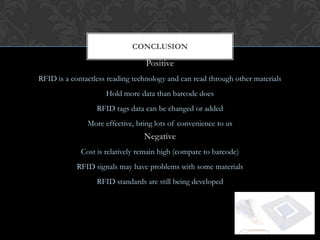

15. CONCLUSION
Positive
RFID is a contactless reading technology and can read through other materials
Hold more data than barcode does
RFID tags data can be changed or added
More effective, bring lots of convenience to us
Negative
Cost is relatively remain high (compare to barcode)
RFID signals may have problems with some materials
RFID standards are still being developed
