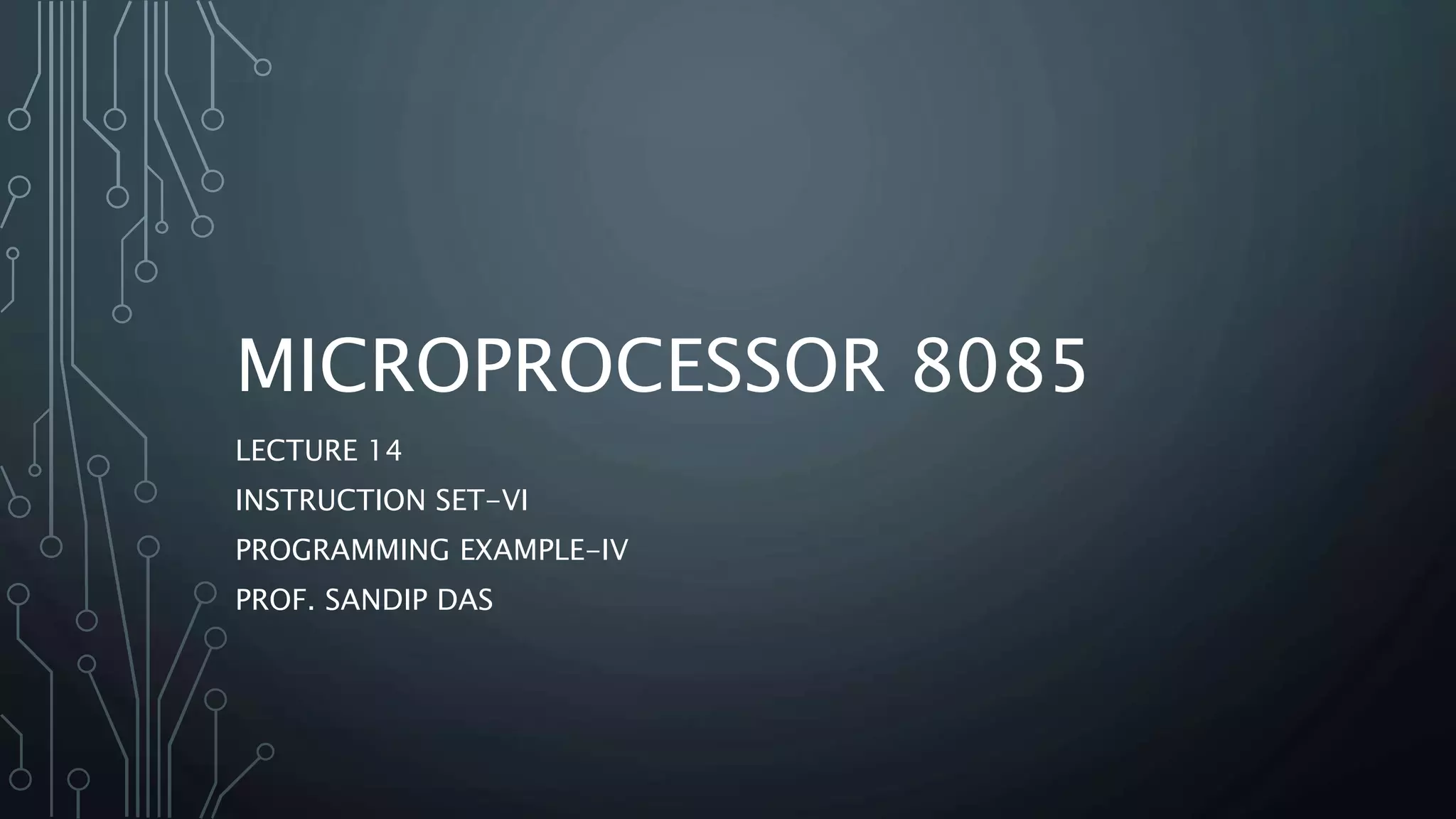

1. MICROPROCESSOR 8085
LECTURE 14
INSTRUCTION SET-VI
PROGRAMMING EXAMPLE-IV
PROF. SANDIP DAS

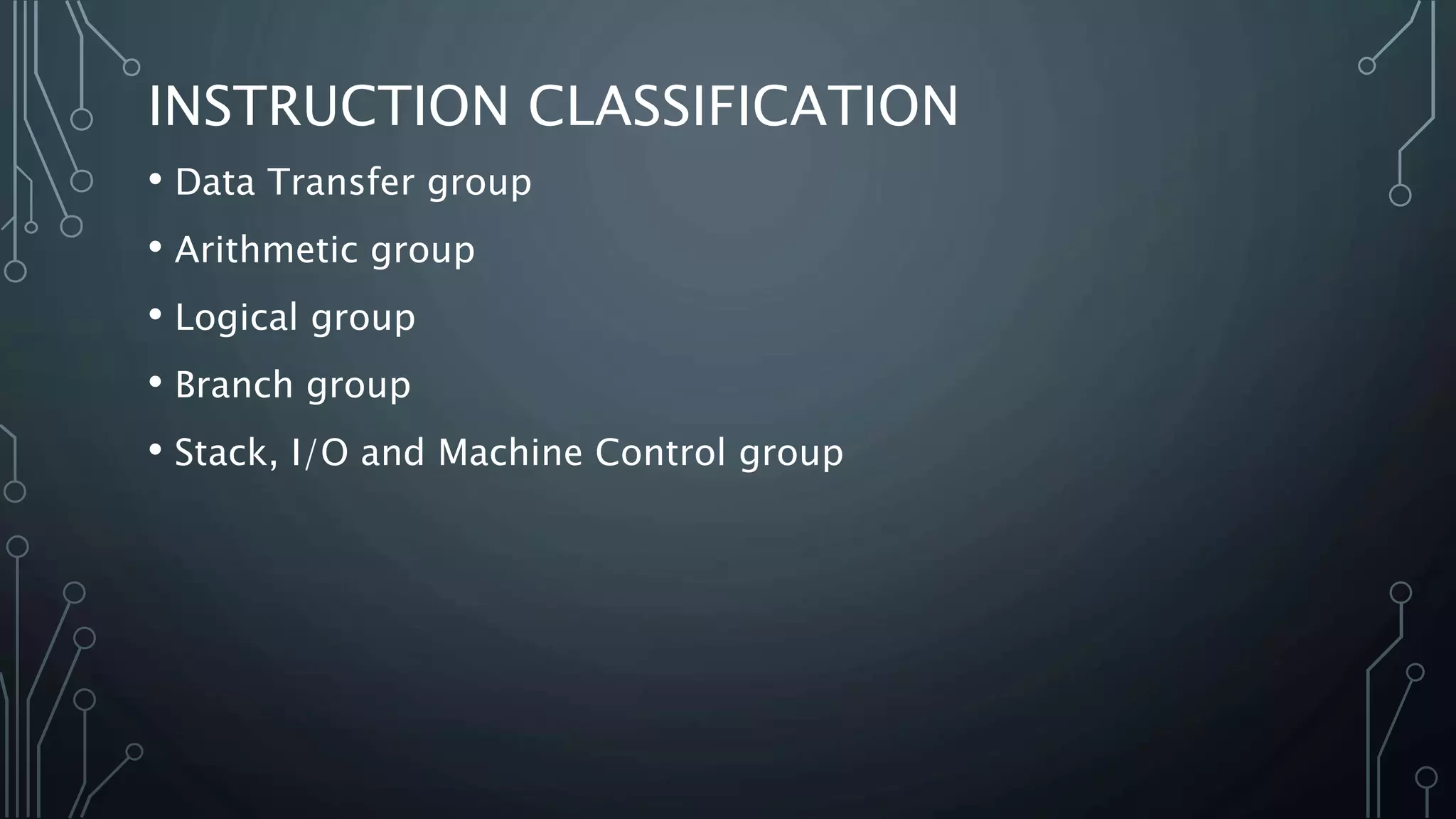

2. INSTRUCTION CLASSIFICATION
• Data Transfer group
• Arithmetic group
• Logical group
• Branch group
• Stack, I/O and Machine Control group

3. IN port addr Input to accumulator from I/O port T-states: 10 Flags affected: none
M-cycle-3
OUT port addr Output from accumulator to I/O port T-states: 10 Flags affected: none
M-cycle-3
PUSH rp Push the content of register pair to stack T-states-12 Flags affected: none
M-cycle-3
PUSH PSW Push the content of program status word T-states-12 Flags
affected: none M-cycle-3
POP rp Pop the content of register pair from stack T-states-12 Flags affected: none
M-cycle-3
POP PSW Pop the content of PSW pair from stack T-states-12 Flags affected: none
M-cycle-3
HLT Stops the execution of instruction T-states-12 Flags affected: none
M-cycle-3
XTHL Exchange stack top with H-L T-states-16 Flags affected: none
M-cycle-5
SPHL Move the contents of H-L pair T-states-6 Flags affected: none
M-cycle-1
EI Enable interrupts T-states-4 Flags affected: none
STACK, I/O AND MACHINE CONTROL
GROUP

4. WRITE A PROGRAM FOR 8 BIT DIVISION
Memory address Labels Mnemonics, operands Comments
2000 LDA 2501H Get divisor in
Accumulator
2003 MOV C,A Move divisor in
register C
2005 LDA 2500H Get dividend in
Accumulator
2008 MVI B,00H Initialize Counter
200A LOOP CMP C Compare Divisor and
Dividend. Is
Dividend>Divisor?
200C JC AHEAD
200F SUB C Subtract dividend from
divisor
2011 INR B Increment Quotient
2012 JMP LOOP Unconditional Jump
2015 AHEAD STA 2503H Store remainder in 2503H
2018 MOV A,B Move quotient in
register B
Suppose
2500H-08H (Dividend)
2501H-03H (Divisor)
Step 1:
A=03H, C=03H
New value of A=08H,B=00H
Comparing of A and C, since
A>C, so-
A=08H
- C=03H
05H
Now, Increment B, so B=01H
Again Compare A and C, A>C.
Repeat Step 1.
Step 2:
A=05H, C=03H, Subtracting
we get 02H, Increment B,
B=02H
Thus, 02H is remainder and
stored in 2503H.
B is moved to A and then
moved to 2502H as quotient.

5. WRITE A PROGRAM TO FIND SQUARE OF A NUMBER FROM LOOK
UP TABLE
Memory address Mnemonics, operands Comments
2000 LDA 2500H Get data in accumulator
2003 MOV L,A Get data in
register L
2004 MVI H,26H Get 26 in register H
2006 MOV A,M Square of data in
accumulator
2007 STA 2501H Store square in 2501H
200A HLT Halt
Data
2500H-07D
Result
2501H-49D
Look Up Table
Address
Square
(Hex) (Decimal)
2600 00
2601 01
2602 04
2603 09
2604 16
2605 25
2606 36
2607 49
2608 64
2609 81
