4. Interaction
This document provides an overview of key concepts in programming with Processing including: - Functions like size() and background() that are used to set up sketches. - The structure of a Processing sketch with setup() and draw() functions that control the flow. - How mouse position and event listeners like mousePressed() allow for interactivity. - Examples of functions, arguments, and return types. - Suggested readings for learning more about generative art, data visualization, and variables in Processing.
More Related Content
4. Interaction

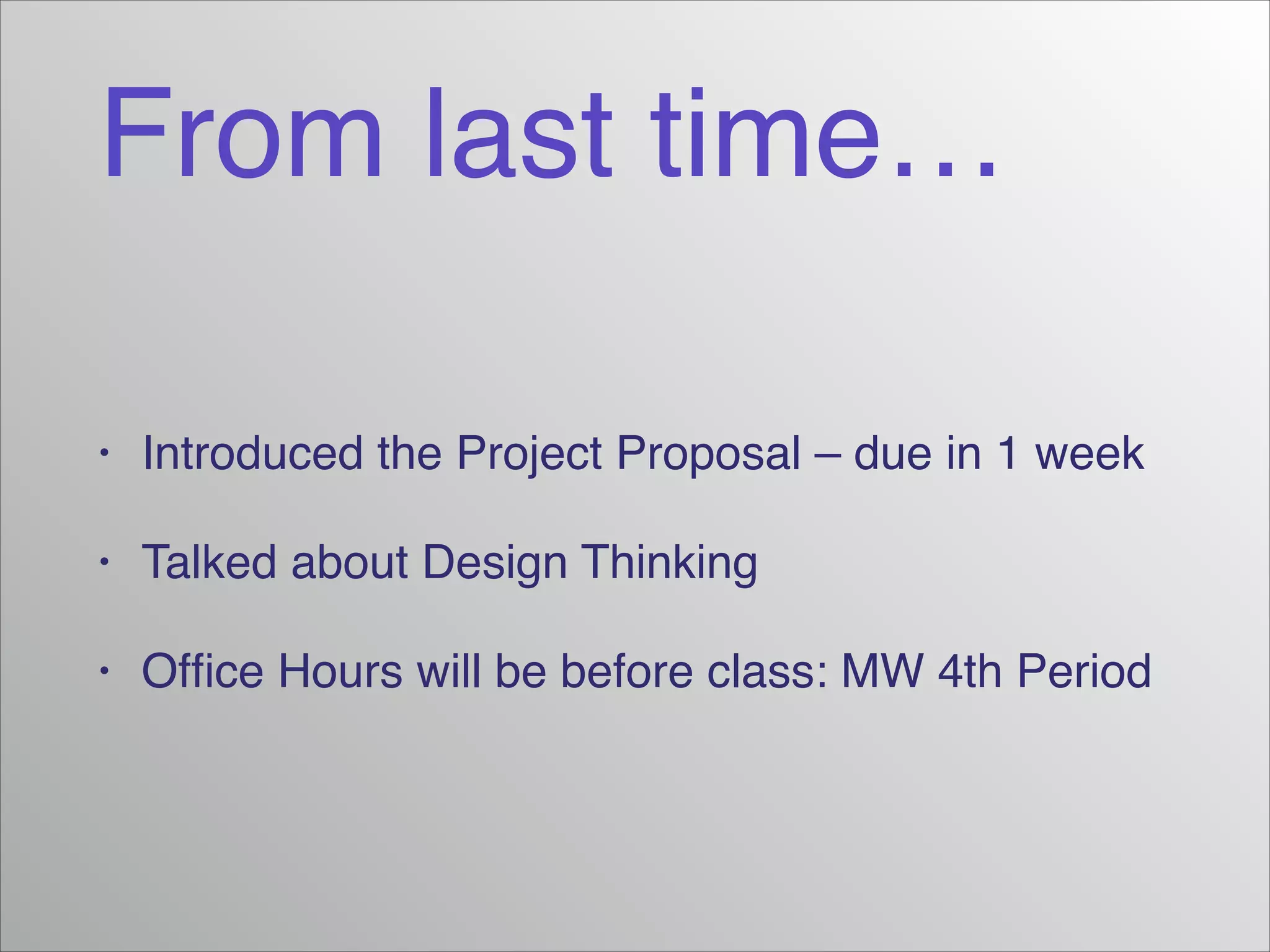

- 1. From last time… • Introducedthe Project Proposal – due in 1 week! • Talked about Design Thinking! • Office Hours will be before class: MW 4th Period
- 2.

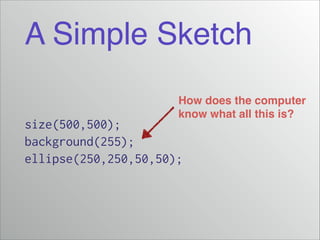

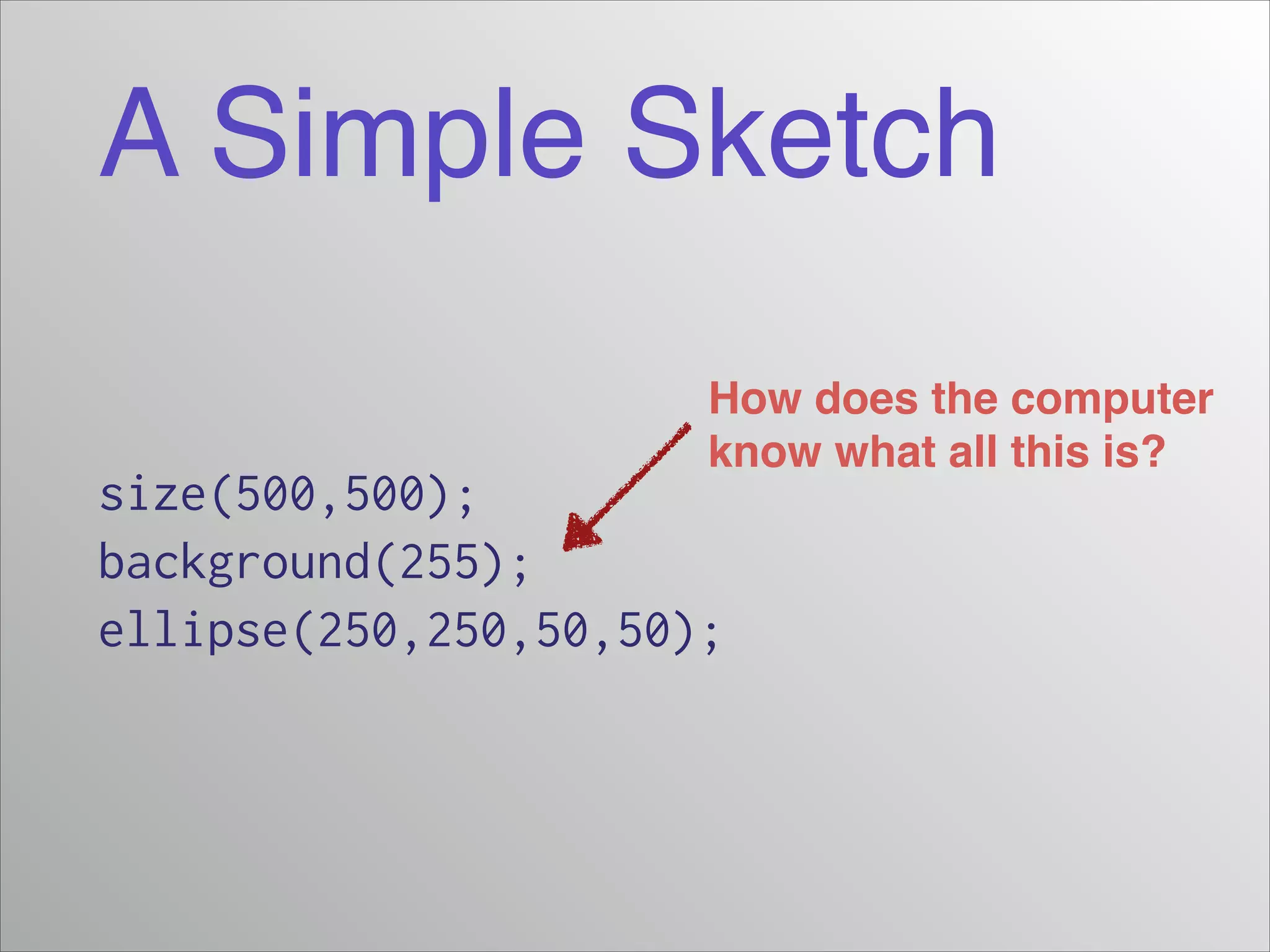

- 3. A Simple Sketch Howdoes the computer! know what all this is? size(500,500); background(255); ellipse(250,250,50,50);

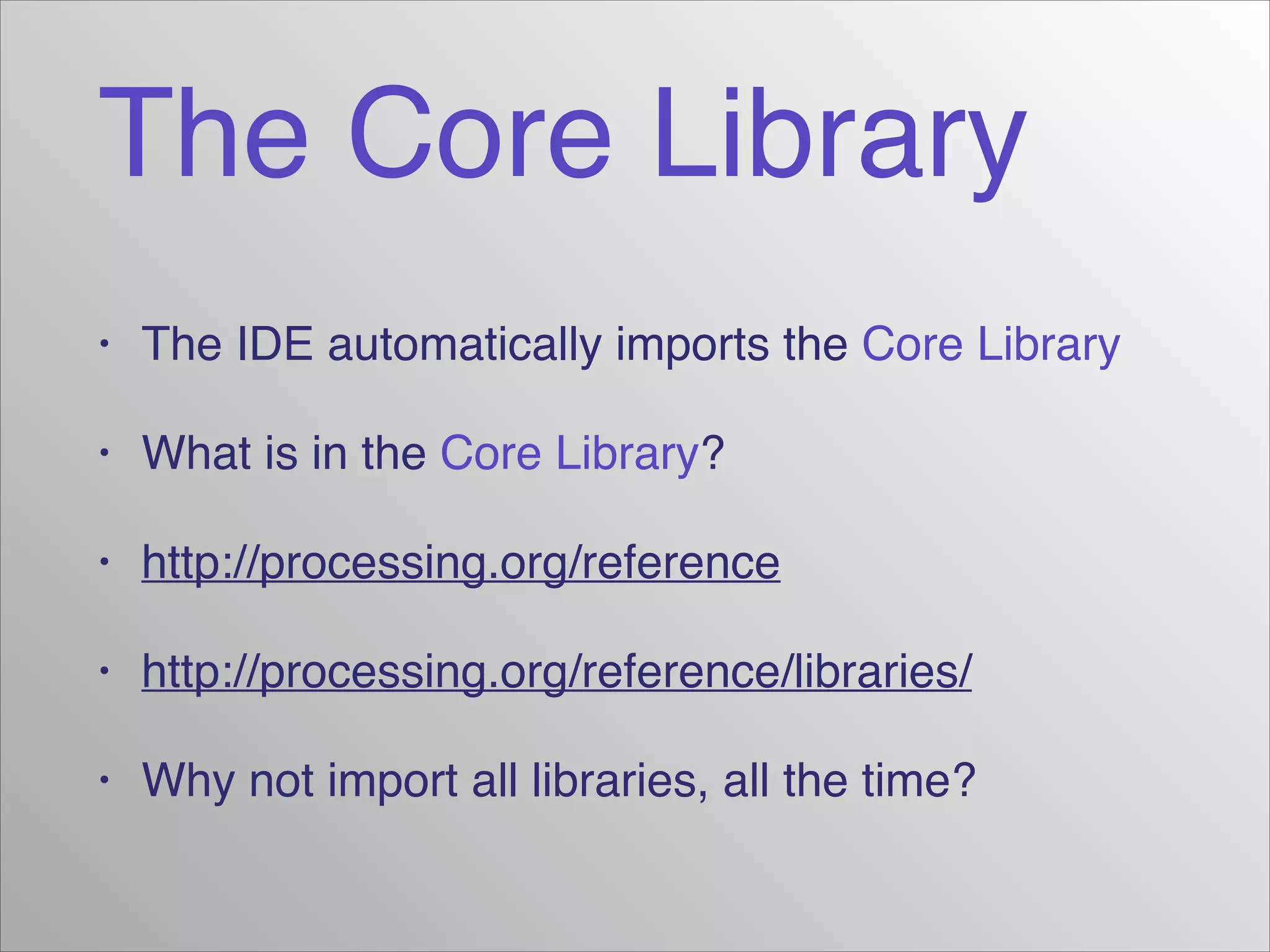

- 4. The Core Library • TheIDE automatically imports the Core Library! • What is in the Core Library?! • http://processing.org/reference! • http://processing.org/reference/libraries/! • Why not import all libraries, all the time?

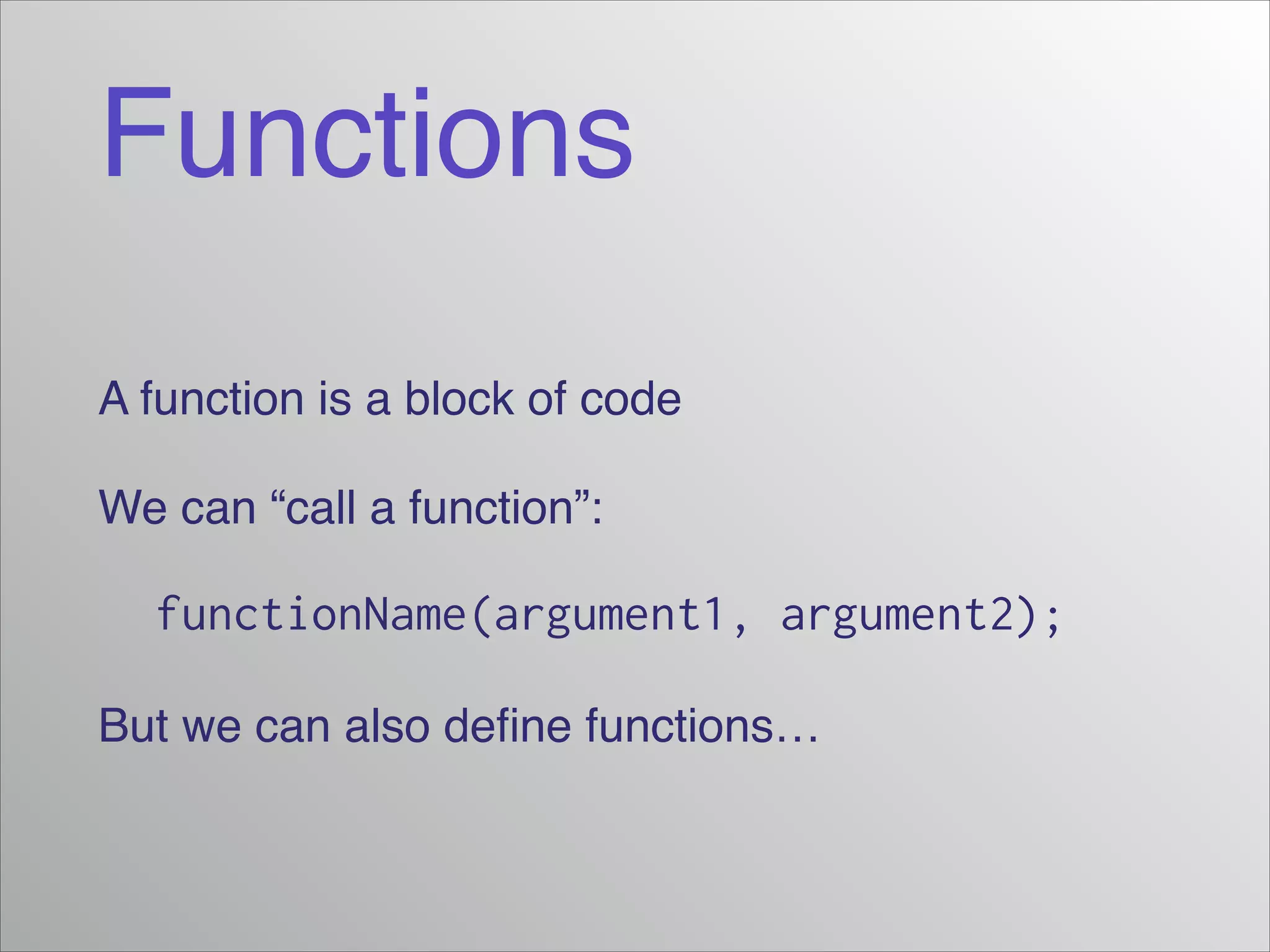

- 5. Functions A function isa block of code! We can “call a function”:! functionName(argument1, argument2); But we can also define functions…

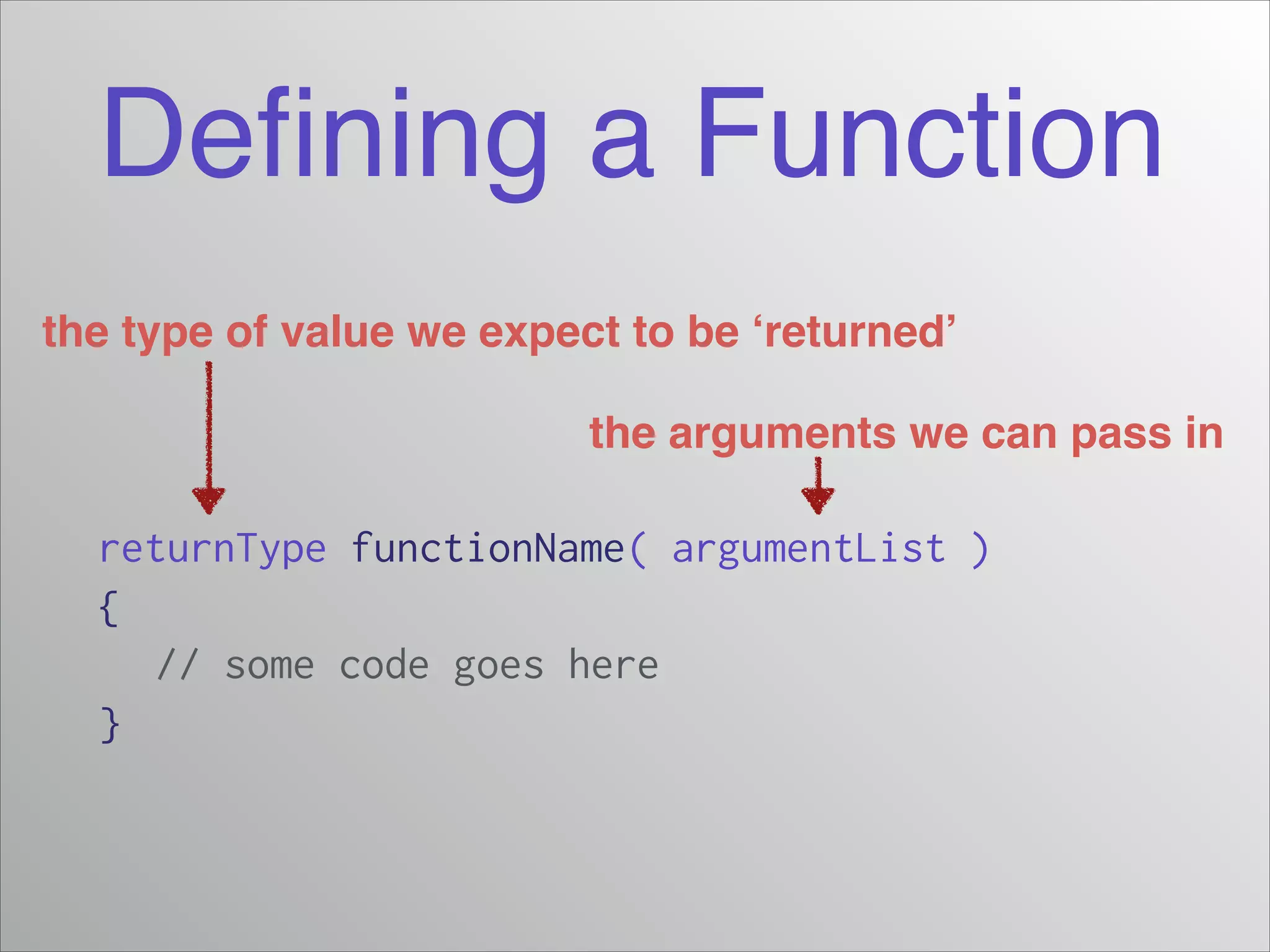

- 6. Defining a Function thetype of value we expect to be ‘returned’ the arguments we can pass in returnType functionName( argumentList ) { // some code goes here }

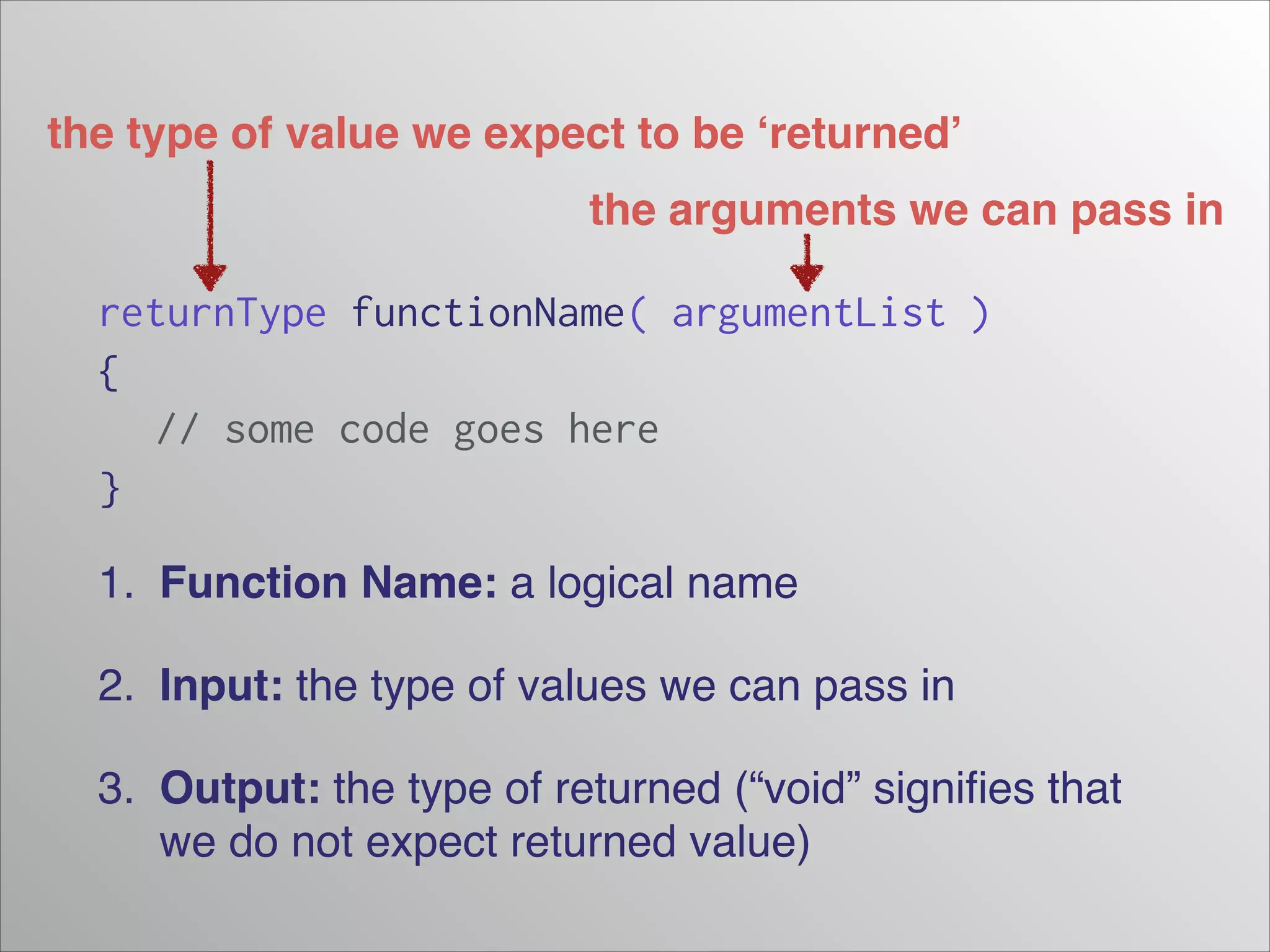

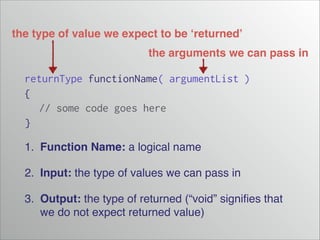

- 7. the type ofvalue we expect to be ‘returned’ the arguments we can pass in returnType functionName( argumentList ) { // some code goes here } 1. Function Name: a logical name! 2. Input: the type of values we can pass in! 3. Output: the type of returned (“void” signifies that we do not expect returned value)

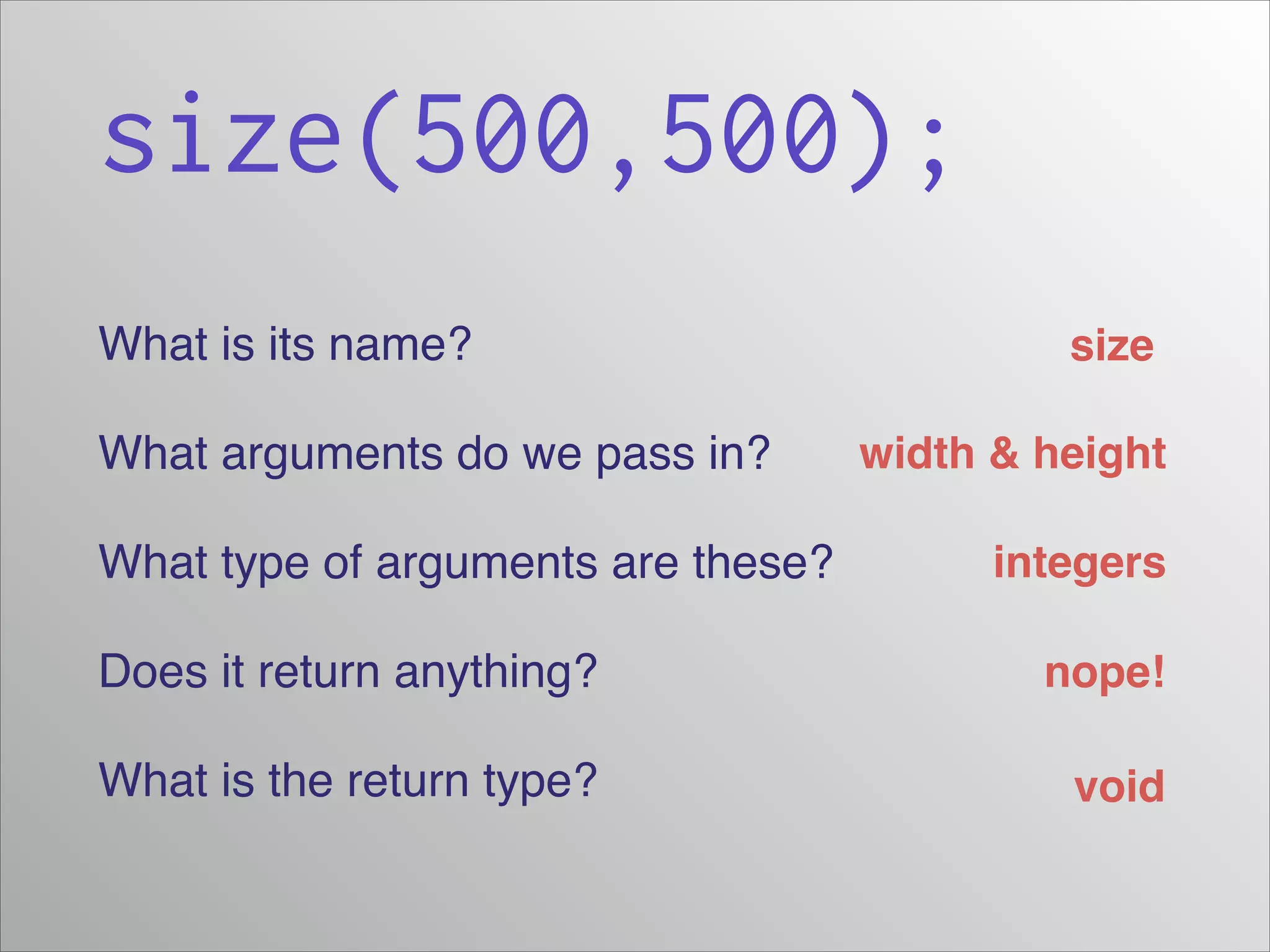

- 8. size(500,500); What is itsname?! What arguments do we pass in?! What type of arguments are these?! size width & height integers Does it return anything?! nope! What is the return type? void

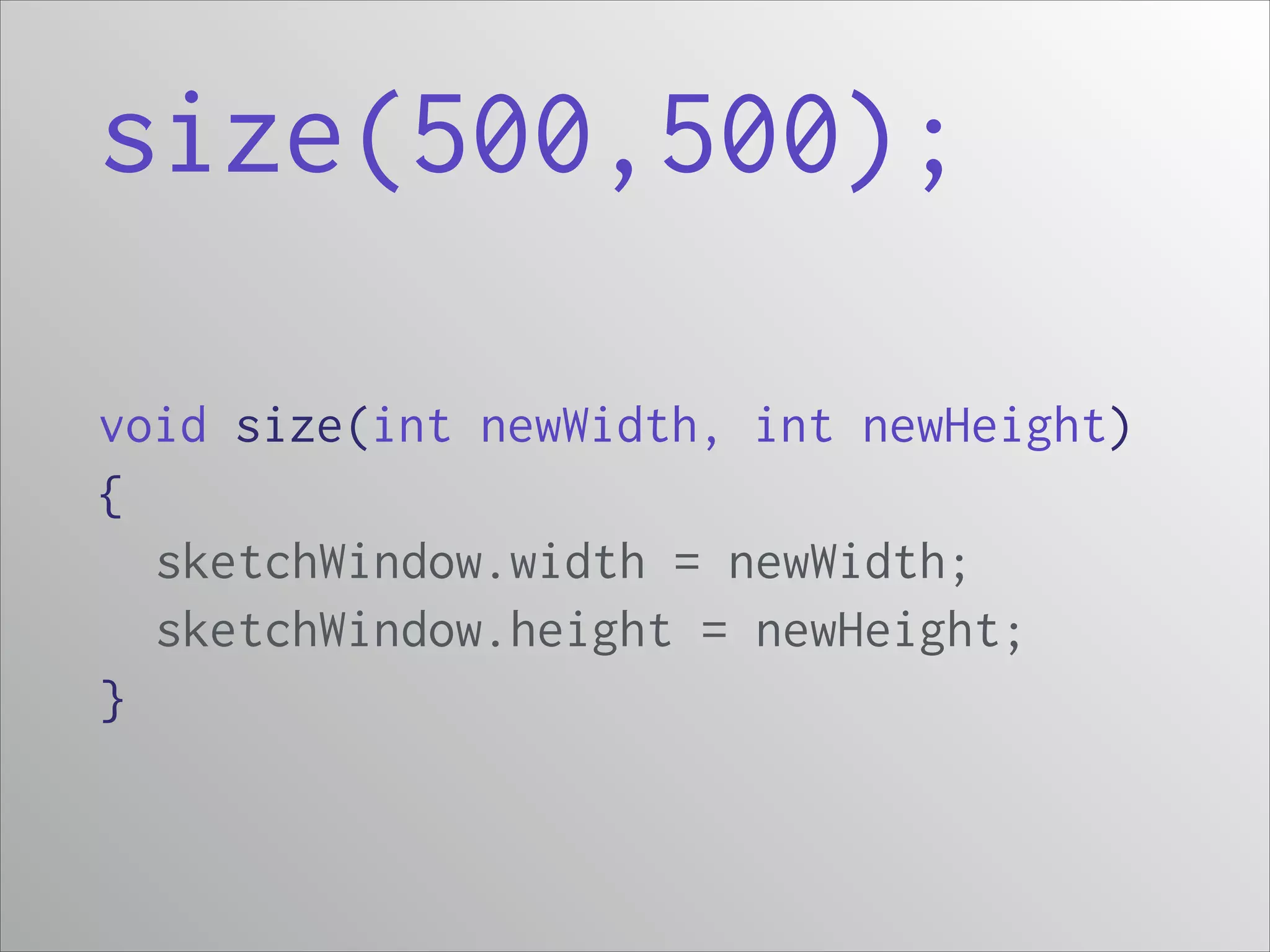

- 9. size(500,500); void size(int newWidth,int newHeight) { sketchWindow.width = newWidth; sketchWindow.height = newHeight; }

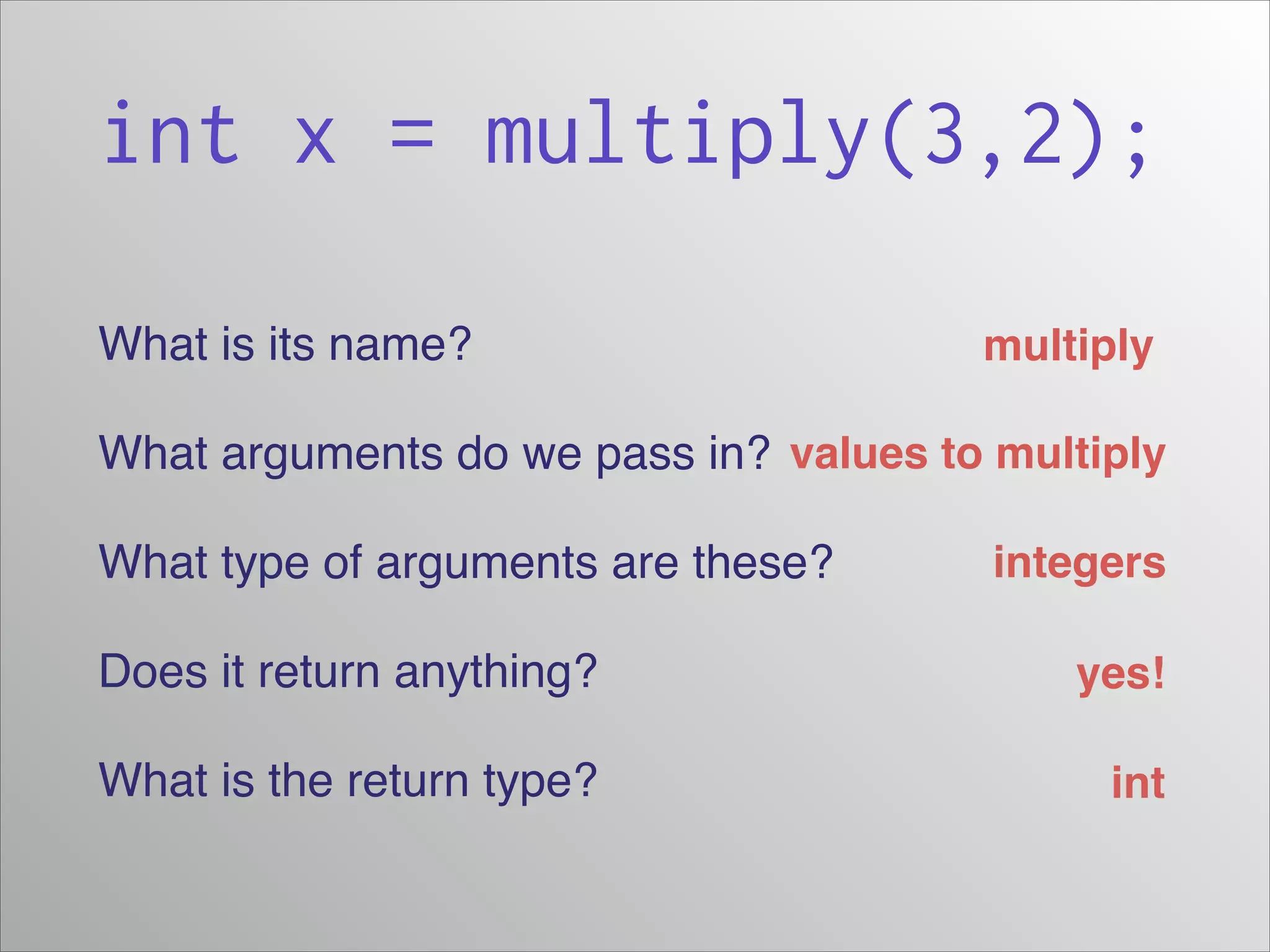

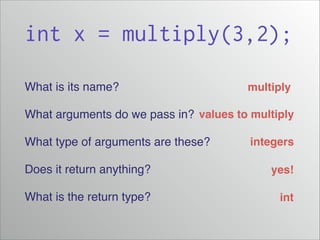

- 10. int x =multiply(3,2); What is its name?! multiply What arguments do we pass in?! values to multiply What type of arguments are these?! integers Does it return anything?! yes! What is the return type? int

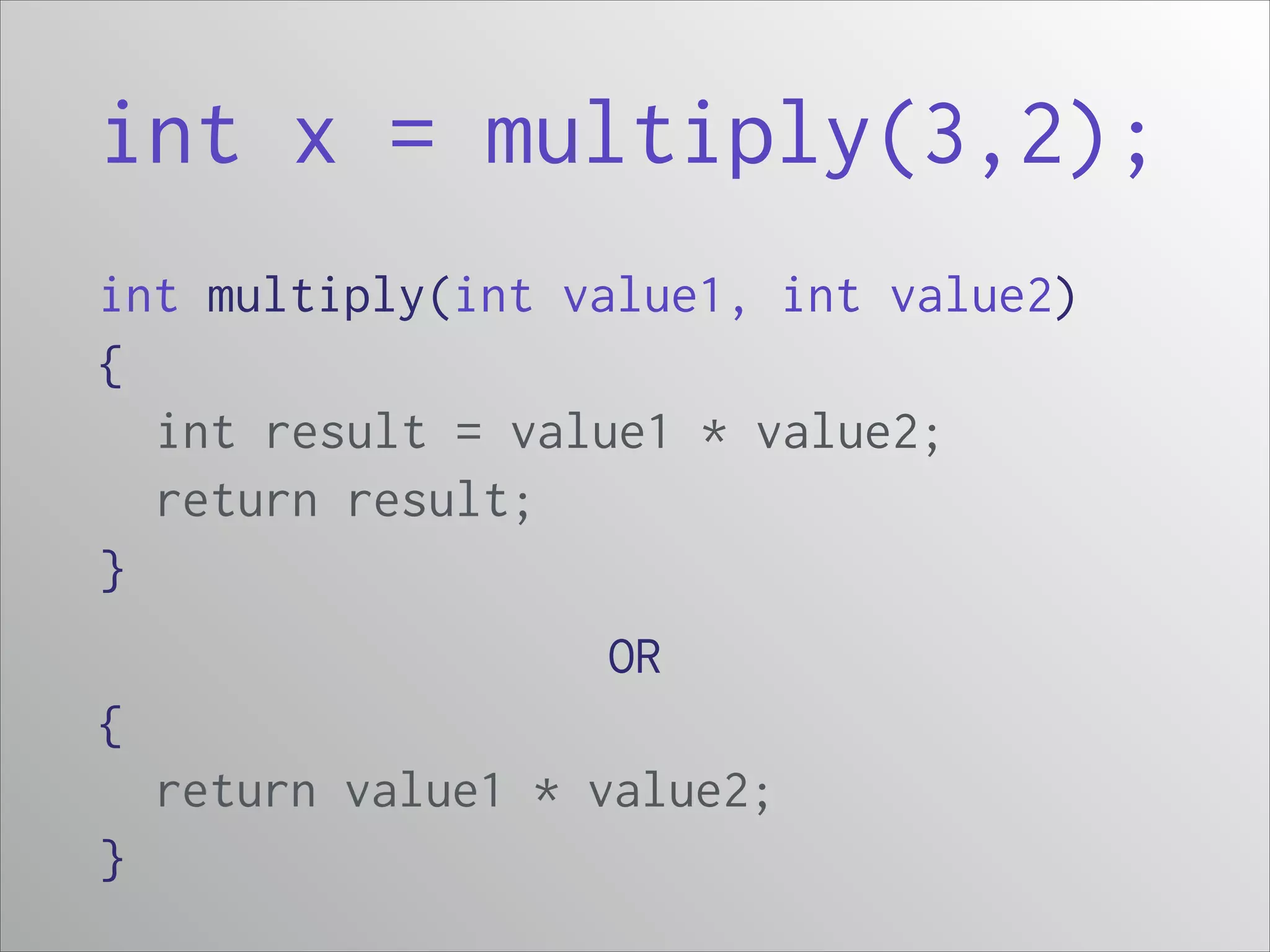

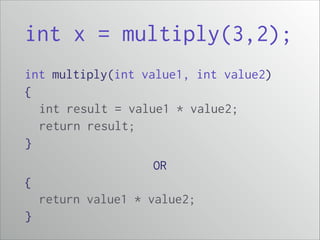

- 11. int x =multiply(3,2); int multiply(int value1, int value2) { int result = value1 * value2; return result; } OR { return value1 * value2; }
- 12.
- 13.

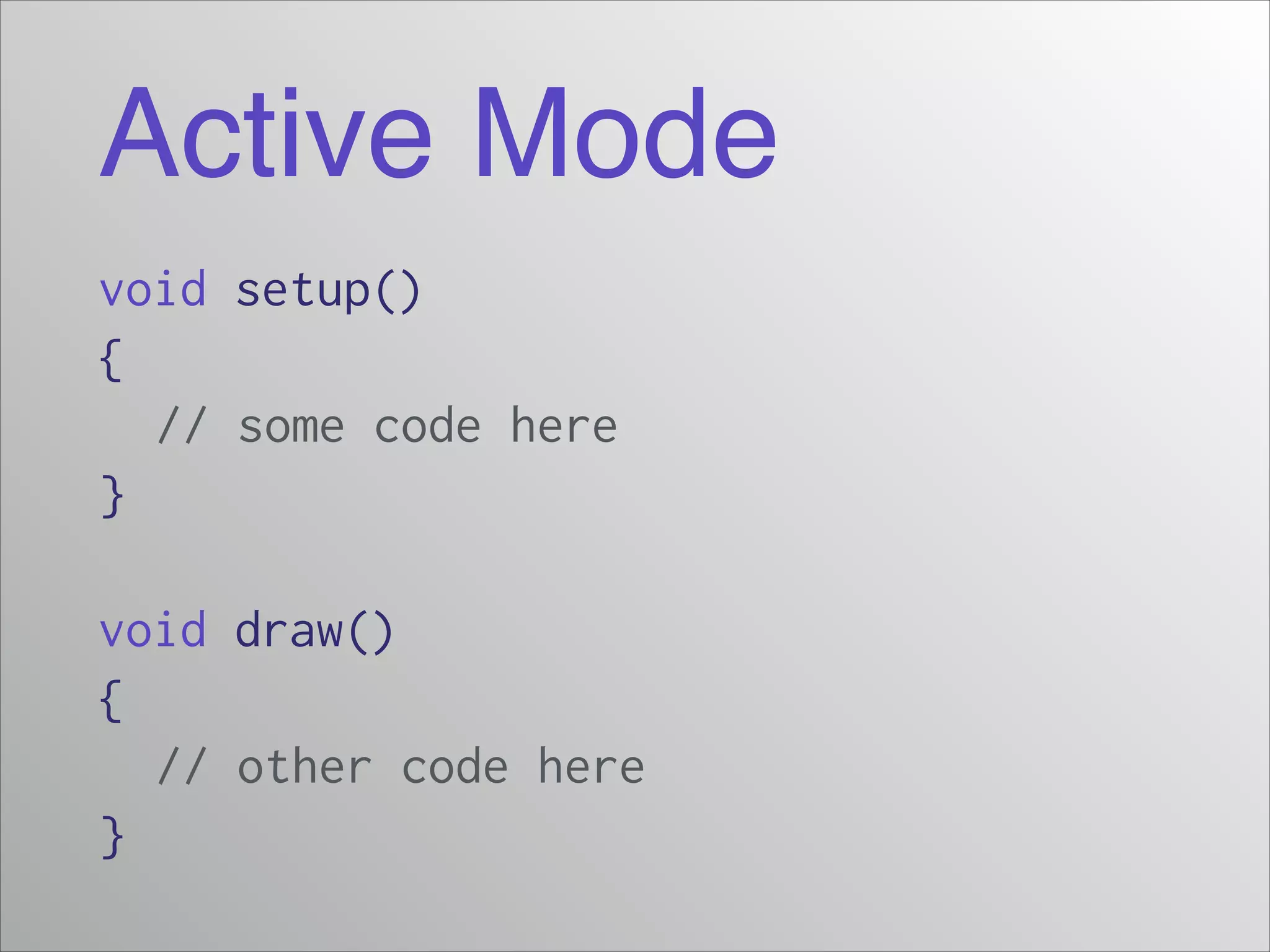

- 14. Active Mode void setup() { //some code here } ! void draw() { // other code here }

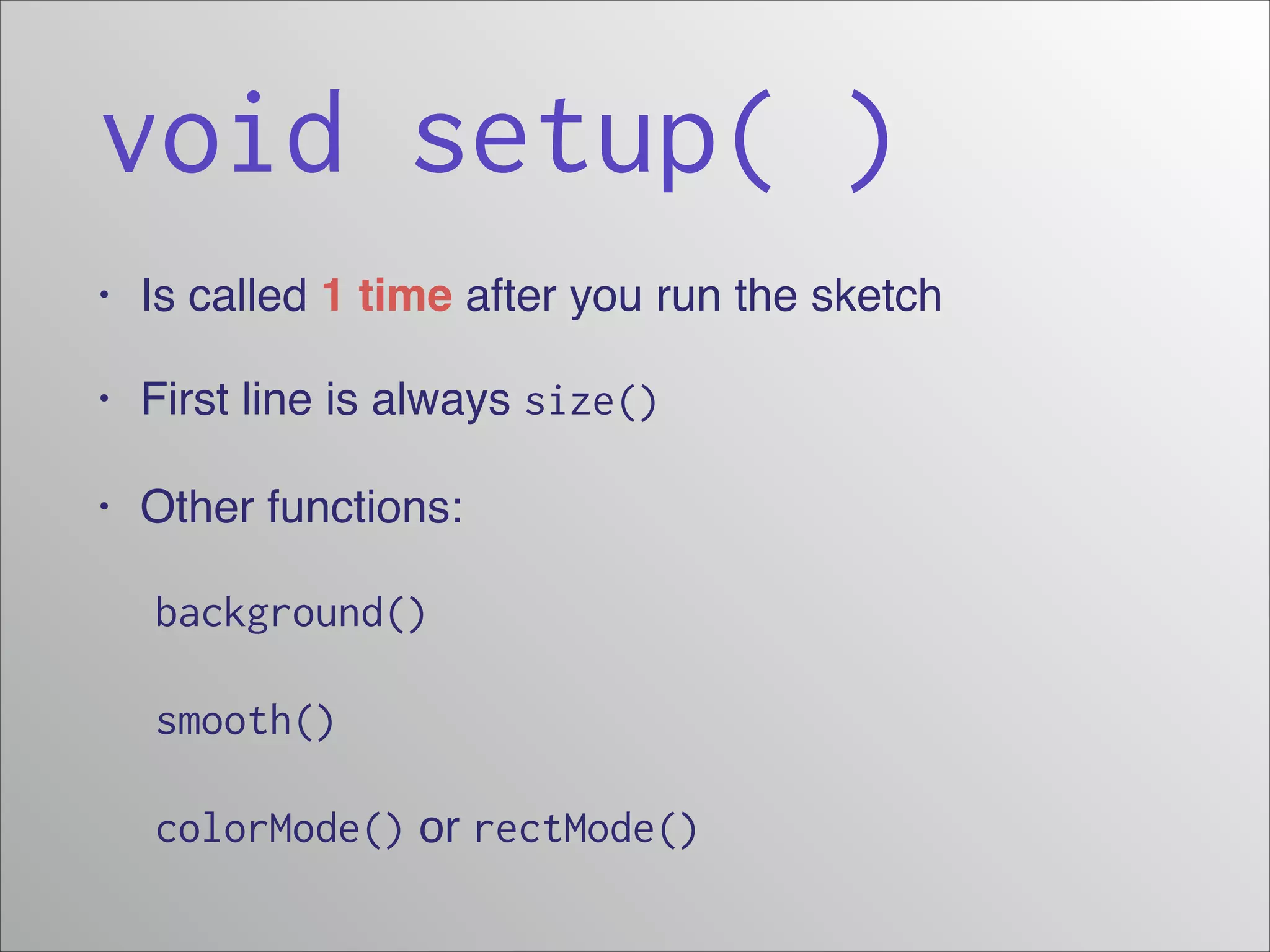

- 15. void setup( ) • Iscalled 1 time after you run the sketch! • First line is always size() • Other functions:! ! background() ! smooth() ! colorMode() or rectMode()

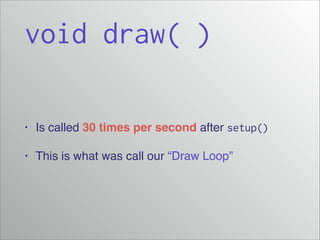

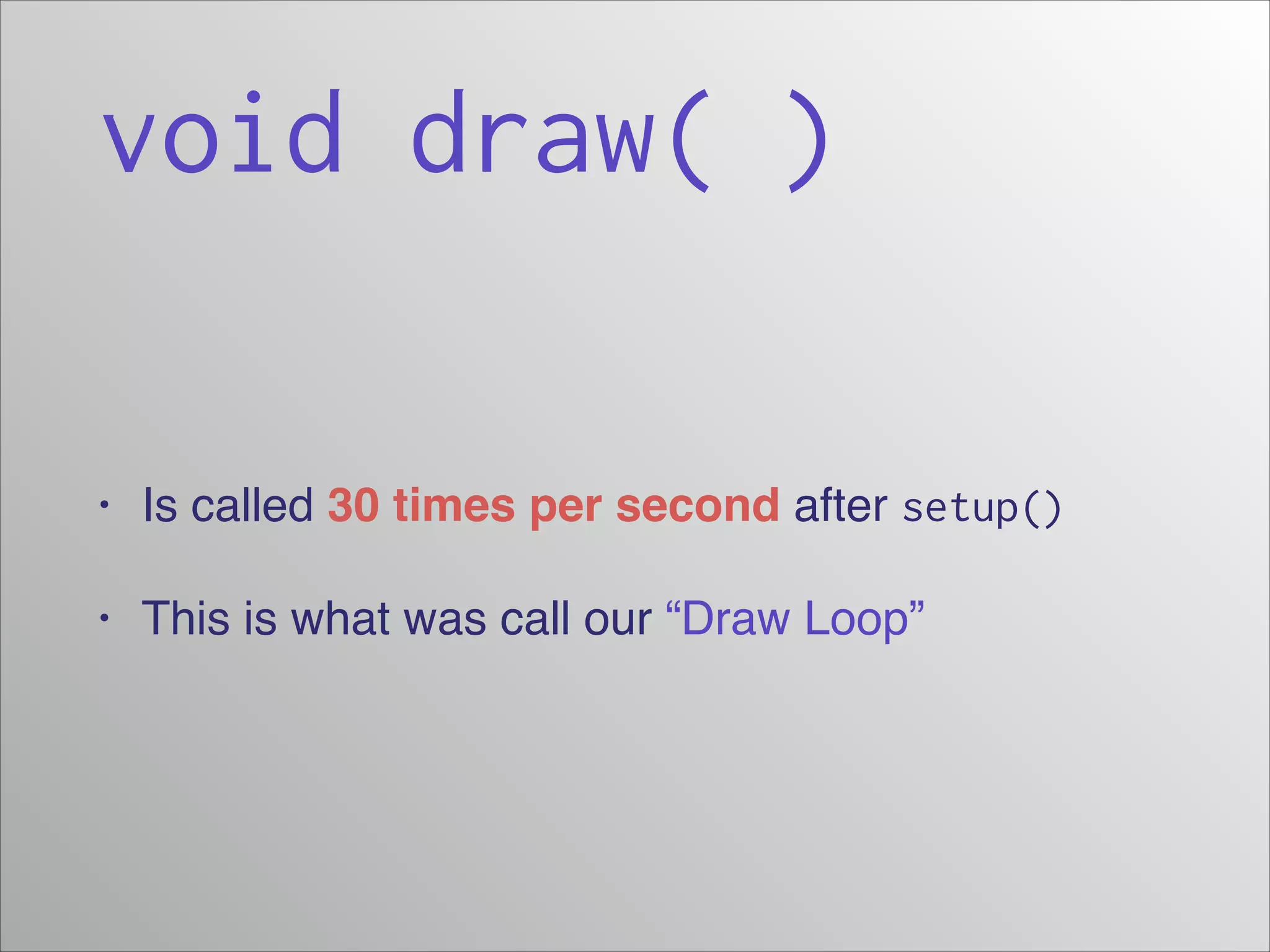

- 16. void draw( ) • Iscalled 30 times per second after setup() • This is what was call our “Draw Loop”
- 17.

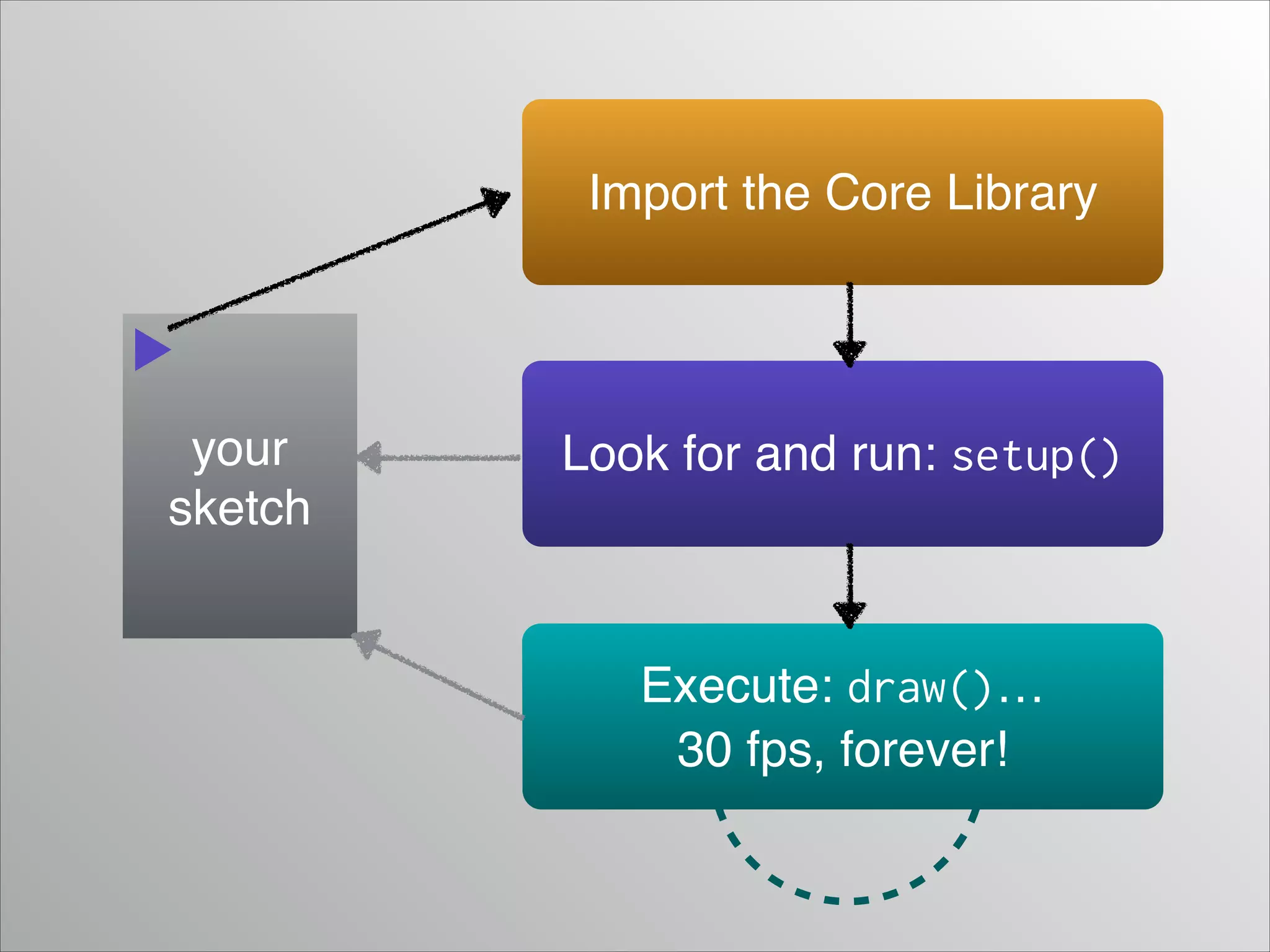

- 18. Import the CoreLibrary your sketch Look for and run: setup() Execute: draw()…! 30 fps, forever!
- 19. Interaction! ! Mouse Position! & EventListeners CAP

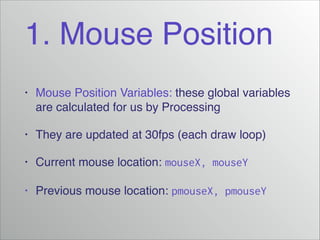

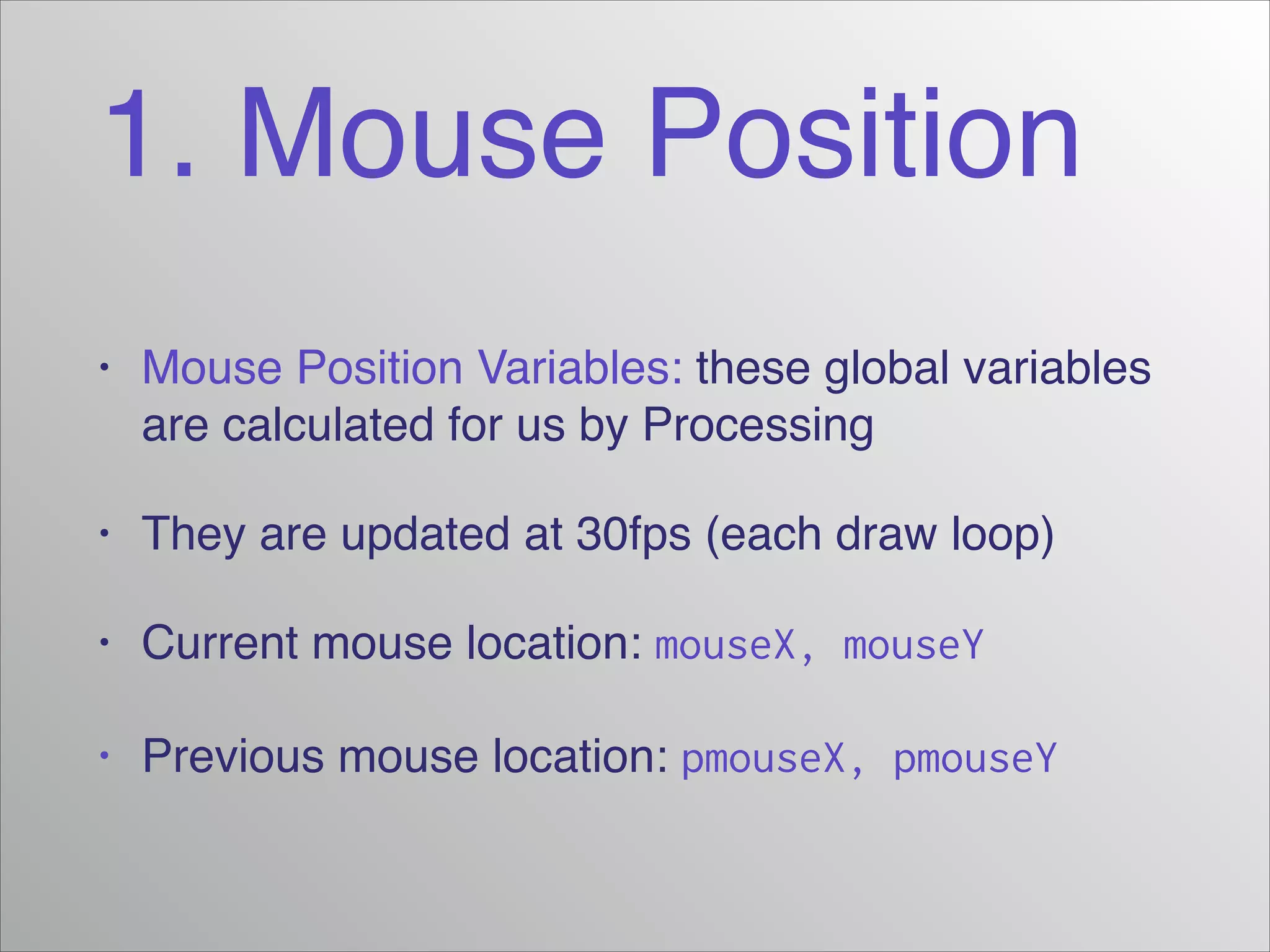

- 20. 1. Mouse Position • MousePosition Variables: these global variables are calculated for us by Processing! • They are updated at 30fps (each draw loop)! • Current mouse location: mouseX, mouseY! • Previous mouse location: pmouseX, pmouseY
- 21.

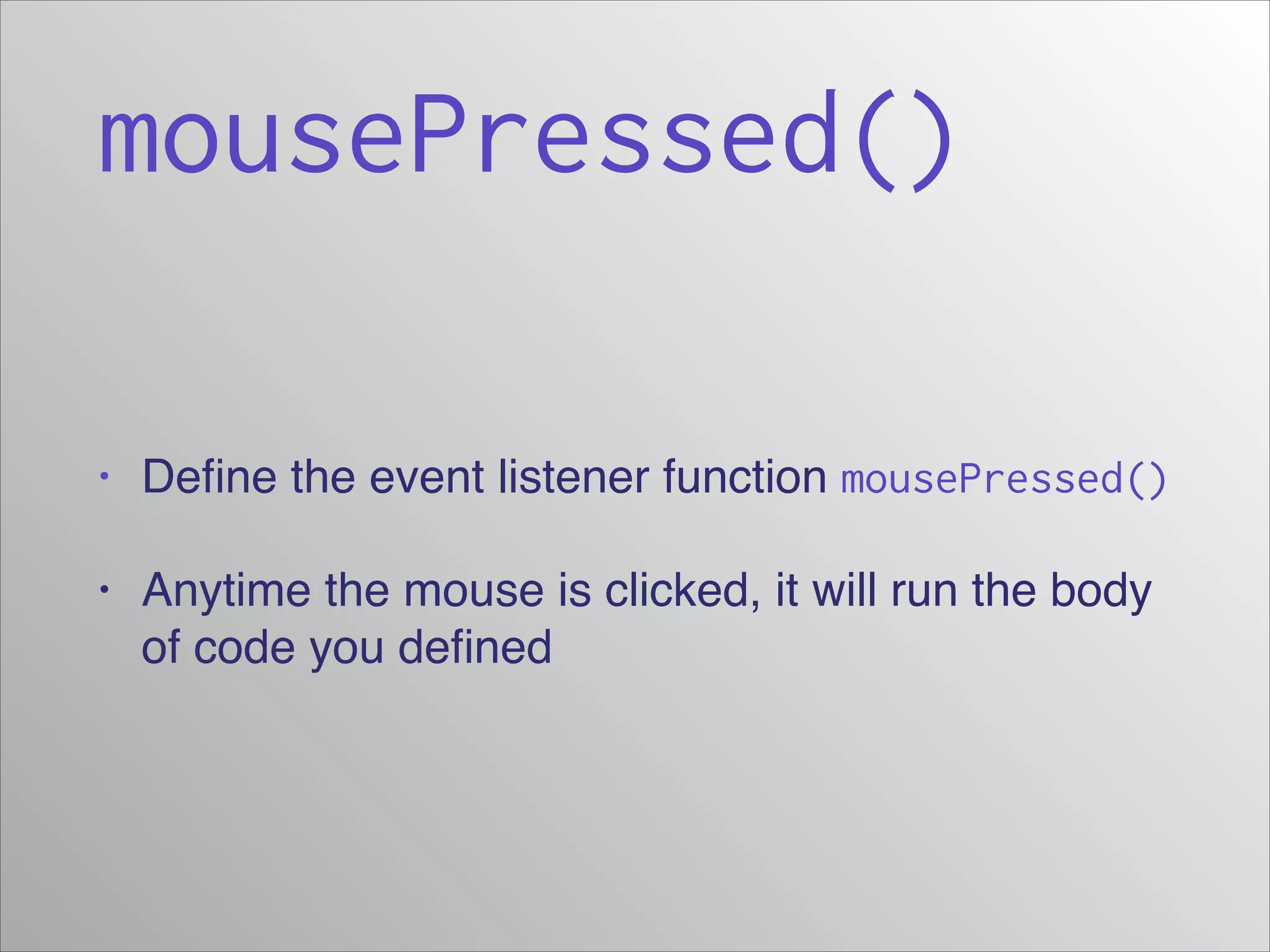

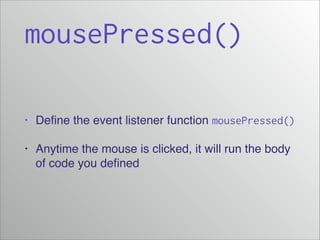

- 22. mousePressed() • Define the eventlistener function mousePressed() • Anytime the mouse is clicked, it will run the body of code you defined

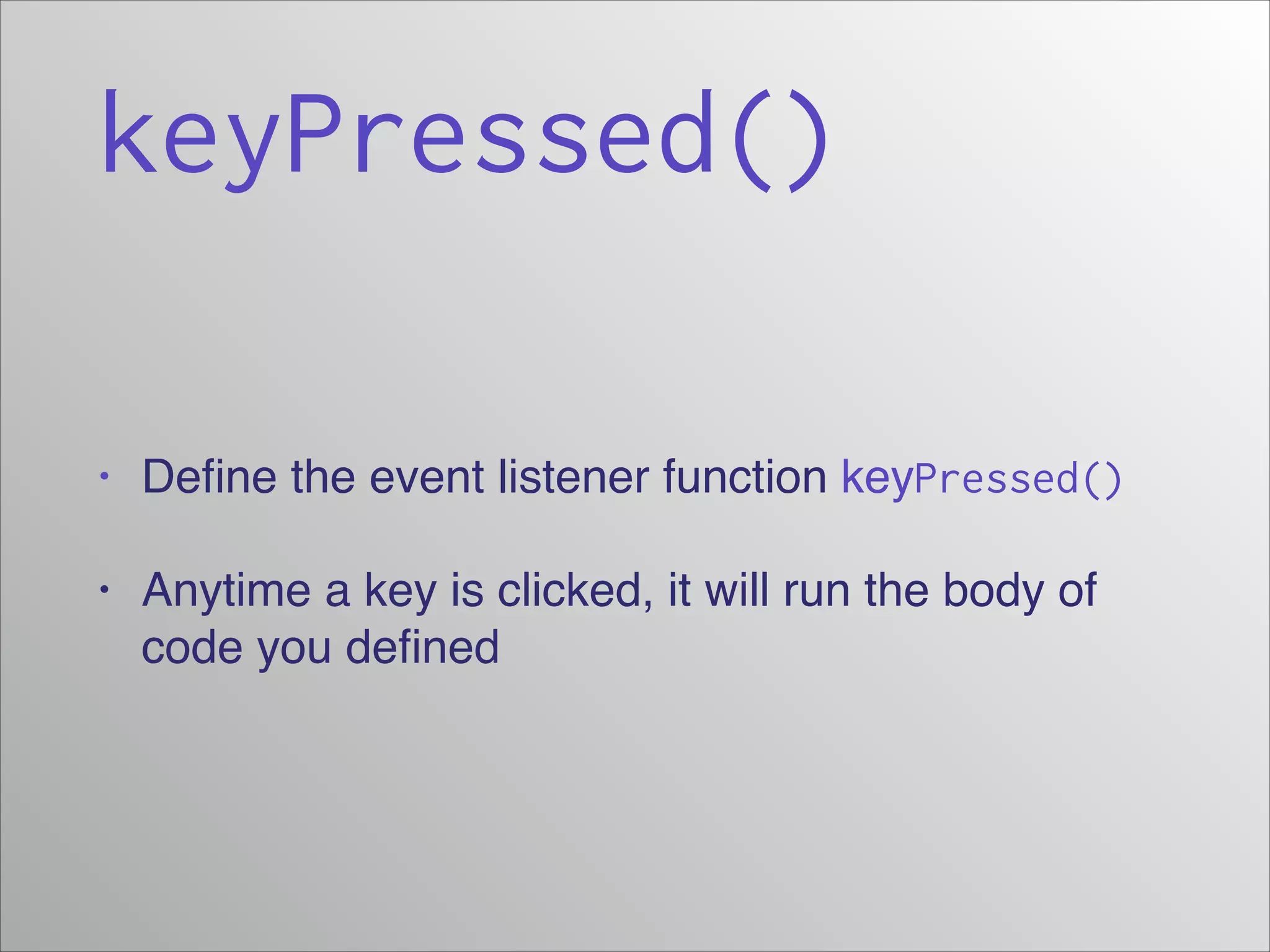

- 23. keyPressed() • Define the eventlistener function keyPressed() • Anytime a key is clicked, it will run the body of code you defined
- 24.

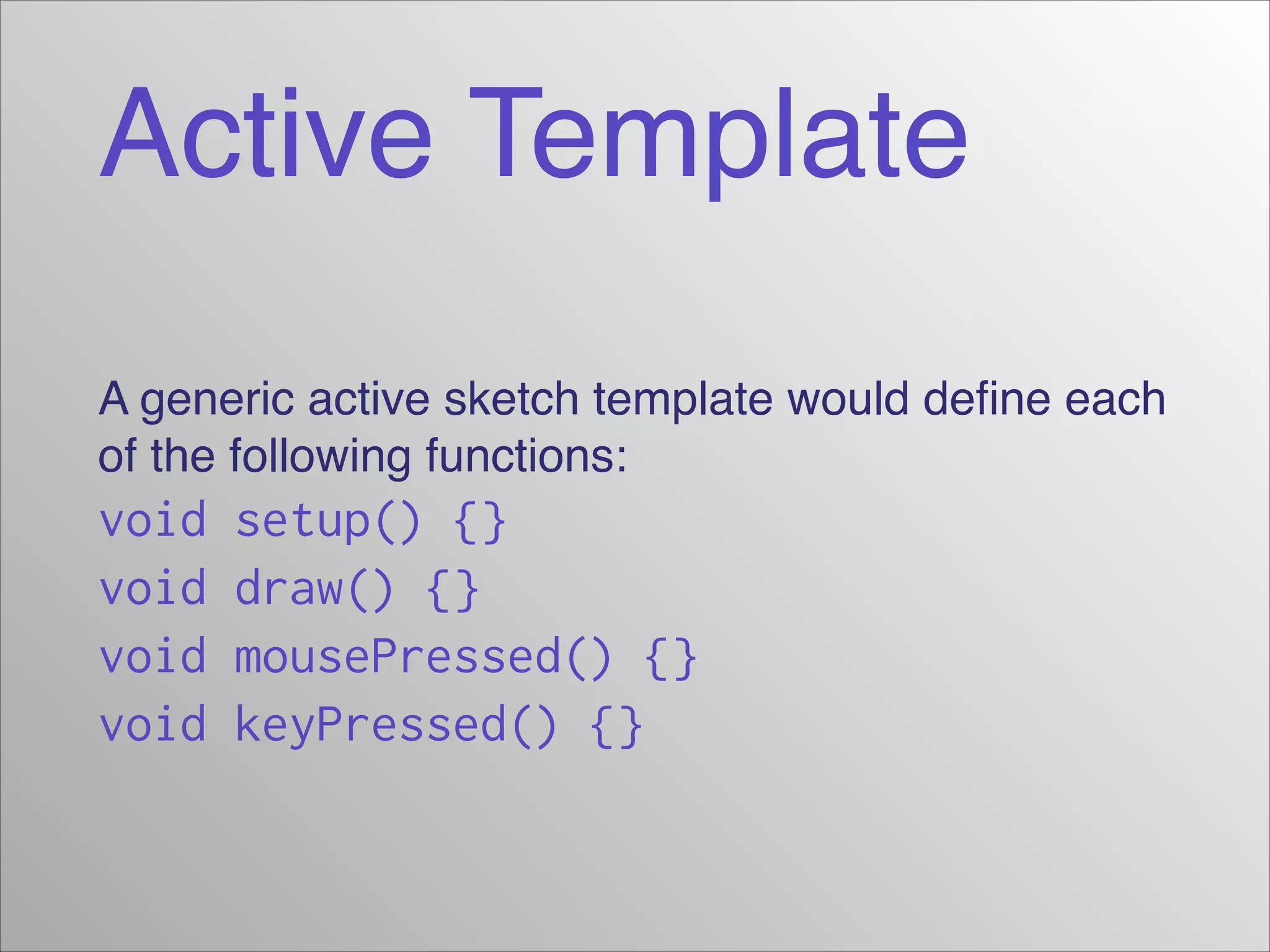

- 25. Active Template A genericactive sketch template would define each of the following functions:! void void void void setup() {} draw() {} mousePressed() {} keyPressed() {}
- 26. The Nature ofCode! Shiffman, Daniel! ! Generative Art! Pearson, Matt
- 27.

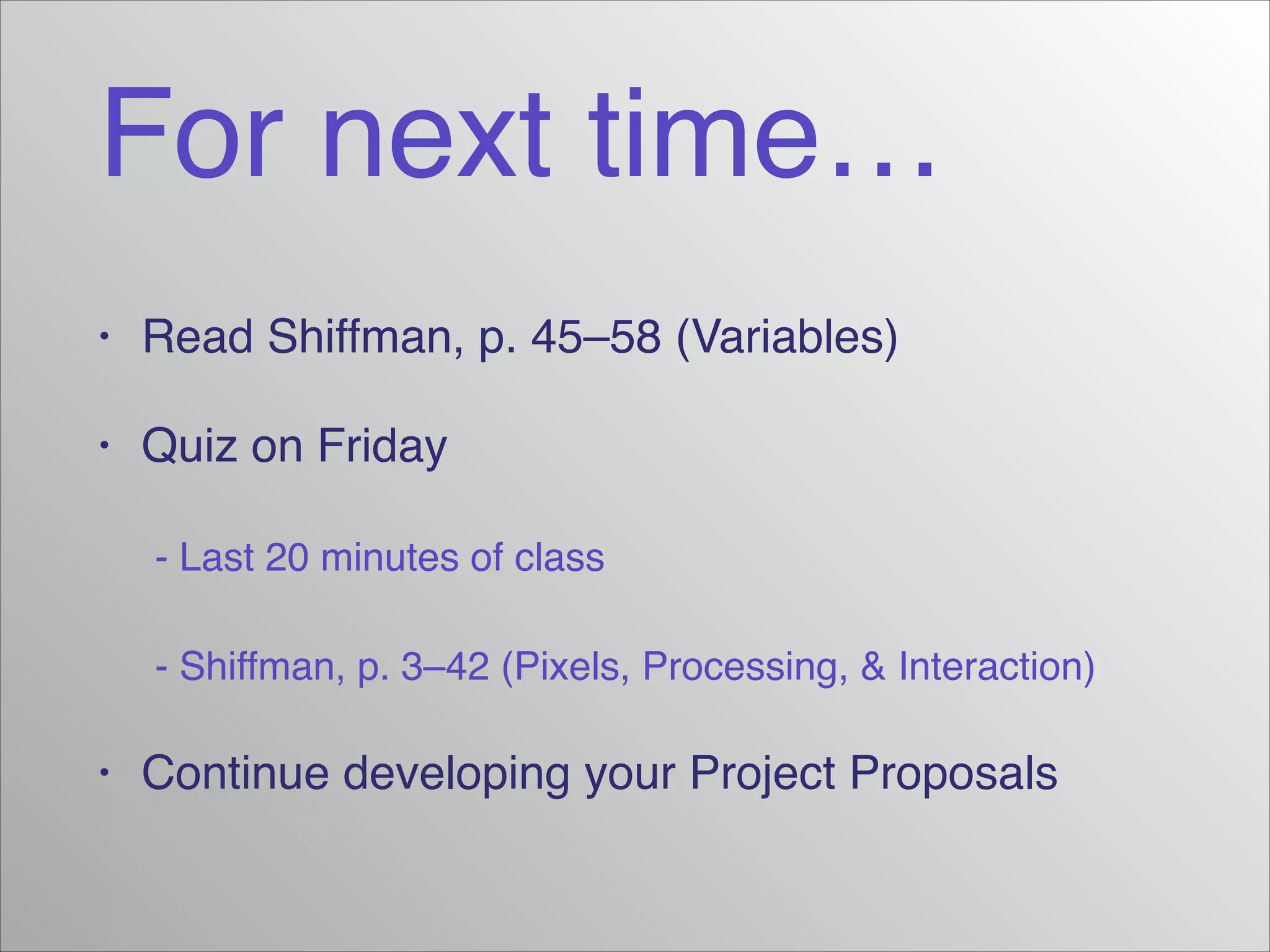

- 28. For next time… • ReadShiffman, p. 45–58 (Variables)! • Quiz on Friday! ! - Last 20 minutes of class! ! - Shiffman, p. 3–42 (Pixels, Processing, & Interaction)! • Continue developing your Project Proposals
