1. SOLID OOPS
ConvertingReal world entities into programming Objects ;
understanding its applications ; API designing, MVC framework
Anirudh Tomer
Harshith Keni
Toshish Jawale

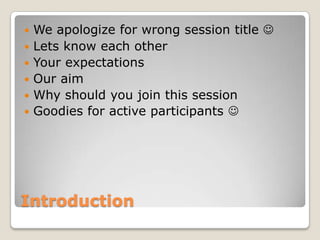

2.  We apologize for wrong session title 
 Lets know each other
 Your expectations
 Our aim
 Why should you join this session
 Goodies for active participants 
Introduction

3.  What is “Real”?
 Everything outside of your program is
Real.
 Even your own program is a Real World
Entity for some other program or even for
your own program!
 In short
Real World Entity…

4.  Because these are all the “things” on
which we want to work upon.
 Yes, and by work we do not mean, just
writing the code! 
Why do we bother about this?

5.  Objects? Why?
 How are they introduced in the
programming world?
 Where are they used often?
 State and behaviour
 Who should use it?
Correlating to programming
objects

6.  We separate our real world entities in
different groups
 Object is an instance of a class
Ball
instances of
What is this class?

7.  How classes are organized?
 Why classes need to be organized?
 Is there any standard way to do it?
 If yes, whats it?
Organization

8.  How these different attributes of a class
are defined?
 fields/properties - state
 methods/functions - behavior
 constructors/initializers
 destructors
What class contains?

9.  What is the object oriented way of getting
rich ?
— Inheritance
 Relations between the classes
 By the way, are you good at relations?
Relations

10.  Have you watched Television?
Interface

11.  Something you use to keep your stuff from
mixing together
 Folders
 Drives
 A customized, more sophisticated package
 Examples familiar to you are,
◦ ZIP file
◦ EXE file
◦ DLL file etc.
Point is, keep your stuff organized.
Package

12. What is Abstraction?
• Abstraction - a concept or idea not associated with
any specific instance
• It is all about perspective
• Everything
• Something
• Exactly the thing

13. Where does abstraction exist?
• Control abstraction
o Abstraction of actions
• Data abstraction
o Abstraction of information

14. How does this relate to
programming?
• Writing functions/subroutines is control
abstraction.
• Datatypes is data abstraction.

15. Data Abstraction
• Generalization
• Specialization

16. Example
public class Animal extends
LivingThing{ theChicken = new Animal();
private Location loc; theCat = new Animal();if
private double energyReserves;
(theChicken.isHungry())
public boolean isHungry() { {
return energyReserves <
2.5; theChicken.eat(grains);}
} if (theCat.isHungry()) {
public void eat(Food f) { theCat.eat(mouse);}
// Consume food theCat.moveTo(theSofa);
energyReserves +=
f.getCalories();
}
public void moveTo(Location l)
{
// Move to new location
loc = l;
}}

17. It's relevance with OOP
• Object is an attempt to combine data and control
abstraction
• Polymorphism
• Inheritence

18. Why do this?
• Separate the business logic from the underlying
complexity
• Make it easier to parallelize tasks
• Meaningful amount of details are exposed
• Representation in a similar form in semantics
(meaning) while hiding implementation details.

19. Why do we write programs?

20. We have the right objects in
place, now what?
• Let's get them talking to each other
• Let's actually tell them what to talk about

21. What sort of messages?
• Creation
• Invocation
• Destruction

22. Who generates these
messages?
• Aliens? • Platform
• The Government? • User Interaction
• Events

23. API Designing

24. String operations
I need it to be
Hehehe! The menu driven
whole 2 hours I
will just write a
fancy menu
Programming Lab I

25. Set operations
Again! *$%#@ I need it to be
Menu will be menu driven
“Enter 1 to
proceed 0 to
exit”
Programming Lab I

26. Don’ts we do
Monolithic programs
Single file containing all functions
Code repetition
Thinking less about function signature
Reinventing the wheel

27. What we think about API 
API

28. What it actually is 
printf(), scanf(), strcmp()
Easy to use and hard to misuse Spec of DS,
functions,
Can be programming language unspecific!! behavior
etc.
Not necessarily a code library, can be just a spec
You can create your own API too

29. Lets design an API

30. Designing Process (based on suggestions by Joshua Bloch)
 Write 2 programs and not one
 Write API first
◦ Understand the use case
◦ Foresee future extensions (don’t change API often)
◦ A general purpose API vs multiple small API’s
◦ If you can’t name it, its doing either extra or doing less
◦ Don’t surprise the API user, don’t do extra
◦ Remember! You can always add but you can’t remove
◦ Document the API religiously!
◦ Use consistent parameter ordering.
◦ Extra params, use a struct
 Code more! API is living thing
 Expect to make mistakes. Refactor API!
 Encourage others to use it

31. MVC Architecture

32. Programming without MVC
I need it
 Linked List with GUI
o add a node
o remove a node
o reverse a linked list
 Linked list with GUI
______ ______ ______
|__1__| |__5__| |__7__| …

33. Challenges
Data Functions GUI
Structures • Function • Creating
• struct ? signature boxes
• Separate • Flow control • Moving
variables boxes

34. Nightmare begins
typedef struct node{
struct node* nextNode;
…
}Node;
…
Node *linkedlist;
addNewNode(){
while (linkedlist->nextNode!=null){
drawSquare(); //you may have internal D.S. for each square
drawArrow();
}
Node *newNode = (Node*) malloc(sizeof(struct node));
scanf(); // for new values
newNode->val1 = …;
newNode->val2 = …;
linkedlist->nextNode = newNode;
while (linkedlist->nextNode!=null){
drawSquare();
drawArrow();
}
}

35. New requirements
 Keep different colors for each node
 I want oval nodes not rectangular nodes
 I want linked list nodes to be shown in
hierarchy not in straight line.
Make Changes

36. FB Timeline: Full of GUI
Components

37. MVC Framework: Coding vs.
Architecting
Its nothing but
how you design
your code.

38. Model View Controller
• Handling data • Display data • Read data
• Save them on from view
file or in • Control user
internal D.S interaction
• Send new
data to model
Roles: Model, View and Controller

39. M-V-C not MVC
 Keep them separate
 You may create different files
◦ A separate “model.h”
◦ A separate “view.c” (includes model.h)
◦ A separate “controller.c” (includes model.h)
◦ Give deep thought to data structures
 Principle of Agnosticism:
each component is unaware of others presence

40. Model
typedef struct node{ C++ or other
struct node* nextNode;
int id; OOP languages
… make finding the
}Node;
int globalId = 0;
context easy
typedef struct linkedList{
Node * headNode;
int id;
int listLength;
}LinkedList;
LinkedList *linkedListPool[];
void addNode(int linkedListId, int index, Node *newNode){
…
}
void removeNode(int linkedListId, Node *node){
…
}
LinkedList* createNewLinkedList(){
LinkedList* newll = (LinkedList*) malloc(sizeof(struct linkedList));
newll->id = globalId++;
newll->headNode = (Node*) malloc(sizeof(struct node));
newll->length = 0;
linkedListPool[globalId] = newll;
return newll;
}

41. View
typedef struct viewNode{
struct viewNode* nextViewNode;
int xLocation, int yLocation;
String color; //#FF3e2A (in hex)
…
}ViewNode;
//Similar to Model create another struct
typedef struct display{
ViewNode* head;
int id;
int length;
}Display;
Display *displayNodeList[];
void addDisplayNode(int viewNodeId, int index, Node *newNode){
//create new ViewNode
//Render UI
…
}
//create new display node like Model

42. Controller
typedef enum input{
ADD,REMOVE,GET_LENGTH…
}Input;
LinkedList* linkedList = createNewLinkedList();
Display* display = createNewDisplay();
//Show a fancy menu
Input input = read input from user;
switch(input){
case ADD:
Node* newNode = //malloc new node;
addNode(linkedList->id,newNode);
addDisplayNode(display->id,newNode);
break;
}

43. Questions ?
