The full video from CppCon is available here: https://www.youtube.com/watch?v=PVYdHDm0q6Y C++ provides a much richer set of abstractions than C. Classes, templates, overloading, and other core C++ features can be leveraged for more readable syntax, better compile time typechecking, more open ended genericity and improved modularity. On the flip side, C89 still boasts some advantages over C++, especially when viewed through a pragmatic lens. C ABIs on many platforms have been stable for decades, practically every language supports binding to C code through foreign function interfaces, and including nearly any C89 header has a negligible effect on compile time on modern computers. The hourglass pattern provides the best of both worlds. By placing a headers-only C++ interface on top of a minimal C89 interface, it makes ABI issues a non-concern, and enables just a single binary to be shipped for a given platform. It makes providing bindings from other languages easier, and prevents ABI issues like incompatibilities between debug and release variants of runtimes. This talk provides an overview of the pattern and teaches practical techniques for its implementation using C++14. Real shipping projects inspired the best practices described in the slides. Code corresponding to this presentation can be found here: https://github.com/CppCon/CppCon2014/tree/master/Presentations/Hourglass%20Interfaces%20for%20C%2B%2B%20APIs%20-%20Stefanus%20Du%20Toit%20-%20CppCon%202014/code

1. Hourglass Interfaces
for C++ APIs
Stefanus Du Toit
Thalmic Labs
@stefanusdutoit
Image © Erik Fitzpatrick, CC BY 2.0

2. Motivation and
Introduction

3. Shared Libraries
Library Code Data

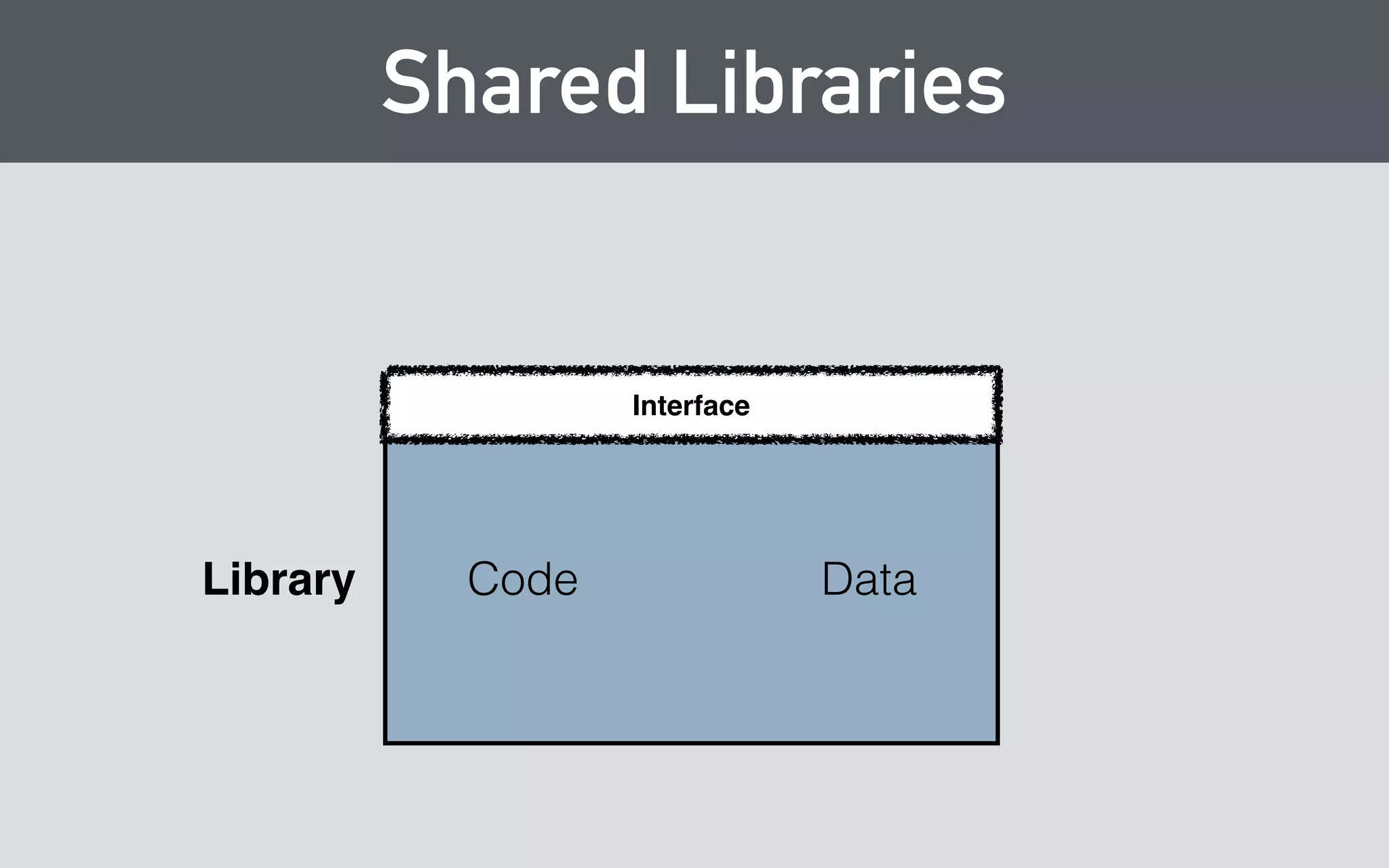

4. Shared Libraries
Interface
Code Data
Library

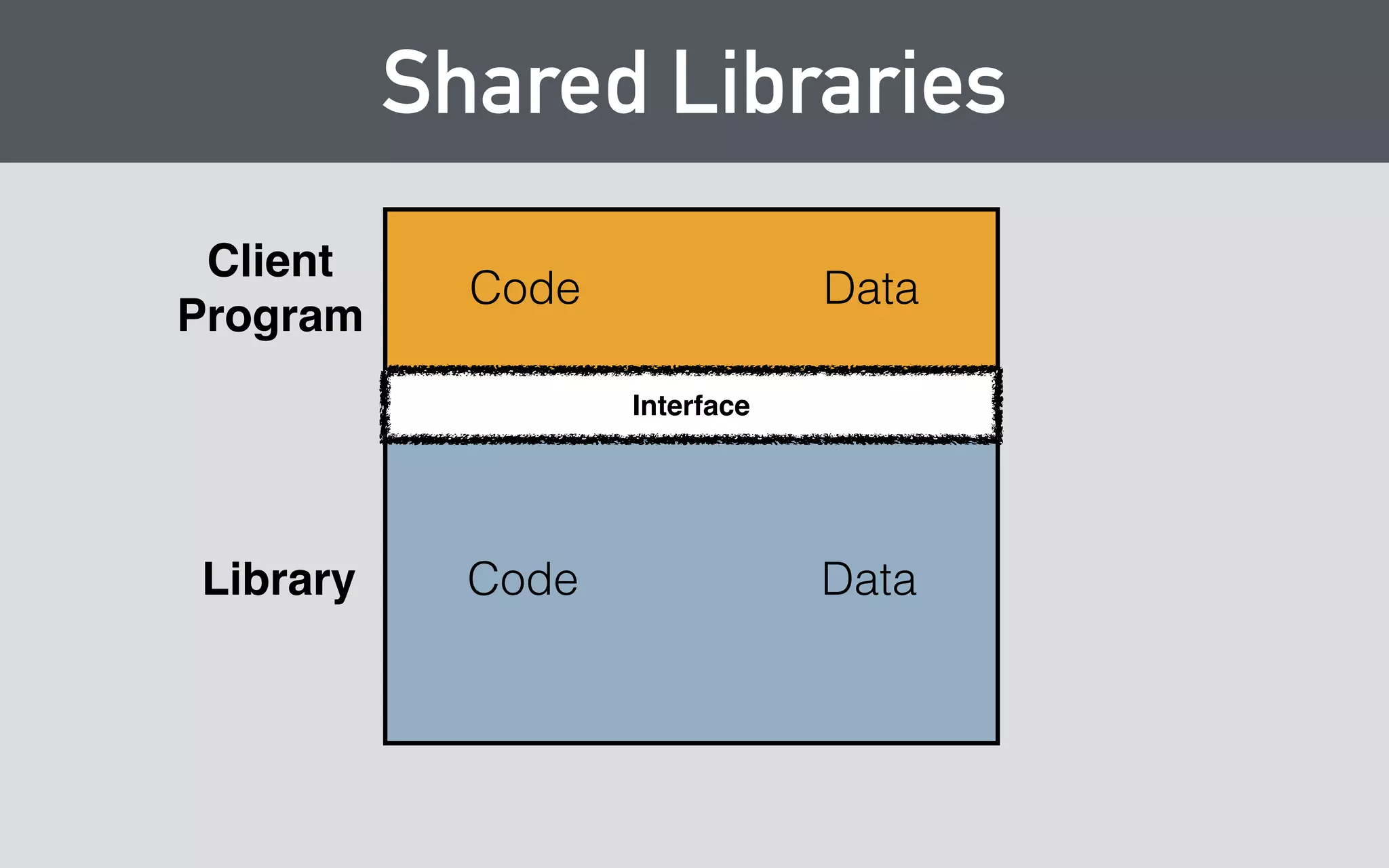

5. Shared Libraries
Interface
Code Data
Client!
Program
Library
Code Data

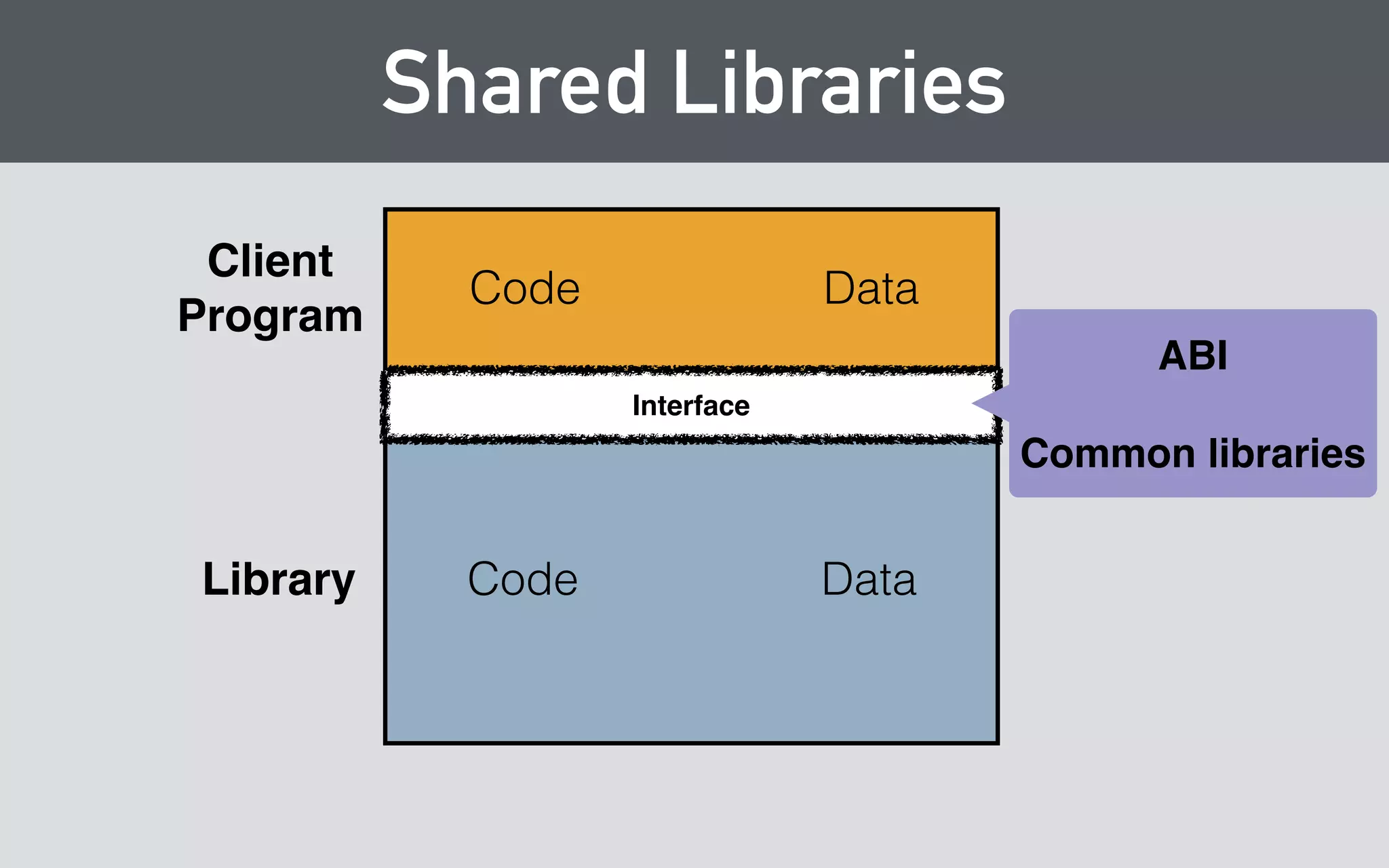

6. Shared Libraries
Interface
Code Data
Client!
Program
Library
Code Data
ABI!
!
Common libraries

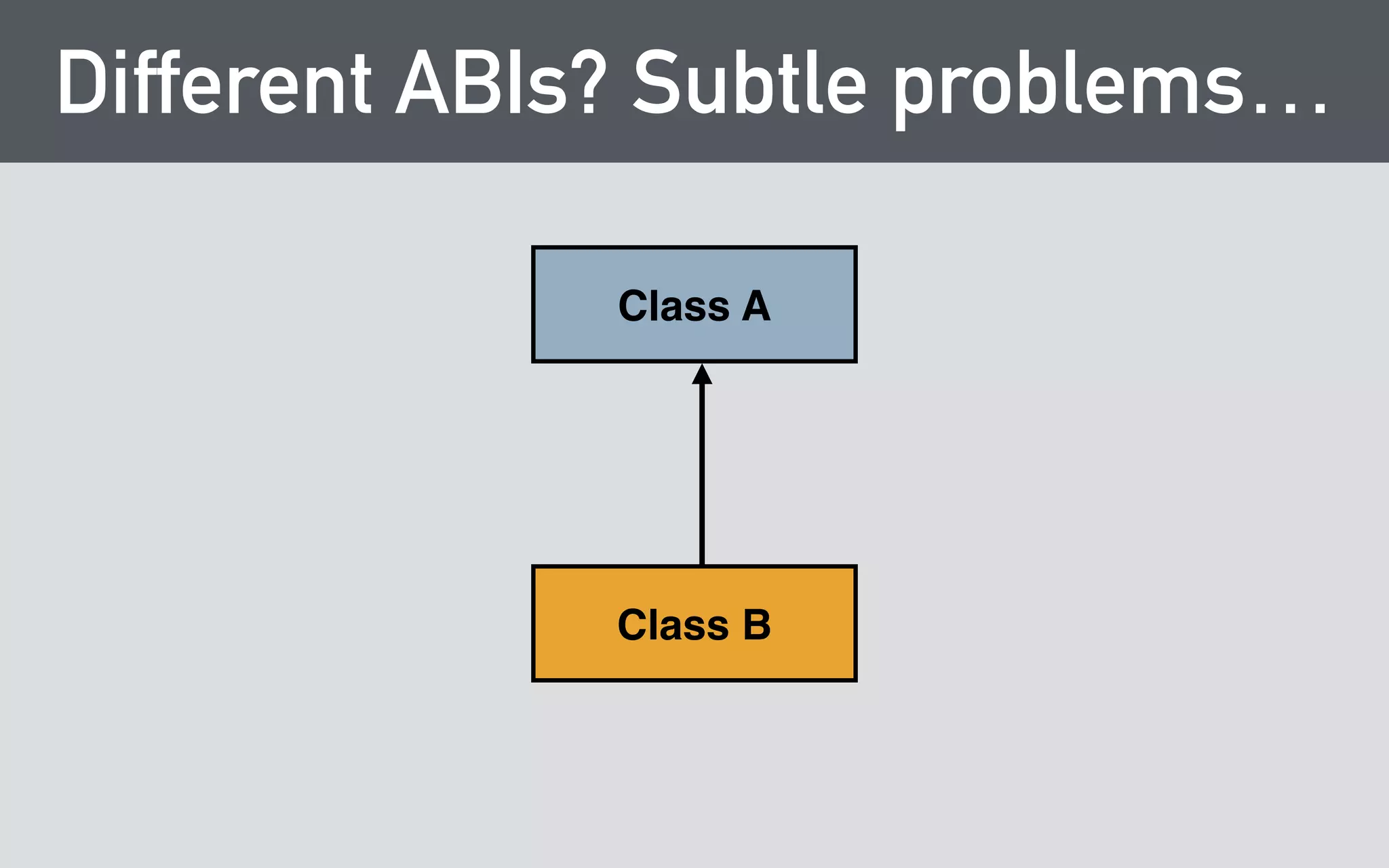

7. Different ABIs? Subtle problems…
Class A
Class B

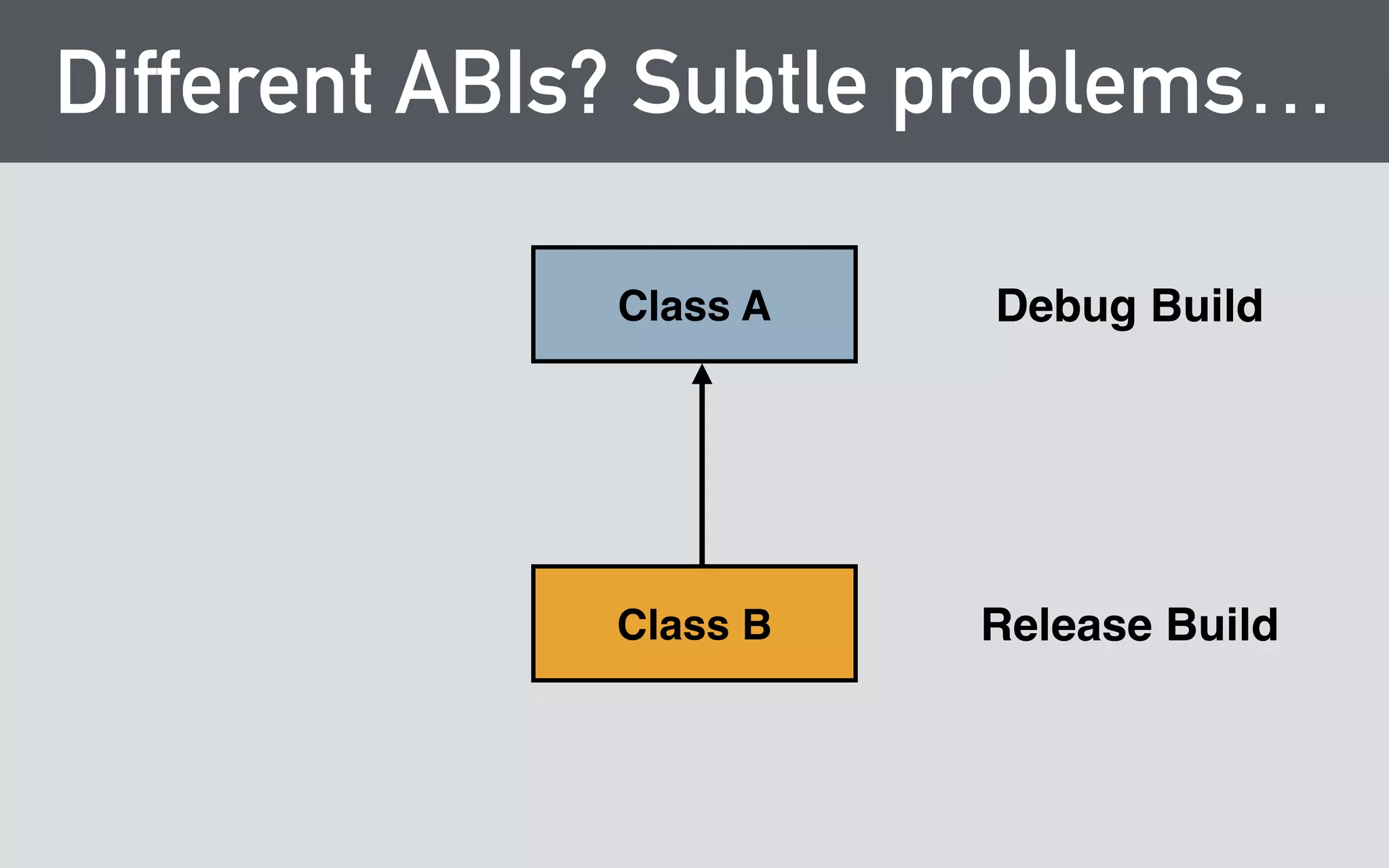

8. Different ABIs? Subtle problems…
Class A
Class B
Debug Build
Release Build

9. My Goal for Libraries
Get out of the client’s way.

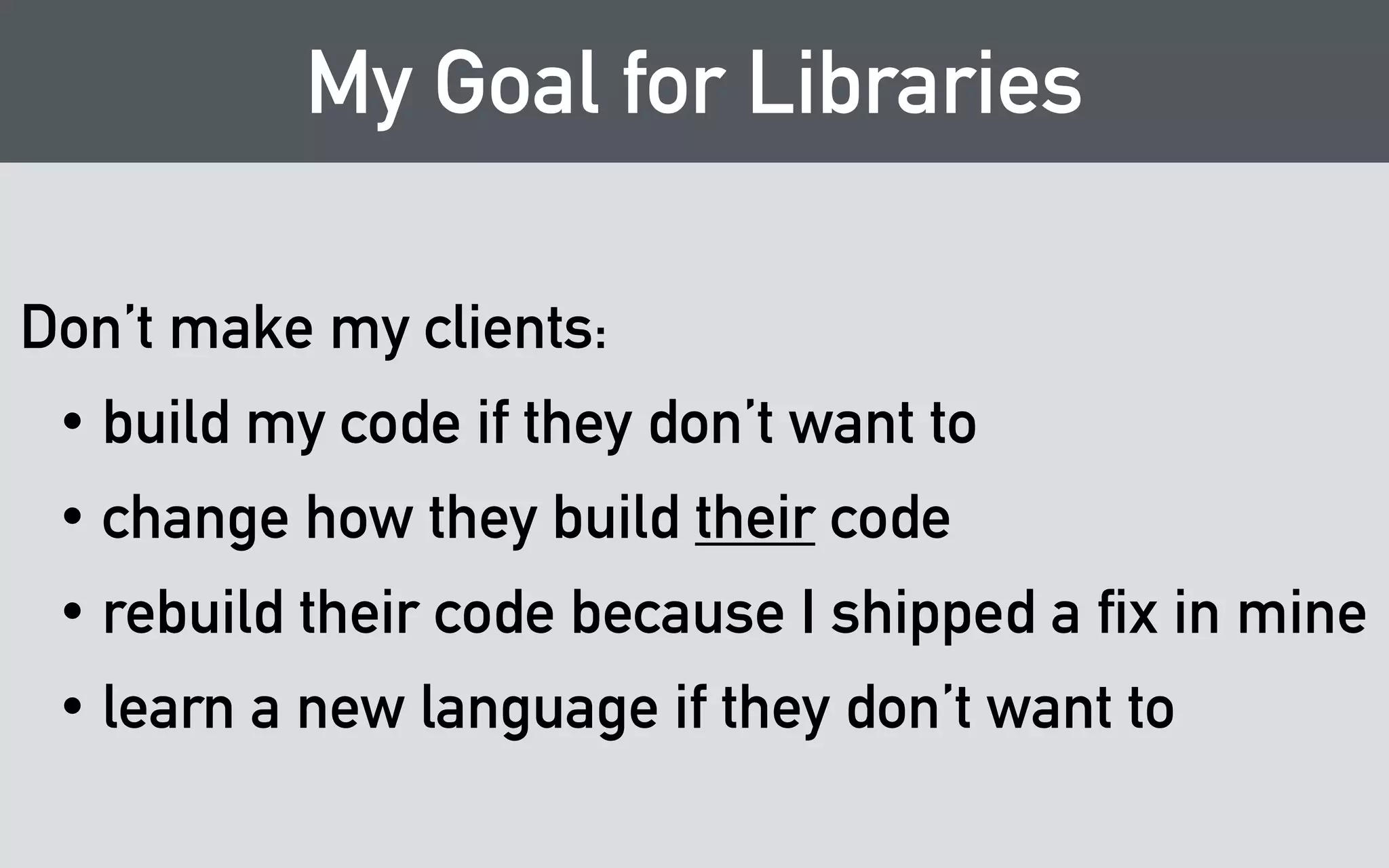

10. My Goal for Libraries
Don’t make my clients:
• build my code if they don’t want to
• change how they build their code
• rebuild their code because I shipped a fix in mine
• learn a new language if they don’t want to

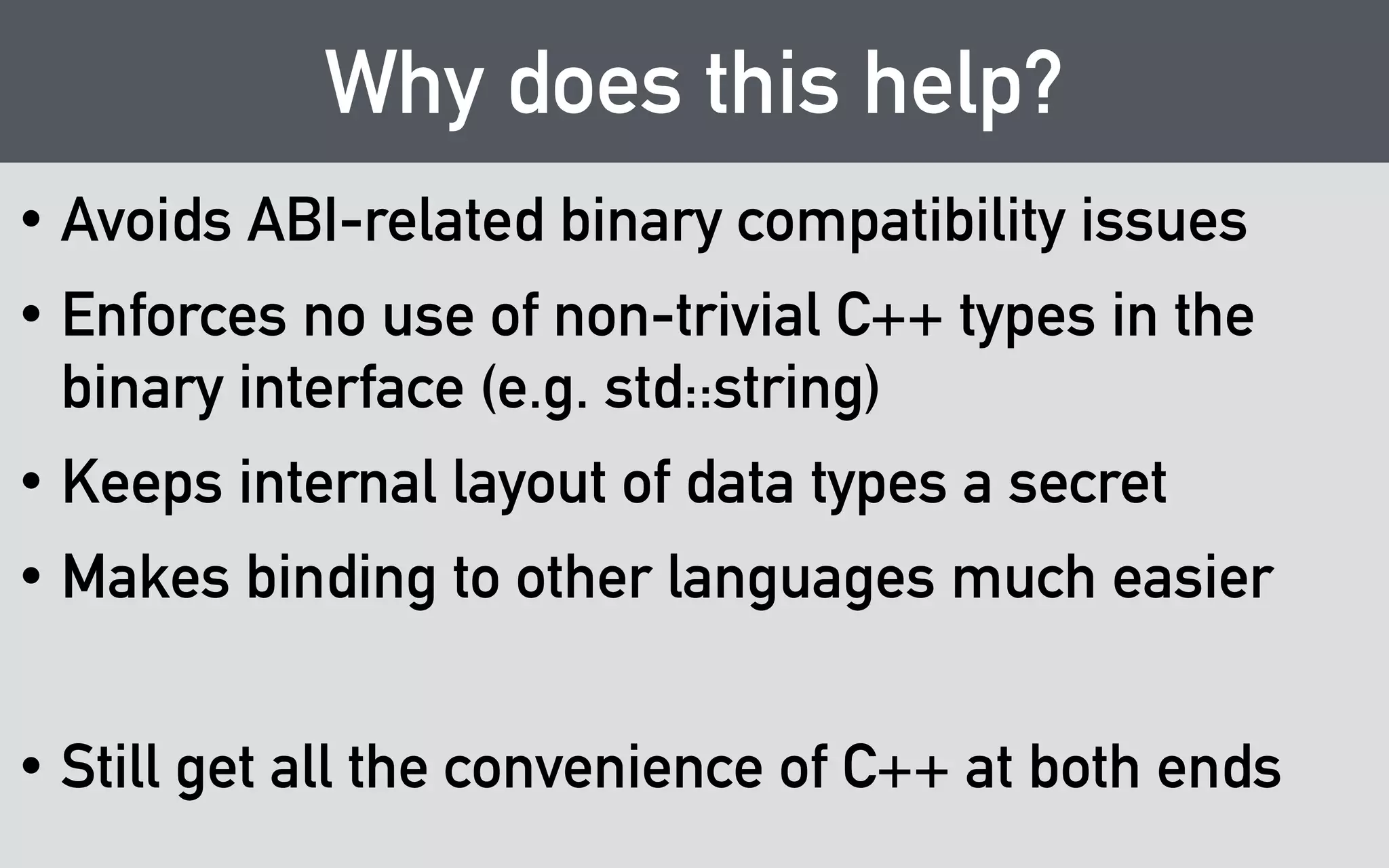

13. Why does this help?
• Avoids ABI-related binary compatibility issues
• Enforces no use of non-trivial C++ types in the
binary interface (e.g. std::string)
• Keeps internal layout of data types a secret
• Makes binding to other languages much easier
!
• Still get all the convenience of C++ at both ends

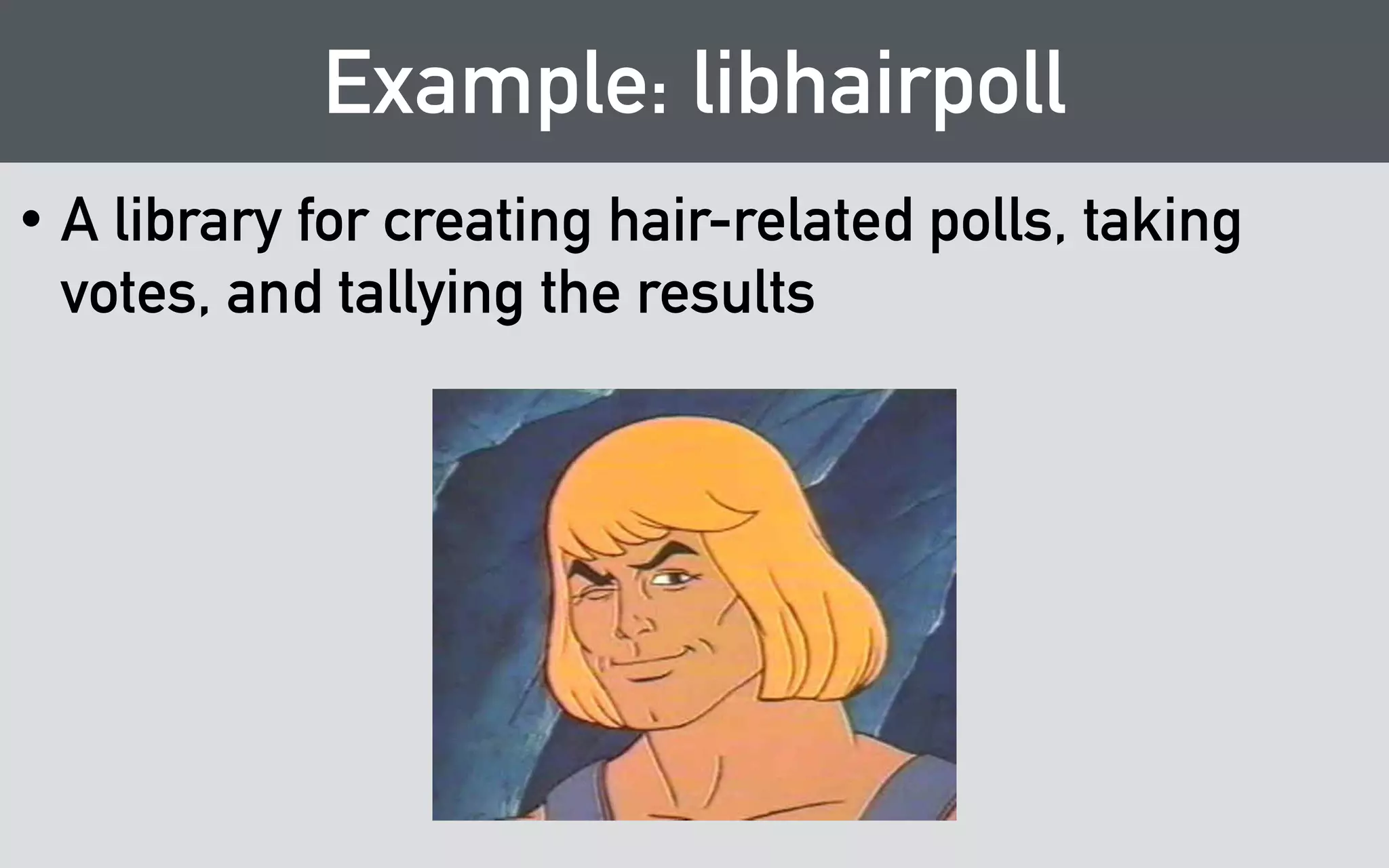

14. Example: libhairpoll
• A library for creating hair-related polls, taking
votes, and tallying the results

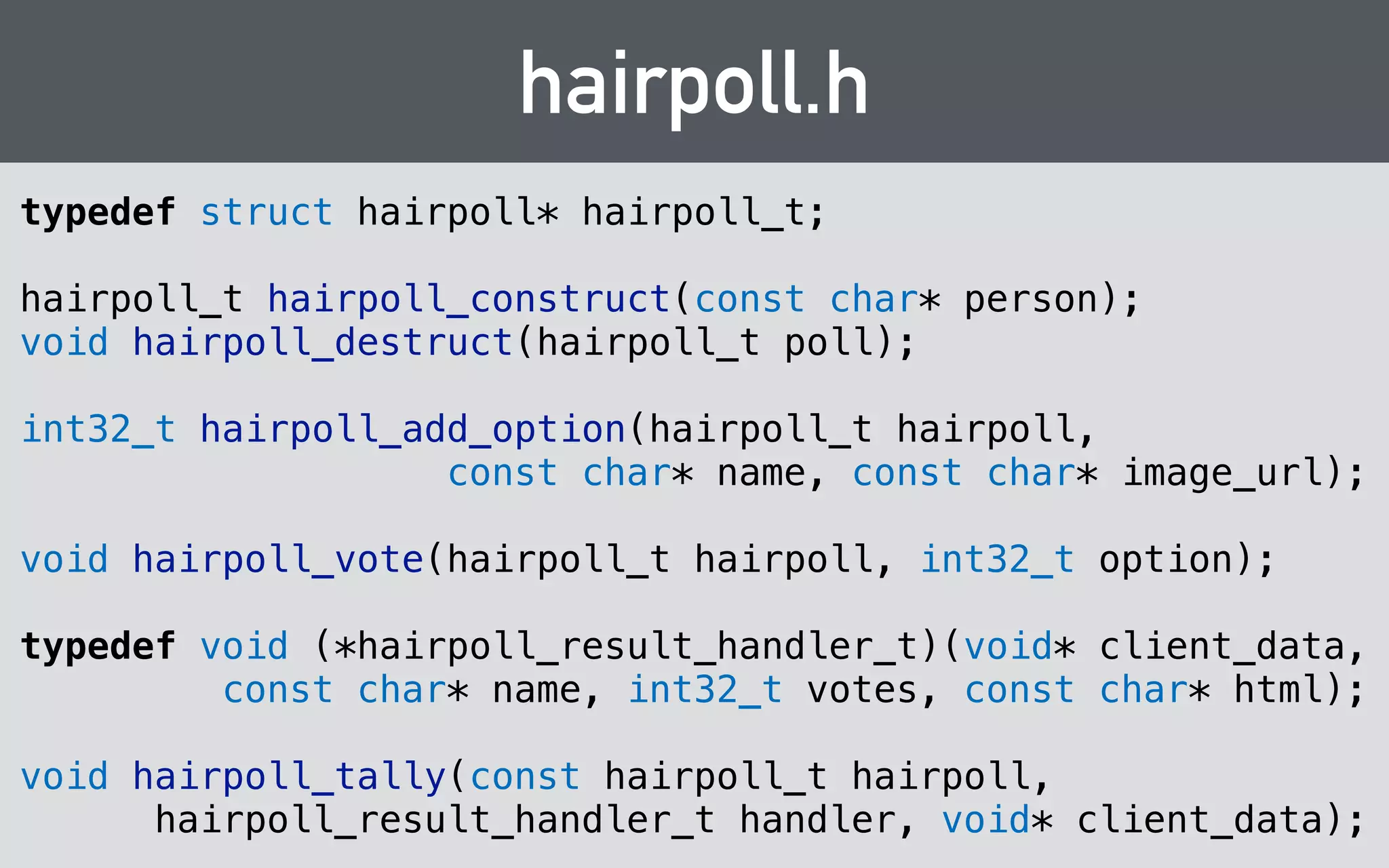

15. hairpoll.h
typedef struct hairpoll* hairpoll_t;
!
hairpoll_t hairpoll_construct(const char* person);
void hairpoll_destruct(hairpoll_t poll);
!
int32_t hairpoll_add_option(hairpoll_t hairpoll,
const char* name, const char* image_url);
!
void hairpoll_vote(hairpoll_t hairpoll, int32_t option);
!
typedef void (*hairpoll_result_handler_t)(void* client_data,
const char* name, int32_t votes, const char* html);
!
void hairpoll_tally(const hairpoll_t hairpoll,
hairpoll_result_handler_t handler, void* client_data);

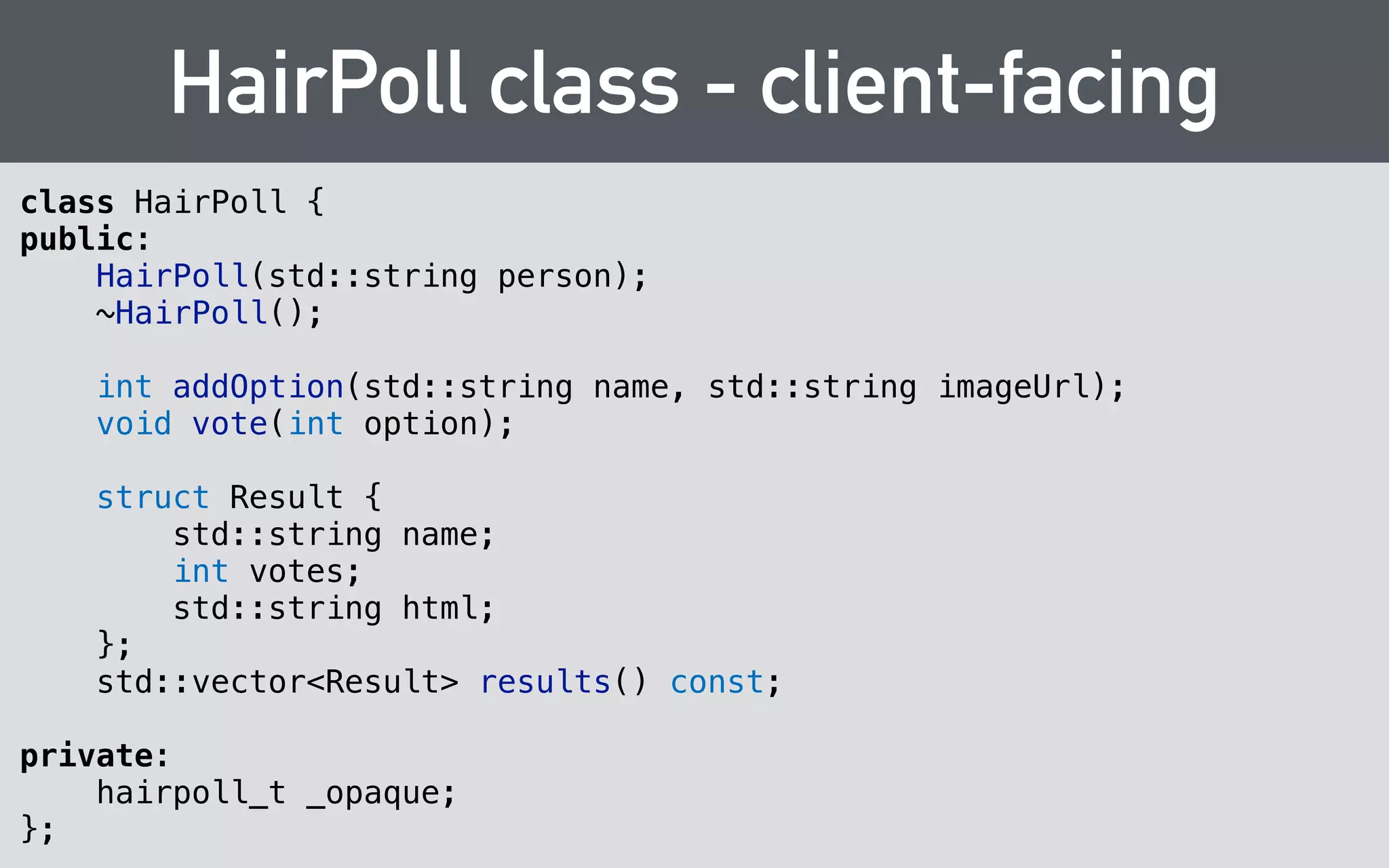

16. HairPoll class - client-facing
class HairPoll {
public:
HairPoll(std::string person);
~HairPoll();
!
int addOption(std::string name, std::string imageUrl);
void vote(int option);
!
struct Result {
std::string name;
int votes;
std::string html;
};
std::vector<Result> results() const;
!
private:
hairpoll_t _opaque;
};

17. Best Practices

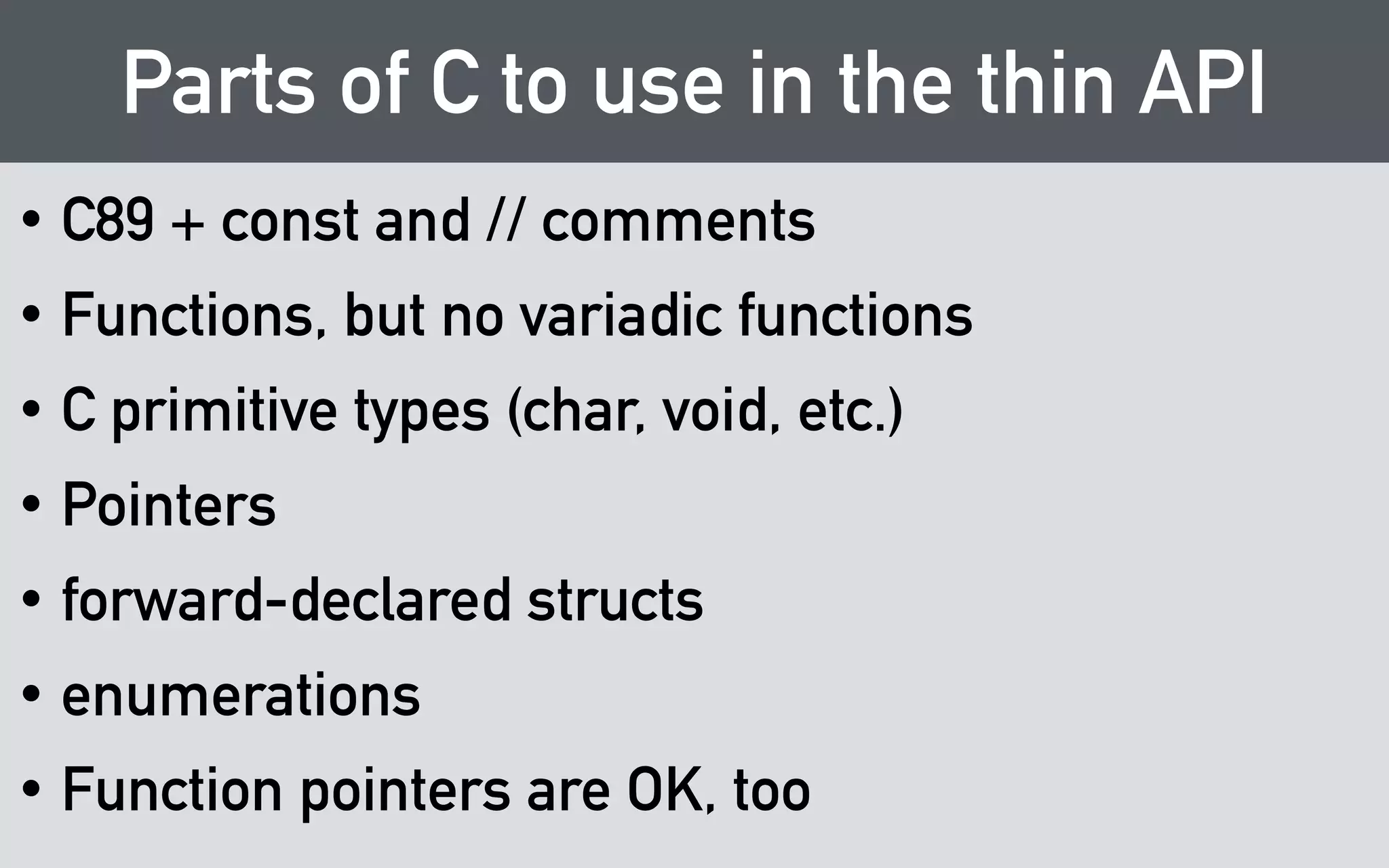

18. Parts of C to use in the thin API
• C89 + const and // comments
• Functions, but no variadic functions
• C primitive types (char, void, etc.)
• Pointers
• forward-declared structs
• enumerations
• Function pointers are OK, too

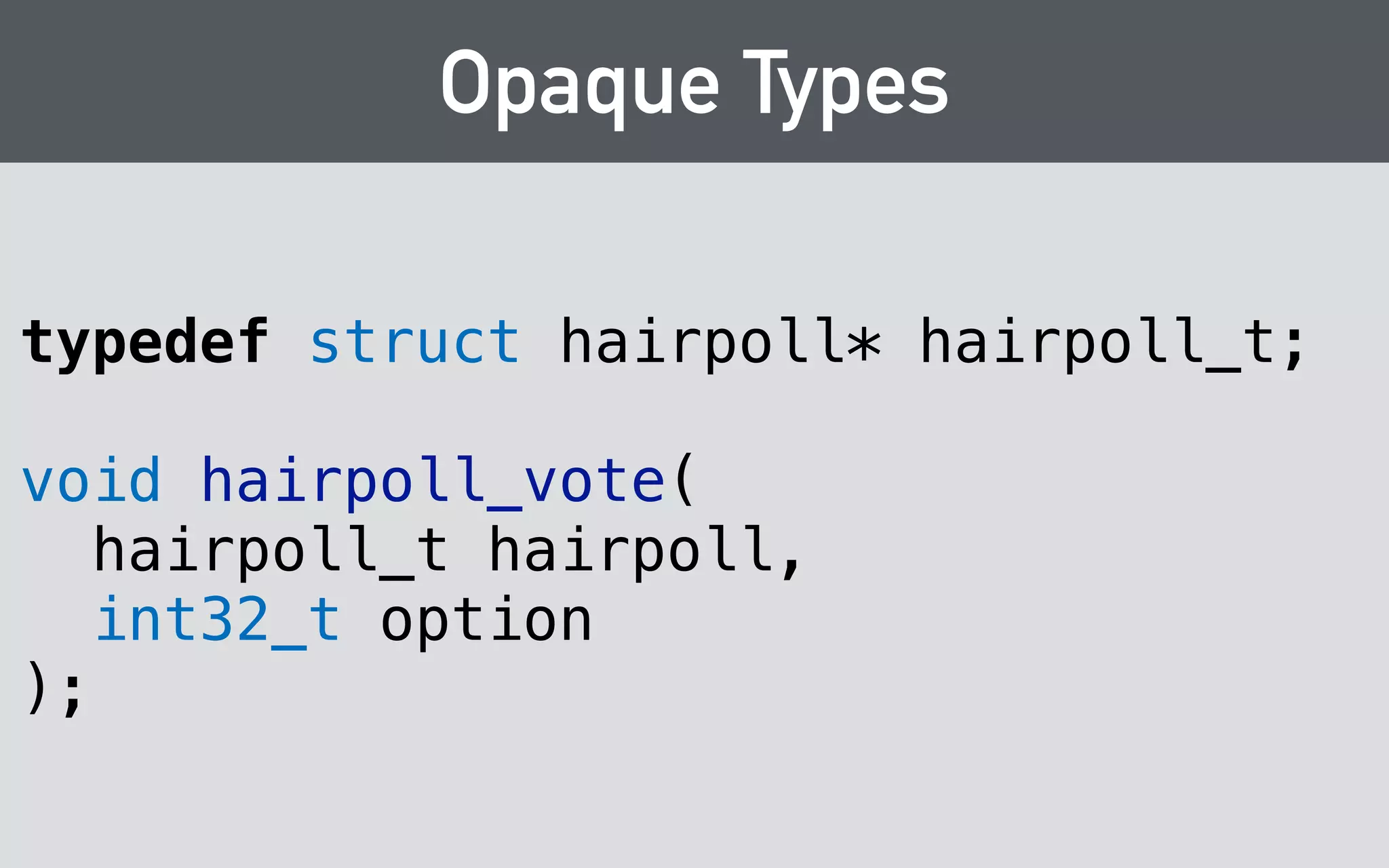

19. Opaque Types
typedef struct hairpoll* hairpoll_t;
!
void hairpoll_vote(
hairpoll_t hairpoll,
int32_t option
);

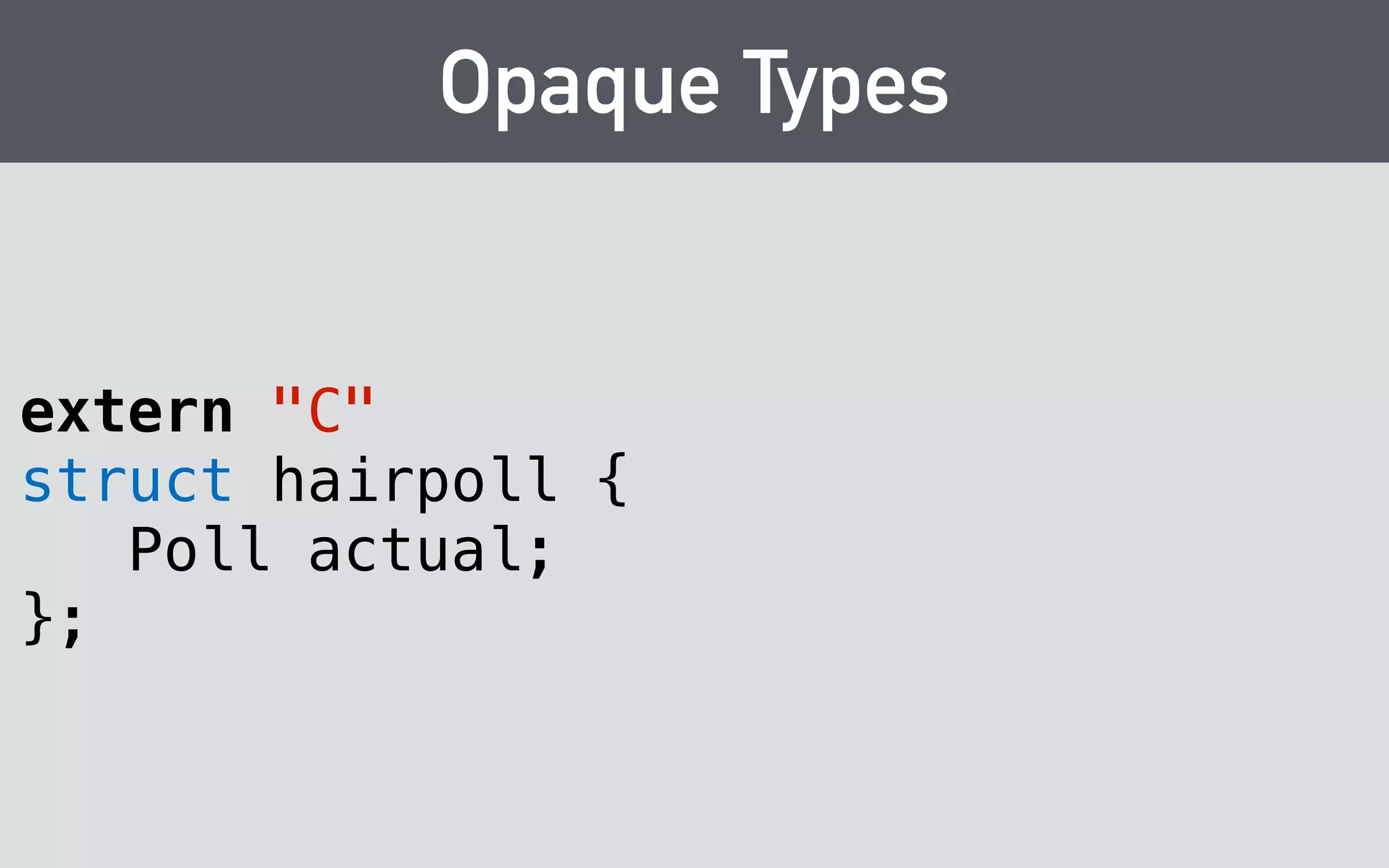

20. Opaque Types
extern "C"
struct hairpoll {
Poll actual;
};

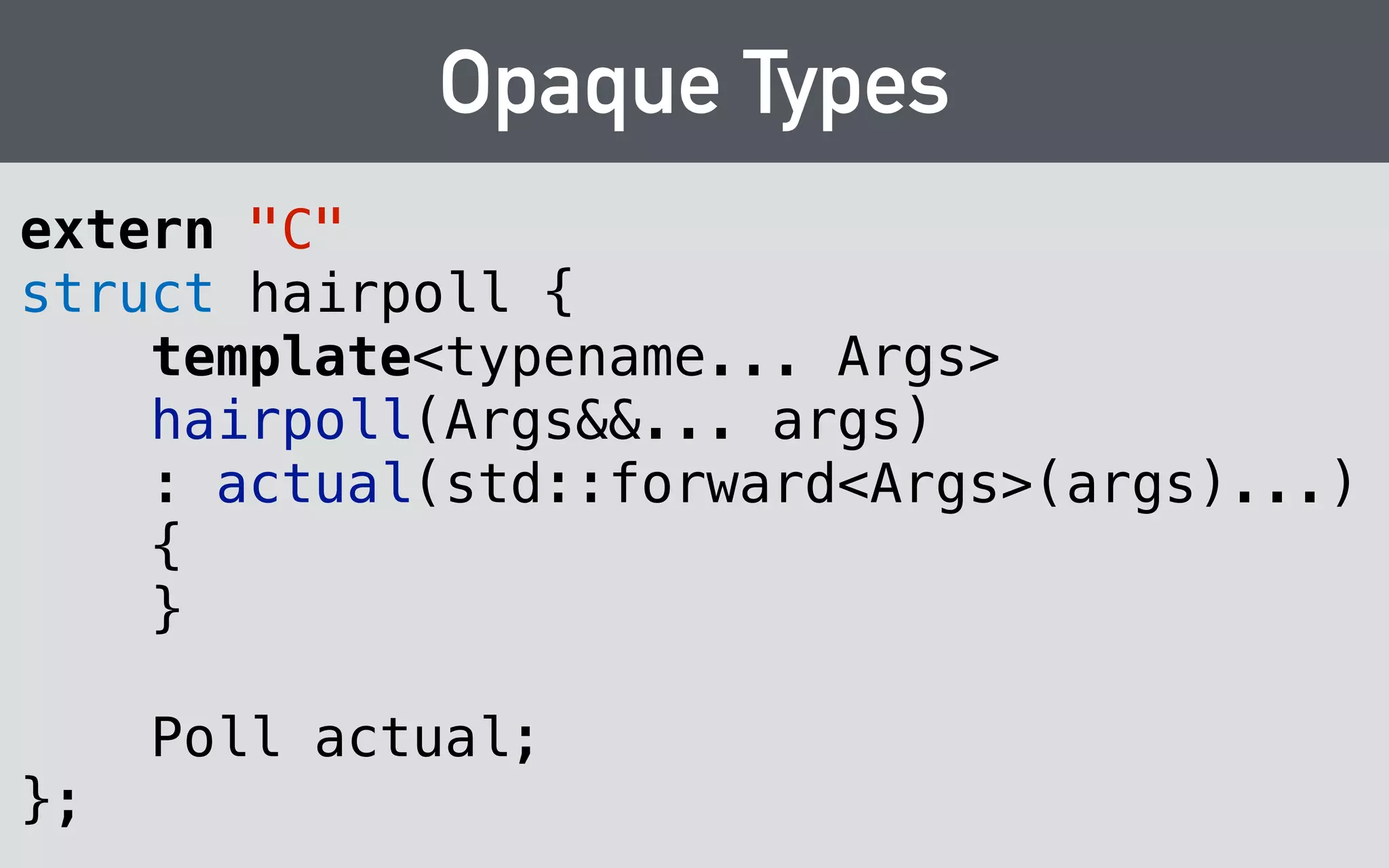

21. Opaque Types
extern "C"
struct hairpoll {
template<typename... Args>
hairpoll(Args&&... args)
: actual(std::forward<Args>(args)...)
{
}
!
Poll actual;
};

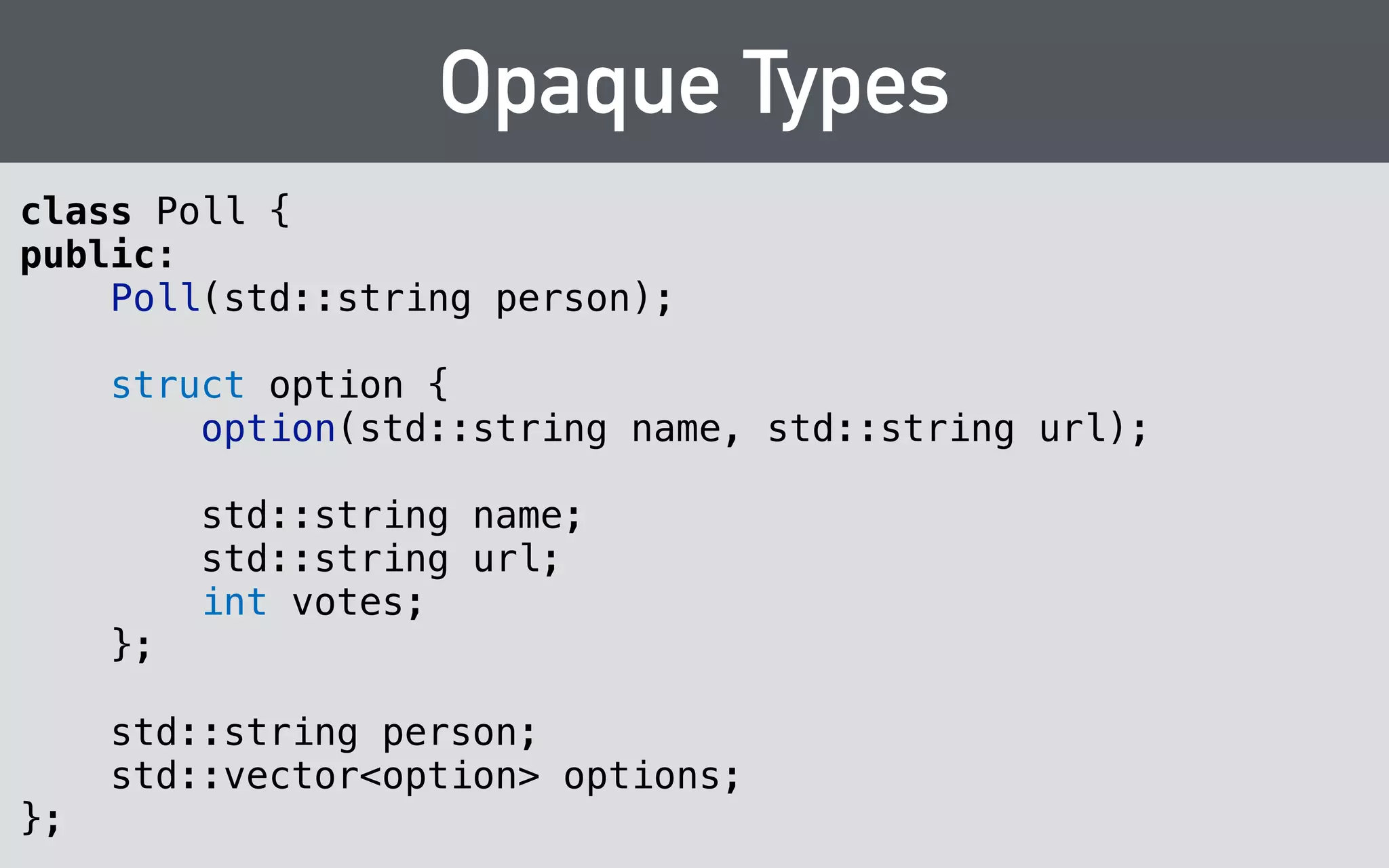

22. Opaque Types
class Poll {
public:
Poll(std::string person);
!
struct option {
option(std::string name, std::string url);
!
std::string name;
std::string url;
int votes;
};
!
std::string person;
std::vector<option> options;
};

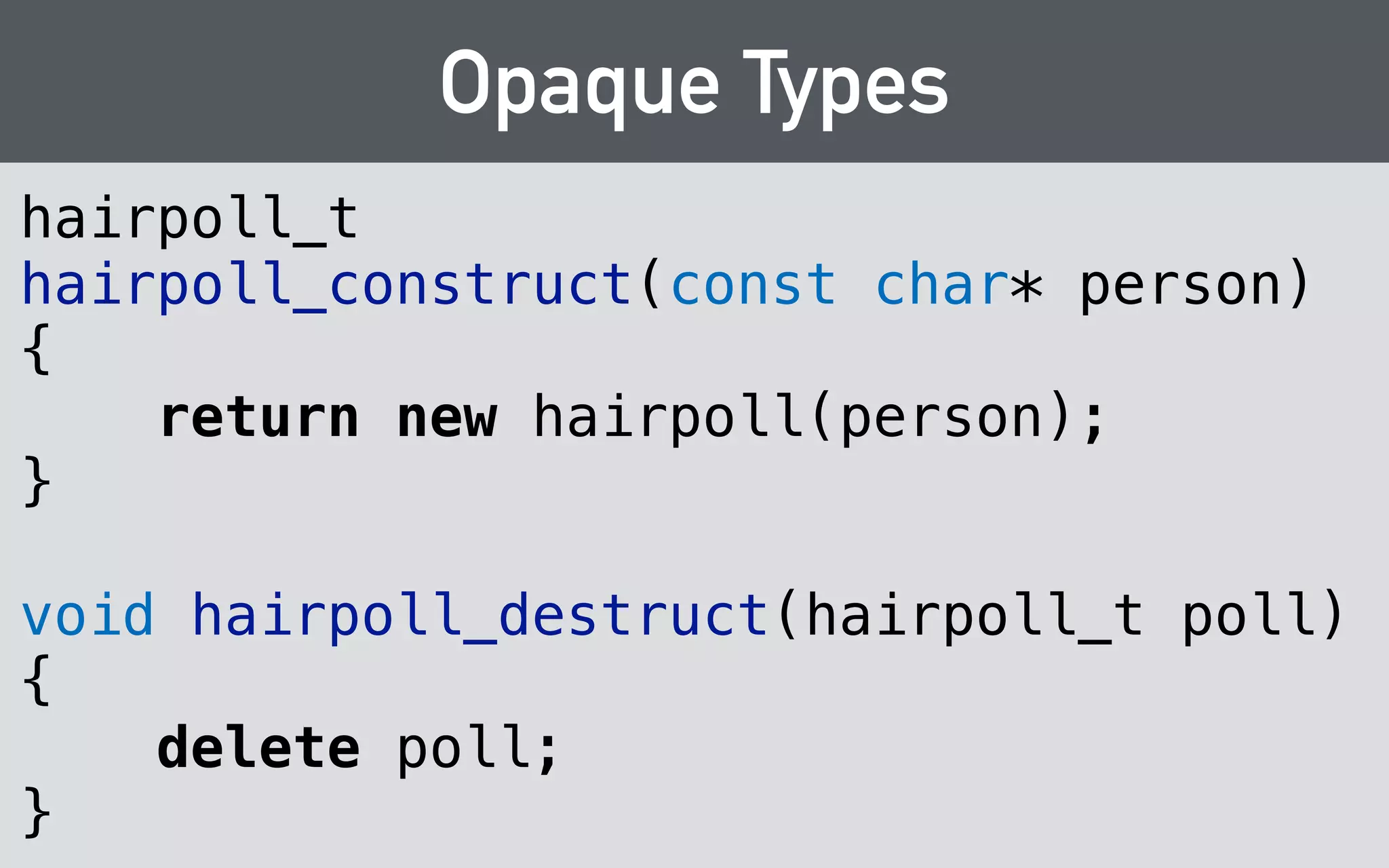

23. Opaque Types
hairpoll_t
hairpoll_construct(const char* person)
{
return new hairpoll(person);
}
!
void hairpoll_destruct(hairpoll_t poll)
{
delete poll;
}

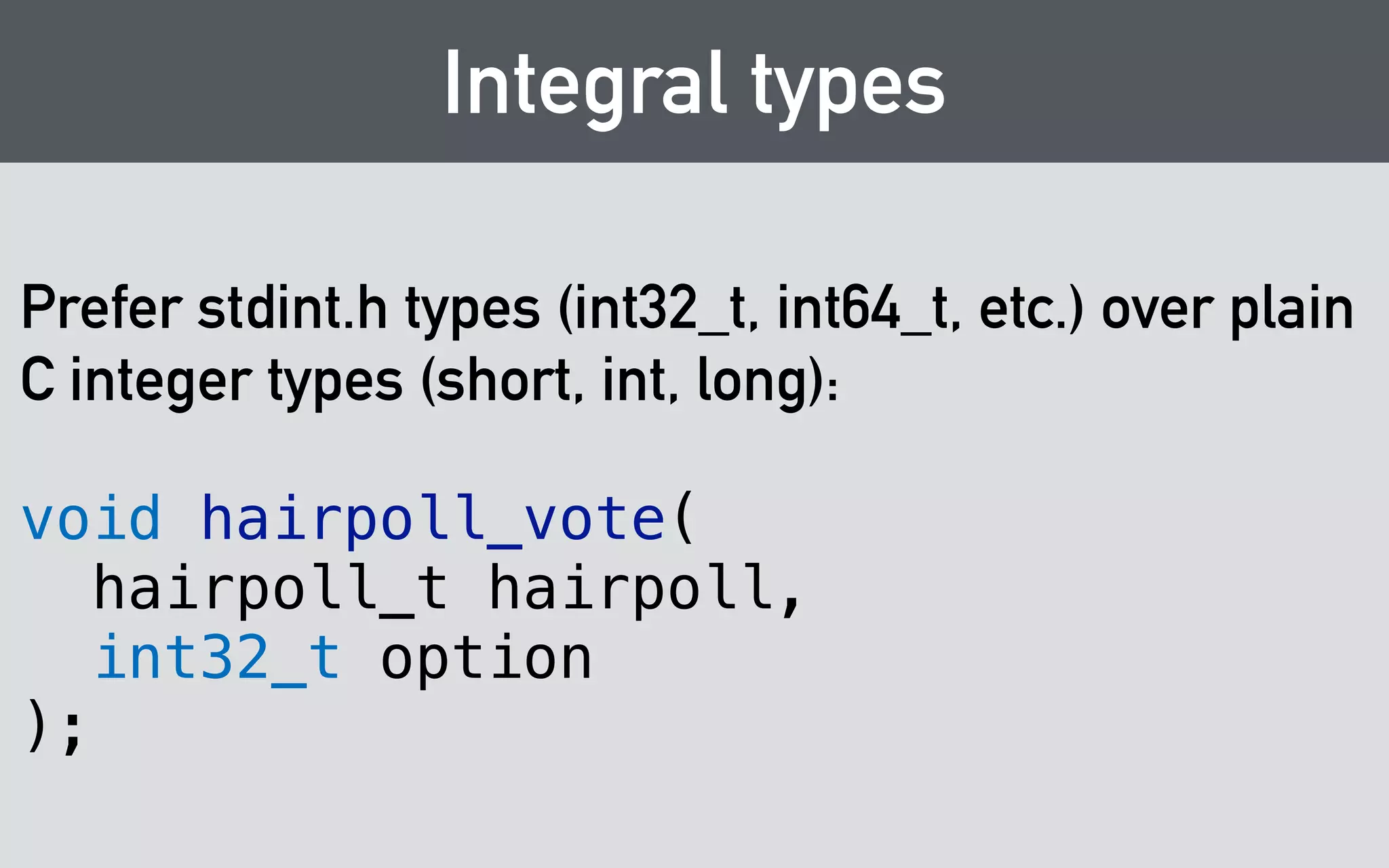

24. Integral types
Prefer stdint.h types (int32_t, int64_t, etc.) over plain
C integer types (short, int, long):
!
void hairpoll_vote(
hairpoll_t hairpoll,
int32_t option
);

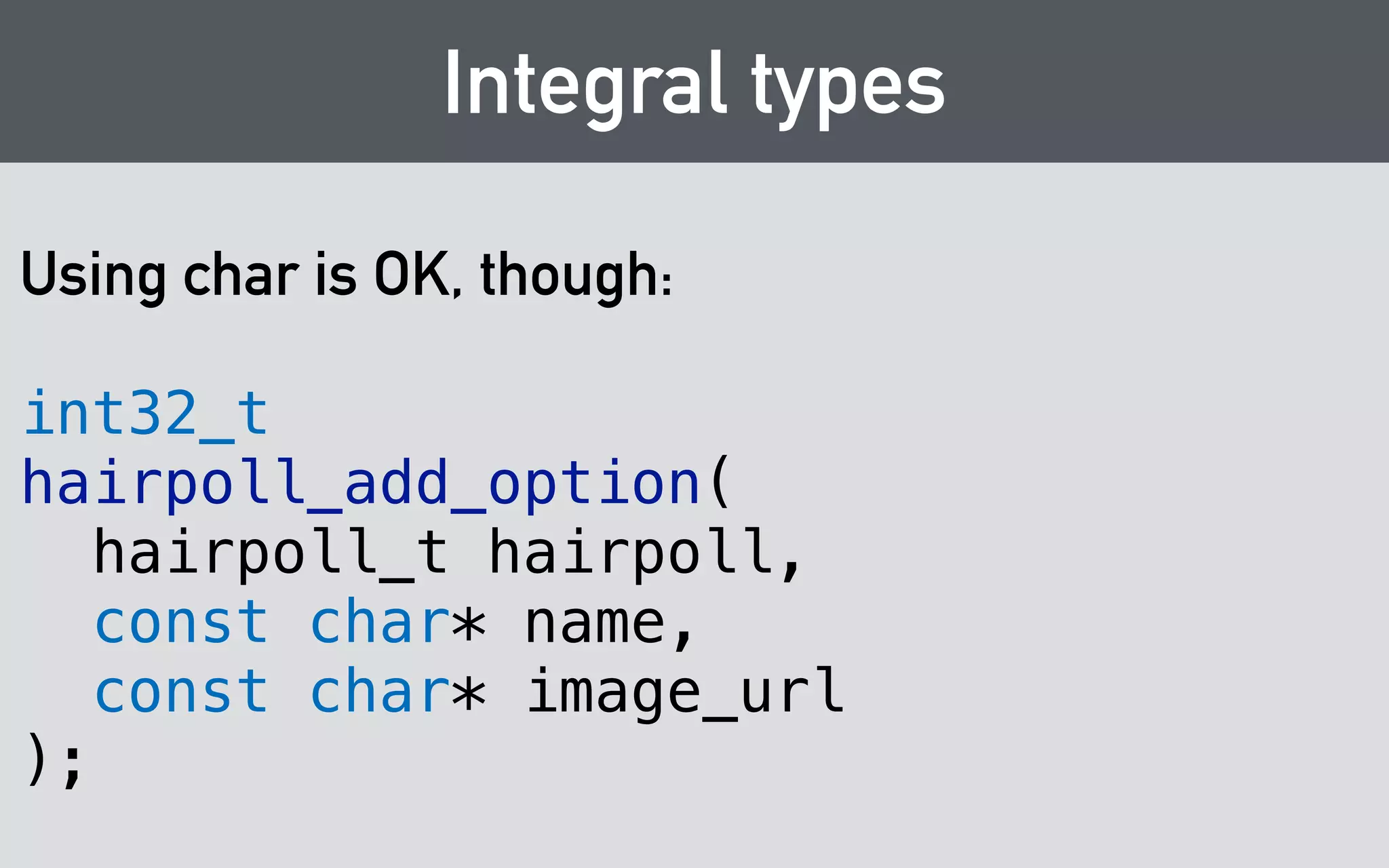

25. Integral types
Using char is OK, though:
!
int32_t
hairpoll_add_option(
hairpoll_t hairpoll,
const char* name,
const char* image_url
);

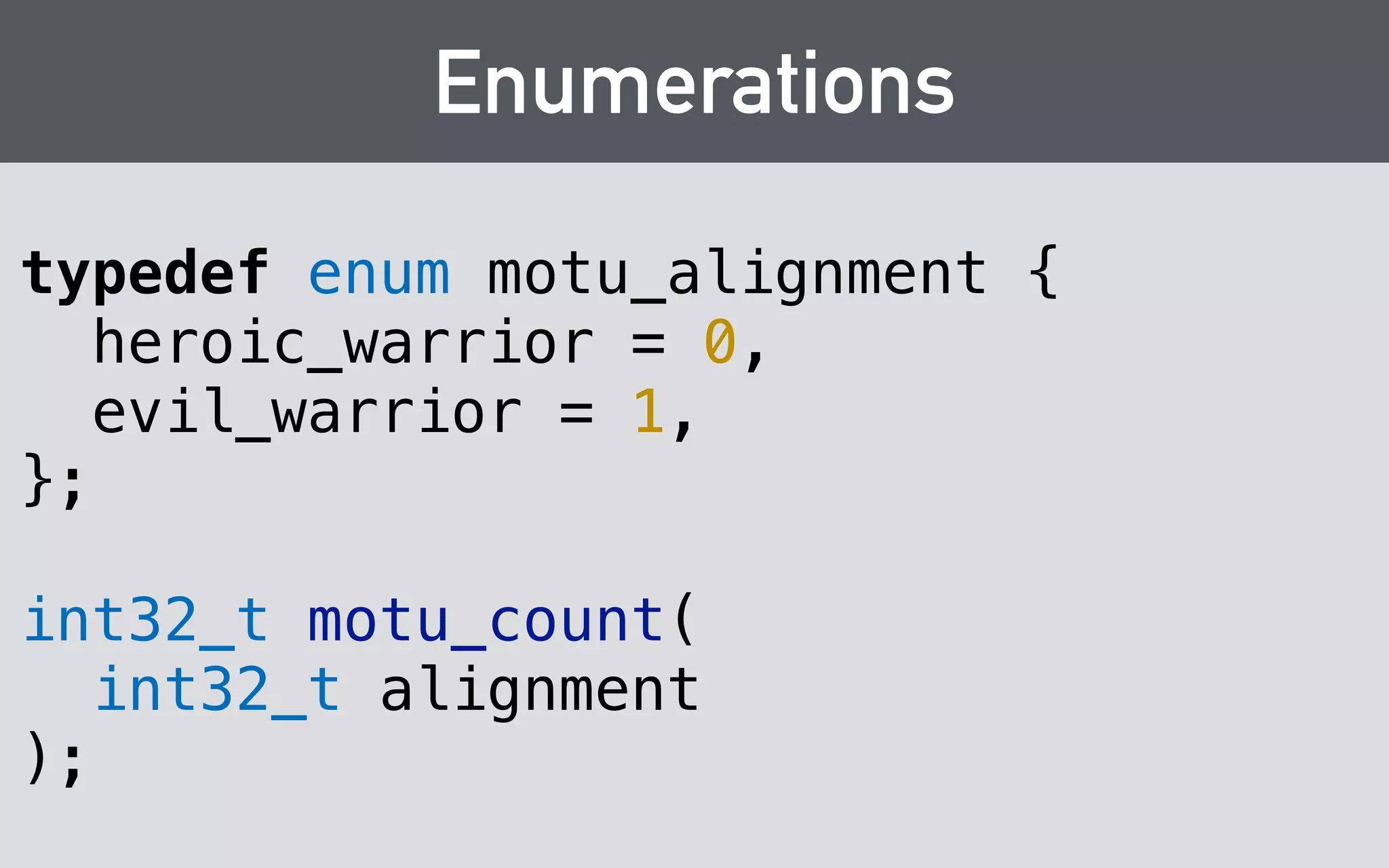

26. Enumerations
typedef enum motu_alignment {
heroic_warrior = 0,
evil_warrior = 1,
};
!
int32_t motu_count(
int32_t alignment
);

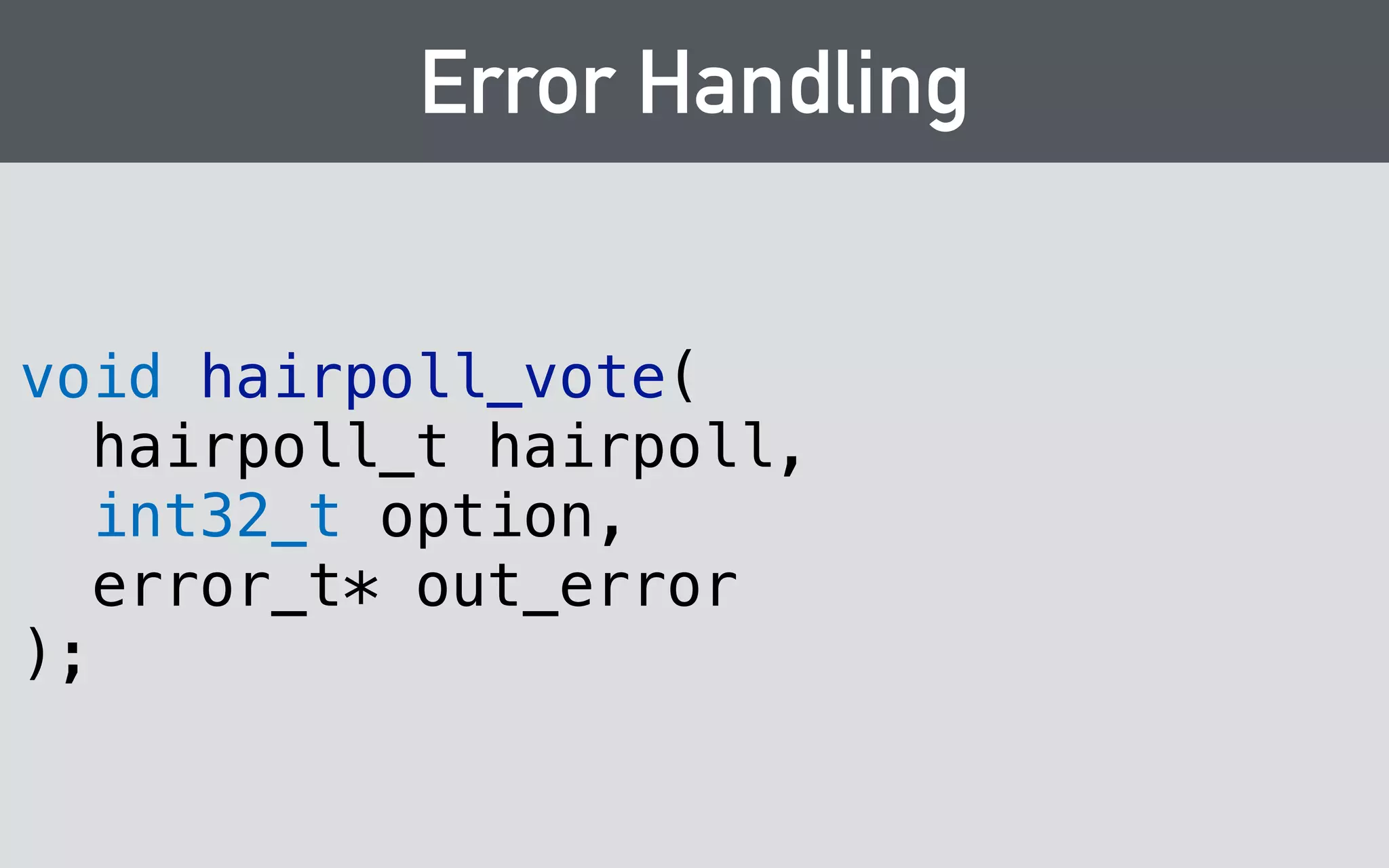

27. Error Handling
void hairpoll_vote(
hairpoll_t hairpoll,
int32_t option,
error_t* out_error
);

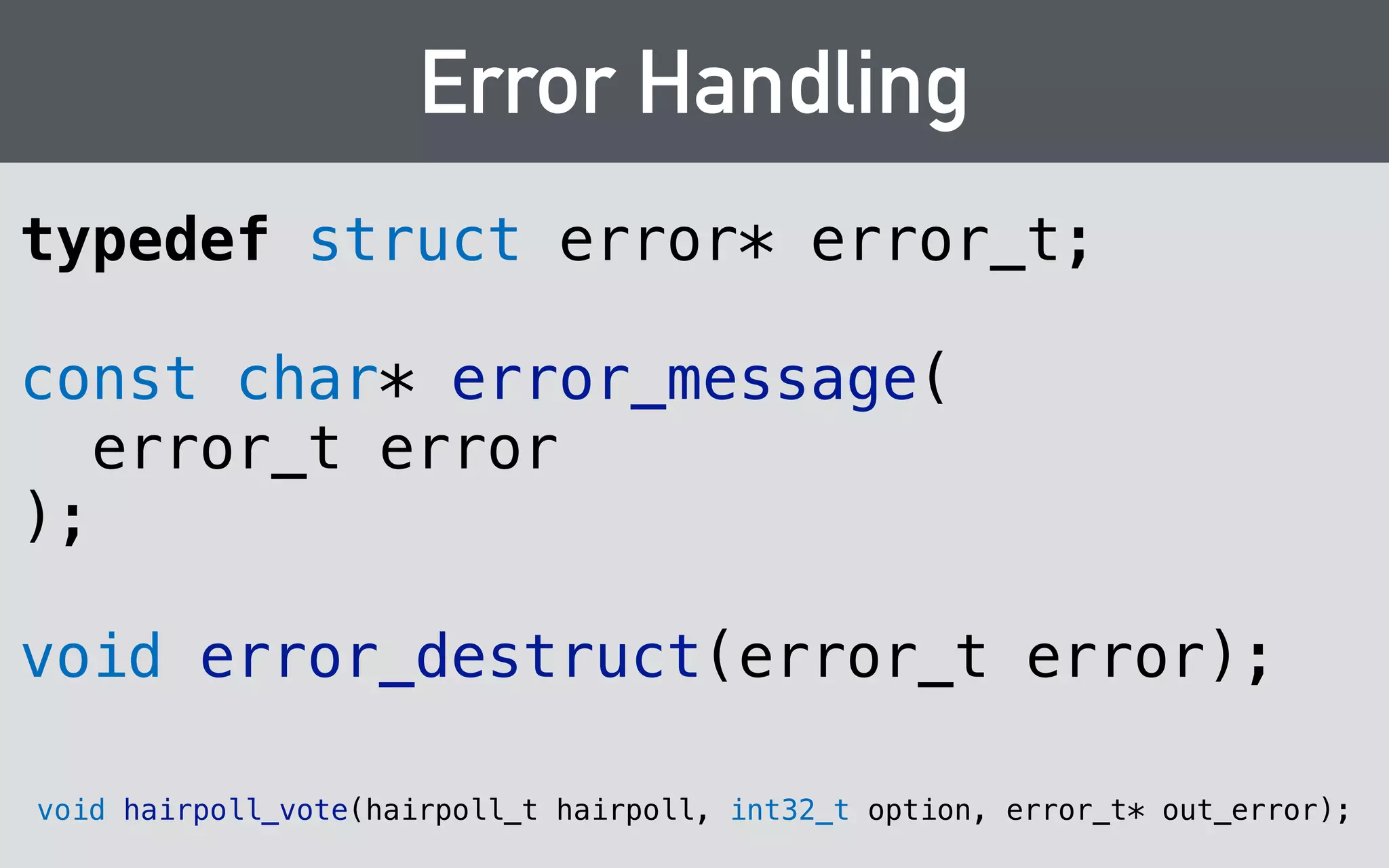

28. Error Handling
typedef struct error* error_t;
!
const char* error_message(
error_t error
);
!
void error_destruct(error_t error);
!
!
void hairpoll_vote(hairpoll_t hairpoll, int32_t option, error_t* out_error);

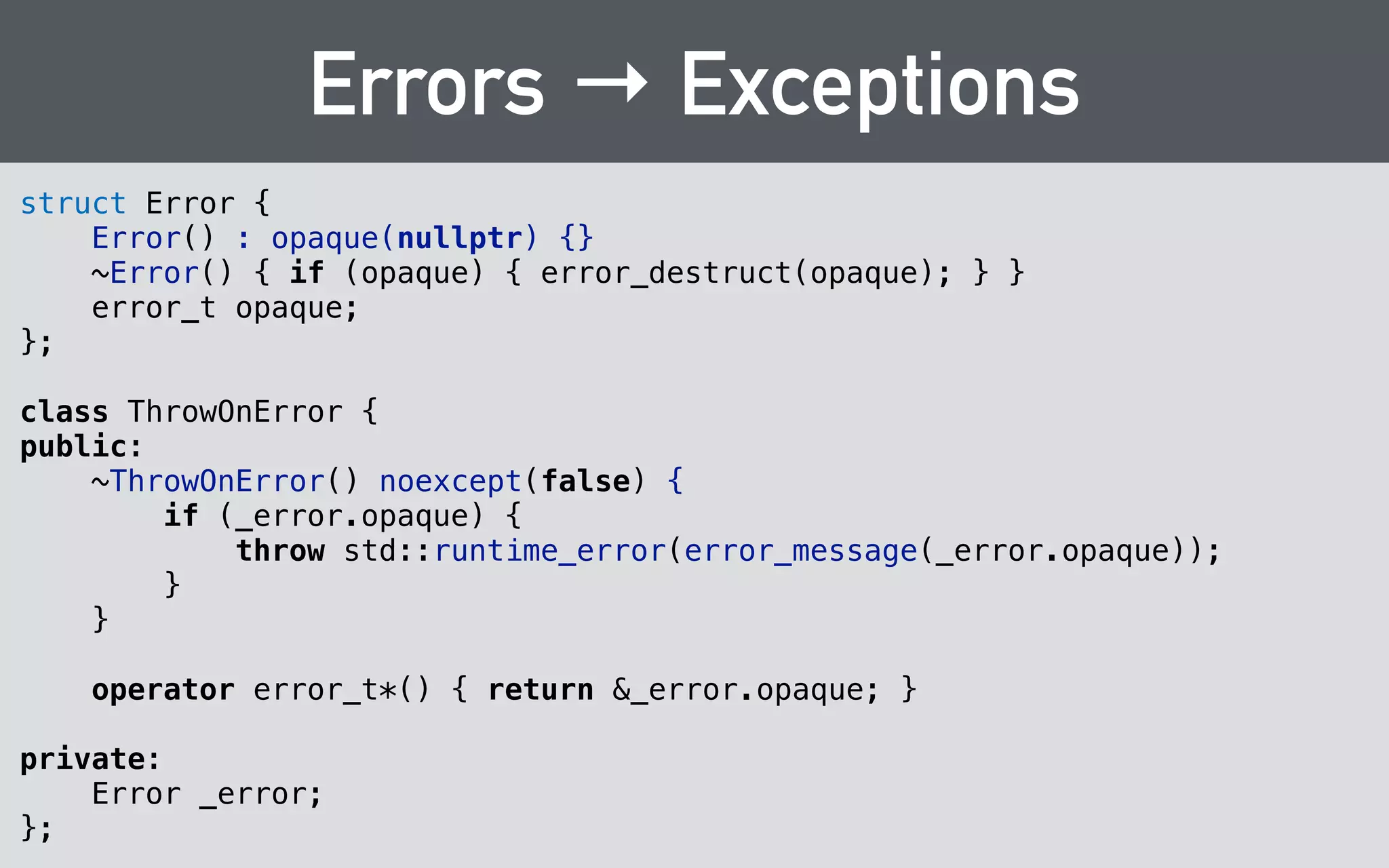

29. Errors → Exceptions
struct Error {
Error() : opaque(nullptr) {}
~Error() { if (opaque) { error_destruct(opaque); } }
error_t opaque;
};
!
class ThrowOnError {
public:
~ThrowOnError() noexcept(false) {
if (_error.opaque) {
throw std::runtime_error(error_message(_error.opaque));
}
}
!
operator error_t*() { return &_error.opaque; }
!
private:
Error _error;
};

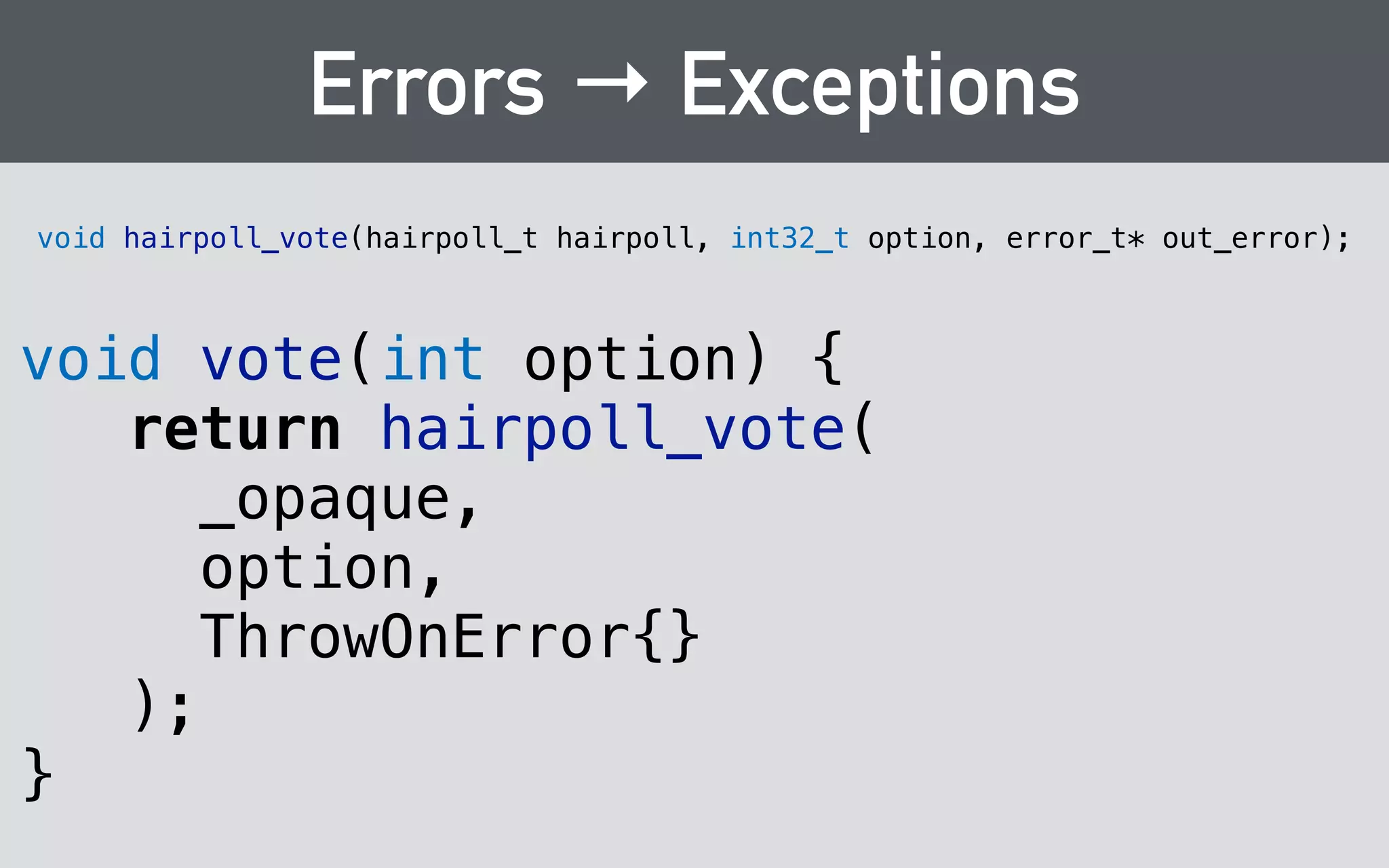

30. Errors → Exceptions
void hairpoll_vote(hairpoll_t hairpoll, int32_t option, error_t* out_error);
!
void vote(int option) {
return hairpoll_vote(
_opaque,
option,
ThrowOnError{}
);
}

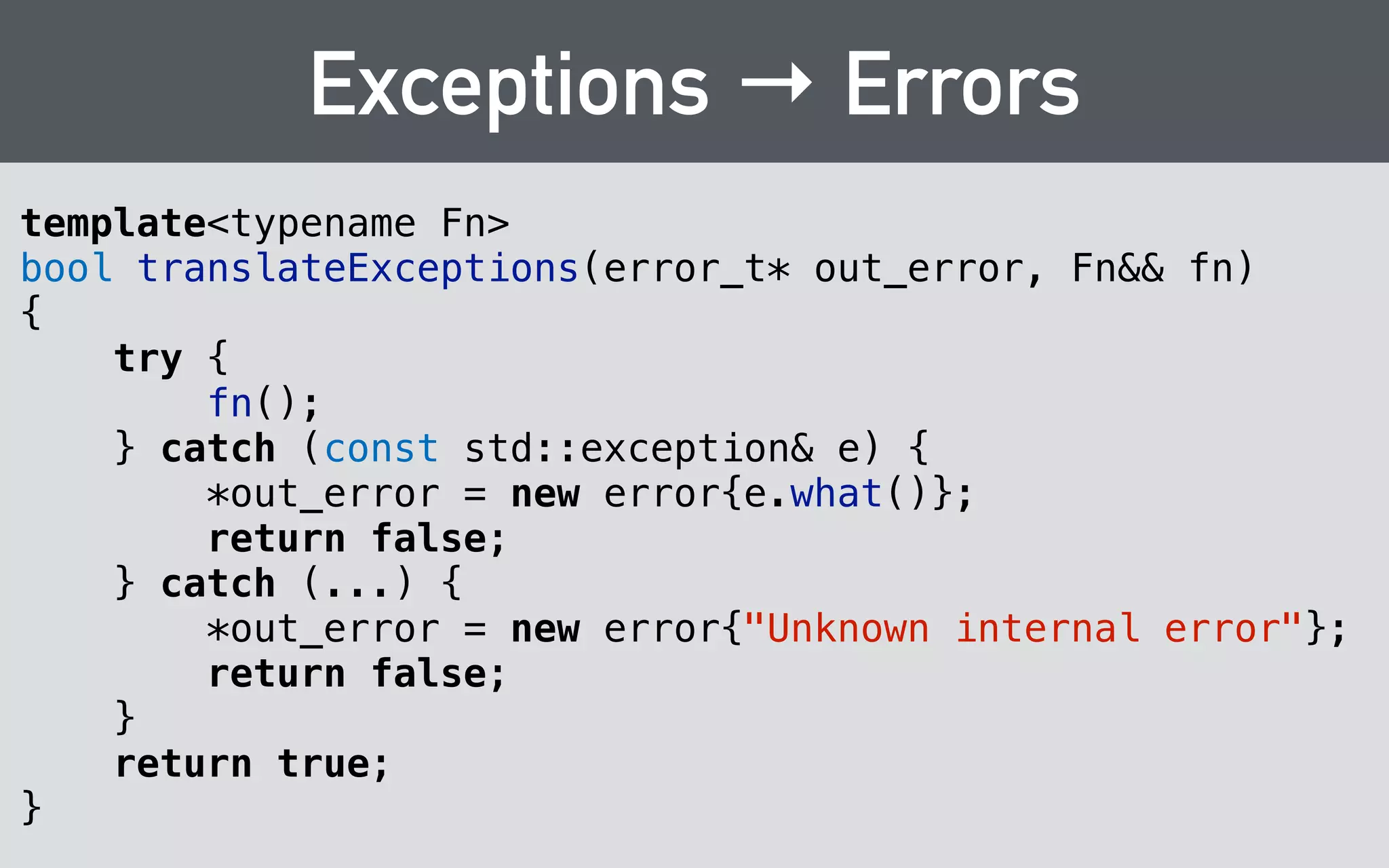

31. Exceptions → Errors
template<typename Fn>
bool translateExceptions(error_t* out_error, Fn&& fn)
{
try {
fn();
} catch (const std::exception& e) {
*out_error = new error{e.what()};
return false;
} catch (...) {
*out_error = new error{"Unknown internal error"};
return false;
}
return true;
}

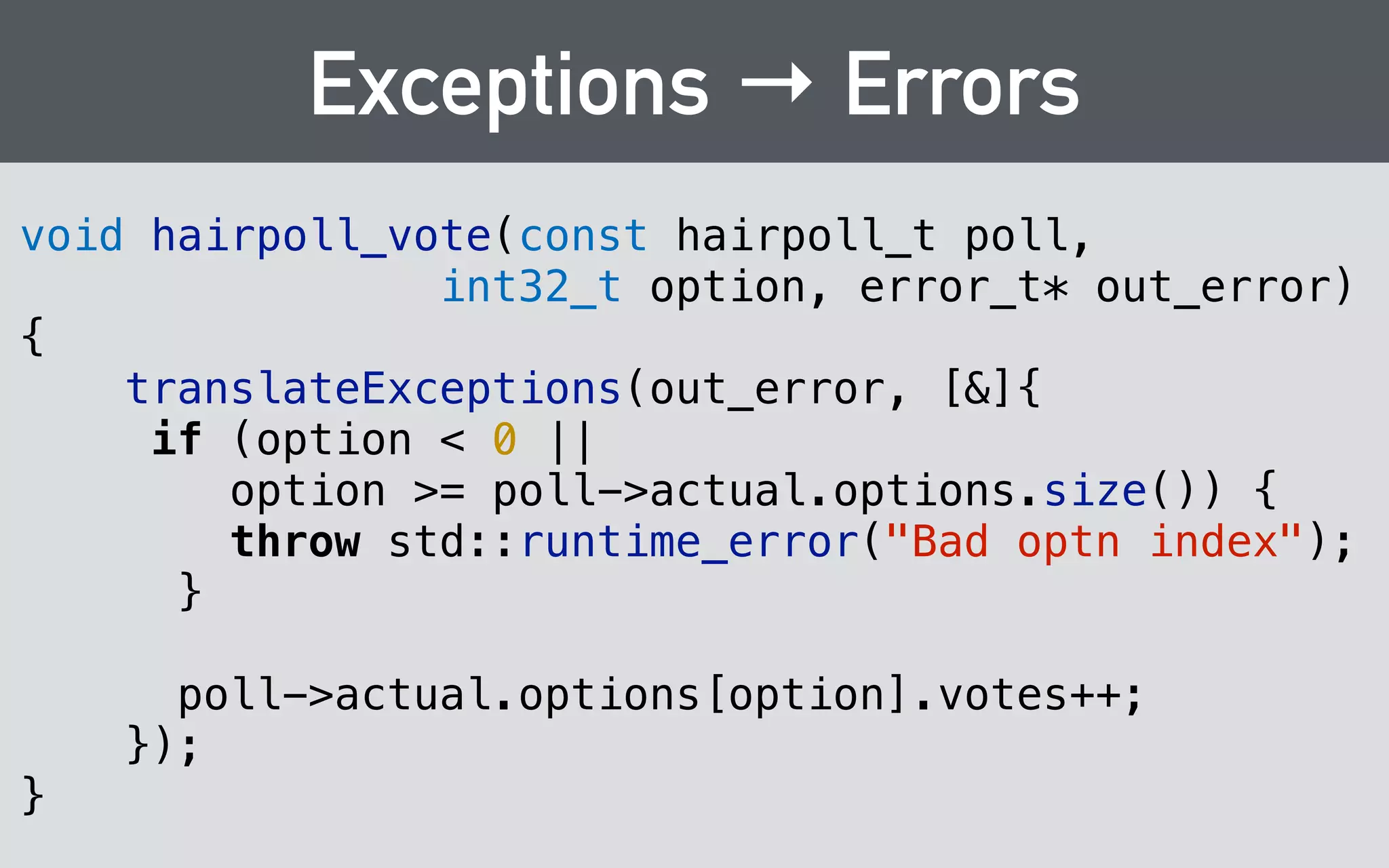

32. Exceptions → Errors
void hairpoll_vote(const hairpoll_t poll,
int32_t option, error_t* out_error)
{
translateExceptions(out_error, [&]{
if (option < 0 ||
option >= poll->actual.options.size()) {
throw std::runtime_error("Bad optn index");
}
!
poll->actual.options[option].votes++;
});
}

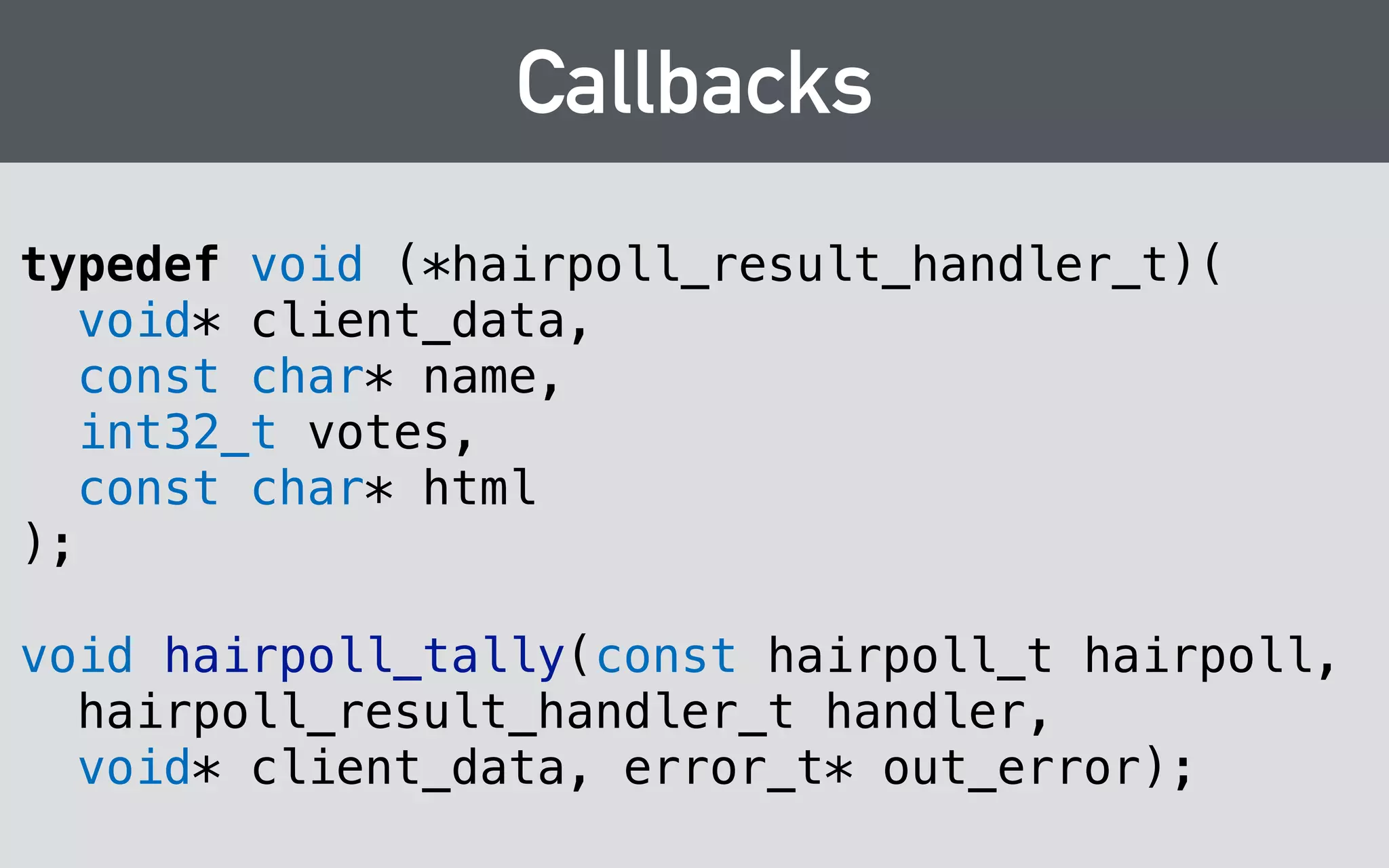

33. Callbacks
typedef void (*hairpoll_result_handler_t)(
void* client_data,
const char* name,
int32_t votes,
const char* html
);
!
void hairpoll_tally(const hairpoll_t hairpoll,
hairpoll_result_handler_t handler,
void* client_data, error_t* out_error);

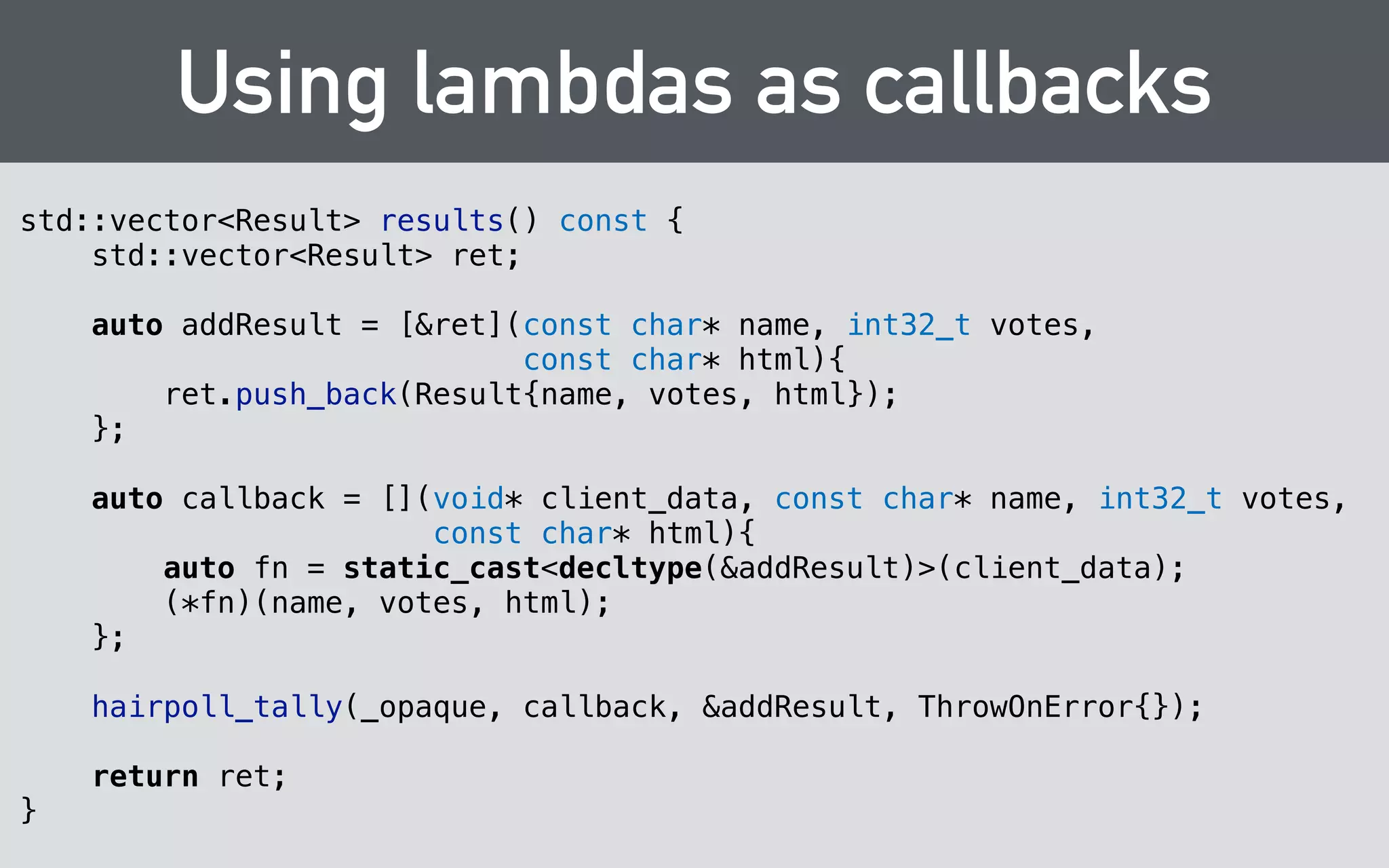

34. Using lambdas as callbacks
std::vector<Result> results() const {
std::vector<Result> ret;
!
auto addResult = [&ret](const char* name, int32_t votes,
const char* html){
ret.push_back(Result{name, votes, html});
};
!
auto callback = [](void* client_data, const char* name, int32_t votes,
const char* html){
auto fn = static_cast<decltype(&addResult)>(client_data);
(*fn)(name, votes, html);
};
!
hairpoll_tally(_opaque, callback, &addResult, ThrowOnError{});
!
return ret;
}

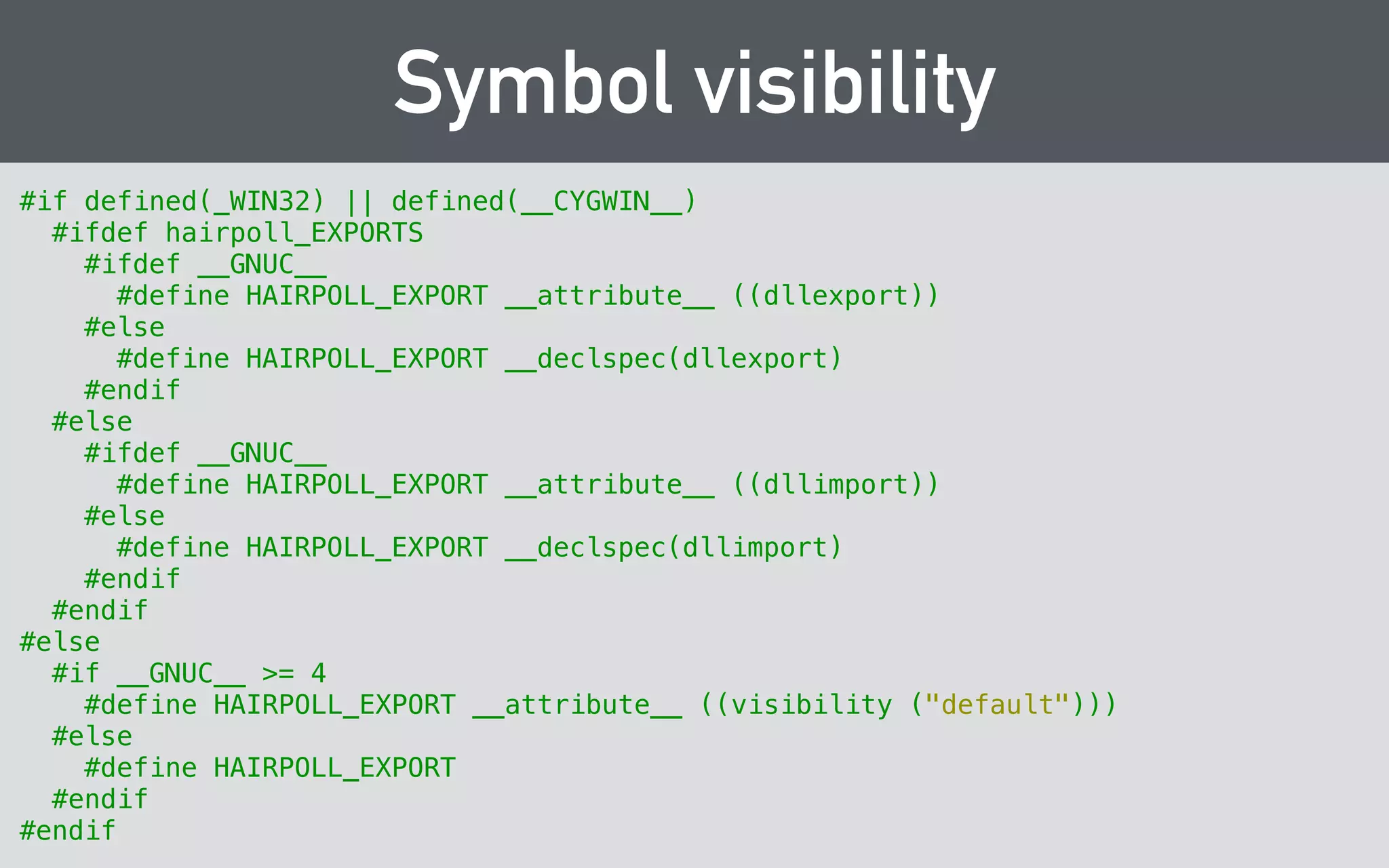

35. Symbol visibility
#if defined(_WIN32) || defined(__CYGWIN__)
#ifdef hairpoll_EXPORTS
#ifdef __GNUC__
#define HAIRPOLL_EXPORT __attribute__ ((dllexport))
#else
#define HAIRPOLL_EXPORT __declspec(dllexport)
#endif
#else
#ifdef __GNUC__
#define HAIRPOLL_EXPORT __attribute__ ((dllimport))
#else
#define HAIRPOLL_EXPORT __declspec(dllimport)
#endif
#endif
#else
#if __GNUC__ >= 4
#define HAIRPOLL_EXPORT __attribute__ ((visibility ("default")))
#else
#define HAIRPOLL_EXPORT
#endif
#endif

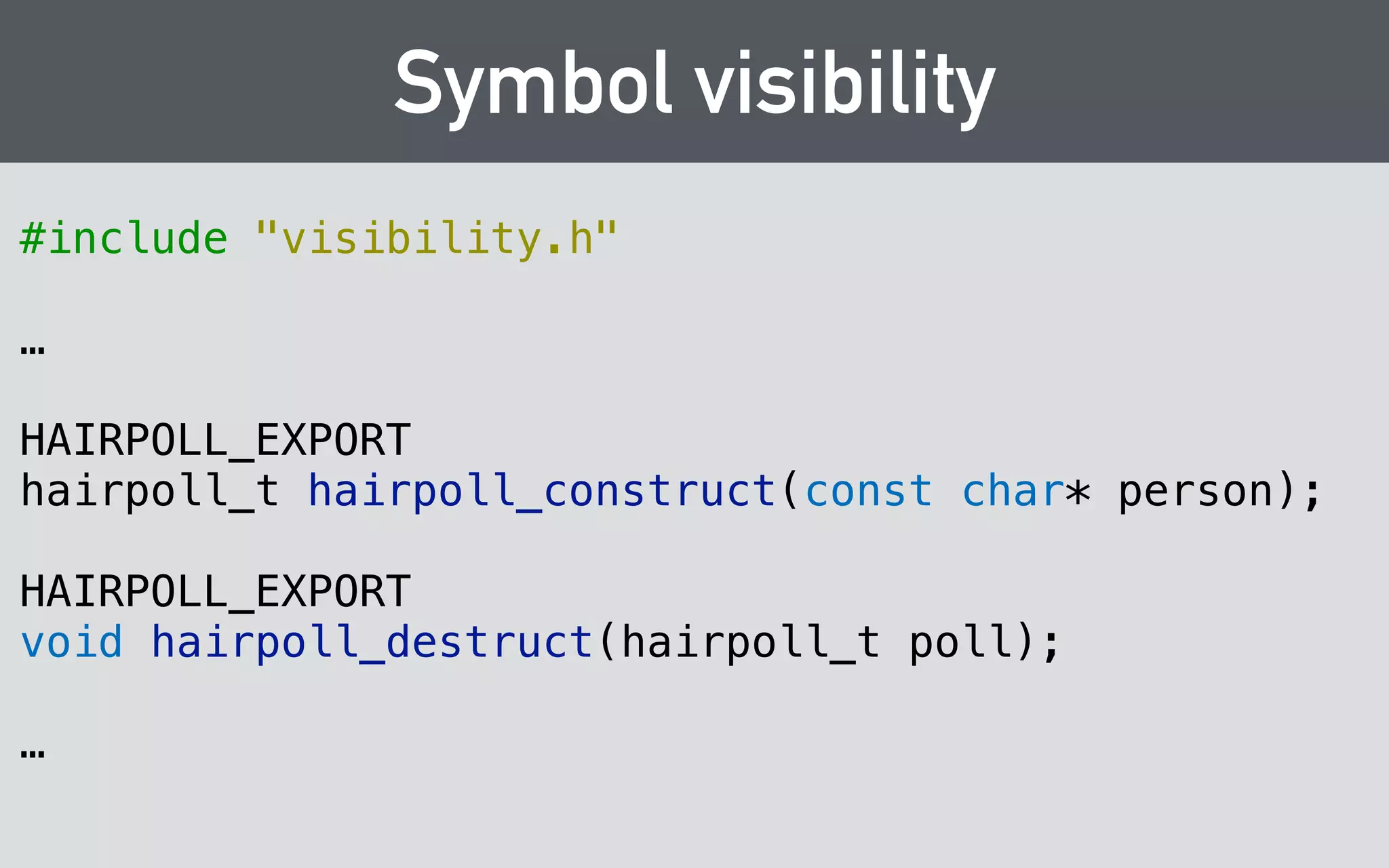

36. Symbol visibility
#include "visibility.h"
!
…
!
HAIRPOLL_EXPORT
hairpoll_t hairpoll_construct(const char* person);
!
HAIRPOLL_EXPORT
void hairpoll_destruct(hairpoll_t poll);
!
…

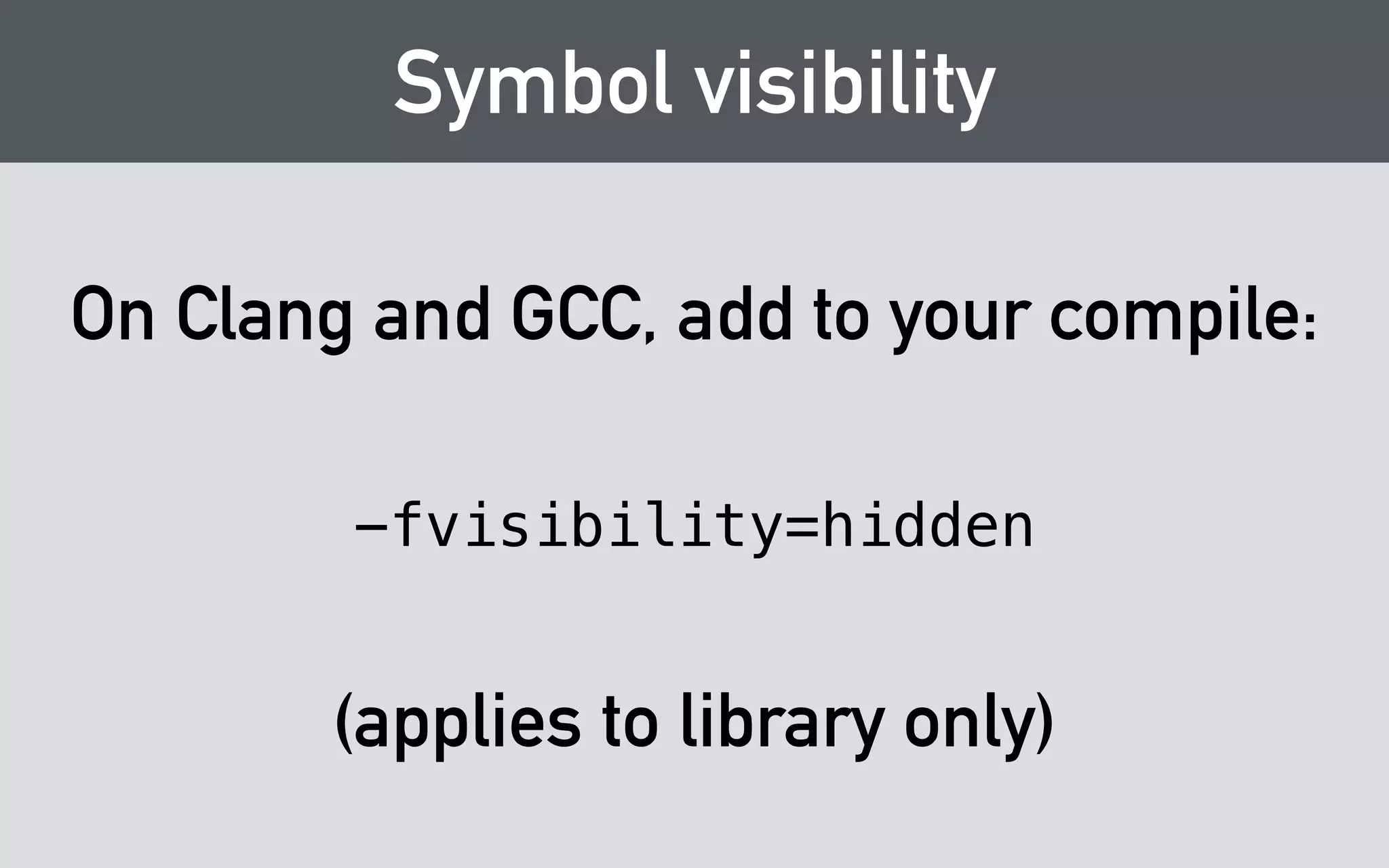

37. Symbol visibility
On Clang and GCC, add to your compile:
!
-fvisibility=hidden
!
(applies to library only)

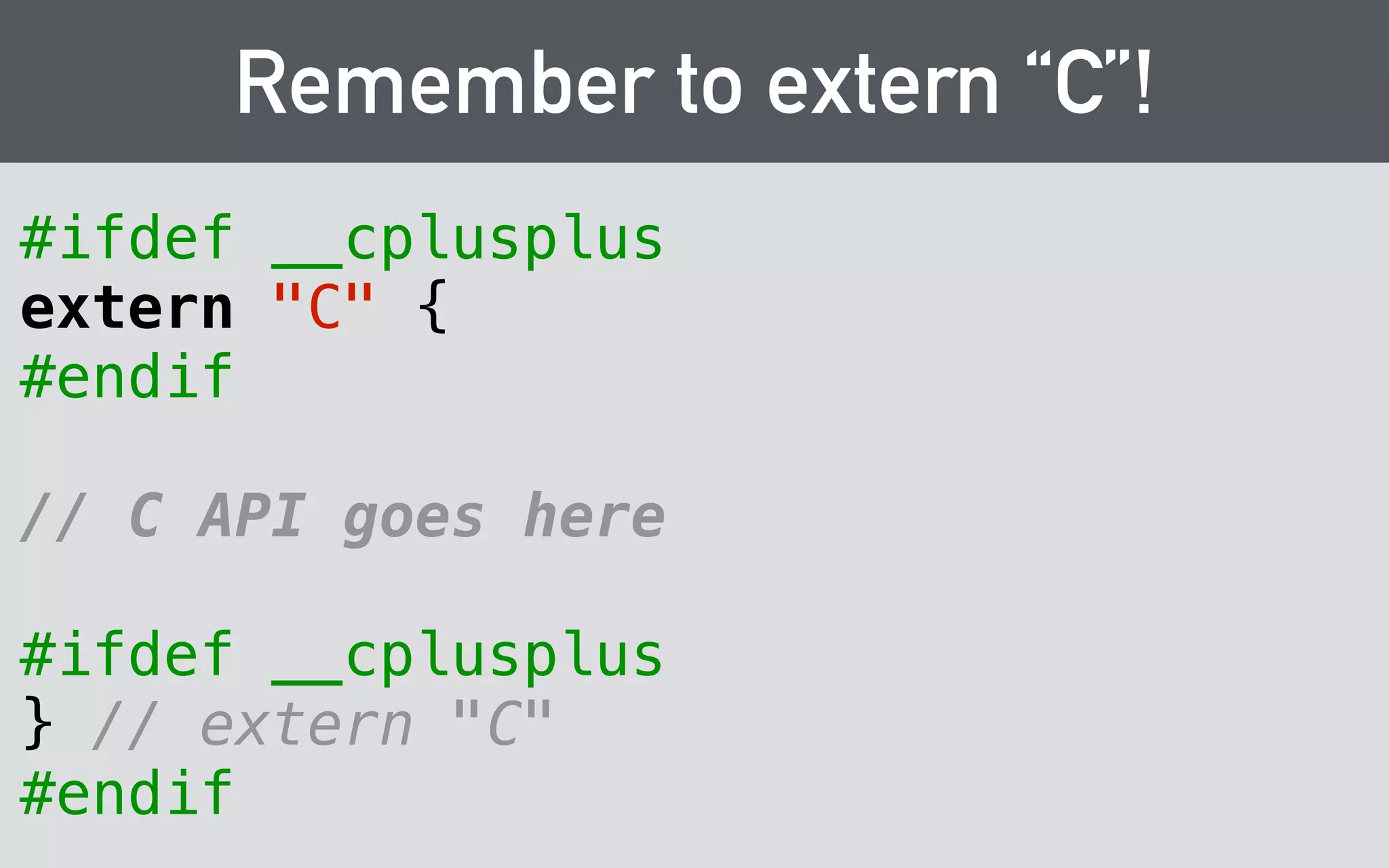

38. Remember to extern “C”!
#ifdef __cplusplus
extern "C" {
#endif
!
// C API goes here
!
#ifdef __cplusplus
} // extern "C"
#endif

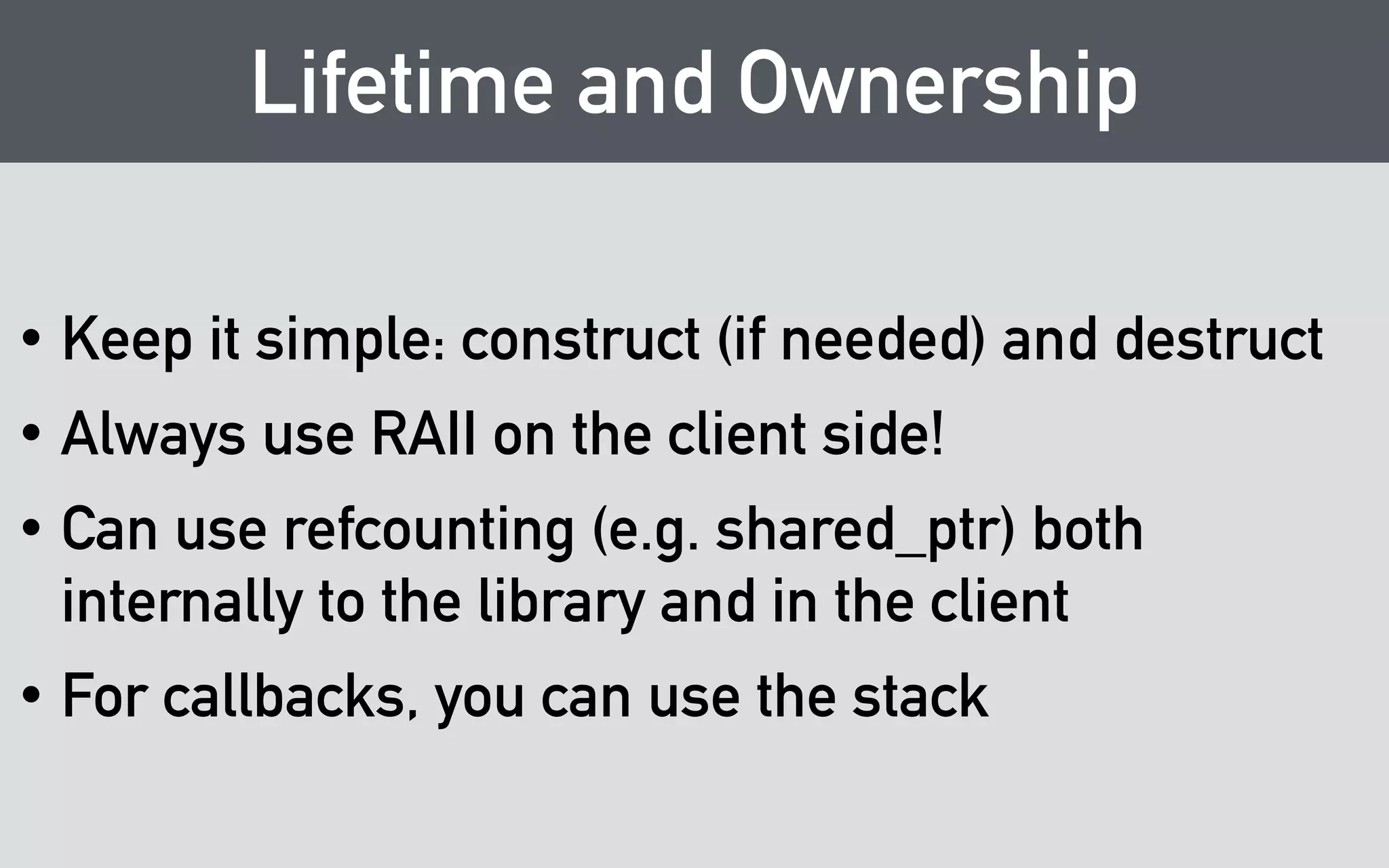

39. Lifetime and Ownership
• Keep it simple: construct (if needed) and destruct
• Always use RAII on the client side!
• Can use refcounting (e.g. shared_ptr) both
internally to the library and in the client
• For callbacks, you can use the stack

40. Interfacing with those
“other” languages

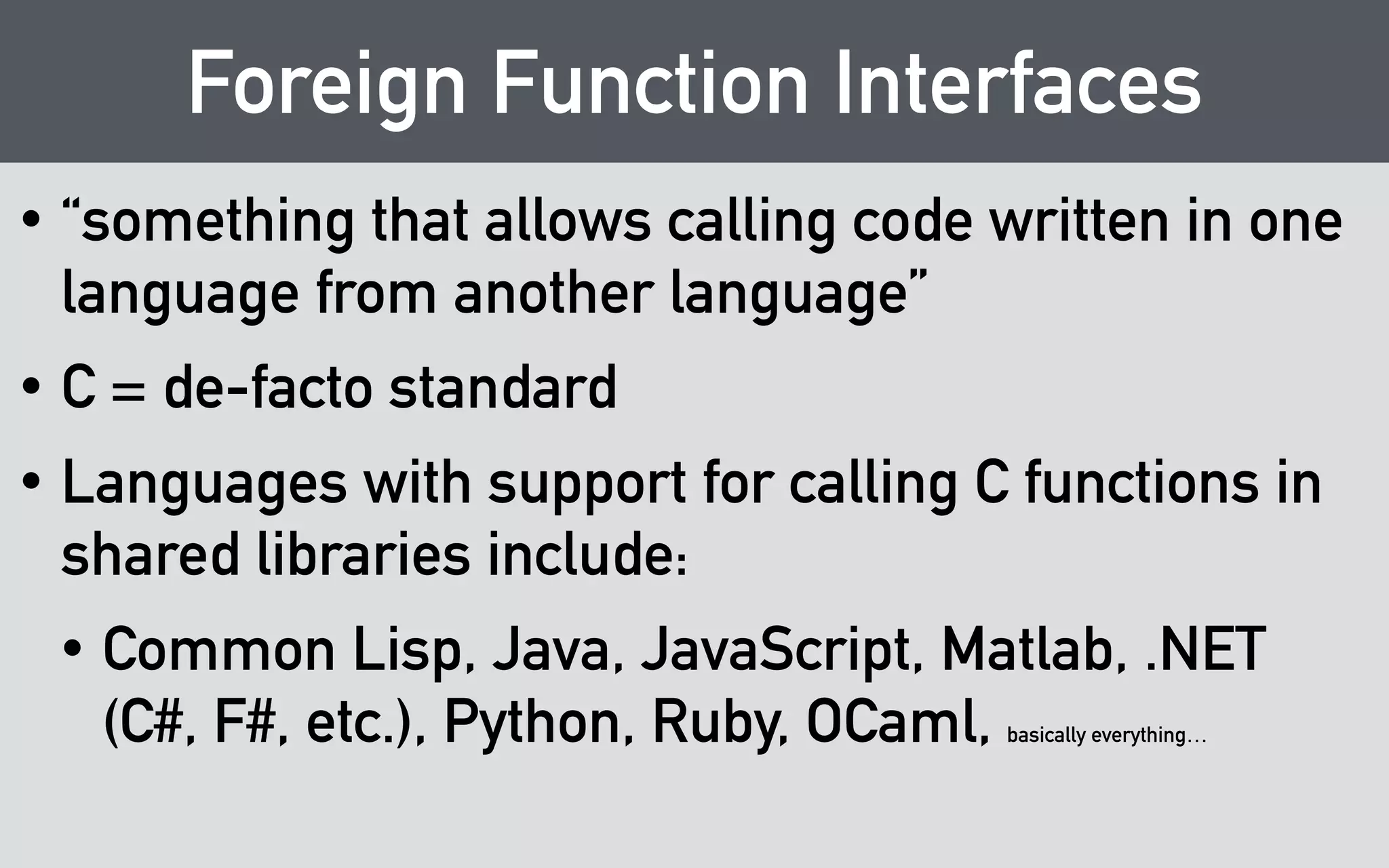

41. Foreign Function Interfaces
• “something that allows calling code written in one
language from another language”
• C = de-facto standard
• Languages with support for calling C functions in
shared libraries include:
• Common Lisp, Java, JavaScript, Matlab, .NET
(C#, F#, etc.), Python, Ruby, OCaml, basically everything…

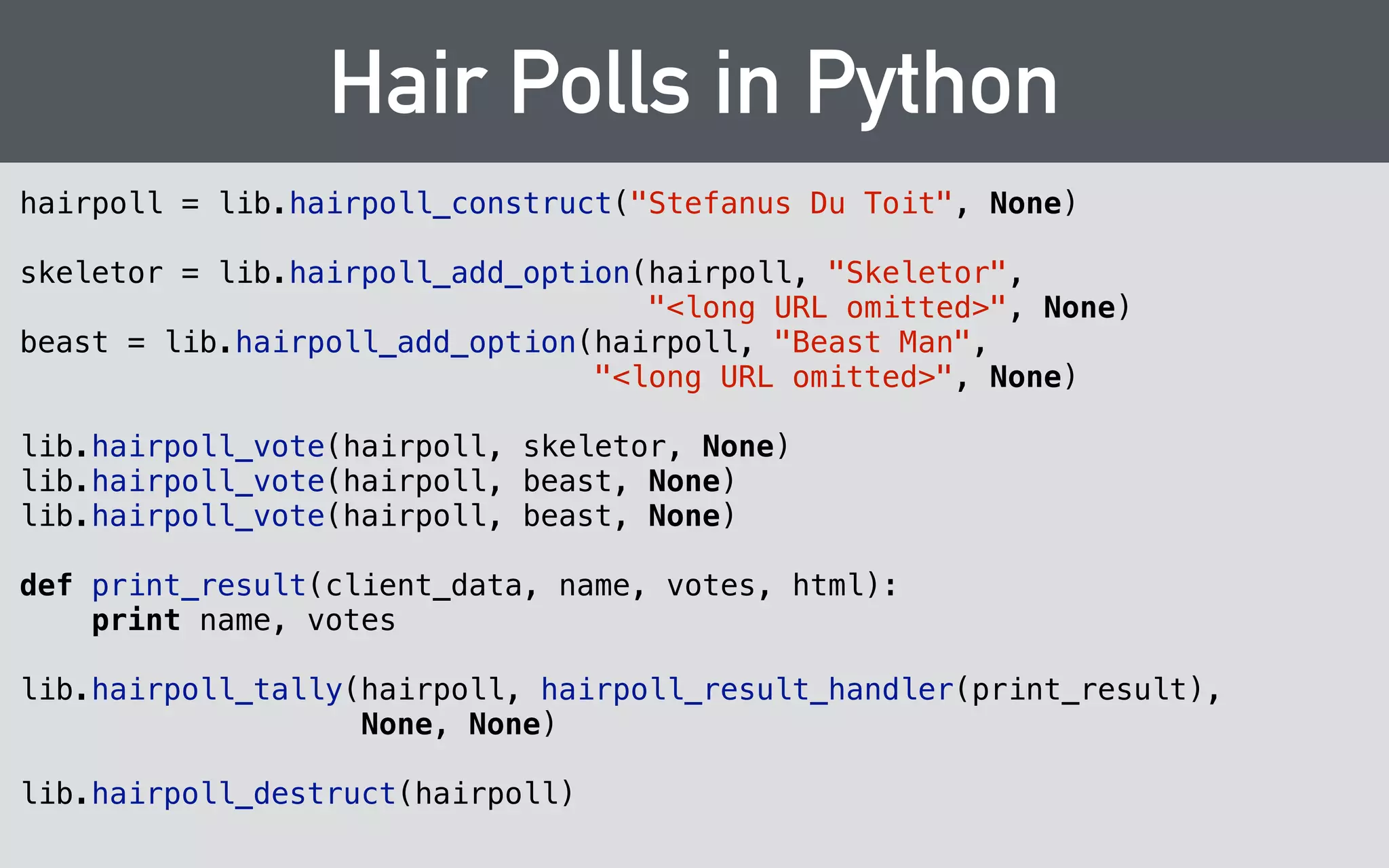

42. Hair Polls in Python
hairpoll = lib.hairpoll_construct("Stefanus Du Toit", None)
!
skeletor = lib.hairpoll_add_option(hairpoll, "Skeletor",
"<long URL omitted>", None)
beast = lib.hairpoll_add_option(hairpoll, "Beast Man",
"<long URL omitted>", None)
!
lib.hairpoll_vote(hairpoll, skeletor, None)
lib.hairpoll_vote(hairpoll, beast, None)
lib.hairpoll_vote(hairpoll, beast, None)
!
def print_result(client_data, name, votes, html):
print name, votes
!
lib.hairpoll_tally(hairpoll, hairpoll_result_handler(print_result),
None, None)
!
lib.hairpoll_destruct(hairpoll)

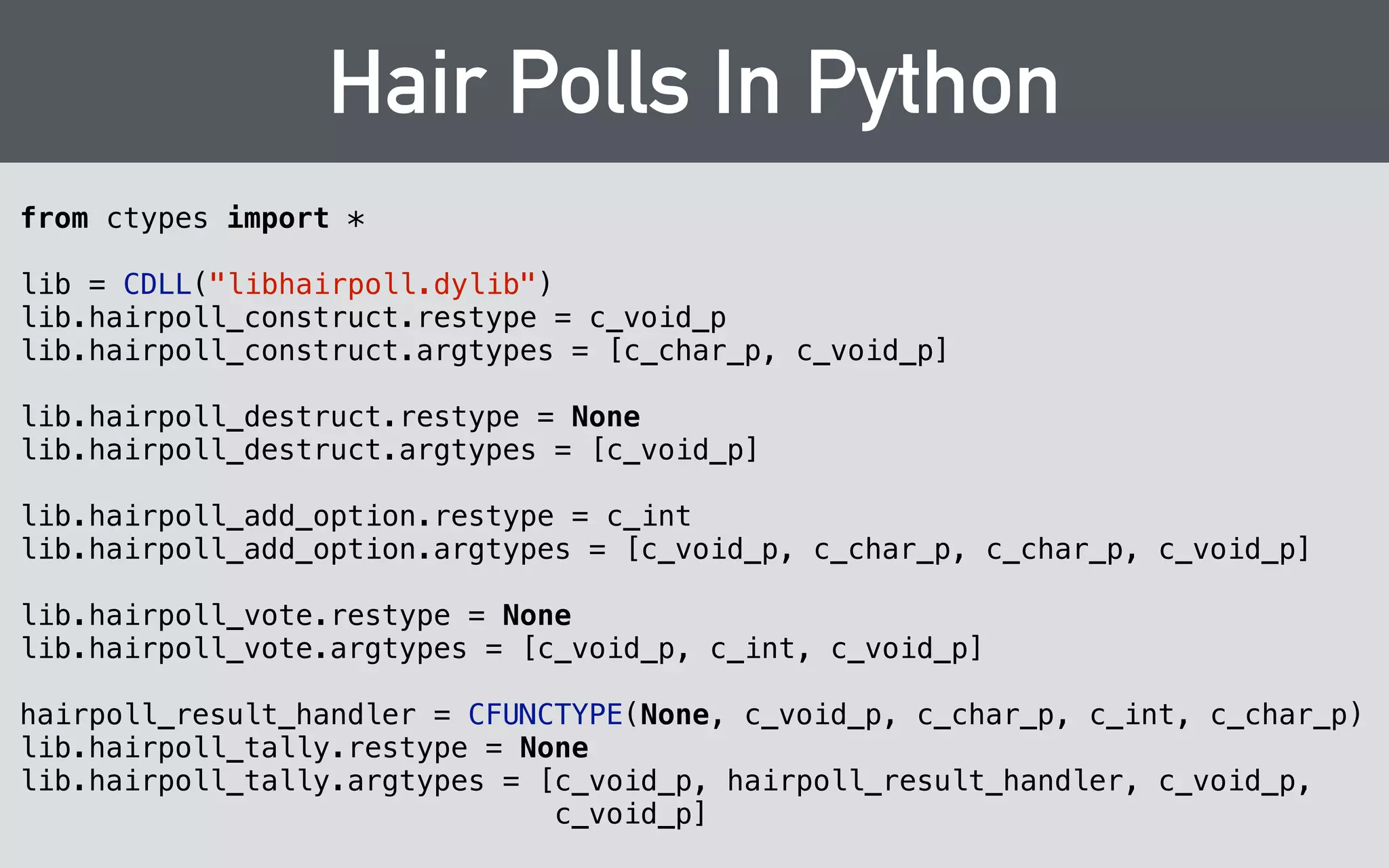

43. Hair Polls In Python
from ctypes import *
!
lib = CDLL("libhairpoll.dylib")
lib.hairpoll_construct.restype = c_void_p
lib.hairpoll_construct.argtypes = [c_char_p, c_void_p]
!
lib.hairpoll_destruct.restype = None
lib.hairpoll_destruct.argtypes = [c_void_p]
!
lib.hairpoll_add_option.restype = c_int
lib.hairpoll_add_option.argtypes = [c_void_p, c_char_p, c_char_p, c_void_p]
!
lib.hairpoll_vote.restype = None
lib.hairpoll_vote.argtypes = [c_void_p, c_int, c_void_p]
!
hairpoll_result_handler = CFUNCTYPE(None, c_void_p, c_char_p, c_int, c_char_p)
lib.hairpoll_tally.restype = None
lib.hairpoll_tally.argtypes = [c_void_p, hairpoll_result_handler, c_void_p,
c_void_p]

44. Summary

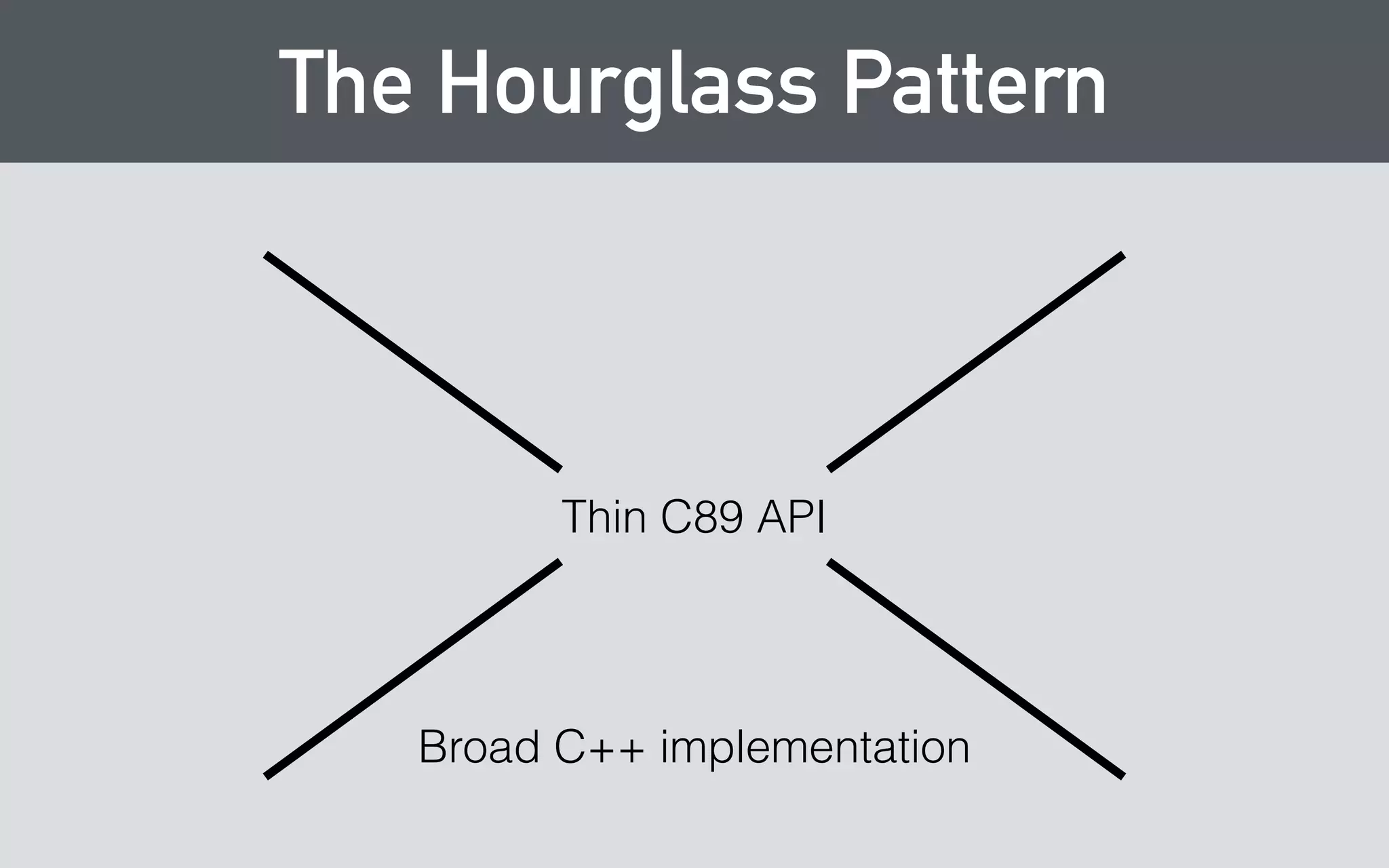

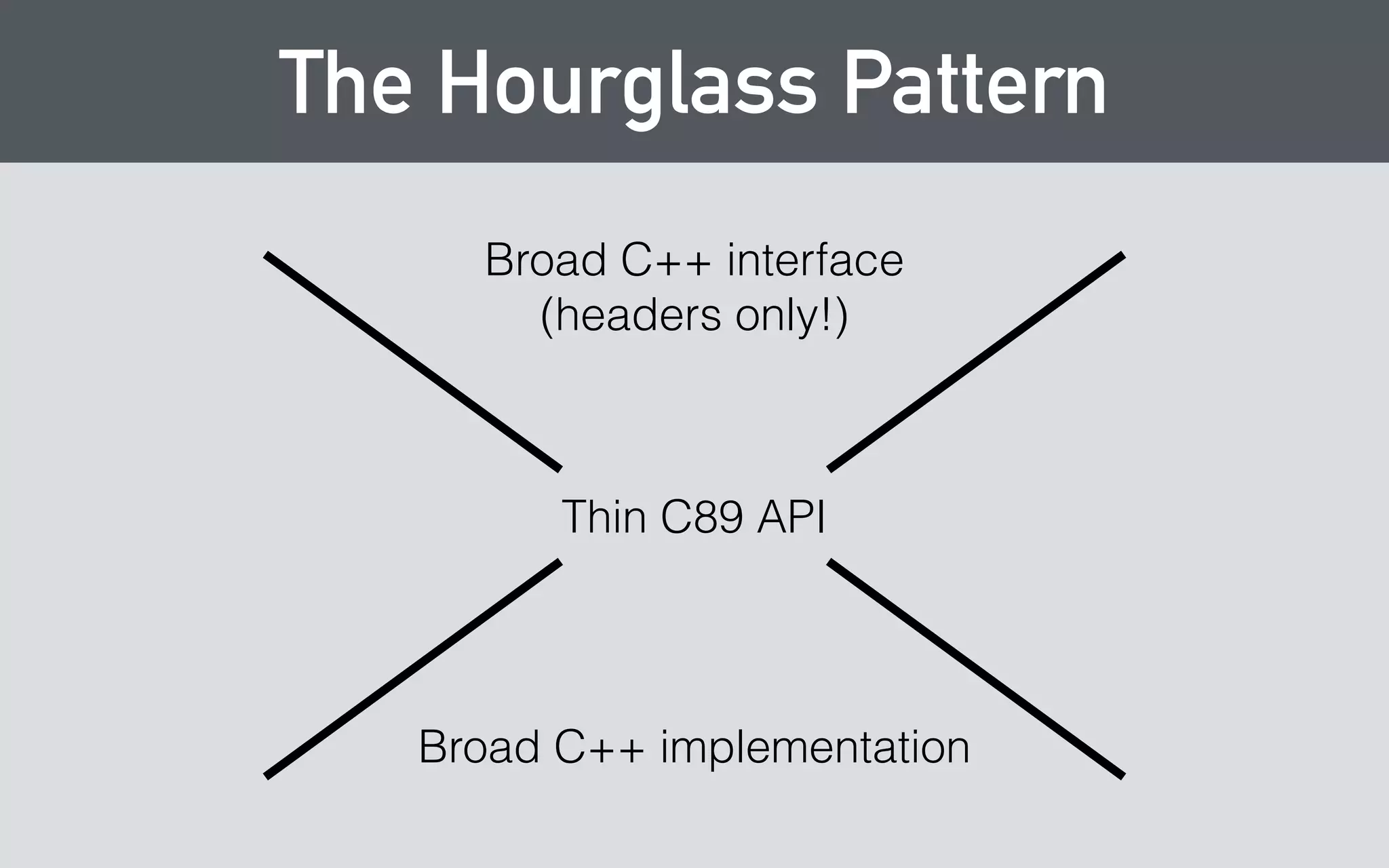

• Hourglass = C++ on top of C89 on top of C++
• Avoids ABI issues, sneaky dependencies, etc.
• Hides object layout and other implementation
details
• Makes FFI bindings easy

46. Q&A
http://blog.sduto.it/ @stefanusdutoit
