This document appears to be a student project report on simulating logic gates. It includes sections on introduction, aim, apparatus, circuit diagram, procedure, and observation. The observation section describes simulating a NOT gate, noting that the LED will glow if input switch A is open (A=0), and will not glow if switch A is closed (A=1).

1. Submitted By: PRIYA KUMARI
XII- A
ROLL NO:
PHYSICS
INVESTIGATORY
PROJECT
1

2. 1.Introduction
2.Aim
3.Apparatus
4. Circuit diagram
5.Procedure
6.Observation
7.Biblography
2

3. 3

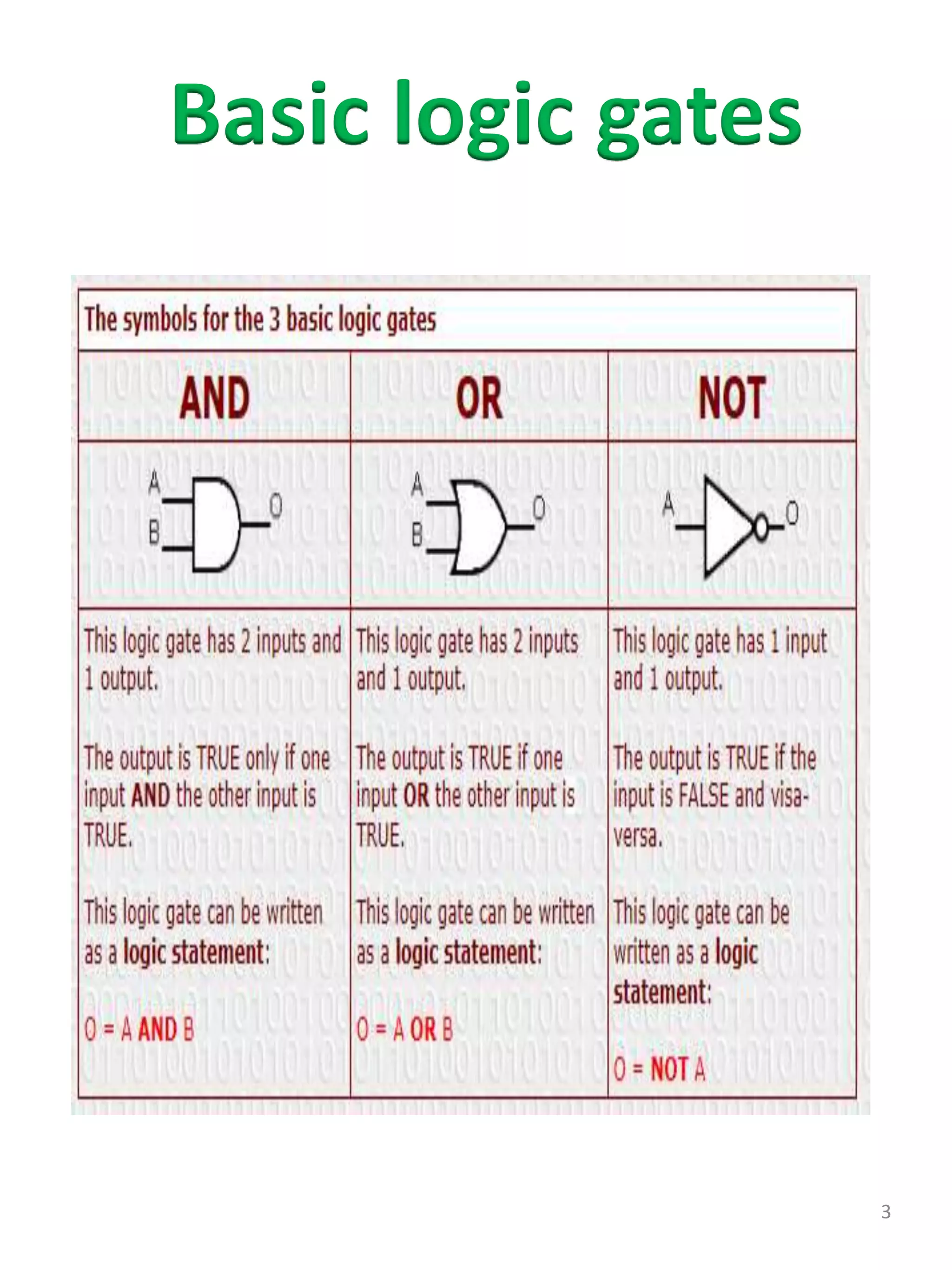

Basic logic gates

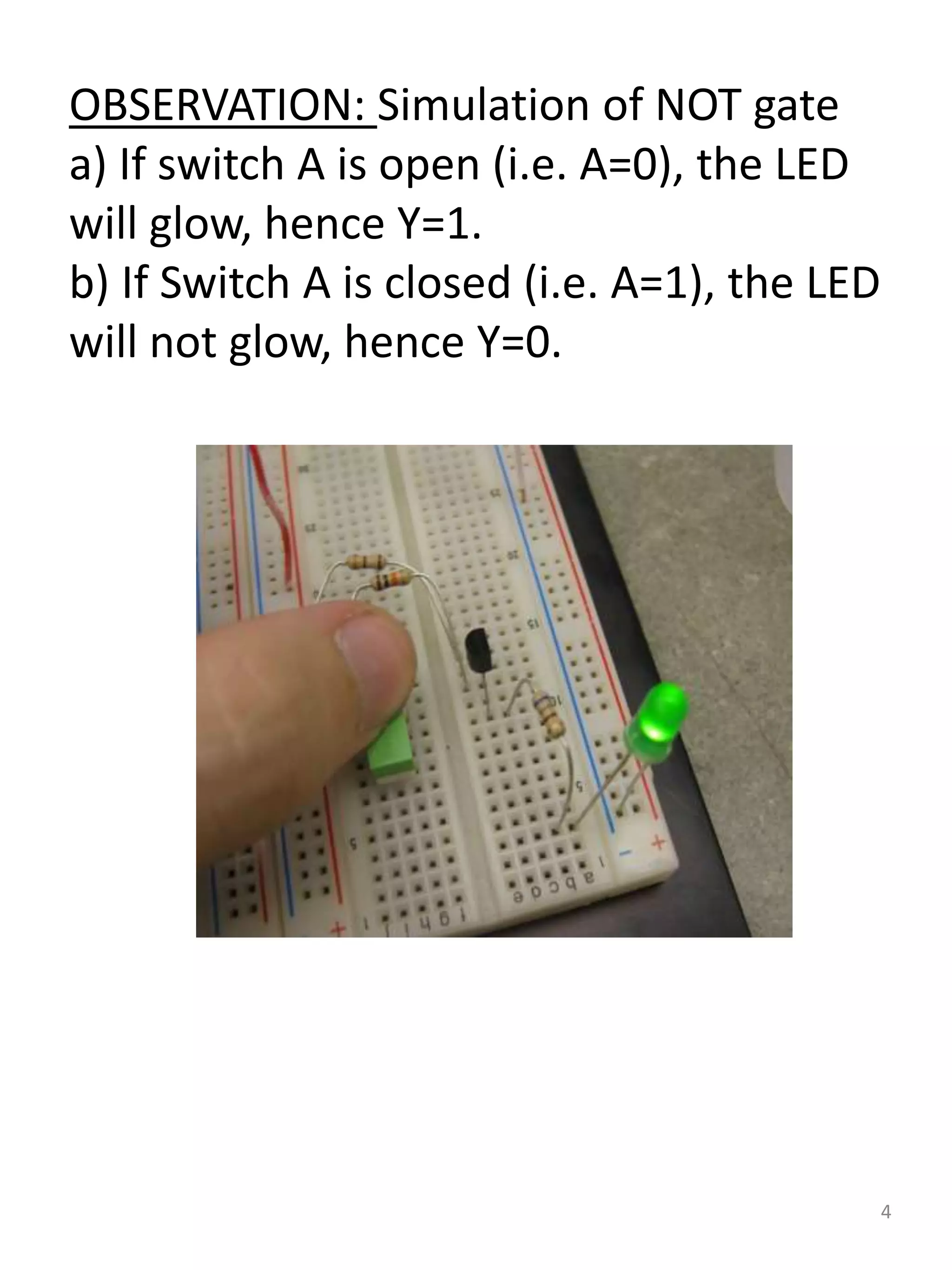

4. OBSERVATION: Simulation of NOT gate
a) If switch A is open (i.e. A=0), the LED
will glow, hence Y=1.
b) If Switch A is closed (i.e. A=1), the LED
will not glow, hence Y=0.
4
