This document summarizes Emilien Macchi's presentation on OpenStack at a technical workshop in Paris on December 20th, 2012. Emilien introduced himself and his role at eNovance working on OpenStack. He then provided an overview of OpenStack, describing its creation by NASA and Rackspace in 2010, its open source license, and the projects that comprise its IaaS capabilities. The remainder of the document outlined steps to deploy and configure the main OpenStack services including Keystone, Glance, Cinder, Quantum, Nova, and Horizon.

1. OpenStack
Technical WorkShop
Paris, 20th December 2012
Emilien Macchi
OpenStack Operator @ eNovance

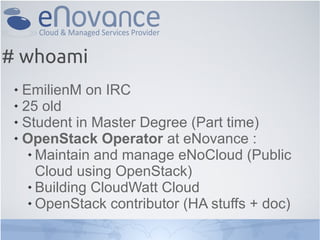

2. # whoami
 EmilienM on IRC
 25 old
 Student in Master Degree (Part time)
 OpenStack Operator at eNovance :
 Maintain and manage eNoCloud (Public
Cloud using OpenStack)
 Building CloudWatt Cloud
 OpenStack contributor (HA stuffs + doc)

3. OpenStack
 Created in 2010 by NASA & RackSpace
 Licence Apache 2.0
 Manage IaaS
 Open-Source Framework
 API, Plugins, Drivers
 Multi-tenancy, Scalable, multi-plateform
 Developed in Python

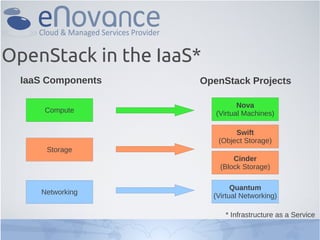

4. OpenStack in the IaaS*
IaaS Components OpenStack Projects
Nova
Compute (Virtual Machines)
Swift
(Object Storage)
Storage
Cinder
(Block Storage)
Quantum
Networking
(Virtual Networking)
* Infrastructure as a Service

5. Get the VM

Download it : http://goo.gl/01Dr5

Ubuntu 12.04 with Cloud Archives

root / password

MySQL installed

Scripts already in /root

Packages downloaded, NOT installed

Usable with VMware & Virtual Box

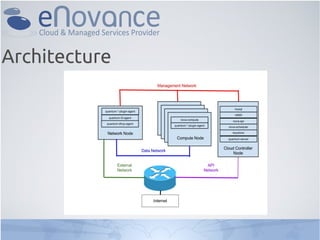

6. Architecture

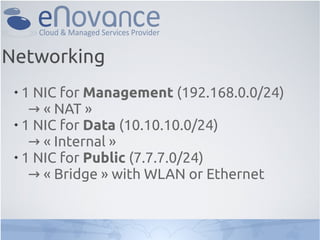

7. Networking

1 NIC for Management (192.168.0.0/24)
→ « NAT »

1 NIC for Data (10.10.10.0/24)
→ « Internal »

1 NIC for Public (7.7.7.0/24)
→ « Bridge » with WLAN or Ethernet

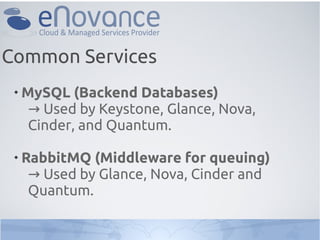

8. Common Services

MySQL (Backend Databases)
→ Used by Keystone, Glance, Nova,
Cinder, and Quantum.

RabbitMQ (Middleware for queuing)
→ Used by Glance, Nova, Cinder and
Quantum.

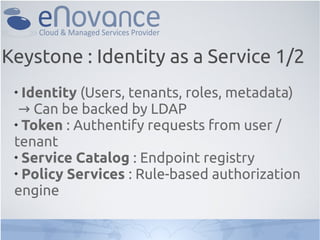

9. Keystone : Identity as a Service 1/2

Identity (Users, tenants, roles, metadata)
→ Can be backed by LDAP

Token : Authentify requests from user /
tenant

Service Catalog : Endpoint registry

Policy Services : Rule-based authorization
engine

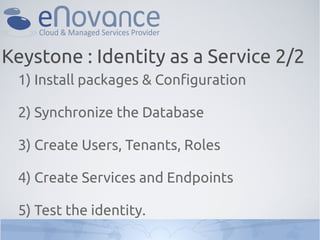

10. Keystone : Identity as a Service 2/2
1) Install packages & Configuration
2) Synchronize the Database
3) Create Users, Tenants, Roles
4) Create Services and Endpoints
5) Test the identity.

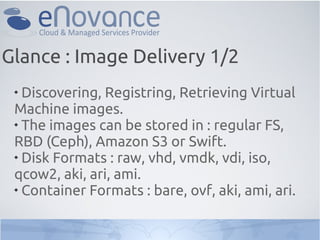

11. Glance : Image Delivery 1/2

Discovering, Registring, Retrieving Virtual
Machine images.

The images can be stored in : regular FS,
RBD (Ceph), Amazon S3 or Swift.

Disk Formats : raw, vhd, vmdk, vdi, iso,
qcow2, aki, ari, ami.

Container Formats : bare, ovf, aki, ami, ari.

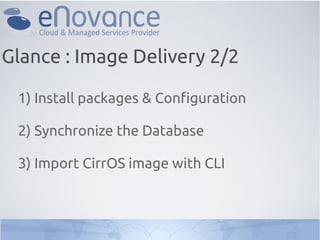

12. Glance : Image Delivery 2/2
1) Install packages & Configuration
2) Synchronize the Database
3) Import CirrOS image with CLI

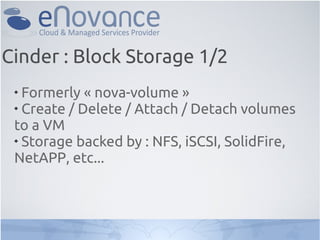

13. Cinder : Block Storage 1/2

Formerly « nova-volume »

Create / Delete / Attach / Detach volumes
to a VM

Storage backed by : NFS, iSCSI, SolidFire,
NetAPP, etc...

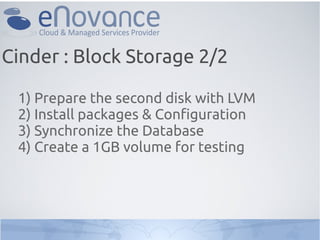

14. Cinder : Block Storage 2/2
1) Prepare the second disk with LVM
2) Install packages & Configuration
3) Synchronize the Database
4) Create a 1GB volume for testing

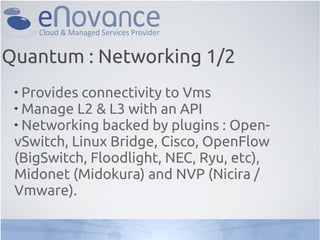

15. Quantum : Networking 1/2

Provides connectivity to Vms

Manage L2 & L3 with an API

Networking backed by plugins : Open-
vSwitch, Linux Bridge, Cisco, OpenFlow
(BigSwitch, Floodlight, NEC, Ryu, etc),
Midonet (Midokura) and NVP (Nicira /
Vmware).

16. Quantum : Networking 2/2
1) Install packages & Configuration
2) Create virtual L2 with Open-vSwitch
3) Create virtual L3 with the script
4) Configure L3 Agent

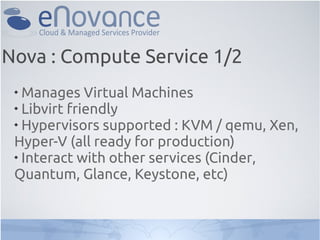

17. Nova : Compute Service 1/2

Manages Virtual Machines

Libvirt friendly

Hypervisors supported : KVM / qemu, Xen,
Hyper-V (all ready for production)

Interact with other services (Cinder,
Quantum, Glance, Keystone, etc)

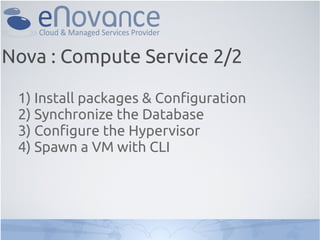

18. Nova : Compute Service 2/2
1) Install packages & Configuration
2) Synchronize the Database
3) Configure the Hypervisor
4) Spawn a VM with CLI

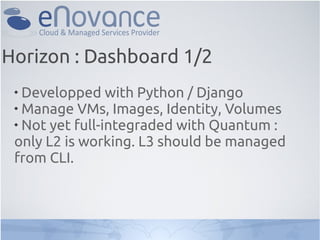

19. Horizon : Dashboard 1/2

Developped with Python / Django

Manage VMs, Images, Identity, Volumes

Not yet full-integraded with Quantum :
only L2 is working. L3 should be managed
from CLI.

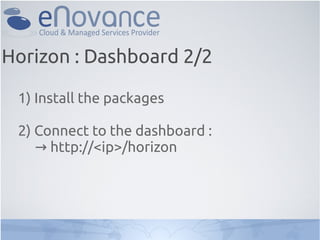

20. Horizon : Dashboard 2/2
1) Install the packages
2) Connect to the dashboard :
→ http://<ip>/horizon

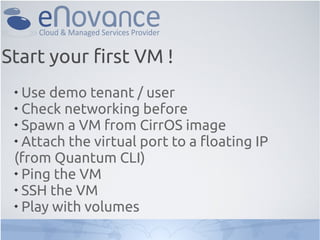

21. Start your first VM !

Use demo tenant / user

Check networking before

Spawn a VM from CirrOS image

Attach the virtual port to a floating IP
(from Quantum CLI)

Ping the VM

SSH the VM

Play with volumes

22. Questions ?
E-mail : emilien@enovance.com
irc : EmilienM
twitter : EmilienMacchi
