The document describes a wireless network setup in a rural area in Italy consisting of the following key elements: 1. A ring network topology with traffic managers and switches to efficiently route data between access points (APs) and a network operations center (NOC) then to the wide area network (WAN). 2. AP towers are placed every 3 meters along the ring with directional antennas providing 360 degree coverage. 3. Components include 5GHz backhaul radios, 5W 2.4GHz APs, client CPE devices, and a managed switch to support the ring topology. 4. A network management system provides monitoring and billing functions.

1. Long Range Wireless LAN Platform X -LIN Hotware Wireless Co., Ltd. WISP in Italy (Valley Xpress ring connection) July, 2008

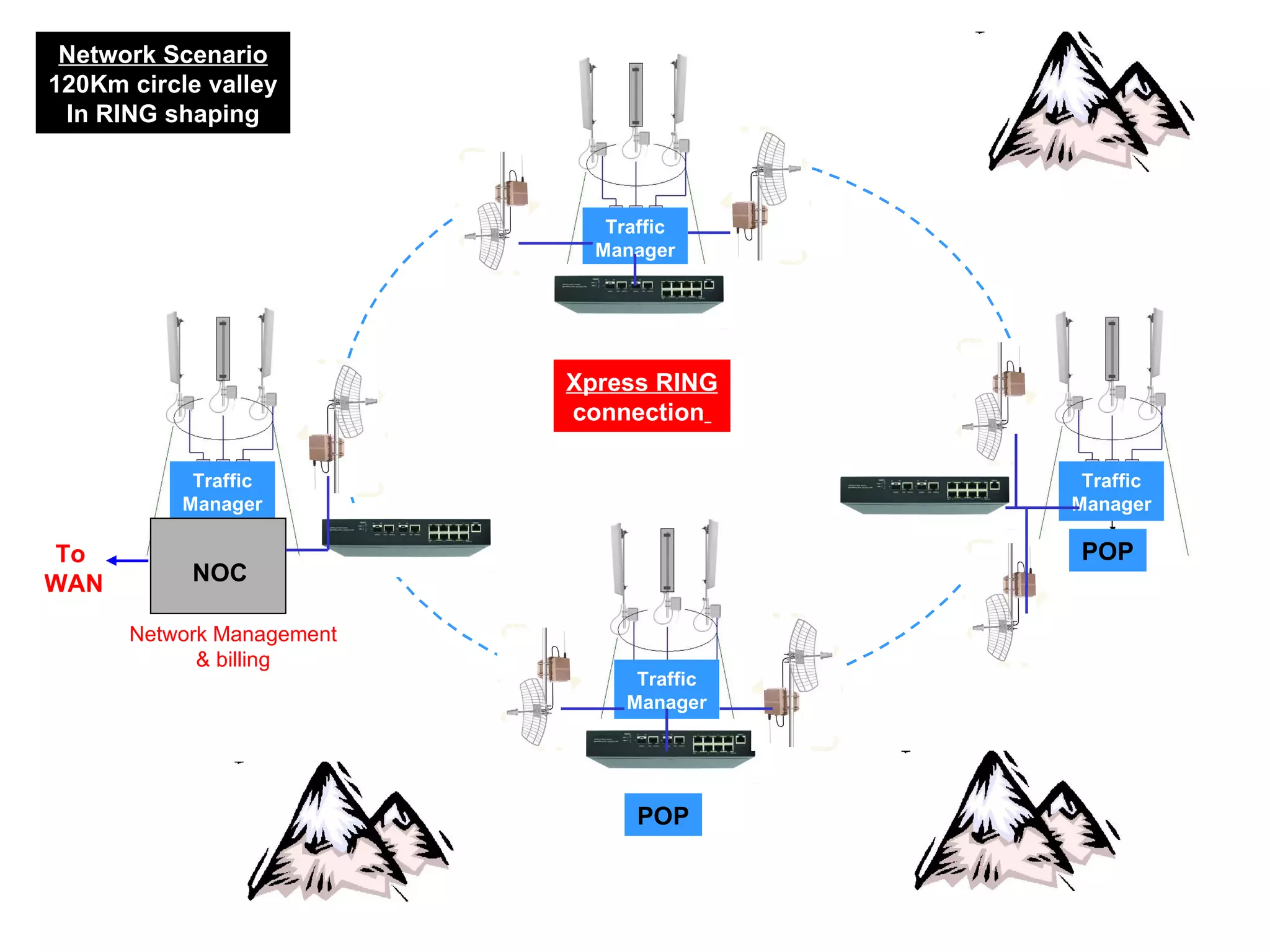

2. Traffic Manager Traffic Manager Traffic Manager Network Scenario 120Km circle valley In RING shaping To WAN Traffic Manager NOC POP POP Xpress RING connection Network Management & billing

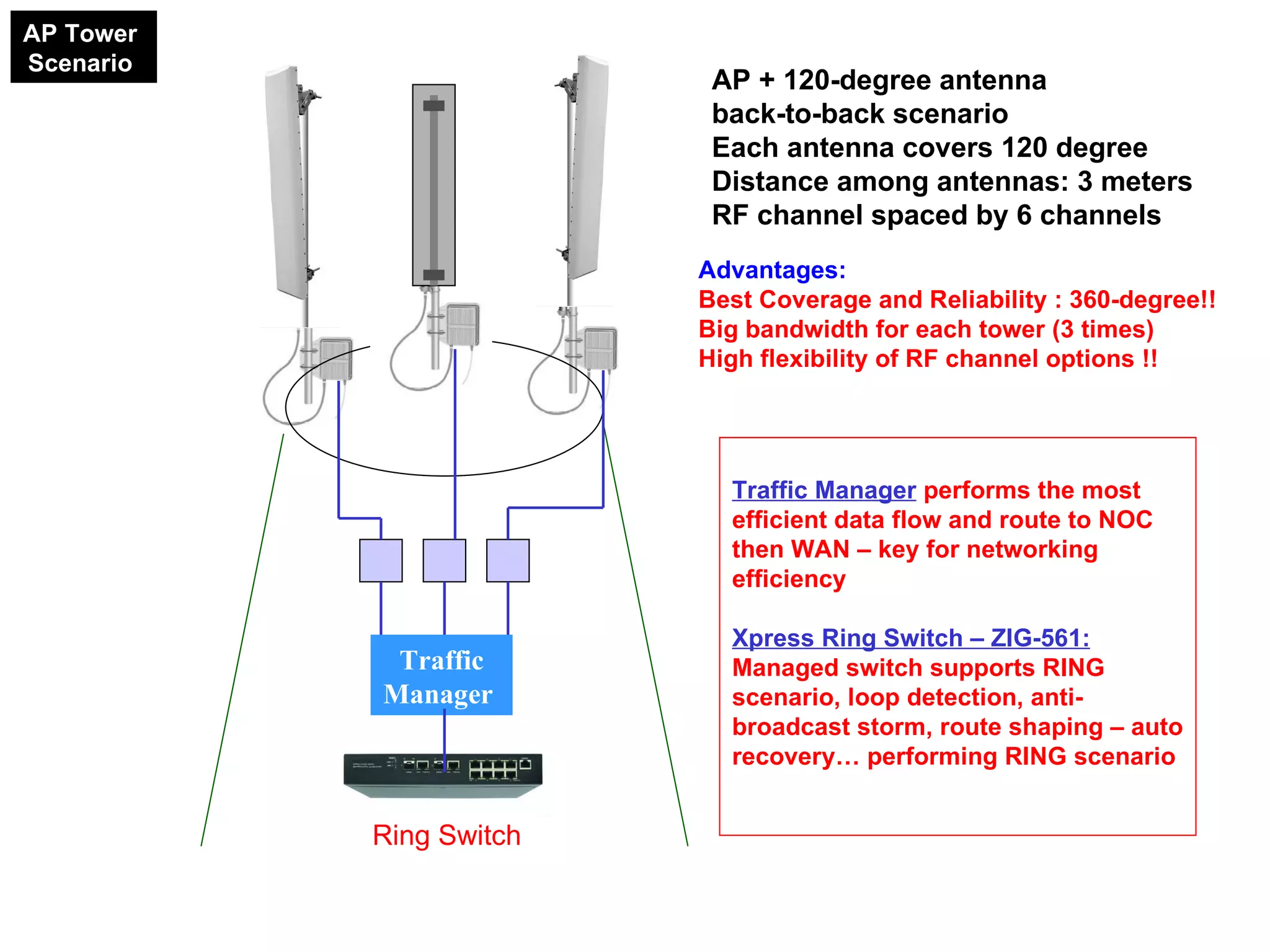

3. AP + 120-degree antenna back-to-back scenario Each antenna covers 120 degree Distance among antennas: 3 meters RF channel spaced by 6 channels Traffic Manager performs the most efficient data flow and route to NOC then WAN – key for networking efficiency Xpress Ring Switch – ZIG-561: Managed switch supports RING scenario, loop detection, anti-broadcast storm, route shaping – auto recovery… performing RING scenario Advantages: Best Coverage and Reliability : 360-degree!! Big bandwidth for each tower (3 times) High flexibility of RF channel options !! AP Tower Scenario Traffic Manager Ring Switch

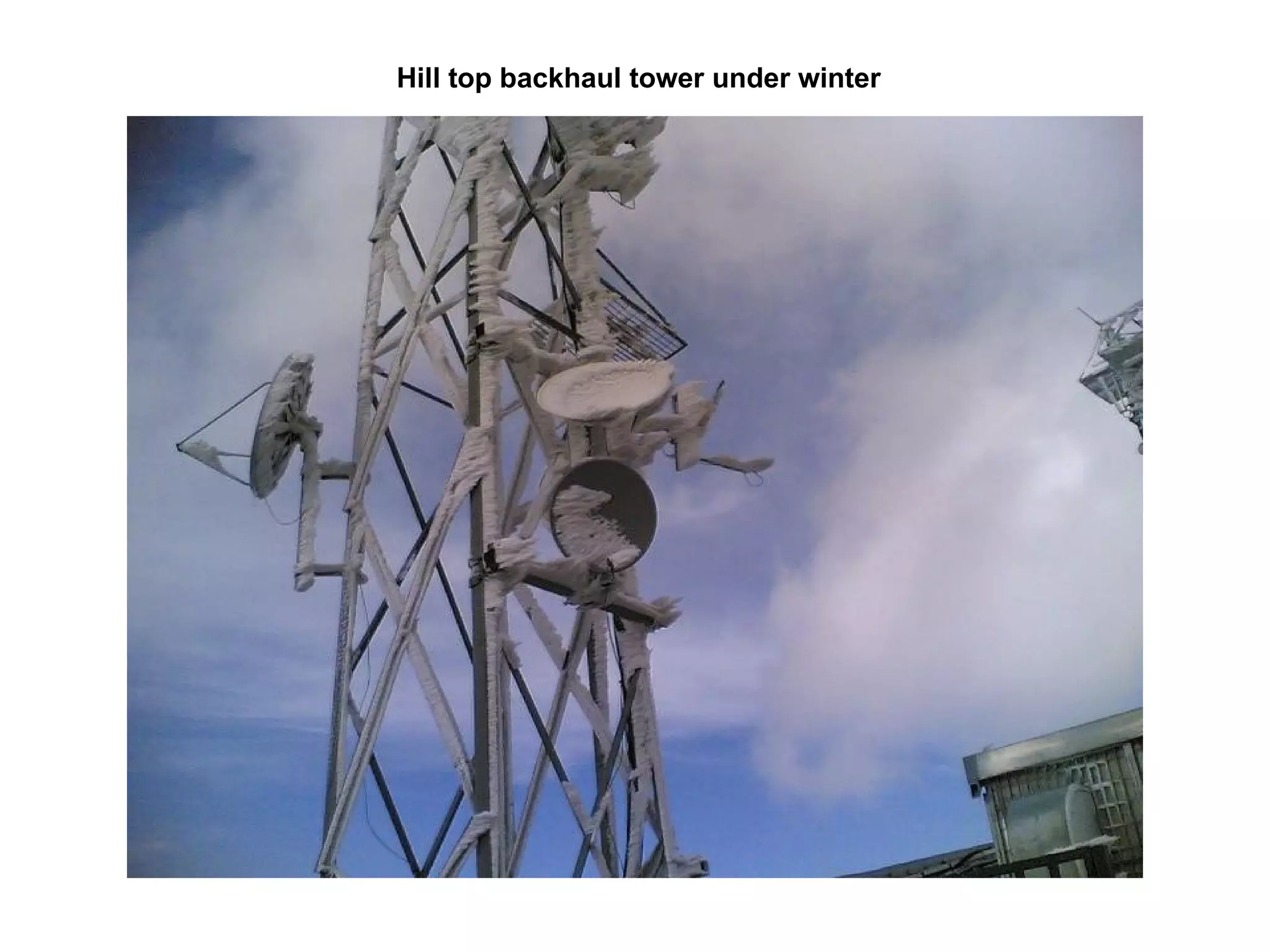

4. Hill top backhaul tower under winter

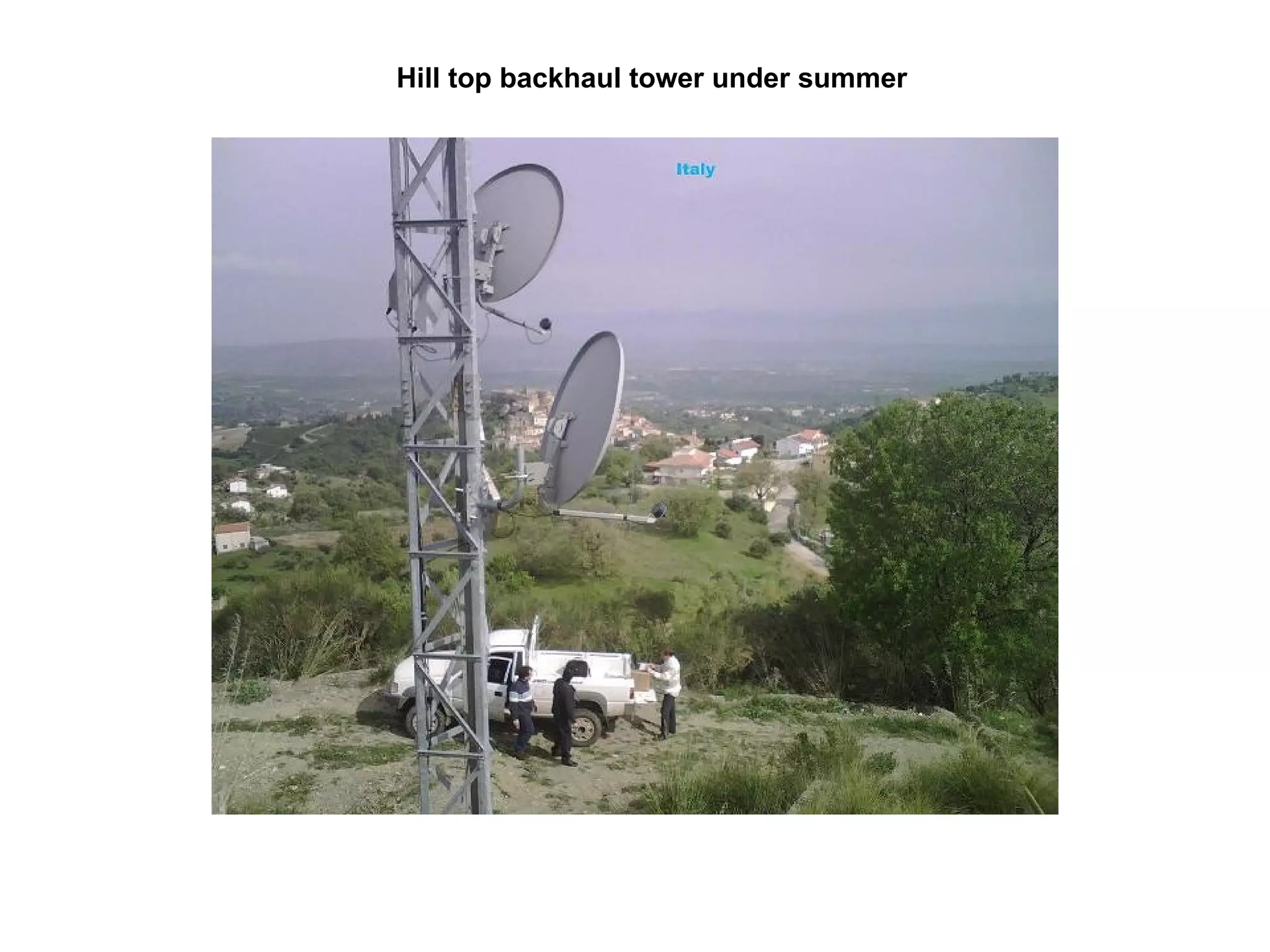

5. Hill top backhaul tower under summer

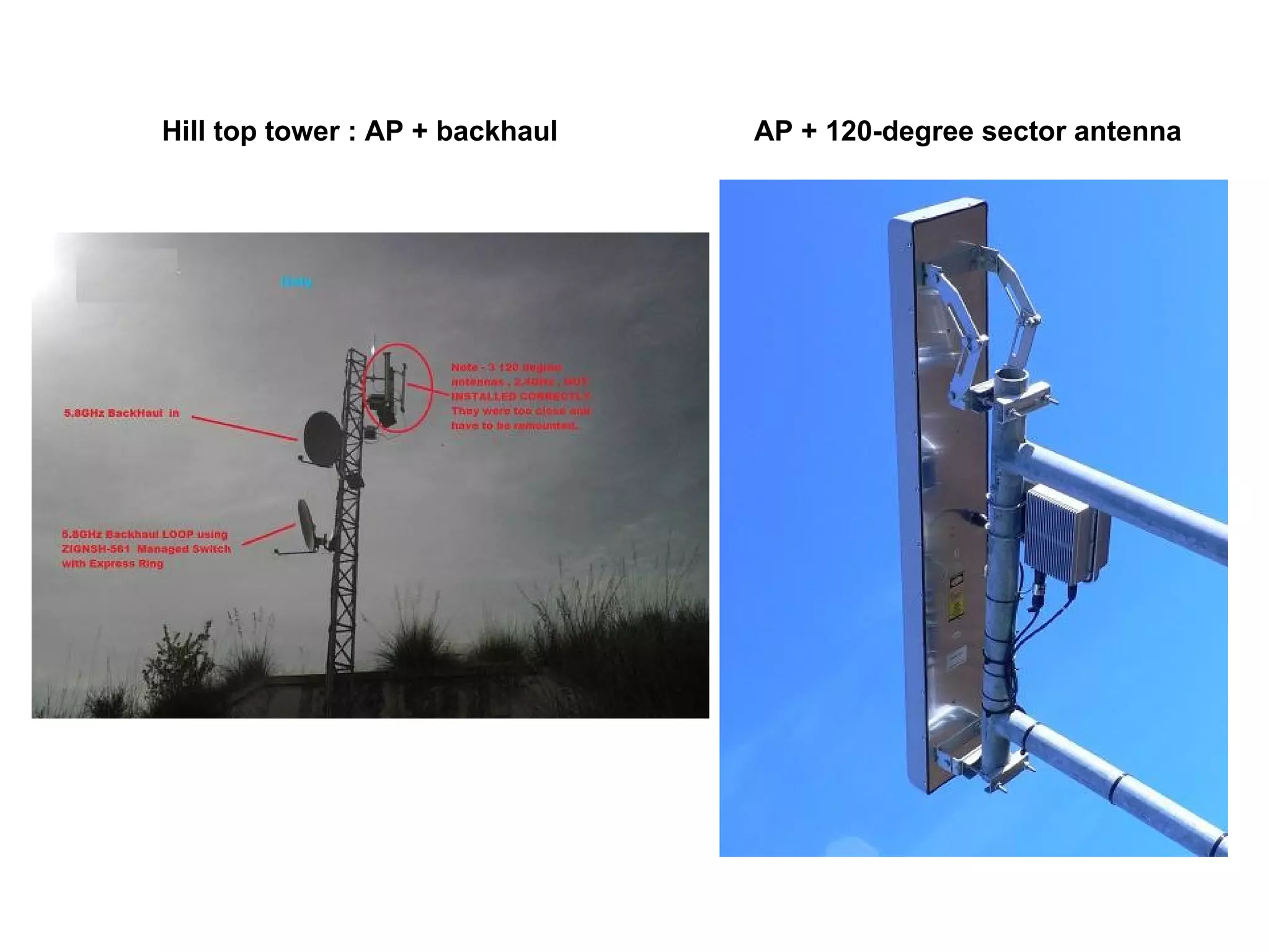

6. Hill top tower : AP + backhaul AP + 120-degree sector antenna

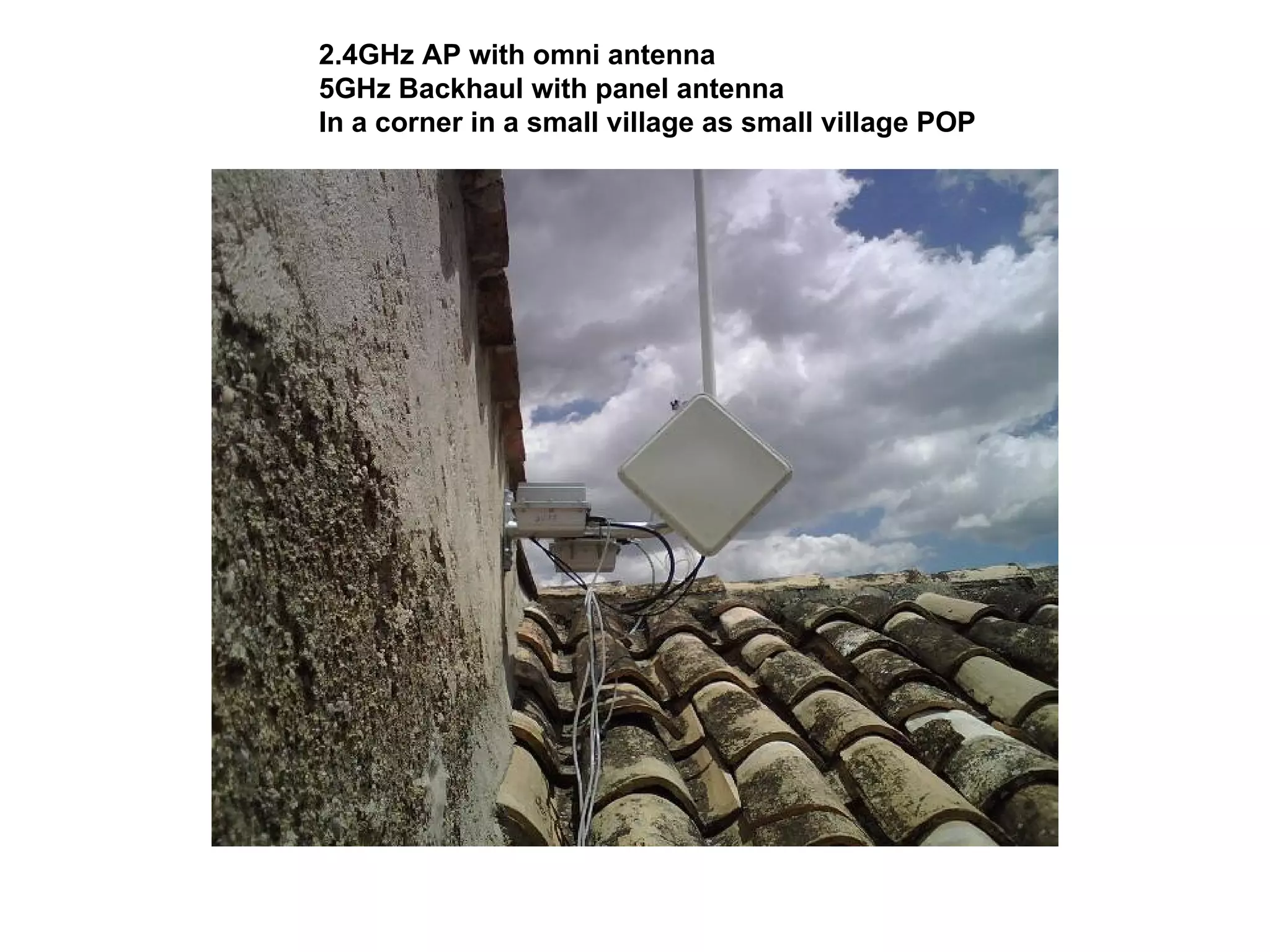

7. 2.4GHz AP with omni antenna 5GHz Backhaul with panel antenna In a corner in a small village as small village POP

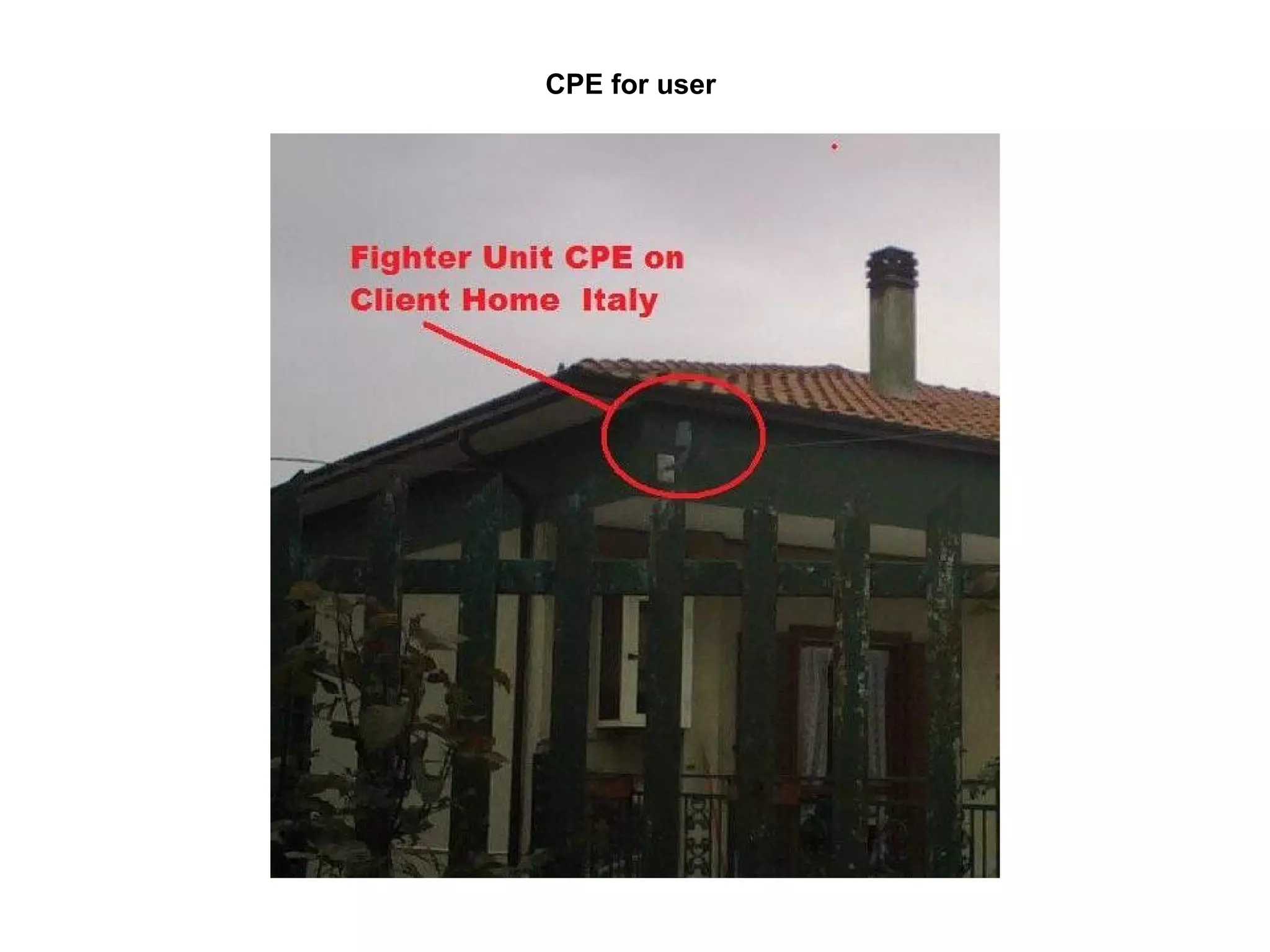

9. CPE for user

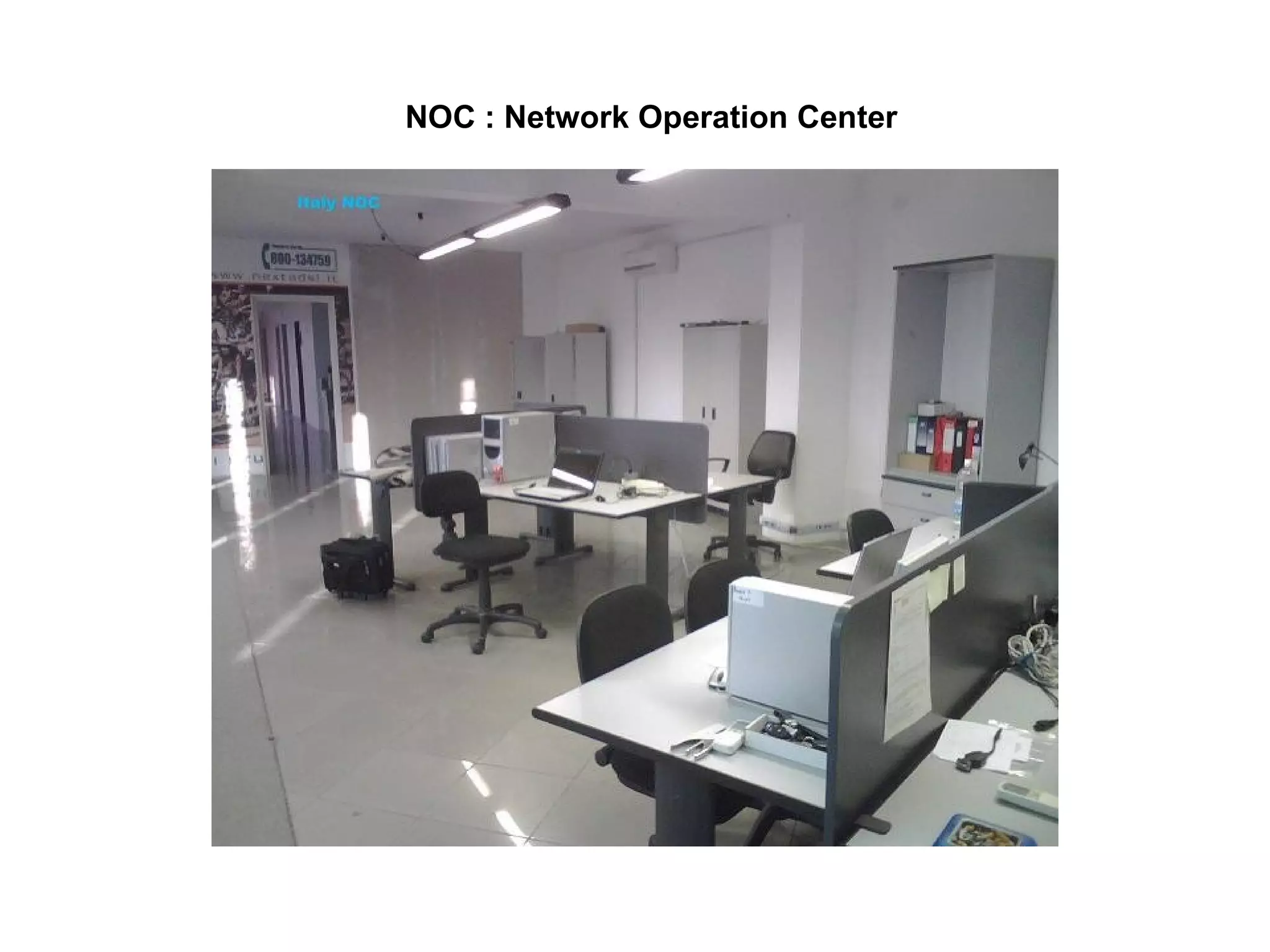

10. NOC : Network Operation Center

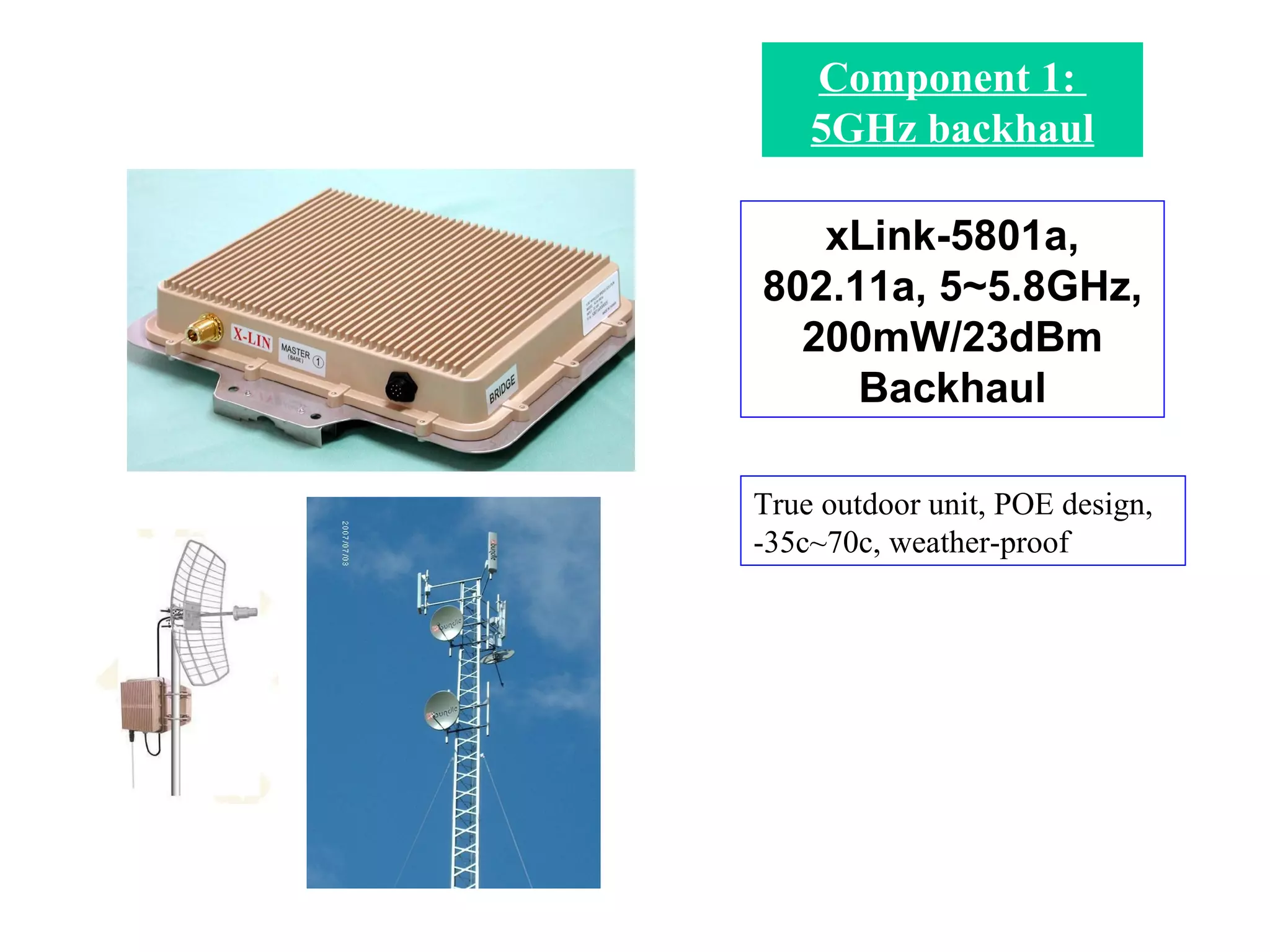

11. Component 1: 5GHz backhaul xLink-5801a, 802.11a, 5~5.8GHz, 200mW/23dBm Backhaul True outdoor unit, POE design, -35c~70c, weather-proof

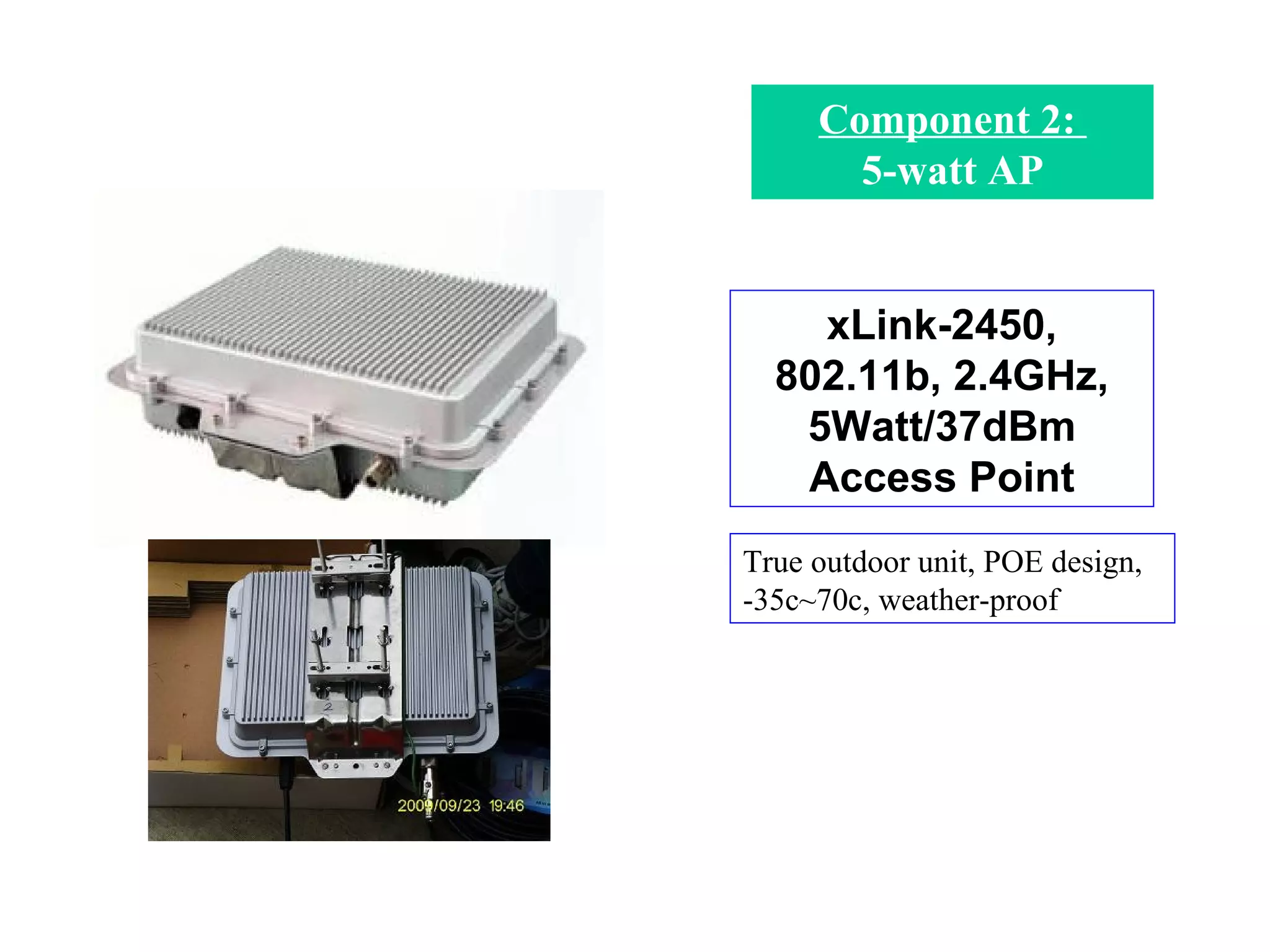

12. Component 2: 5-watt AP xLink-2450, 802.11b, 2.4GHz, 5Watt/37dBm Access Point True outdoor unit, POE design, -35c~70c, weather-proof

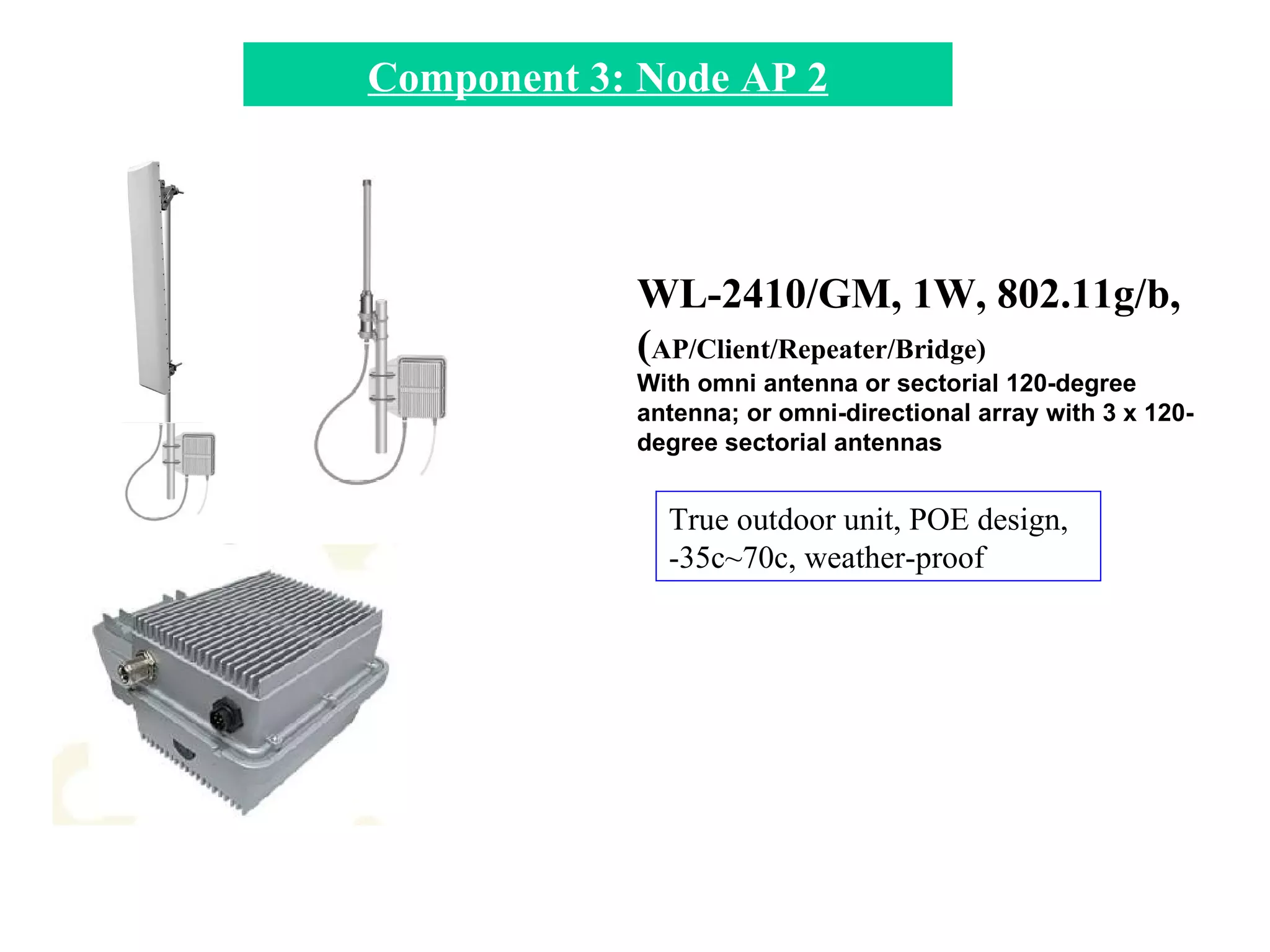

13. WL-2410/GM, 1W, 802.11g/b, ( AP/Client/Repeater/Bridge) With omni antenna or sectorial 120-degree antenna; or omni-directional array with 3 x 120-degree sectorial antennas Component 3: Node AP 2 True outdoor unit, POE design, -35c~70c, weather-proof

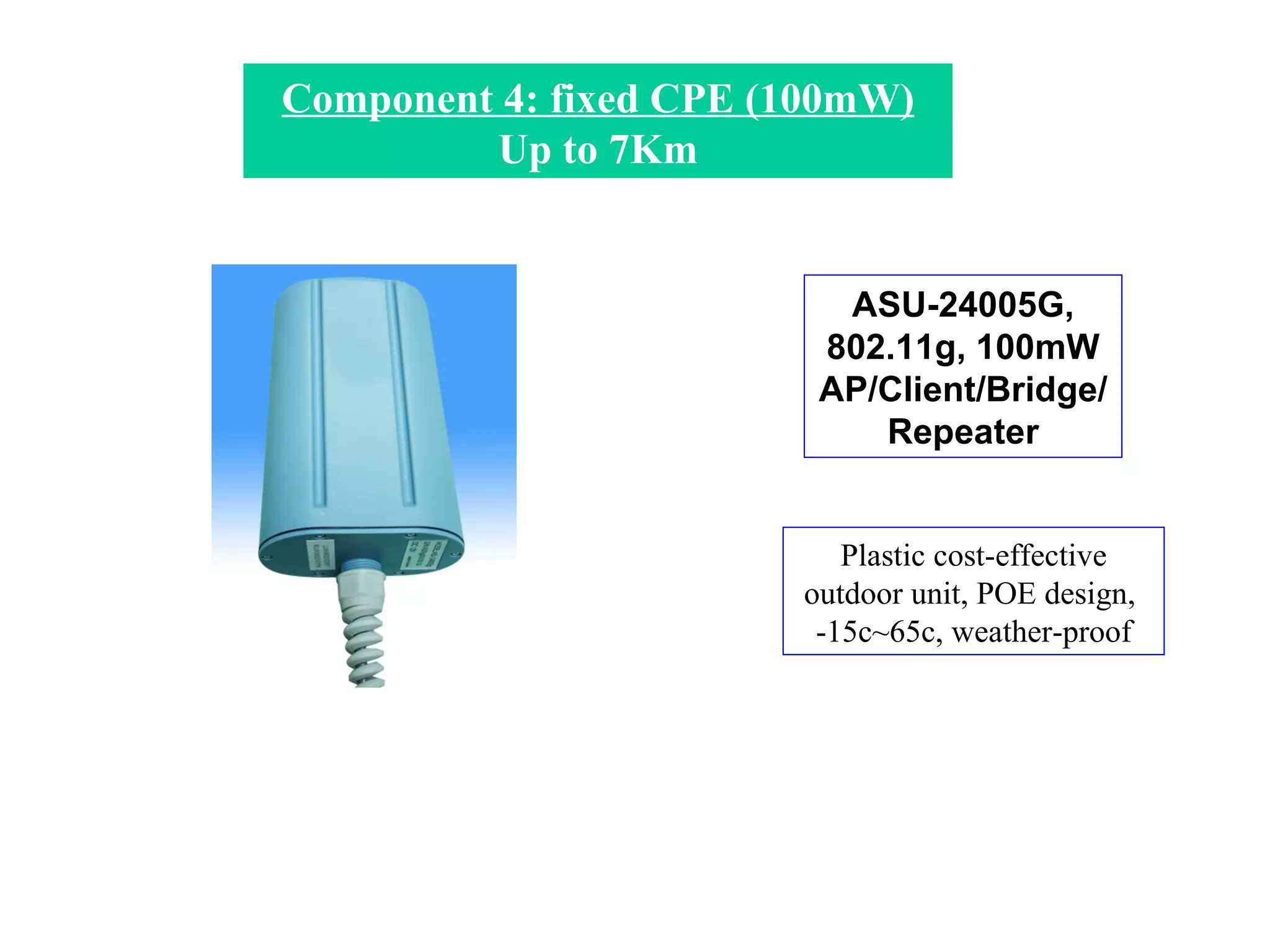

14. Component 4: fixed CPE (100mW) Up to 7Km Plastic cost-effective outdoor unit, POE design, -15c~65c, weather-proof ASU-24005G, 802.11g, 100mW AP/Client/Bridge/Repeater

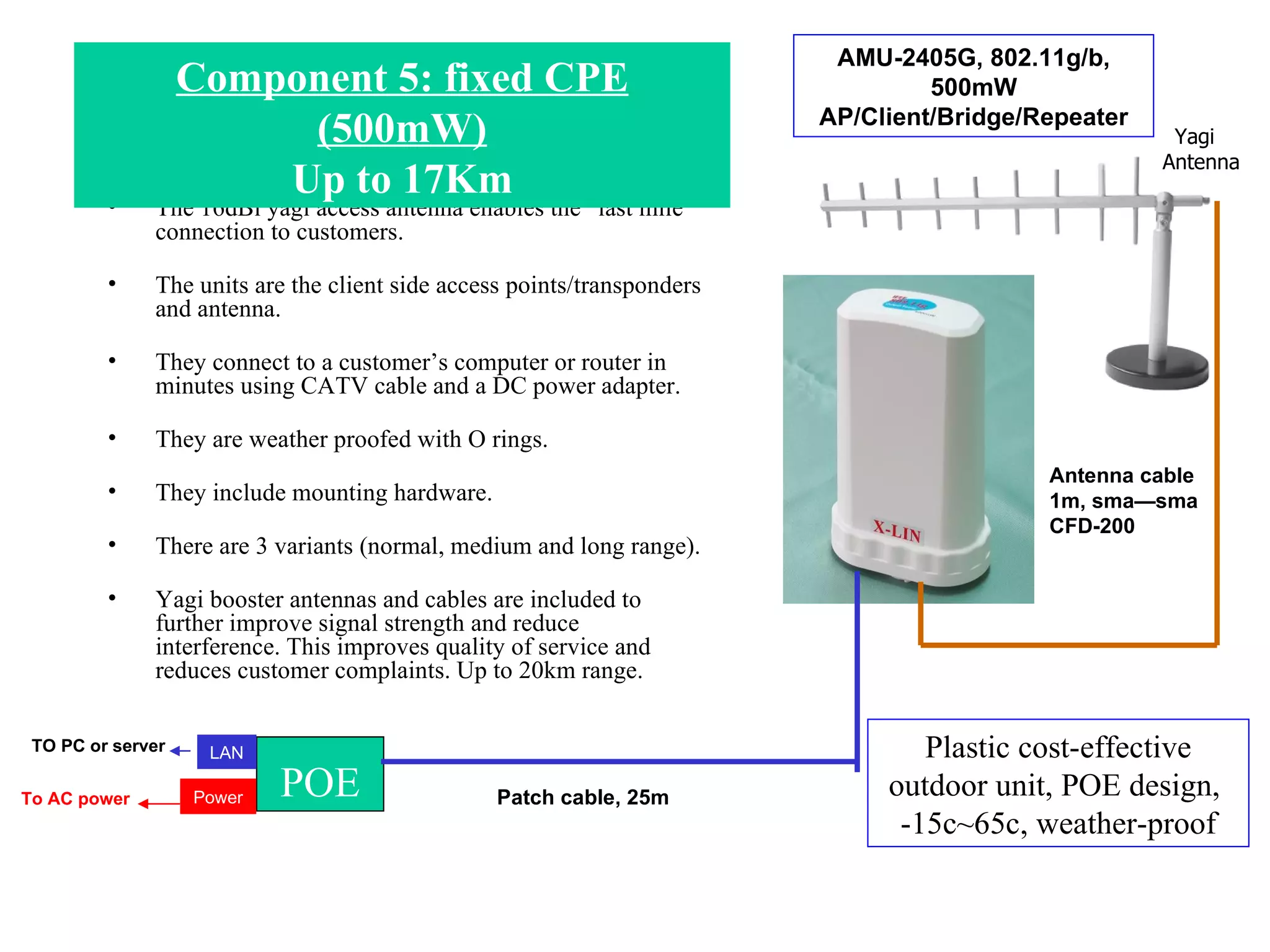

15. The 16dBi yagi access antenna enables the “last mile” connection to customers. The units are the client side access points/transponders and antenna. They connect to a customer’s computer or router in minutes using CATV cable and a DC power adapter. They are weather proofed with O rings. They include mounting hardware. There are 3 variants (normal, medium and long range). Yagi booster antennas and cables are included to further improve signal strength and reduce interference. This improves quality of service and reduces customer complaints. Up to 20km range. Yagi Antenna POE LAN Power Antenna cable 1m, sma—sma CFD-200 TO PC or server To AC power Patch cable, 25m AMU-2405G, 802.11g/b, 500mW AP/Client/Bridge/Repeater Plastic cost-effective outdoor unit, POE design, -15c~65c, weather-proof Component 5: fixed CPE (500mW) Up to 17Km

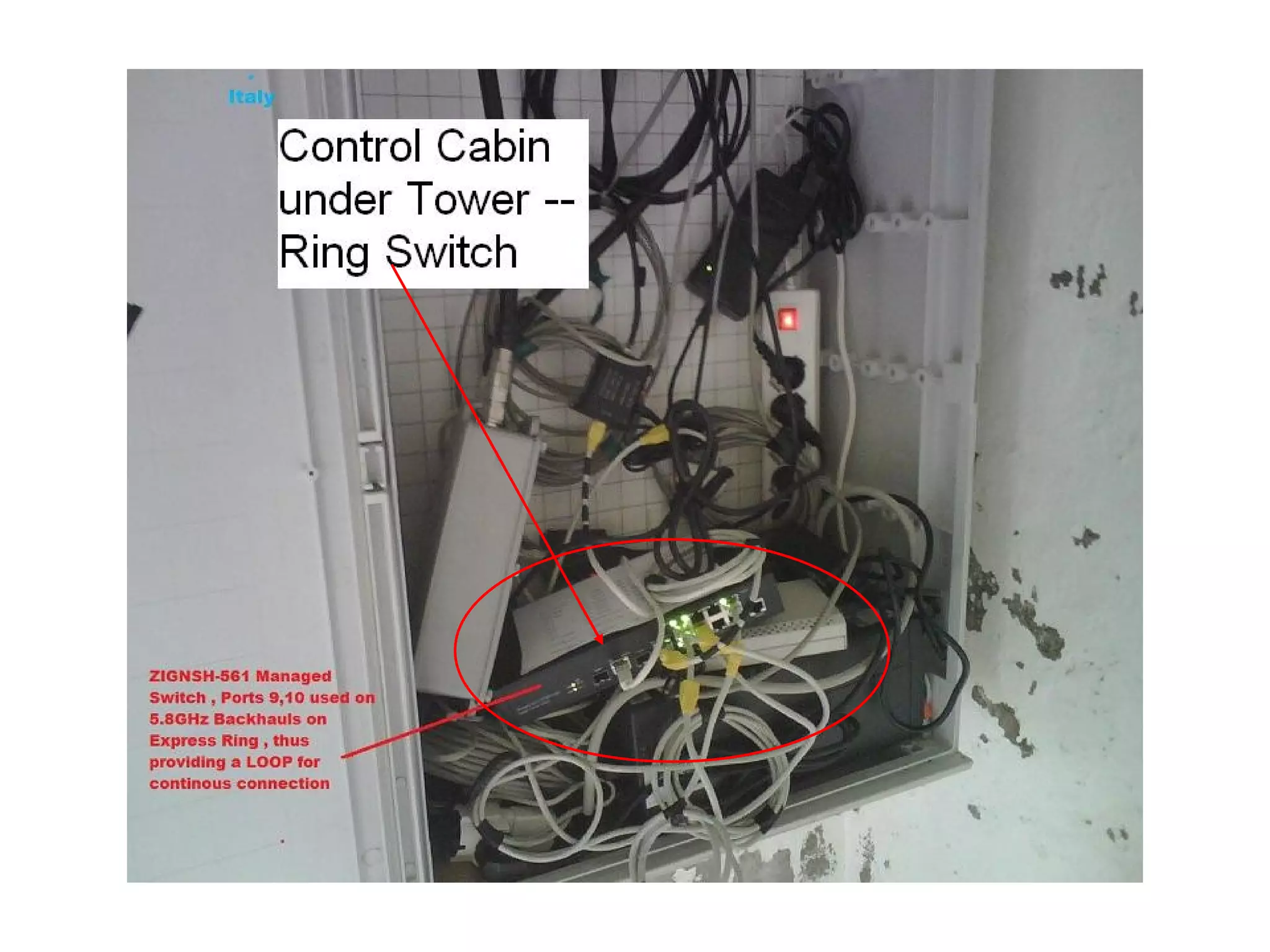

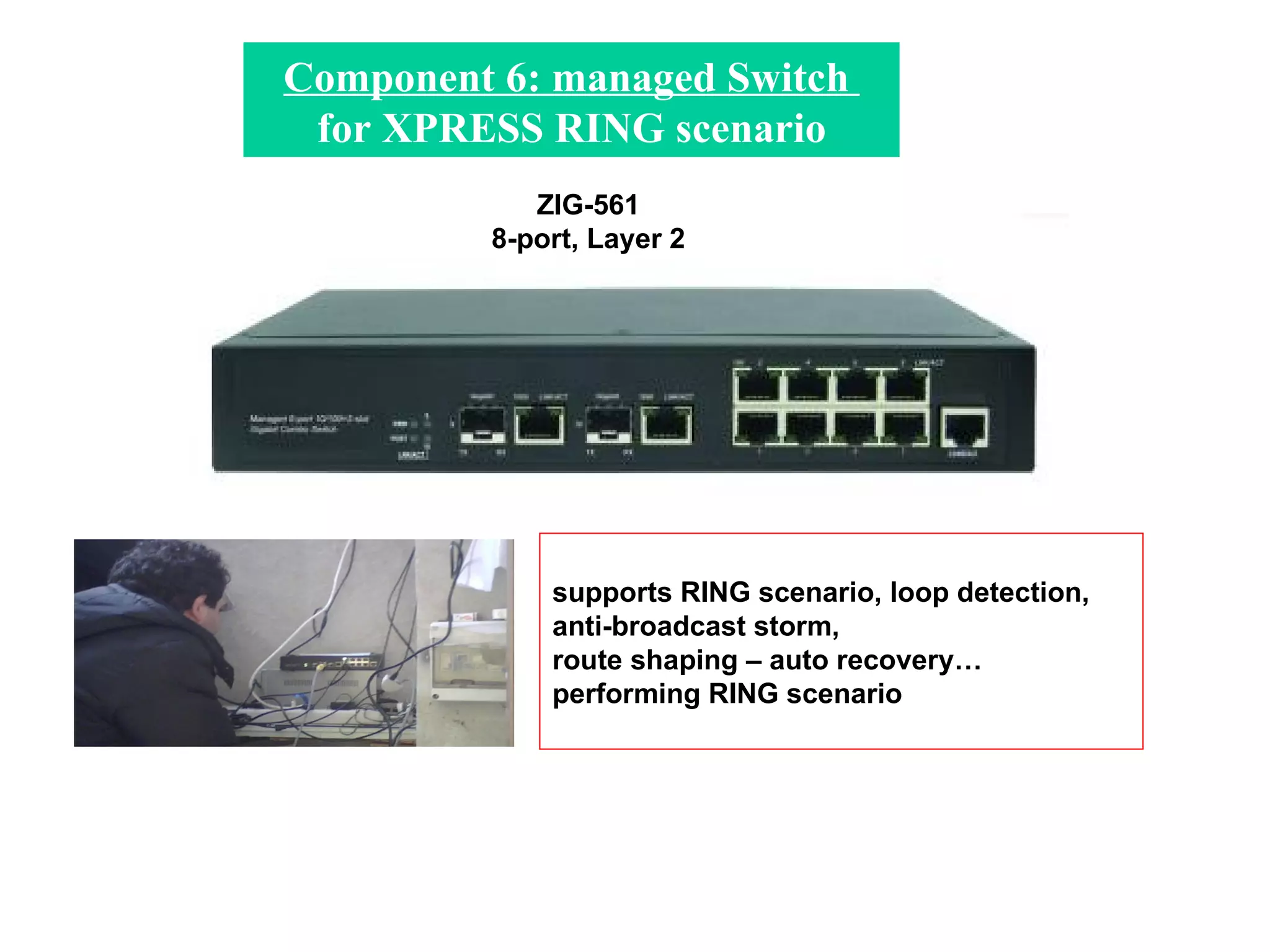

16. Component 6: managed Switch for XPRESS RING scenario ZIG-561 8-port, Layer 2 supports RING scenario, loop detection, anti-broadcast storm, route shaping – auto recovery… performing RING scenario

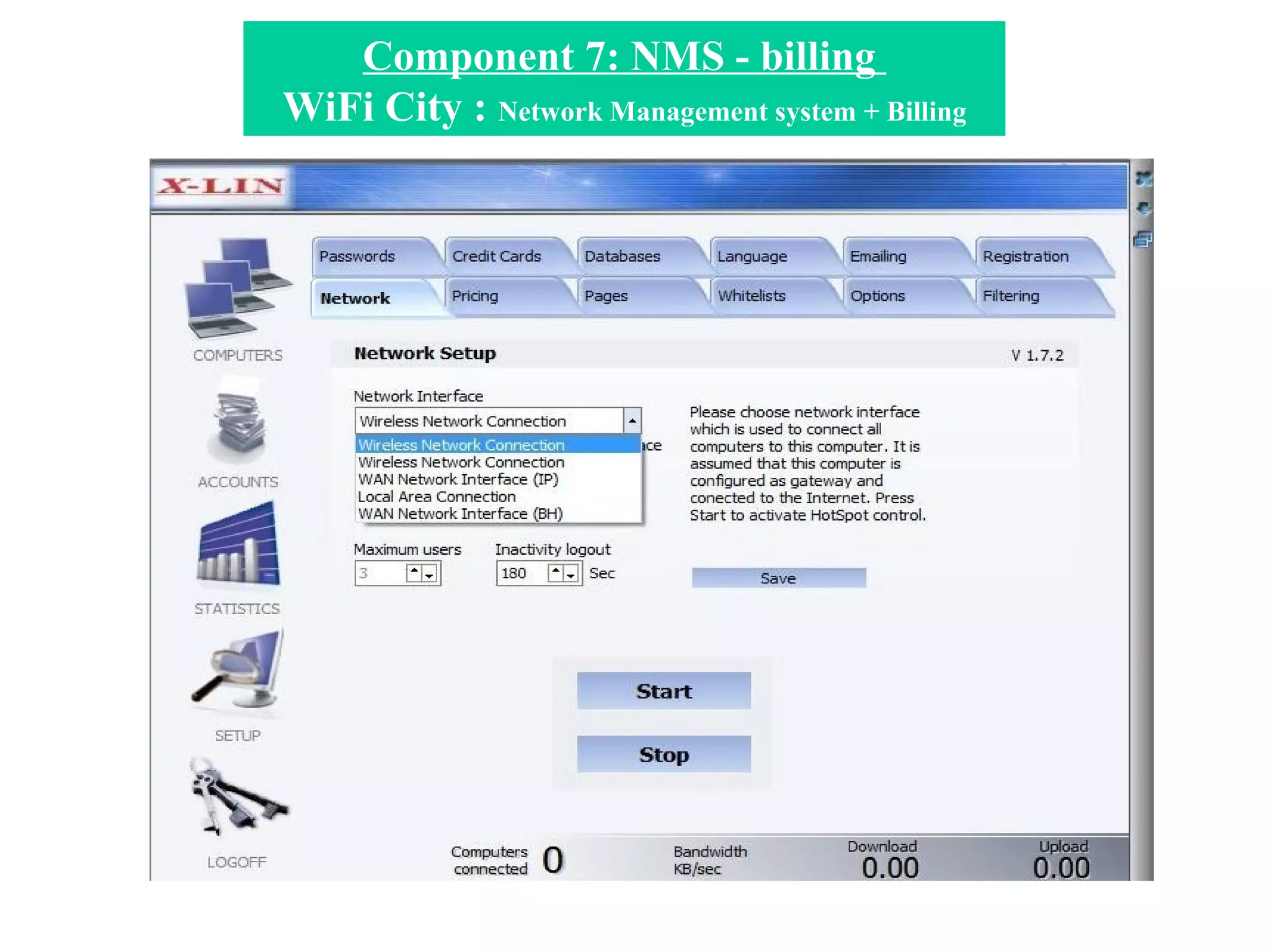

17. Component 7: NMS - billing WiFi City : Network Management system + Billing
