EnGenius 2013 Products
The document provides information on EnGenius' 2013 product pipeline and expansions. It outlines new R&D centers being established in Taiwan and Malaysia to focus on various product developments. The product expansion section discusses the EnGenius Cloud System for centralized management of networking devices through a cloud-based portal. It provides architectural diagrams and describes key features of the cloud system. Finally, it presents new product lines for 2013 including outdoor and indoor access points, wireless routers, tape-type APs, switches, and Power over Ethernet switches.
More Related Content
EnGenius 2013 Products
- 1.
- 2.
- 3. New RD CentersExpasion Neihu R&D Center (TW) Hsinchu R&D Center (TW) IP Surveillance Feature/Function • • Founded in January, 2012 Focus on IP Camera, surveillance , NVR products development • Employee : 40 + • • Founded in January, 2012 Focus on own products new features development, function enhancement. • Employee : 70 KJ, Malaysia R&D Center Cloud • • • Founded in April, 2012 Focus on management tool development, ex: NMS, cloud base system. Employee : 40 EnGenius HQ (TW) • • • Located in Taoyuan City Focus on new platform , new products development. Employee (R&D department) : 100+
- 4.

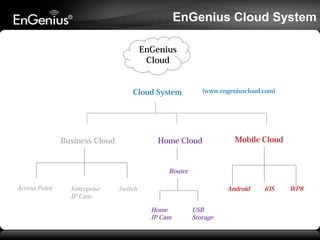

- 5. EnGenius Cloud System EnGenius Cloud CloudSystem Business Cloud (www.engeniuscloud.com) Home Cloud Mobile Cloud Router Access Point Enterprise IP Cam Switch Android Home IP Cam USB Storage iOS WP8

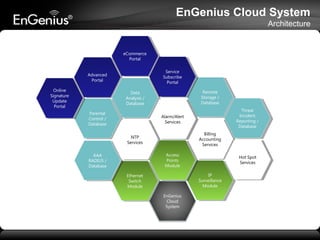

- 6. EnGenius Cloud System Architecture eCommerce eCommerce Portal Portal Service Service Subscribe Subscribe Portal Portal Advanced Advanced Portal Portal Online Online Signature Signature Update Update Portal Portal Remote Remote Storage/ / Storage Database Database Data Data Analysis / / Analysis Database Database Parental Parental Control / / Control Database Database Threat Threat Incident Incident Reporting / / Reporting Database Database Alarm/Alert Alarm/Alert Services Services Billing Billing Accounting Accounting Services Services NTP NTP Services Services Access Access Points Points Module Module AAA AAA RADIUS / / RADIUS Database Database Hot Spot Hot Spot Services Services IP IP Surveillance Surveillance Module Module Ethernet Ethernet Switch Switch Module Module EnGenius Cloud System

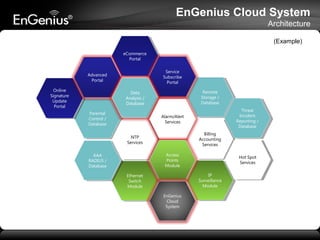

- 7. EnGenius Cloud System Architecture (Example) eCommerce eCommerce Portal Portal Service Subscribe Portal Advanced Portal Online Online Signature Signature Update Update Portal Portal Remote Remote Storage/ / Storage Database Database Data Analysis / Database Parental Parental Control / / Control Database Database Threat Threat Incident Incident Reporting / / Reporting Database Database Alarm/Alert Services Billing Billing Accounting Accounting Services Services NTP NTP Services Services Access Points Module AAA AAA RADIUS / / RADIUS Database Database Hot Spot Hot Spot Services Services IP IP Surveillance Surveillance Module Module Ethernet Ethernet Switch Switch Module Module EnGenius Cloud System

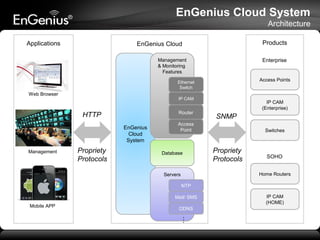

- 8. EnGenius Cloud System Architecture Applications Products EnGeniusCloud Enterprise Management & Monitoring Features Access Points Ethernet Switch Web Browser IP CAM Router HTTP EnGenius Cloud System Management Propriety Protocols IP CAM (Enterprise) SNMP Access Point Database Switches Propriety Protocols SOHO Home Routers Servers NTP Mail/ SMS Mobile APP DDNS IP CAM (HOME) …

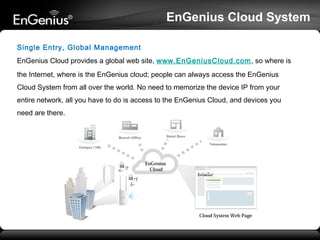

- 9. EnGenius Cloud System SingleEntry, Global Management EnGenius Cloud provides a global web site, www.EnGeniusCloud.com, so where is the Internet, where is the EnGenius cloud; people can always access the EnGenius Cloud System from all over the world. No need to memorize the device IP from your entire network, all you have to do is access to the EnGenius Cloud, and devices you need are there. EnGenius Cloud Cloud System Web Page
- 10. EnGenius Cloud System TheSystem Never Sleeps! EnGenius Cloud will implement many high RELIABLE SERVERS in the most cities all over the world. EnGenius Cloud provides the smartest and rapid services by using the Data Synchronization Technology, and this design is essentially to prevent services from interruption.

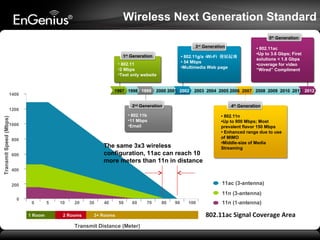

- 11. Wireless Next GenerationStandard 5th Generation 3rd Generation 1 Generation • 802.11g/a -Wi-Fi 發展起飛 • 54 Mbps •Multimedia Web page st • 802.11 •2 Mbps •Text only website 1997 1998 1999 1400 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2nd Generation 1200 Transmit Speed (Mbps) 2000 2001 2002 4th Generation • 802.11b •11 Mbps •Email 1000 800 The same 3x3 wireless configuration, 11ac can reach 10 more meters than 11n in distance 600 • 802.11ac •Up to 3.6 Gbps; First solutions < 1.8 Gbps •coverage for video “Wired” Compliment • 802.11n •Up to 900 Mbps; Most prevalent flavor 150 Mbps • Enhanced range due to use of MIMO •Middle-size of Media Streaming 400 11ac (3-antenna) 200 11n (3-antenna) 0 0 1 Room 5 10 20 2 Rooms 30 40 50 60 3+ Rooms Transmit Distance (Meter) 70 80 90 100 11n (1-antenna) 802.11ac Signal Coverage Area

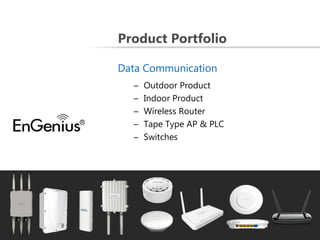

- 12. Product Portfolio Data Communication – – – – – OutdoorProduct Indoor Product Wireless Router Tape Type AP & PLC Switches
- 13.

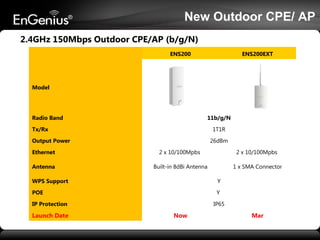

- 14. New Outdoor CPE/AP 2.4GHz 150Mbps Outdoor CPE/AP (b/g/N) ENS200 ENS200EXT Model Radio Band 11b/g/N Tx/Rx 1T1R Output Power 26dBm Ethernet 2 x 10/100Mpbs 2 x 10/100Mpbs Antenna Built-in 8dBi Antenna 1 x SMA Connector WPS Support Y POE Y IP Protection Launch Date IP65 Now Mar
- 15. New Outdoor CPE/AP 2.4GHz 300Mbps Outdoor CPE/AP (b/g/N) ENS202 ENS202EXT Model Radio Band 11b/g/N Tx/Rx 2T2R Output Power 26dBm Ethernet 2 x 10/100Mpbs 2 x 10/100Mpbs Antenna Built-in 8dBi Antenna 2 x SMA Connector WPS Support Y POE Y IP Protection Launch Date IP65 Mar Mar

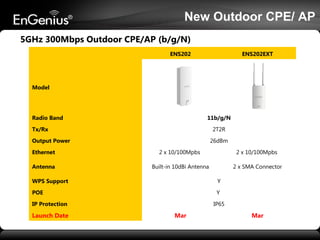

- 16. New Outdoor CPE/AP 5GHz 300Mbps Outdoor CPE/AP (b/g/N) ENS202 ENS202EXT Model Radio Band 11b/g/N Tx/Rx 2T2R Output Power 26dBm Ethernet 2 x 10/100Mpbs 2 x 10/100Mpbs Antenna Built-in 10dBi Antenna 2 x SMA Connector WPS Support Y POE Y IP Protection Launch Date IP65 Mar Mar
- 17. Indoor Multi-Mode AP/Repeater

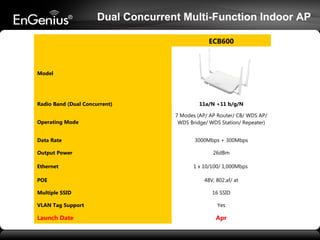

- 18. Dual Concurrent Multi-FunctionIndoor AP ECB600 Model Radio Band (Dual Concurrent) Operating Mode Data Rate Output Power Ethernet POE Multiple SSID 11a/N +11 b/g/N 7 Modes (AP/ AP Router/ CB/ WDS AP/ WDS Bridge/ WDS Station/ Repeater) 3000Mbps + 300Mbps 26dBm 1 x 10/100/ 1,000Mbps 48V, 802.af/ at 16 SSID VLAN Tag Support Yes Launch Date Apr
- 19. Cloud Management AP (MESHSupported)

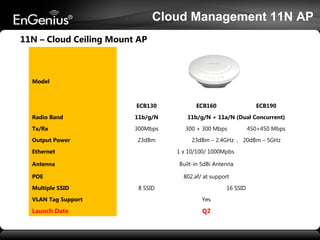

- 20. Cloud Management 11NAP 11N – Cloud Ceiling Mount AP Model ECB130 Radio Band 11b/g/N Tx/Rx 300Mbps Output Power 23dBm ECB160 ECB190 11b/g/N + 11a/N (Dual Concurrent) 300 + 300 Mbps 23dBm – 2.4GHz , 20dBm – 5GHz Ethernet 1 x 10/100/ 1000Mpbs Antenna Built-in 5dBi Antenna POE Multiple SSID 450+450 Mbps 802.af/ at support 8 SSID 16 SSID VLAN Tag Support Yes Launch Date Q2
- 21. Cloud Management 11NAP 11N – Cloud Wall Mount AP Model ECB230 Radio Band 11b/g/N Tx/Rx 300Mbps Output Power 23dBm ECB260 ECB290 11b/g/N + 11a/N (Dual Concurrent) 300 + 300 Mbps 23dBm – 2.4GHz , 20dBm – 5GHz Ethernet 2 x 10/100/ 1000Mpbs Antenna Built-in 5dBi Antenna POE Multiple SSID 450+450 Mbps 802.af/ at support 8 SSID 16 SSID VLAN Tag Support Yes Launch Date Q2

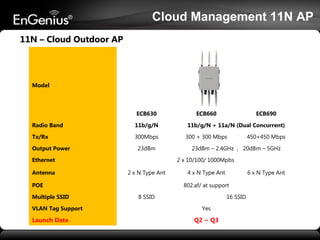

- 22. Cloud Management 11NAP 11N – Cloud Outdoor AP Model ECB630 Radio Band 11b/g/N Tx/Rx 300Mbps Output Power 23dBm Ethernet Antenna VLAN Tag Support Launch Date ECB690 11b/g/N + 11a/N (Dual Concurrent) 300 + 300 Mbps 450+450 Mbps 23dBm – 2.4GHz , 20dBm – 5GHz 2 x 10/100/ 1000Mpbs 2 x N Type Ant POE Multiple SSID ECB660 4 x N Type Ant 6 x N Type Ant 802.af/ at support 8 SSID 16 SSID Yes Q2 ~ Q3

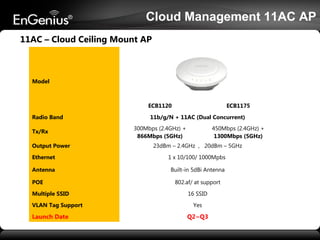

- 23. Cloud Management 11ACAP 11AC – Cloud Ceiling Mount AP Model ECB1120 Radio Band Tx/Rx Output Power ECB1175 11b/g/N + 11AC (Dual Concurrent) 300Mbps (2.4GHz) + 866Mbps (5GHz) 450Mbps (2.4GHz) + 1300Mbps (5GHz) 23dBm – 2.4GHz , 20dBm – 5GHz Ethernet 1 x 10/100/ 1000Mpbs Antenna Built-in 5dBi Antenna POE Multiple SSID VLAN Tag Support Launch Date 802.af/ at support 16 SSID Yes Q2~Q3

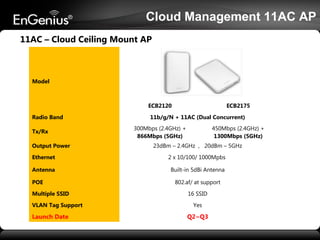

- 24. Cloud Management 11ACAP 11AC – Cloud Ceiling Mount AP Model ECB2120 Radio Band Tx/Rx Output Power ECB2175 11b/g/N + 11AC (Dual Concurrent) 300Mbps (2.4GHz) + 866Mbps (5GHz) 450Mbps (2.4GHz) + 1300Mbps (5GHz) 23dBm – 2.4GHz , 20dBm – 5GHz Ethernet 2 x 10/100/ 1000Mpbs Antenna Built-in 5dBi Antenna POE Multiple SSID VLAN Tag Support Launch Date 802.af/ at support 16 SSID Yes Q2~Q3

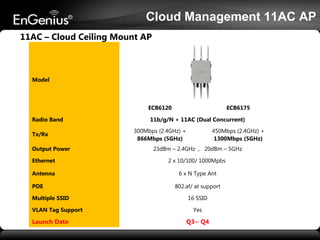

- 25. Cloud Management 11ACAP 11AC – Cloud Ceiling Mount AP Model ECB6120 Radio Band Tx/Rx Output Power ECB6175 11b/g/N + 11AC (Dual Concurrent) 300Mbps (2.4GHz) + 866Mbps (5GHz) 450Mbps (2.4GHz) + 1300Mbps (5GHz) 23dBm – 2.4GHz , 20dBm – 5GHz Ethernet 2 x 10/100/ 1000Mpbs Antenna 6 x N Type Ant POE Multiple SSID VLAN Tag Support Launch Date 802.af/ at support 16 SSID Yes Q3~ Q4
- 26.

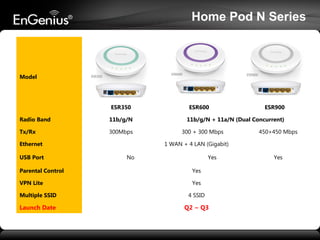

- 27. Home Pod NSeries Model ESR350 Radio Band 11b/g/N Tx/Rx 300Mbps Ethernet USB Port ESR600 ESR900 11b/g/N + 11a/N (Dual Concurrent) 300 + 300 Mbps 450+450 Mbps 1 WAN + 4 LAN (Gigabit) No Yes Parental Control Yes VPN Lite Yes Multiple SSID 4 SSID Launch Date Q2 ~ Q3 Yes
- 29. Home Pod CloudAC Series Model ESR750C Radio Band Tx/Rx 11b/g/N 300 + 433 Mbps ESR1200C ESR1750C 11b/g/N + 11AC (Dual Concurrent) 300 + 866 Mbps Ethernet 1 WAN + 4 LAN (Gigabit) USB Port Yes Parental Control Yes Cloud Support Yes Multiple SSID 4 SSID Launch Date Q3 ~ Q4 450+1300 Mbps
- 30.
- 31. HomePlug & TapeType AP

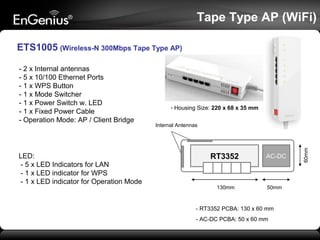

- 32. Tape Type AP(WiFi) ETS1005 (Wireless-N 300Mbps Tape Type AP) LED: - 5 x LED Indicators for LAN - 1 x LED indicator for WPS - 1 x LED indicator for Operation Mode - Housing Size: 220 x 68 x 35 mm Internal Antennas RT3352 130mm AC-DC 50mm - RT3352 PCBA: 130 x 60 mm - AC-DC PCBA: 50 x 60 mm 60mm - 2 x Internal antennas - 5 x 10/100 Ethernet Ports - 1 x WPS Button - 1 x Mode Switcher - 1 x Power Switch w. LED - 1 x Fixed Power Cable - Operation Mode: AP / Client Bridge
- 33. Tape Type AP(WiFi + PLC) ETS3505 (Wireless-N 300Mbps + PLC Tape Type AP) WiFi: - 2 x Internal antennas - 5 x 10/100 Ethernet Ports - 1 x WPS Button - 1 x Mode Switcher - 1 x Power Switch w. LED - 1 x Fixed Power Cable - Operation Mode: AP / Client Bridge - Housing Size: 220 x 68 x 35 mm Internal Antennas PLC: - Frequency: 2~60MHz - Security: 128bits AES RT3352 AR7420 (PLC) - Security Push Button x 1 LED: - 5 x LED Indicators for LAN - 1 x LED indicator for WPS - 1 x LED indicator for Operation Mode 130mm 50mm - RT3352 PCBA: 130 x 60 mm - AC-DC PCBA: 50 x 60 mm 60mm - PLC: 500Mbps
- 34.
- 35.

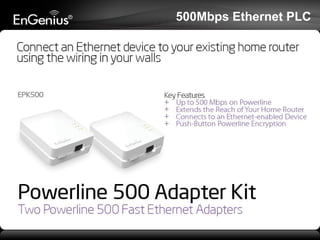

- 36. 500Mbps Gigabit PLC+ WiFi
- 37. PoE Switches &Manageable Switches
- 38. Switches EGS5824 24GE+2 10G SFP+Intelligent Switch Layer 2 Intelligent • BCM Solution • 24* Gigabit Ports with 2* 10G SFP+ Ports • 19inch rack-mountable metal housing EGS5424P+ / EGS5448P+ 24/48GE with 4Combo SFP PoE Intelligent Switch • BCM Solution (BCM56150/56152) • 24/48* Gigabit PoE available Ports with 4* Combo SFP Ports • 802.3at & af PoE supported • Internal Power, 185w or 370w PoE Budget • 19inch rack-mountable metal housing EGS3224P+ 24GE+2SFP PoE+ Smart Switch Smart / Smart Plus • BCM Solution • 24* Gigabit PoE available Ports with 2* GE SFP • 802.3at & af PoE supported • Internal Power, 500w PoE Budget • 19inch rack-mountable metal housing EGS3208P+ 8GE+2SFP PoE+ Smart Switch • BCM Solution • 8* Gigabit PoE available Ports with 2* GE SFP • 802.3at & af PoE supported • Internal Power, 130w PoE Budget • 13inch rack-mountable metal housing Q1, 2013 PoE Models Q2, Non-PoE Models Q3 Q4 Q1, 2014 * Images or photos above are for reference only.

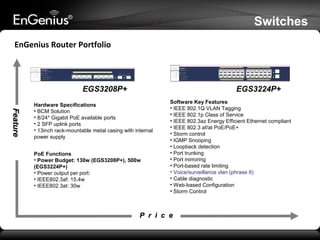

- 39. Switches EnGenius Router Portfolio EGS3208P+ EGS3224P+ Feature Feature HardwareSpecifications • BCM Solution • 8/24* Gigabit PoE available ports • 2 SFP uplink ports • 13inch rack-mountable metal casing with internal power supply PoE Functions • Power Budget: 130w (EGS3208P+), 500w (EGS3224P+) • Power output per port: • IEEE802.3af: 15.4w • IEEE802.3at: 30w Software Key Features • IEEE 802.1Q VLAN Tagging • IEEE 802.1p Class of Service • IEEE 802.3az Energy Efficient Ethernet compliant • IEEE 802.3 af/at PoE/PoE+ • Storm control • IGMP Snooping • Loopback detection • Port trunking • Port mirroring • Port-based rate limiting • Voice/surveillance vlan (phrase II) • Cable diagnostic • Web-based Configuration • Storm Control P r i c e

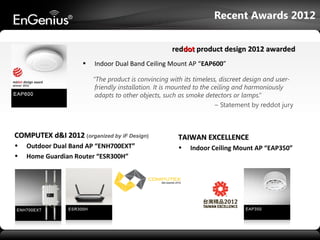

- 40. Recent Awards 2012 reddotproduct design 2012 awarded • Indoor Dual Band Ceiling Mount AP “EAP600” “The product is convincing with its timeless, discreet design and userfriendly installation. It is mounted to the ceiling and harmoniously adapts to other objects, such as smoke detectors or lamps.” – Statement by reddot jury COMPUTEX d&I 2012 (organized by iF Design) • • Outdoor Dual Band AP “ENH700EXT” Home Guardian Router “ESR300H” TAIWAN EXCELLENCE • Indoor Ceiling Mount AP “EAP350”
