The document describes the x-lin 4-16/20 IPTV system, which is a 4-channel live streaming server capable of expanding up to 20 channels depending on bandwidth and storage. It includes a built-in 1TB hard drive with options for additional storage, and requires professional network configuration for operation. ISP operators are responsible for linking clients to the media server and can choose to arrange for custom web design at additional costs.

1. IPTV-4 Live Encoding Basic IPTV for Cable and Wireless ISP Jan 2011

2. Budget IPTV for small systems

3. The. X-LIN 4-16/20 IPTV is a 4 channel live steaming IPTV server. But it also has the capability of up to an additional 16 channels of IPTV [ based on Bandwidth size] from the file section of the hard drive bays ! The additional 16 IPTV channels work the same as the Live ones as there is a URL also created when the Encoder is Published. But the content must be stored on the hard drives in the unit ! We only supply the machine with built in 1TB HD. But it has an additional space for 4 of the 2 Terri bite HD if desired at additional costs. This is good for per-recorded movies or series shows. Or e-learning ! Included in the system is 1. Video card with security Dongle 2. Server with software and starting configuration The Network must be prepared for by a Professional to operate or even TEST the unit , such things as IIS and WMS along with proper DHCP settings must be adjusted in the Network and the NEW IPTV server. Please contact and arrange a quote with our remote configuration Department in advance to achieve the proper installation and test. The system is a 4 channel IPTV system which will come with software [ not configured] that can be configured to encode and stream 4 LIVE Media presentations and up to additional 16 channels suggested , for a total of 20 channels via the Media server system in the Server based on the clients existing network system, The clients can access the IPTV media Presentations by entering the supplied URL in their windows media player !. The ISP operator is responsible for developing his website with the URL links that automatic link the clients to the Media server Links . If he so wishes, We also can arrange the development and loading of this custom web design for the ISP operator as a separate charge after he supplies all the relevant design logos and data pertaining to his Company and desires of operation at additional costs. It is recommended to have a experienced or access to a windows media encoder expert such as a Gold certified dealer. Or contract this Remote service to our Development Dept.

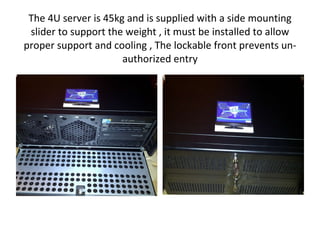

4. The 4U server is 45kg and is supplied with a side mounting slider to support the weight , it must be installed to allow proper support and cooling , The lockable front prevents un-authorized entry

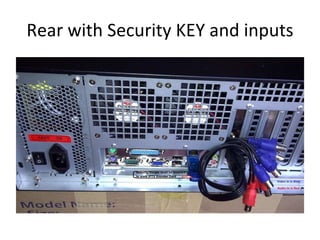

5. Rear with Security KEY and inputs
