Wire bonding
1. WIRE BONDING
Group 2: Tống Văn Khoa
Cao Văn Phước
Trần Phúc Thành
2. Why Wire Bonding?
Enable an IC to be electrically interconnected
to the package, and to allow that IC to be
handled, tested and “burnt-in”
Such “qualified” IC used in electronic
product.
Interconnected to other ICs, passives, flat
panel displays, keyboards, sensors,
connectors, antennas, switches, etc.
PRIMARY purpose – enable ICs to be
interconnected with rest of the system.
Primary functions of IC assembly:
(1) To provide signal and power distribution of
the packaged IC to the system. Another way to bonding: Tape
automated bonding (TAB)
(2) To provide mechanical support to fragile IC Flip chip
(3) To provide environmental protection of the
IC

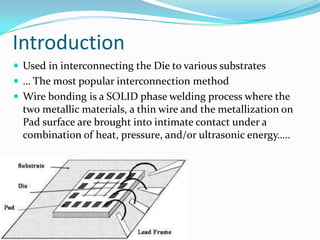

3. Introduction
Used in interconnecting the Die to various substrates
… The most popular interconnection method
Wire bonding is a SOLID phase welding process where the
two metallic materials, a thin wire and the metallization on
Pad surface are brought into intimate contact under a
combination of heat, pressure, and/or ultrasonic energy…..
4. Types of Wire Bonding
Wire bonding is made using two types of tools:
A Wedge- Called Wedge bonding
B: Capillary- Called ball bonding
Very inexpensive- A penny per pin

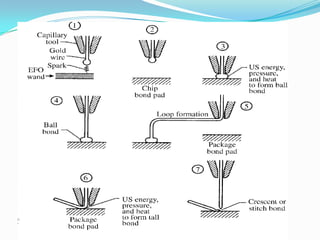

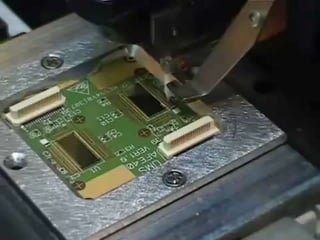

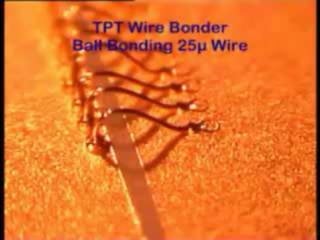

6. Ball Bonding
Process Steps
Capillary loaded with Au wire
EFO wand generates a spark to melt the Au wire at the
tip
Apply pressure and ultrasonic energy, heat to form ball
bond at bond pad on chip side
Bonding on substrate pad
Loop formation
Package bond pad formation by stitch bonding
Wire break-off to finish process

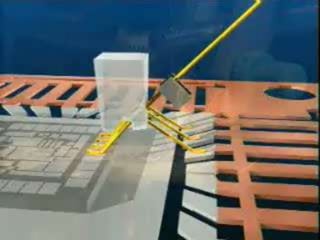

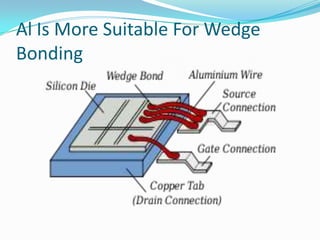

12. Process Steps
Wedge tool loaded
with wire
Apply pressure and
ultrasonic energy to
form wedge
Bonding on substrate
pad
Loop formation
Package bond pad
formation
Wire break-off to
finish process
13.

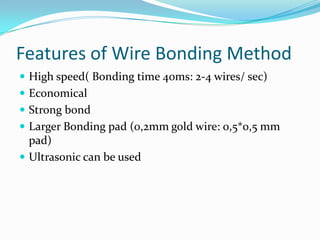

14. Features of Wire Bonding Method
High speed( Bonding time 40ms: 2-4 wires/ sec)
Economical
Strong bond
Larger Bonding pad (0,2mm gold wire: 0,5*0,5 mm
pad)
Ultrasonic can be used

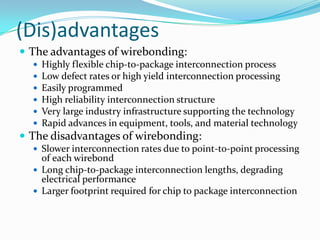

15. (Dis)advantages
The advantages of wirebonding:
Highly flexible chip-to-package interconnection process
Low defect rates or high yield interconnection processing
Easily programmed
High reliability interconnection structure
Very large industry infrastructure supporting the technology
Rapid advances in equipment, tools, and material technology
The disadvantages of wirebonding:
Slower interconnection rates due to point-to-point processing
of each wirebond
Long chip-to-package interconnection lengths, degrading
electrical performance
Larger footprint required for chip to package interconnection
16. Summary
Function of Wire Bonding
Types of Wire Bonding
Ball Bonding
Wedge Bonding
Advantages and Disadvantages
