1. What’s the deal with Apple’s Low Latency HLS (ALHLS)?
Zac Shenker
Director of Engineering, Video Delivery, Optimization & Experience
zac.shenker@cbsinteractive.com

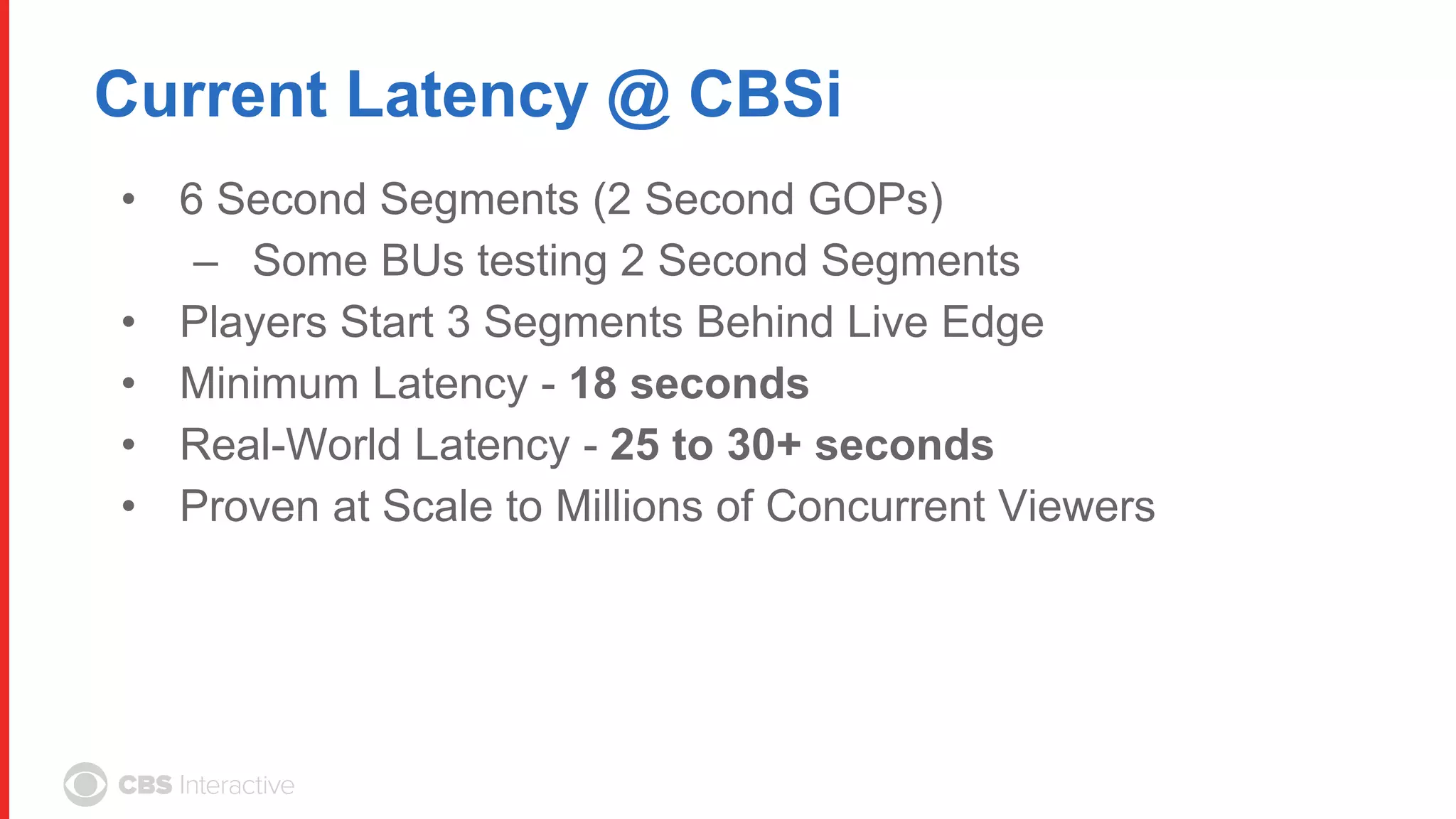

2. Current Latency @ CBSi
• 6 Second Segments (2 Second GOPs)
– Some BUs testing 2 Second Segments
• Players Start 3 Segments Behind Live Edge
• Minimum Latency - 18 seconds
• Real-World Latency - 25 to 30+ seconds
• Proven at Scale to Millions of Concurrent Viewers

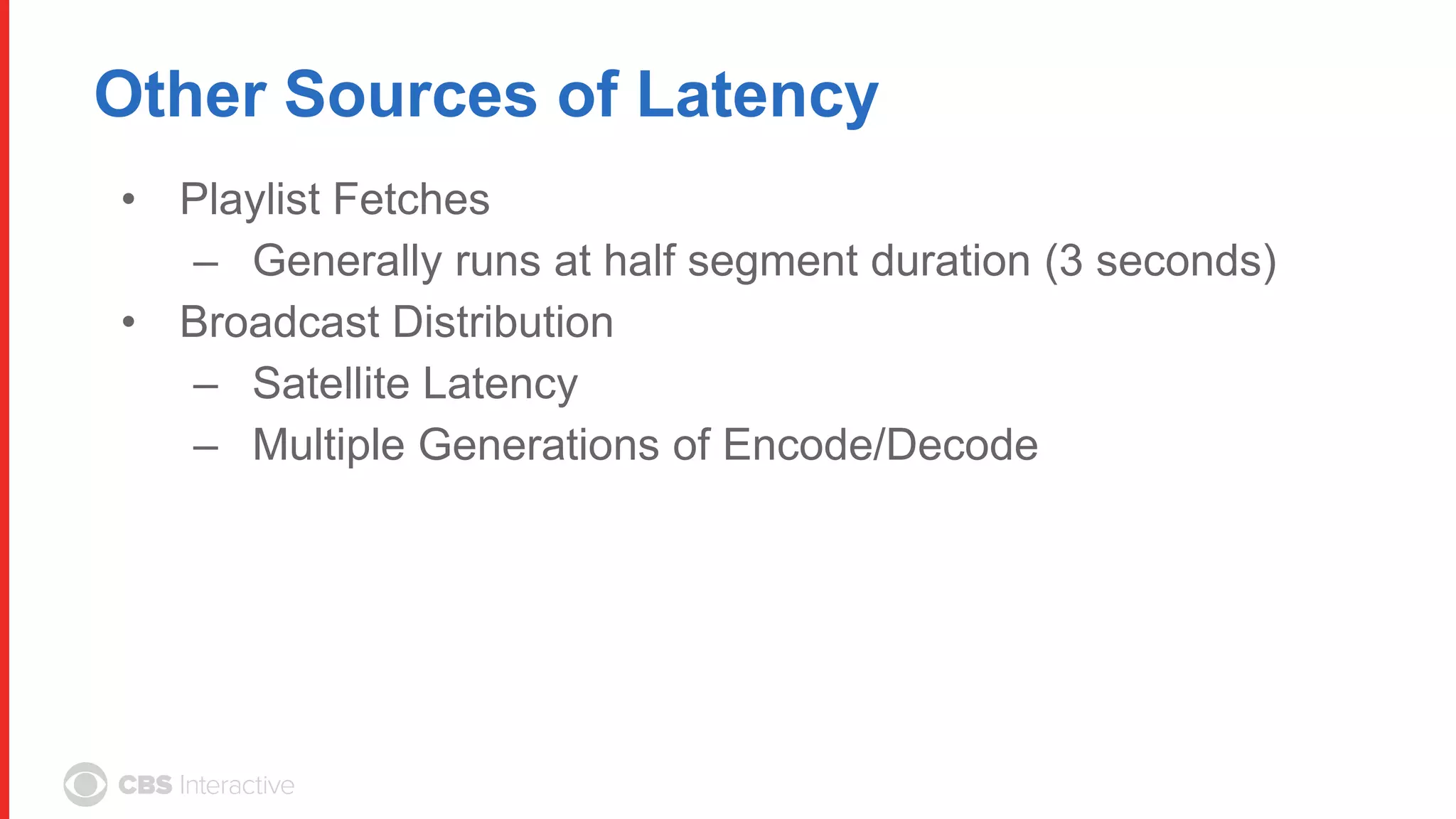

3. Other Sources of Latency
• Playlist Fetches
– Generally runs at half segment duration (3 seconds)
• Broadcast Distribution
– Satellite Latency
– Multiple Generations of Encode/Decode

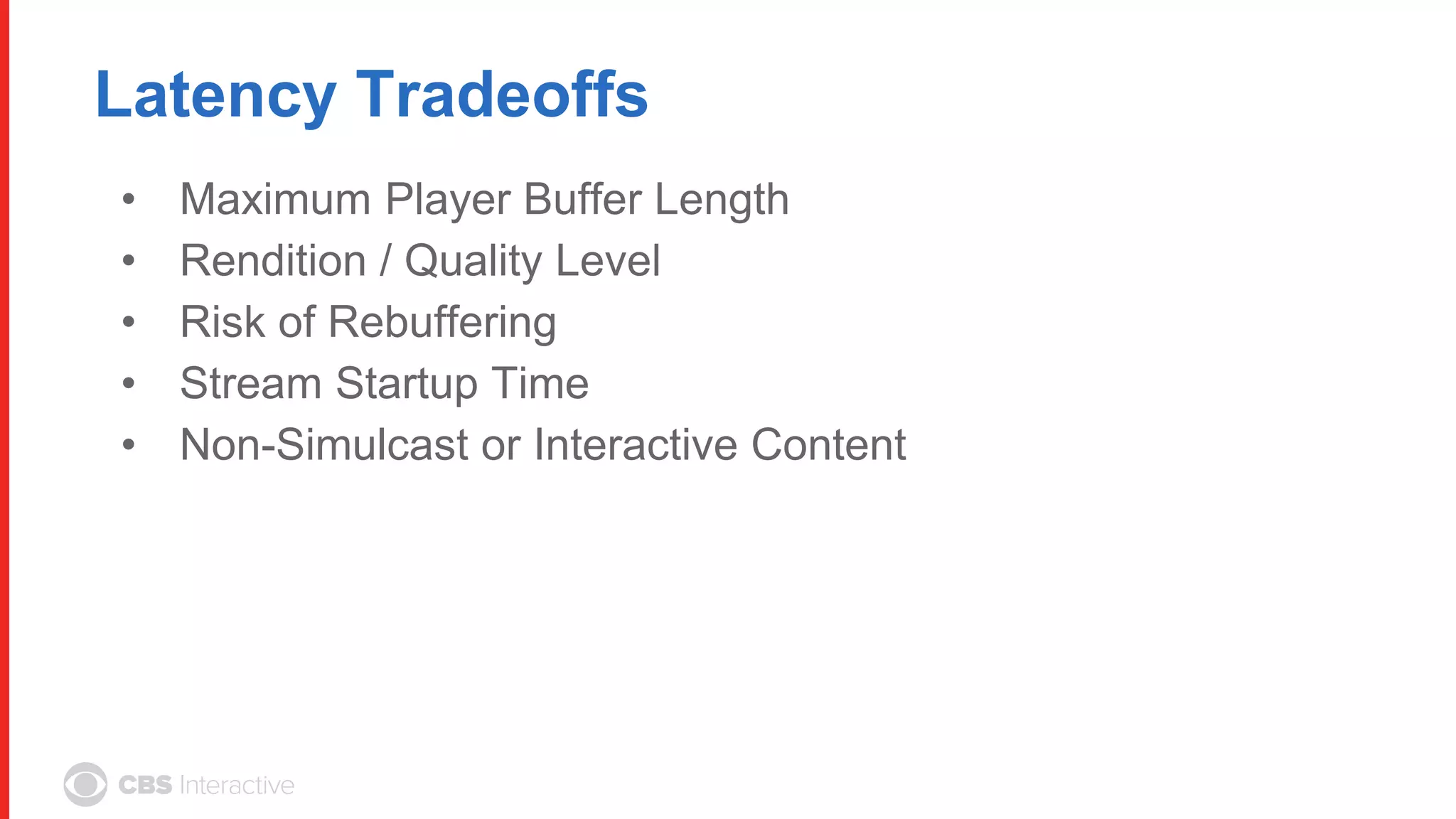

4. Latency Tradeoffs
• Maximum Player Buffer Length
• Rendition / Quality Level
• Risk of Rebuffering
• Stream Startup Time
• Non-Simulcast or Interactive Content

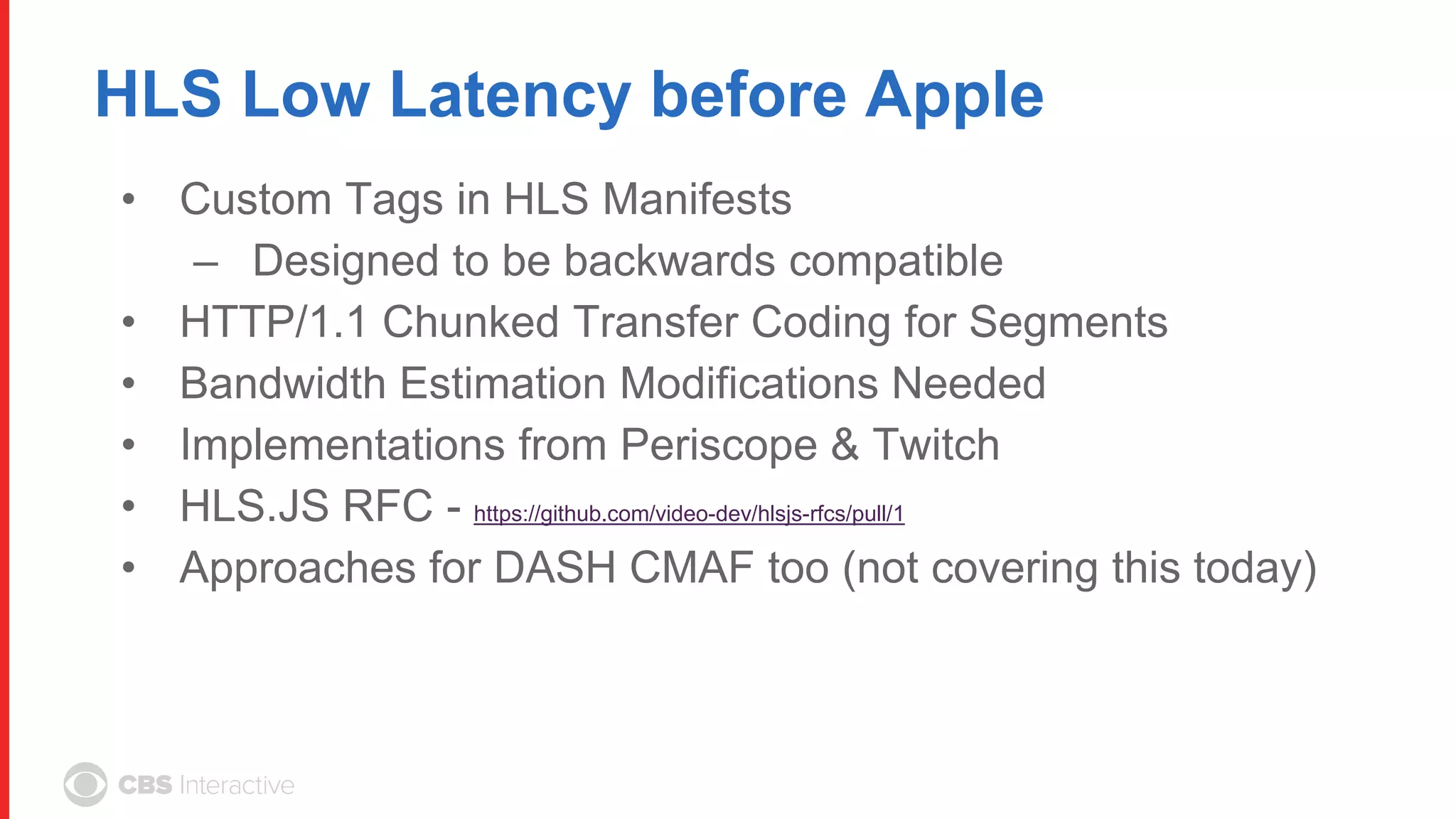

5. HLS Low Latency before Apple
• Custom Tags in HLS Manifests
– Designed to be backwards compatible
• HTTP/1.1 Chunked Transfer Coding for Segments
• Bandwidth Estimation Modifications Needed
• Implementations from Periscope & Twitch
• HLS.JS RFC - https://github.com/video-dev/hlsjs-rfcs/pull/1
• Approaches for DASH CMAF too (not covering this today)

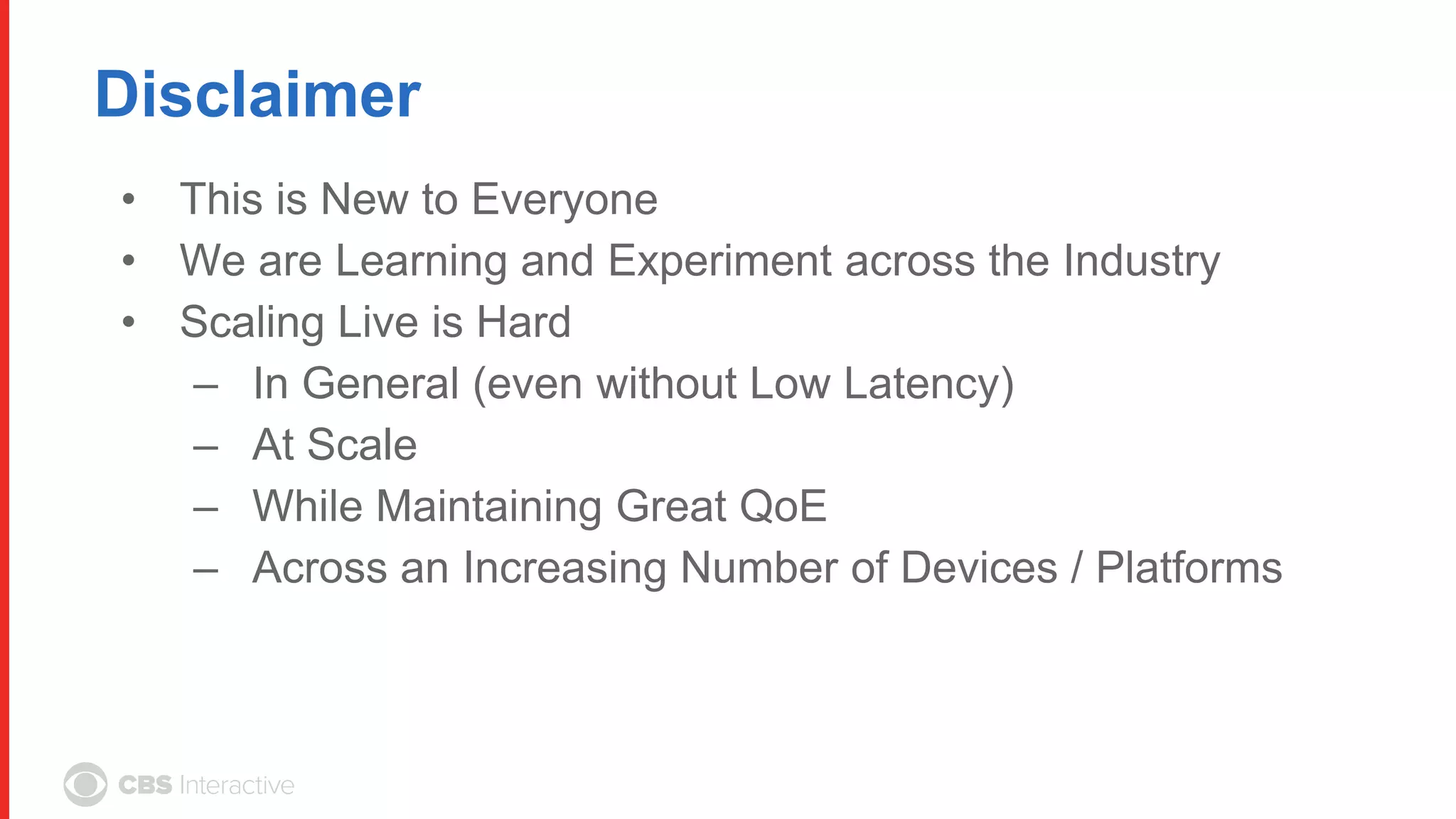

6. Disclaimer
• This is New to Everyone
• We are Learning and Experiment across the Industry
• Scaling Live is Hard
– In General (even without Low Latency)
– At Scale
– While Maintaining Great QoE
– Across an Increasing Number of Devices / Platforms

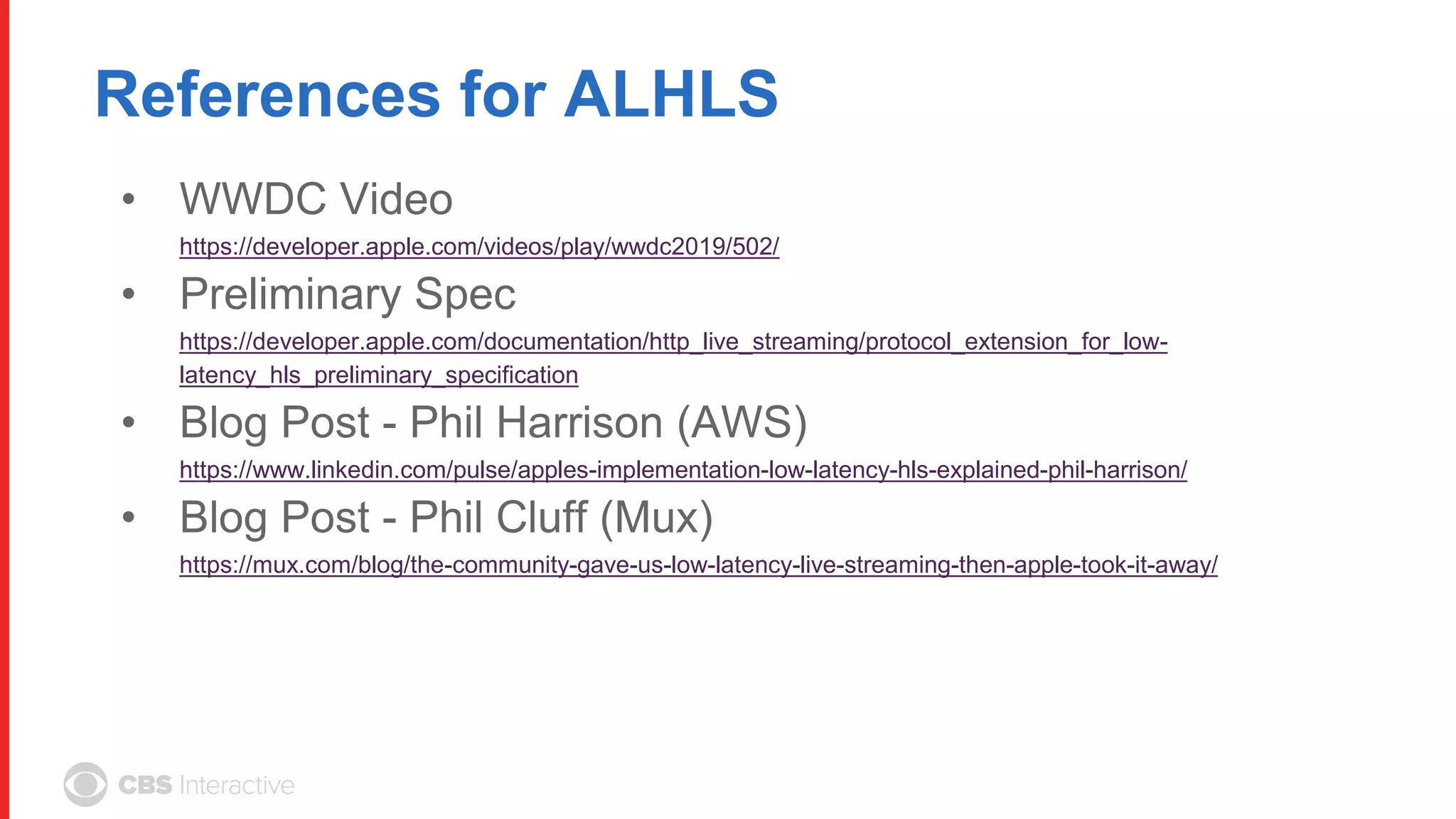

7. References for ALHLS
• WWDC Video
https://developer.apple.com/videos/play/wwdc2019/502/
• Preliminary Spec
https://developer.apple.com/documentation/http_live_streaming/protocol_extension_for_low-
latency_hls_preliminary_specification
• Blog Post - Phil Harrison (AWS)
https://www.linkedin.com/pulse/apples-implementation-low-latency-hls-explained-phil-harrison/
• Blog Post - Phil Cluff (Mux)
https://mux.com/blog/the-community-gave-us-low-latency-live-streaming-then-apple-took-it-away/

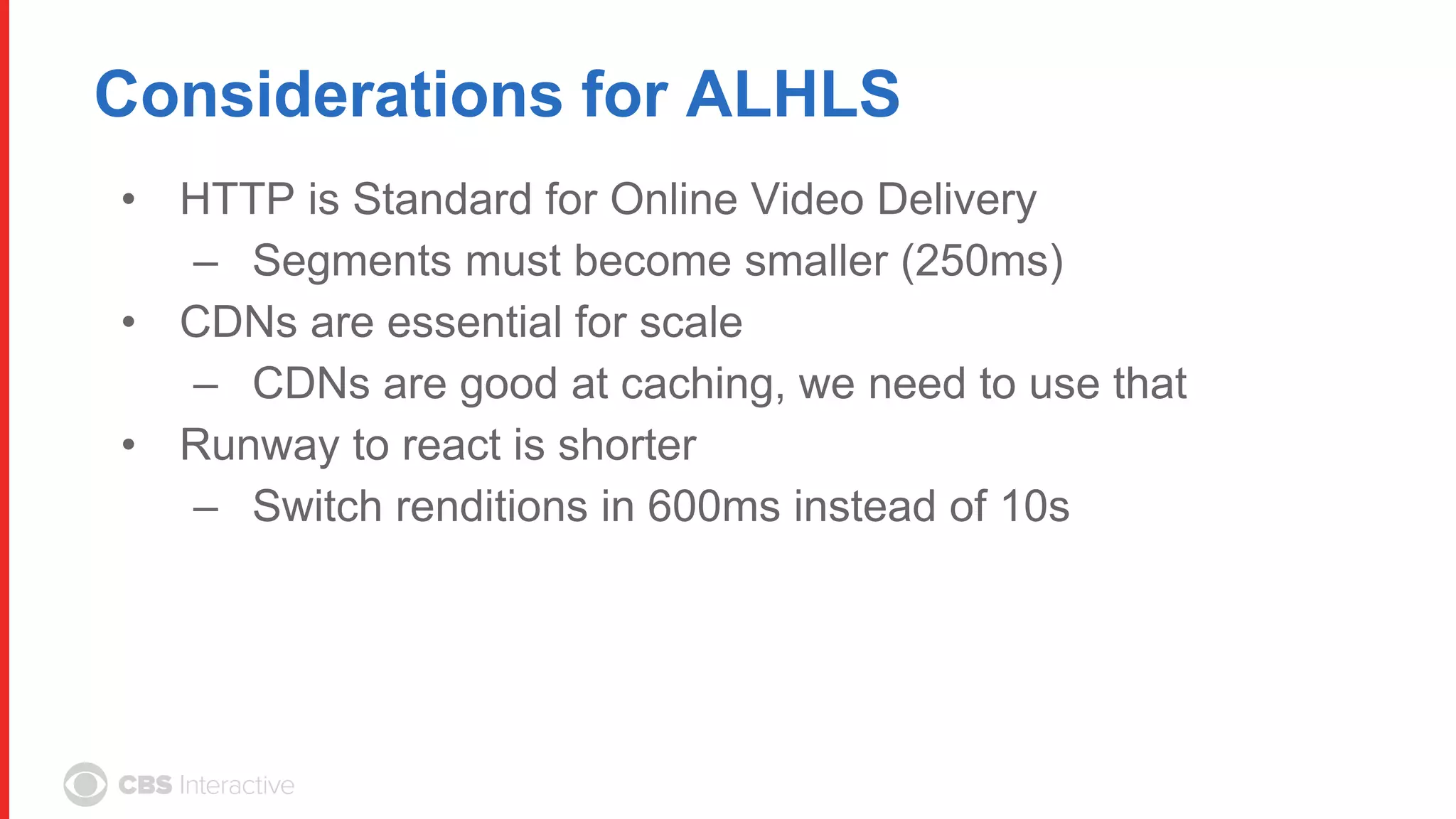

8. Considerations for ALHLS
• HTTP is Standard for Online Video Delivery
– Segments must become smaller (250ms)
• CDNs are essential for scale
– CDNs are good at caching, we need to use that
• Runway to react is shorter
– Switch renditions in 600ms instead of 10s

9. Origin API
• #EXT-X-SERVER-CONTROL to Advertise Server Support
− CAN-BLOCK-RELOAD=YES is Mandatory
• _HLS* Query Parameters Reserved
− Query Params should be Sorted
• Client Requests Different Responses/Behaviors from Origin
• CDN must Cache based on Query Params

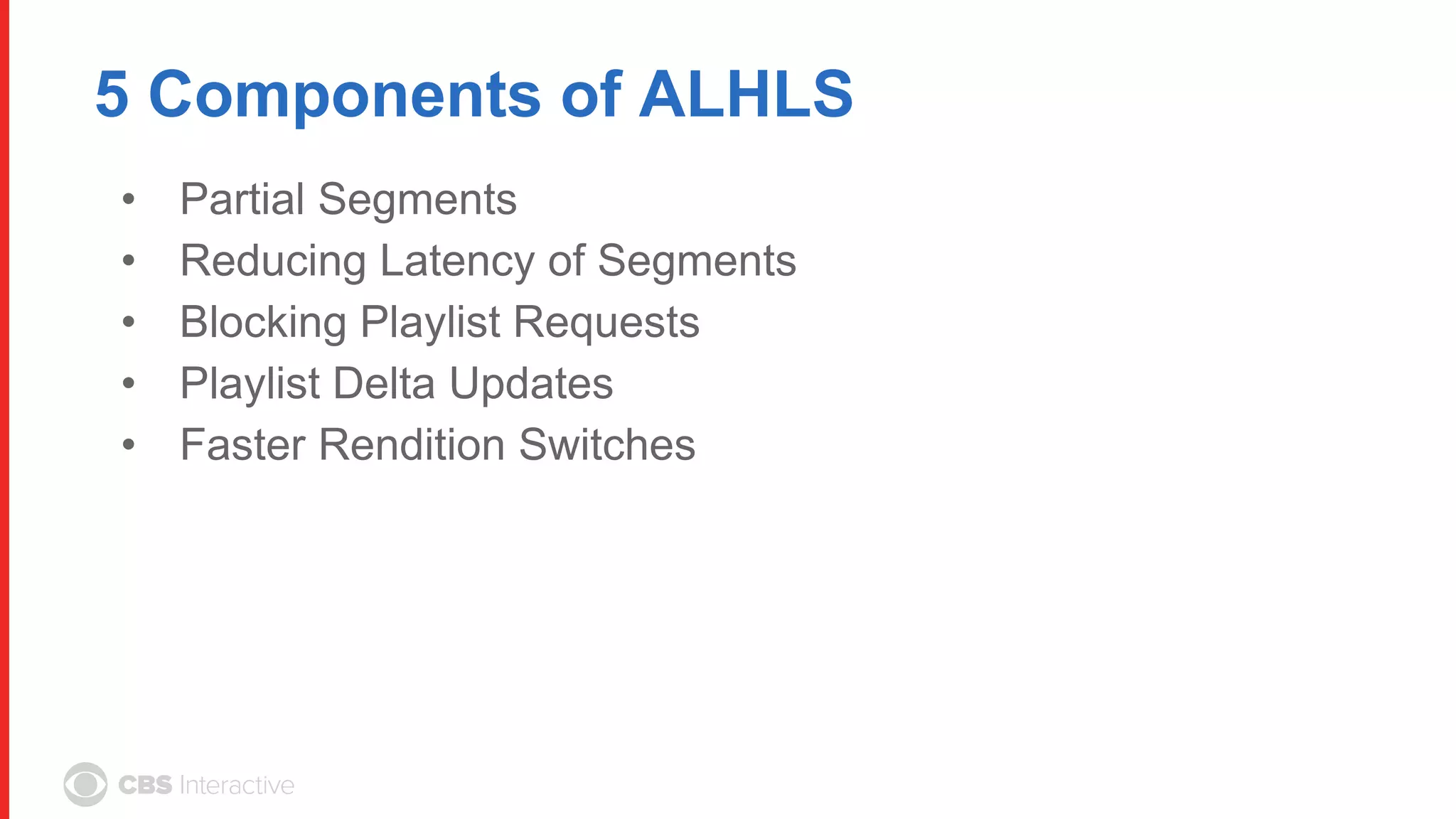

10. 5 Components of ALHLS
• Partial Segments
• Reducing Latency of Segments
• Blocking Playlist Requests
• Playlist Delta Updates
• Faster Rendition Switches

11. 1 - Partial Segments
• Today
– 6 Second Segment Only Advertised when Fully Available
• Partial Segment every 250ms
– Full Segment Must be Available before Advertised
• New #EXT-X-PART tag
– #EXT-X-PART:DURATION=0.33334,URI="filePart271.4.ts",INDEPENDENT=YES

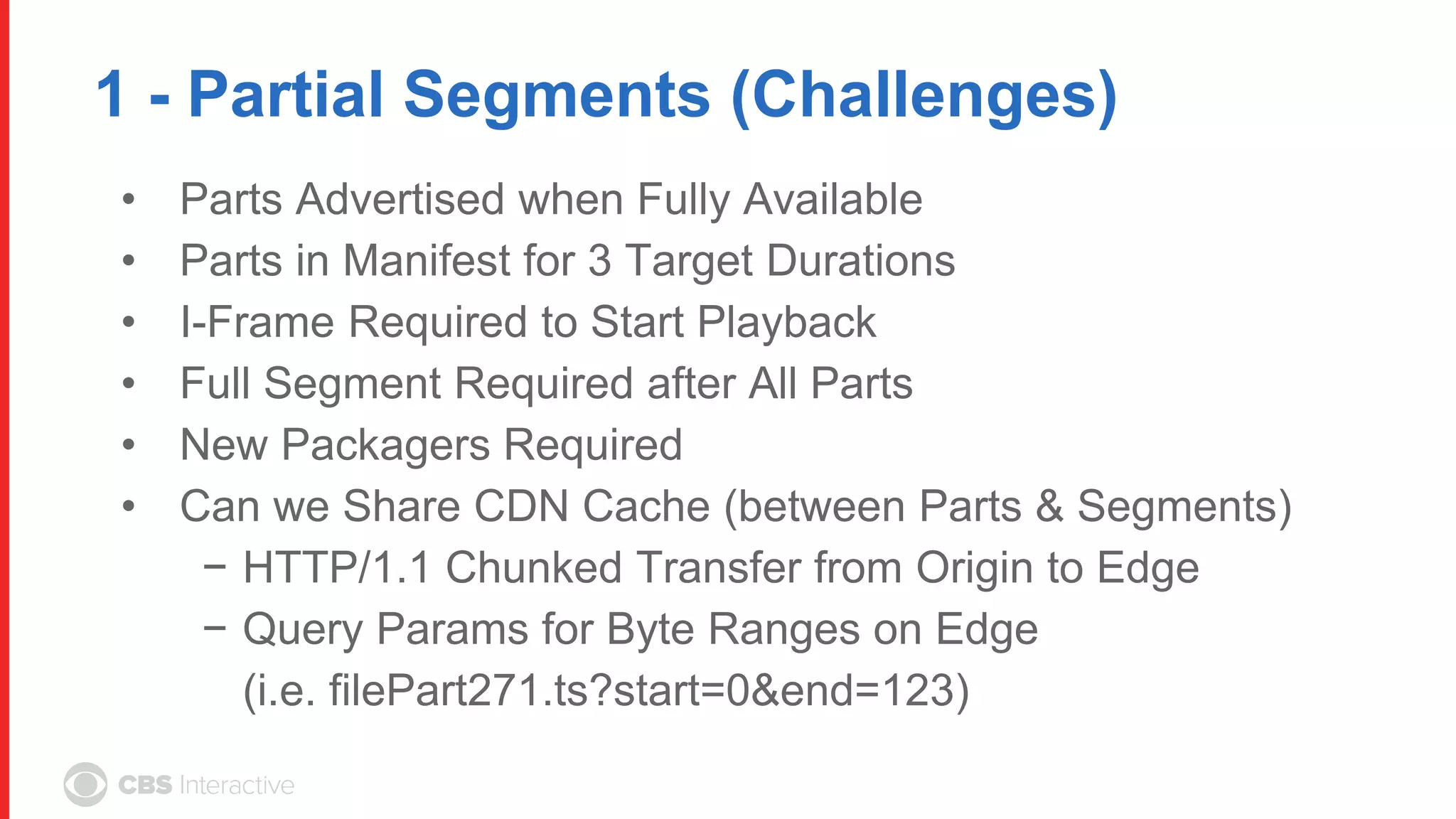

12. 1 - Partial Segments (Challenges)
• Parts Advertised when Fully Available
• Parts in Manifest for 3 Target Durations
• I-Frame Required to Start Playback
• Full Segment Required after All Parts
• New Packagers Required
• Can we Share CDN Cache (between Parts & Segments)
− HTTP/1.1 Chunked Transfer from Origin to Edge
− Query Params for Byte Ranges on Edge
(i.e. filePart271.ts?start=0&end=123)

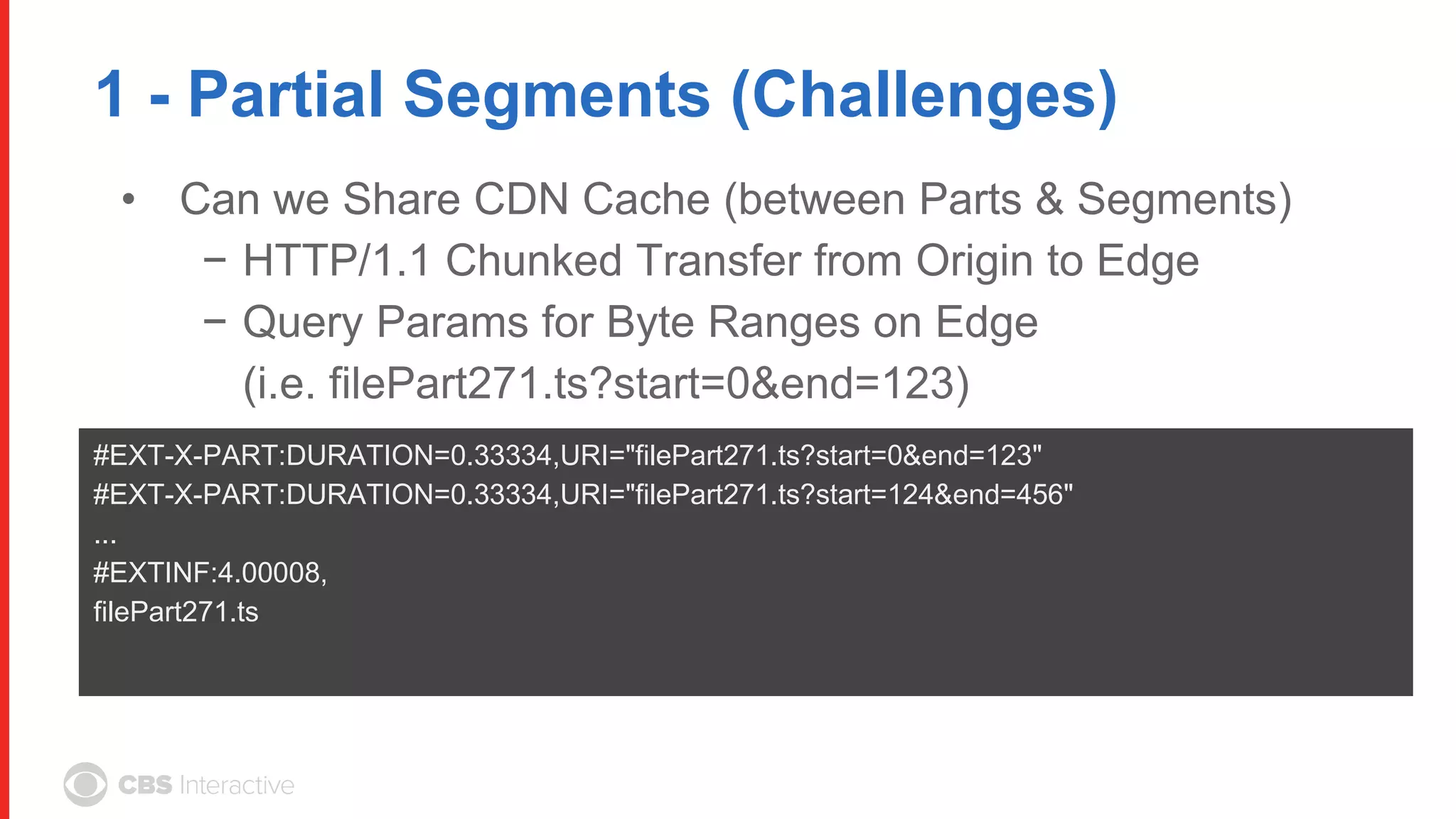

13. 1 - Partial Segments (Challenges)
• Can we Share CDN Cache (between Parts & Segments)
− HTTP/1.1 Chunked Transfer from Origin to Edge
− Query Params for Byte Ranges on Edge
(i.e. filePart271.ts?start=0&end=123)
#EXT-X-PART:DURATION=0.33334,URI="filePart271.ts?start=0&end=123"
#EXT-X-PART:DURATION=0.33334,URI="filePart271.ts?start=124&end=456"
...
#EXTINF:4.00008,
filePart271.ts

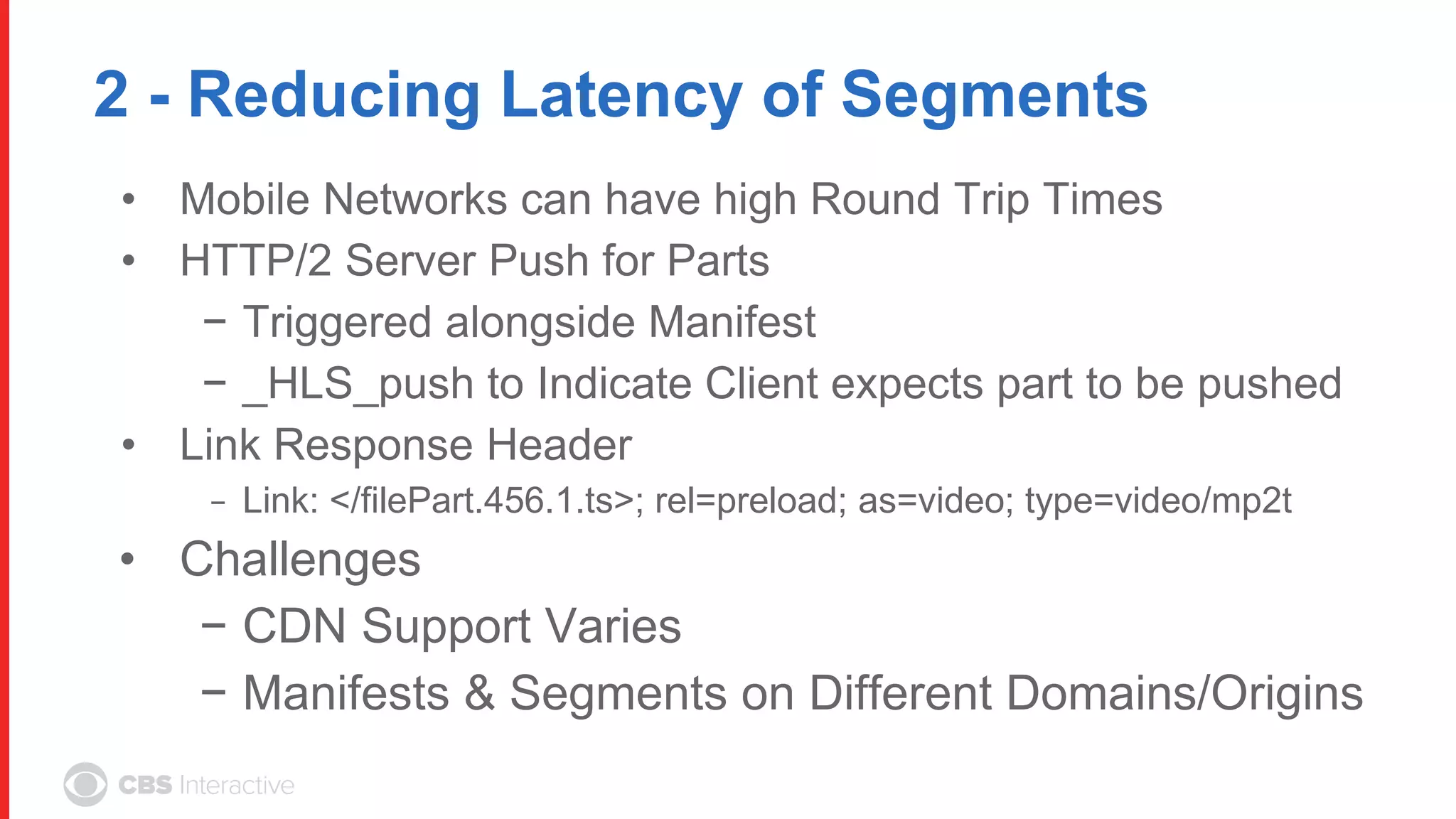

14. 2 - Reducing Latency of Segments
• Mobile Networks can have high Round Trip Times
• HTTP/2 Server Push for Parts
− Triggered alongside Manifest
− _HLS_push to Indicate Client expects part to be pushed
• Link Response Header
− Link: </filePart.456.1.ts>; rel=preload; as=video; type=video/mp2t
• Challenges
− CDN Support Varies
− Manifests & Segments on Different Domains/Origins

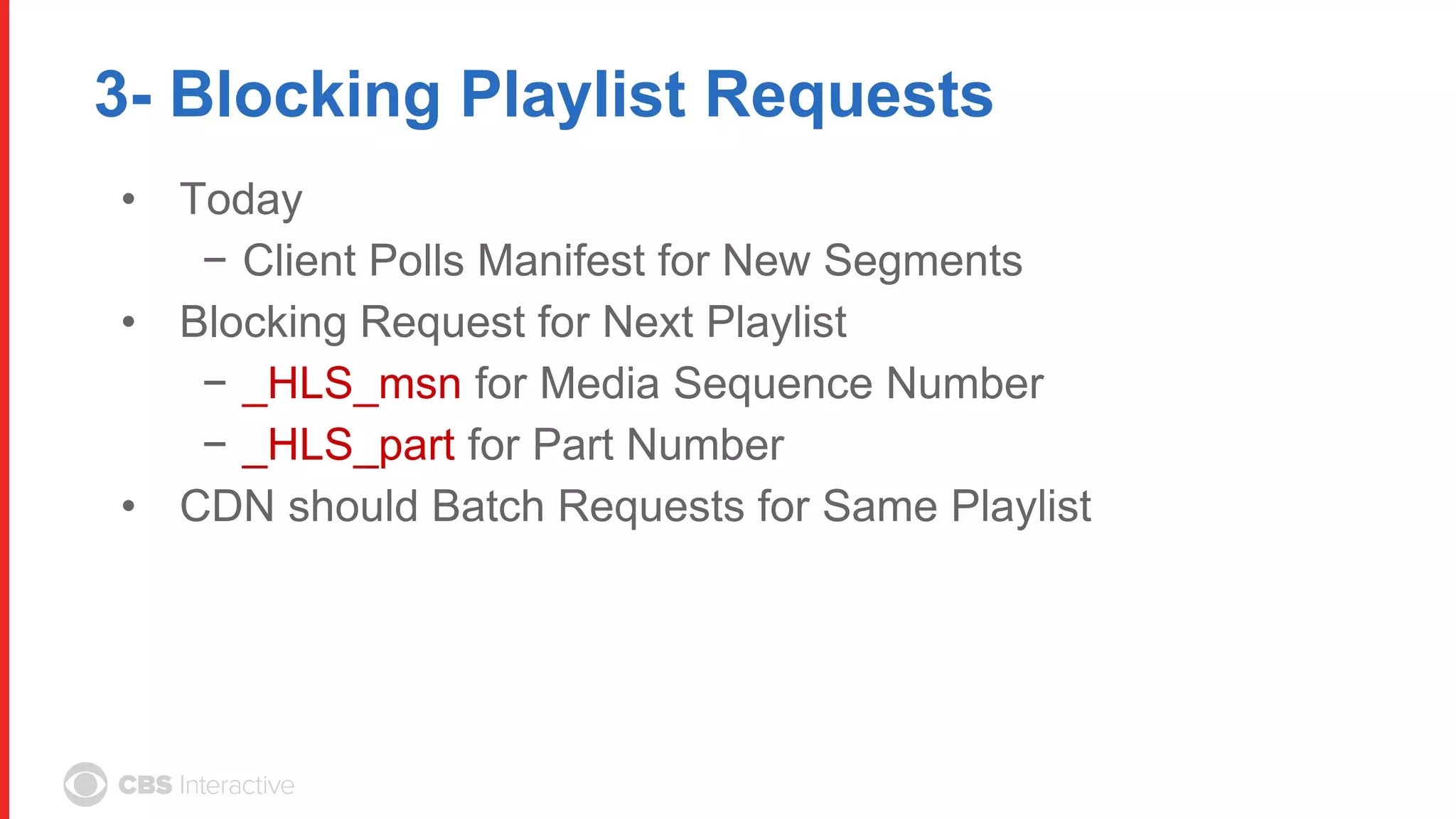

15. 3- Blocking Playlist Requests
• Today
− Client Polls Manifest for New Segments
• Blocking Request for Next Playlist
− _HLS_msn for Media Sequence Number
− _HLS_part for Part Number
• CDN should Batch Requests for Same Playlist

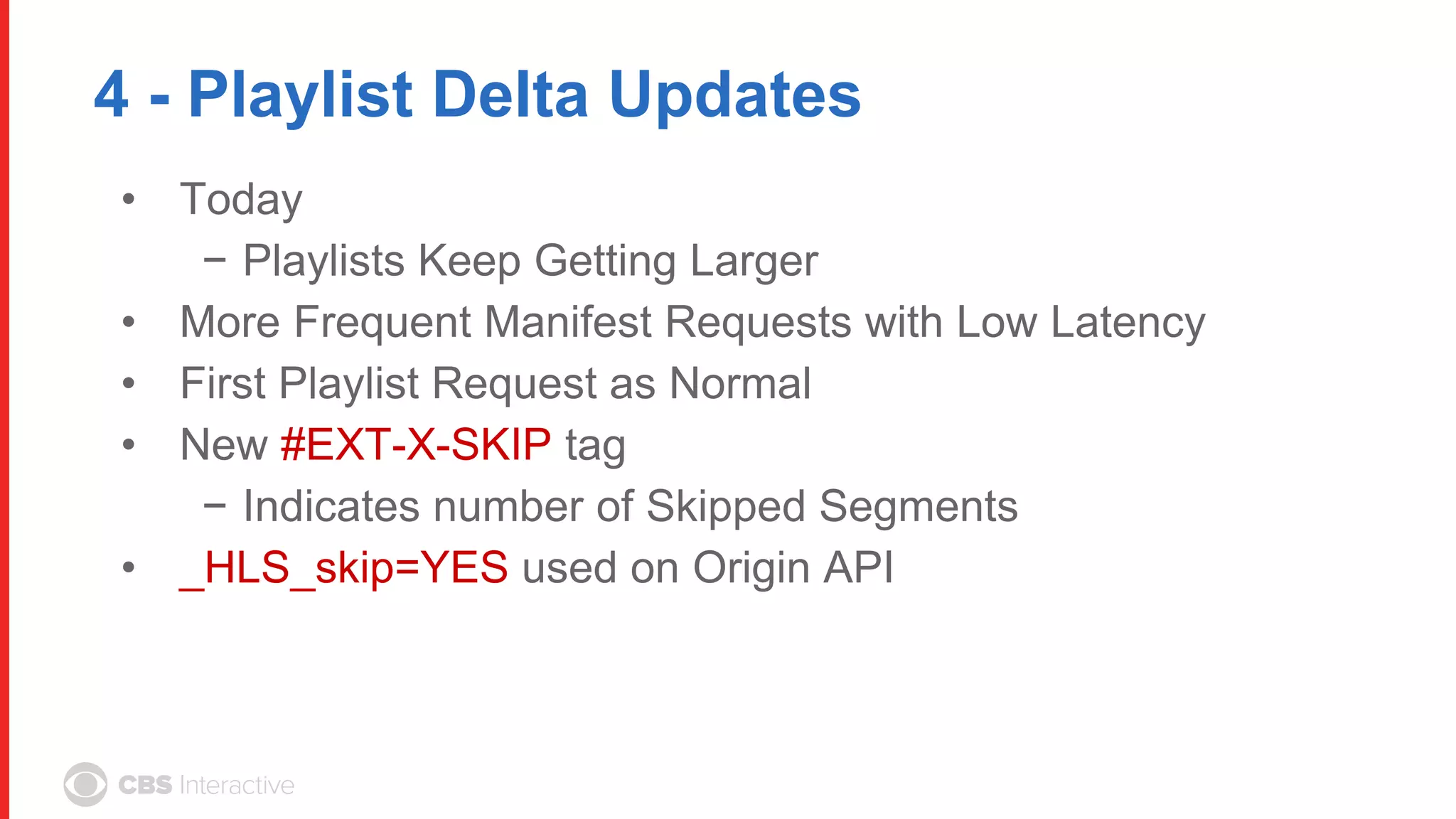

16. 4 - Playlist Delta Updates
• Today
− Playlists Keep Getting Larger
• More Frequent Manifest Requests with Low Latency
• First Playlist Request as Normal
• New #EXT-X-SKIP tag
− Indicates number of Skipped Segments
• _HLS_skip=YES used on Origin API

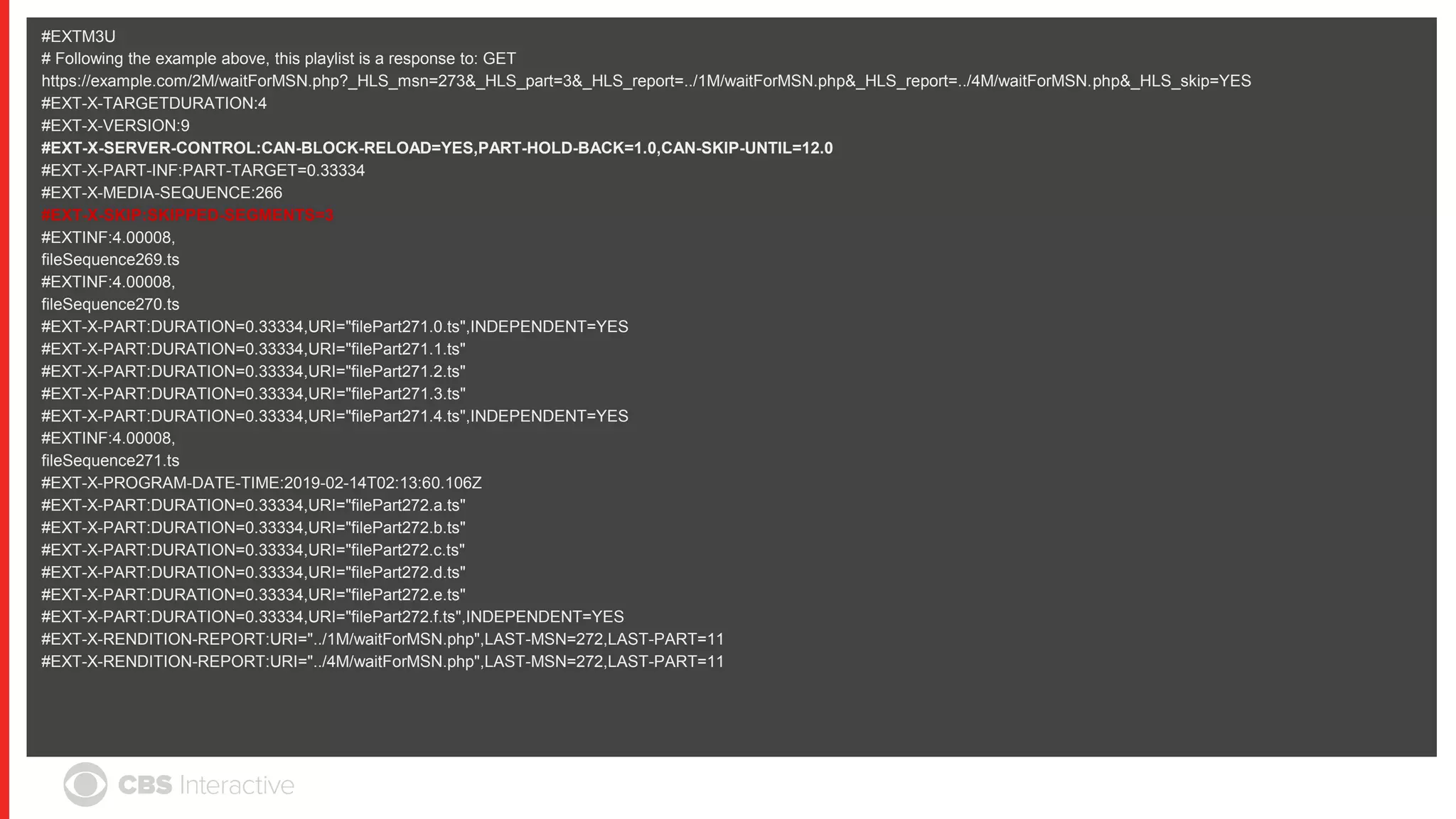

17. #EXTM3U
# Following the example above, this playlist is a response to: GET
https://example.com/2M/waitForMSN.php?_HLS_msn=273&_HLS_part=3&_HLS_report=../1M/waitForMSN.php&_HLS_report=../4M/waitForMSN.php&_HLS_skip=YES
#EXT-X-TARGETDURATION:4
#EXT-X-VERSION:9
#EXT-X-SERVER-CONTROL:CAN-BLOCK-RELOAD=YES,PART-HOLD-BACK=1.0,CAN-SKIP-UNTIL=12.0
#EXT-X-PART-INF:PART-TARGET=0.33334
#EXT-X-MEDIA-SEQUENCE:266
#EXT-X-SKIP:SKIPPED-SEGMENTS=3
#EXTINF:4.00008,
fileSequence269.ts
#EXTINF:4.00008,
fileSequence270.ts
#EXT-X-PART:DURATION=0.33334,URI="filePart271.0.ts",INDEPENDENT=YES
#EXT-X-PART:DURATION=0.33334,URI="filePart271.1.ts"
#EXT-X-PART:DURATION=0.33334,URI="filePart271.2.ts"
#EXT-X-PART:DURATION=0.33334,URI="filePart271.3.ts"
#EXT-X-PART:DURATION=0.33334,URI="filePart271.4.ts",INDEPENDENT=YES
#EXTINF:4.00008,
fileSequence271.ts
#EXT-X-PROGRAM-DATE-TIME:2019-02-14T02:13:60.106Z
#EXT-X-PART:DURATION=0.33334,URI="filePart272.a.ts"
#EXT-X-PART:DURATION=0.33334,URI="filePart272.b.ts"
#EXT-X-PART:DURATION=0.33334,URI="filePart272.c.ts"
#EXT-X-PART:DURATION=0.33334,URI="filePart272.d.ts"
#EXT-X-PART:DURATION=0.33334,URI="filePart272.e.ts"
#EXT-X-PART:DURATION=0.33334,URI="filePart272.f.ts",INDEPENDENT=YES
#EXT-X-RENDITION-REPORT:URI="../1M/waitForMSN.php",LAST-MSN=272,LAST-PART=11
#EXT-X-RENDITION-REPORT:URI="../4M/waitForMSN.php",LAST-MSN=272,LAST-PART=11

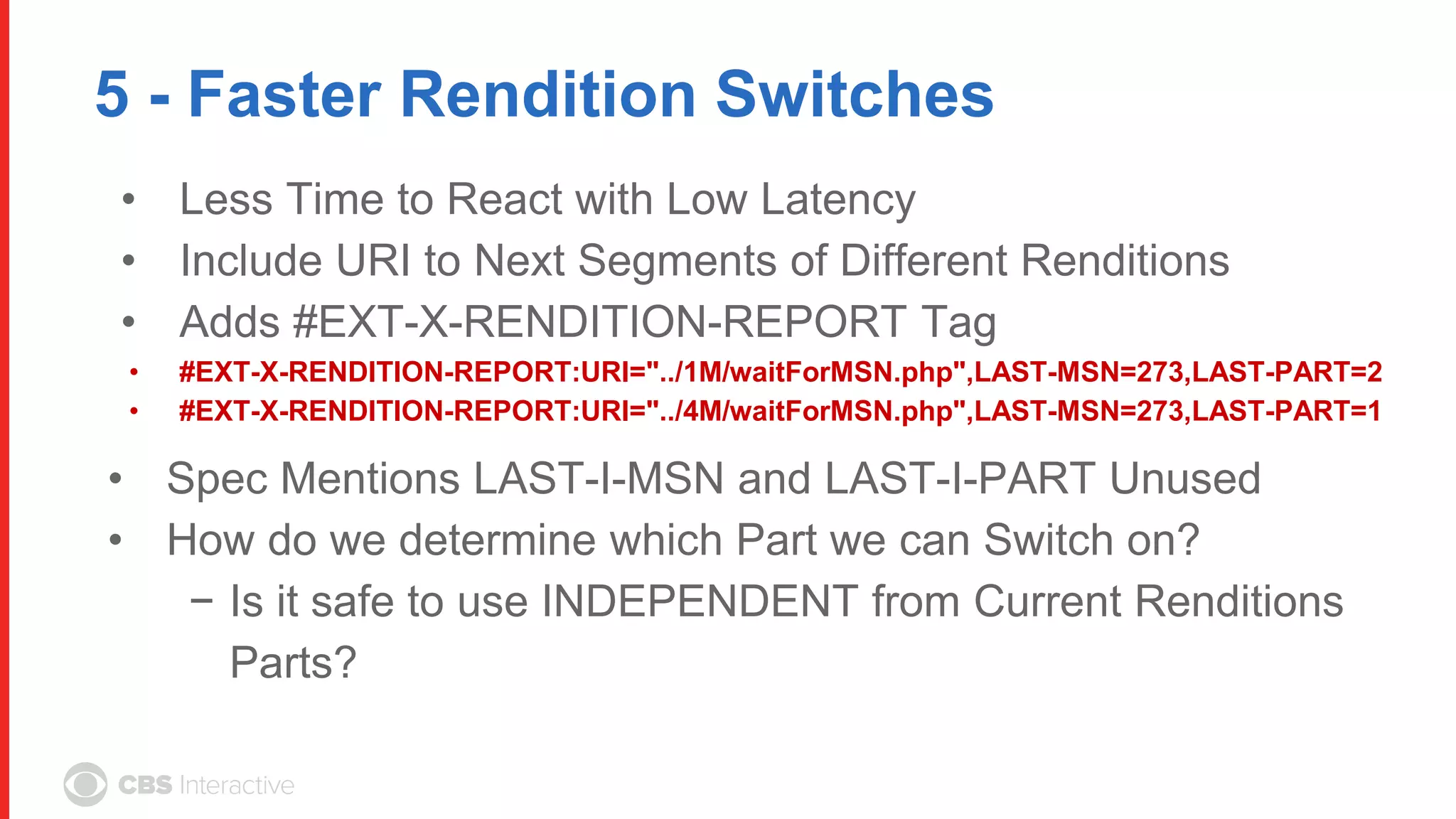

18. 5 - Faster Rendition Switches
• Less Time to React with Low Latency
• Include URI to Next Segments of Different Renditions
• Adds #EXT-X-RENDITION-REPORT Tag
• #EXT-X-RENDITION-REPORT:URI="../1M/waitForMSN.php",LAST-MSN=273,LAST-PART=2
• #EXT-X-RENDITION-REPORT:URI="../4M/waitForMSN.php",LAST-MSN=273,LAST-PART=1
• Spec Mentions LAST-I-MSN and LAST-I-PART Unused
• How do we determine which Part we can Switch on?
− Is it safe to use INDEPENDENT from Current Renditions
Parts?

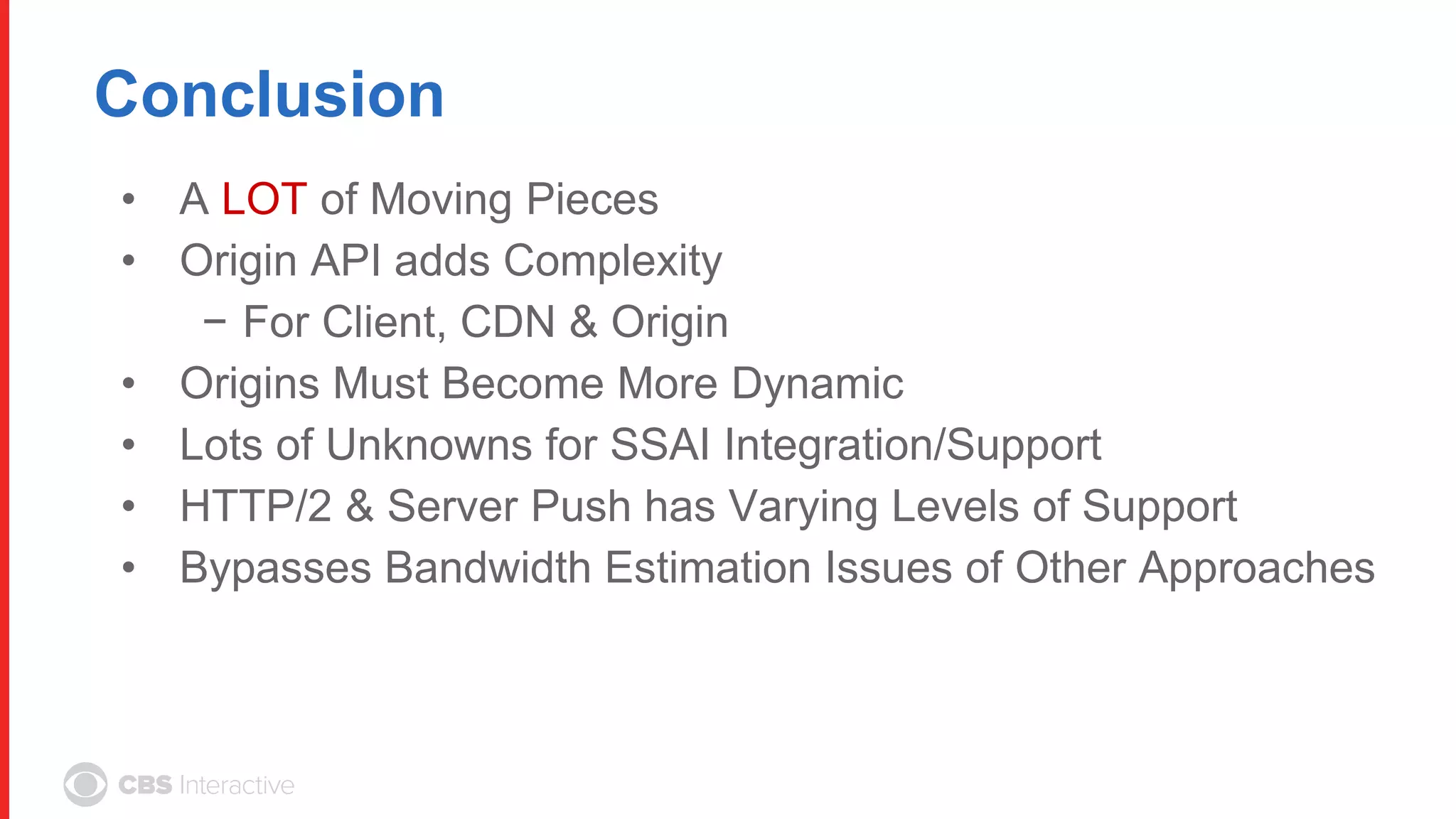

19. Conclusion
• A LOT of Moving Pieces
• Origin API adds Complexity
− For Client, CDN & Origin
• Origins Must Become More Dynamic
• Lots of Unknowns for SSAI Integration/Support
• HTTP/2 & Server Push has Varying Levels of Support
• Bypasses Bandwidth Estimation Issues of Other Approaches

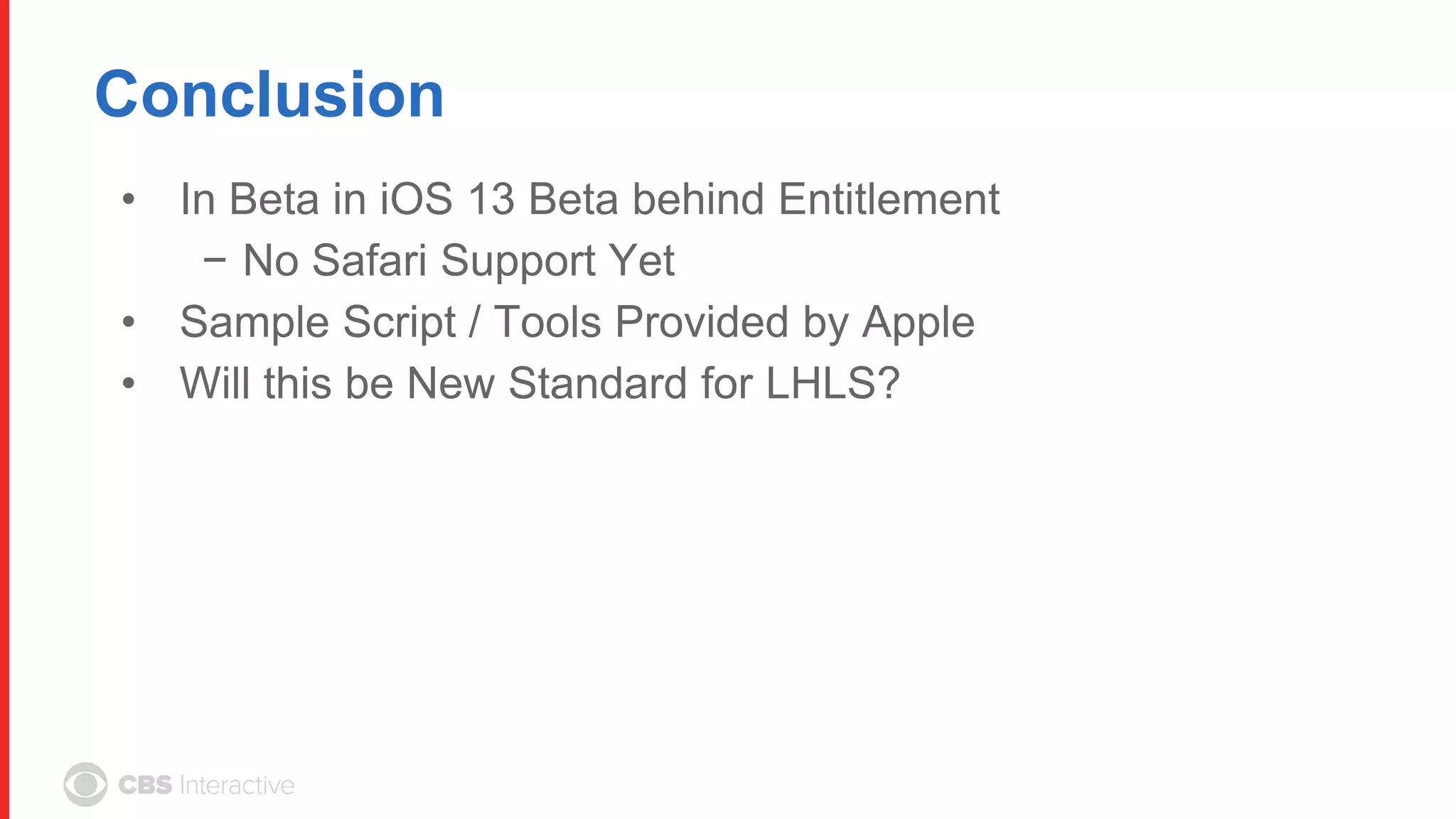

20. Conclusion
• In Beta in iOS 13 Beta behind Entitlement
− No Safari Support Yet
• Sample Script / Tools Provided by Apple
• Will this be New Standard for LHLS?
