This document outlines the upgrade process of SAP HANA 2 SPS02, including the installation of dynamic tiering, with a focus on utilizing a near-zero downtime approach. It explains the changes in system replication capabilities with dynamic tiering and provides detailed steps for upgrading both primary and secondary databases. Additionally, it discusses the monitoring of HANA systems using the IT-Conductor tool, which automatically detects new services post-implementation.

1. SAP HANA 2 SPS02 Upgrade and Dynamic
Tiering Implementation
Author: Terry Kempis
Editor: Linh Nguyen
ITConductor.com 1
SAP HANA 2 SPS02

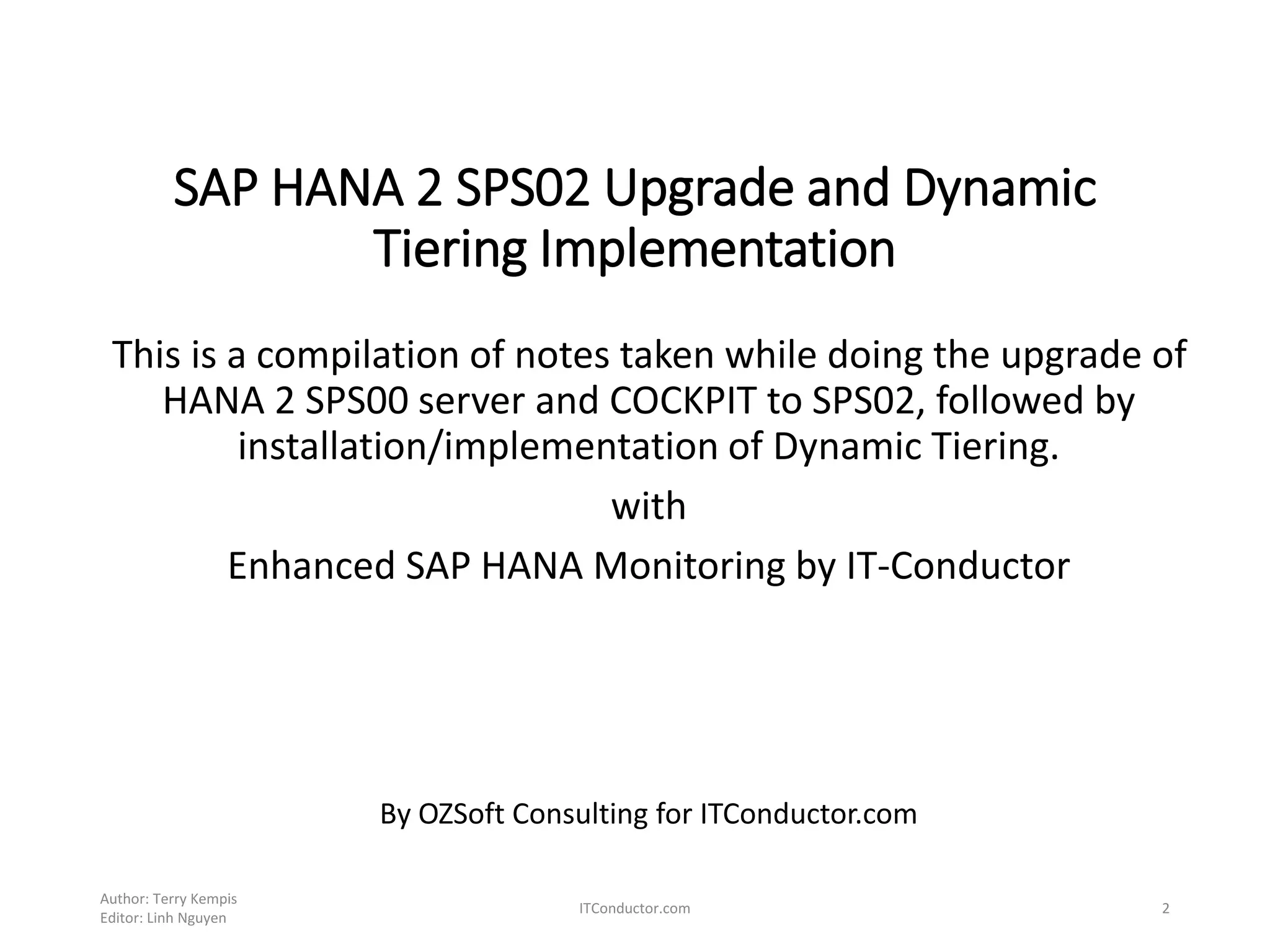

2. SAP HANA 2 SPS02 Upgrade and Dynamic
Tiering Implementation
This is a compilation of notes taken while doing the upgrade of
HANA 2 SPS00 server and COCKPIT to SPS02, followed by
installation/implementation of Dynamic Tiering.
with
Enhanced SAP HANA Monitoring by IT-Conductor
By OZSoft Consulting for ITConductor.com
Author: Terry Kempis
Editor: Linh Nguyen
ITConductor.com 2

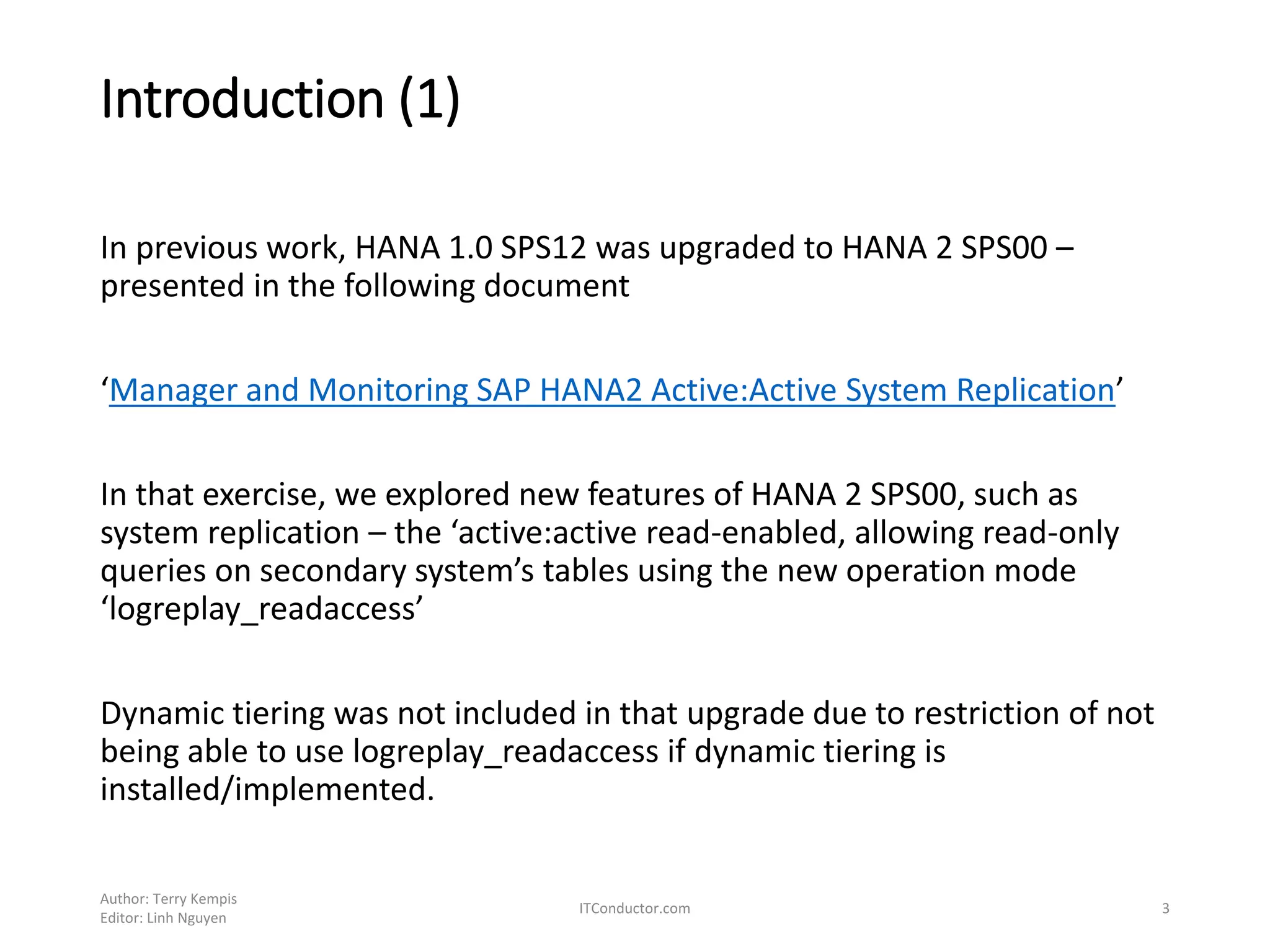

3. Introduction (1)
In previous work, HANA 1.0 SPS12 was upgraded to HANA 2 SPS00 –
presented in the following document
‘Manager and Monitoring SAP HANA2 Active:Active System Replication’
In that exercise, we explored new features of HANA 2 SPS00, such as
system replication – the ‘active:active read-enabled, allowing read-only
queries on secondary system’s tables using the new operation mode
‘logreplay_readaccess’
Dynamic tiering was not included in that upgrade due to restriction of not
being able to use logreplay_readaccess if dynamic tiering is
installed/implemented.
Author: Terry Kempis
Editor: Linh Nguyen
ITConductor.com 3

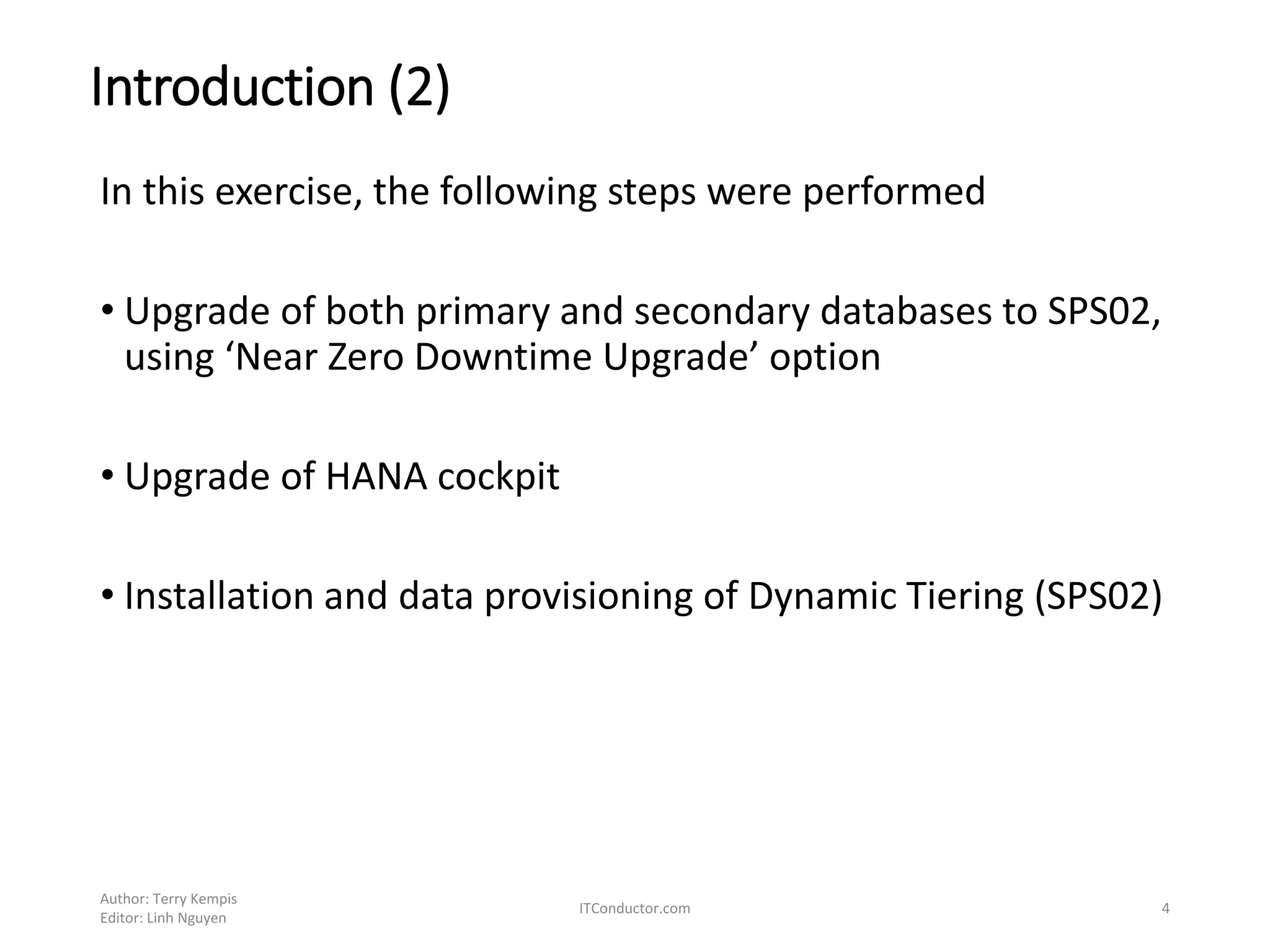

4. Introduction (2)
In this exercise, the following steps were performed
• Upgrade of both primary and secondary databases to SPS02,
using ‘Near Zero Downtime Upgrade’ option
• Upgrade of HANA cockpit
• Installation and data provisioning of Dynamic Tiering (SPS02)
Author: Terry Kempis
Editor: Linh Nguyen
ITConductor.com 4

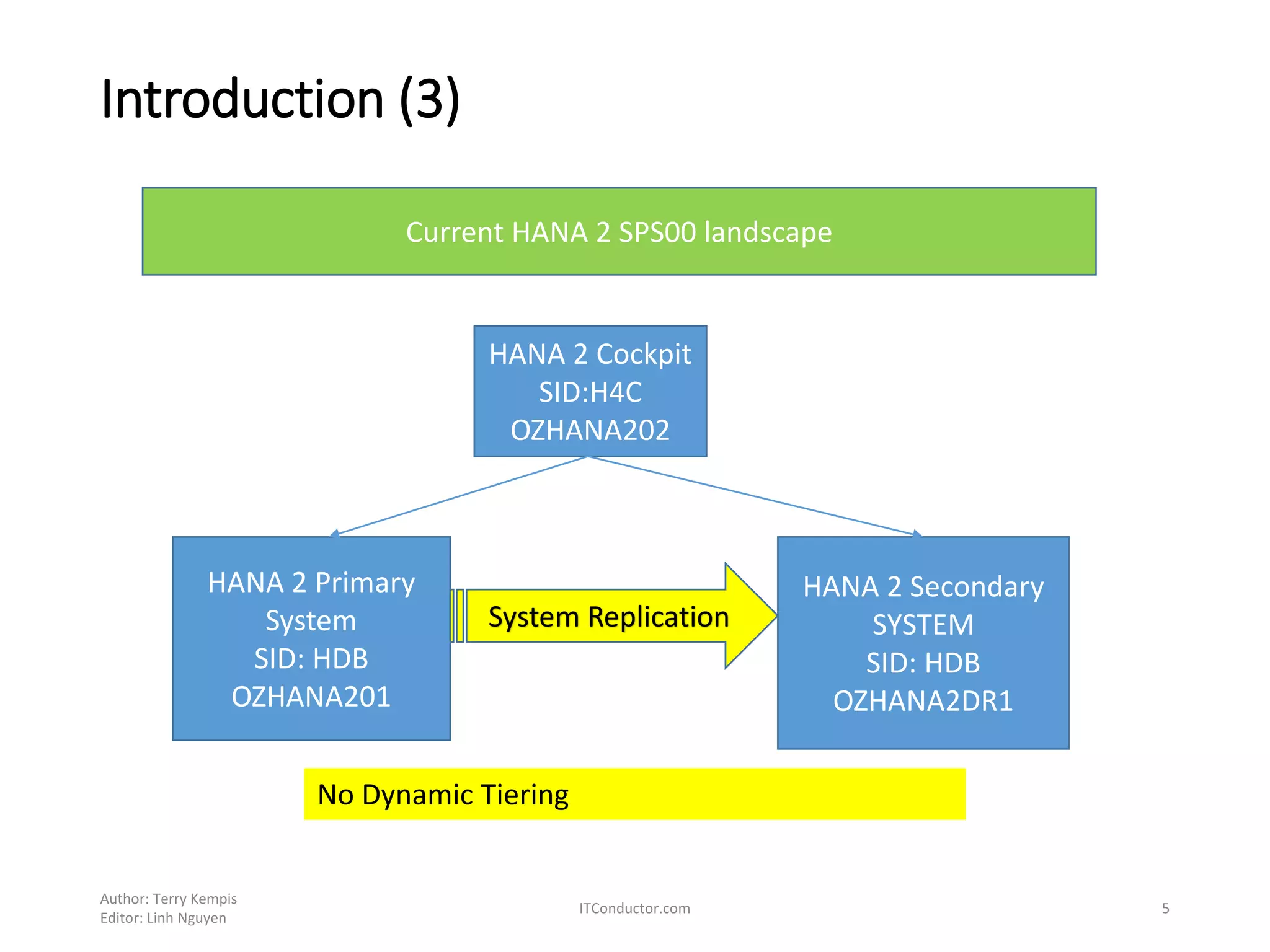

5. Introduction (3)
Author: Terry Kempis
Editor: Linh Nguyen
ITConductor.com 5
HANA 2 Cockpit
SID:H4C
OZHANA202
HANA 2 Primary
System
SID: HDB
OZHANA201
HANA 2 Secondary
SYSTEM
SID: HDB
OZHANA2DR1
System Replication
No Dynamic Tiering
Current HANA 2 SPS00 landscape

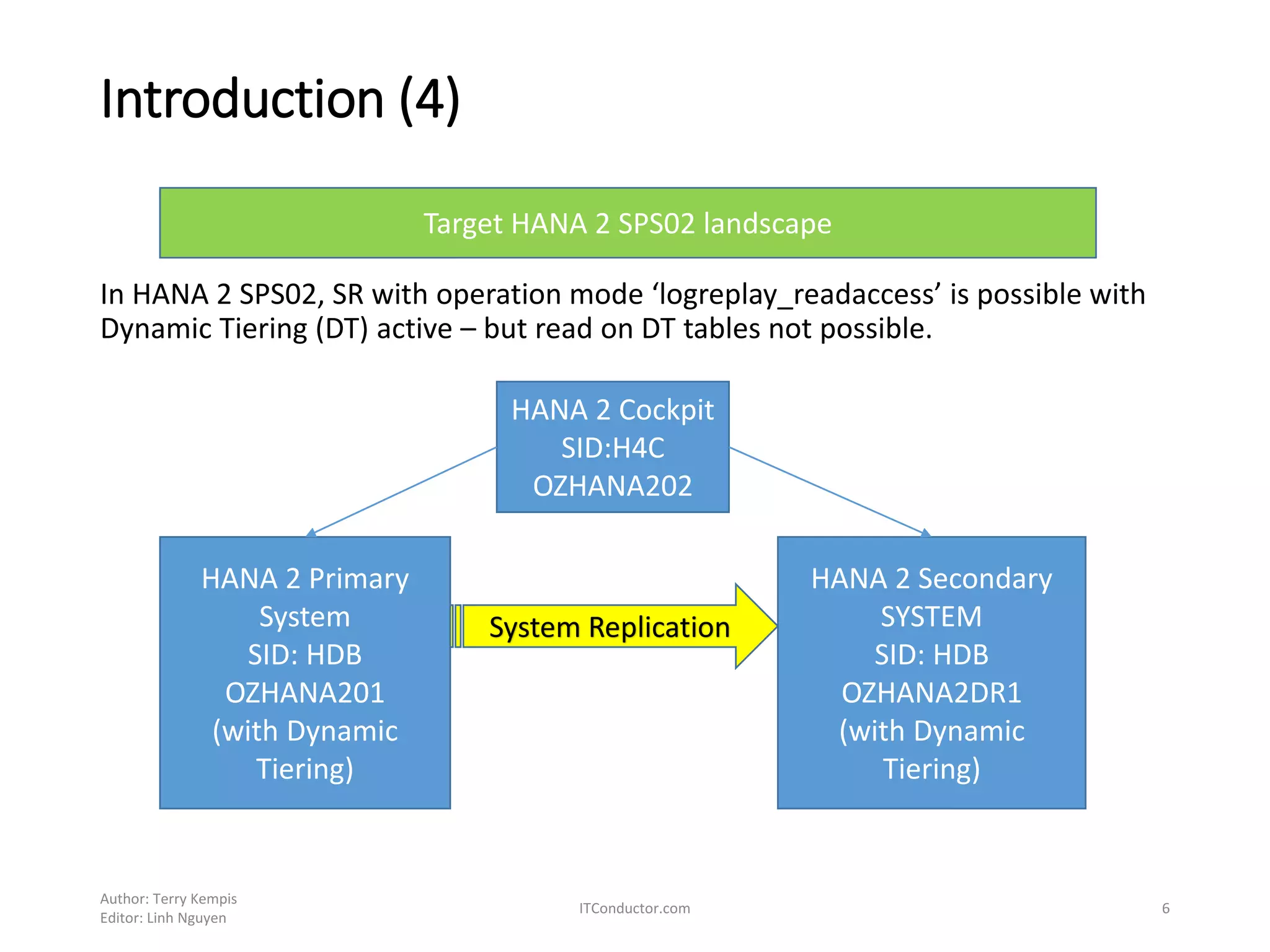

6. Introduction (4)
In HANA 2 SPS02, SR with operation mode ‘logreplay_readaccess’ is possible with
Dynamic Tiering (DT) active – but read on DT tables not possible.
Author: Terry Kempis
Editor: Linh Nguyen
ITConductor.com 6
HANA 2 Cockpit
SID:H4C
OZHANA202
HANA 2 Primary
System
SID: HDB
OZHANA201
(with Dynamic
Tiering)
HANA 2 Secondary
SYSTEM
SID: HDB
OZHANA2DR1
(with Dynamic
Tiering)
System Replication
Target HANA 2 SPS02 landscape

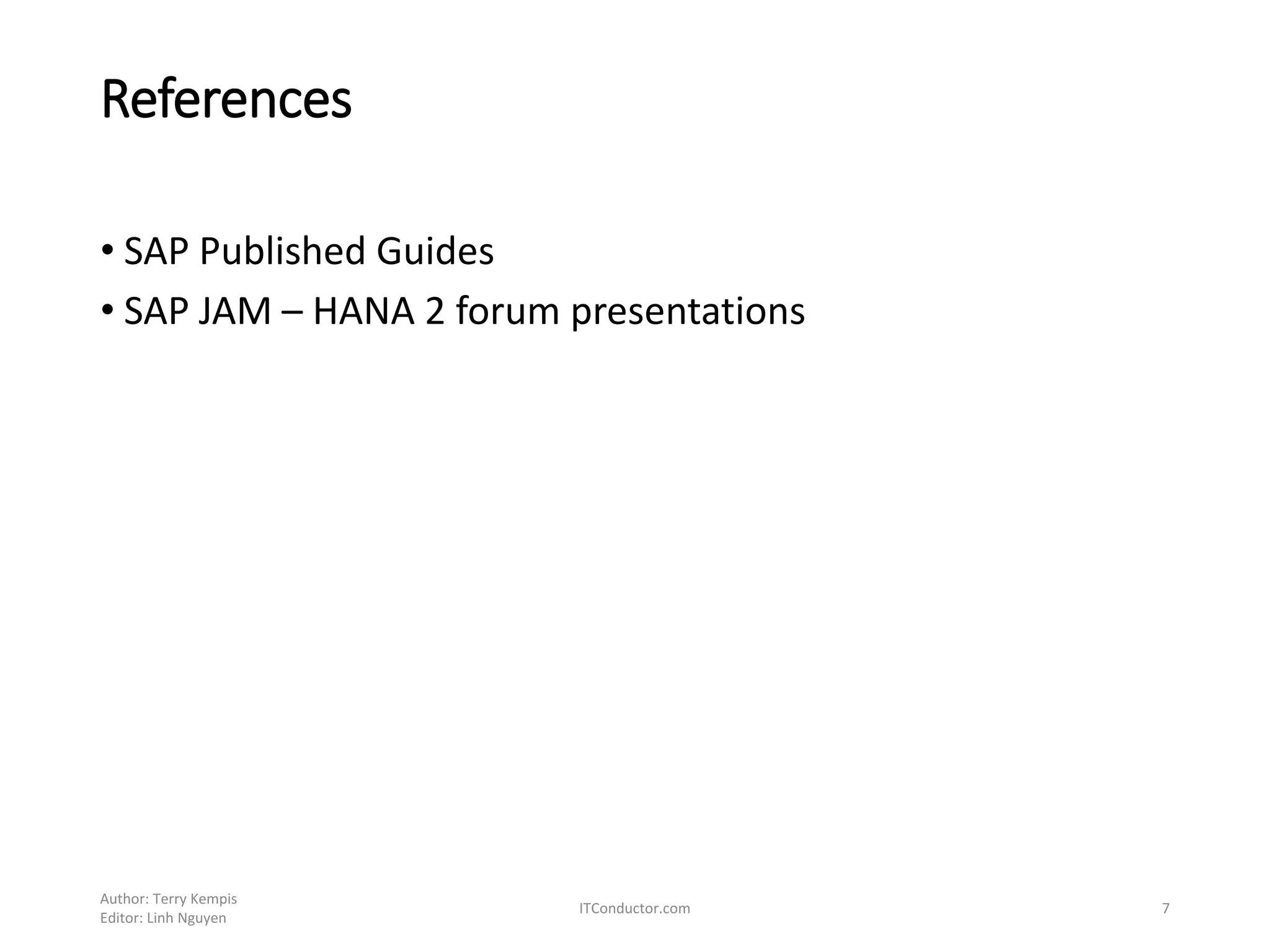

7. References
• SAP Published Guides
• SAP JAM – HANA 2 forum presentations
Author: Terry Kempis
Editor: Linh Nguyen
ITConductor.com 7

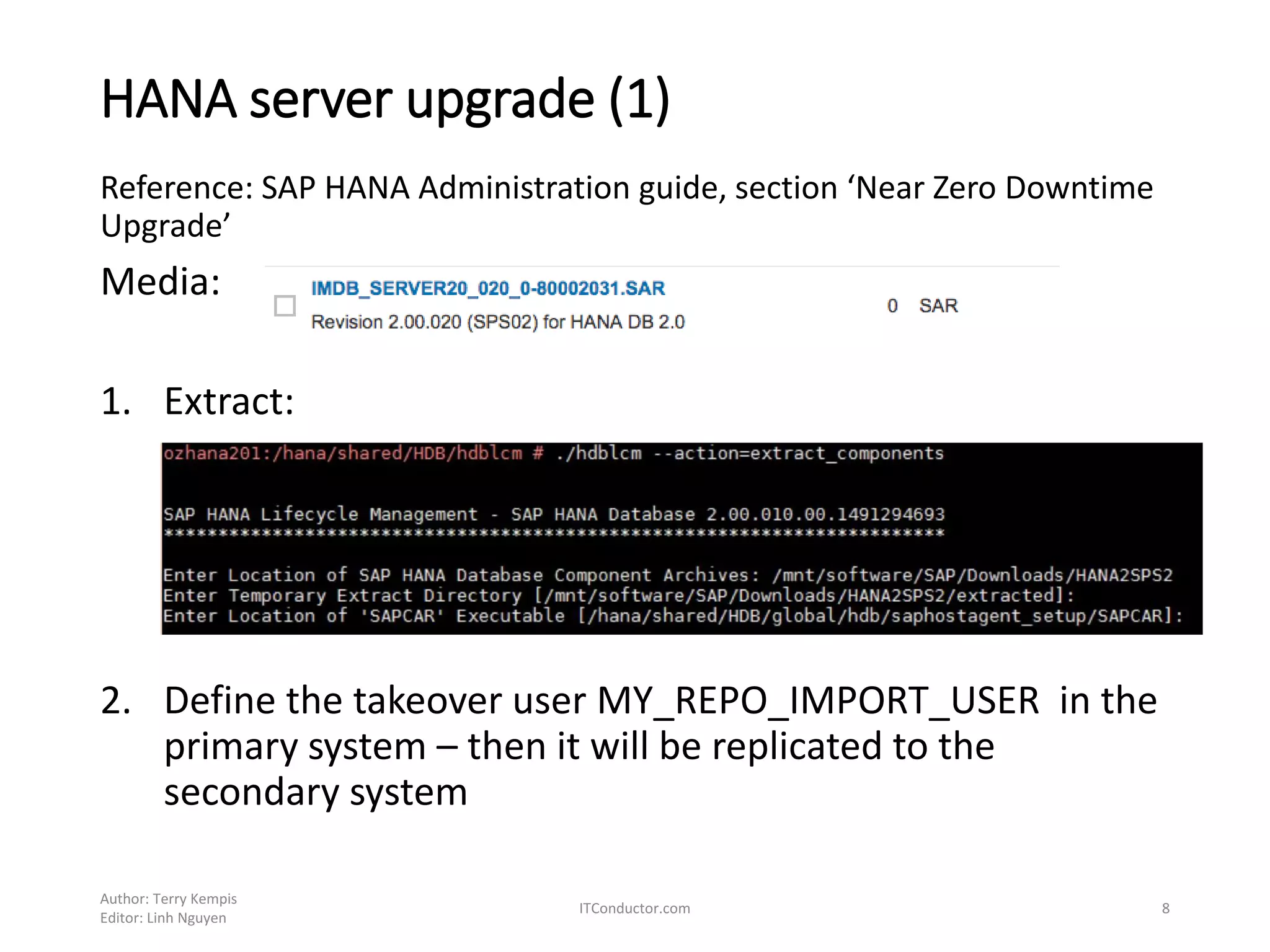

8. HANA server upgrade (1)
Reference: SAP HANA Administration guide, section ‘Near Zero Downtime
Upgrade’
Media:
1. Extract:
2. Define the takeover user MY_REPO_IMPORT_USER in the
primary system – then it will be replicated to the
secondary system
Author: Terry Kempis
Editor: Linh Nguyen
ITConductor.com 8

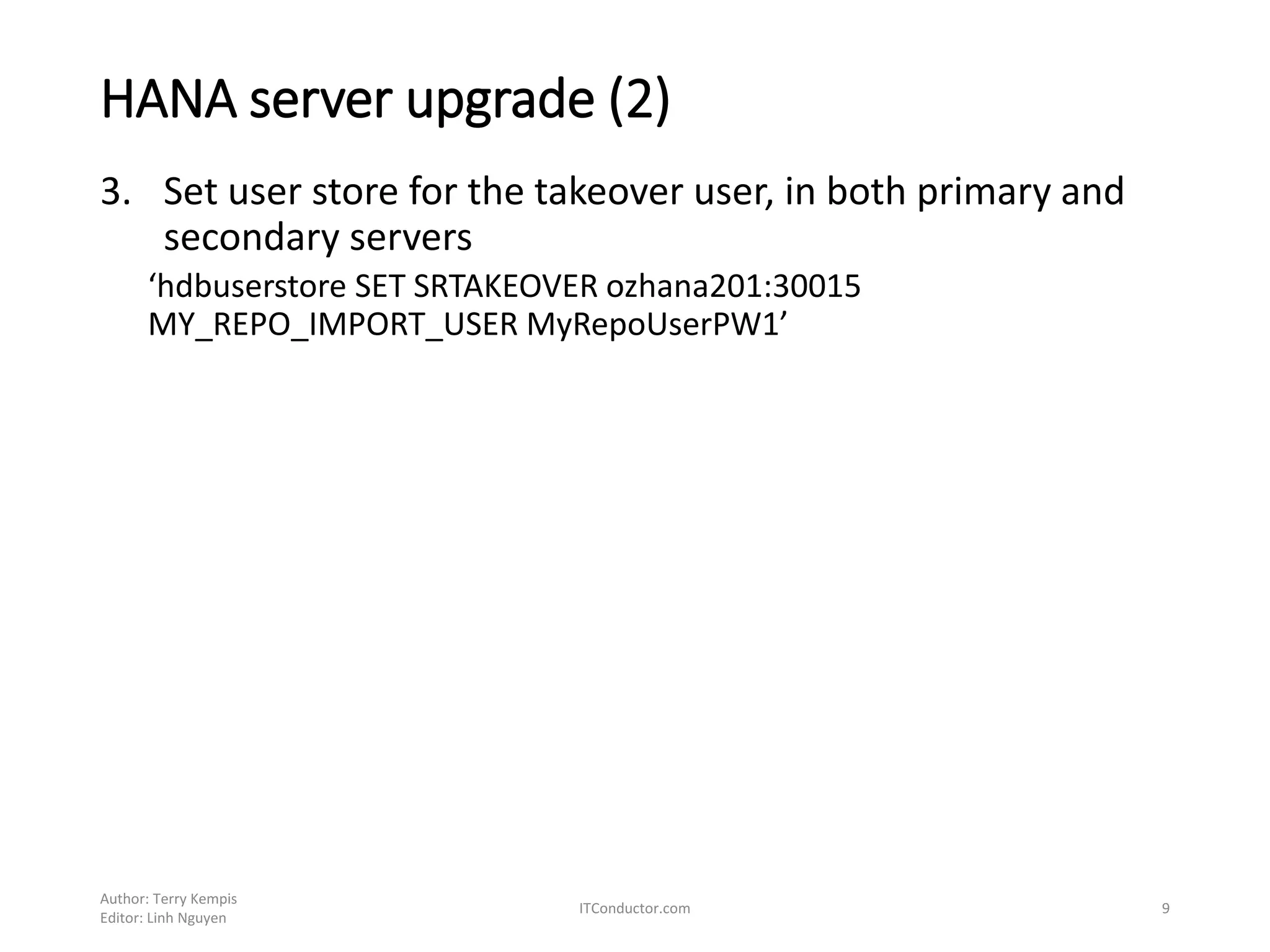

9. 3. Set user store for the takeover user, in both primary and
secondary servers
‘hdbuserstore SET SRTAKEOVER ozhana201:30015
MY_REPO_IMPORT_USER MyRepoUserPW1’
Author: Terry Kempis
Editor: Linh Nguyen
ITConductor.com 9
HANA server upgrade (2)

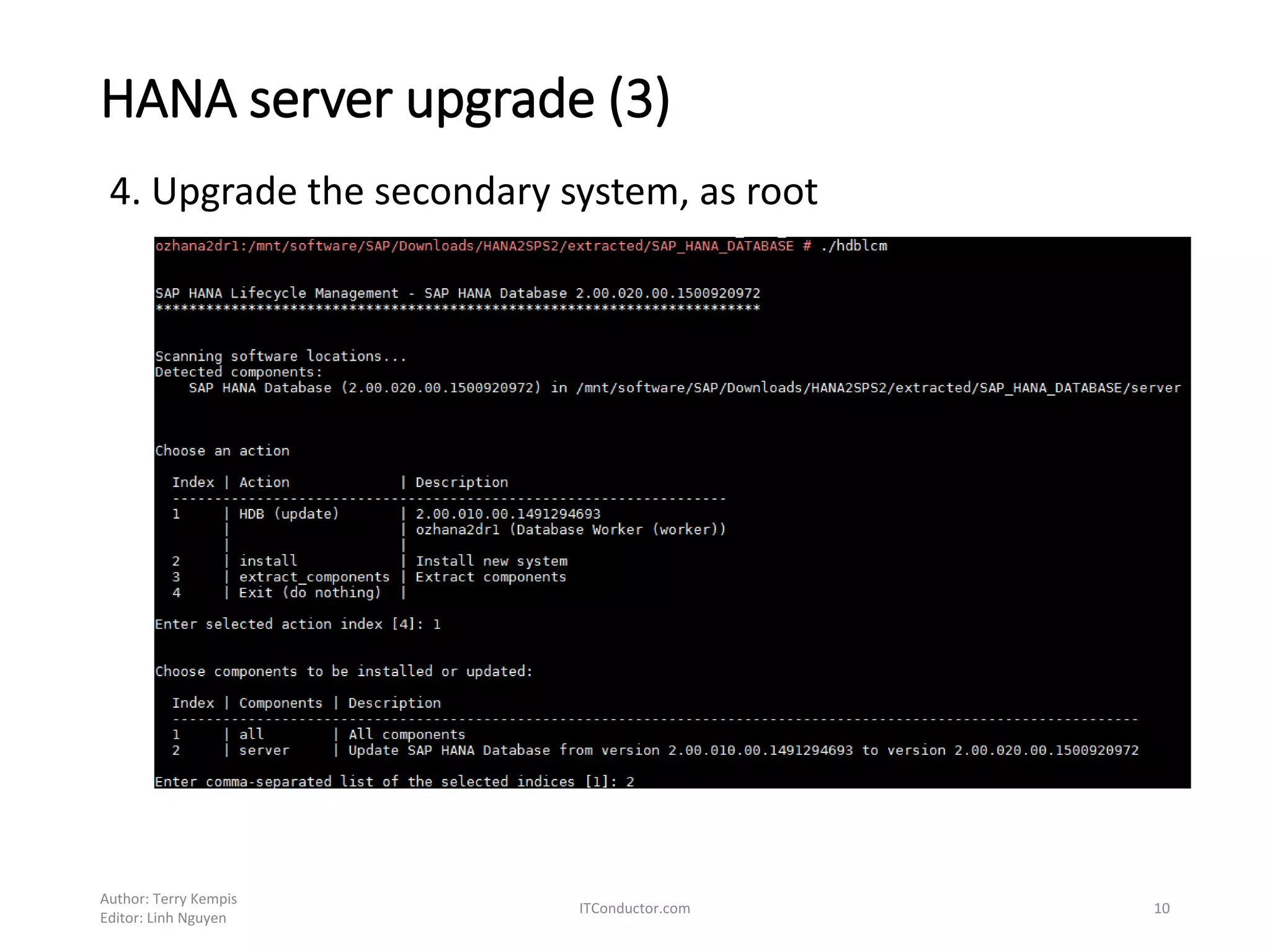

10. HANA server upgrade (3)
4. Upgrade the secondary system, as root
Author: Terry Kempis
Editor: Linh Nguyen
ITConductor.com 10

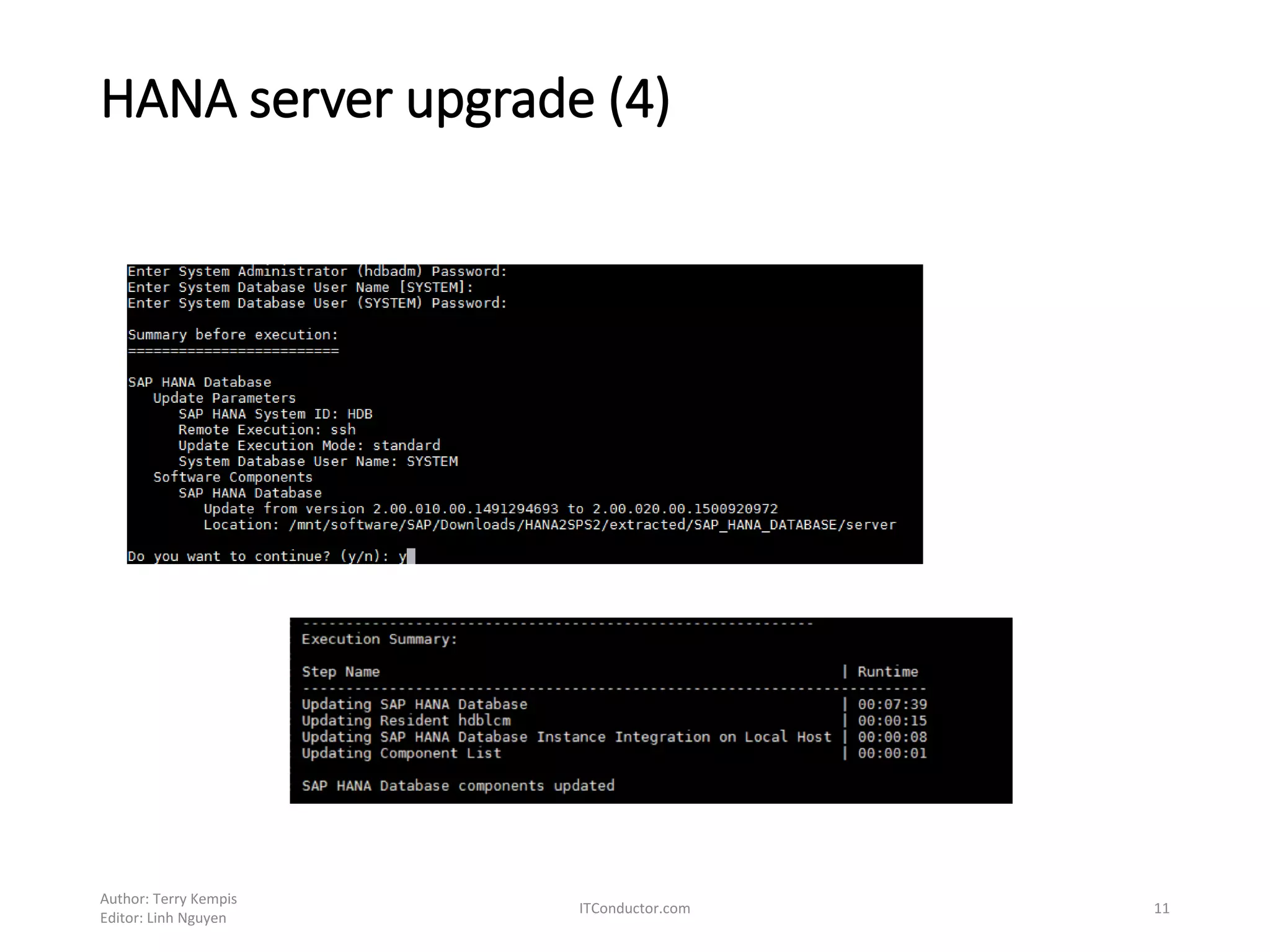

11. HANA server upgrade (4)
Author: Terry Kempis
Editor: Linh Nguyen
ITConductor.com 11

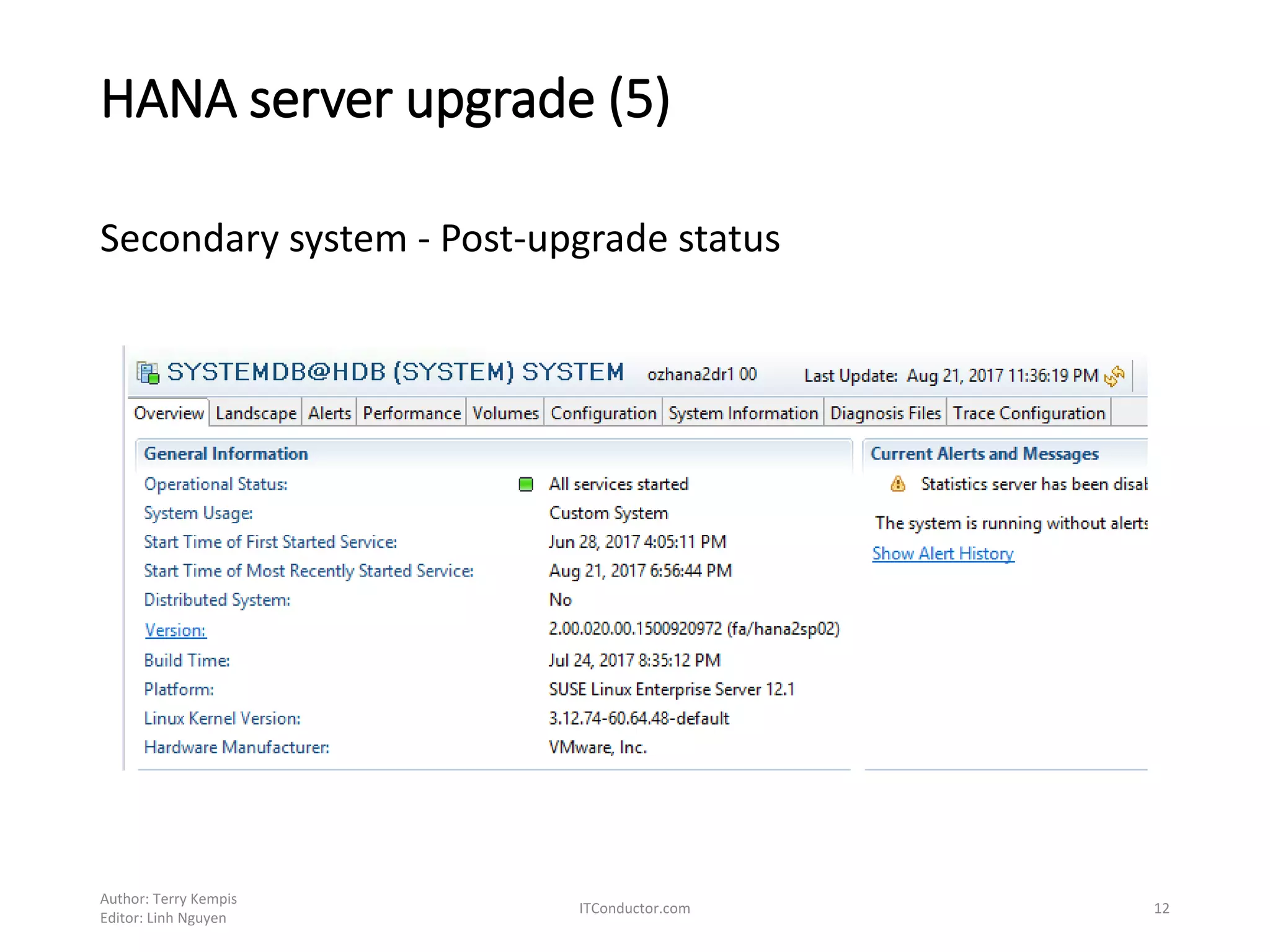

12. HANA server upgrade (5)
Secondary system - Post-upgrade status
Author: Terry Kempis
Editor: Linh Nguyen
ITConductor.com 12

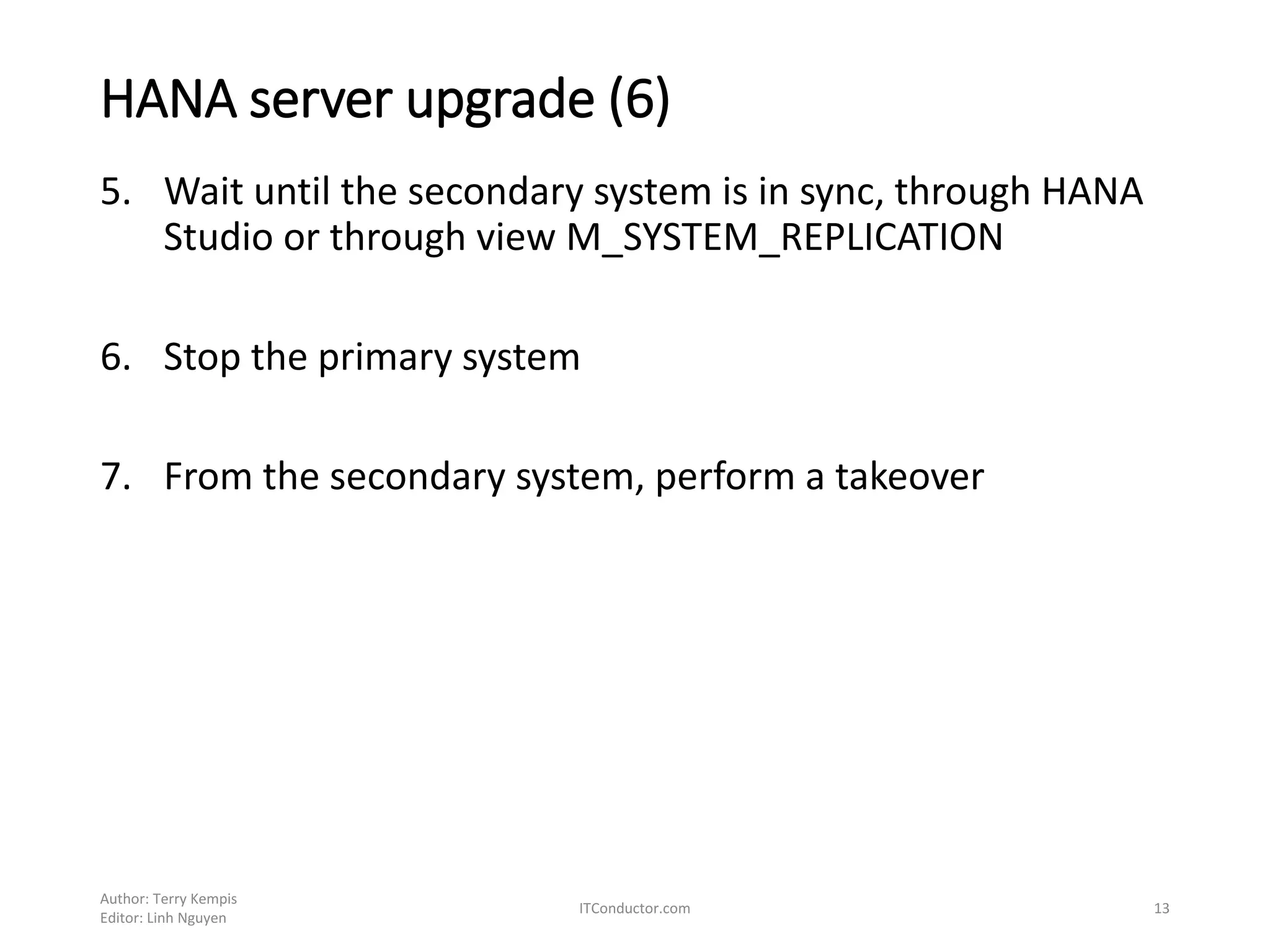

13. HANA server upgrade (6)
5. Wait until the secondary system is in sync, through HANA
Studio or through view M_SYSTEM_REPLICATION
6. Stop the primary system
7. From the secondary system, perform a takeover
Author: Terry Kempis
Editor: Linh Nguyen
ITConductor.com 13

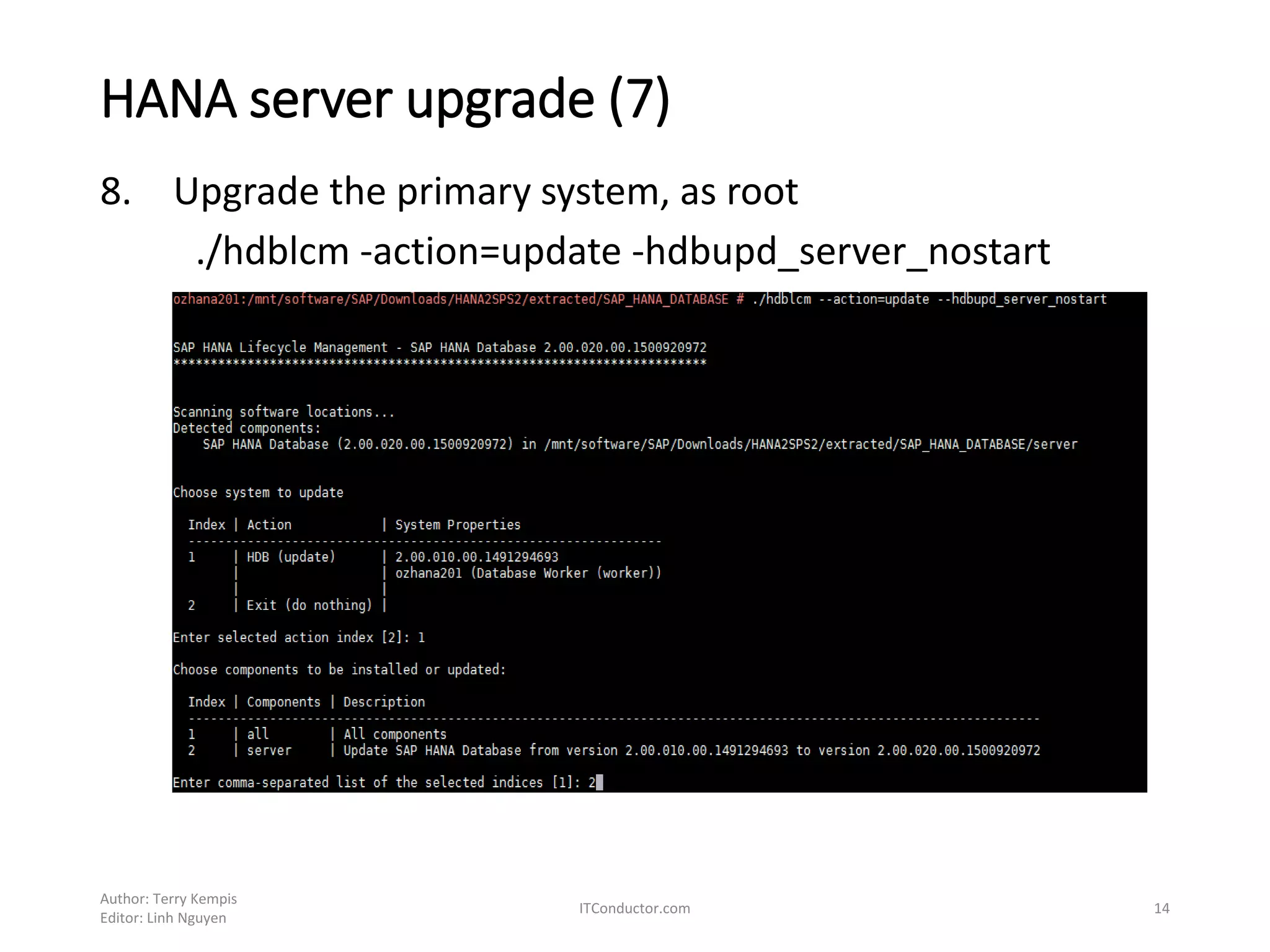

14. HANA server upgrade (7)
8. Upgrade the primary system, as root
./hdblcm -action=update -hdbupd_server_nostart
Author: Terry Kempis
Editor: Linh Nguyen
ITConductor.com 14

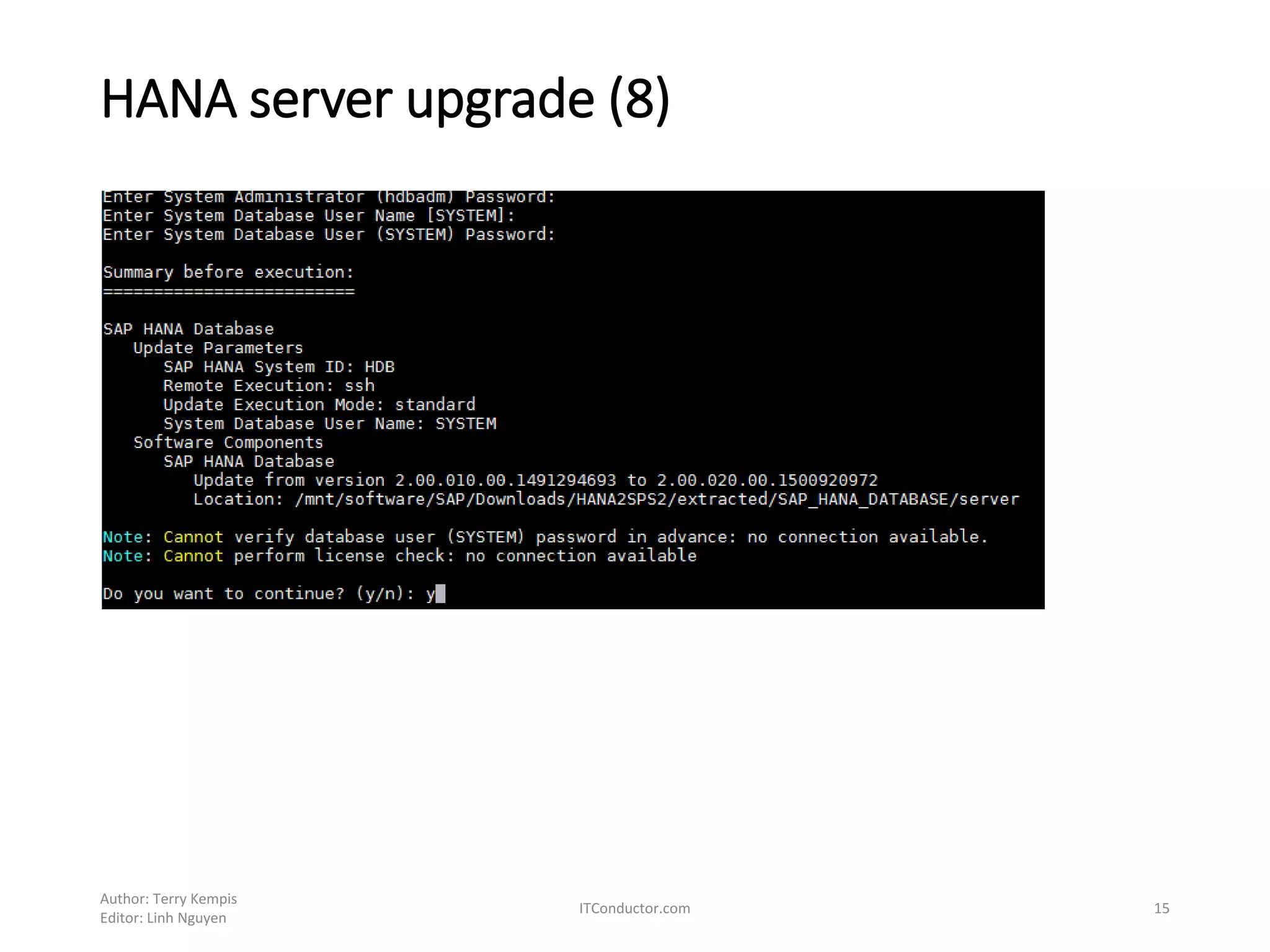

15. HANA server upgrade (8)
Author: Terry Kempis
Editor: Linh Nguyen
ITConductor.com 15

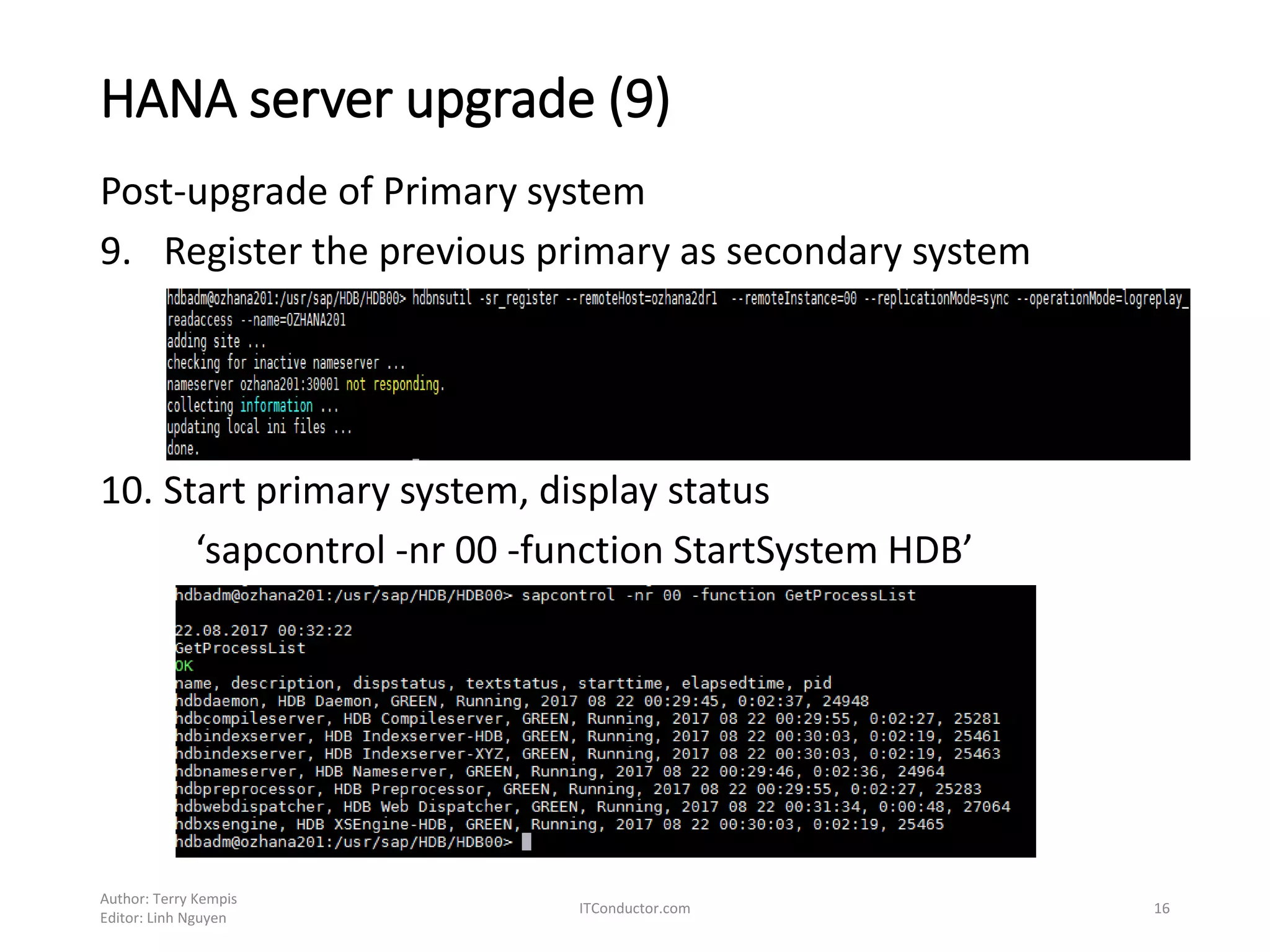

16. HANA server upgrade (9)
Post-upgrade of Primary system
9. Register the previous primary as secondary system
10. Start primary system, display status
‘sapcontrol -nr 00 -function StartSystem HDB’
Author: Terry Kempis
Editor: Linh Nguyen
ITConductor.com 16

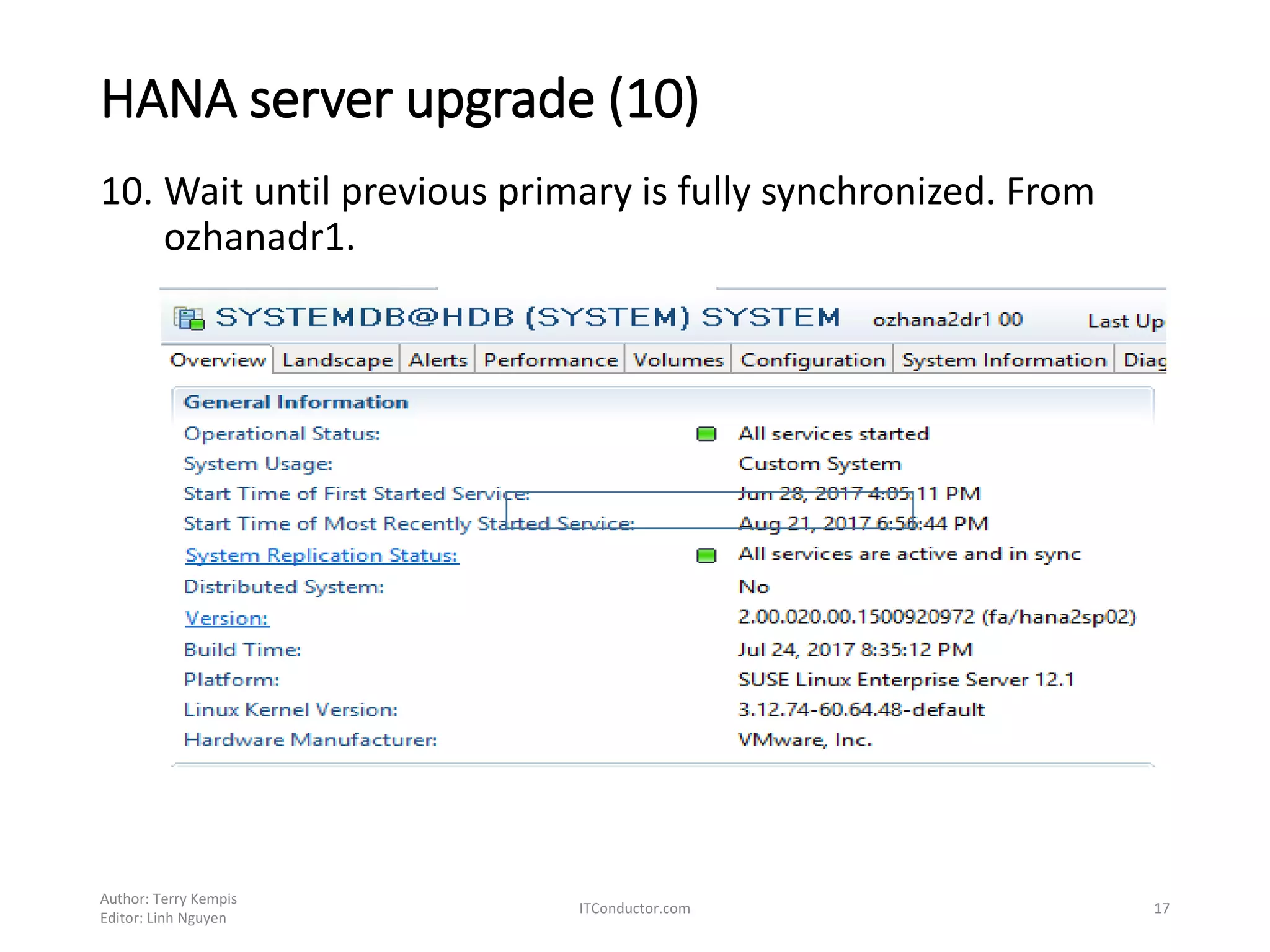

17. HANA server upgrade (10)
10. Wait until previous primary is fully synchronized. From
ozhanadr1.
Author: Terry Kempis
Editor: Linh Nguyen
ITConductor.com 17

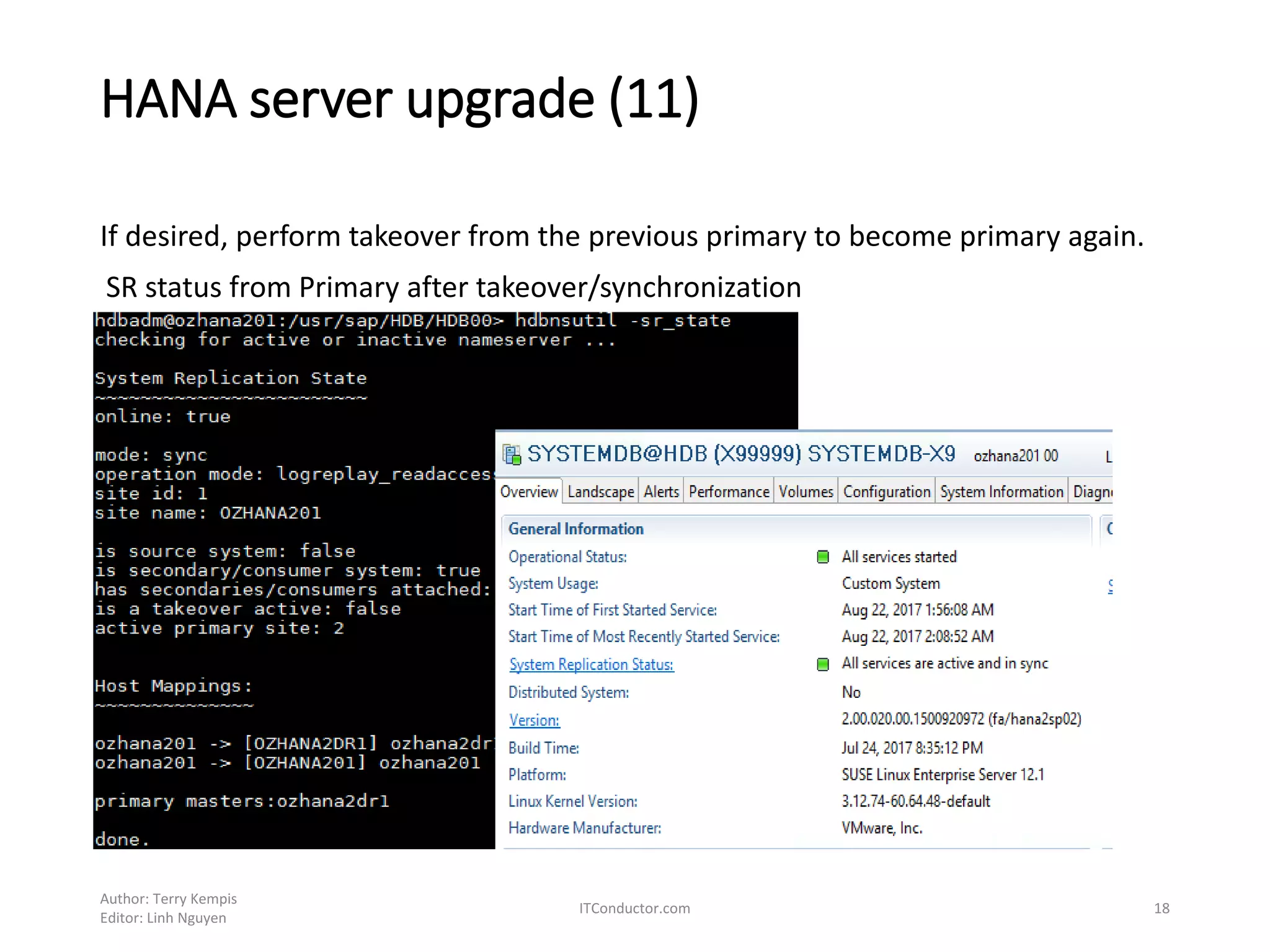

18. HANA server upgrade (11)
Author: Terry Kempis
Editor: Linh Nguyen
ITConductor.com 18
If desired, perform takeover from the previous primary to become primary again.
SR status from Primary after takeover/synchronization

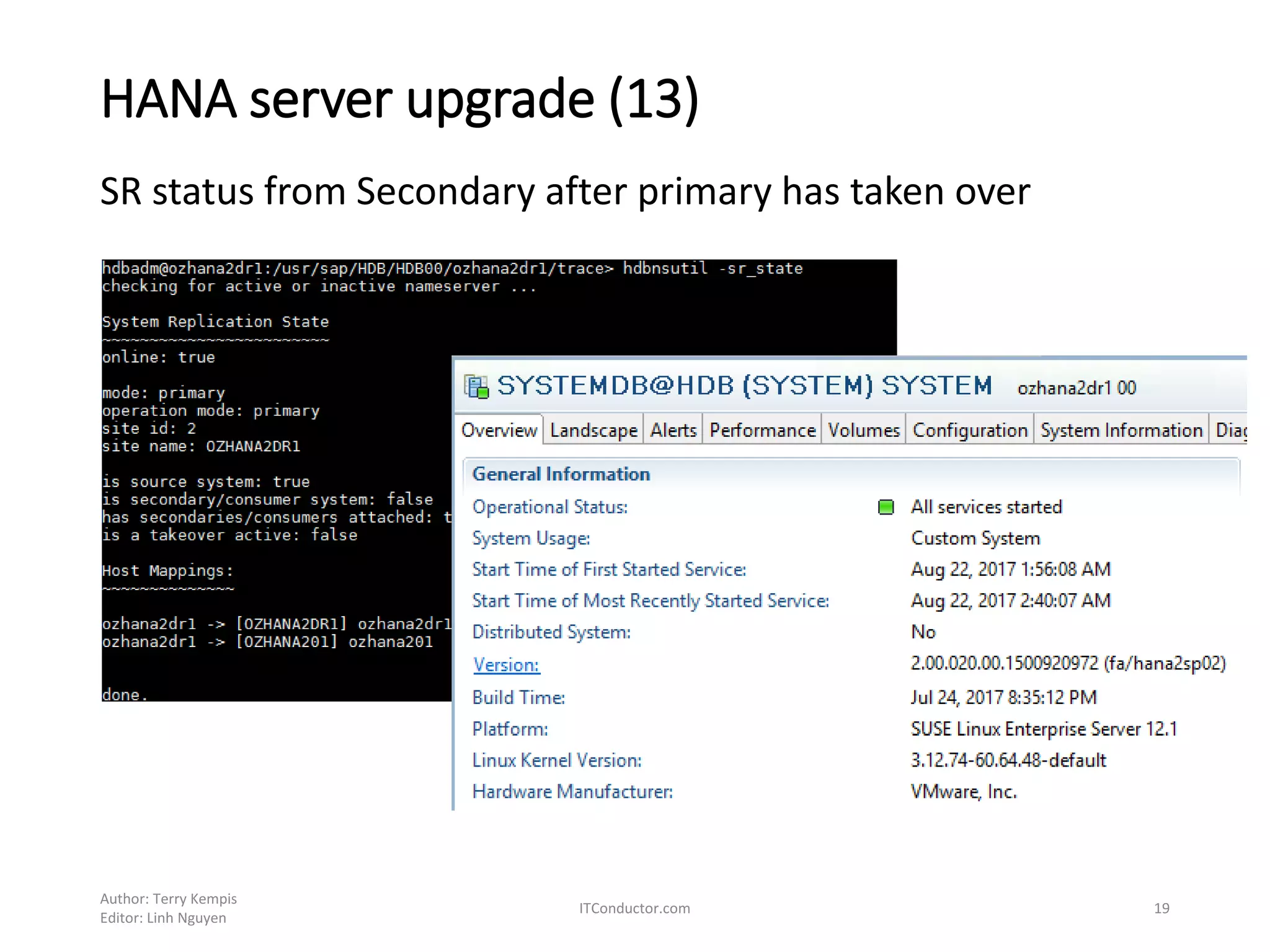

19. HANA server upgrade (13)
Author: Terry Kempis
Editor: Linh Nguyen
ITConductor.com 19
SR status from Secondary after primary has taken over

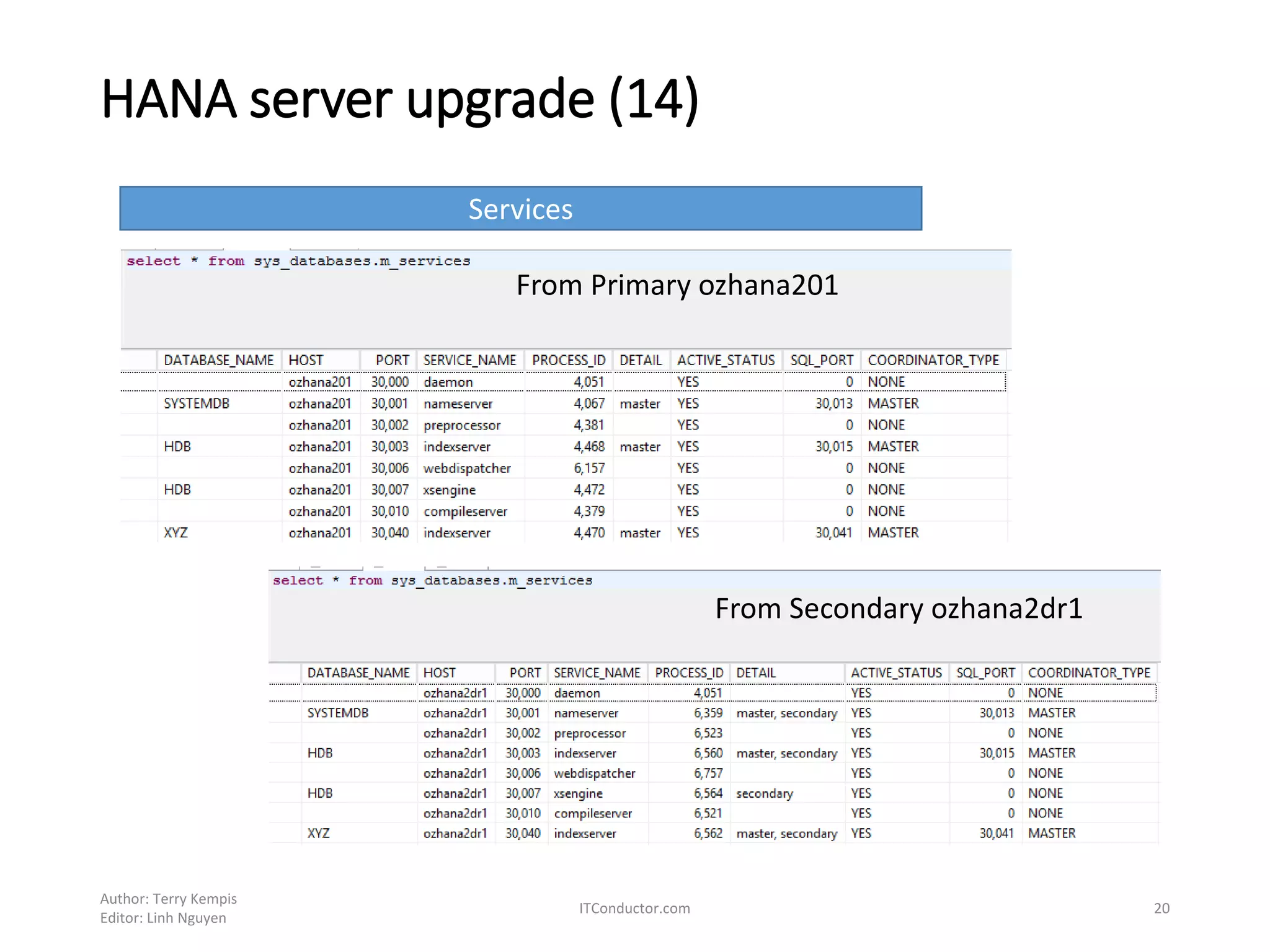

20. HANA server upgrade (14)
Author: Terry Kempis
Editor: Linh Nguyen
ITConductor.com 20
Services
From Primary ozhana201
From Secondary ozhana2dr1

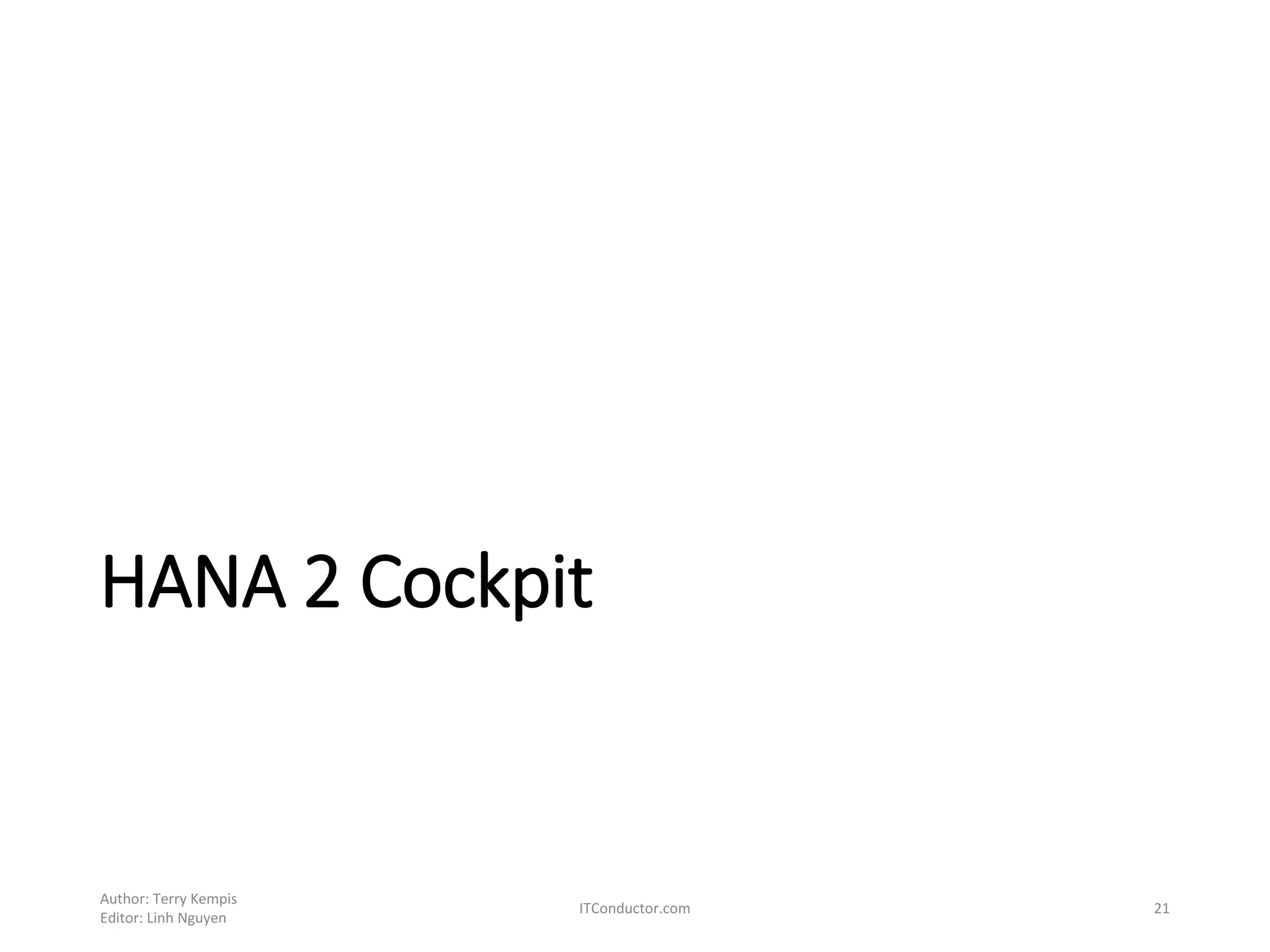

21. HANA 2 Cockpit
Author: Terry Kempis
Editor: Linh Nguyen
ITConductor.com 21

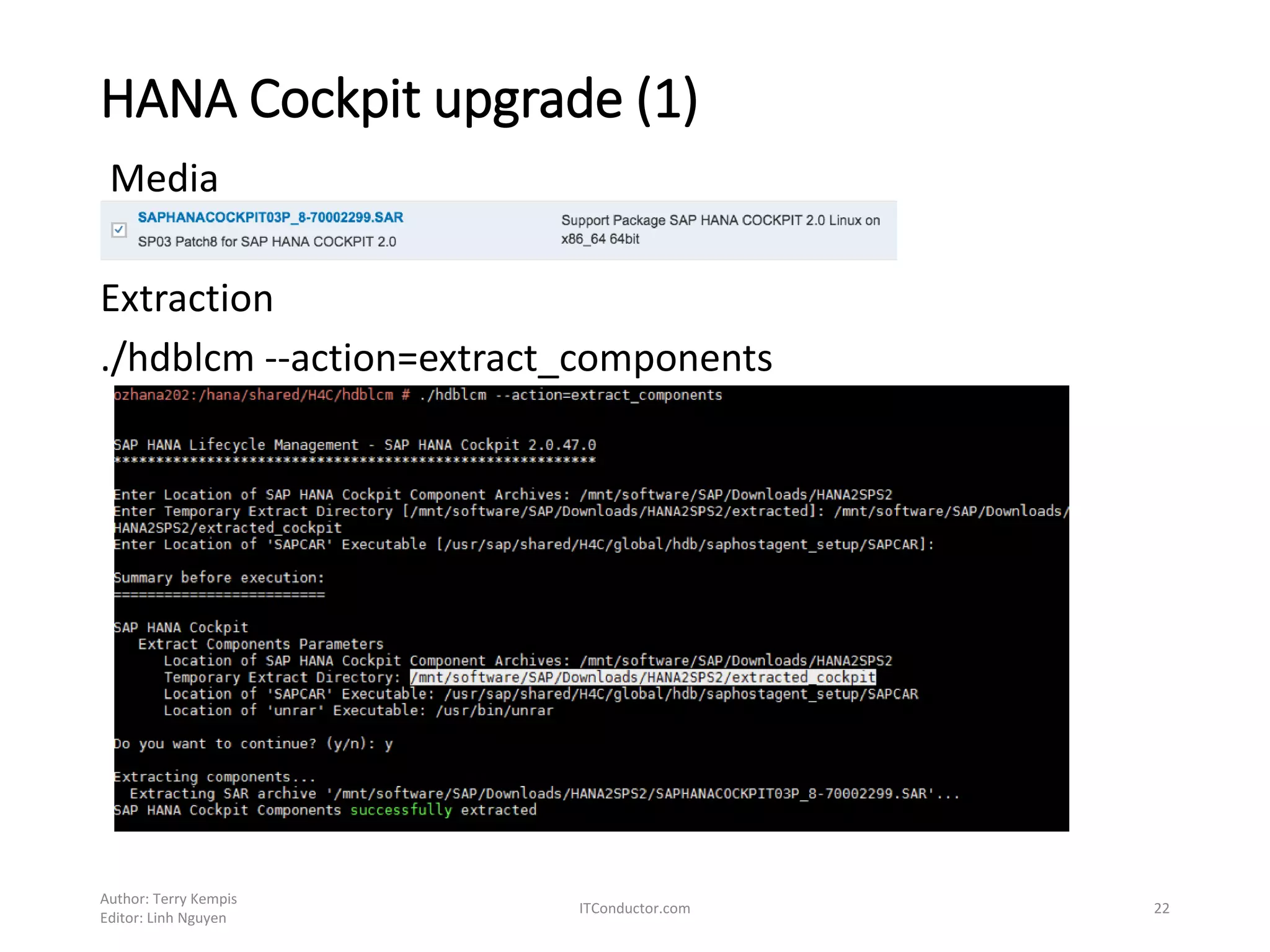

22. HANA Cockpit upgrade (1)
Media
Extraction
./hdblcm --action=extract_components
Author: Terry Kempis
Editor: Linh Nguyen
ITConductor.com 22

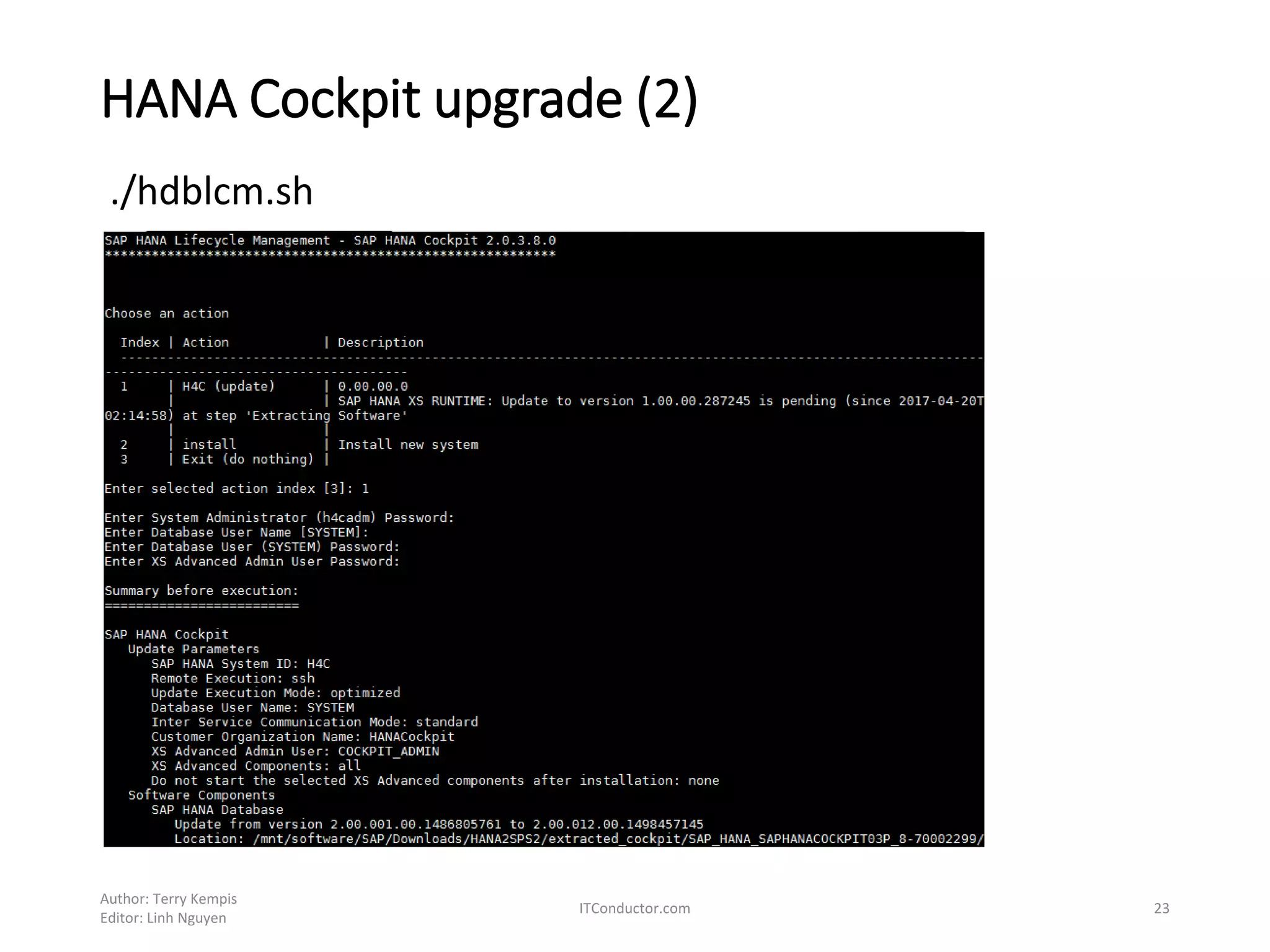

23. HANA Cockpit upgrade (2)
./hdblcm.sh
Author: Terry Kempis
Editor: Linh Nguyen
ITConductor.com 23

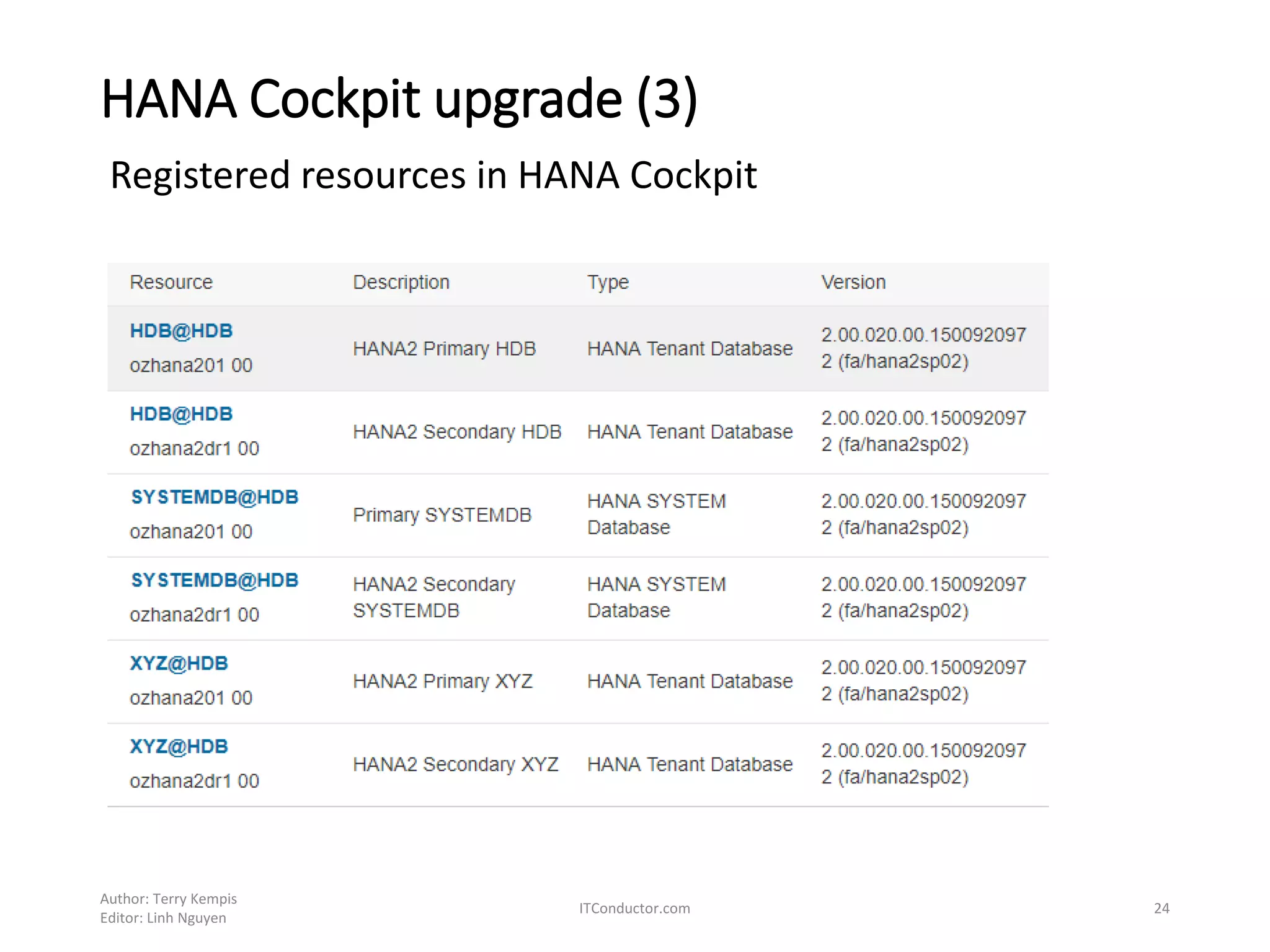

24. HANA Cockpit upgrade (3)
Registered resources in HANA Cockpit
Author: Terry Kempis
Editor: Linh Nguyen
ITConductor.com 24

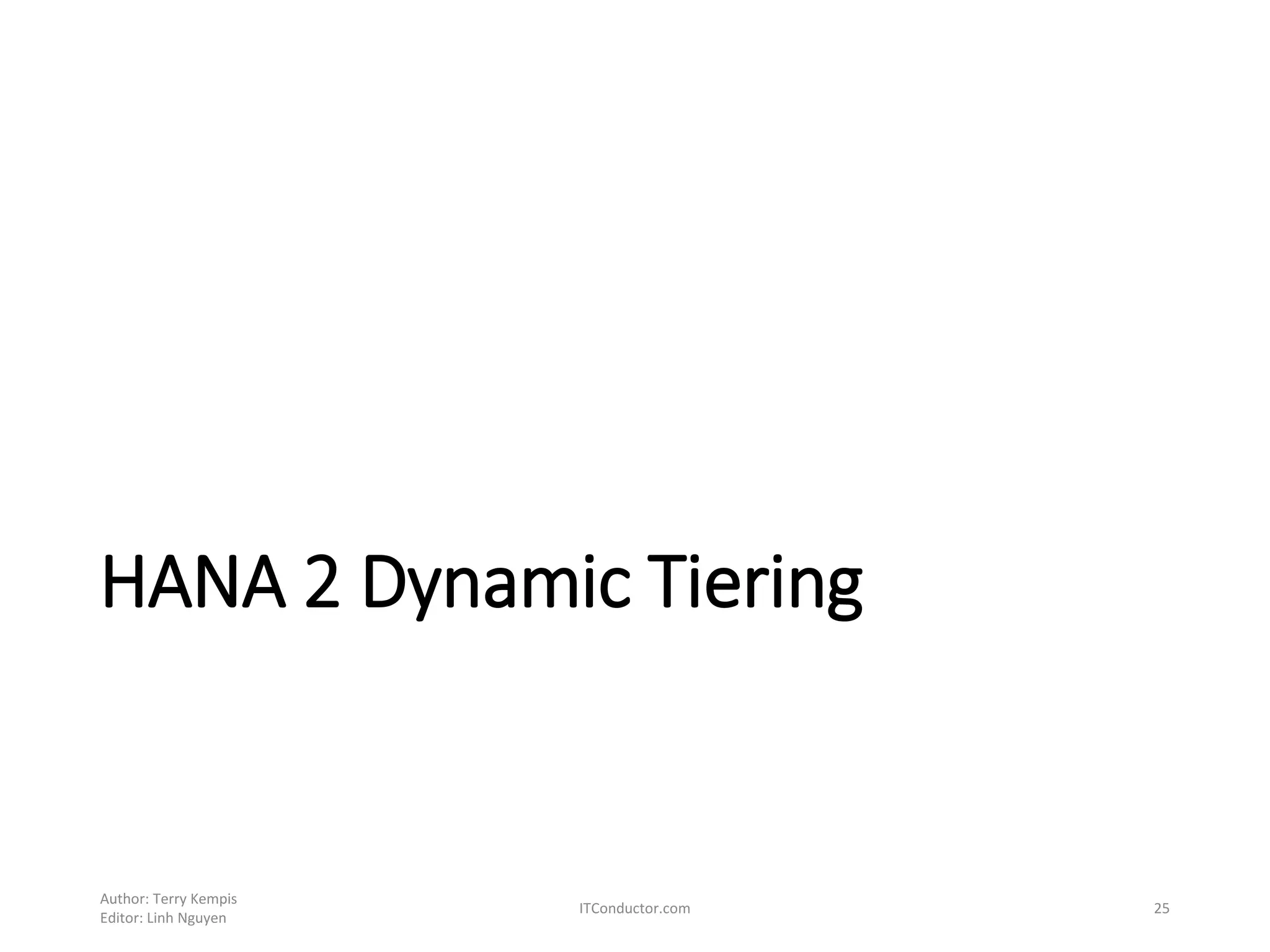

25. HANA 2 Dynamic Tiering
Author: Terry Kempis
Editor: Linh Nguyen
ITConductor.com 25

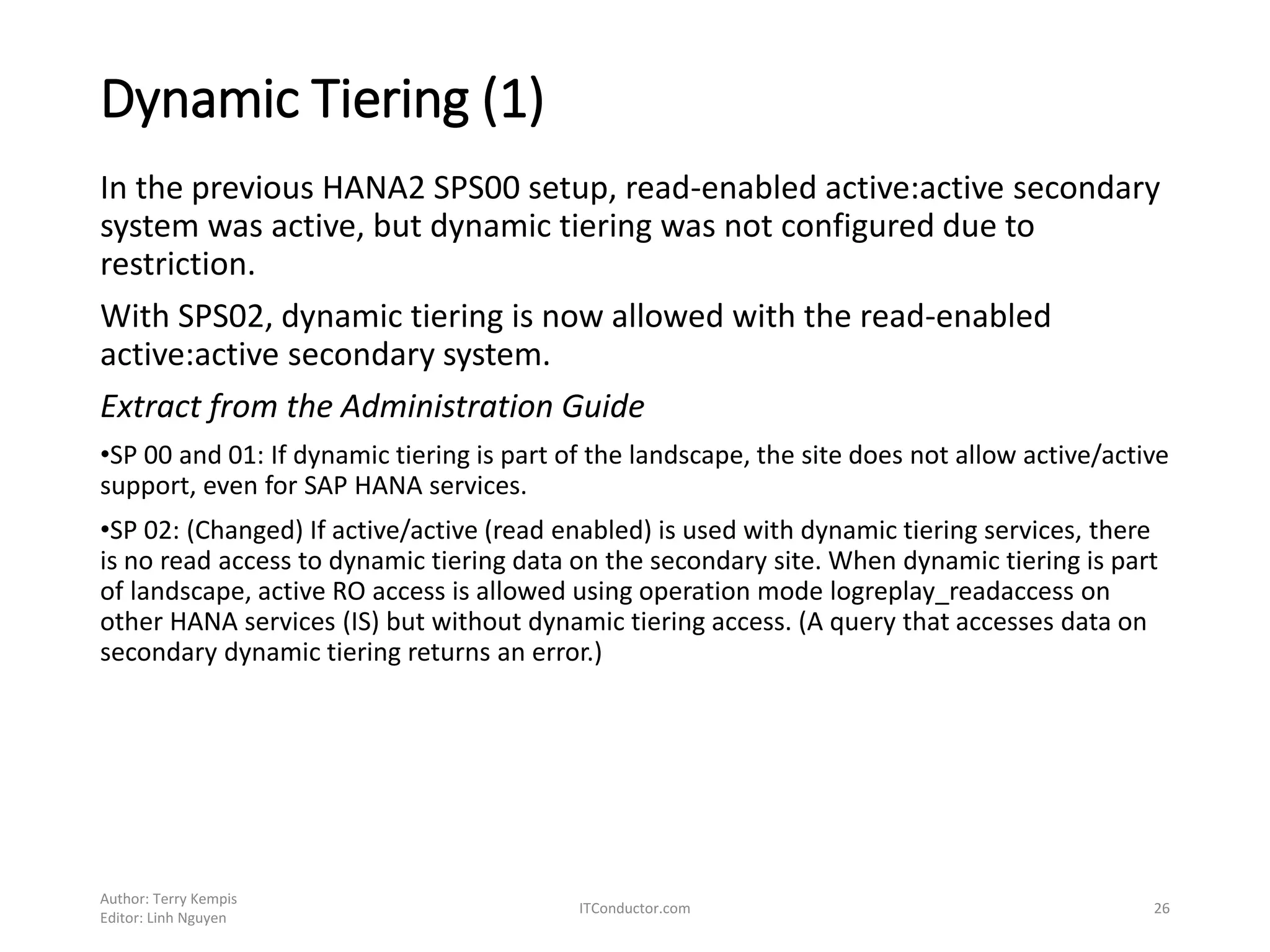

26. Dynamic Tiering (1)
In the previous HANA2 SPS00 setup, read-enabled active:active secondary
system was active, but dynamic tiering was not configured due to
restriction.
With SPS02, dynamic tiering is now allowed with the read-enabled
active:active secondary system.
Extract from the Administration Guide
•SP 00 and 01: If dynamic tiering is part of the landscape, the site does not allow active/active
support, even for SAP HANA services.
•SP 02: (Changed) If active/active (read enabled) is used with dynamic tiering services, there
is no read access to dynamic tiering data on the secondary site. When dynamic tiering is part
of landscape, active RO access is allowed using operation mode logreplay_readaccess on
other HANA services (IS) but without dynamic tiering access. (A query that accesses data on
secondary dynamic tiering returns an error.)
Author: Terry Kempis
Editor: Linh Nguyen
ITConductor.com 26

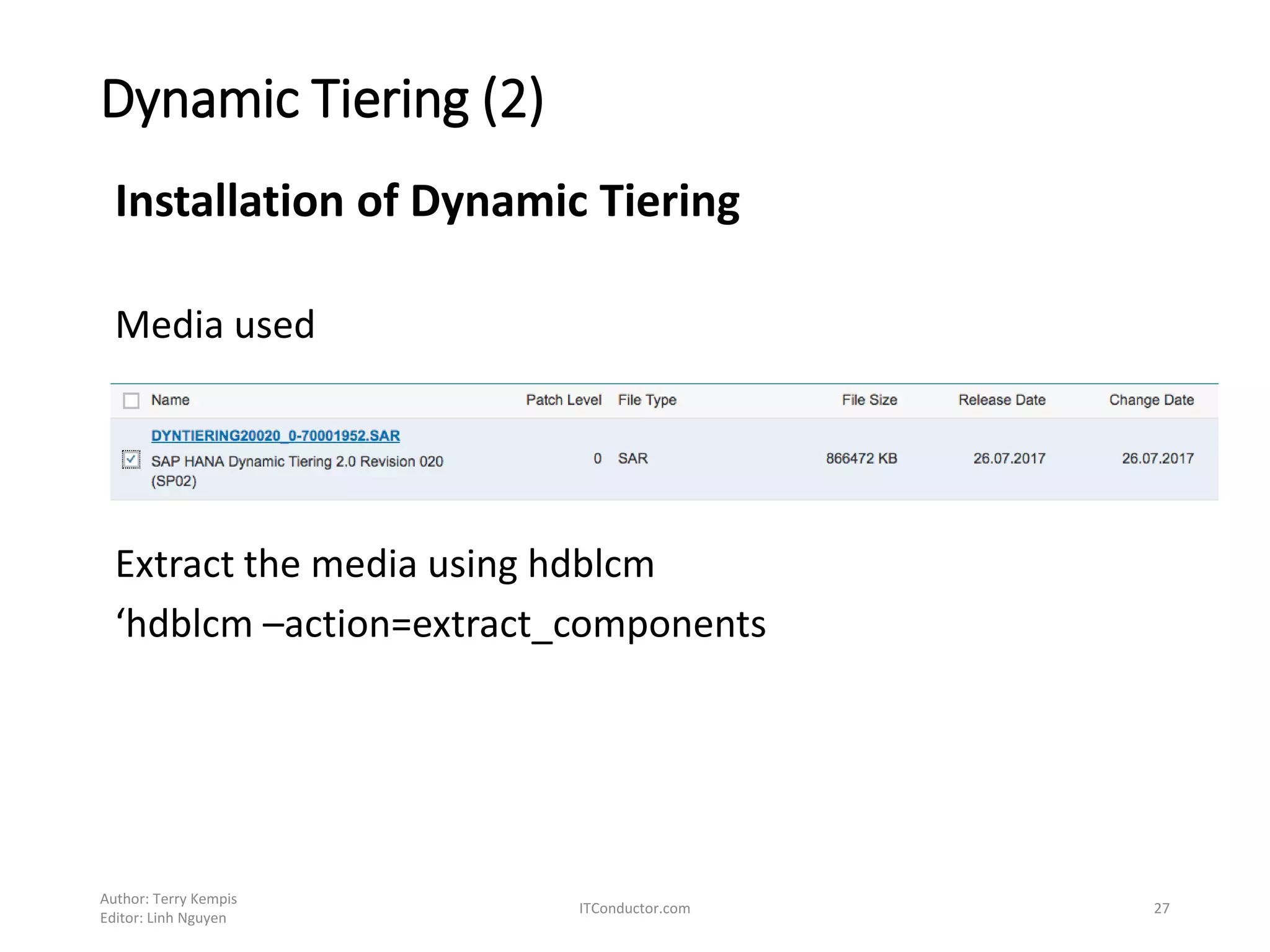

27. Dynamic Tiering (2)
Installation of Dynamic Tiering
Media used
Extract the media using hdblcm
‘hdblcm –action=extract_components
Author: Terry Kempis
Editor: Linh Nguyen
ITConductor.com 27

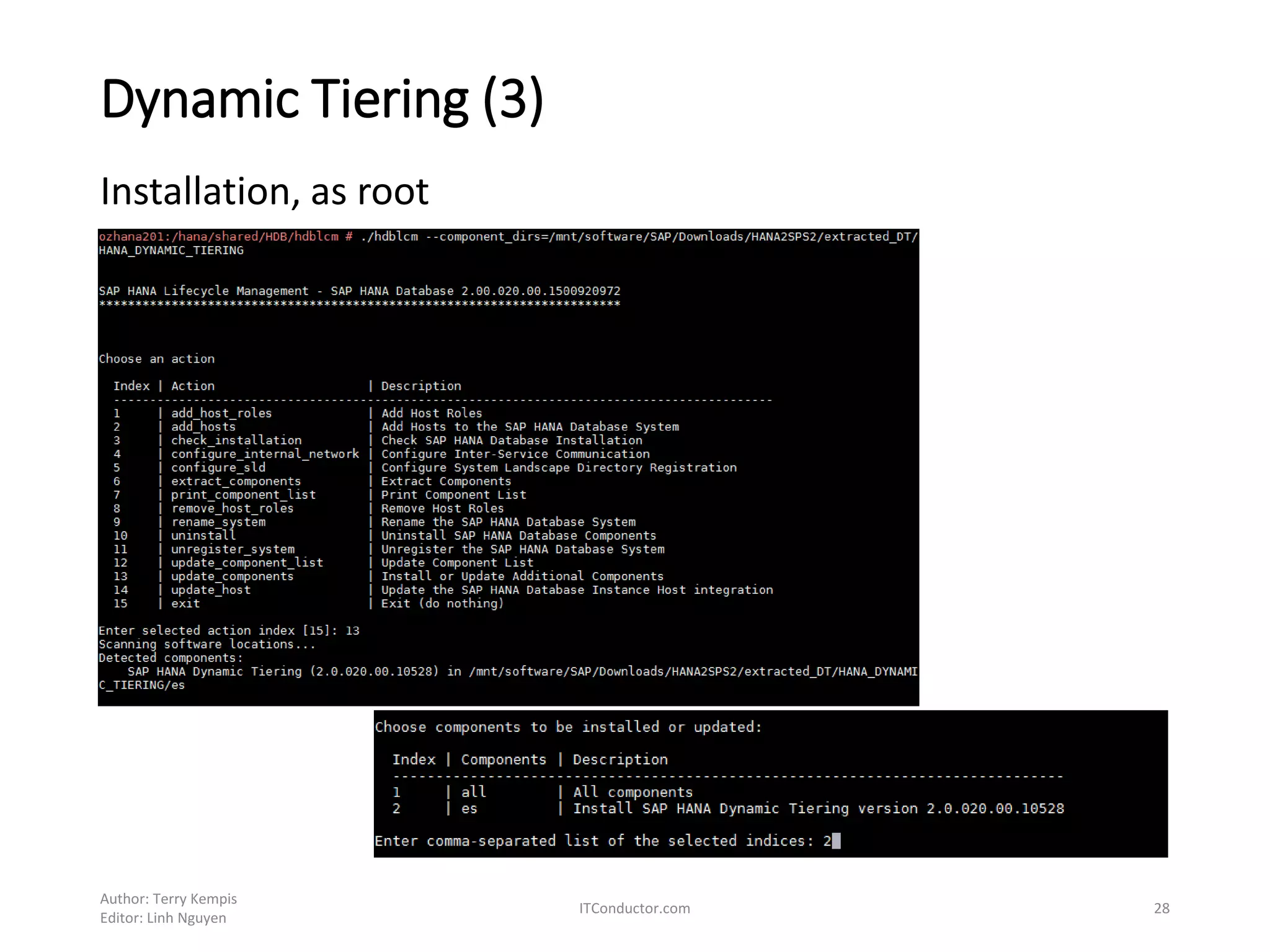

28. Dynamic Tiering (3)
Installation, as root
Author: Terry Kempis
Editor: Linh Nguyen
ITConductor.com 28

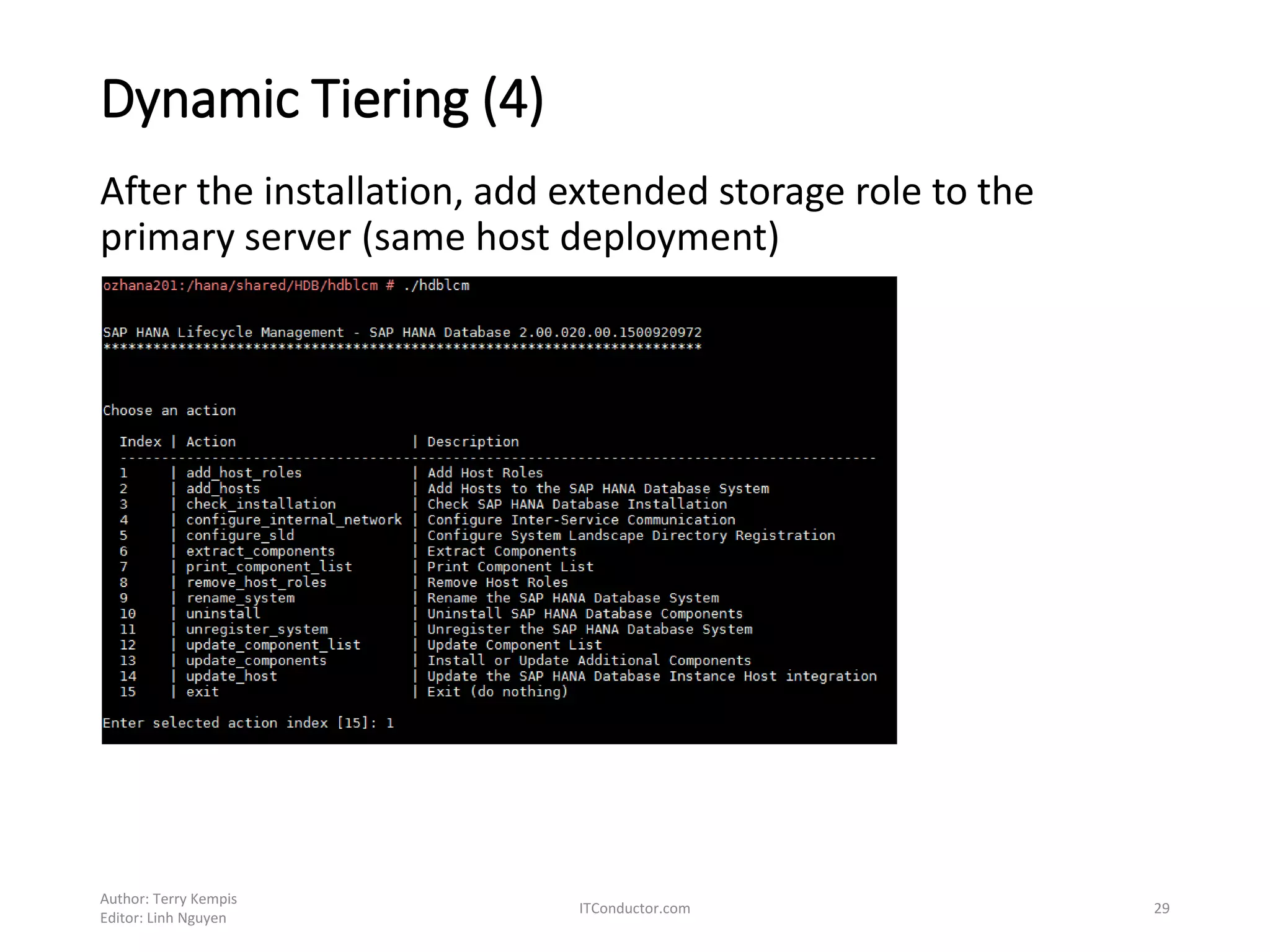

29. Dynamic Tiering (4)
After the installation, add extended storage role to the
primary server (same host deployment)
Author: Terry Kempis
Editor: Linh Nguyen
ITConductor.com 29

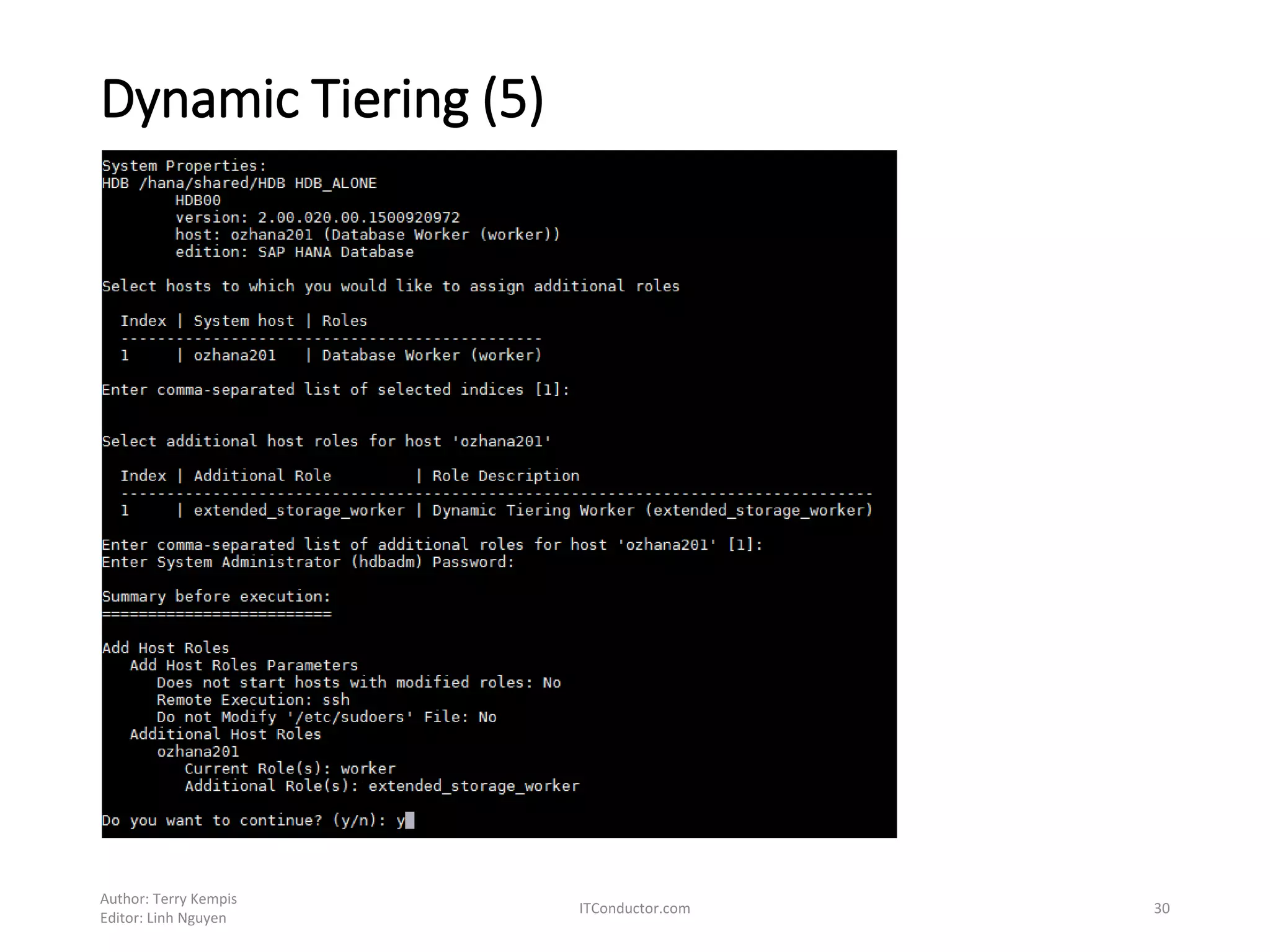

30. Dynamic Tiering (5)
Author: Terry Kempis
Editor: Linh Nguyen
ITConductor.com 30

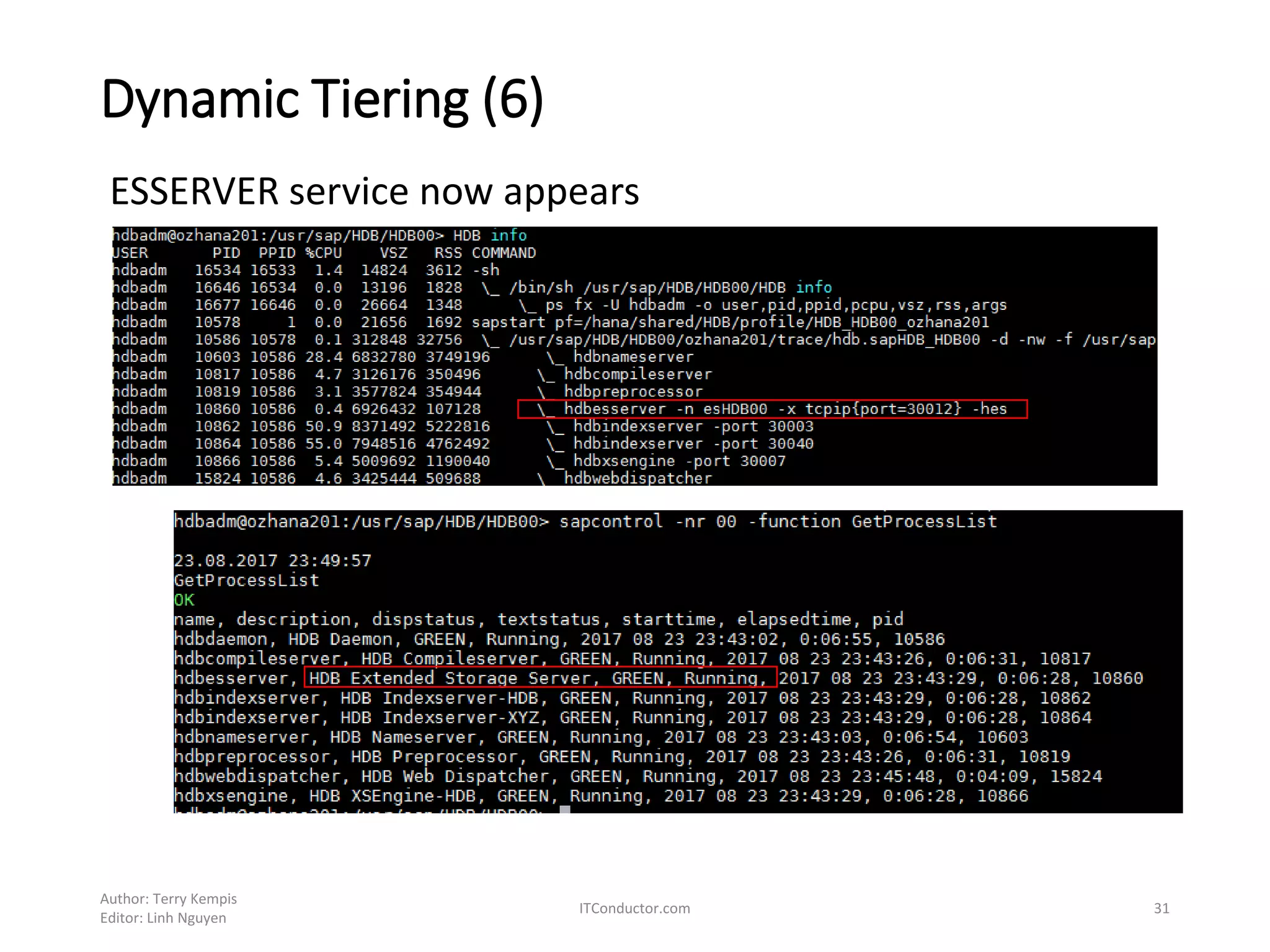

31. Dynamic Tiering (6)
ESSERVER service now appears
Author: Terry Kempis
Editor: Linh Nguyen
ITConductor.com 31

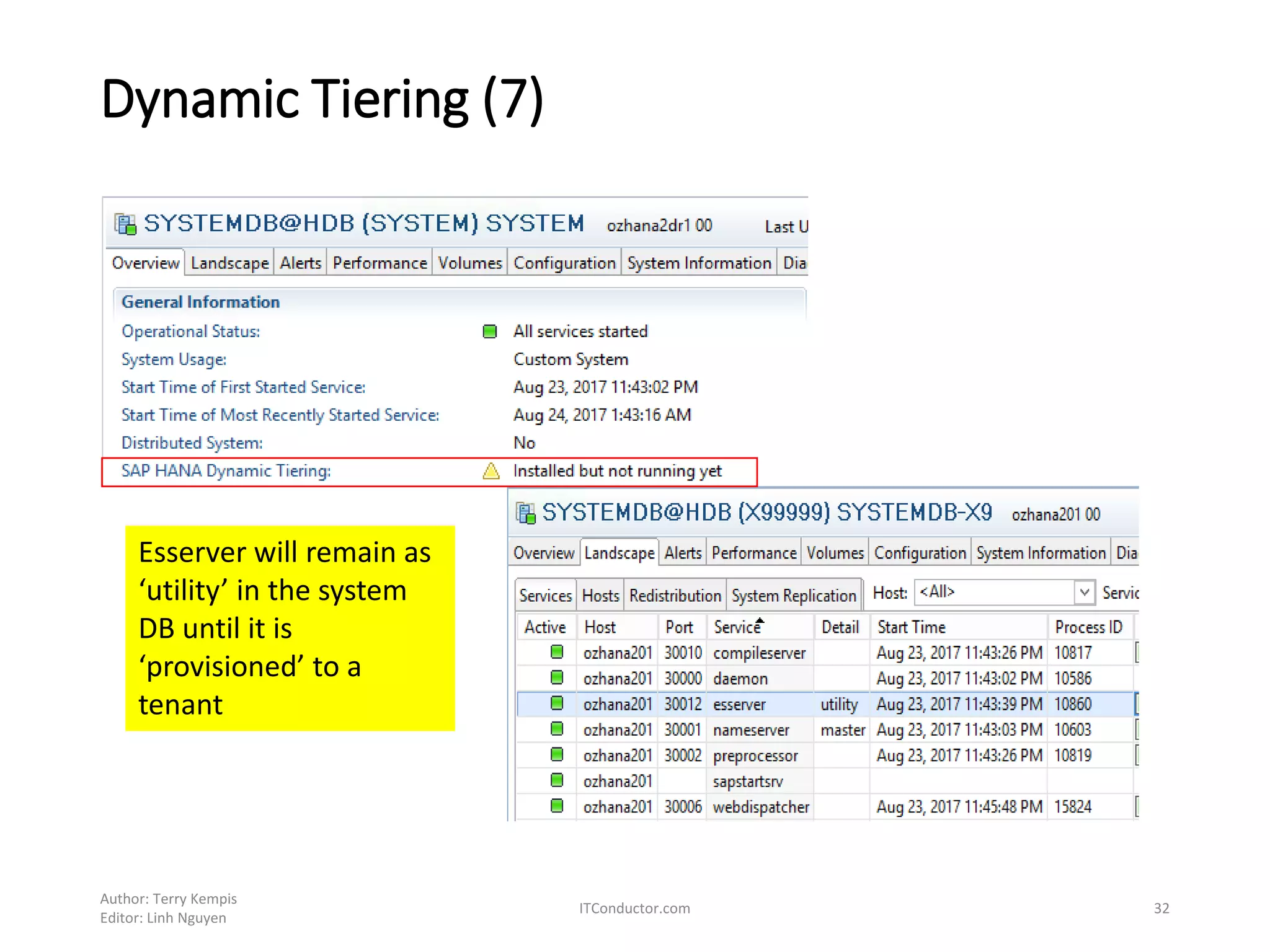

32. Dynamic Tiering (7)
Author: Terry Kempis
Editor: Linh Nguyen
ITConductor.com 32
Esserver will remain as
‘utility’ in the system
DB until it is
‘provisioned’ to a
tenant

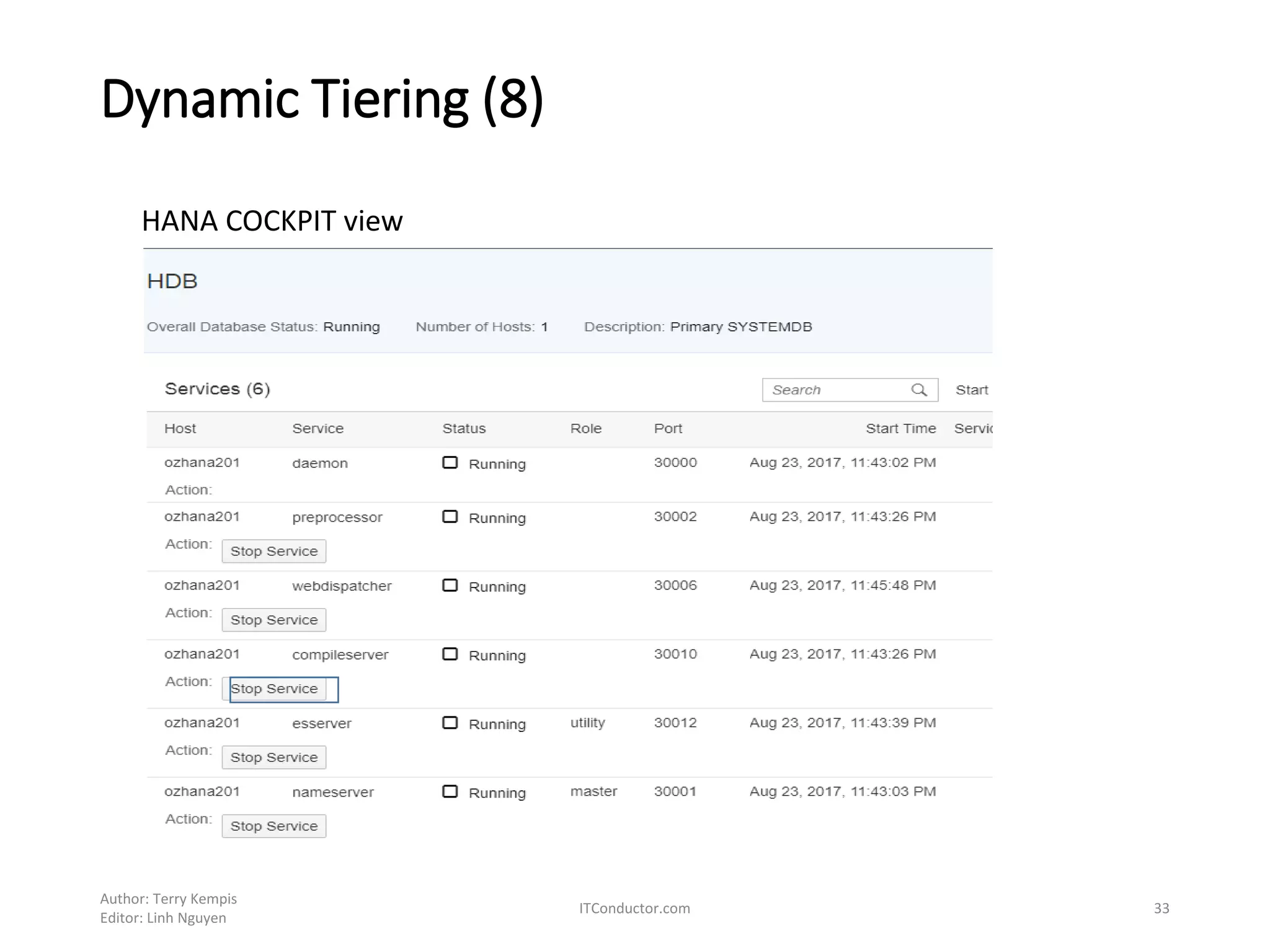

33. Dynamic Tiering (8)
Author: Terry Kempis
Editor: Linh Nguyen
ITConductor.com 33
HANA COCKPIT view

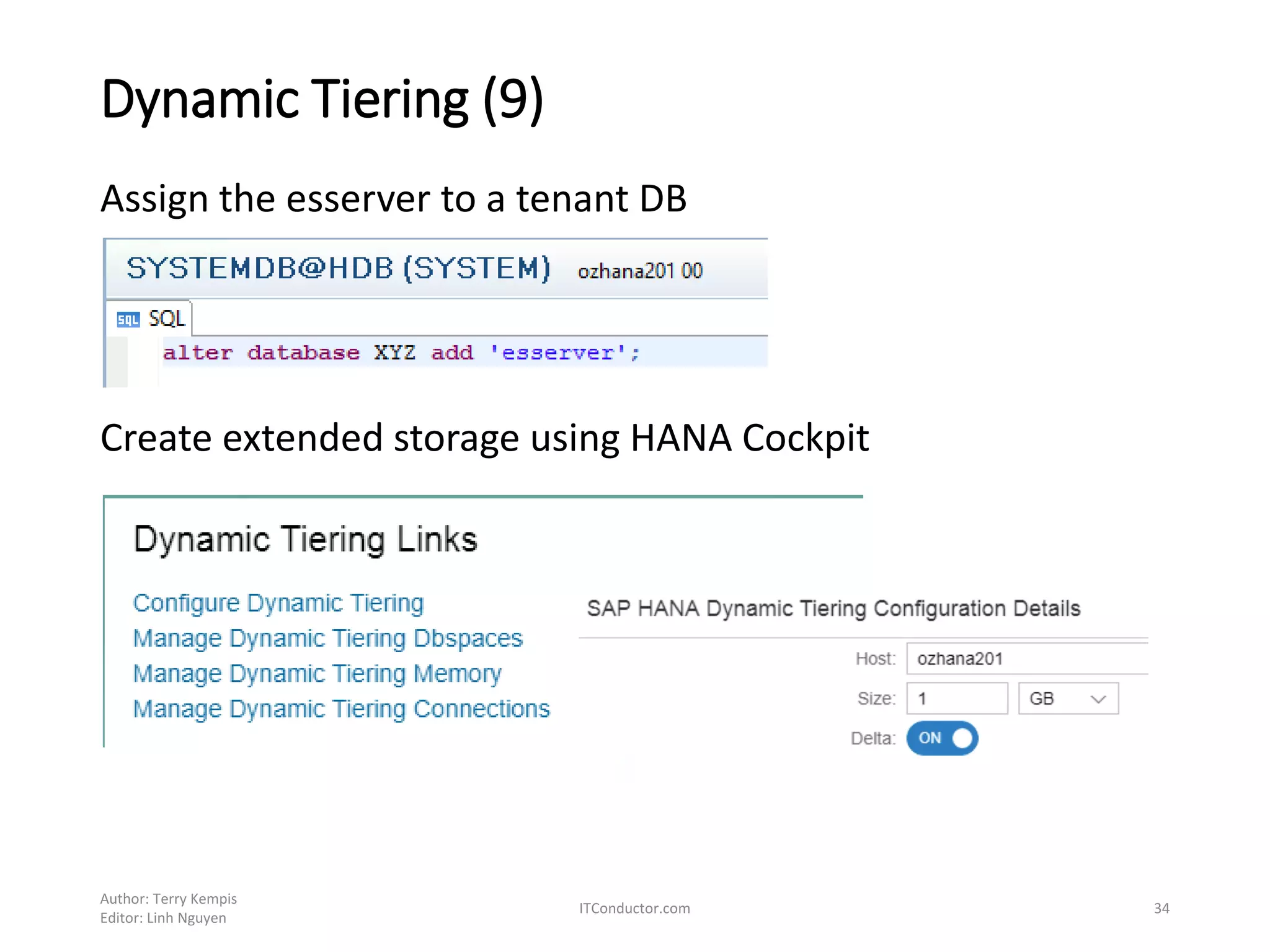

34. Dynamic Tiering (9)
Assign the esserver to a tenant DB
Create extended storage using HANA Cockpit
Author: Terry Kempis
Editor: Linh Nguyen
ITConductor.com 34

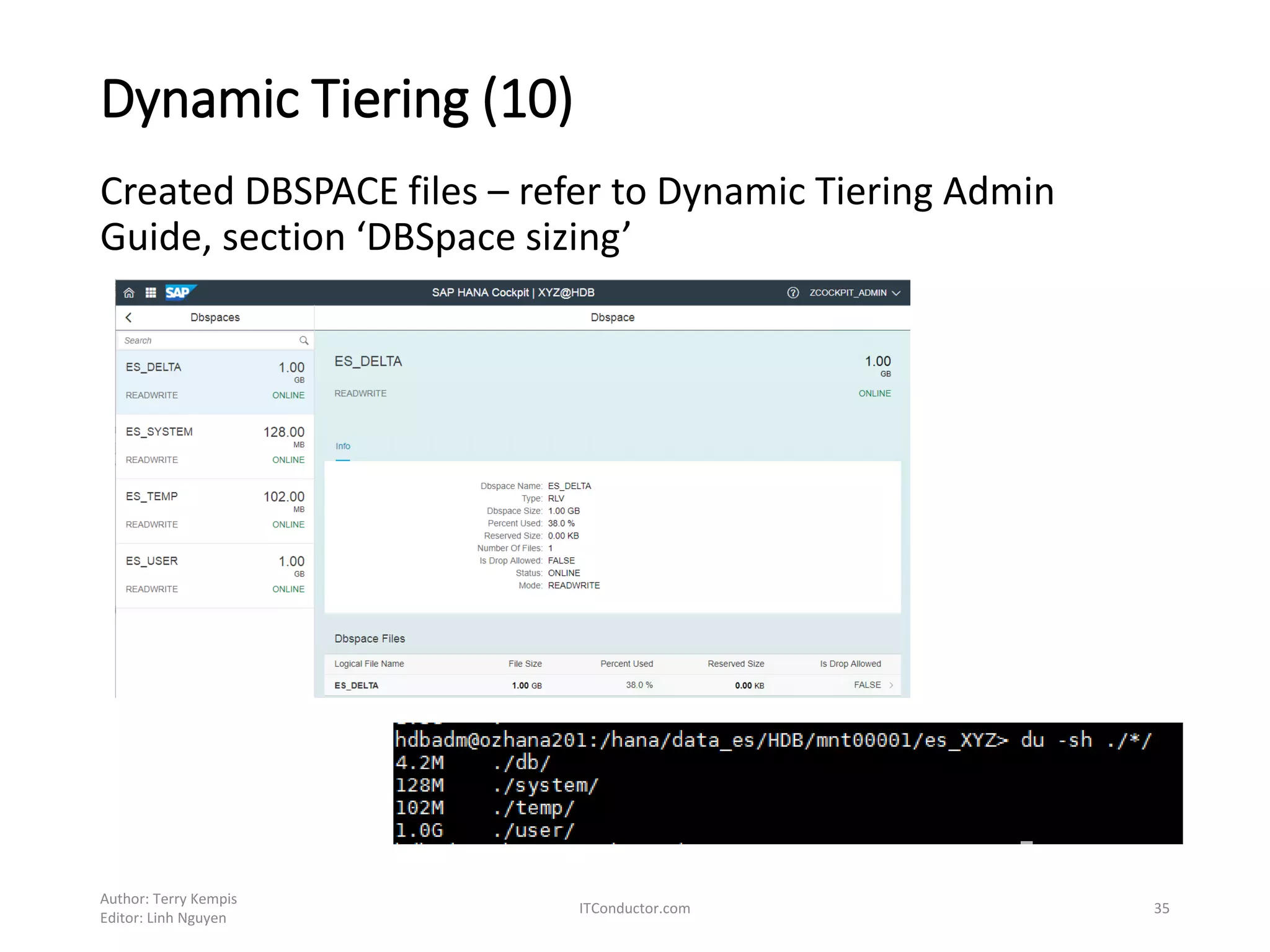

35. Dynamic Tiering (10)
Created DBSPACE files – refer to Dynamic Tiering Admin
Guide, section ‘DBSpace sizing’
Author: Terry Kempis
Editor: Linh Nguyen
ITConductor.com 35

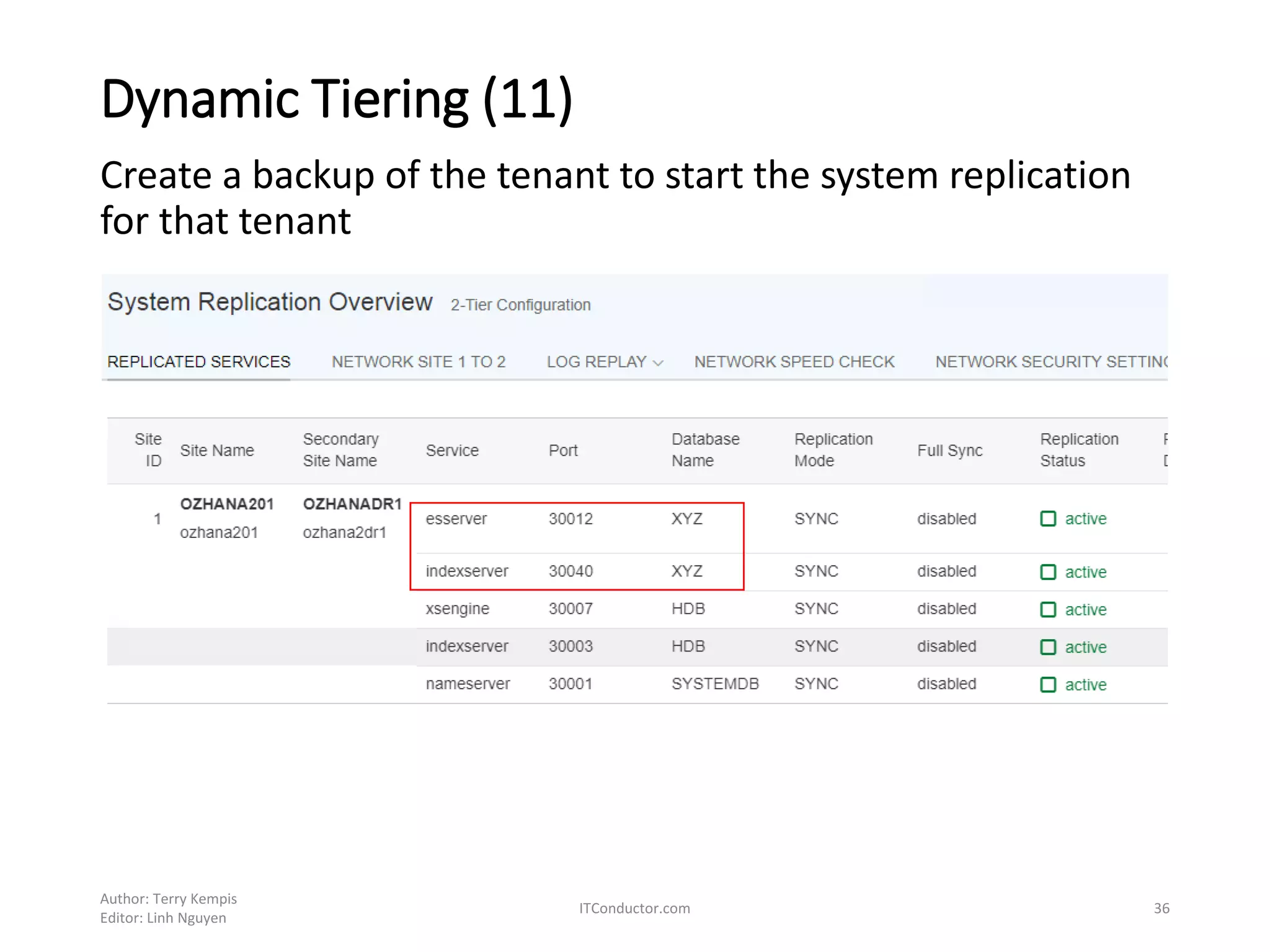

36. Dynamic Tiering (11)
Create a backup of the tenant to start the system replication
for that tenant
Author: Terry Kempis
Editor: Linh Nguyen
ITConductor.com 36

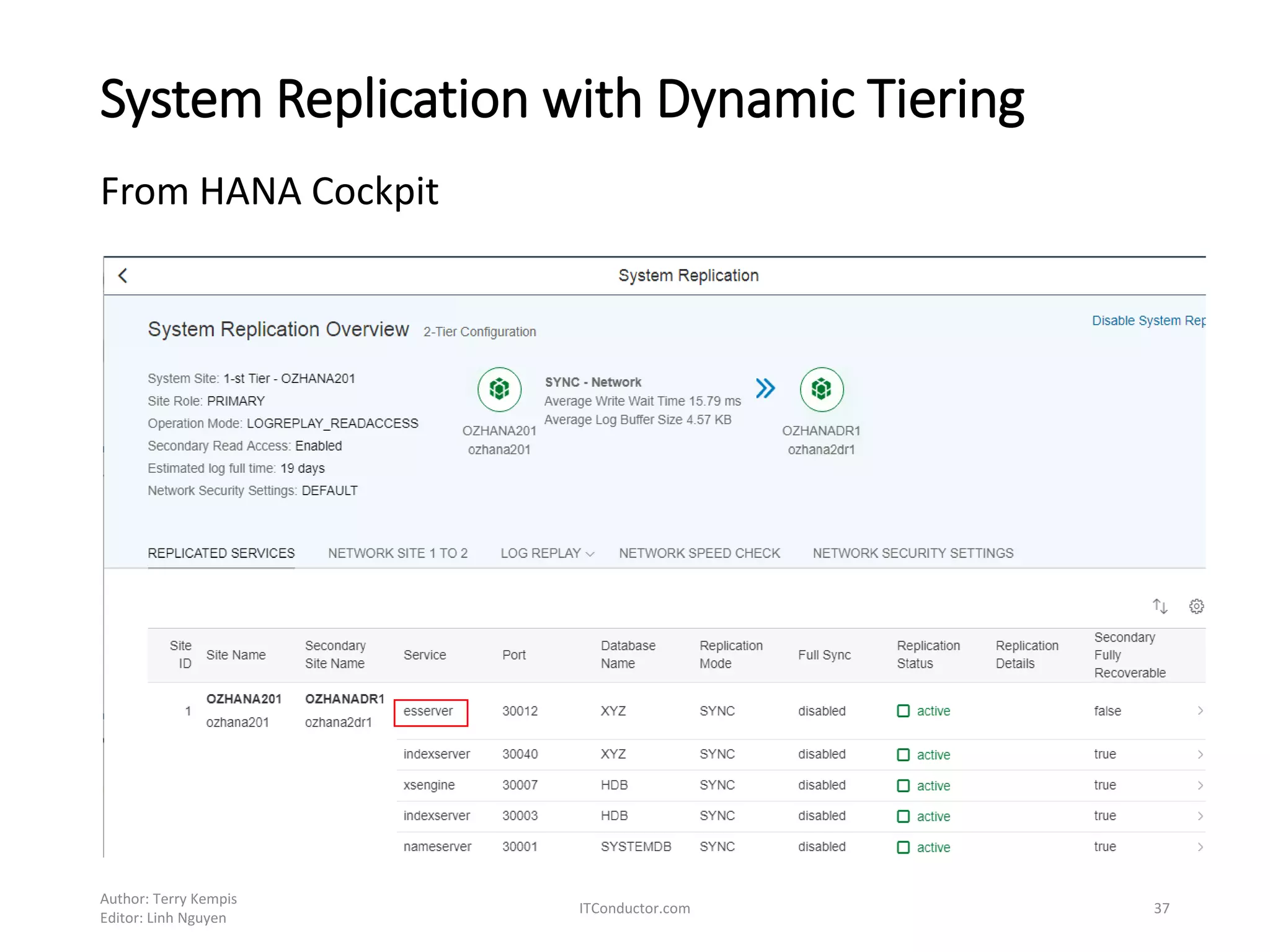

37. System Replication with Dynamic Tiering
From HANA Cockpit
Author: Terry Kempis
Editor: Linh Nguyen
ITConductor.com 37

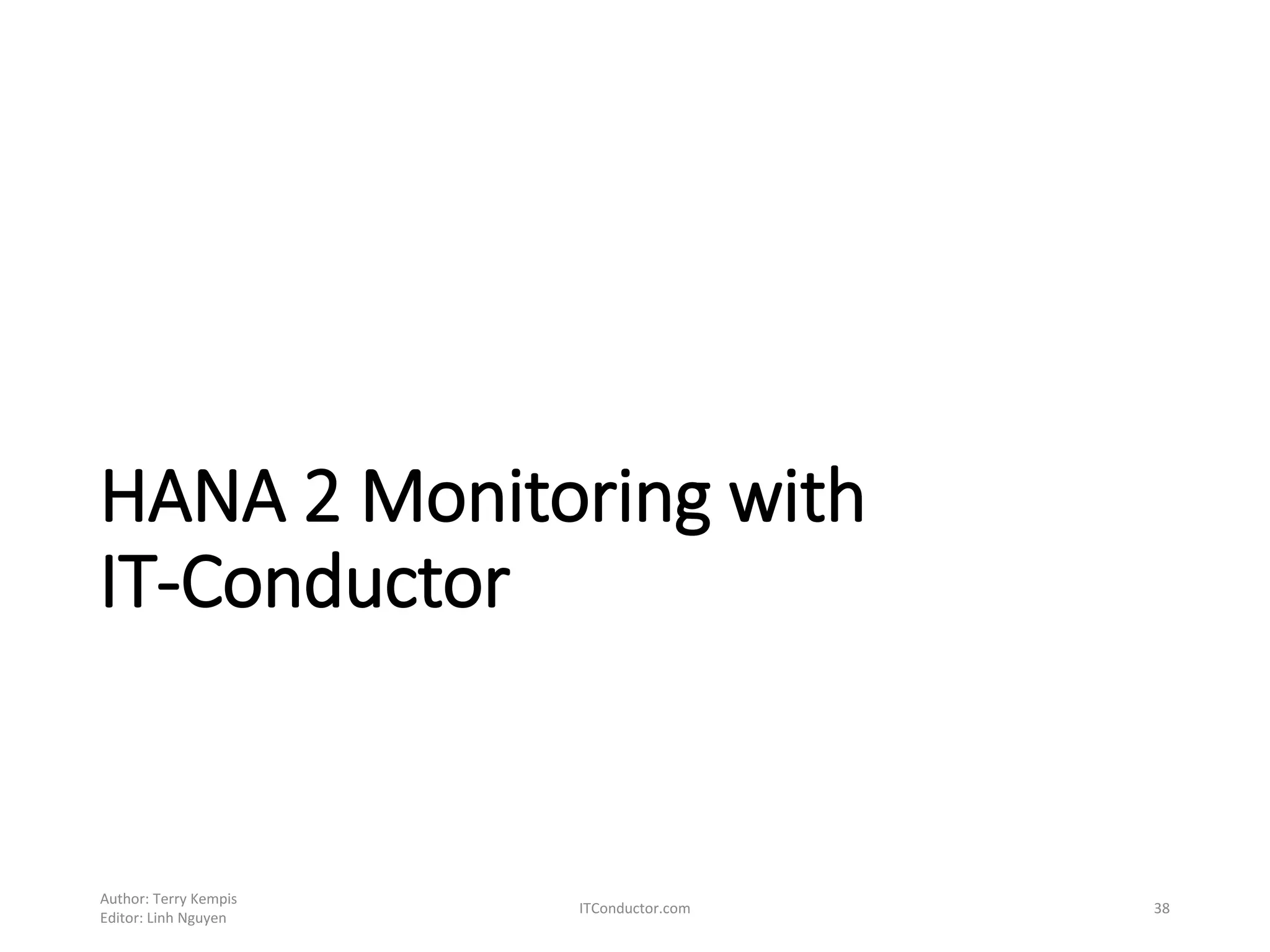

38. HANA 2 Monitoring with
IT-Conductor
Author: Terry Kempis
Editor: Linh Nguyen
ITConductor.com 38

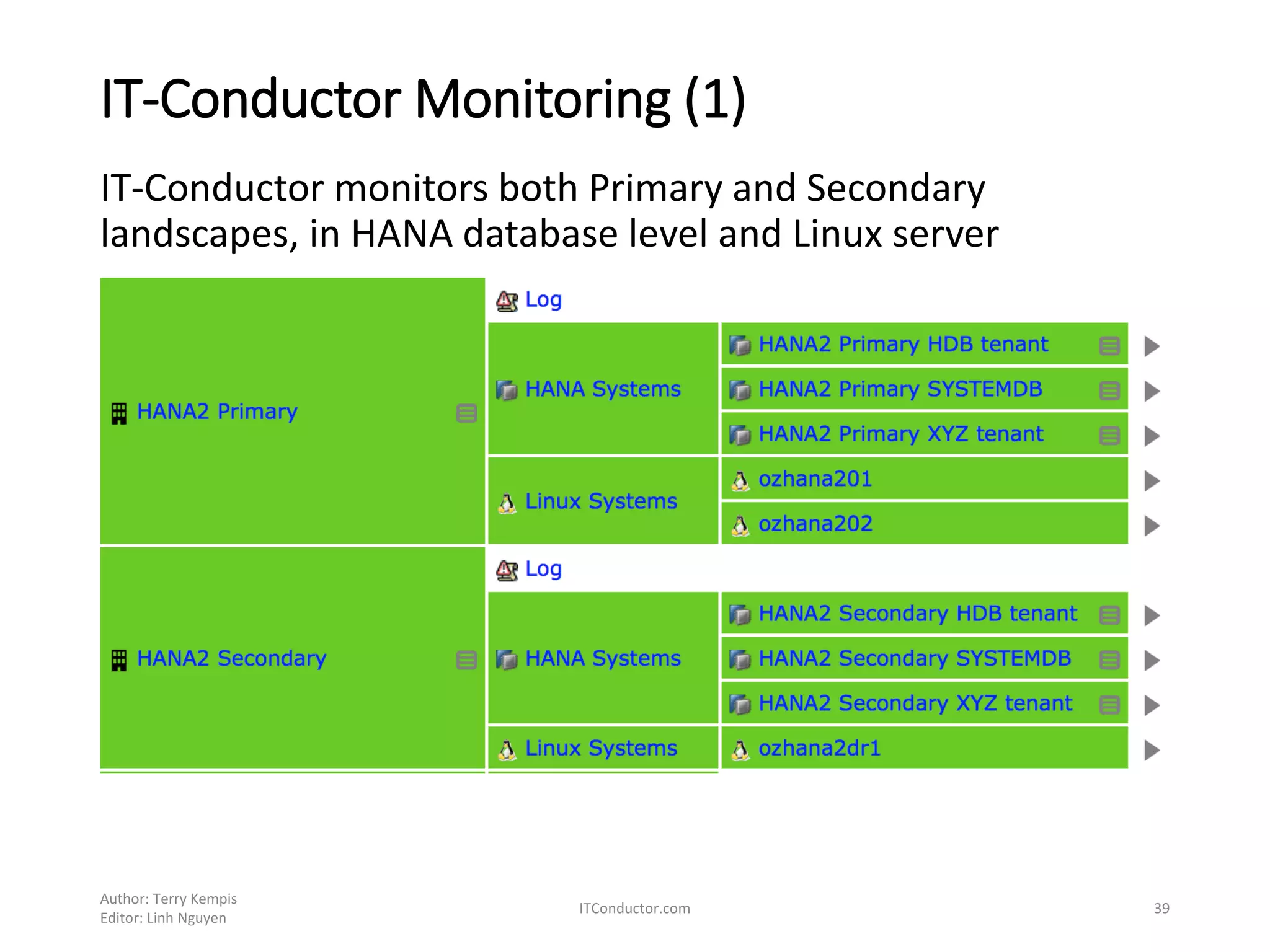

39. IT-Conductor Monitoring (1)
IT-Conductor monitors both Primary and Secondary
landscapes, in HANA database level and Linux server
Author: Terry Kempis
Editor: Linh Nguyen
ITConductor.com 39

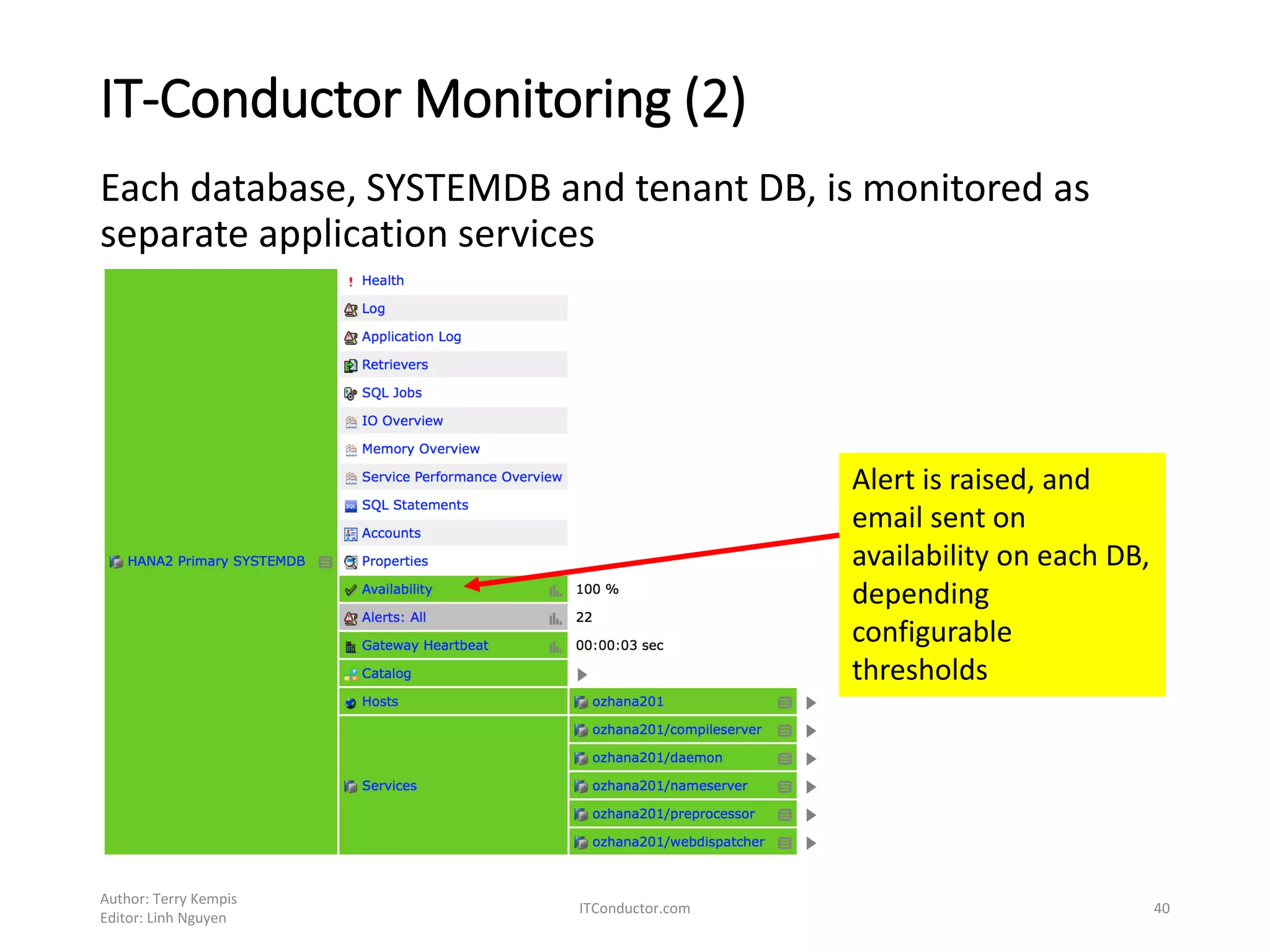

40. IT-Conductor Monitoring (2)
Each database, SYSTEMDB and tenant DB, is monitored as
separate application services
Author: Terry Kempis
Editor: Linh Nguyen
ITConductor.com 40
Alert is raised, and
email sent on
availability on each DB,
depending
configurable
thresholds

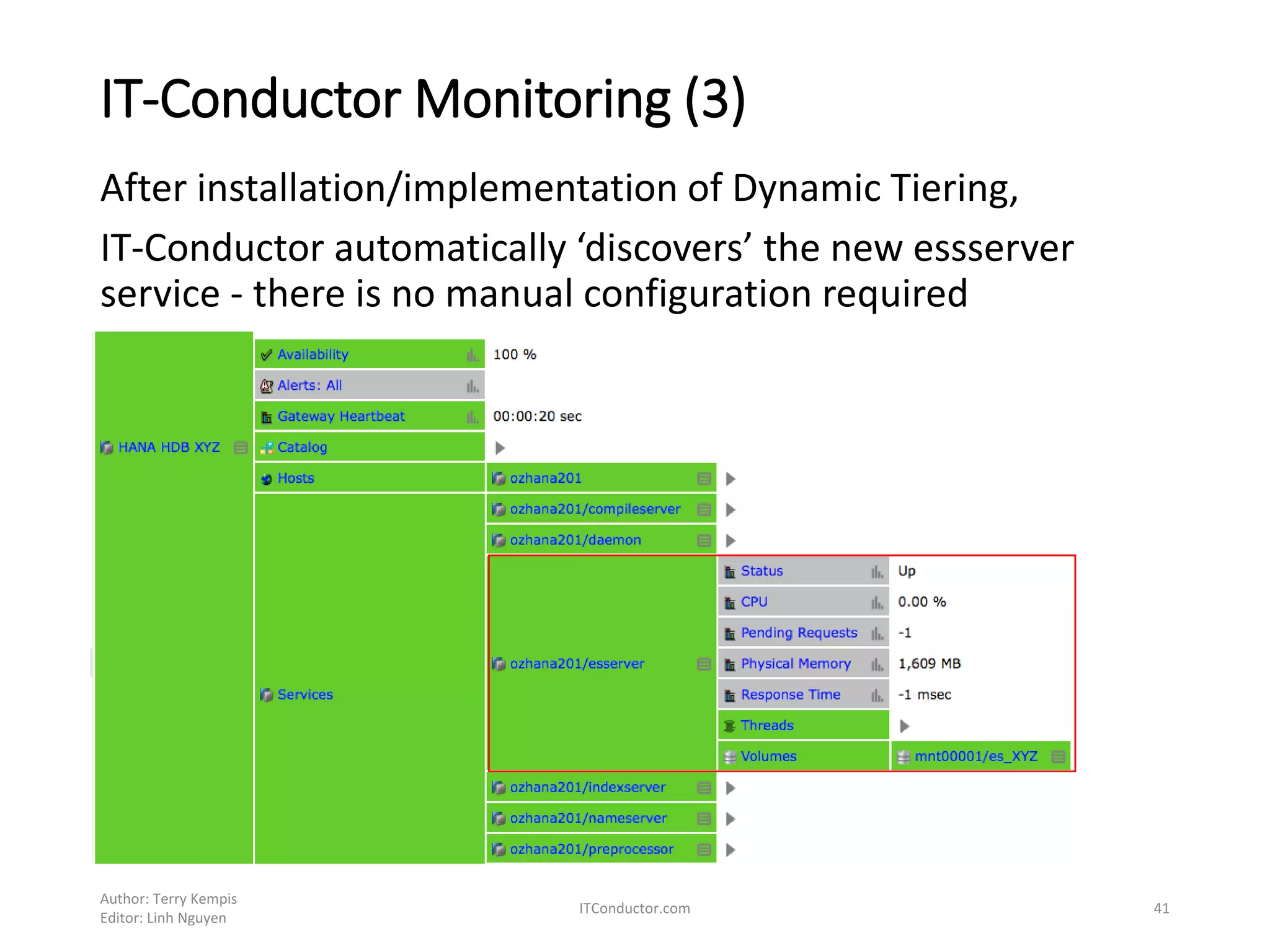

41. IT-Conductor Monitoring (3)
After installation/implementation of Dynamic Tiering,
IT-Conductor automatically ‘discovers’ the new essserver
service - there is no manual configuration required
Author: Terry Kempis
Editor: Linh Nguyen
ITConductor.com 41

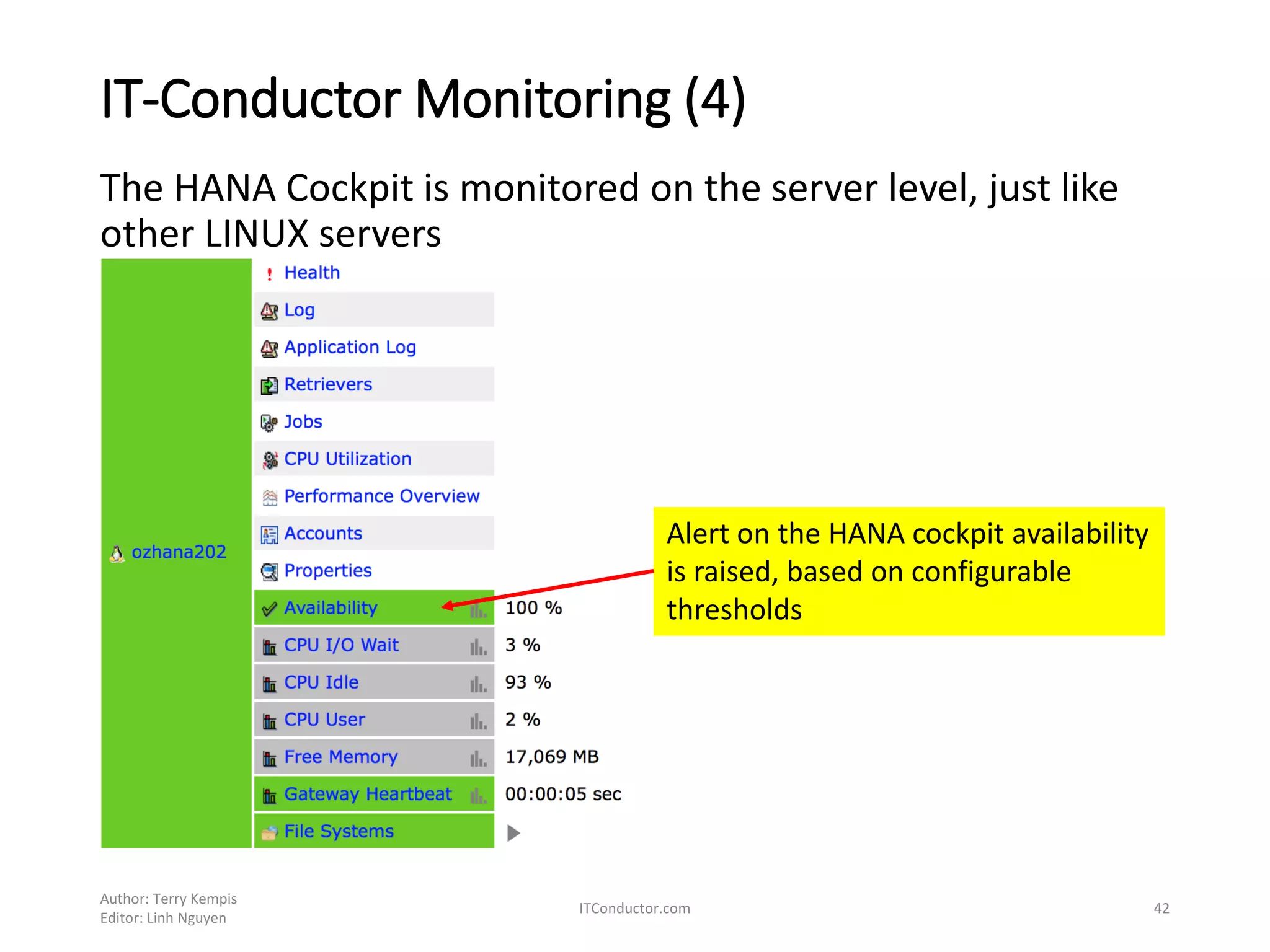

42. IT-Conductor Monitoring (4)
The HANA Cockpit is monitored on the server level, just like
other LINUX servers
Author: Terry Kempis
Editor: Linh Nguyen
ITConductor.com 42
Alert on the HANA cockpit availability
is raised, based on configurable
thresholds

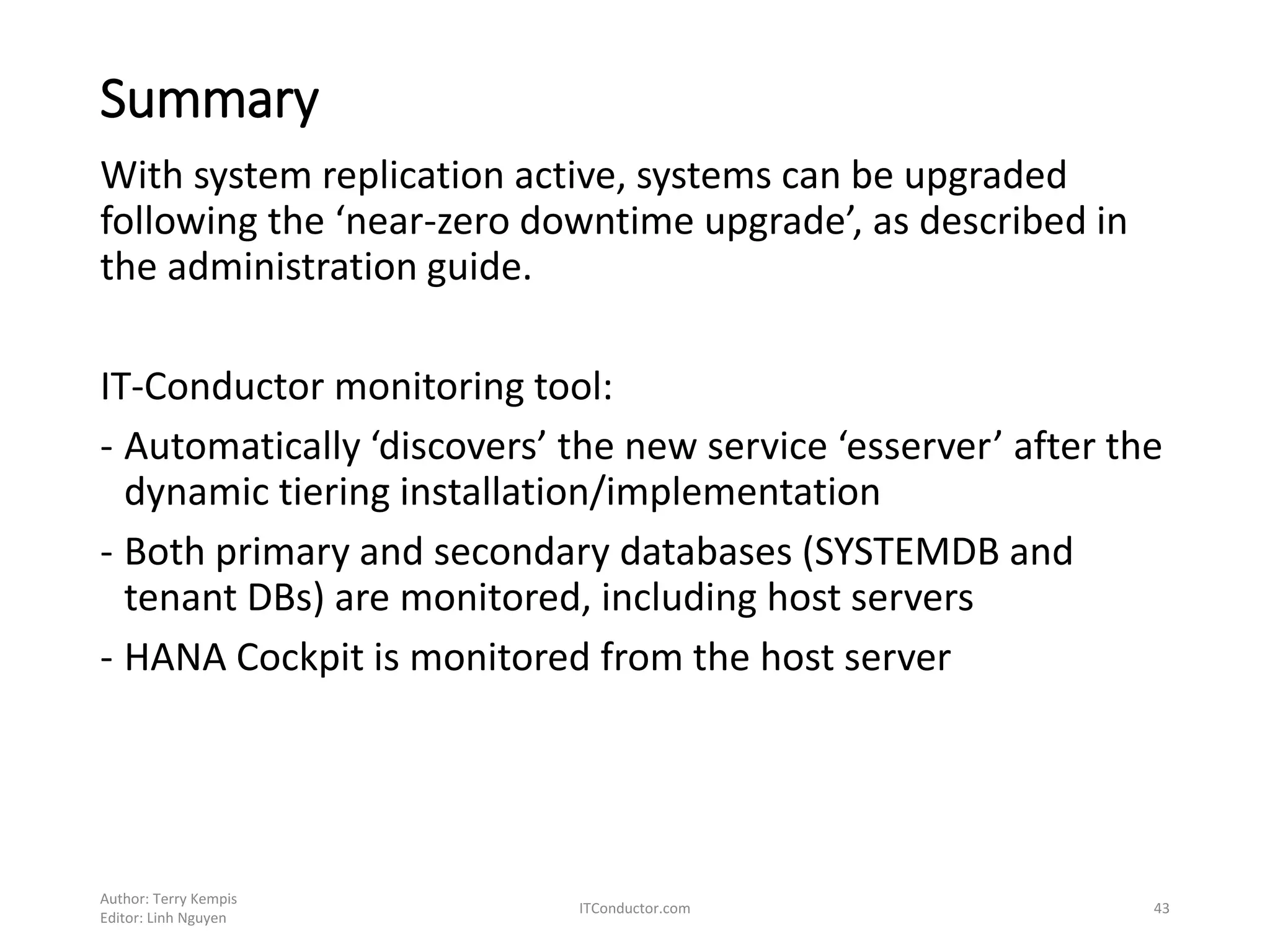

43. Summary
With system replication active, systems can be upgraded
following the ‘near-zero downtime upgrade’, as described in
the administration guide.
IT-Conductor monitoring tool:
- Automatically ‘discovers’ the new service ‘esserver’ after the
dynamic tiering installation/implementation
- Both primary and secondary databases (SYSTEMDB and
tenant DBs) are monitored, including host servers
- HANA Cockpit is monitored from the host server
Author: Terry Kempis
Editor: Linh Nguyen
ITConductor.com 43
