1. 1
Xen Testing at Intel
Xudong Hao
xudong.hao@intel.com
June 2018

2. 2

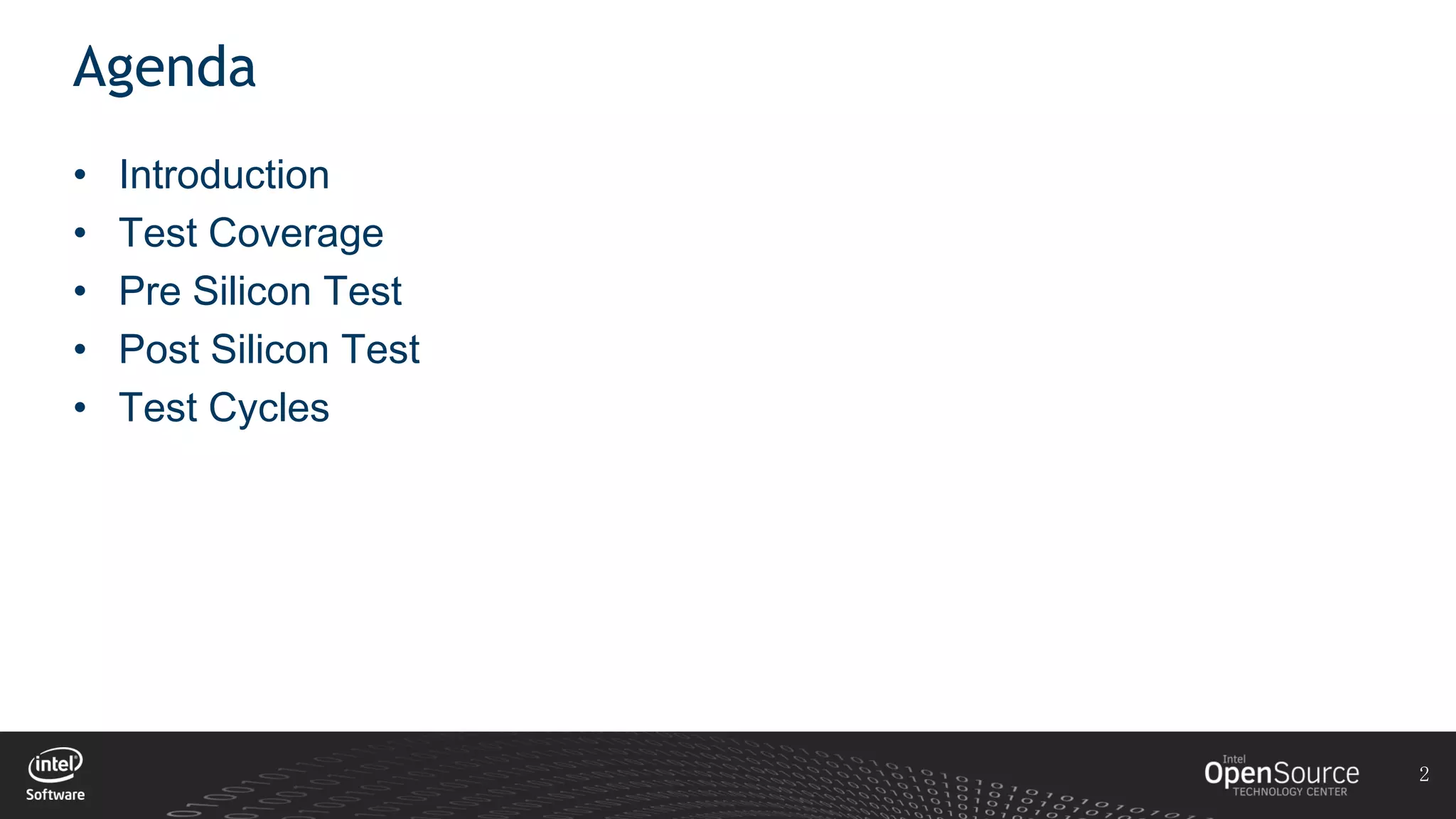

Agenda
• Introduction
• Test Coverage
• Pre Silicon Test
• Post Silicon Test
• Test Cycles

3. 3

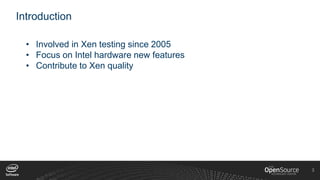

Introduction
• Involved in Xen testing since 2005
• Focus on Intel hardware new features
• Contribute to Xen quality

4. 4

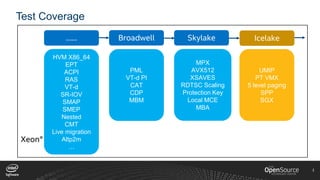

Test Coverage
4
Xeon®
……
HVM X86_64
EPT
ACPI
RAS
VT-d
SR-IOV
SMAP
SMEP
Nested
CMT
Live migration
Altp2m
…
Broadwell Skylake Icelake
PML
VT-d PI
CAT
CDP
MBM
MPX
AVX512
XSAVES
RDTSC Scaling
Protection Key
Local MCE
MBA
UMIP
PT VMX
5 level paging
SPP
SGX

5. 5

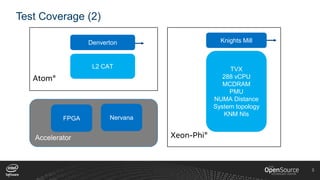

Test Coverage (2)
5
L2 CAT
Atom®
TVX
288 vCPU
MCDRAM
PMU
NUMA Distance
System topology
KNM NIs
Xeon-Phi®Accelerator
FPGA
Denverton Knights Mill
Nervana

6. 6

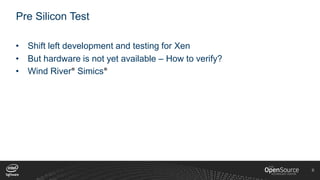

Pre Silicon Test
• Shift left development and testing for Xen
• But hardware is not yet available – How to verify?
• Wind River® Simics®
6

7. 7

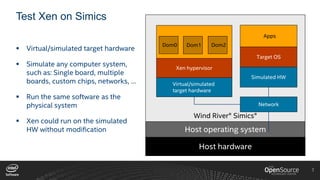

Test Xen on Simics
 Virtual/simulated target hardware
 Simulate any computer system,
such as: Single board, multiple
boards, custom chips, networks, …
 Run the same software as the
physical system
 Xen could run on the simulated
HW without modification
Wind River® Simics®
Host hardware
Host operating system
Xen hypervisor
Dom0
Apps
Target OS
Network
Virtual/simulated
target hardware
Simulated HW
Dom1 Dom2

8. 8
Post Silicon Test
 Automation Test
framework
 XVS (Xen Validation
System)
 Integrated XTF into
XVS

9. 9

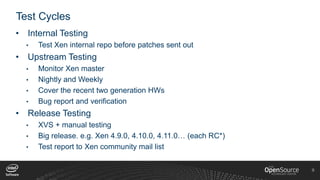

Test Cycles
• Internal Testing
• Test Xen internal repo before patches sent out
• Upstream Testing
• Monitor Xen master
• Nightly and Weekly
• Cover the recent two generation HWs
• Bug report and verification
• Release Testing
• XVS + manual testing
• Big release. e.g. Xen 4.9.0, 4.10.0, 4.11.0… (each RC*)
• Test report to Xen community mail list

10. 10

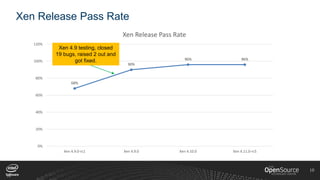

Xen Release Pass Rate
10
68%
90%
96% 96%
0%
20%
40%
60%
80%
100%
120%
Xen 4.9.0-rc1 Xen 4.9.0 Xen 4.10.0 Xen 4.11.0-rc5
Xen Release Pass Rate
Xen 4.9 testing, closed
19 bugs, raised 2 out and
got fixed.

11. 11

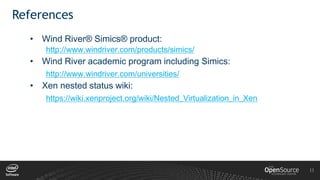

References
• Wind River® Simics® product:
http://www.windriver.com/products/simics/
• Wind River academic program including Simics:
http://www.windriver.com/universities/
• Xen nested status wiki:
https://wiki.xenproject.org/wiki/Nested_Virtualization_in_Xen

12. 12
Q & A

13. Thank you!
