The document discusses the applications and advantages of ultra-wideband (UWB) technology, highlighting its utility in low-power radar pulses for distance and velocity measurements, along with detection and imaging through barriers. It details the use of UWB in sensor networks for security purposes and provides examples of UWB imaging systems capable of high-resolution scans through concrete. Additionally, it mentions UWB RFID tags that are passive, cost-effective, and capable of long-range identification.

1. Roger Werne
Deputy Director
Industrial Partnerships Office
Lawrence Livermore National Laboratory
LLNL-PRES-503111

2. What makes UWB useful ?
 A very low power “radar”
pulse.
Penetrates and reflects
Distance & velocity
measurements
Detection & imaging through
barriers
Robust communication
RFID tagging
Examples to follow
Sample UWB signal
Frequency
Time
Space

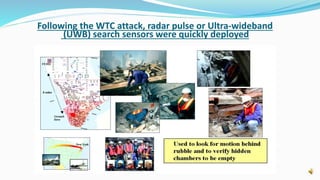

3. Following the WTC attack, radar pulse or Ultra-wideband
(UWB) search sensors were quickly deployed

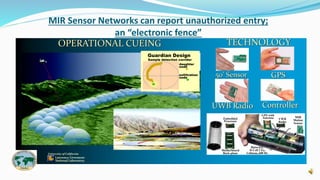

4. MIR Sensor Networks can report unauthorized entry;
an “electronic fence”
OPERATIONAL CUEING TECHNOLOGY
50’ Sensor GPS
UWB Radio Controller
Guardian Design
Sample detection corridor
daughter
node
exfiltration
node
Embedded
Processor
Motherboard
Back-plane
GPS with
Antenna UWB
Batteries,
D Cell 2 Ea.
Lithium, 600 Hr.
Radio
MIR
Motion
Sensor
University of California
Lawrence Livermore
National Laboratory

6. UWB Imaging
The HERMES system can provide
high resolution, high speed, 100%
coverage for lane inspections
• Full 3D reconstruction algorithms
• Penetration through 16” concrete
The Radar Camera can electronically scan
through walls at video frame rates
• Electronically beam steered array
• Advanced reconstruction algorithms
• 15’-25’ range
• On the fly calculations

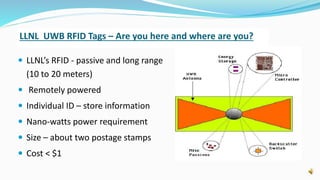

7. LLNL UWB RFID Tags – Are you here and where are you?
 LLNL’s RFID - passive and long range
(10 to 20 meters)
 Remotely powered
 Individual ID – store information
 Nano-watts power requirement
 Size – about two postage stamps
 Cost < $1

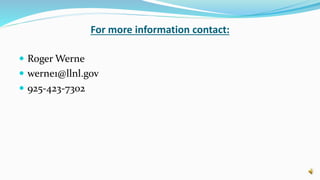

8. For more information contact:
 Roger Werne
 werne1@llnl.gov
 925-423-7302
